AC Leak?

Thread Tools

Search this Thread

Old Aug 2, 2015 | 02:54 PM
  #1
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland
AC Leak?

On passenger side in my 94 rx7 fd, it keeps leaking something. Looks like hazy water and dries up into a white residue. I think its an AC leak. What do i do to fix this? and if i cant, what would it cost in parts and labor (at $90/hr) to get it fixed?
Reply
Old Aug 2, 2015 | 03:09 PM
  #2
Andre The Giant's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (21)

Joined: Sep 2010
Posts: 532
Likes: 10
From: Dallas, Tx
Is the water coming out only when you are running the AC?
It is probably only condensation coming out from the evaporator drain.
This is normal operation.
Reply
Old Aug 2, 2015 | 04:24 PM
  #3
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland
yes, only when im running the AC. Normal operation meaning? normal for it to happen or? because my carpet is getting wet lol
Reply
Old Aug 2, 2015 | 04:29 PM
  #4
Andre The Giant's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (21)

Joined: Sep 2010
Posts: 532
Likes: 10
From: Dallas, Tx
Ah ok you didn't say where the leak was appearing. Yea the evaporator in the ac system inside the dash produces condensation, which is a supposed to drain out of a drain tube to under the car.
Sometimes a wasp type insect will make a mud nest inside the drain tube and clog it. Then the water backs up and leaks in the car.
Check the drain tube for obstruction, and I believe you can access it in the passenger footwell also.

Last edited by Andre The Giant; Aug 2, 2015 at 04:34 PM.
Reply
Old Aug 2, 2015 | 04:40 PM
  #5
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland
if i pull it out the hose on the passenger side footwell, will it start gushing out with fluid?
Reply
Old Aug 2, 2015 | 05:05 PM
  #6
Andre The Giant's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (21)

Joined: Sep 2010
Posts: 532
Likes: 10
From: Dallas, Tx
If the hose is completely clogged it might still have water accumulated inside. Place a towel down there before you detach the hose just in case. After you inspect and clean out the drain tube, make sure it's not kinked when you reinstall it.
Reply
Old Aug 2, 2015 | 09:36 PM
  #7
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland

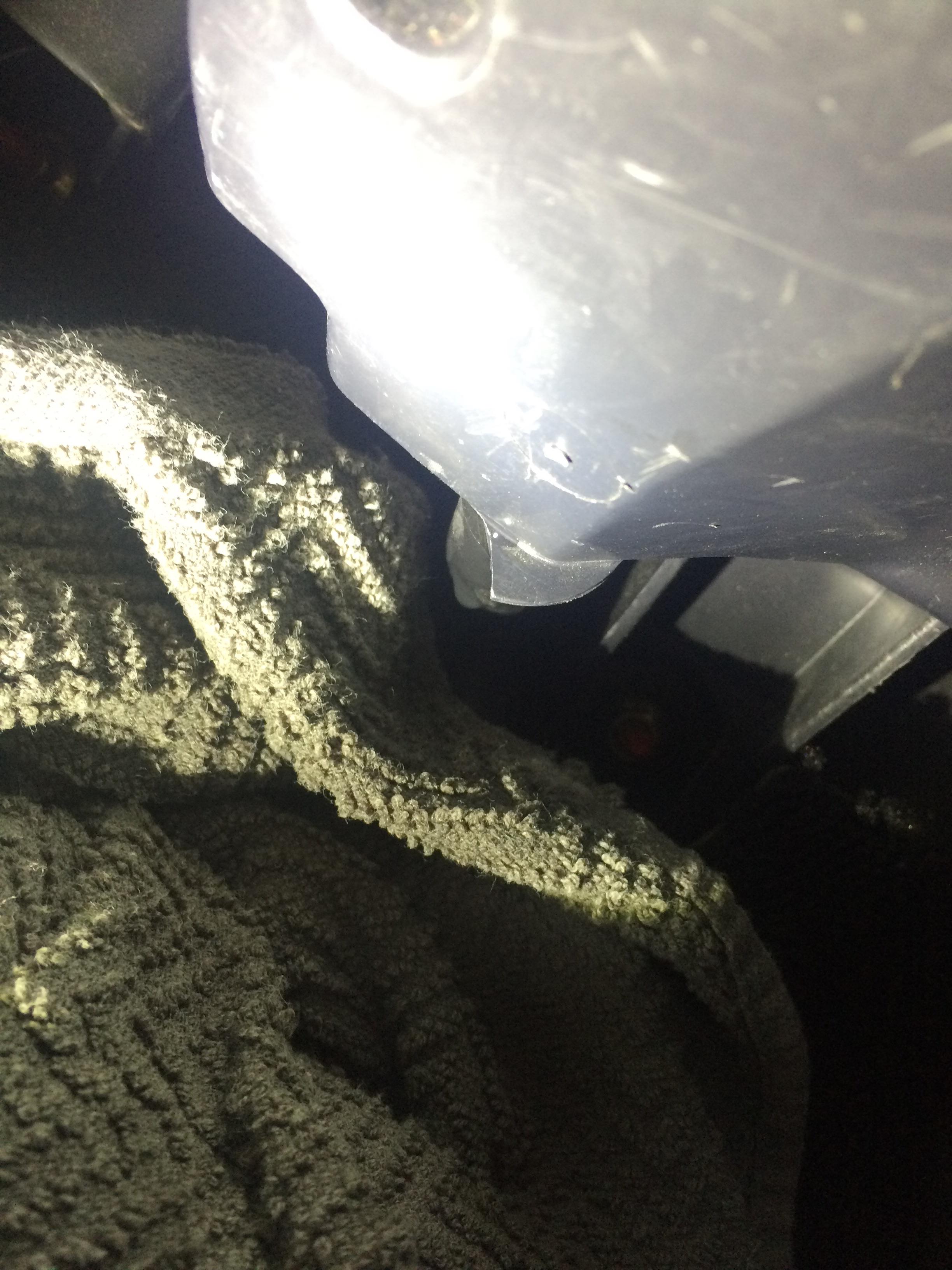

So I found the leak is coming from the top part of the hose where it connects to the condensater or whatever. AC Leak?-1rsjzs3.jpg

What do I do to fix it? No blockage or anything in the black little hose, just leaks where it connects.
Reply
Old Aug 2, 2015 | 10:22 PM
  #8
liznmike's Avatar
Junior Member

Joined: Jul 2015
Posts: 17
Likes: 0
From: virginia
If you can get the car up on a rack or even ramps you can get some coil/condenser cleaner. shoot the cleaner up through the drain hose into the evaporator box. it will emulsify the mold/algae/fungus/dirt in the box and water should drain out of the car through the hose normally. You may have to repeat the process a couple of times to get all the gunk out. If you have a cabin air filter you need to change that also.
Reply
Old Aug 2, 2015 | 10:22 PM
  #9
Andre The Giant's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (21)

Joined: Sep 2010
Posts: 532
Likes: 10
From: Dallas, Tx
If for sure the hose is free and clear of obstruction, I would try to see if you can get a zip tie around the hose to put some sealing tension on it and see if it stops dripping out.
Doesn't need to be super tight or anything because there is no pressure in that hose. Just tight enough to make leak free seal.
Reply
Old Aug 2, 2015 | 11:00 PM
  #10
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland
haha I literally did that 5 minutes before you posted it Thanks for all the help, I think that should do the trick. Ill find out real quick on my way to work tomorrow!
Reply
Old Aug 3, 2015 | 11:05 AM
  #11
gabescanlon's Avatar
Thread Starter
Gabe

Joined: Jul 2015
Posts: 84
Likes: 0
From: Portland
One last thing, where does the hose dump off to? like an area of the car where it then drains out of a hole?
Reply
Old Aug 5, 2015 | 07:34 AM
  #12
Andre The Giant's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (21)

Joined: Sep 2010
Posts: 532
Likes: 10
From: Dallas, Tx
Yes it just drips out of the tube to the ground below the car
Reply
