Ok soo I need some help from u gurus in here! my dilema is this I have a 87 turboII but with a cosmo 13b-re in it with the turboII oil pan but I lost my dipstick.... (I moved to a different house during my build) and I don't know if I accidently lost my dipstick or what but it gone and now I don't know what dipstick to get that will accurately read my oil level.... Ugh smh someone wit some insight on this plz help



FC fits. Is a mostly FC engine



U 100% sure? And is a n/a n turbo fc dipstick the same?



Anybody else have some insight on this?



Help anyone? Anyone?



look up the parts Numbers in the Parts manuals on here:Foxed.ca and compare them.

also,you can now post in the Specific Sections as your post count is now adequate.



I've got a Cosmo and the dip stick broke, a FC dipstick is the same



FC dipstick is not the same. It is not mostly an FC engine, just the front cover. The castings are all FD.

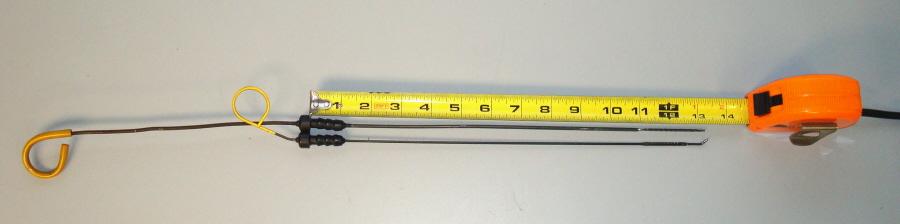

Length is 13.25" from the base of the seal that sits outside the tube to the tip. It is the same as the FD, which I use on both my 13B-RE and 20B, just has a much shorter handle portion. I just think it looks better.

S4 N/A dipstick is 14", meaning that the full mark would actually be running a quart low.

20B is the one with the long handle



Ok awsome so n fd would be the most accurate read n look better having a shorter handle n all



and thank u for the update im still tryna get the hang of how to use this thing lol
