The correct documentation to complete my 3rd gen update is really hard to come by. Every post is different than the others (No consistancy). I know I have taken on a large update (Replacement motor/Fuel/Single/FMIC/removing the non essentials). I really want to complete the mods myself, but damn this is really time consuming/confusing. Ideas for the best place to find the information (That is complete/correct)? Pics would be even better?

Really want a complete vaccum diagram next. I have found at least three versions, and they all have questions or missing nipples (Not being funny).

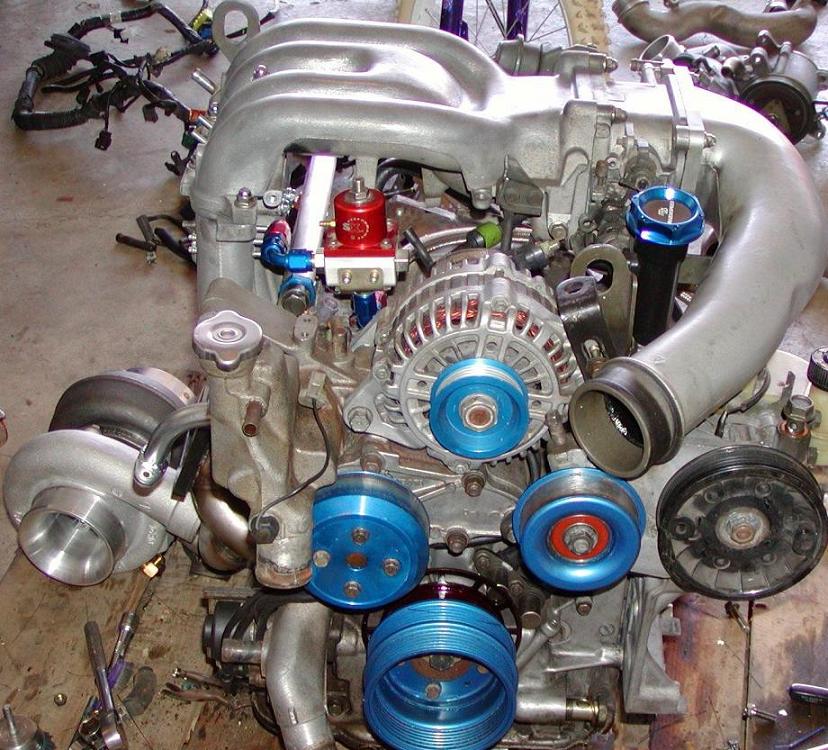

Installing
Custom GT35 - Mounted and plumbed
Custom Mani - Mounted
Tial Wastegate
HKS SSQ BOV
Greddy 2 Row - Nothing yet
Greddy Elbow - Bolted to the TB
Greddy pullies - Installed
K2RD Secondary fuel rail - Done - (Including the soldering the resistors)
1600's - Done
SX FPR - Done (I think)
Supra Fuel pump - Done
Rats nest completely removed (Maybe my mistake??)
Magnecor 10 mm plug wires - Done
New Platinum plugs - Done
Down/mid pipe combo - Done
BTW Motor is a J-Spec


Non Engine
New BBS RC rims
Brembo drilled and slotted rotors
Stainless brake lines
Hawn HP Plus pads (All 4 corners)


Thanks
David



Well I don't have the resources you need, but since I took a basically empty engine bay and installed a totally different drivetrain, I can relate to what you're going through.

When you think about the number ofthings you have to do, just make a list and check them off one by one. "Rebuild entire car" doesn't give you enough motivation so you break it down by things like "remove rat's nets" and "install brake rotors". Within each subject on the list, include thing that go along with it: If you're changing rotors and calipers, you don't need to think of replacing calipers as a whole separate project - since they come off anyway, it's just another step to changing rotors.

Bottom line is it's very difficult for most people to "just do it" when faced with a large project. I re-wrote my list about 15 times and it's still not finished (my interior is held together with like 3 bolts). When you do 5 things, cross them off, then make a new list. You will keep finding thigs to add, but eventually it will get shorter and shorter, and the next thing you know, "Drive the car" will be the last item on it. Good luck.
