Vac line diagram

Im just wondering what you guy have done for your vac lines and crankcase ventalaton.
Ive gotta take my inlet manifold off soon, so i thought i would get opinions on how mine is setup and hear what others have done too. im going to use some silicone hose this time too! (i should of the 1st time)

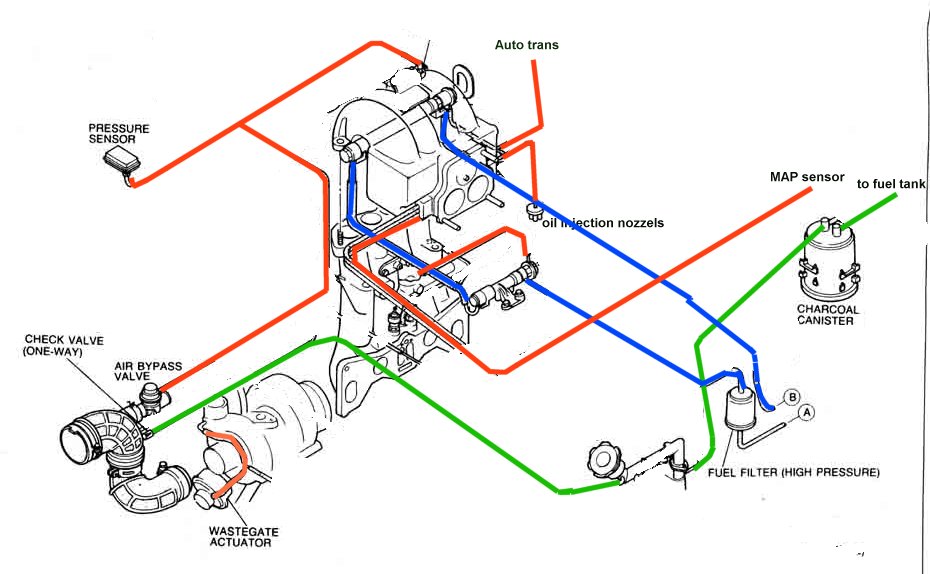

this is basicly how mine is now.. slightly different but the best the brain remembers.

https://www.rx7club.com/forum/attach...postid=2119623

RED = vac lines
BLUE = fuel
GREEN = crankcase ventilation

all unused vac nipples are capped (not shown)
ive kept the pressure sensor so my std boost gague works (which it does with a 5v power source) and the charchol canister so that a (not too hard) look under the bonnet dosent scream ive got no emmisions gear at all
Adsy01 is offline
Old 09-04-03, 11:37 PM
  #2
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
Adsy,

dont ever use the silicon stuff for vacuum lines, it is crap it sucks closed and blow up like a ballon under boost,

i did a test the other week,

took a piece of 1/4" id blue silicon hose and a 1/4" id -4 braided hose, the pressure difference they read was 4psi!! so if you use one on your map sensor you will be reading 4psi less than what the motor is getting!!

Dale
10sec rx7 is offline
Old 09-05-03, 12:48 AM
  #3
Senior Member
10 Year Member

bejbis's Avatar

Join Date: Jan 2002
Location: mobile, al
Posts: 381
Likes: 0
Received 0 Likes on 0 Posts
dale, are we talking like -4 stainless braided hose? if so. i dont even know where to get something this tiny.... all the silicone hose ive seen.....www.hosetechniques.com has been VERY high quality stuff, and very thick walls. i couldnt ever imagine that stuff collapseing when i can barley sqeese it close with my hand.


Daniel
bejbis is offline
Old 09-05-03, 01:51 AM
  #4
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
yes -4 rubber hose (1/4" ID) covered with a stainless braid, that stuff is eaisly avaliable down here, looks 400 times better than the silicon stuff as well,

the stuff i had was 1/4" ID and had a very stiff thick wall but it still managed to swell and suck closed,

ill get some pics of my engine bay with the new braided vac lines,

Dale
10sec rx7 is offline
Old 09-05-03, 06:04 AM
  #5
Laying Down Rotary Law
10 Year Member

Join Date: Mar 2001
Location: central florida
Posts: 2,075
Likes: 0
Received 0 Likes on 0 Posts
hmm steel Braided rubber hose eh?
what about using cheaper
Cotton Braided Hose?

you use wire straps to keep it in place also?
kabooski is offline
Old 09-05-03, 04:46 PM
  #6
occam's razor
iTrader: (1)

silverrotor's Avatar

Join Date: Mar 2002
Location: Toronto, Corporate Canada
Posts: 7,577
Likes: 0
Received 1 Like on 1 Post
Wow. I've got silcone vacuum lines myself.
silverrotor is offline
Old 09-05-03, 09:21 PM
  #7
ACBron Motorsport
10 Year Member
Thread Starter

Adsy01's Avatar

Join Date: Aug 2001
Location: Melbourne Australia
Posts: 608
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by 10sec rx7
Adsy,

dont ever use the silicon stuff for vacuum lines, it is crap it sucks closed and blow up like a ballon under boost,

i did a test the other week,

took a piece of 1/4" id blue silicon hose and a 1/4" id -4 braided hose, the pressure difference they read was 4psi!! so if you use one on your map sensor you will be reading 4psi less than what the motor is getting!!

Dale
thanks for that Dale,
can you get a reinfoced type of silicon hose??
im not too happy with the rubber thats on there now it may of just been a bad batch though, but it has aged alot and it's very low mileage and 6 months old.

Also what about the silicon hose that comes with things like turbosmart boost contollers?? ive seen two types.. the red stuff (looks reinforeced, is very think and heavy duty looking) and the plain looking clear stuff, are they suppling stuff that should be replaced?

Any one want to comment on the digaram?
Adsy01 is offline
Old 09-07-03, 02:08 PM
  #8
stop stealing my avatar
5 Year Member

Mark'sMazda's Avatar

Join Date: Apr 2002
Location: Canton MI
Posts: 825
Likes: 0
Received 0 Likes on 0 Posts
wow, thanks a ton for the heads up. I have silicon/braided hose for the fuel lines on my R/C car. However it's to small to be used as vac lines
Mark'sMazda is offline
Old 09-07-03, 08:51 PM
  #9
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
adsy,

not sure if you can get reinforced stuff or not, the turbosmart stuff is really really stiff and seems ok, its the ***** blue and red stuff that is no good,

Kabooski

i am using speed flow 100 series hose, as seen here
Speed flow hose

im using the -4 hose which is 1/4" and using the 100 series hose ends for it, no more leaks no more hose clamps!! everything just unbolts!

Dale
10sec rx7 is offline
Old 09-08-03, 03:36 AM
  #10
ACBron Motorsport
10 Year Member
Thread Starter

Adsy01's Avatar

Join Date: Aug 2001
Location: Melbourne Australia
Posts: 608
Likes: 0
Received 0 Likes on 0 Posts
well i redid the vac lines today i slightly changed it from the 1st diagram, im not using any of the lines from near the throttle body now.

Last edited by Adsy01; 09-08-03 at 03:40 AM.
Adsy01 is offline
Old 09-08-03, 01:26 PM
  #11
Round&Round not Up&Down
10 Year Member

jimmyv13's Avatar

Join Date: Aug 2001
Location: West Bloomfield, MI
Posts: 2,805
Likes: 0
Received 0 Likes on 0 Posts
Dale,
What kind of prices are we talking about with that hose?
jimmyv13 is offline
Old 09-08-03, 06:19 PM
  #12
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
its pretty cheap mate,

here is a small list of the prices, i have a full price list here if you want some specific prices.
vac lines are -4, turbo oil feeds etc are -6, brake booster line is -8, oil cooler -10 etc,
all prices are +10% gst, hose prices are per Metre (around 3 foot)

Item # Item Name List Price
100-04 -4 High Performance Hose $37.40
100-05 -5 Hose Braided $43.00
100-06 -6 Hose High Performance $33.00
100-07 -7 Hose Braided $49.00
100-08 -8 High Performance Hose $42.00
100-10 -10 High Performance Hose $52.00
100-12 -12 High Performance Hose $59.00
100-16 -16 High Performance Hose $82.50
100-20 -20 High Performance Hose $165.00
101-04 -4 Straight Hose End $14.30
101-06 -6 Straight Hose End $12.10
101-08 -8 Straight Hose End $14.30
101-10 -10 Straight Hose End $19.80
101-12 -12 Straight Hose End $27.50
101-16 -16 Straight Hose End $44.00
101-20 -20 Straight Hose End $77.00
102-04 -4 45 Degree Hose End $35.20
102-06 -6 45 Degree Hose End $30.25
102-08 -8 45 Degree Hose End $35.20
102-10 -10 45 Degree Hose End $44.00
102-12 -12 45 Degree Hose End $55.00
102-16 -16 45 Degree Hose End $88.00
102-20 -20 45 Degree Hose End $154.00
103-04 -4 90 Degree Hose End $35.20
103-06 -6 90 Degree Hose End $30.25
103-08 -8 90 Degree Hose End $35.20
103-10 -10 90 Degree Hose End $44.00
103-12 -12 90 Degree Hose End $55.00
103-16 -16 90 Degree Hose End $88.00
103-20 -20 90 Degree Hose End $154.00
104-06 -6 120 Degree Hose End $38.50
104-08 -8 120 Degree Hose End $46.20
104-10 -10 120 Degree Hose End $55.00
104-12 -12 120 Degree Hose End $66.00
104-16 -16 120 Degree Hose End $110.00
105-06 -6 150 Degree Hose End $38.50
105-08 -8 150 Degree Hose End $46.20
105-10 -10 150 Degree Hose End $55.00
105-12 -12 150 Degree Hose End $66.00
105-16 -16 150 Degree Hose End $110.00
106-06 -6 180 Degree Hose End $38.50
106-08 -8 180 Degree Hose End $46.20
106-10 -10 180 Degree Hose End $55.00
106-12 -12 180 Degree Hose End $66.00
106-16 -16 180 Degree Hose End $110.00
10sec rx7 is offline
Old 09-08-03, 08:38 PM
  #13
Professional Lurker
10 Year Member

Turbo Timmy's Avatar

Join Date: Feb 2001
Location: Orlando
Posts: 722
Likes: 0
Received 0 Likes on 0 Posts
Hmm... Sounds like someone *wink wink* should make and sell a kit.
Turbo Timmy is offline
Old 09-08-03, 09:21 PM
  #14
Round&Round not Up&Down
10 Year Member

jimmyv13's Avatar

Join Date: Aug 2001
Location: West Bloomfield, MI
Posts: 2,805
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by Turbo Timmy
Hmm... Sounds like someone *wink wink* should make and sell a kit.
jimmyv13 is offline
Old 09-09-03, 05:13 PM
  #15
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
you guys tell me what you want and ill get something happening,

the only problem with the braided stuff is you need a 1/4" vacuum point to put it onto!! i drilled and tapped my UIM with a 1/8bsp tap and screwed in fittings, looks hot and works a treat as all the fittings are anodized blue and red.

Dale
10sec rx7 is offline
Old 09-09-03, 10:46 PM
  #16
Round&Round not Up&Down
10 Year Member

jimmyv13's Avatar

Join Date: Aug 2001
Location: West Bloomfield, MI
Posts: 2,805
Likes: 0
Received 0 Likes on 0 Posts
What size is the nipple for the MAP sensor on the back of the ECU?

You should have 2 sources, right? One un-interrupted to the MAP sensor and the other one for the boost gauge and BOV, or am I mistaken?

I wouldn't need very much line, around 2-2.5 meters should be plenty. Then, I'll need to understand more on how they connect to the BOV, MAP, and boost gauge.
jimmyv13 is offline
Old 09-10-03, 05:38 AM
  #17
Rotary Enthusiast

10sec rx7's Avatar

Join Date: Mar 2001
Location: Sydney, Australia
Posts: 1,307
Likes: 0
Received 0 Likes on 0 Posts
ill have a look and see if i can get the 1/4" stuff on the map sensor, shouldnt be a problem,

ill get some pics of my connection method, that will give you some ideas.

Dale
10sec rx7 is offline
Old 09-21-03, 09:48 AM
  #18
i spent more on tires...
5 Year Member

reboot's Avatar

Join Date: Oct 2001
Location: Oakland, CA
Posts: 1,686
Likes: 0
Received 0 Likes on 0 Posts
yeah a kit would be nice..... i'm interested....
