Microtech help me figure out how to remove the fuel pump relay.

Microtech Area is for discussing Microtech systems

Microtech help me figure out how to remove the fuel pump relay.

Old 05-28-07, 12:07 PM
  #1
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
help me figure out how to remove the fuel pump relay.

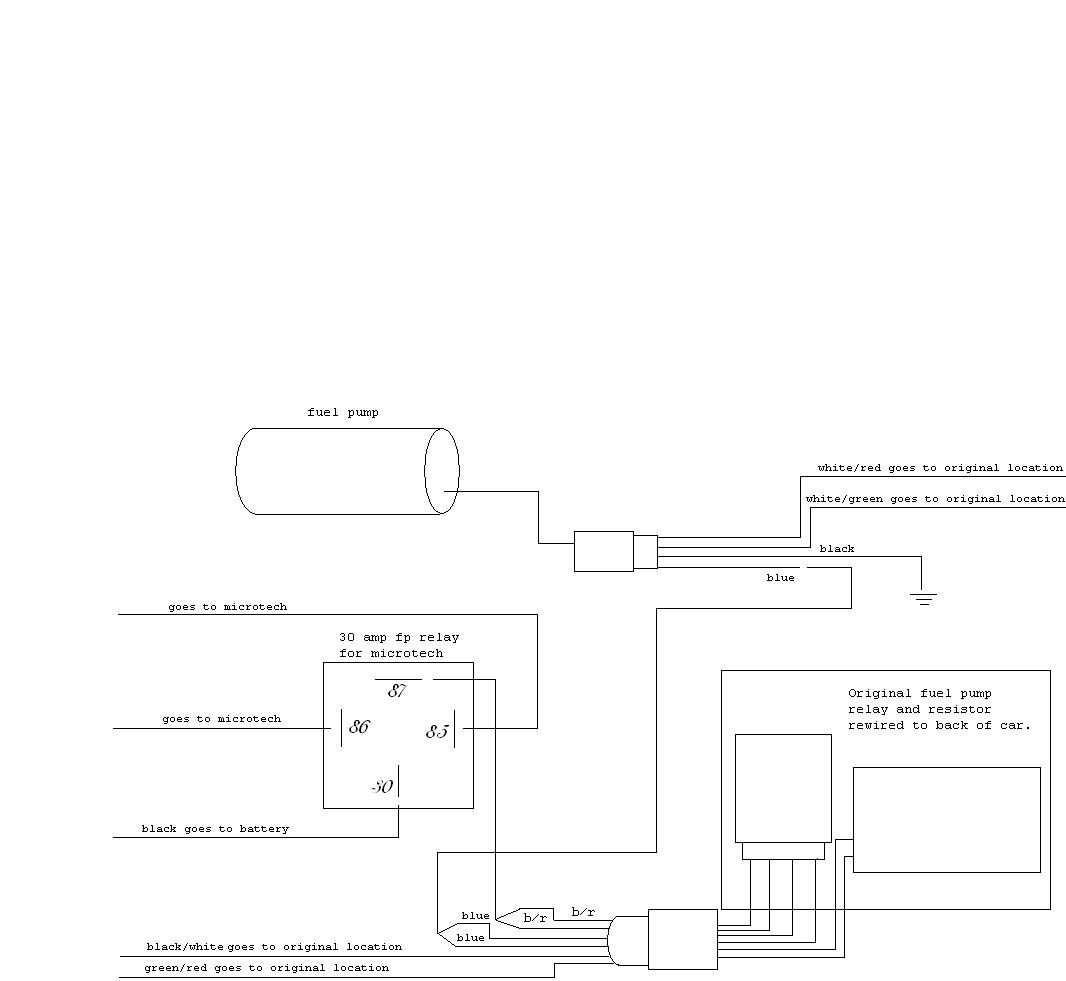

Here is a diagram I made of how my fuel pump is setup right now. I use a microtech wich comes with a 30 amp relay but some how I wired it up with my old relay as well witch works but I don't like the mess of wires everywhere and would like to make this alot more simple. I'm basically looking at how to remove the stock fp relay and just keep the one for the microtech. Here is the diagram.

https://www.rx7club.com/attachment.p...9&d=1180372039
Attached Thumbnails help me figure out how to remove the fuel pump relay.-fuel-pressure-relay.jpg
hondahater is offline
Old 05-28-07, 12:12 PM
  #2
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
mods if you think this needs to go in the microtech section feel free to move it. Just figured there was quite a few electrical guys here that could help me. Thanks.
hondahater is offline
Old 05-28-07, 12:42 PM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,654
Likes: 0
Received 131 Likes on 117 Posts
unless i'm missing something, pin 87 on the relay just goes to the blue fp wire?
j9fd3s is offline
Old 05-28-07, 08:59 PM
  #4
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
pin 87 goes to the blue/red wire on the fuel pump relay.
hondahater is offline
Old 05-29-07, 05:58 AM
  #5
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
this diagram may clear up some places where you can get confused.

https://www.rx7club.com/attachment.p...3&d=1180436312
Attached Thumbnails help me figure out how to remove the fuel pump relay.-fuel-pressure-relay.jpg
hondahater is offline
Old 05-29-07, 07:57 AM
  #6
Crash Auto?Fix Auto.
iTrader: (3)

classicauto's Avatar

Join Date: May 2003
Location: Hagersville Ontario
Posts: 7,830
Likes: 0
Received 1 Like on 1 Post
I don't understand...you've tried to use the resistor pack again in the microtech setup?

If all you want to do is delete all that mess, run the pump's power wire from the directly to the high amp side of the relay, and ground the ground. I threw all that factory stuff in a box when I did the Haltech install.

I think I see what you were trying to do (modifying the pump voltage for idle?) and thats an interesting thought/feature for the standalone.

Edit: Pin 87 on the Mircotech relay should be going to the fuel pump's + wire.
classicauto is offline
Old 05-29-07, 08:43 AM
  #7
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,674
Likes: 0
Received 24 Likes on 23 Posts
The resistor pack and associate relays get trashed. The fuel pump gets connected exactly as in the Microtech wiring diagram. One side of the coil goes to the pink wire, one side to the green (?) wire. The common contact goes to your fused 12V source from the battery, and the normally open contact goes to the + wire of the fuel pump (blue in a stock application I think). That's basically all there is to it.

The stock fuel pump relays and resistor packs are of no use. In fact, my fuel pump relay sits on the workbench...
Aaron Cake is offline
Old 05-29-07, 09:32 AM
  #8
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
First off Thank you guys very much! Sometimes I have a tendency to way over think stuff. So basically I just trash the original resisitor and relay and do this simple little thing?

Originally Posted by Aaron Cake View Post
The stock fuel pump relays and resistor packs are of no use. In fact, my fuel pump relay sits on the workbench...
lol that is exactly where I would like to see mine
Attached Thumbnails help me figure out how to remove the fuel pump relay.-revised.jpg
hondahater is offline
Old 05-30-07, 08:48 AM
  #9
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,674
Likes: 0
Received 24 Likes on 23 Posts
That looks much better.
Aaron Cake is offline
Old 05-30-07, 10:07 PM
  #10
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
Thanks a ton! I'm going to do this saturday or sunday along with a bunch of other rewiring I need to do. Again I do appreciate everyones help!
hondahater is offline
