Crane hi-6 x2, Crane lx92 coils x2, microtech lt8

How would I go about wiring this up? Do I need the stock ignitor for this? How does both the coils get the trigger? Any help would be great! Thanks.
hondahater is offline
Old 10-10-06, 03:42 PM
  #2
Hot Dicken's Cider
10 Year Member
iTrader: (2)

DelSlow's Avatar

Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes on 0 Posts
You will need to purchase an aftermarket ignitor. I had major problems with my FC-3000 and MSD coils wired to my LT-8s without an ignitor because I didn't realize I needed one. You could try PM'ing "C. Ludwig" on this forum, as he is the one that figured out my problems and got me a Haltech ignitor.


Also, both coils are triggered at the same time in a wasted spark mode, just like stock.
DelSlow is offline
Old 10-10-06, 03:53 PM
  #3
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
So you can't just use the stock ignitor?
hondahater is offline
Old 10-10-06, 04:46 PM
  #4
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
My HI-6 is wired directly to the Microtech...no problems here. You just need to use the right inputs on the HI-6.

Red wire to IGN, thick red and black to battery, white wire to trigger (grey/blue on LT8s harness).
Aaron Cake is offline
Old 10-10-06, 05:22 PM
  #5
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
thanks aaron, but what do you do with the microtech trigger if you have two hi-6's?

edit: and does it matter if your microtech was setup for stock coils and sensors or the microtech coils and sensors.

Last edited by hondahater; 10-10-06 at 05:24 PM.
hondahater is offline
Old 10-10-06, 05:41 PM
  #6
Hot Dicken's Cider
10 Year Member
iTrader: (2)

DelSlow's Avatar

Join Date: May 2003
Location: Marion, Ohio
Posts: 1,428
Likes: 0
Received 0 Likes on 0 Posts
The Microtech uses one signal wire for the leading coils like stock, so you can use stock coils, or in your case, just split the one signal wire to each box.
DelSlow is offline
Old 10-10-06, 06:05 PM
  #7
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
ahhh ok thats exactly what i needed to know. So you say we need an ignitor and aaron says we don't? Thats the last thing I need to know.
hondahater is offline
Old 10-10-06, 08:52 PM
  #8
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
any idea?
hondahater is offline
Old 10-10-06, 11:43 PM
  #9
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,112
Received 30 Likes on 23 Posts
I've set up a couple MTs with CDI boxes and both needed an ignitor. Travel over to the MT forums Link and you will hear two things from the factory techs. a) Don't run a CDI box. They are evil. b) They won't work anyway. What you will here from others is just what you are hearing here. Some work and some don't. If they don't work by directly connecting them to the MT trigger then install an ignitor in-line and you should have no problems.

The basic problem is that the CDI boxes like to see a rising edge trigger while an ignitor (stock coil) wants to see a falling edge. Most EMSs are programmable and can trigger on a rising or falling edge. The MT is not user programmable and deafults to trigger on a falling edge. Some CDI seem to trigger fine on the MT falling edge. Others don't.

What I would do if I were intent on running a CDI is to first wire up the stock coils. Run the car like this to ensure that you have all the other bugs worked out and if there is a problem it's not the CDI. Once it's running well enough swap in the CDI box of your choice without an ignitor. See what ya get. You'll know if you have problems immediately. If you do have problems pick up an aftermarket ignitor and swap it in-line bewteen the MT output and the CDI.

As far as wiring two seperate coils to fire the leading plugs. If you are using two CDI boxes for the leading (is what I read from the title) then simply split the trigger wire, either directly from the MT or from the ignitor is used, to the two CDI boxes. Each box would fire one coil. They still fire at the same time in a waste spark configuration. Or you could use one box with the output from the single box firing both coils.

We've run two different cars to 16-17 psi on the stock coils without a CDI without ignition issues. Unless you are set on running some serious boost the CDI won't provide a serious performance advantage.

Last edited by C. Ludwig; 10-10-06 at 11:46 PM.
C. Ludwig is offline
Old 10-11-06, 01:03 AM
  #10
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the info it helps alot! I'm planning on running 20-22lbs of boost on a t61 with water/alky injection and from what i'm hearing with water injection the limmit of the amount of water you can inject is directly related to the ignition and how beefy it is. So can you use the stock ignitor with this setup if an ignitor is needed? Thanks again.
hondahater is offline
Old 10-11-06, 05:46 AM
  #11
CURVE OF CONSTANT WIDTH
10 Year Member
iTrader: (4)

RotaryBuddha's Avatar

Join Date: Mar 2004
Location: Wesley Chapel, FL
Posts: 2,312
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DelSlow
The Microtech uses one signal wire for the leading coils like stock, so you can use stock coils, or in your case, just split the one signal wire to each box.
my lt8x doesnt do this it seperates the leading coils, and has it own built in ignitor. so you would need 4 serperated CDI boxes in my application.
RotaryBuddha is offline
Old 10-11-06, 08:55 AM
  #12
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,112
Received 30 Likes on 23 Posts
Originally Posted by hondahater
Thanks for the info it helps alot! I'm planning on running 20-22lbs of boost on a t61 with water/alky injection and from what i'm hearing with water injection the limmit of the amount of water you can inject is directly related to the ignition and how beefy it is. So can you use the stock ignitor with this setup if an ignitor is needed? Thanks again.

Probably could. At one point I started to tear one down and look at it but never finished. I'm a Haltech dealer so I just order the ignitor from them.
C. Ludwig is offline
Old 10-12-06, 08:42 AM
  #13
Engine, Not Motor
iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,671
Likes: 0
Received 23 Likes on 22 Posts
Originally Posted by hondahater
thanks aaron, but what do you do with the microtech trigger if you have two hi-6's?
Nothing. Just connect both boxes trigger inputs to the same leading output on the Microtech.

Talk about massive overkill though.
Aaron Cake is offline
Old 10-31-06, 07:06 AM
  #14
boxed in and drawn out
10 Year Member

APEXL8T's Avatar

Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes on 0 Posts

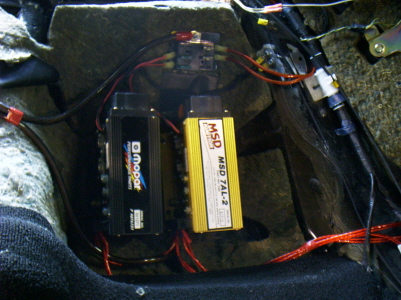

My massive over kill!

These replace the ignitors....different car though. Hondahater.Call Freddy...
Attached Thumbnails Crane hi-6 x2, Crane lx92 coils x2, microtech lt8-7al-2small.jpg
APEXL8T is offline
Old 11-05-06, 06:42 PM
  #15
spending too much money..
10 Year Member
Thread Starter
iTrader: (2)

hondahater's Avatar

Join Date: Dec 2002
Location: louisiana
Posts: 10,117
Likes: 0
Received 0 Likes on 0 Posts
oh thanks guys for the replys. I didn't see these. Anyways yeah aaron it is kind of overkill but with water injection I want to beable to add enough water to really make a differance at 22psi on a t61 so from what i've heard a good ignition system is needed. Apex, who is freddy?
hondahater is offline
Old 11-06-06, 06:56 PM
  #16
boxed in and drawn out
10 Year Member

APEXL8T's Avatar

Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by hondahater
Apex, who is freddy?
http://ourworld.cs.com/talvendi/id196.htm
