FD engine settings

I have a question regarding REW engine settings I currently have. I have a 1000cc/2200cc setup and I'm seeing 70% duty cycle at the top of third at only 9 psi. This is with E85 and a 61mm turbo.

I believe it may have something to do with my engine settings but the car runs perfectly fine, city driving and full throttle. See below for engine settings and a datalog. Anyone see anything weird with the settings? I'm running an MS2 v3.0, FFE hall sensor, 36-1 trigger wheel, and stock coils.

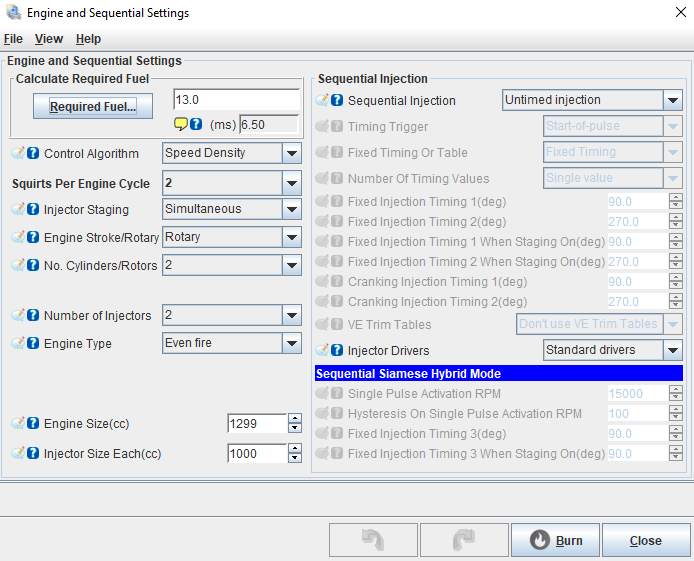

FD engine settings-xeei98g.png

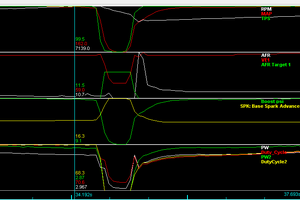

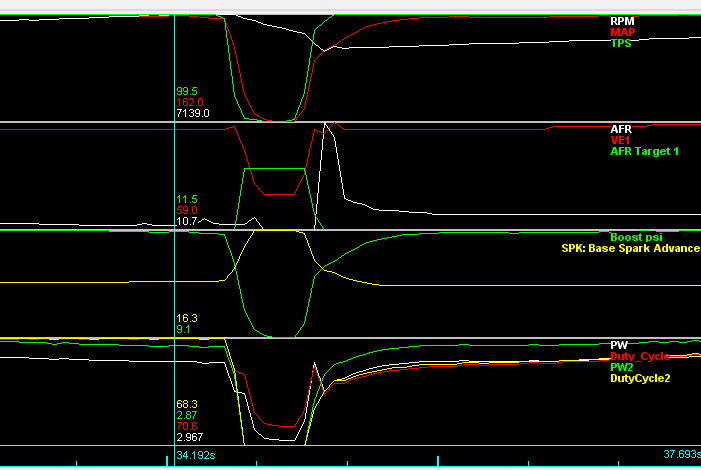

FD engine settings-k2losi7.png
Reply
Old May 4, 2020 | 08:04 PM
  #2
esoterias17's Avatar
Junior Member
Tenured Member: 10 Years

Joined: Jul 2013
Posts: 22
Likes: 0
From: venezuela
hello it is late to answer hehehe .. but check the fuel pump, the regulator actually all the fuel system to know if you need larger injectors is classic that this happens
Reply
Old May 16, 2020 | 11:02 PM
  #3
elturbonitroso's Avatar
Senior Member
Tenured Member: 15 Years

Joined: Nov 2006
Posts: 472
Likes: 16
From: connecticut
Change the squirt per engine cycle to 1
