Today I join the Vi-Spec V88 club

Old 10-24-13, 12:08 AM
  #1
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Today I join the Vi-Spec V88 club

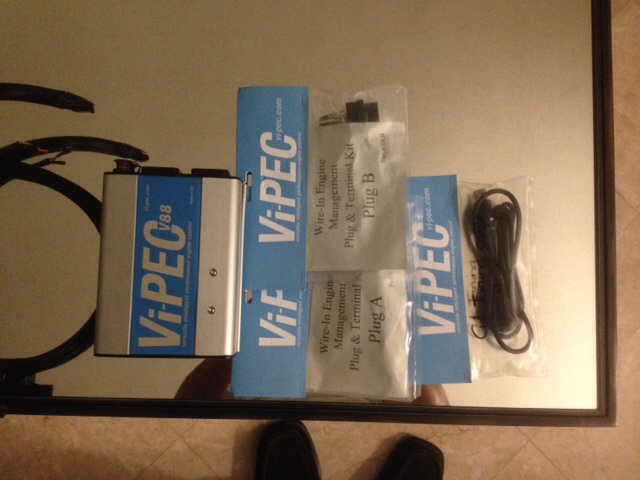

Here is a pic of what I got in the mail today... V88 goodies
Time to get out of the dark age of EMS ( Microtech )
Attached Thumbnails Today I join the Vi-Spec V88 club-image.jpg
AXA is offline
Old 10-24-13, 11:33 AM
  #2
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Maybe you guys can help me out with this..

What EGT,fuel pressure, oil pressure sensor should I get to work with the V88 ..?

I will be using the factory TPS from my FD UIM and my Turbo II AIR temp sensor... Or I need to get new specific ones for this ECU?


I also need a 4 bar map sensor, Can I used a generic one from AEM with the V88 ?

Thanks in advance...
AXA is offline
Old 10-28-13, 12:41 AM
  #3
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
No help ...

I need to order the sensors... I guest I have to email Vi-pec..
AXA is offline
Old 10-28-13, 01:51 AM
  #4
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,010
Thanks: 0
Thanked 2 Times in 2 Posts
Lots of good info, most of what you need, can be found here:

https://www.rx7club.com/link-vi-pec-...ec-v88-993856/
BurntOrangeT2 is offline
Old 10-28-13, 04:11 AM
  #5
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Thanks: 0
Thanked 1 Time in 1 Post
and PS,, throw the t2 air temp sender in the bin.. find something not using the ND curve . IE,, something faster action with a delco curve so you can pull the calibration file in easily
( thinks the weapon of choice is from a bike like a triumph )
bumpstart is offline
Old 10-28-13, 09:24 AM
  #6
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Howard Coleman CPR View Post
just a brief update:

i am close to being finished w the wire-in. i am enjoying the work. it does take time but the ViPEC manual is very well executed and combined w the Mazda Wiring Shop Manual, a few emails to ViPEC which were answered the same day, searches thru the ECU Section, and help from fellow board member, the amazing, Chris Ludwig i am comfortable as to quality of execution to date.

there are lots of unique items.

four type K thermocouples (two EGTs, one intake air temp and one turbo output temp sensor)

two Bosch Mazda RX8 knock sensors

new type engine coolant and oil temperature sensors

new Link ViPEC four bar MAP sensor

four IGN-1A ignition coils (each w 5 wires that had to be soldered into their fittings)

four new custom Primary spark leads

two additional Bosch EV14 fuel injectors, one pre turbo, one in the elbow

two new EV14 1000 for my primaries

a new wide band featuring the uprated LSU 4.9 sensor and Bosch chip

three digital/logging pressure sensors, oil, fuel and AI system

new Full Function Eng primary and secondary fuel rails

new Full Function Eng Hall crank pickup system

new turbo manifold, new CHRA for the BW turbo, new engine

i am sure i am missing a few items but trail's end is in sight.

today i should finish the engine compartment and monday i will move to the cockpit... mainly connecting a number of relays... fuel pump, ignition coils & AI pump. then there's dealing w the dash items... tach speedo etc

it sure isn't over but it has been fun and will be exciting to experience initial blastoff.

there are a few issues i need to solve, mainly the fan hookup and dash items.

when finished i will post everything needed to do the wire in as i have been carefully making notes.

i can't wait to get to the point where i can install my transposed maps from my Power FC and turn the key.

howard
Thanks for the reply Sir.. I read this thread before...

He never specify a brand of sensor he uses for the coolant temp, Air temp sensor or fuel press only the map sensor....
I don't want to order sensor and stuff from NZ I want to get it locally here in the USA if possible....

I am also looking for a EGT and flexfuel sensor......

I email Titanmotosport and waiting for them to reply...
AXA is offline
Old 10-28-13, 09:28 AM
  #7
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by bumpstart View Post
and PS,, throw the t2 air temp sender in the bin.. find something not using the ND curve . IE,, something faster action with a delco curve so you can pull the calibration file in easily
( thinks the weapon of choice is from a bike like a triumph )

????

Sorry mate you got me.... Don't understand your reply...

I am not really good with sensor and electronic parts specifics..
AXA is offline
Old 10-28-13, 09:51 AM
  #8
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Thanks: 0
Thanked 1 Time in 1 Post
delco curve is the resistance curve of the most common sender units
the information concerning this is readily avail
.. the ECU must have the information about this so as to reproduce an accurate reading

the FC air temp sender is a bastard.. it is a nippon denso unique curve and the best you will do for info is a very vague 3 plots and so your temperature reading in the ecu will be far from accurate

the FD AIT sensor moved back to the common delco curve but is slow
( incidentally the FC and FD coolant senor has been delco curve all along )

the triumph part T1290510 is a much faster responding sender.. and uses the FD/ delco curve shape.. so you will have a better probe,, and infinitely more accurate calibration file
bumpstart is offline
Old 10-28-13, 10:06 AM
  #9
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by bumpstart View Post
delco curve is the resistance curve of the most common sender units
the information concerning this is readily avail
.. the ECU must have the information about this so as to reproduce an accurate reading

the FC air temp sender is a bastard.. it is a nippon denso unique curve and the best you will do for info is a very vague 3 plots and so your temperature reading in the ecu will be far from accurate

the FD AIT sensor moved back to the common delco curve but is slow
( incidentally the FC and FD coolant senor has been delco curve all along )

the triumph part T1290510 is a much faster responding sender.. and uses the FD/ delco curve shape.. so you will have a better probe,, and infinitely more accurate calibration file


So I am good with my OEM coolant temp sensor, I only need to get a new AIT from triumph...

Thanks for taking the time to reply
AXA is offline
Old 10-28-13, 12:09 PM
  #10
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,010
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by AXA View Post
Thanks for the reply Sir.. I read this thread before...

He never specify a brand of sensor he uses for the coolant temp, Air temp sensor or fuel press only the map sensor....
I don't want to order sensor and stuff from NZ I want to get it locally here in the USA if possible....

I am also looking for a EGT and flexfuel sensor......

I email Titanmotosport and waiting for them to reply...
Try this site:

lms-efi

Chris is the owner of that site/shop, awesome guy with great knowledge and wonderful customer support. If he cant help with your specific app, then he can def point you in the right direction. Although, I'm fairly sure he will be able to get you sorted out

Here he is on the forum if it helps too:

RX7Club.com - View Profile: C. Ludwig
BurntOrangeT2 is offline
Old 10-29-13, 02:28 PM
  #11
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by BurntOrangeT2 View Post
Try this site:

lms-efi

Chris is the owner of that site/shop, awesome guy with great knowledge and wonderful customer support. If he cant help with your specific app, then he can def point you in the right direction. Although, I'm fairly sure he will be able to get you sorted out

Here he is on the forum if it helps too:

RX7Club.com - View Profile: C. Ludwig

Thanks, email send to Chris...
AXA is offline
Old 11-05-13, 03:53 PM
  #12
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
I got a few questions answer by a Vi-Pec guru ( John Reed) ..... I am posting this for public knowledge..
Thanks John Reed for your time to answer all my questions about the V88...



The V88 can used our OEM coolant temp sensor from a Turbo II and FD but not the AIT sensors...

According to him is fine to used a GM AIT sensor and the 5 bar Map sensor from AEM ...

Al pressure sensor from AEM or similar brands can be used with the V88 to monitor fuel and oil press and others...

For EGT we need to get the RTD type sensor and not the K-Type ( the K-type needs a suitable amplifier to work)

I hope this helps other..

Time to make my order....
AXA is offline
Old 11-05-13, 07:42 PM
  #13
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,010
Thanks: 0
Thanked 2 Times in 2 Posts
glad you got it sorted
BurntOrangeT2 is offline
Old 02-26-14, 11:32 PM
  #14
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

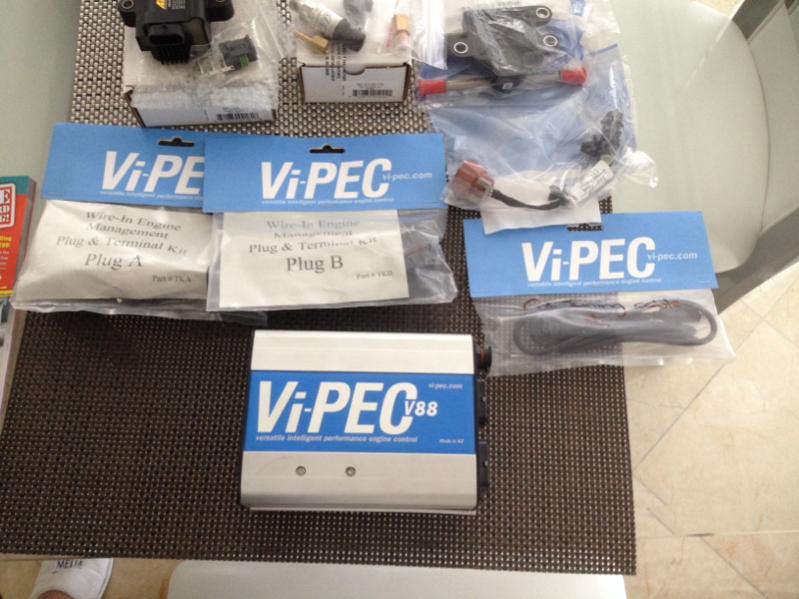

Most parts and sensor are in.. Only thing missing is the EGT dual channel kit.. Be here by the end of the week..

I hope we can get the wire harness started next week..

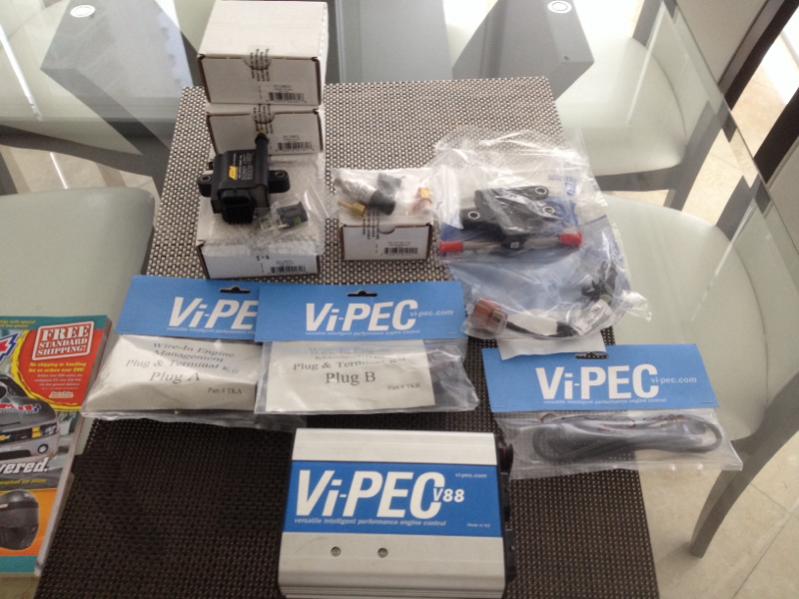

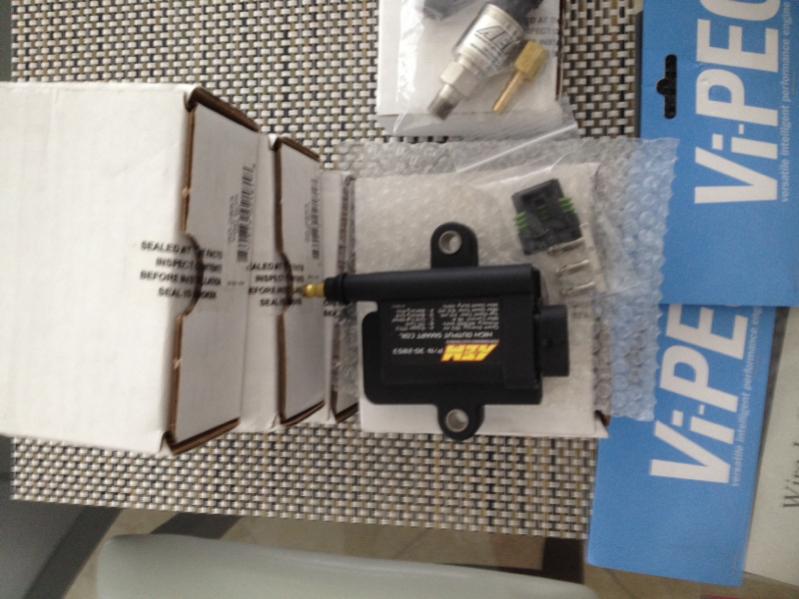

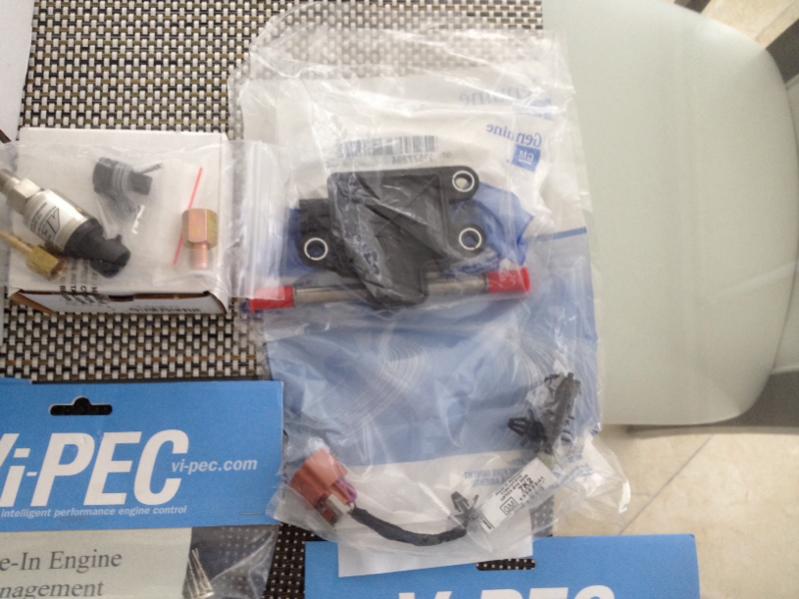

Some pics of all the goodies.....
Attached Thumbnails Today I join the Vi-Spec V88 club-image-2959062374.jpg   Today I join the Vi-Spec V88 club-image-4034529682.jpg   Today I join the Vi-Spec V88 club-image-3341675126.jpg   Today I join the Vi-Spec V88 club-image-398021167.jpg
AXA is offline
Old 02-26-14, 11:56 PM
  #15
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,010
Thanks: 0
Thanked 2 Times in 2 Posts
Nice. Hope it all gets sorted to your liking.
BurntOrangeT2 is offline
Old 02-27-14, 10:45 AM
  #16
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
I am also thinking about getting this as a dash for the Vi-pec...
Products Display products DASH2 PRO Enhancement options - Racing - Race Technology Ltd - Automotive Technical Excellence

what do you guys think?
AXA is offline
Old 03-01-14, 02:28 PM
  #17
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

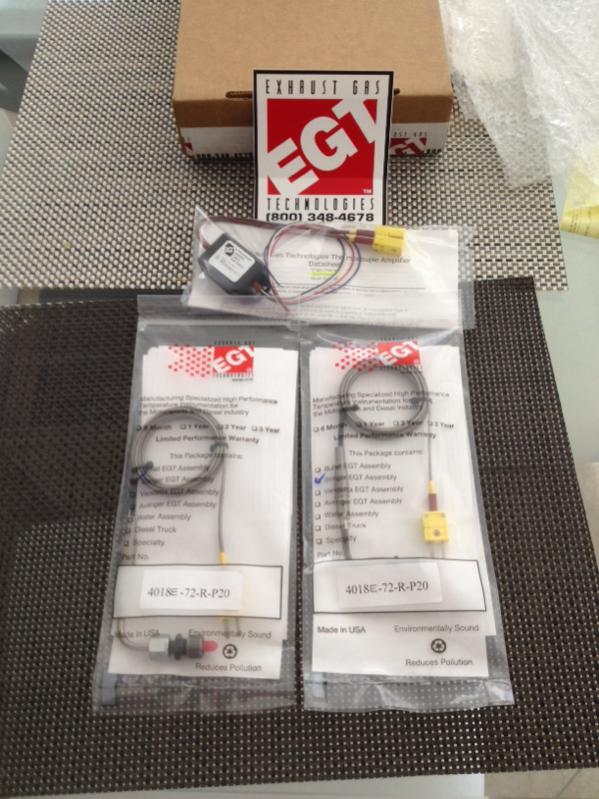

EGT kit is here..
Attached Thumbnails Today I join the Vi-Spec V88 club-image-3534975862.jpg
AXA is offline
Old 03-02-14, 04:01 PM
  #18
Full Member

WLD 07's Avatar

Join Date: Oct 2004
Location: Australia
Posts: 99
Thanked 1 Time in 1 Post
Looks like a good setup your putting together.

Will be light years ahead of the microtech.
WLD 07 is offline
Old 03-03-14, 12:45 AM
  #19
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
I was talking to Simon fromViPec and found out that my V88 ECU needs to be send for a free Can upgrade.. This will allow me to integrate the Dash2 pro via CAN with the ViPec V88..

Hopefully I will have the Engine harness and sensors install ready in the car by the time the ECU get back from ViPec in New Zealand ..
AXA is offline
Old 03-07-14, 11:35 PM
  #20
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts

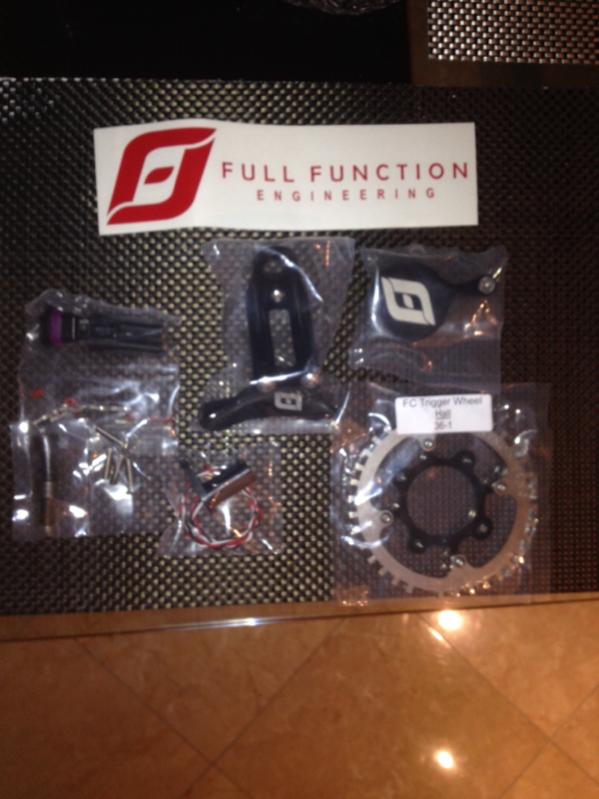

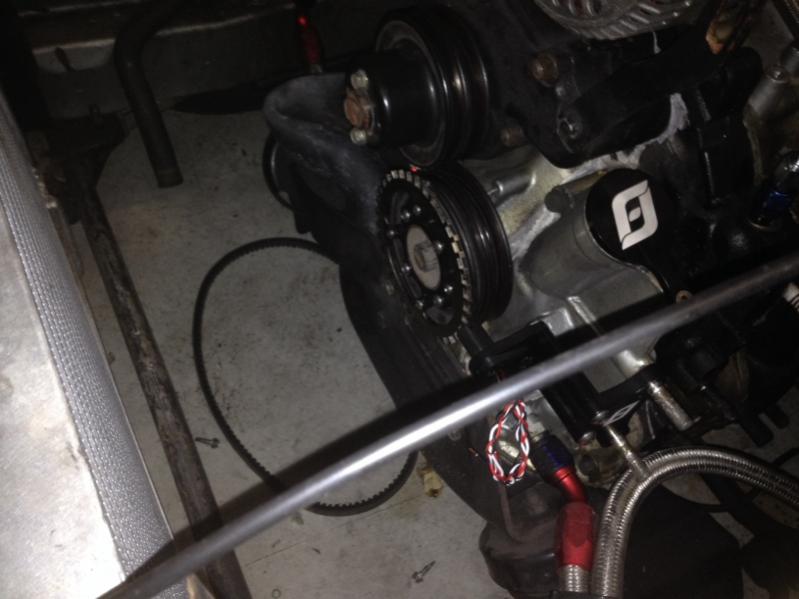

Decided to get FFE Kit wheel with Hall sensor..
Great quality of parts...
Attached Thumbnails Today I join the Vi-Spec V88 club-image-2824115015.jpg
AXA is offline
Old 03-14-14, 11:26 PM
  #21
Full Member
iTrader: (1)

Join Date: Jan 2012
Location: Oswego, NY
Posts: 175
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by AXA View Post
I got a few questions answer by a Vi-Pec guru ( John Reed) ..... I am posting this for public knowledge..
Thanks John Reed for your time to answer all my questions about the V88...



The V88 can used our OEM coolant temp sensor from a Turbo II and FD but not the AIT sensors...
I'm actually using the stock FD AIT on my Link G4 RX. Just used Cal Table 1 to set it up with 10 degree steps from -30 to 120.
Wildman923 is offline
Old 03-26-14, 07:08 PM
  #22
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Finally all the parts are inn..

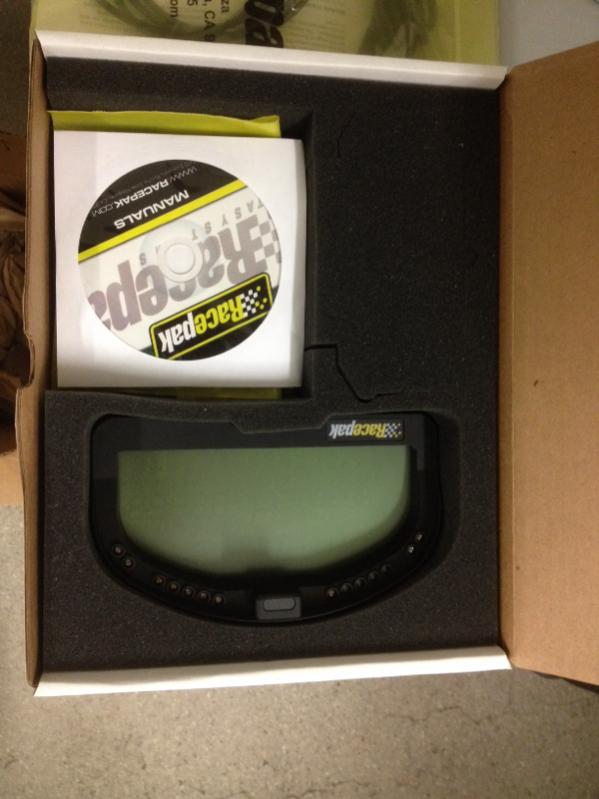

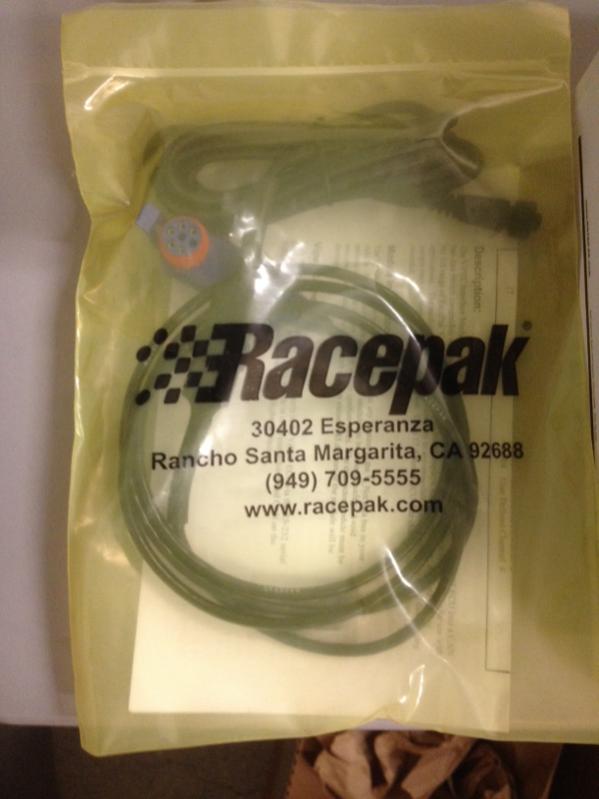

Racepak dash with ViPEC interface can cable..

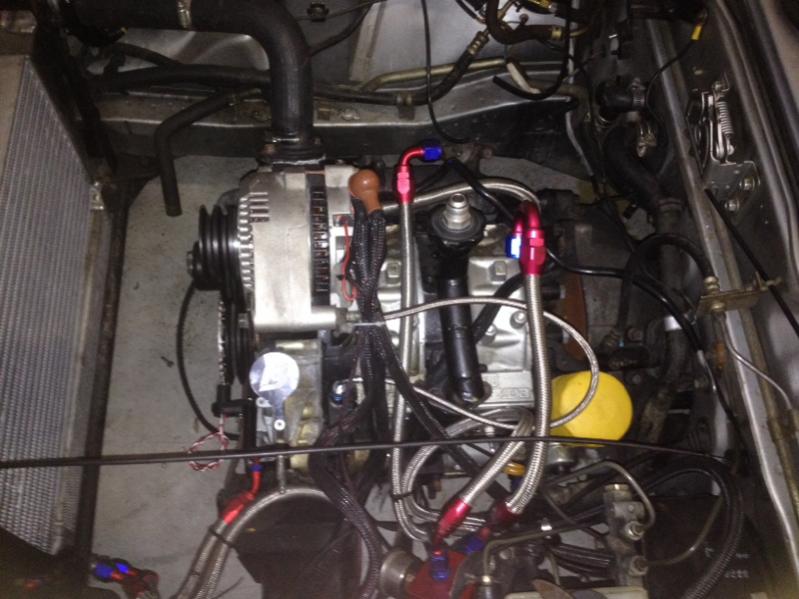

I took the car on Sunday to Erick at Rotary Werks to start taking out the Microtech off the car..

Soon more updates.. Will be installing 2 1000cc injectors in the primaries injectors bank and moving the 2000cc to the secondaries injectors rail .. I will now have 8000cc in my secondaries fuel rail 😁
Attached Thumbnails Today I join the Vi-Spec V88 club-image-2468842114.jpg   Today I join the Vi-Spec V88 club-image-3206247258.jpg
AXA is offline
Old 04-06-14, 10:06 AM
  #23
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,310
Thanked 34 Times in 23 Posts
what turbo, what fuel?
Howard Coleman CPR is offline
Old 04-06-14, 11:20 AM
  #24
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Howard Coleman CPR View Post
what turbo, what fuel?
E85 fuel and BW 366 turbo ...

Howard I send you a email a couple days ago with some question... Hopefully I get this thing running by the end of the week...
AXA is offline
Old 04-06-14, 11:23 AM
  #25
AXA
Full Member
Thread Starter
iTrader: (2)

Join Date: Jul 2012
Location: Miami
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
I hate to see my car like this but work must go on...

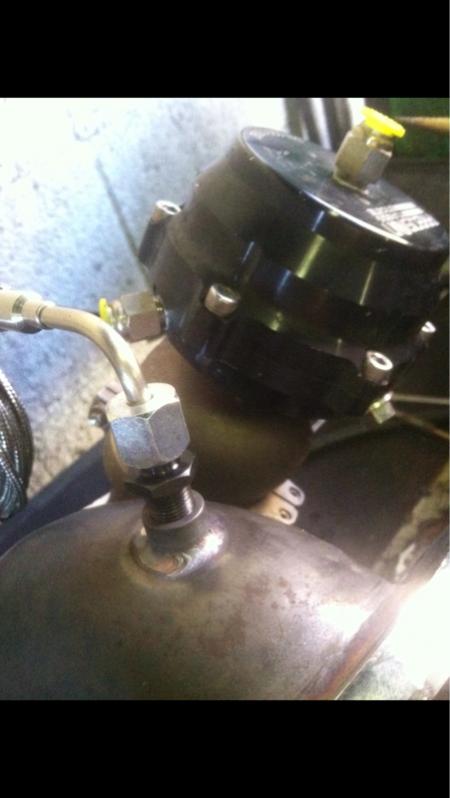

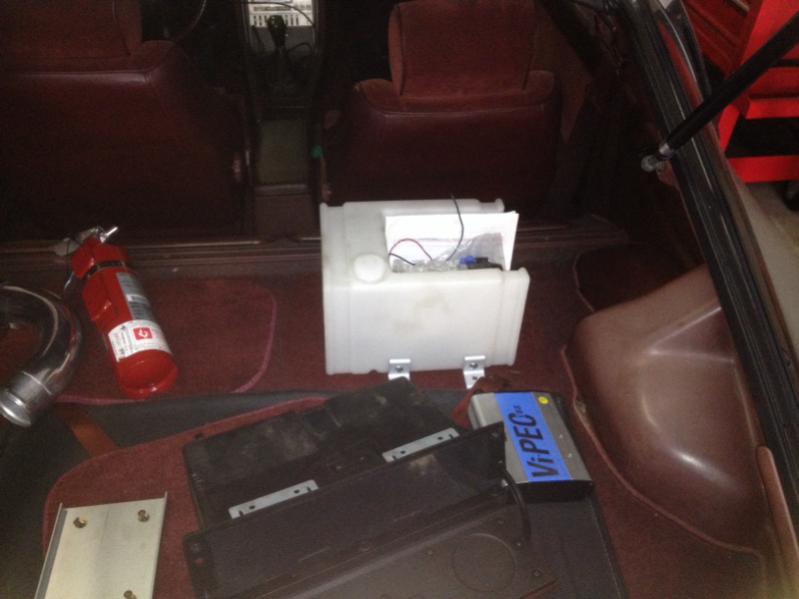

Attached Thumbnails Today I join the Vi-Spec V88 club-image-1572242784.jpg   Today I join the Vi-Spec V88 club-image-3798797969.jpg   Today I join the Vi-Spec V88 club-image-2190411796.jpg   Today I join the Vi-Spec V88 club-image-1368188699.jpg
AXA is offline

Thread Tools
Search this Thread
Quick Reply: Today I join the Vi-Spec V88 club


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
