GoodfellaFD3S

iTrader: (213)

Just installed some new parts on my R1, to include:

Spirit-R shift ****
Spirit-R shift boot (replica, had a leather one made)
Spirit-R e-brake handle and boot

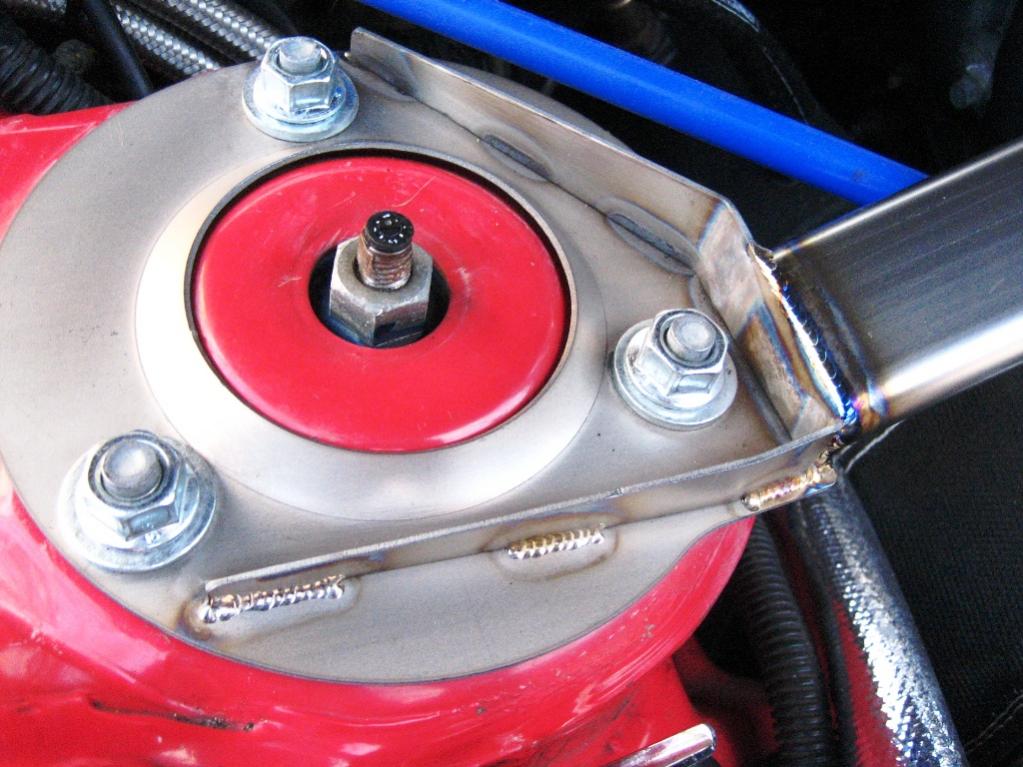

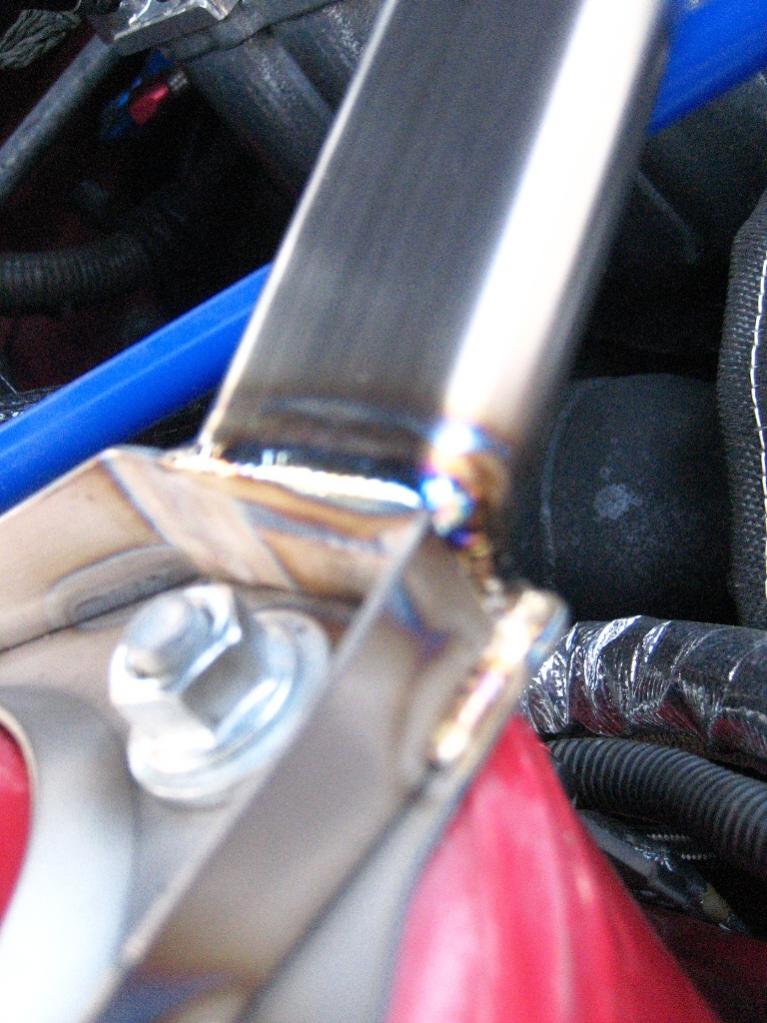

Cusco Ti front shock tower bar
Super Now water pump and alternator pullies
R-Magic Oil filler Cap
(all the parts removed are up in the FS section)

Everything went without incident except the ebrake handle, it will bolt up but to get it to fit correctly you have to remove the boot collar, which is held on by 12 staples. I then swapped over my usdm ebrake boot collar over and stapled it to the new boot. I'll attach a pic so you can see the difference, the jdm collar is raised on one side and the center console cover won't sit flush.

You'll notice the 'replica' shift boot.....the mazda one is crazy expensive and isn't even real leather, so I had one made by redlinegoods.com. I spec'ed it out to be 1.5 inches shorter than stock b/c of my B&M short shifter and fitment is very good. I did have to use a razor blade to cut slits around the base of the boot to get it to mount to the oem boot surround.

In the third pic you can see the poor fitment of the ebrake boot installed with the jdm collar.

Thanks to my trusty assistant Ryan/Bridgeported12a for shining up my engine bay

On with the pics!

GoodfellaFD3S

iTrader: (213)

More pics

GoodfellaFD3S

iTrader: (213)

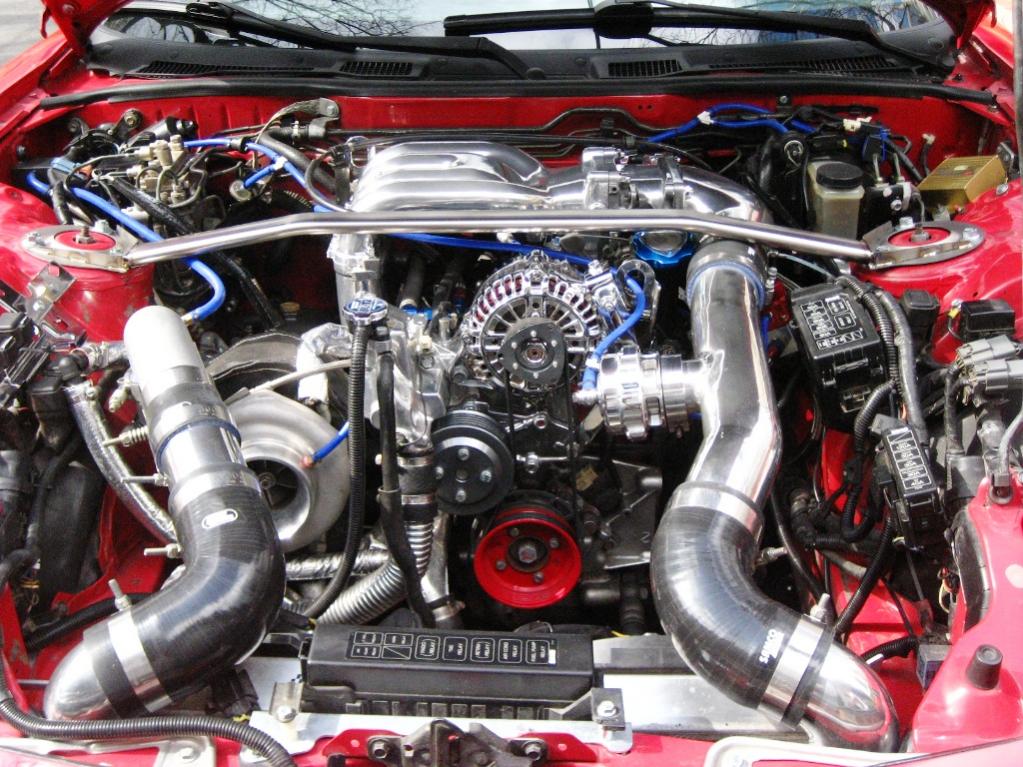

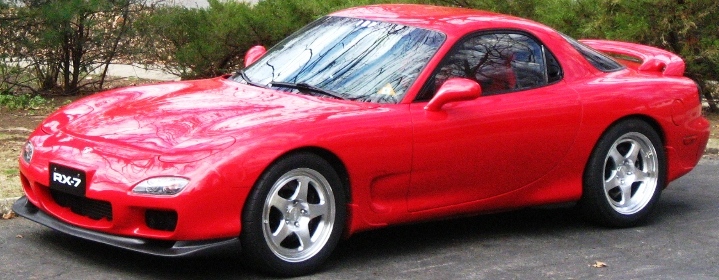

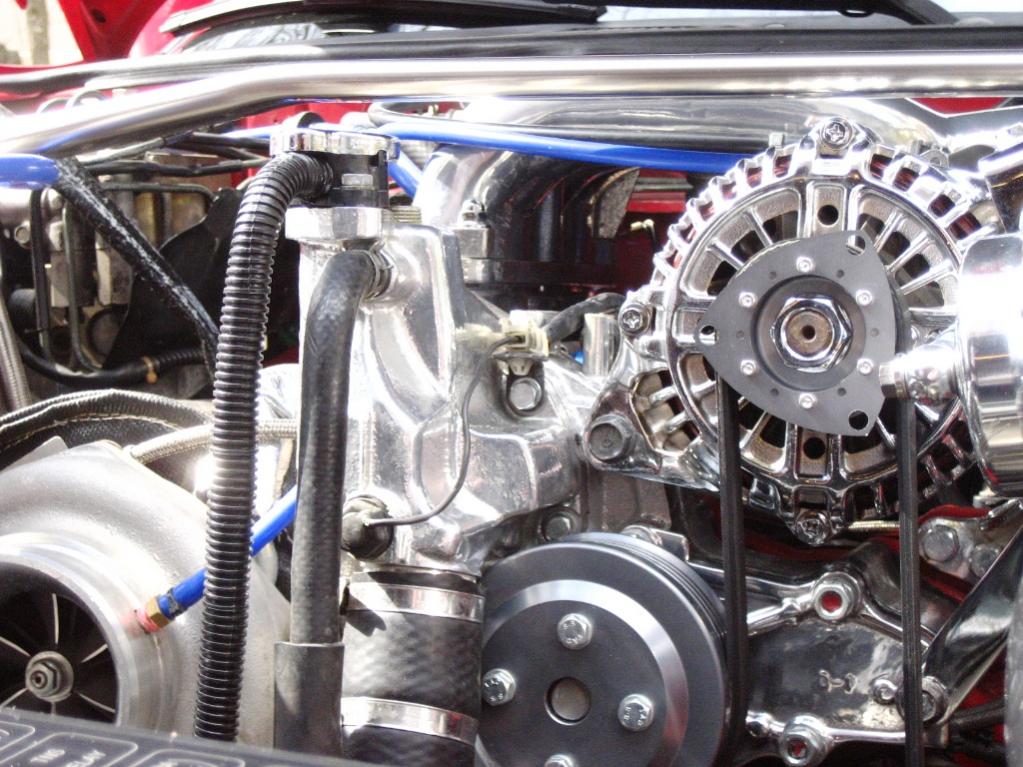

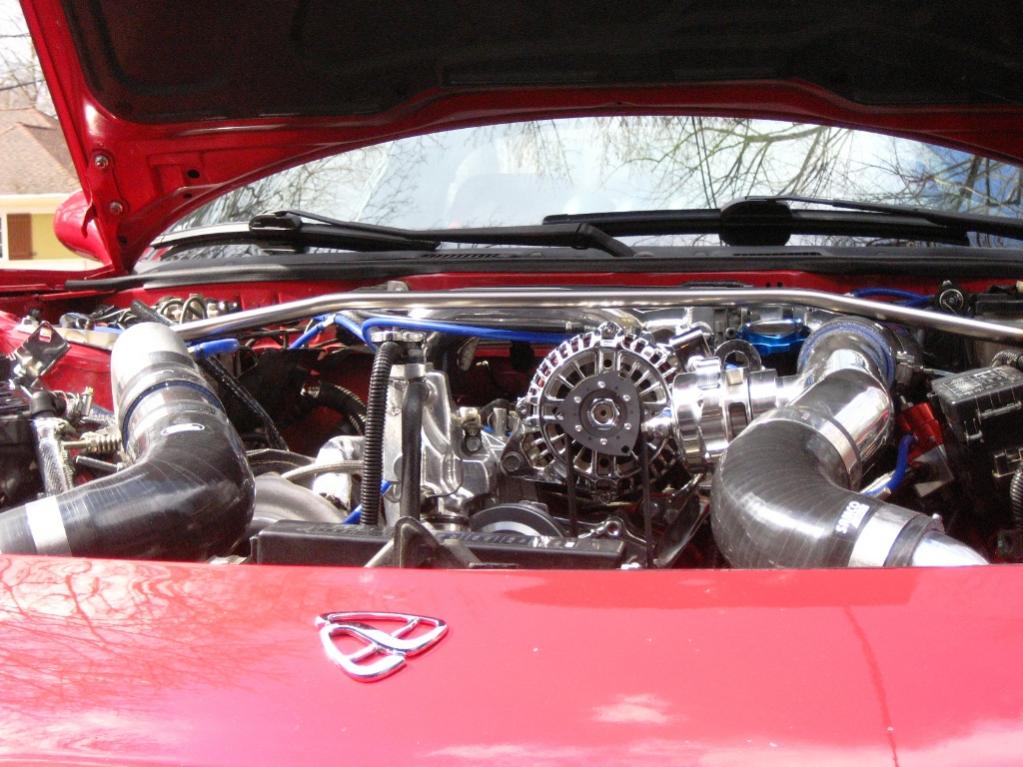

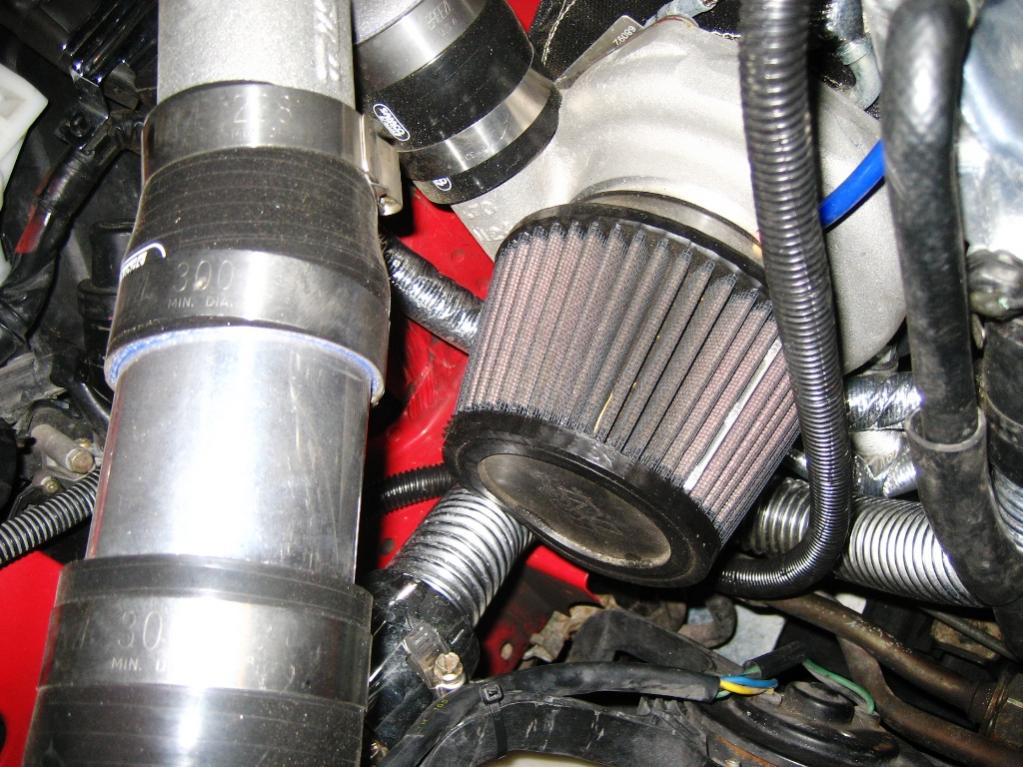

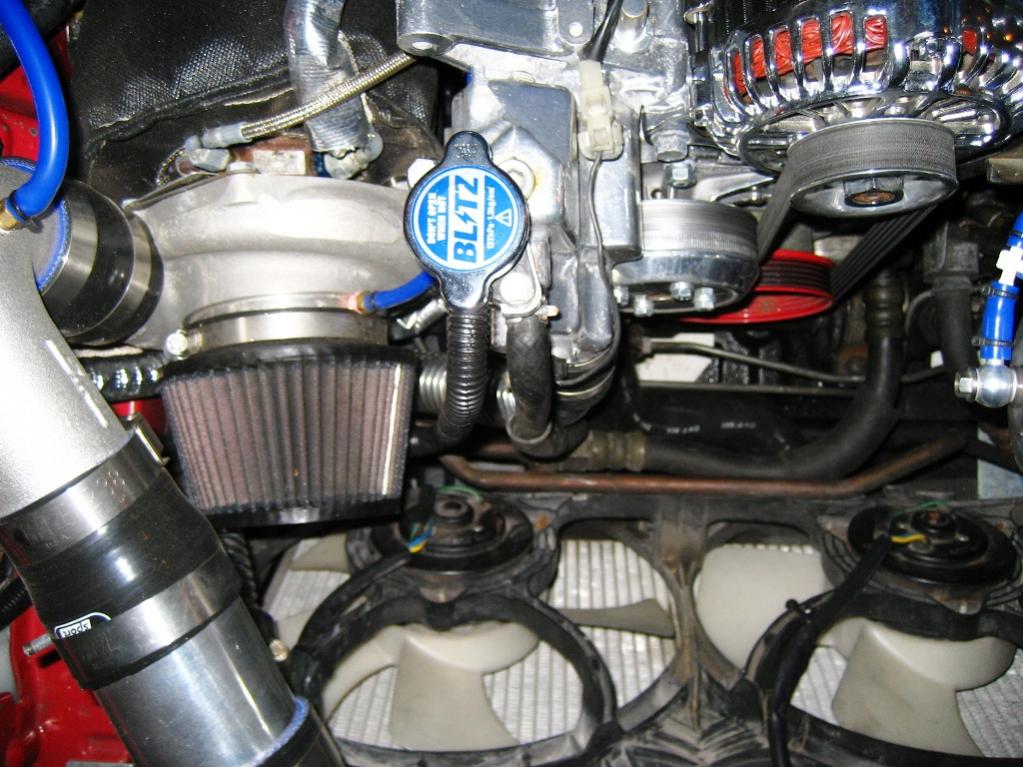

Another pair of new engine bay pics, and also from earlier in the weekend showing the tight fitment of the shorty air filter (which was cleaned and re-oiled today) with my A-Spec long runner manifold. Last one is how the car currently sits with the Profils.

GoodfellaFD3S

iTrader: (213)

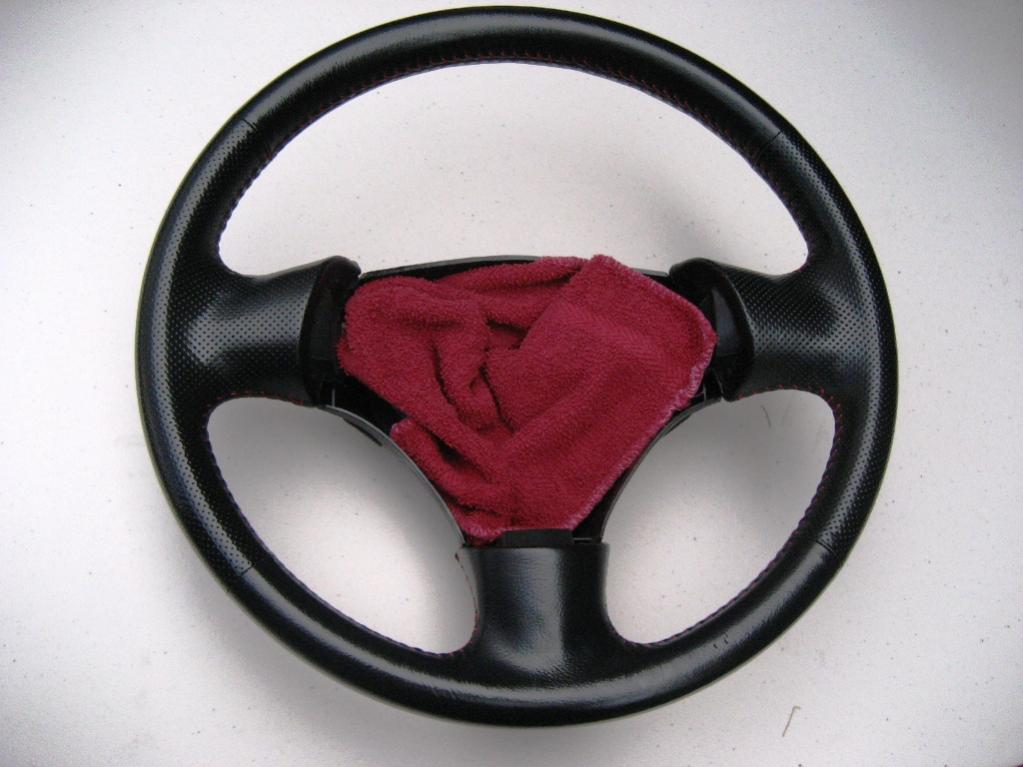

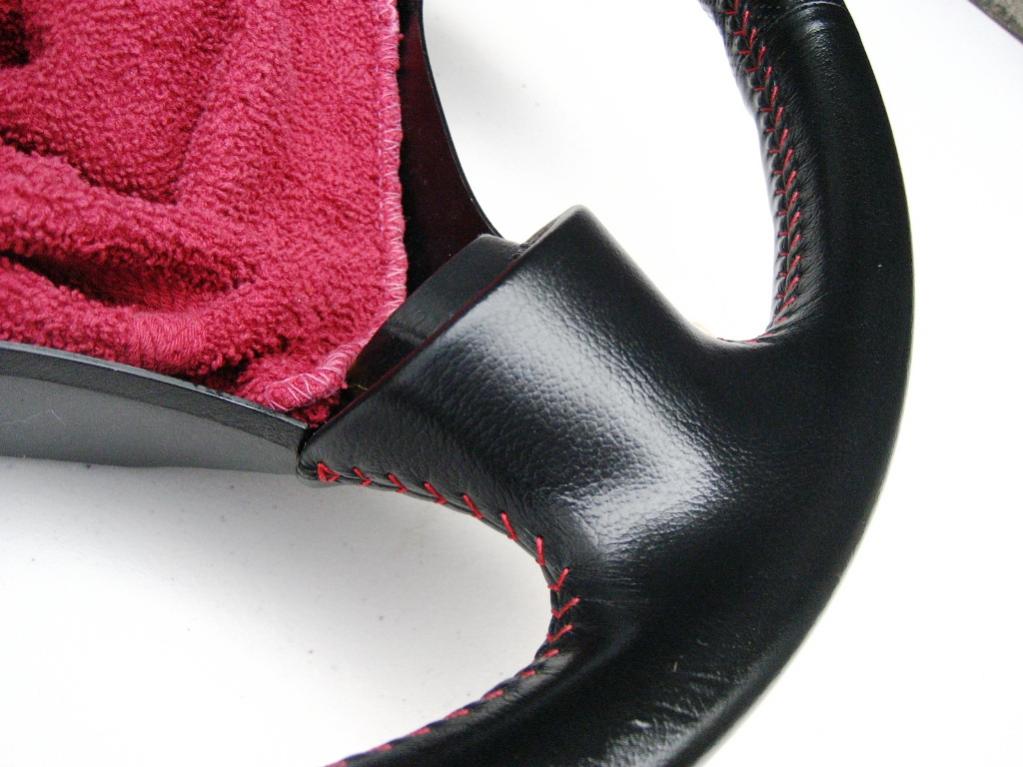

Last are three shots of the steering wheel I just picked up, a Mazdaspeed Miata wheel which has sharp red stitching which matches the Spirit-R wheel. It doesn't have the small Nardi symbol at the bottom, but I'm going to swap over my Nardi airbag so it should look great once installed and match all the rest of the interior.

Mazdabation

iTrader: (9)

Nice job....we have similar taste did you have to order a different red stich from RLG or is the red stich the common red they use for everyone. My **** isnt here yet so im hoping the stiching matches what i have! Ill get pics of mine up some time...cheers

GoodfellaFD3S

iTrader: (213)

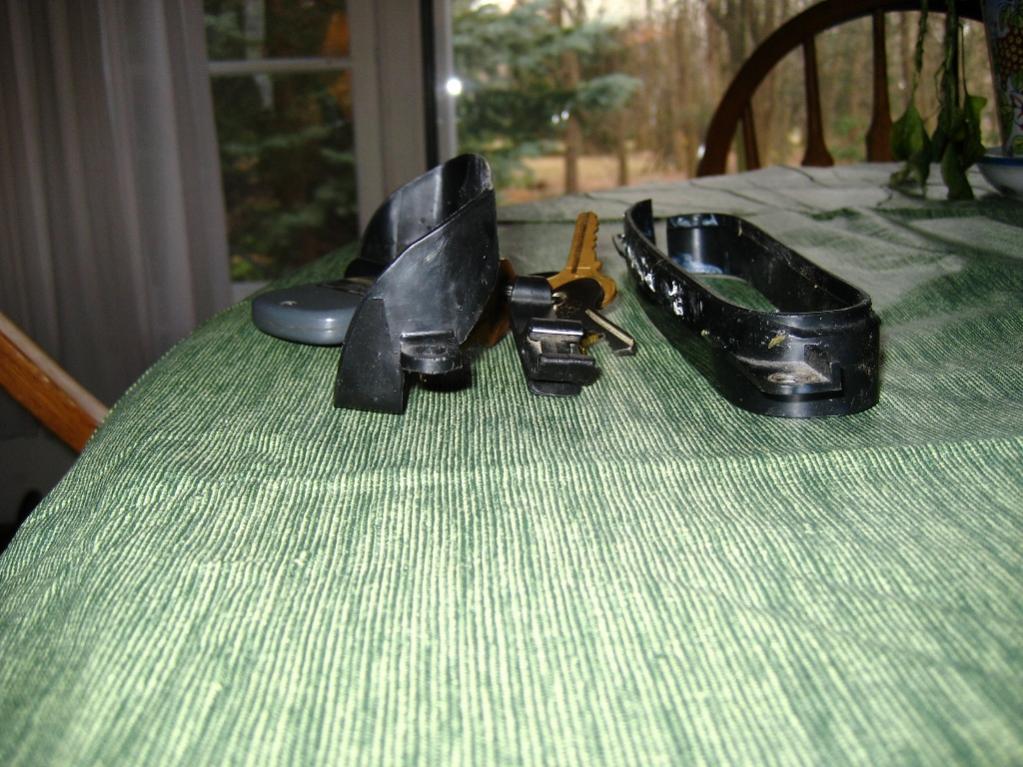

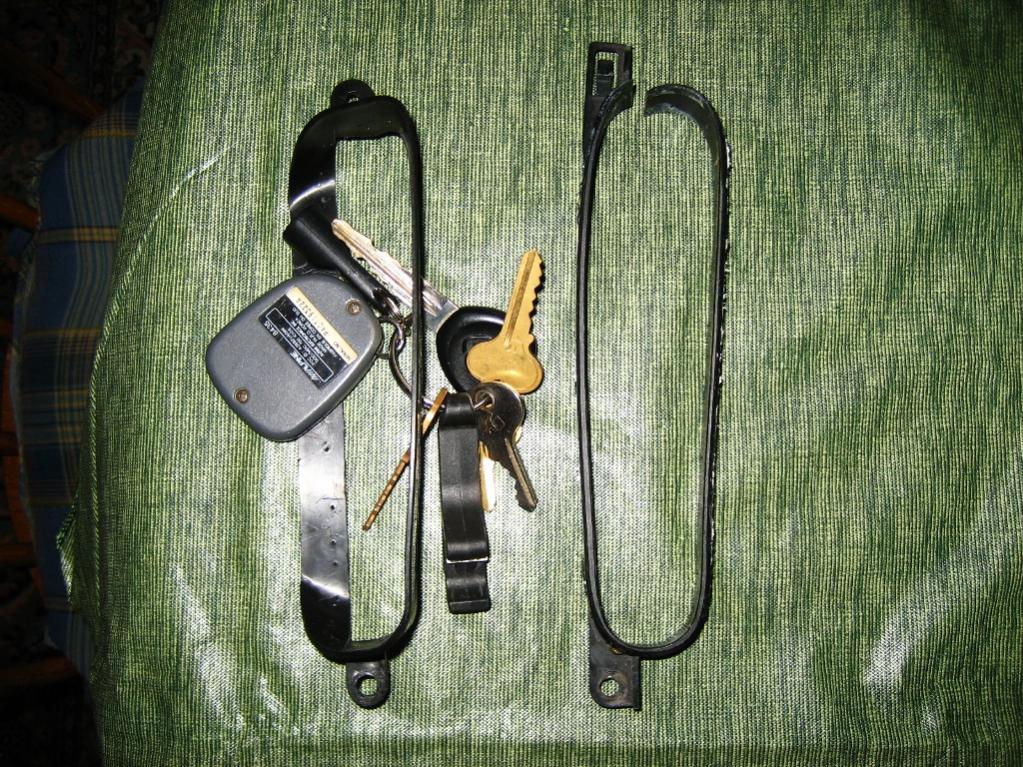

Two more pictures showing the difference between the JDM e-brake boot collar (on the left) and the USDM one.

KaiFD3S

iTrader: (37)

Very nice Rich

mrb63083

iTrader: (4)

Give me your car.

RE-Amemiya

VERY nice!!!

DJF(NJ)

iTrader: (6)

It's looking good bud!

Supernaut

iTrader: (83)

O man you were the one that took the MS wheel!!! I wanted that hahah. Looks great Rich!

gracer7-rx7

iTrader: (16)

Looks great. It is exactly what I'd like to do to my car someday.

BTW - that wheel is awesome. I used to have it in my Miata.

R-R-Rx7

iTrader: (24)

gotta love the red and simple fd

FD3S-K

iTrader: (6)

Rich, can you get me a model or serial number for that air filter.

Thanks,
Geby.

TheCrazyAZN

iTrader: (2)

I read the thread title and was like "Durr Wha? Spirit-Ring? Is that like a ring given to spiritual people?"

Pick a color in that engine bay buddy. Black couplers, blue couplers, blue hoses, black hoses... tisk tisk. Go all red for goodness sakes

Supernaut

iTrader: (83)

I like it. His engine bay looks like AMERICA

Brent Dalton

iTrader: (31)

Car looks great as always rich!

CrispyRX7

iTrader: (139)

Very nice Rich. Very nice indeed.
Crispy

speedjunkie

iTrader: (3)

Dammit Rich, would you slow down so I can catch up?? You're so selfish! HAHA.

I like that alternator pulley, is that a custom one-off? I also see you did the AST delete...now I know it's OK for ME to do haha.

Looks good Rich, as always!

sinned2545

iTrader: (7)

with all the black and red stitching..that Wheel will look crazy!!!!!

P.S. I hate u for having those seats...

13brewrx3

The car looks good. do the colors of the seats match the red of the exterior well?

asianricer69

Its looking really good, nice job

GoodfellaFD3S

iTrader: (213)

I ordered their standard red thread and it matches up pretty well.

Thanks Alberto, I knew you'd approve. It's a more 'mature' interior theme

Here ya go:
https://www.rx7club.com/single-turbo-rx-7s-23/part-k-n-shorty-4-inch-air-filter-722123/

red on red? Huy, I think not. Where do you see blue couplers? Let's see your smurfy engine bay my old friend

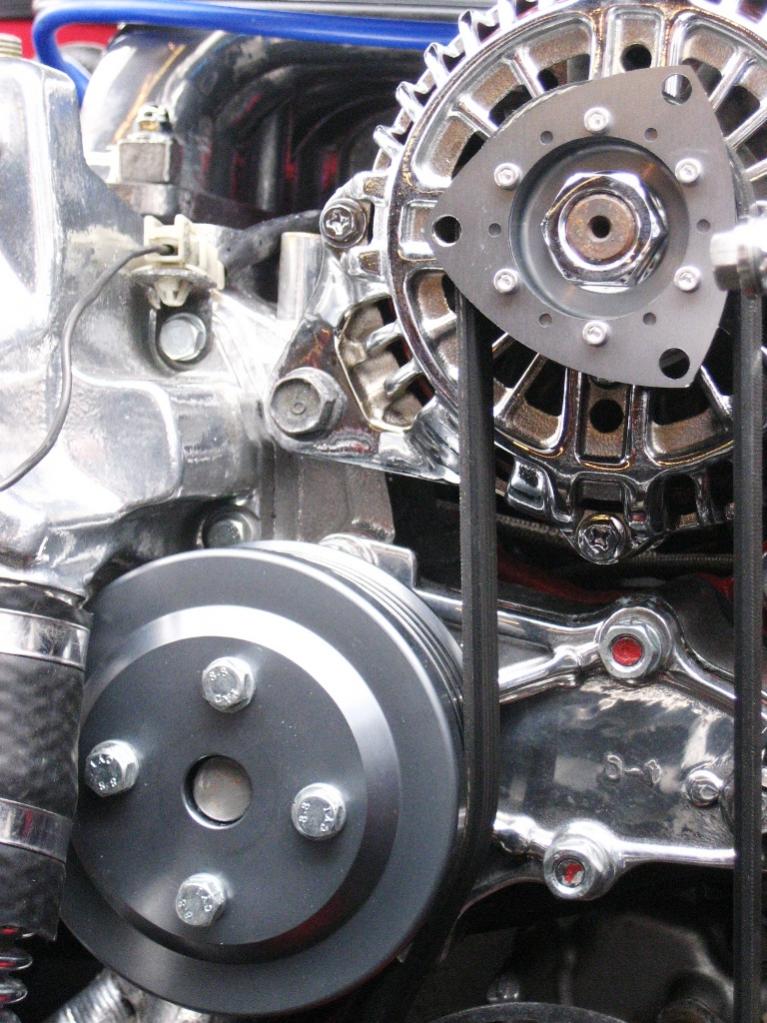

thanks Eric. No, it's not custom, it's part of the super now kit. AST has been gone for years now.

Thanks Gordon. It's a chromed alternator cover, really sets off the engine bay I think.

The red is similar, the seats are a bit lighter in color than the paint. I plan to have them recovered in the future.

Dennis, if you ask nicely I'll let you sit in them when we're down at Deals Gap

sinned2545

iTrader: (7)

Sweeet!!! ima hold u to that
Ill make sure to wear my lucky undies

7racer

Looks awesome!!!
