List of seats that fit and dont fit.
02-29-16, 02:50 PM
#476
Junior Member
Join Date: Feb 2013
Location: Centreville, Va
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Blue TII for the insight!
Does anyone own the Corbeau Forza Sport seats that are FIA approved and have them installed in your FD? Same goes for the new Sparco Evo 2016 ones.
Just trying to figure out which ones will feel the best and what others personal opinions about them are.
Does anyone own the Corbeau Forza Sport seats that are FIA approved and have them installed in your FD? Same goes for the new Sparco Evo 2016 ones.
Just trying to figure out which ones will feel the best and what others personal opinions about them are.
03-22-16, 02:32 PM
#478
after 4-5 years of searching for the perfect replacment seat for the rx7...i finally got some Evo X recaro seats to fit, these are my favorite oem recaros ever!!
after a local miata shop called sbgarage fitted these on their FD and having the chance to sit on them i decided to do the same.
Seats are oem EvoX Recaro seats with 23k miles
rails are veilside FD3s rails but any universal slider with side mounts should work. of course you will have to fab and weld but not too bad.
the clearance is tight!! to be able to fully slide the seat all the way to the back you will need to remove the rear plastic trim piece or trim it a bit. If you sit forward you should be ok.
like all other seats you will most likely have to remove the gas lid plastic trim
here is some pictures just for visual clearence.
im 5'9 185 and these seats are perfectly snug!
i've had recaro spg , spgxl.. bride and my last pair was oem r1 seats... i hated a fixed bucket seat. so i went with recliner
good luck !
after a local miata shop called sbgarage fitted these on their FD and having the chance to sit on them i decided to do the same.
Seats are oem EvoX Recaro seats with 23k miles
rails are veilside FD3s rails but any universal slider with side mounts should work. of course you will have to fab and weld but not too bad.
the clearance is tight!! to be able to fully slide the seat all the way to the back you will need to remove the rear plastic trim piece or trim it a bit. If you sit forward you should be ok.
like all other seats you will most likely have to remove the gas lid plastic trim
here is some pictures just for visual clearence.
im 5'9 185 and these seats are perfectly snug!
i've had recaro spg , spgxl.. bride and my last pair was oem r1 seats... i hated a fixed bucket seat. so i went with recliner
good luck !
03-23-16, 11:48 AM
#481
its a bit gloomy here, ill take one from the front when the weather gets better.
these are from the mitisbishi evo x , dealer cost is $3500 or so each.. street price is about 1k-$1500 for a set...
evo 8-9 seat doesnt clear the door panel.
only thing i had to trim was where the recliner is.
seats are more on the sporty side compared to the evo 8-9 seat.
i went from oem cloth seat -> bride gias (too skinny) -> recaro spg --> too skinny and low --> evo 9 --rubbing on door --> oem r1...
perfect seat for those dont have a girls waist of 30-32 lol.... i'm 35-36 5'9 and it fits me perfectly. its about the same height as your stock seat without the awkward tilting upward position which i hated, it was harsh on my back.
have the ability to adjust the tilt on the seat and moving back and forward i was able to adjust for the perfect seating position.
03-24-16, 06:14 PM
#482
Original Gangster/Rotary!
iTrader: (213)
^First I've ever heard of anyone complain of OEM FD seats..... they're known to be extremely comfortable. Many years ago when my dad was recovering from emergency back surgery for burst discs he said the FD was the only car he could comfortably drive.
03-25-16, 12:40 PM
#483
the oem seat is also tilted a little bit upward making the seating non ideal for me.
guess seating position is different for everyone , i like my leg room longer so i can heal toe easy , slike my steering wheel forward so with my arms at 90 bend.
only disappointing thing is i wish the bracket could be even lower so that i can have more headroom for helmet.
03-25-16, 09:27 PM
#484
Eats, Sleeps, Dreams Rotary
You could also try tilting the whole seat back a little bit. This gives you more legroom but you might have to sit a little closer or use a steering spacer/deep dish wheel.
04-01-16, 12:26 PM
#485
Senior Member
iTrader: (1)
Join Date: Nov 2005
Location: Malta (Europe)
Posts: 426
Likes: 0
Received 0 Likes
on
0 Posts
after 4-5 years of searching for the perfect replacment seat for the rx7...i finally got some Evo X recaro seats to fit, these are my favorite oem recaros ever!!
after a local miata shop called sbgarage fitted these on their FD and having the chance to sit on them i decided to do the same.
Seats are oem EvoX Recaro seats with 23k miles
rails are veilside FD3s rails but any universal slider with side mounts should work. of course you will have to fab and weld but not too bad.
the clearance is tight!! to be able to fully slide the seat all the way to the back you will need to remove the rear plastic trim piece or trim it a bit. If you sit forward you should be ok.
like all other seats you will most likely have to remove the gas lid plastic trim
here is some pictures just for visual clearence.
im 5'9 185 and these seats are perfectly snug!
i've had recaro spg , spgxl.. bride and my last pair was oem r1 seats... i hated a fixed bucket seat. so i went with recliner
good luck !
after a local miata shop called sbgarage fitted these on their FD and having the chance to sit on them i decided to do the same.
Seats are oem EvoX Recaro seats with 23k miles
rails are veilside FD3s rails but any universal slider with side mounts should work. of course you will have to fab and weld but not too bad.
the clearance is tight!! to be able to fully slide the seat all the way to the back you will need to remove the rear plastic trim piece or trim it a bit. If you sit forward you should be ok.
like all other seats you will most likely have to remove the gas lid plastic trim
here is some pictures just for visual clearence.
im 5'9 185 and these seats are perfectly snug!
i've had recaro spg , spgxl.. bride and my last pair was oem r1 seats... i hated a fixed bucket seat. so i went with recliner
good luck !
You mentioned that you had the SPG XL. How did these fit in the FD please? I want these really bad but cant find any info of anyone fitting them.
Really appreciate if you could give me your feedback.
Thanks!
K
04-04-16, 08:06 PM
#486
Full Member
iTrader: (1)
Join Date: May 2015
Location: Washington
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
Bride stradia (and gias I would assume) do fit, but they don't slide back enough to actually fit a tall person. They're a bit lower than stock (maybe an inch?) but it's impossible to drive with them at this position.
It feels like they should go back further, as there's room behind the seat, but the bolsters will hit the door if they go back another inch or two, and the side of the seat frame appears to end up on the trans tunnel before it gets that far.
Not sure if I'm missing some secret voodoo secret to installing these things or if I just need to figure out who I can unload them on and reinstall stock seats.

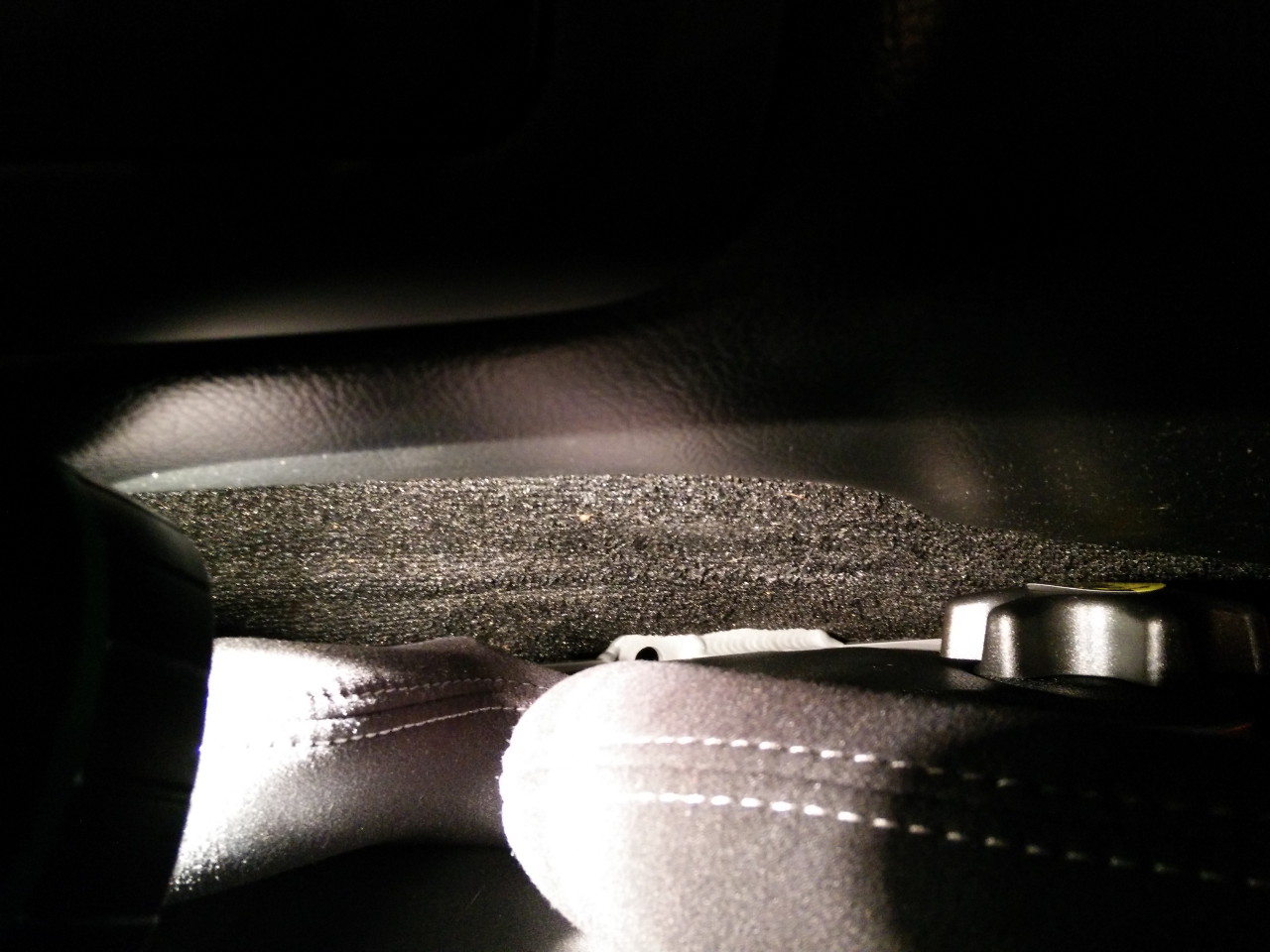

edited to add picture of where it binds.
It feels like they should go back further, as there's room behind the seat, but the bolsters will hit the door if they go back another inch or two, and the side of the seat frame appears to end up on the trans tunnel before it gets that far.
Not sure if I'm missing some secret voodoo secret to installing these things or if I just need to figure out who I can unload them on and reinstall stock seats.
edited to add picture of where it binds.
Last edited by Vectortrex; 04-04-16 at 10:57 PM.
04-05-16, 07:24 AM
#487
Original Gangster/Rotary!
iTrader: (213)
I acquired a pair of beautiful Status Ring seats in black leather with red stitching. They fit in the FD very well, slide forward and back, the whole nine yards.
Only problem? I literally do.not.fit
They'll fit a 32 inch waist for sure, but I'm a solid waist 34, currently a stocky 5 foot 7 and 180 pounds. I can get in them but not sit all the way back unless I twist my hips to one side. Not comfy like that.
They're like new and it's a damn shame but I'm going to have to put them up for sale if any of you skinny folk are interested
Only problem? I literally do.not.fit
They'll fit a 32 inch waist for sure, but I'm a solid waist 34, currently a stocky 5 foot 7 and 180 pounds. I can get in them but not sit all the way back unless I twist my hips to one side. Not comfy like that.
They're like new and it's a damn shame but I'm going to have to put them up for sale if any of you skinny folk are interested
04-05-16, 10:42 PM
#488
I acquired a pair of beautiful Status Ring seats in black leather with red stitching. They fit in the FD very well, slide forward and back, the whole nine yards.
Only problem? I literally do.not.fit
They'll fit a 32 inch waist for sure, but I'm a solid waist 34, currently a stocky 5 foot 7 and 180 pounds. I can get in them but not sit all the way back unless I twist my hips to one side. Not comfy like that.
They're like new and it's a damn shame but I'm going to have to put them up for sale if any of you skinny folk are interested
Only problem? I literally do.not.fit
They'll fit a 32 inch waist for sure, but I'm a solid waist 34, currently a stocky 5 foot 7 and 180 pounds. I can get in them but not sit all the way back unless I twist my hips to one side. Not comfy like that.
They're like new and it's a damn shame but I'm going to have to put them up for sale if any of you skinny folk are interested
Wish that Sake Bomb project worked out with the replica RZ seats but that looks like a dead end.
04-06-16, 09:28 PM
#490
Full Member
iTrader: (1)
Join Date: May 2015
Location: Washington
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
Update on the Stradia. It's actually hitting one of the seat bolts first. If I remove that bolt and space it up with a washer or two on that end, I can get the seat back to a acceptable position
However, I'm going to stick with stock anyway. It's just too tight to seat me comfortable (34 inch waist). I do fit but I wouldn't want to be in there for long drives, and the sitting angle puts your knees into the steering wheel (even with the smaller Nardi wheel)
And after all that, it's still not noticeably lower than stock.
However, I'm going to stick with stock anyway. It's just too tight to seat me comfortable (34 inch waist). I do fit but I wouldn't want to be in there for long drives, and the sitting angle puts your knees into the steering wheel (even with the smaller Nardi wheel)
And after all that, it's still not noticeably lower than stock.
04-09-16, 06:47 AM
#494
Original Gangster/Rotary!
iTrader: (213)
https://www.rx7club.com/3rd-generati...seats-1098700/
04-09-16, 11:15 AM
#495
Bride rails. Go have a peak at my FS ad, you can see they're mounted on the highest of the three adjustment spots. There's room to go lower for sure
https://www.rx7club.com/3rd-generati...seats-1098700/
https://www.rx7club.com/3rd-generati...seats-1098700/
04-29-16, 09:52 PM
#497
Eats, Sleeps, Dreams Rotary
I ran 16" Ultrashield Rally Sport seats in my FD with modified Atomic Rex mounts. Seat cleared just fine everywhere. You might be able to run a 17" but it'll be tight and might require seat modification (that's the joy of having an aluminum seat).
Car had a custom weld-in roll bar. No door bars. If you're going to run proper door bars anyway (nascar style), then you won't be worrying about door panels either.
I don't have any pictures of the old setup. I'll be putting the same passenger seat in my new car and a 15" driver's seat. that won't be until spring time though as I need to get a new roll bar made for the new car.
Car had a custom weld-in roll bar. No door bars. If you're going to run proper door bars anyway (nascar style), then you won't be worrying about door panels either.
I don't have any pictures of the old setup. I'll be putting the same passenger seat in my new car and a 15" driver's seat. that won't be until spring time though as I need to get a new roll bar made for the new car.
To bring back the discussion of aluminum seats that will fit again, do you have any pictures?
At the time it didn't occur to me how much less room I would have since my car is RHD, but it also seems like an aluminum seat might be the only way to get the seat low enough for my needs (my butt needs to be no more than about 3" off the floor pan). The size and layback options are also nice.
Could the seat be bolted straight to the stock bolt holes (at least the rears, maybe with some brackets in the front)?
04-29-16, 10:44 PM
#498
Eats, Sleeps, Dreams Rotary
Actually it's pretty good for tall drivers, but that also depends on if your height is in your torso or your legs. These seats have pretty high harness holes (they were a tad higher on the XL). I'm 6'3" and while most of my height is in my long legs, I still have an issue fitting in my sunroof car with a helmet. Take that as you will. So while I would say these seats are good for tall drivers, I'm not sure about wide drivers. I've put on weight, but as BLUE TII said, it's your hips you really have to worry about. Obviously there is a limit to how fat someone can be, but I'd say for most of us it really just comes down to how wide your hip structure is. I think I measured mine at about 15" across IIRC, maybe a little more. So convert that into mm and you can get an idea. It is tight on my hips for sure, but as they said, you don't want to move side to side at all if possible, and this seat definitely meets that requirement. Now it will just come down to if it wears in a little and how long I can stand to sit in it before it starts hurting, IF it starts hurting. It's still not as tight as my buddy's fake Bride buckets, I don't believe.
This seat is kinda expensive, but it looks like it will fit with zero modification. I'm actually somewhat interested in the XL but trimming the halo and sides so it fits (better). Either way, I think they'd both be a PITA to mount directly to the floor.
THIS
This seat is kinda expensive, but it looks like it will fit with zero modification. I'm actually somewhat interested in the XL but trimming the halo and sides so it fits (better). Either way, I think they'd both be a PITA to mount directly to the floor.
THIS
04-30-16, 02:46 PM
#499
To bring back the discussion of aluminum seats that will fit again, do you have any pictures?
At the time it didn't occur to me how much less room I would have since my car is RHD, but it also seems like an aluminum seat might be the only way to get the seat low enough for my needs (my butt needs to be no more than about 3" off the floor pan). The size and layback options are also nice.
Could the seat be bolted straight to the stock bolt holes (at least the rears, maybe with some brackets in the front)?
At the time it didn't occur to me how much less room I would have since my car is RHD, but it also seems like an aluminum seat might be the only way to get the seat low enough for my needs (my butt needs to be no more than about 3" off the floor pan). The size and layback options are also nice.
Could the seat be bolted straight to the stock bolt holes (at least the rears, maybe with some brackets in the front)?
