Hey guys, hoping for some ideas. I have a 1982 rx7 that I swapped an s4 TII motor into, ive got an elite 1500, haltech s4/s5 13b terminated harness for ign1a's, haltech ign1a, stock CAS. Trying to use haltech provided basemap (I tried to attach mine but it would not let me), I selected the cas under "select trigger system" and the haltech ign1a coils under "select coils". The ECU is reading RPM and only has two errors because I pulled fuse to stop fuel. Under engine configuration> ignition system> wiring, I can see that all of my coils are outputting at 4hz and 2.6% duty cycle when cranking.

I just changed the engine ground today because of voltage drop. Now a consistant 10.9v while cranking with the ground on a nice bellhousing bolt. I'm finally happy with everything physically, all the haltech stuff is brand new, grounds are good, switched 12v is good. Still nothing. I attached a csv of my log today, tried attaching a couple other things but this is all it would let me do. I can email more data if that would help.

This is my first time playing with standalone stuff so I really don't know what I'm doing as far as configuration goes. I've watched a bunch of videos and feel fairly comfortable syncing timing and making small changes to the tune. I've been monkeying with it on and off for a few weeks now and am at a loss. Any suggestions help, hoping its just something stupid.

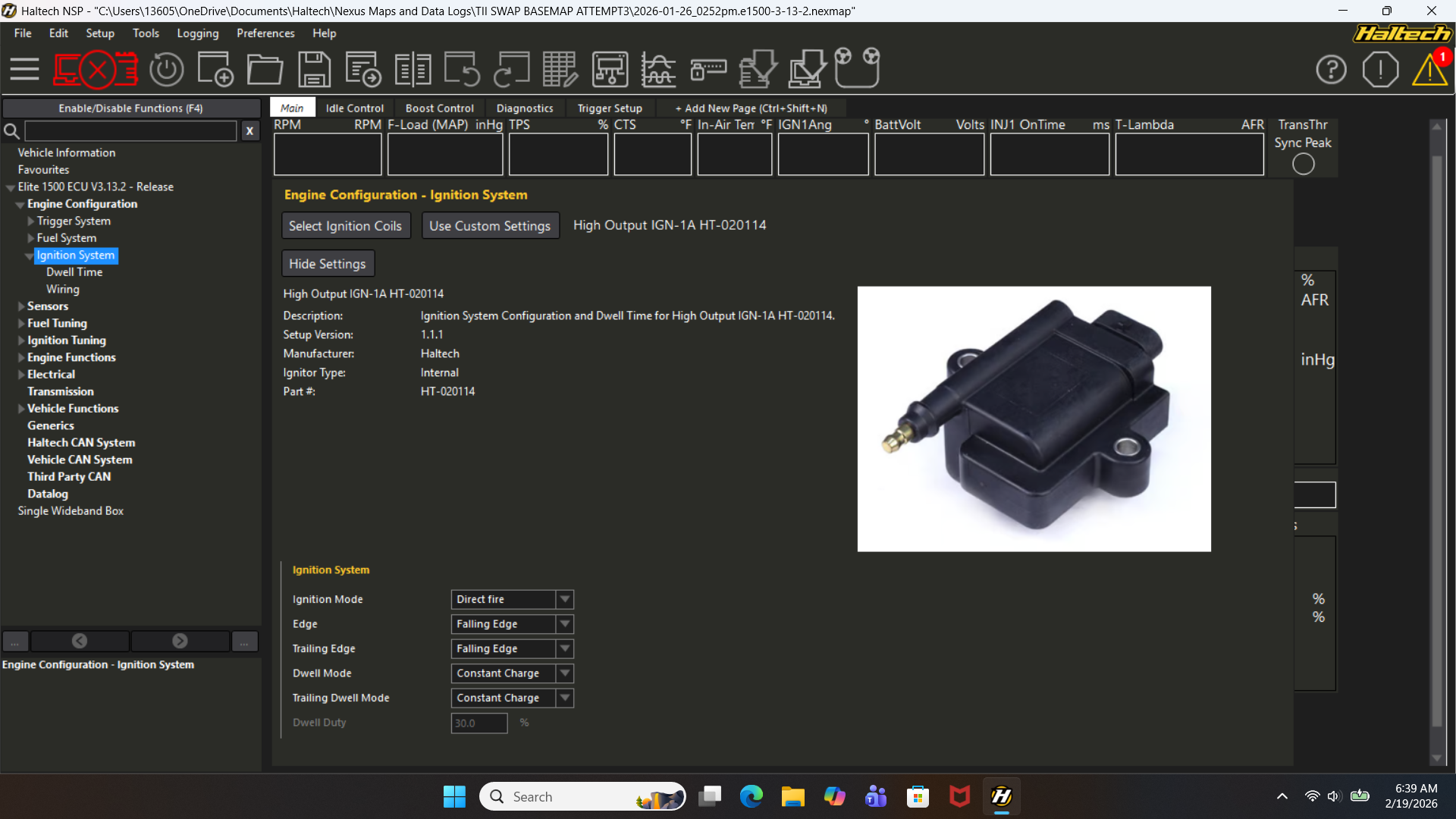

Are the coils set to direct fire?



Yeah they are, when you select the coils in NSP there’s some settings that auto populate.


Thanks for the reply by the way



I'll have to look at my configuration to confirm, but that screen reads like its set for a trigger wheel.



I would appreciate that, very possible. Let me know if you need to see anything else.



Thought I'd post an update to this thread, it turns out I was an idiot and fried the first set of coils. Plugged a new one in today and got spark on the first crank. I think it was having the coils plugged and turning the car over without the coils selected in the tune. Also could have been the fact I definitely had the wrong plug wires when trying for a while. Hopefully this helps someone out lol.
