No BAC and Stock coils on Elite 1500?(first haltech)

Haltech Forum Area is for discussing Haltechs

No BAC and Stock coils on Elite 1500?(first haltech)

Reply




Old 03-17-18, 09:42 PM
  #1
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
No BAC and Stock coils on Elite 1500?(first haltech)

I have a S4 TIINA (stock motor). I recently purchased the Haltech elite 1500 with the premium harness from Banzai and have a couple questions. The previous owner deleted the BAC, would it be worth it to buy a BAC for the Haltech? The car idled fine on the stock computer just a little high. Also is the Elite 1500 capable of using the stock coils?
mikey1992 is offline
Reply With Quote
Old 03-18-18, 09:41 PM
  #2
Rotary Enthusiast

Havoc's Avatar

Join Date: Aug 2004
Location: Australia - Perth
Posts: 1,312
Thanked 6 Times in 5 Posts
Hey mate.

The Bac can be helpful. Really comes down to where you are located (if you have extremes in weather) Where I am its warm most of the year so it's not as critical, as you noticed it might just idle a bit high. But would be easy and chep to have it reinstalled if your all 100% stock.

It will have no issue running the stock coils.
Havoc is offline
Reply With Quote
Old 03-19-18, 09:58 AM
  #3
Rallye RX7
iTrader: (11)

fidelity101's Avatar

Join Date: May 2005
Location: MI/CHI
Posts: 2,209
Thanked 2 Times in 2 Posts
look on banzai's site you need to modify the trailing coil to be used for that application by turning it into a direct fire setup. You will need 2 trailing coils to do so.
fidelity101 is online now
Reply With Quote
Old 03-19-18, 06:08 PM
  #4
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Ok thanks guys. Ill search the for sale threads for a used BAC. I have a bunch of stock coils from the motors I’ve collected over the years. Glad to finally find a use for them. Again thanks and hopefully I can start the car soon.
mikey1992 is offline
Reply With Quote
Old 03-26-18, 08:12 AM
  #5
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 744
Thanked 42 Times in 31 Posts
I'm on a FD but have found the idle control valve to be extremely helpful. I found I was able to achieve a lower, more stable and consistant idle (1600 on a semi peripheral vs 2000 without). It also starts easier and can be tuned for drivability on the roads so that the valve controls the idle instead of the engine just going where it wants based on road conditions with one preset mechanical flowpoint.

Skeese
Skeese is offline
Reply With Quote
Old 03-26-18, 10:19 PM
  #6
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by Skeese View Post
I'm on a FD but have found the idle control valve to be extremely helpful. I found I was able to achieve a lower, more stable and consistant idle (1600 on a semi peripheral vs 2000 without). It also starts easier and can be tuned for drivability on the roads so that the valve controls the idle instead of the engine just going where it wants based on road conditions with one preset mechanical flowpoint.

Skeese
Ok I will definitely keep searching for a reasonably priced BAC. eBay has them priced as if they are made of gold.
mikey1992 is offline
Reply With Quote
Old 03-27-18, 01:56 AM
  #7
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,365
Thanked 32 Times in 31 Posts
I think I still have one on my intake manifold w/ clipped harness plug. Shoot me a little bit of CESH + cover shipping and it's yours. Just checked the garage, it's out at the shop. The little IACV stepper motor one, right?

Last edited by RGHTBrainDesign; 03-27-18 at 02:06 AM.
RGHTBrainDesign is offline
Reply With Quote
Old 03-27-18, 12:34 PM
  #8
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by SirLaughsALot View Post
I think I still have one on my intake manifold w/ clipped harness plug. Shoot me a little bit of CESH + cover shipping and it's yours. Just checked the garage, it's out at the shop. The little IACV stepper motor one, right?

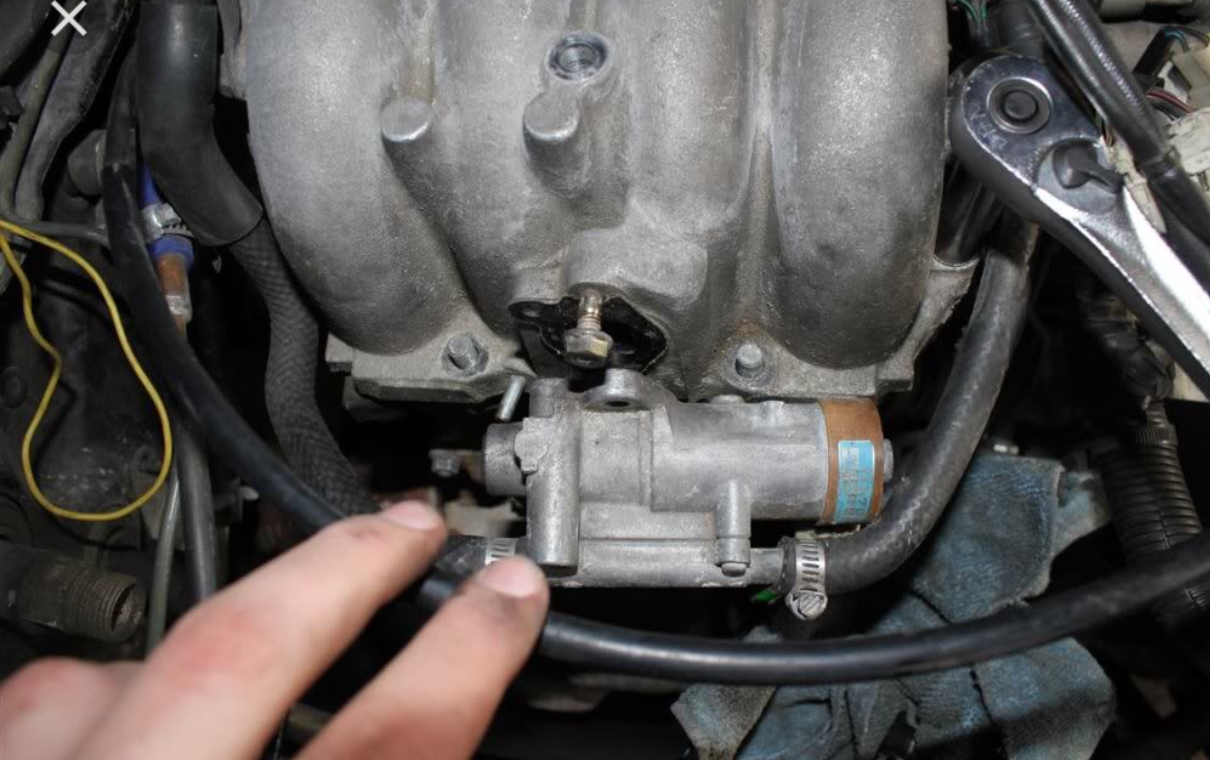

Yes it goes on the backside of the upper intake manifold. Close to the boost sensor. If youíve got it Iíll take it.
Attached Thumbnails No BAC and Stock coils on Elite 1500?(first haltech)-f797fe0f-2465-4362-a1ff-a3830bd59e72.jpeg
mikey1992 is offline
Reply With Quote
Old 03-27-18, 12:41 PM
  #9
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Pmed
mikey1992 is offline
Reply With Quote
Old 03-27-18, 02:15 PM
  #10
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,365
Thanked 32 Times in 31 Posts
Mikey, definitely have one at the shop. I can ship it to you next week.
RGHTBrainDesign is offline
Reply With Quote
Old 04-04-18, 08:45 PM
  #11
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,365
Thanked 32 Times in 31 Posts
BAC Shipped! Keep us all in the loop as to how the tuning goes.
RGHTBrainDesign is offline
Reply With Quote
Old 06-13-18, 04:03 PM
  #12
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by SirLaughsALot View Post
BAC Shipped! Keep us all in the loop as to how the tuning goes.
I have everything ready to go and no spark! Maybe I didnít follow Banzai trailing coil mod although I tripled checked it. So Iíve decided to just go ahead and stop ******* around and buy the AEM smart coils. Does anyone know of a kit that comes with everthing included? Iíve seen picutures online of a nice bracket replacing the AC and Power steering.
mikey1992 is offline
Reply With Quote
Old 06-13-18, 04:45 PM
  #13
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 744
Thanked 42 Times in 31 Posts
Originally Posted by mikey1992 View Post


I have everything ready to go and no spark! Maybe I didnít follow Banzai trailing coil mod although I tripled checked it. So Iíve decided to just go ahead and stop ******* around and buy the AEM smart coils. Does anyone know of a kit that comes with everthing included? Iíve seen picutures online of a nice bracket replacing the AC and Power steering.
Sakebomb garage sells a complete.

SBG RX7 FD IGN-1A KIT

Post a copy of your current tune file in here and I'll gladly take a look and make sure you got everything set up right regardless of whether you keep the stockers or go the IGN-1A route. You'll want to make the software change to direct fire with the coils unplugged, so as not to fry one with what was assigned in the base map as the BAC output. You'll also need to repin the BAC wire at the ecu to another output and reassign that function in the ECU. Its all pretty easy and in my opinion a great upgrade.

Skeese
Skeese is offline
Reply With Quote
Old 06-13-18, 05:57 PM
  #14
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by Skeese View Post
Sakebomb garage sells a complete.

SBG RX7 FD IGN-1A KIT

Post a copy of your current tune file in here and I'll gladly take a look and make sure you got everything set up right regardless of whether you keep the stockers or go the IGN-1A route. You'll want to make the software change to direct fire with the coils unplugged, so as not to fry one with what was assigned in the base map as the BAC output. You'll also need to repin the BAC wire at the ecu to another output and reassign that function in the ECU. Its all pretty easy and in my opinion a great upgrade.

Skeese
I based the tune off the Haltech base map for S7/8 with a single turbo. I left the BAC disconnected for now since I dont have the plumbing connected. I did not unplug the coils at the time of changing the setting to direct fire so I fucked up. Thanks for the second pair of more experienced eyes, really appreciate it.
Attached Files
File Type: zip
Mikeys FC.zip (39.1 KB, 4 views)
mikey1992 is offline
Reply With Quote
Old 06-13-18, 08:49 PM
  #15
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 744
Thanked 42 Times in 31 Posts
Originally Posted by mikey1992 View Post
I based the tune off the Haltech base map for S7/8 with a single turbo. I left the BAC disconnected for now since I dont have the plumbing connected. I did not unplug the coils at the time of changing the setting to direct fire so I fucked up. Thanks for the second pair of more experienced eyes, really appreciate it.
You may have fried the coil, I'm not sure. Will check the file and get back with you. I'm not as familiar with the FC outputs as I am the FD, so I cant say for sure until I look

no worries, I fried an aem coil over it

Skeese
Skeese is offline
Reply With Quote
Old 06-14-18, 12:36 AM
  #16
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
I ordered the coils already and hoping that’s the last issue. I’m using haltech water and air temp sensors, low impedance injectors, stock FC CAS, and S4 tps. I haven’t wired in the boost solenoid, BAC, or launch control switch since I just wanna get the car started for now. I’ll get back to you when I install the coils but that may take awhile.
mikey1992 is offline
Reply With Quote
Old 06-14-18, 02:30 AM
  #17
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,365
Thanked 32 Times in 31 Posts
Glad the BAC made it alright. Keep us in the loop, Mikey!
RGHTBrainDesign is offline
Reply With Quote
Old 08-01-18, 04:12 PM
  #18
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post



Originally Posted by SirLaughsALot View Post
Glad the BAC made it alright. Keep us in the loop, Mikey!

Bad News: Ok so coils are wired and installed but car still wonít start.

Good News: Tested the fuel pump and had power but no pressure.

Sorry I took so long to get back to yíall, but these summer classes didnít really leave me with a lot of time. And I also was job hunting.
Next step order new fuel pump and hopefully she will start. I did manage to wire up the alternator and switch panel while I was doing the coils.
mikey1992 is offline
Reply With Quote
Old 08-02-18, 07:26 AM
  #19
Rocket Appliances
iTrader: (11)

Skeese's Avatar

Join Date: Nov 2013
Location: Houston TX
Posts: 744
Thanked 42 Times in 31 Posts
Hey at least you got a curlprit. No fuel pressure will modt definitely cause it to not start. If you want, email me your current tune file and I can look it over to double check it all aligns in there. Coils look good though, I like them in that location.

[email protected]

Skeese
Skeese is offline
Reply With Quote
The Following 2 Users Say Thank You to Skeese For This Useful Post:
mikey1992 (08-03-18), RGHTBrainDesign (08-03-18)
Old 08-06-18, 03:34 PM
  #20
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post


Originally Posted by Skeese View Post
Hey at least you got a curlprit. No fuel pressure will modt definitely cause it to not start. If you want, email me your current tune file and I can look it over to double check it all aligns in there. Coils look good though, I like them in that location.

[email protected]

Skeese

Ok Walbro installed and working like a charm, but still wonít start. After some digging I found no spark from the coils. With new coils, wires, and plugs Iím thinking its a CAS or tune related problem. If you could please look over the tune Iíd really appreciate it.
mikey1992 is offline
Reply With Quote
Old 08-08-18, 09:23 PM
  #21
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,090
Thanks: 0
Thanked 26 Times in 21 Posts
Whatís the sync state and rpm while cranking?
C. Ludwig is offline
Reply With Quote
The Following 2 Users Say Thank You to C. Ludwig For This Useful Post:
mikey1992 (08-09-18), RGHTBrainDesign (08-08-18)
Old 08-09-18, 01:26 PM
  #22
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by C. Ludwig View Post
Whatís the sync state and rpm while cranking?
The cranking speed is at 380 rpm and not sure what you mean by sync state but I have the laptop connected monorting the engine limiting fuctions showing zero errors. Coils are in direct fire mode (yes I disconnected before making the switch), falling edge, and constant charge. Home/Trigger is at reluctor falling edge with zero filter, and ground reference enabled. One thing I will change is the wiring for the coils. I grouped all 3 grounds and placed them on the corresponding rotor housing. I will ground the D terminal to the battery just to rule that out. Thanks Ludwig.
mikey1992 is offline
Reply With Quote
Old 08-09-18, 04:07 PM
  #23
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,090
Thanks: 0
Thanked 26 Times in 21 Posts
Open a window and monitor sync state while cranking.
C. Ludwig is offline
Reply With Quote
Old 08-10-18, 04:21 PM
  #24
No Sleep
Thread Starter

mikey1992's Avatar

Join Date: Feb 2011
Location: Houston, TX
Posts: 268
Thanked 1 Time in 1 Post
Originally Posted by C. Ludwig View Post
Open a window and monitor sync state while cranking.
While cranking the Trig Sync Lev says None and the Trig SyncState switches from Stopped, First Tooth, and Running. Also the Trig Errs reads a few errors. I tried to set the TDC offset angle but nothing is coming from the timing light. It is a known good light.

Last edited by mikey1992; 08-10-18 at 07:01 PM. Reason: Incorrect
mikey1992 is offline
Reply With Quote
Old 08-10-18, 07:52 PM
  #25
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,090
Thanks: 0
Thanked 26 Times in 21 Posts
Sounds like it’s not picking up the home signal. Sync level should be full while cranking. If it’s none, it’s not seeing the home signal. Post your map.
C. Ludwig is offline
Reply With Quote
