Major Hesitation at 4000rpm under boost

Thread Tools

Search this Thread

Old Dec 15, 2024 | 04:44 PM
  #1
freq's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (6)

Joined: Jan 2006
Posts: 692
Likes: 2
From: North Carolina
Major Hesitation at 4000rpm under boost

I'm running an elite 1500.
I get a major hesitation at 4000rpm. Only happens if I'm boosting. If I boost under 4000 rpm, no hesitation. Could this be an injector staging problem?
Reply
Old Dec 15, 2024 | 05:59 PM
  #2
C. Ludwig's Avatar
www.lms-efi.com
Tenured Member: 25 Years
Liked
Loved
iTrader: (27)

Joined: Mar 2001
Posts: 5,265
Likes: 146
From: Floyds Knobs. IN
Yes. Could you give us less to go on?
Reply
Old Dec 15, 2024 | 06:51 PM
  #3
freq's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (6)

Joined: Jan 2006
Posts: 692
Likes: 2
From: North Carolina

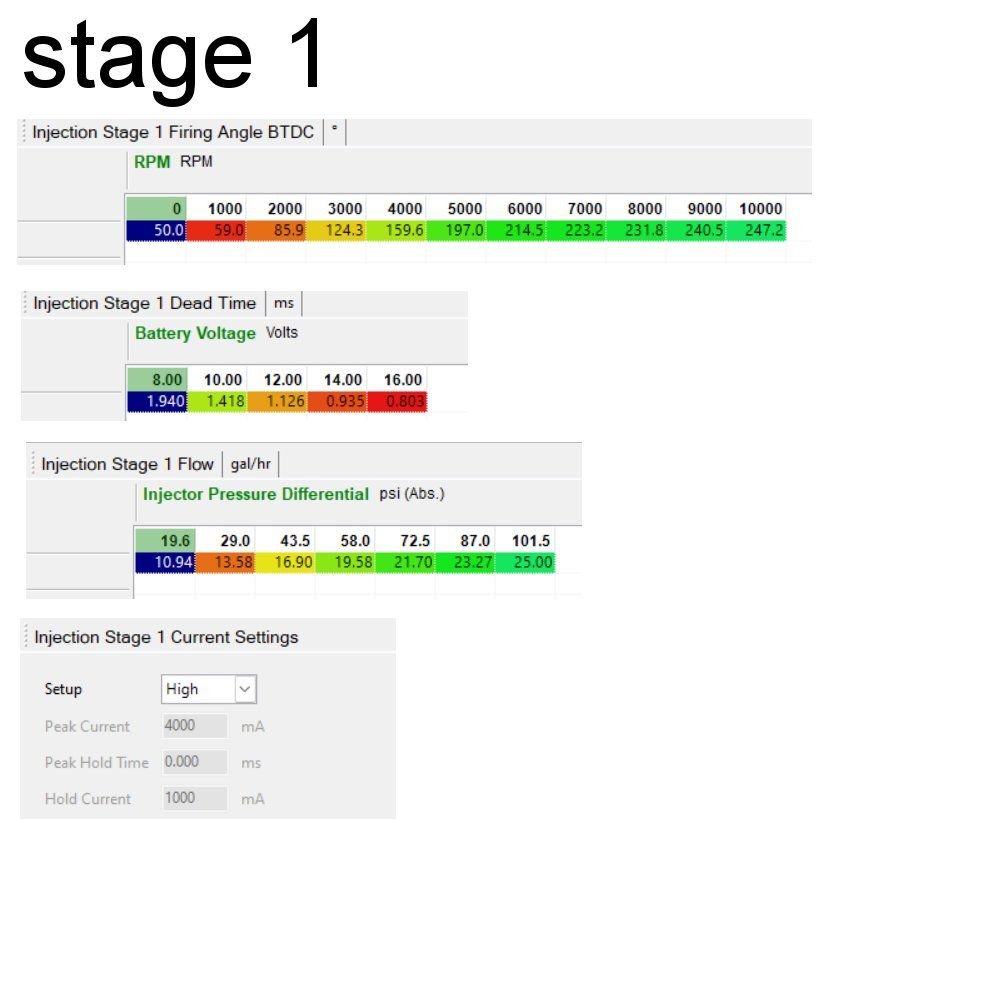

Apologies, there's alot of data and config here so I didn't know where to start.. The injectors are ID 1050 primaries and secondaries. What do you need to point me in the right direction to fix? Below is my injector setup..





Reply
Old Dec 16, 2024 | 06:58 AM
  #4
siguy2k's Avatar
SLEEPER
Tenured Member: 20 Years
iTrader: (3)

Joined: Nov 2005
Posts: 1,145
Likes: 11
From: nebraska
Are you running NSP software? 2nd stage "injections per cycle" should be 2. And i would setup the dead times per these tables.

https://help.injectordynamics.com/su...075013-haltech
Reply
Old Dec 16, 2024 | 06:19 PM
  #5
C. Ludwig's Avatar
www.lms-efi.com
Tenured Member: 25 Years
Liked
Loved
iTrader: (27)

Joined: Mar 2001
Posts: 5,265
Likes: 146
From: Floyds Knobs. IN
Update the firmware and select Nexus style staging. Enter the proper injector flow and dead time info and you’ll be good.
Reply
Old Dec 20, 2024 | 03:30 PM
  #6
freq's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (6)

Joined: Jan 2006
Posts: 692
Likes: 2
From: North Carolina
Originally Posted by C. Ludwig
Update the firmware and select Nexus style staging. Enter the proper injector flow and dead time info and you’ll be good.
I've tried the above. I updated the firmware and software to nsp. Checked the injector flow and dead times and switched to nexus style staging, but haven't resolved the issues. Is there anything else I should be checking/adjusting?
Reply
Old Dec 28, 2024 | 01:24 PM
  #7
Kenny McKee's Avatar
Junior Member
Tenured Member 10 Years

Joined: Oct 2013
Posts: 49
Likes: 15
From: Tulsa, OK
What does the log say?
Reply
Old Jan 12, 2025 | 10:39 AM
  #8
freq's Avatar
Thread Starter
Senior Member
Tenured Member 15 Years
iTrader: (6)

Joined: Jan 2006
Posts: 692
Likes: 2
From: North Carolina
Yesterday I ran carb cleaner thru the injectors. Fixed the issue. These are low mileage injectors so I didn't think they'd be gummed up, but the car has been sitting for a bit so I guess that caused the issue.
