20b into Haltech ps2k cas

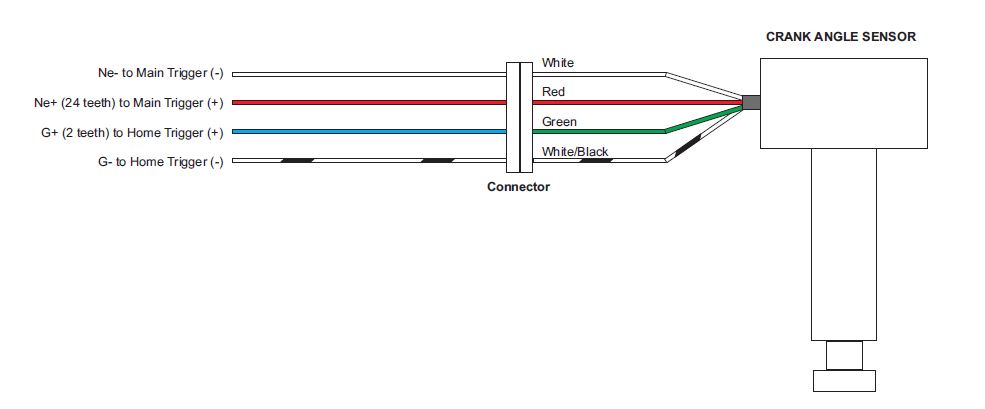

Hey guys, I have been lurking for near 2 years now, and I finally found a question I couldn't resolve without posting. I have read through Claudio's installation sticky thread but all of the links are dead, and there seems to be some misinformation that was either corrected or not. I have a 20b and a ps2k with flying harness and fuse box. everything is wired so far except for my cas. I cant find a diagram for the 4 wires coming off of the cas
Most of my ecu related wiring is done, but this has been wasting 2 weeks of my time trying to get a solid answer
Specifics:
20b
20b cas
Haltech platiunum sport 2000
Flying lead harness with fuse box
AEM smart coils (30-2853)
cas wires:
white
white/black
red
green
Do i use he home or trigger wires? what type of sensor, hall effect or reluctor?
-
-
-
Also, I havent powered the ecu up yet and adjusted any settings. I wired the primary injectors as 1 2 3 and the secondary as 4 5 6. Now I also set my aem coils up to be front rotor 1 2,mid rotor 3 4 and rear rotor 5 6. Am I able to set that accordingly in the ecu or did I wire the ignition incorrectly
Most of my ecu related wiring is done, but this has been wasting 2 weeks of my time trying to get a solid answer
Specifics:
20b
20b cas
Haltech platiunum sport 2000
Flying lead harness with fuse box
AEM smart coils (30-2853)
cas wires:
white
white/black
red
green
Do i use he home or trigger wires? what type of sensor, hall effect or reluctor?
-
-
-
Also, I havent powered the ecu up yet and adjusted any settings. I wired the primary injectors as 1 2 3 and the secondary as 4 5 6. Now I also set my aem coils up to be front rotor 1 2,mid rotor 3 4 and rear rotor 5 6. Am I able to set that accordingly in the ecu or did I wire the ignition incorrectly
#2
www.lms-efi.com
iTrader: (27)
You'll use the green and yellow wires from the home and trigger cables. The red and blue in each will not be used. You need to make sure the red and blue are insulated and do not ground to anything, including the shielding foil in the cable. NE+ is yellow trigger, NE- is green trigger. G+ is yellow home, G- is green home.
The coils need to be wired IGN1 to L1, IGN2 to L2, IGN3 to L3, IGN4 to T1, IGN5 to T2, IGN 6 to T3. No other way to do it.
The coils need to be wired IGN1 to L1, IGN2 to L2, IGN3 to L3, IGN4 to T1, IGN5 to T2, IGN 6 to T3. No other way to do it.
