Front Diff Mount Prototype

Old 05-05-12, 01:43 AM
  #1
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Front Diff Mount Prototype

Finally had a bit of time to work on some development projects. First on the short list was a replacement for the front diff mount seeing as how mine needs replacing.

All in all I'm very happy with the results. The polyurethane bushings were a bit challenging to make due to their relatively small size, but ended up better then I expected. I still need to set up a jig to check the dimensions but it should only take minor tweaking to get it perfect.

One of the largest challenges was to make sure that the mount properly isolated the diff from the subframe. If the mount isn't designed right, then when you accel/decel quickly the mount can clunk. When I get time I'll try to remember to post a cross section of the mount so everyone can see what I'm talking about.

It's still missing some washers and the bolts for the subframe but I don't have anything the right size in stock at the moment.





Level Zero Motorsports is offline
Old 05-05-12, 11:31 AM
  #2
Doin' Work Son!
iTrader: (8)

ruddyrid's Avatar

Join Date: Mar 2009
Location: Oxnard, CA
Posts: 446
Received 0 Likes on 0 Posts
Beefy!!!
ruddyrid is offline
Old 05-05-12, 11:44 AM
  #3
Rotary Enthusiast
iTrader: (36)

rotary#10's Avatar

Join Date: Aug 2005
Location: Oakland, CALI = O
Posts: 863
Received 6 Likes on 6 Posts
Nice!!
rotary#10 is offline
Old 05-05-12, 07:01 PM
  #4
Senior Member

Join Date: Jan 2011
Location: houston, tx
Posts: 338
Likes: 0
Received 0 Likes on 0 Posts
Please let me know when you start selling this. I would love to buy this for my car. Need something strong for drifting.
slowgxl is offline
Old 05-05-12, 07:18 PM
  #5
Rotary Freak
5 Year Member
iTrader: (2)

JWteknix's Avatar

Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes on 0 Posts
I'll take one
JWteknix is offline
Old 05-05-12, 07:22 PM
  #6
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Received 97 Likes on 84 Posts
I'll take one too.
misterstyx69 is offline
Old 05-05-12, 07:25 PM
  #7
Bridge Burner.
5 Year Member
iTrader: (13)

beachFC's Avatar

Join Date: Apr 2011
Location: Long Beach
Posts: 1,294
Likes: 0
Received 1 Like on 1 Post
i'll take one tooooo
beachFC is offline
Old 05-05-12, 10:58 PM
  #8
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
I'll be at least a few weeks before I can have these in stock and ready to ship. I still need to do test fitments and so stress testing would be nice as well.
Level Zero Motorsports is offline
Old 05-06-12, 01:21 PM
  #9
This sh*t burns oil!
iTrader: (7)

Join Date: Oct 2006
Location: Charlotte, NC - USA
Posts: 1,209
Received 1 Like on 1 Post
And I just dropped my subframe today...
SpikeDerailed is offline
Old 05-07-12, 07:39 AM
  #10
Gap Slayer!
10 Year Member
iTrader: (13)

PortedRotorTuner's Avatar

Join Date: Aug 2005
Location: Columbus, OH
Posts: 369
Likes: 0
Received 0 Likes on 0 Posts
Might be interested in putting this on my time attack FC.
I'll be watching this thread. To see how she holds up.
PortedRotorTuner is offline
Old 05-07-12, 10:18 AM
  #11
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,012
Likes: 0
Received 2 Likes on 2 Posts
Subed to this bad boy...too many nightmares of finding new subframes and replacing that damn mount....quality piece sir...hope it makes it to production.
BurntOrangeT2 is offline
Old 05-08-12, 05:23 PM
  #12
Full Member
10 Year Member
iTrader: (2)

Alexsrx's Avatar

Join Date: Oct 2003
Location: Orlando, Fl
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Sign me up for one too, mine is starting to knock too so timing couldnt be more perfect on this. Hope this this quality looking piece makes it into production soon!!
Alexsrx is offline
Old 05-09-12, 08:58 PM
  #13
On the fasttrack!
5 Year Member
iTrader: (22)

magus2222's Avatar

Join Date: Oct 2006
Location: virginia beach, virginia
Posts: 2,493
Likes: 0
Received 0 Likes on 0 Posts
id be interested in this since i already have the bmc stopper from you guys.
should pair well with my suspension setup and the pinion snubber

Lloyd
magus2222 is offline
Old 05-11-12, 08:34 AM
  #14
3-Rotor madness

Join Date: Jun 2004
Location: sweden
Posts: 391
Likes: 0
Received 1 Like on 1 Post
Damn it i want one!!
rx7jocke is offline
Old 05-16-12, 11:58 AM
  #15
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,012
Likes: 0
Received 2 Likes on 2 Posts
Any progressin terms of testing the prototype?
BurntOrangeT2 is offline
Old 05-24-12, 05:59 PM
  #16
Rotary Freak
5 Year Member
iTrader: (2)

JWteknix's Avatar

Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes on 0 Posts
^^bump?
JWteknix is offline
Old 05-26-12, 12:14 AM
  #17
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Been swamped catching up on some parts we have started to run low on. My goal for this weekend is to finally get some work done on my FC, which if it goes well includes fitting the prototype finally.
Level Zero Motorsports is offline
Old 05-27-12, 04:28 AM
  #18
Rotary Freak
5 Year Member
iTrader: (2)

JWteknix's Avatar

Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes on 0 Posts
So when will these go in to production?
JWteknix is offline
Old 05-28-12, 02:25 PM
  #19
Full Member
iTrader: (2)

blindboxx2334's Avatar

Join Date: May 2010
Location: sacramento
Posts: 184
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by slowgxl View Post
Please let me know when you start selling this. I would love to buy this for my car. Need something strong for drifting.
Originally Posted by SpikeDerailed View Post
And I just dropped my subframe today...
Originally Posted by BurntOrangeT2 View Post
Subed to this bad boy...too many nightmares of finding new subframes and replacing that damn mount....quality piece sir...hope it makes it to production.
All of the above!

I will be watching this thread! Ive got literally every bushing bought for my rear emd cept the diff mount.
blindboxx2334 is offline
Old 05-28-12, 02:28 PM
  #20
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 12 Likes on 11 Posts
looks nice but you may want to test it before selling them.

i have seen enough force on the diff nose to shear off the whole thick steel plate mount tab from the subframe. call me skeptical but i see too many wear angles and not enough load bearing surface on the actual mount. i did think the other design would work that was posted up before where the pucks took on direct load instead of transferring it as a torsional load. i just envision it may be rather solid feeling at first but it will wear quickly until the point where the bolts are doing the work and either wear out the aluminum body or shear the bolts off.

hopefully you take no offense, the materials and machining look good.

Last edited by RotaryEvolution; 05-28-12 at 02:40 PM.
RotaryEvolution is offline
Old 05-29-12, 11:52 AM
  #21
I break Diff mounts
10 Year Member
iTrader: (1)

Digi7ech's Avatar

Join Date: Jun 2002
Location: Avondale, Arizona
Posts: 4,397
Likes: 0
Received 0 Likes on 0 Posts
^I also worry about this design.

The sheering force is always the issue with our stock mount. The bonded rubber was a serious weak point.

I liked that sandwich style that fell through with the AZ guy. It turned the upward force into compression instead of sheering.
Digi7ech is offline
Old 06-01-12, 08:46 PM
  #22
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Karack View Post
looks nice but you may want to test it before selling them.

i have seen enough force on the diff nose to shear off the whole thick steel plate mount tab from the subframe. call me skeptical but i see too many wear angles and not enough load bearing surface on the actual mount. i did think the other design would work that was posted up before where the pucks took on direct load instead of transferring it as a torsional load. i just envision it may be rather solid feeling at first but it will wear quickly until the point where the bolts are doing the work and either wear out the aluminum body or shear the bolts off.

hopefully you take no offense, the materials and machining look good.
No offense taken, and very valid points. These will be tested as much as possible before they make it to production. A part like this is quite challenging to design because not only does it have to function well, it also has to be cost effective to produce. If I was making this for only my car, I'd mill it out of a single large block of aluminum and have bushings on both planes.

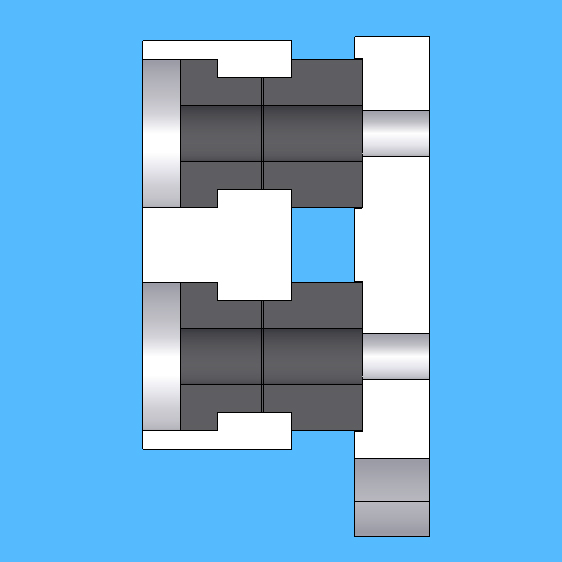

I've included a cross section of the mount so everyone can see how the bushings isolate the plates from each other. One of my primary concerns besides durability, is making sure it doesn't "clunk" under heavy loads. I know I'd personally be very angry if I went through the trouble of installing a diff mount, and it made a unpleasant noise every time I launched hard or was on/off the throttle quickly.
Attached Thumbnails Front Diff Mount Prototype-diff_mount_cross_section.jpg
Level Zero Motorsports is offline
Old 06-03-12, 06:27 PM
  #23
Rx Bandit
5 Year Member

blame's Avatar

Join Date: Jul 2008
Location: Fort St John, BC, Canada
Posts: 232
Likes: 0
Received 0 Likes on 0 Posts
i can't wait to see this in production. i literally just minutes ago ordered your poly engine/trans mounts and DTSS bushings off your site. looks like you make good stuff

-sean
blame is offline
Old 06-03-12, 09:25 PM
  #24
What you lookin' at?
10 Year Member

SpeedyRotary's Avatar

Join Date: Aug 2002
Location: Kansas City
Posts: 566
Likes: 0
Received 0 Likes on 0 Posts
I'm interested to see the turn out of these!
SpeedyRotary is offline
Old 06-04-12, 12:49 AM
  #25
Registered User
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Maple Ridge
Posts: 200
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by blame View Post
i can't wait to see this in production. i literally just minutes ago ordered your poly engine/trans mounts and DTSS bushings off your site. looks like you make good stuff

-sean
Thanks. You order will be shipped first thing tomorrow.

Originally Posted by SpeedyRotary View Post
I'm interested to see the turn out of these!
Me too
Level Zero Motorsports is offline
