Tranny Leak - Anyone know what this is?

Old 03-03-18, 11:53 AM
  #1
Junior Member
Thread Starter

ValkyrieJax's Avatar

Join Date: Jul 2017
Location: Jacksonville
Posts: 24
Likes: 0
Received 1 Like on 1 Post
Tranny Leak - Anyone know what this is?

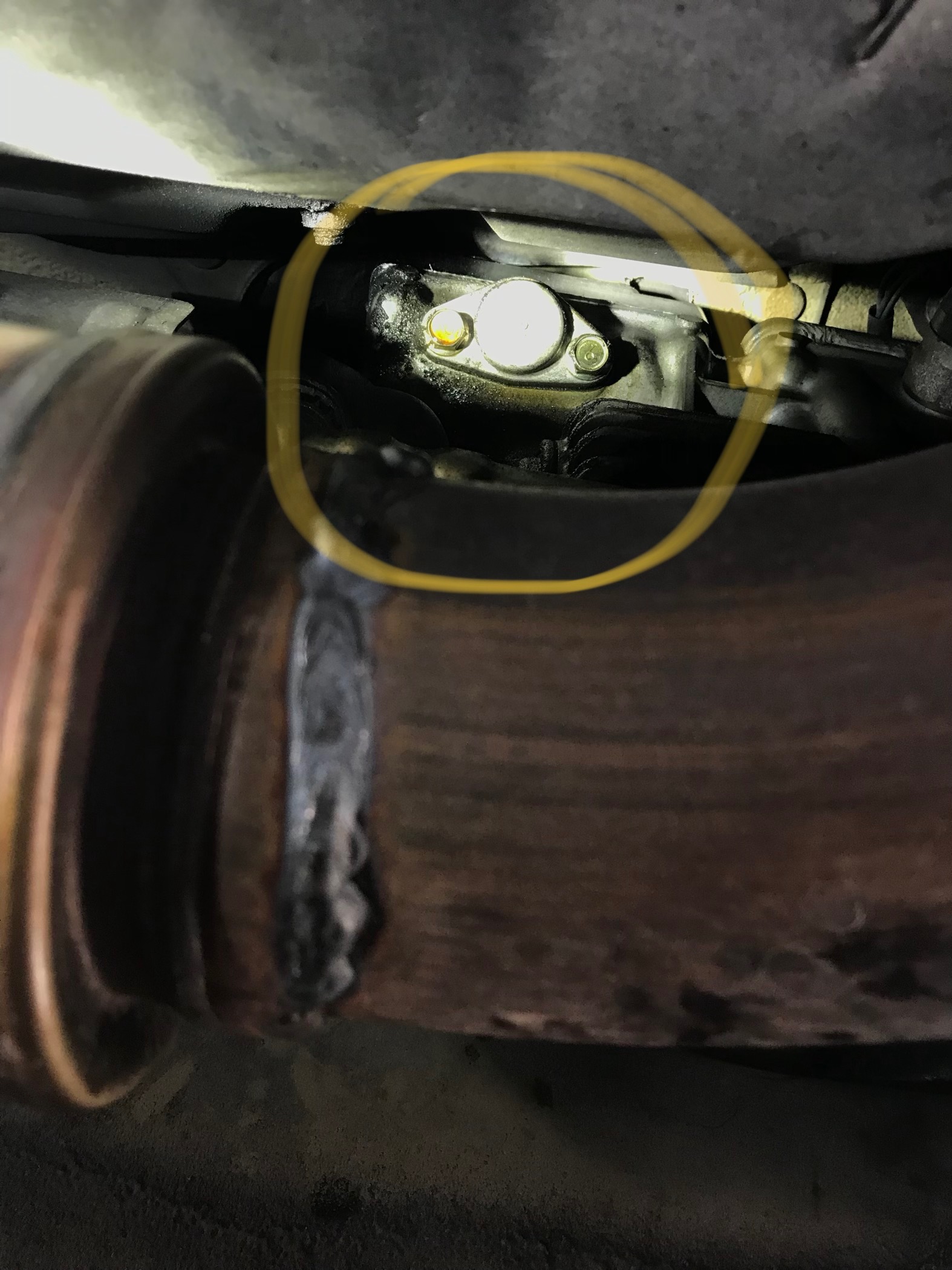

I found the source of my tranny leak, but can't find this on any RX7 diagram. Can someone tell me what this is in the photo/video? It's located just south of the shifter box and reverse light switch.
Attached Thumbnails Tranny Leak - Anyone know what this is?-img_2776-3.jpeg
Attached Files
File Type: mov
IMG_2770-1.mov (2.05 MB, 13 views)
ValkyrieJax is offline
Old 03-04-18, 02:43 PM
  #2
Full Member
iTrader: (4)

Join Date: Jun 2008
Location: Houston texas
Posts: 156
Received 0 Likes on 0 Posts
i can't tell the orientation of the picture but its one of the 2

shifter lock spindle
shifter select assembly.
mofo_aka is offline
Old 03-04-18, 06:07 PM
  #3
Full Member
iTrader: (19)

Join Date: Apr 2010
Location: Kissimmee
Posts: 85
Likes: 0
Received 1 Like on 1 Post
I have had that problem. It's where the shifter centering springs are located. You have to remove the shifter, suck up the gear oil in the shifter tower, which is separate from the rest of the tranny BTW, and reseal that plate. It's a pain with the transmission in the car, but possible.
jmm8904 is offline
