Sutiable metal front cover o ring? Pics inside
I work at a powersports dealership, and have been reading up about possibly using a metal washer in place of the front cover O-ring. I found that the drain plug crush washer for an Arctic Cat 1100 Turbo snowmobile is the same size as the o-ring, and it is a hollow crush style washer, it is taller, but will collapse. Do you think this will work? I will try it on my spare motor, to see how it collapses, the metal washer is hollow, not solid, and is designed to crush about 1/2 its height.

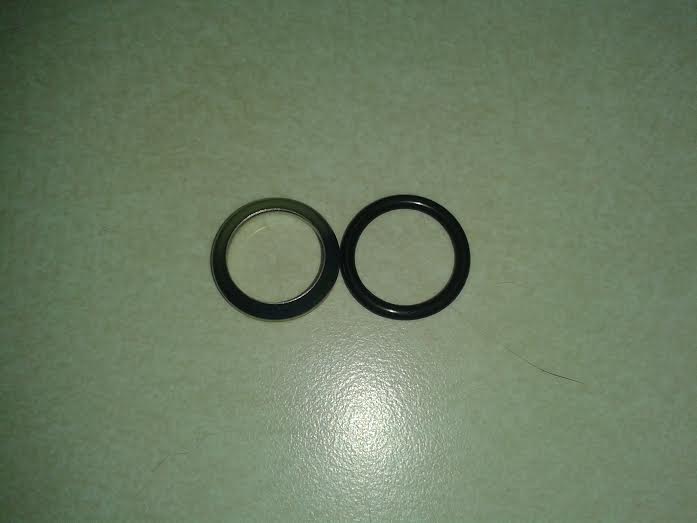

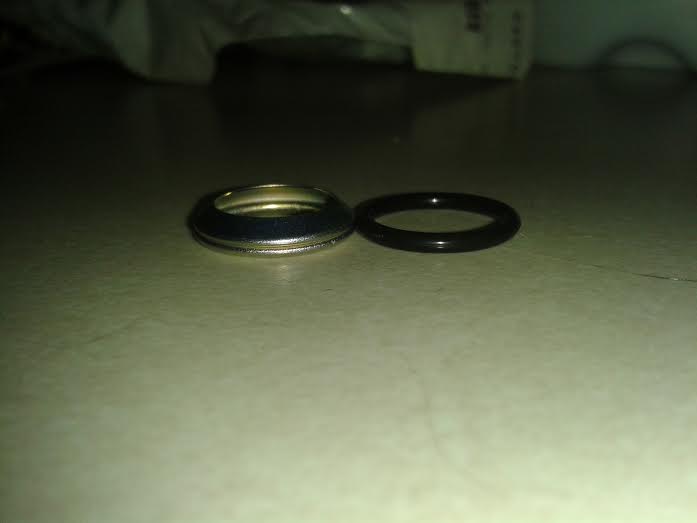

Metal washer on left, new Mazda o-ring on the right:

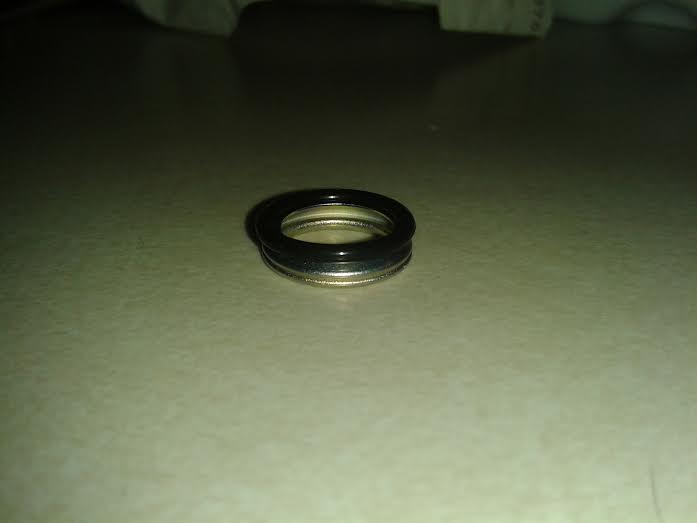

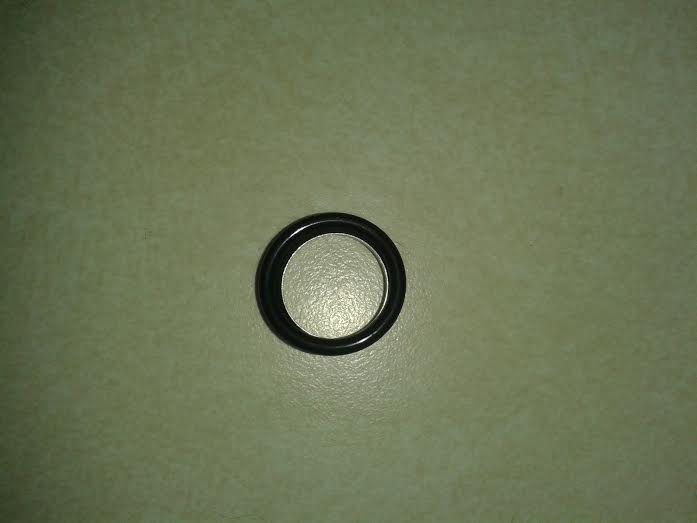

New Mazda o-ring on top of metal washer:
The Arctic Cat part number is 3402-011 and retails for about $2.
The only issue is that the metal crush washer is very slightly smaller inside, but I will install it on my spare motor, tighten the front cover down with the old gasket, and take it apart to see how it looks first. I don't think it will be an issue.
Metal washer on left, new Mazda o-ring on the right:
New Mazda o-ring on top of metal washer:
The Arctic Cat part number is 3402-011 and retails for about $2.
The only issue is that the metal crush washer is very slightly smaller inside, but I will install it on my spare motor, tighten the front cover down with the old gasket, and take it apart to see how it looks first. I don't think it will be an issue.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
why not just run the later FD, or Rx8 front cover gasket? it eliminates the o ring.
N390-10-502 or N3H1-10-502B
N390-10-502 or N3H1-10-502B
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
for the 1996 and later FD's Mazda removed the o ring, and just used the metal gasket instead. the 89-95 engines have a paper gasket with the nylon retainer.
#5
Old [Sch|F]ool
#7
Rotary Motoring
iTrader: (9)
I found the original o-ring did NOT work in my application and every time I took my motor apart I was fishing the o-ring out of the oil relief regulator galley where it had gone on vacation.
I finally press fit a dowel in the front side housing that interfaces with the front cover. Now there is no where for the o-ring to escape to when the front cover gets pushed away from the front side housing.
I finally press fit a dowel in the front side housing that interfaces with the front cover. Now there is no where for the o-ring to escape to when the front cover gets pushed away from the front side housing.
Trending Topics
#8
Old [Sch|F]ool
I found the O-ring in the oil filter pedestal once! I have no idea how it made it past the oil cooler.
That was the Incident where I stopped being so cheap and paid the 18 bucks for the RX-8 gasket.
That was the Incident where I stopped being so cheap and paid the 18 bucks for the RX-8 gasket.
