engine stand adapter plans
#1
I luv my carbon footprint
Thread Starter
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
engine stand adapter plans
Does anyone have the plans for the mazdatrix style of engine stand adapter? I searched and couldn't find anything on the forum for making one yourself. I have the tools to make one so I'd prefer to build rather than buy.
#3
Rotary Freak
iTrader: (3)
Join Date: Feb 2002
Location: MN
Posts: 1,697
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Jeff20B

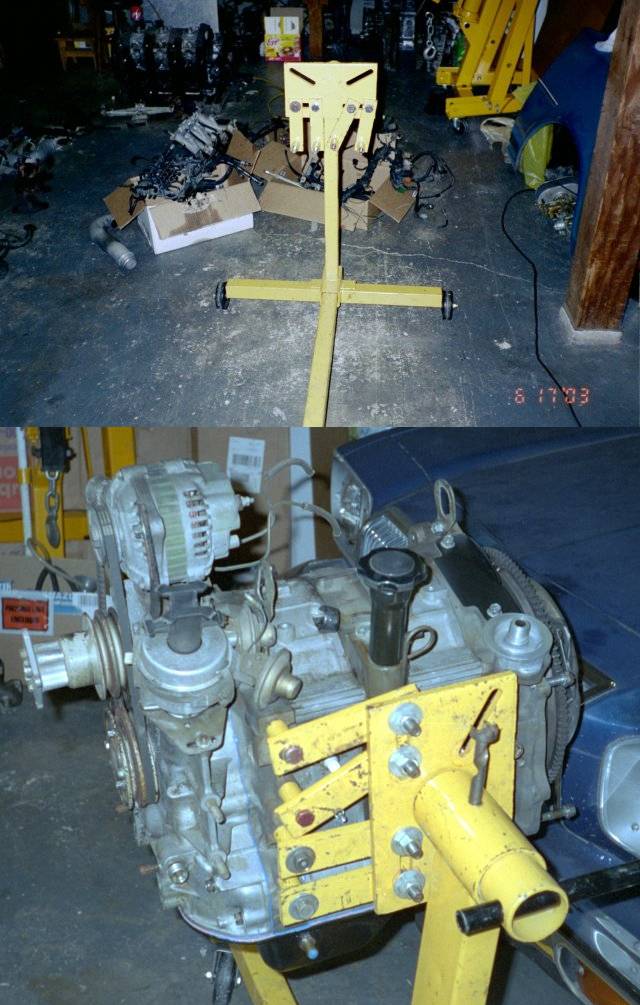

I simply remove the studs from the front plate and insert some 12mm x 1.5 in the two lower holes and 10mm x 1.25 in the upper holes. Didn't cost a dime because I the bolts were just laying around.
I did'nt have the M12x1.5 just laying around
-a
#4
I luv my carbon footprint
Thread Starter
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Jeff20B
I use the legs that came with the stand. All four legs. I simply remove the studs from the front plate and insert some 12mm x 1.5 in the two lower holes and 10mm x 1.25 in the upper holes. Didn't cost a dime because I the bolts were just laying around.
#5
Senior Member
iTrader: (2)
Join Date: Oct 2003
Location: Washington/BC
Posts: 511
Likes: 0
Received 0 Likes
on
0 Posts
i thought the reason for the engine stand adapter was to move the engine away from the stand to get more room. That way u can look around the engine while assembling and have better access to everything. So is it harder to assemble an engine with it bolted staight to the stand itself? Please let me know because I was going to build an adapter too.
