New trigger wheel

Old 07-30-13, 09:38 AM
  #1
Rotary Enthusiast

Thread Starter

sleeper7's Avatar

Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes on 10 Posts
New trigger wheel

Just received the redesigned trigger wheel. There wheel has always been excellent but the improvements are great.

There are 5 or 6 guys in my area using these trigger wheels. All are happy campers. If any one is on the fence about going with one of these, GET one.

Thanks for the great service.

Now to turn the boost up and run a low 9....

Name:  20130730_093002-1_zpsc1a4fe06.jpg
Views: 1661
Size:  87.2 KB
Old 07-30-13, 09:50 AM
  #2
Viper Eater

iTrader: (2)

RXTASY57's Avatar

Join Date: Oct 2006
Location: Idaho
Posts: 903
Received 0 Likes on 0 Posts
I love mine... really smoothed things out!
Old 08-02-13, 04:27 PM
  #3
Full Member


RX7FAN01's Avatar

Join Date: Sep 2001
Location: Orlando Florida
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Where do you get one of these?
Old 08-02-13, 06:09 PM
  #4
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
What are the updates to the wheel?
Old 08-03-13, 07:14 AM
  #5
Viper Eater

iTrader: (2)

RXTASY57's Avatar

Join Date: Oct 2006
Location: Idaho
Posts: 903
Received 0 Likes on 0 Posts
Looks like Jason made the legs a little stronger?
Old 08-03-13, 09:12 AM
  #6
Senior Member

iTrader: (9)

RX7(613)'s Avatar

Join Date: Apr 2003
Location: ottawa
Posts: 713
Received 1 Like on 1 Post
Originally Posted by RX7FAN01
Where do you get one of these?
Fantastic company

Full Function Engineering | FFE Store
Old 08-03-13, 09:20 AM
  #7
Rotary Enthusiast

Thread Starter

sleeper7's Avatar

Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes on 10 Posts

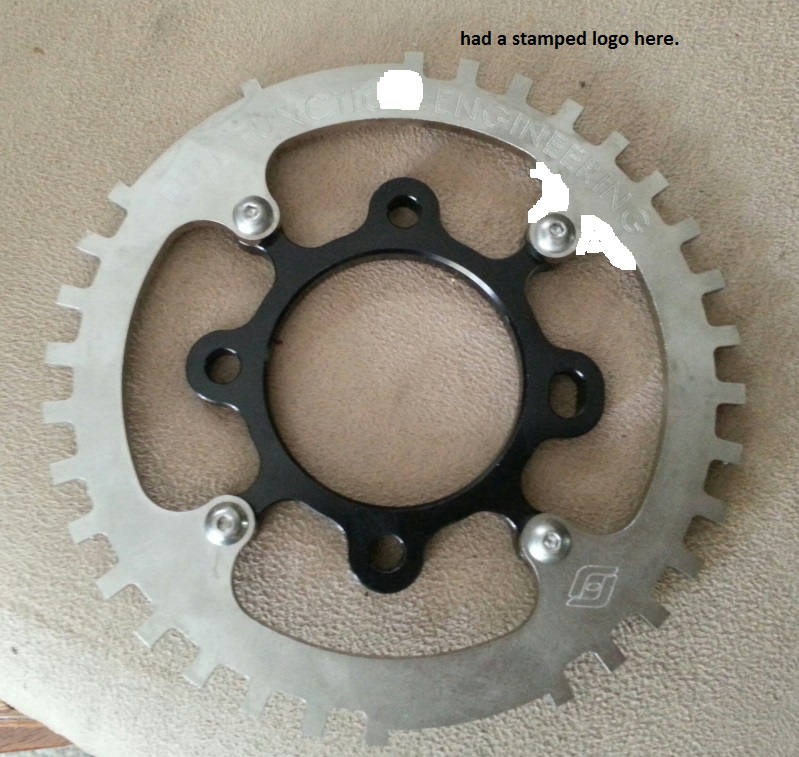

There was a stamped logo. and the legs from the wheel to the "holder" were made larger. Nothing wrong with the old ones. I just like how robust the new ones are.
Attached Thumbnails New trigger wheel-ffe-wheel.jpg
Old 09-01-13, 05:10 PM
  #8
Full Member
iTrader: (1)

jamesbully's Avatar

Join Date: May 2012
Location: carstairs
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
sorry if i missed this but what exactly is a trigger wheel. and what does it do.
thanks
Old 09-03-13, 08:08 PM
  #9
Senior Member
iTrader: (3)

Jason94R2's Avatar

Join Date: Feb 2013
Location: Delaware
Posts: 265
Likes: 0
Received 0 Likes on 0 Posts
How necessary are these? I like the idea of better resolution for the ecu. Doesnt seem very expensive, worth it on a 500hp car?

Jason
Old 09-03-13, 09:08 PM
  #10
Built not Bought

iTrader: (18)

vrx8's Avatar

Join Date: May 2010
Location: San Antonio, TX
Posts: 662
Received 11 Likes on 8 Posts
Originally Posted by jamesbully
sorry if i missed this but what exactly is a trigger wheel. and what does it do.
thanks
Tells the ecu when to fire the spark.
Old 09-03-13, 09:09 PM
  #11
Viper Eater

iTrader: (2)

RXTASY57's Avatar

Join Date: Oct 2006
Location: Idaho
Posts: 903
Received 0 Likes on 0 Posts
Originally Posted by Jason94R2
How necessary are these? I like the idea of better resolution for the ecu. Doesnt seem very expensive, worth it on a 500hp car?

Jason
Wouldn't have a 500+ HP rotary without one! Best investment I have made dollar for dollar.
Old 09-03-13, 09:10 PM
  #12
Senior Member
iTrader: (3)

Jason94R2's Avatar

Join Date: Feb 2013
Location: Delaware
Posts: 265
Likes: 0
Received 0 Likes on 0 Posts
Welp, added to the FFE to get list!

Jason
Old 09-03-13, 09:22 PM
  #13
Full Member
iTrader: (1)

jamesbully's Avatar

Join Date: May 2012
Location: carstairs
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by vrx8

Tells the ecu when to fire the spark.
So what's wrong with the stock one ?
Old 09-03-13, 09:32 PM
  #14
Built not Bought

iTrader: (18)

vrx8's Avatar

Join Date: May 2010
Location: San Antonio, TX
Posts: 662
Received 11 Likes on 8 Posts
Nothing doesn't look pretty lol. But I do see the benefit of running Hall sensor ( on or off ) vs Mag


Last edited by vrx8; 09-03-13 at 09:42 PM.
Old 09-03-13, 09:35 PM
  #15
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
Originally Posted by jamesbully
So what's wrong with the stock one ?
if you have an FD not much, the stock triggers work well. for the early engines though with the gear driven crank sensors inside the front cover the timing tends to wander and scatter the timing.
Old 09-03-13, 10:14 PM
  #16
Full Member
iTrader: (1)

jamesbully's Avatar

Join Date: May 2012
Location: carstairs
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RotaryEvolution

if you have an FD not much, the stock triggers work well. for the early engines though with the gear driven crank sensors inside the front cover the timing tends to wander and scatter the timing.
Oh okay thanks
Old 09-09-13, 07:51 PM
  #17
Senior Member

iTrader: (29)

efinimazda's Avatar

Join Date: Feb 2005
Location: southern cali
Posts: 324
Likes: 0
Received 0 Likes on 0 Posts
I just received my trigger kit but my wheel looks nothing like the one pictured above...
Its just a flat plate. Did I get an 'old' one?
Old 09-09-13, 08:09 PM
  #18
Registered User
iTrader: (13)

FullFunctionEng's Avatar

Join Date: Dec 2010
Location: Phoenix, AZ
Posts: 567
Likes: 0
Received 1 Like on 1 Post
efini,
Yours is probably for an FD, sleepers' is for a FC/RE..
Old 09-09-13, 08:15 PM
  #19
Senior Member

iTrader: (29)

efinimazda's Avatar

Join Date: Feb 2005
Location: southern cali
Posts: 324
Likes: 0
Received 0 Likes on 0 Posts
I do have an FD, got it
Old 09-17-13, 03:13 PM
  #20
87 SE WITH S5 T2 SWAP

iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
Does your FC trigger kit wheel works with gilmer pulley kit
Old 09-17-13, 07:15 PM
  #21
AXA
Full Member
iTrader: (2)

AXA's Avatar

Join Date: Jul 2012
Location: Miami
Posts: 231
Likes: 0
Received 0 Likes on 0 Posts
Do you recommend the trigger wheel for a FC 1991 engine with a Microtech LT10c EMS...


I should have more than 500 whp after tuning and clutch break inn hopefully...
BW S366 street port 2000 cc injectors..

Will this trigger wheel work with the air-conditioner in the car... I have no power-steering in the car.
Old 09-18-13, 09:58 AM
  #22
Registered User
iTrader: (13)

FullFunctionEng's Avatar

Join Date: Dec 2010
Location: Phoenix, AZ
Posts: 567
Likes: 0
Received 1 Like on 1 Post
Joeylyrech: Yes, however we will need the main gilmer pulley sent in for light modification to fit our wheel.

AXA: Our Rx8 trigger pattern wheels work with the Microtech but it does require a reflash from Microtech (~$150). In short, unfortunately it does not bolt in with the A/C installed. It could be made to fit, but would require a fair amount of modification.
Old 09-18-13, 04:35 PM
  #23
87 SE WITH S5 T2 SWAP

iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
PA mod

Originally Posted by FullFunctionEng
Joeylyrech: Yes, however we will need the main gilmer pulley sent in for light modification to fit our wheel.

AXA: Our Rx8 trigger pattern wheels work with the Microtech but it does require a reflash from Microtech (~$150). In short, unfortunately it does not bolt in with the A/C installed. It could be made to fit, but would require a fair amount of modification.
How much for the modification?
Old 09-18-13, 05:08 PM
  #24
Registered User
iTrader: (13)

FullFunctionEng's Avatar

Join Date: Dec 2010
Location: Phoenix, AZ
Posts: 567
Likes: 0
Received 1 Like on 1 Post
$30. Usually a 3-5 day turnaround.
Old 10-27-13, 06:03 PM
  #25
Full Member


RX7FAN01's Avatar

Join Date: Sep 2001
Location: Orlando Florida
Posts: 65
Likes: 0
Received 0 Likes on 0 Posts
Been trying to reach you to order one. Does the 60 tooth trigger work with the AEM ECU yet?
