1jz/2jz engine mount dimensions
Im looking for the dimensions of the oem bolt holes on the 2JZ. Can anyone help me out with this?
BLACKonBLACKonBLACK is offline
Reply Like
Old 09-09-12, 04:38 PM
  #2
Junior Member

Thread Starter

BLACKonBLACKonBLACK's Avatar

Join Date: Jun 2010
Location: Pennsylvania
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
I need measurements from center to center for the CAD plans i'm making. I will be fabbing up custom mounts for my 2JZ FC swap and need to machine the motor side plates.

Name: 2jz_mount_holes.jpg Views: 2080 Size: 94.1 KB

Here is what i'm after:

Name: 2jz_mount_holes_rx7.jpg Views: 5713 Size: 67.2 KB
BLACKonBLACKonBLACK is offline
Reply Like
Old 09-21-12, 07:57 PM
  #3
Junior Member


babillaracing's Avatar

Join Date: Jan 2012
Location: tampa
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
I can get them to you tomorrow
babillaracing is offline
Reply Like
Old 09-24-12, 07:38 PM
  #4
Junior Member

Thread Starter

BLACKonBLACKonBLACK's Avatar

Join Date: Jun 2010
Location: Pennsylvania
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
I actually ended up getting them already, but thanks!

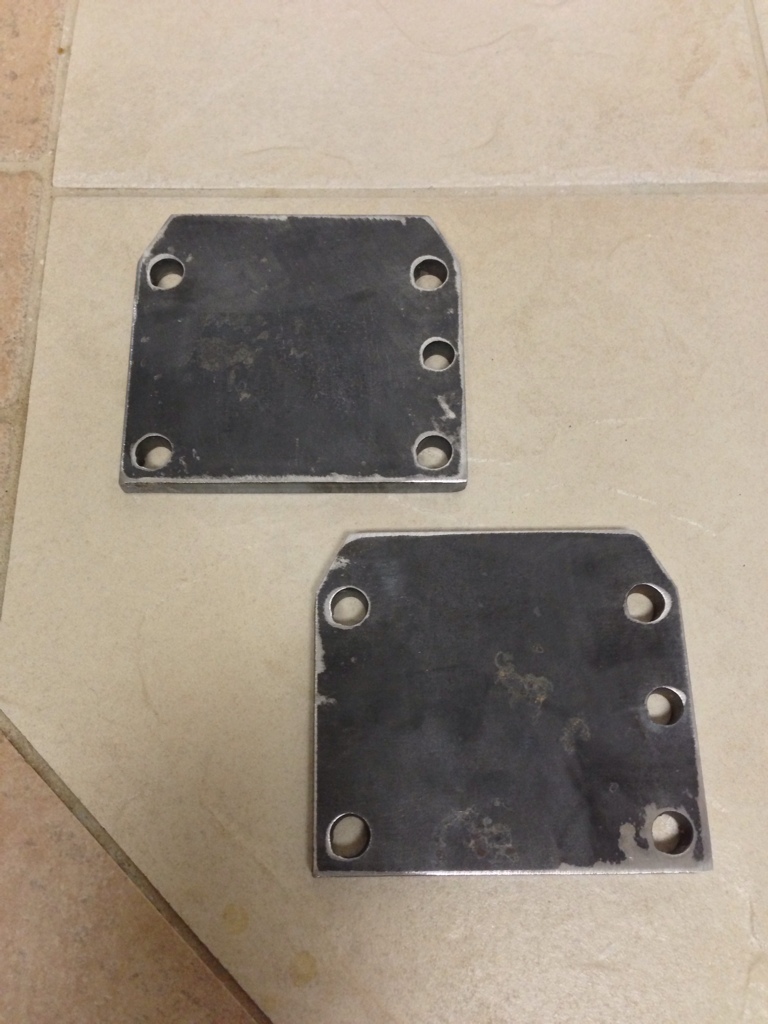

I actually cut these on the CNC plasma machine yesterday at work:

Name: E1314B0E-3ABA-4B1B-9515-A3433FC2CE2C-8093-000002EBF0FE5144.jpg Views: 1346 Size: 221.3 KB

Gotta clean them up a bit and then i'm gonna get started on centering/leveling the drivetrain and fabbing the subframe.
BLACKonBLACKonBLACK is offline
Reply Like
Old 09-25-12, 10:16 AM
  #5
Junior Member


babillaracing's Avatar

Join Date: Jan 2012
Location: tampa
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
3.70" horizontal 2.72 veritcal
babillaracing is offline
Reply Like
Old 09-25-12, 07:29 PM
  #6
Junior Member

Thread Starter

BLACKonBLACKonBLACK's Avatar

Join Date: Jun 2010
Location: Pennsylvania
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Thanks man, I got it though lol.
BLACKonBLACKonBLACK is offline
Reply Like
Old 09-26-12, 10:12 AM
  #7
Junior Member


babillaracing's Avatar

Join Date: Jan 2012
Location: tampa
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
no problem ,just in case somebody else needs the info. i still have a shitload of parts from my 2jz v160 build for sale
babillaracing is offline
Reply Like
