Zenki's FC build

Thread Tools

Search this Thread

Old 06-06-11, 11:01 PM
  #1
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts
Zenki's FC build
Name: 4593210772_263f5534d0.jpg Views: 550 Size: 35.4 KB

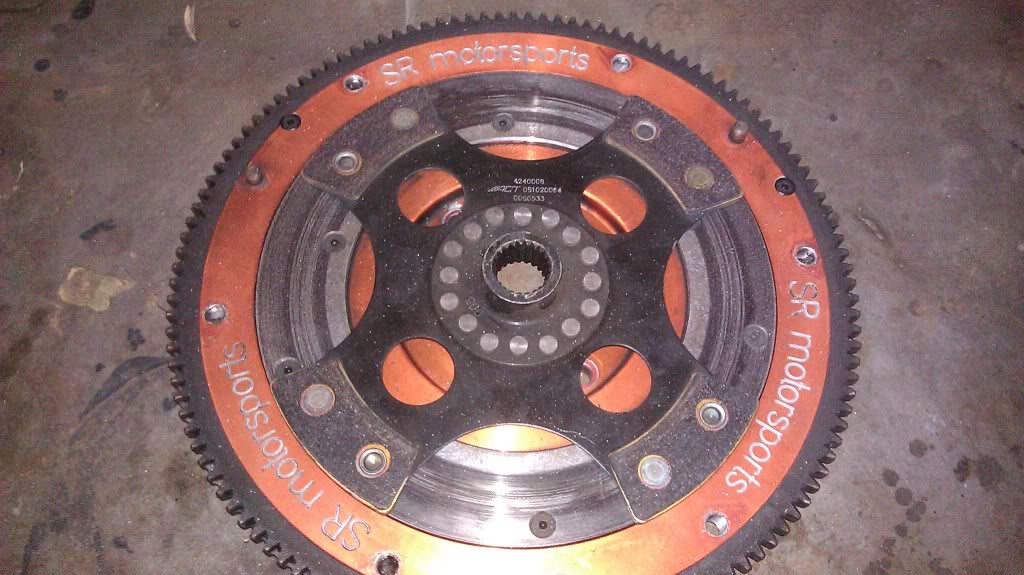

S5 large street port, extra Dowell pins(can hold 30+ Psi), Als seals, Sr motorsports aluminum flywheel with 4 puck unsprung act clutch

Name: thewhip027.jpg Views: 491 Size: 150.5 KB

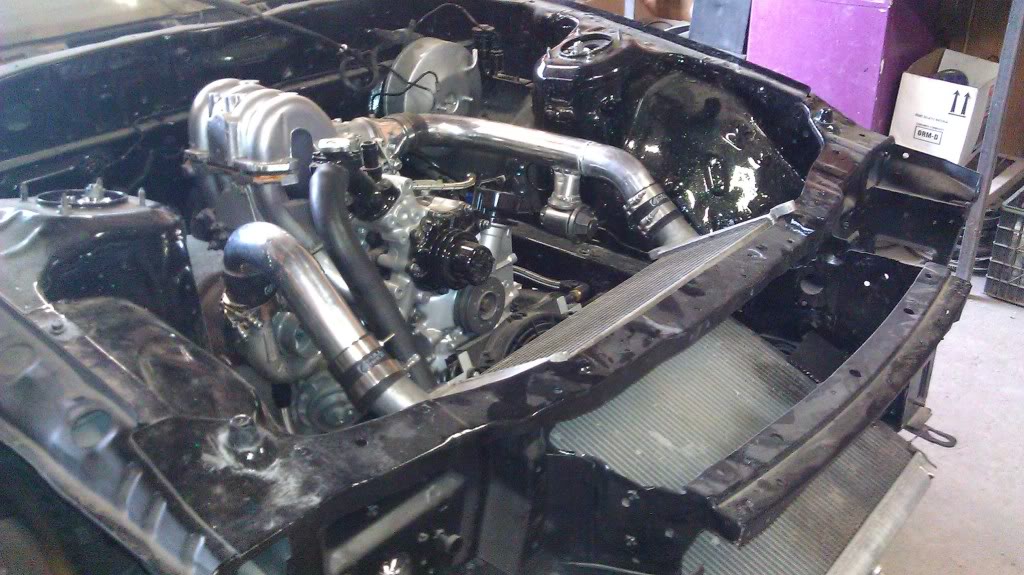

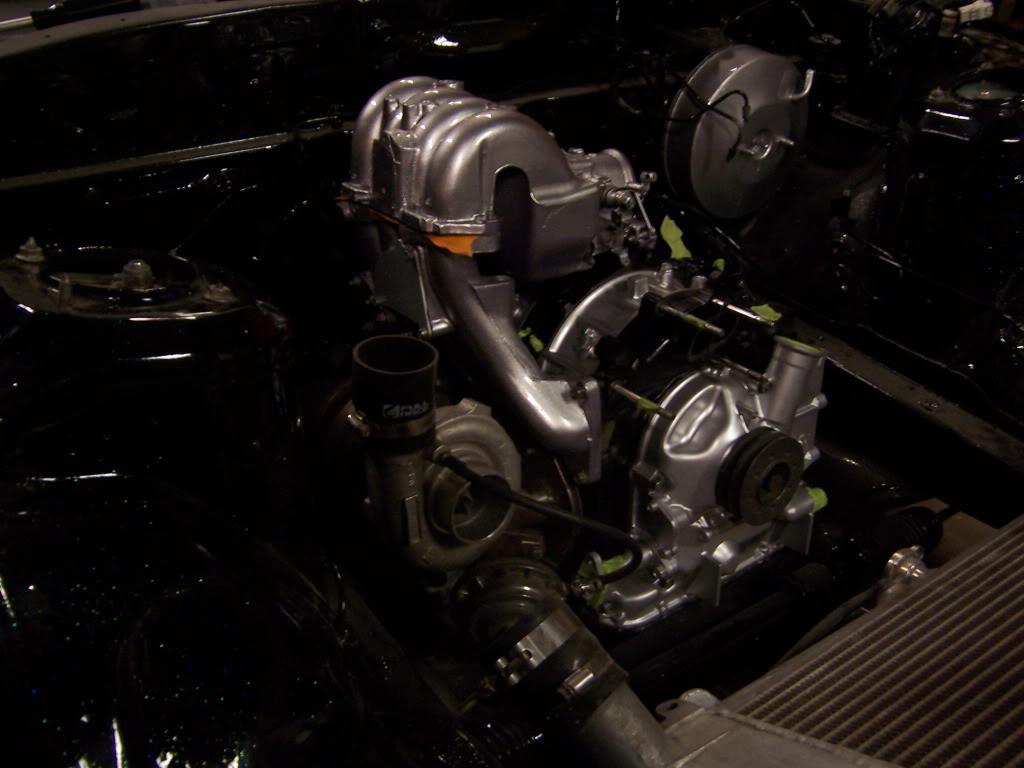

To4e, mark 2 wastegate, homemade divided mani, custom v mount (made myself), 2.5 intercooler piping, Isuzu npr intercooler, derale oil cooler, with -8 ss oil lines and black an fittings

Name: thewhip035.jpg Views: 497 Size: 80.5 KB

Name: IMAG0059.jpg Views: 627 Size: 127.4 KB

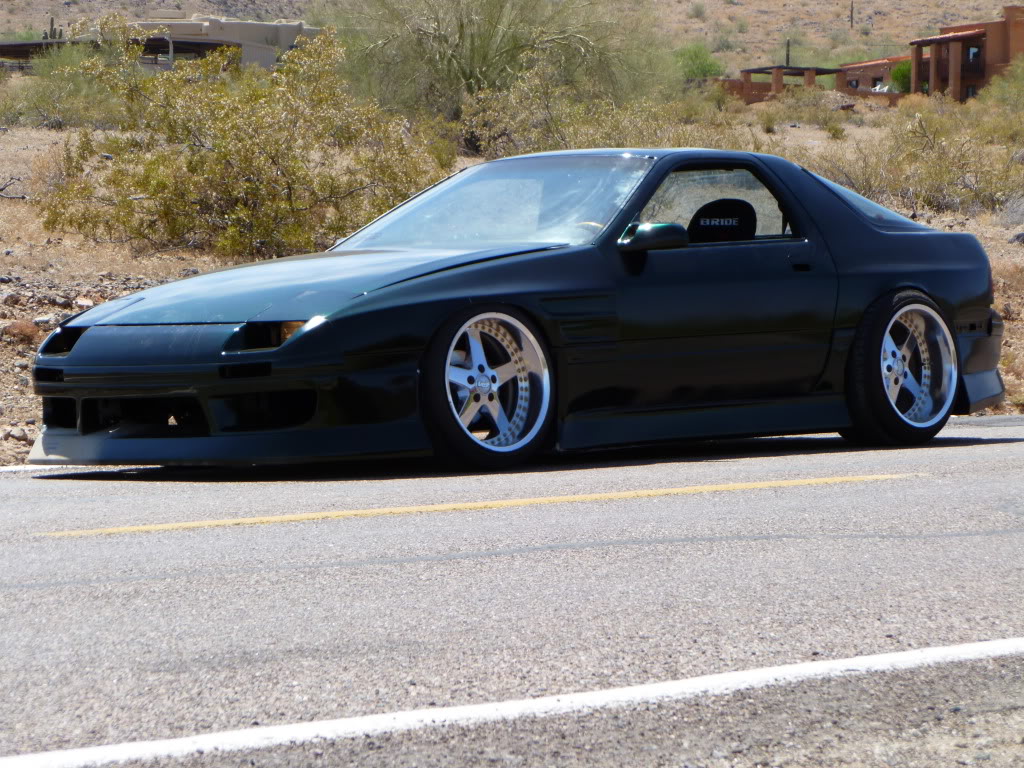

KSport slide kontrolls with 10k front and 13k rear spring rates, modified spindle for fat angle (made myself), heim joint tie rod ends with chromolly adjustable shanks, solid diff mounts, and welded t2 diff

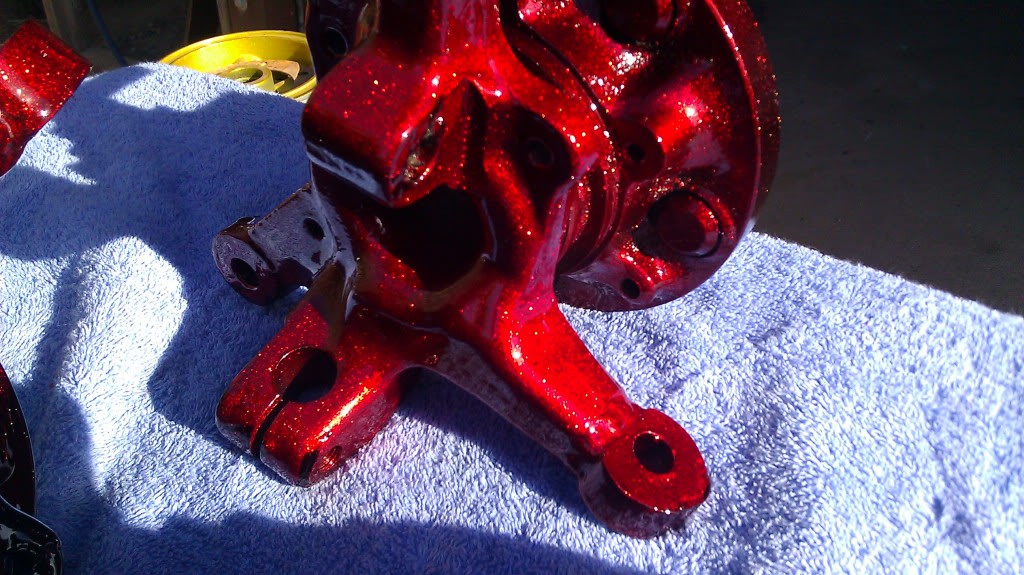

Name: IMAG0087.jpg Views: 444 Size: 165.0 KB


Name: P1000069.jpg Views: 1136 Size: 233.2 KB
Zenki FC3S is offline
Reply Like
Old 06-06-11, 11:04 PM
  #2
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts

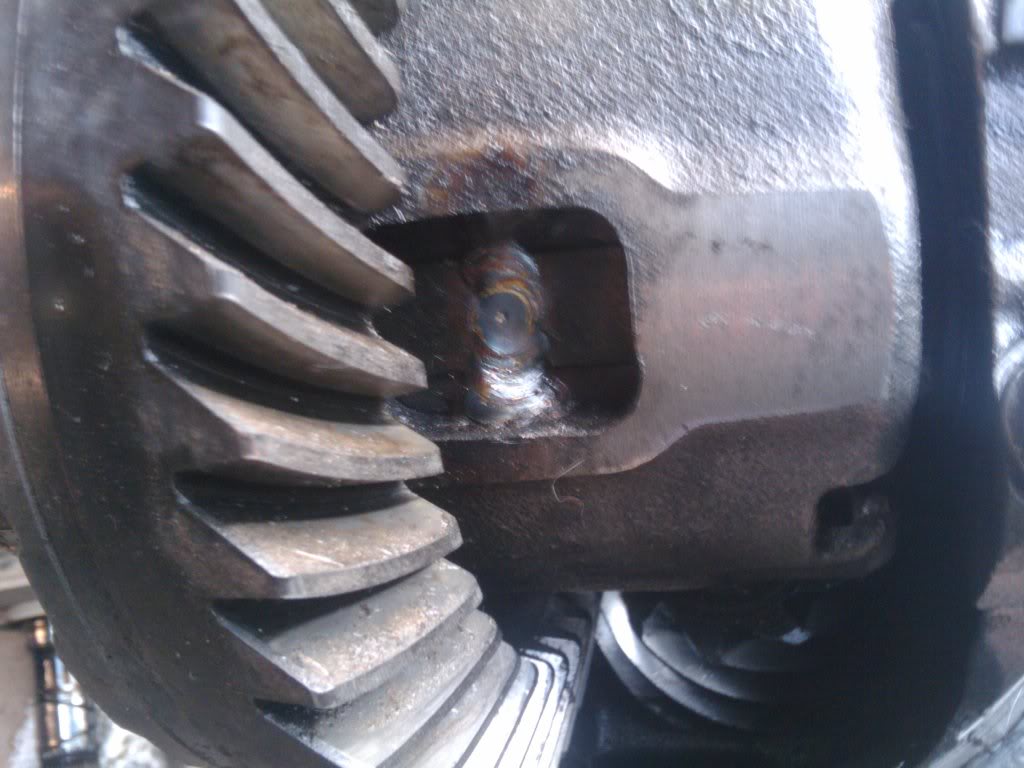

Name: 2010-03-24174752.jpg Views: 411 Size: 87.2 KB

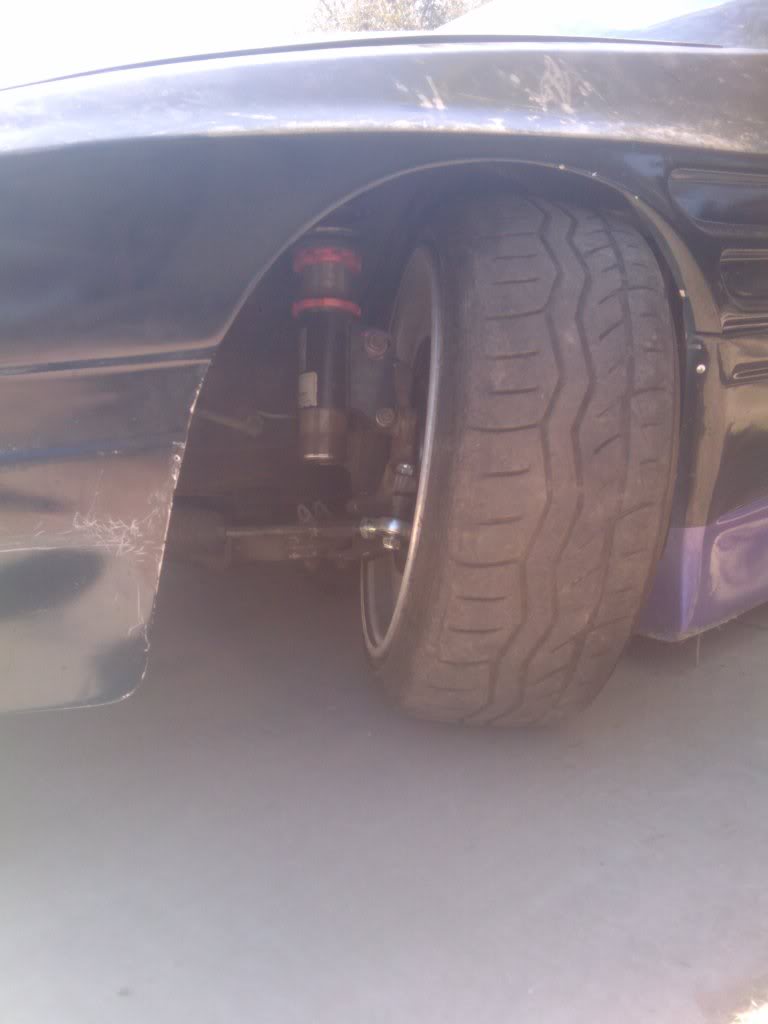

Name: 2010-05-10145059.jpg Views: 420 Size: 40.3 KB
Zenki FC3S is offline
Reply Like
Old 06-06-11, 11:09 PM
  #3
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts
Name: IMAG0041.jpg Views: 381 Size: 131.5 KB

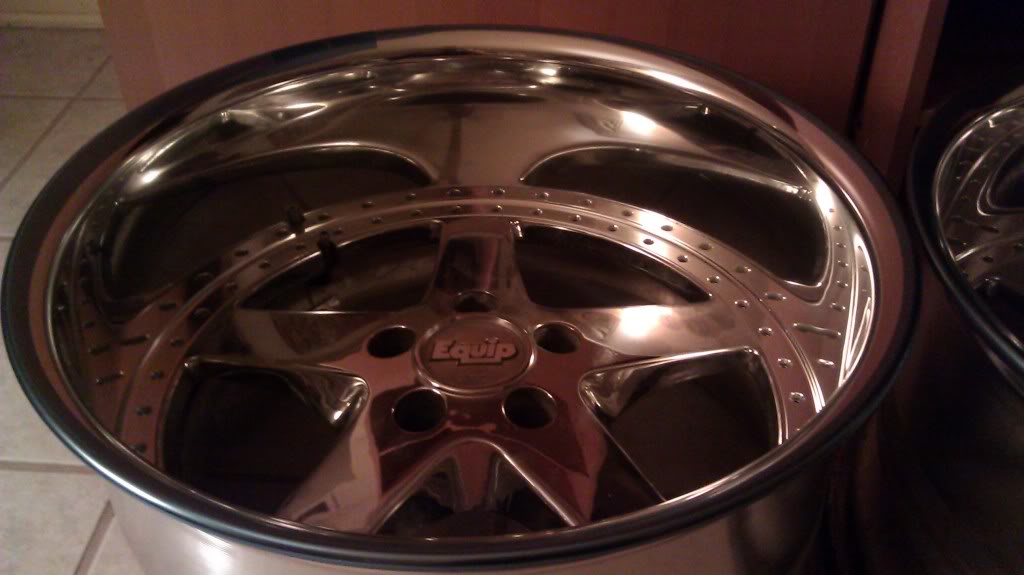

Rebuilt the equips as well. Now the rears are 18x12.5 -17 and the fronts are 18x10.5 -39... so the dmax 30mm fenders are under construction for fitment.

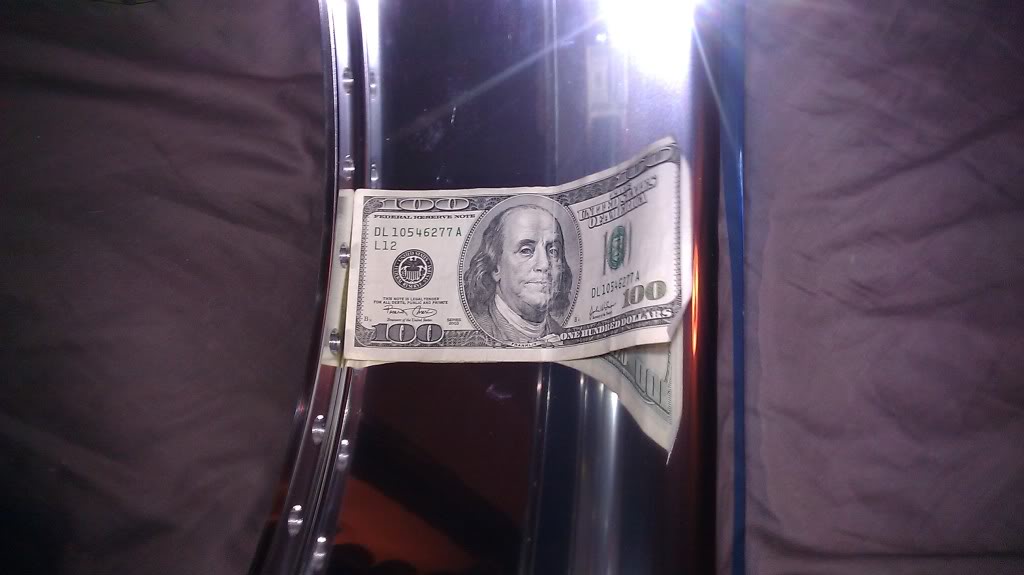

Name: IMAG0065.jpg Views: 410 Size: 57.5 KB

Name: IMAG0071.jpg Views: 404 Size: 60.6 KB
Zenki FC3S is offline
Reply Like
Old 06-06-11, 11:13 PM
  #4
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts

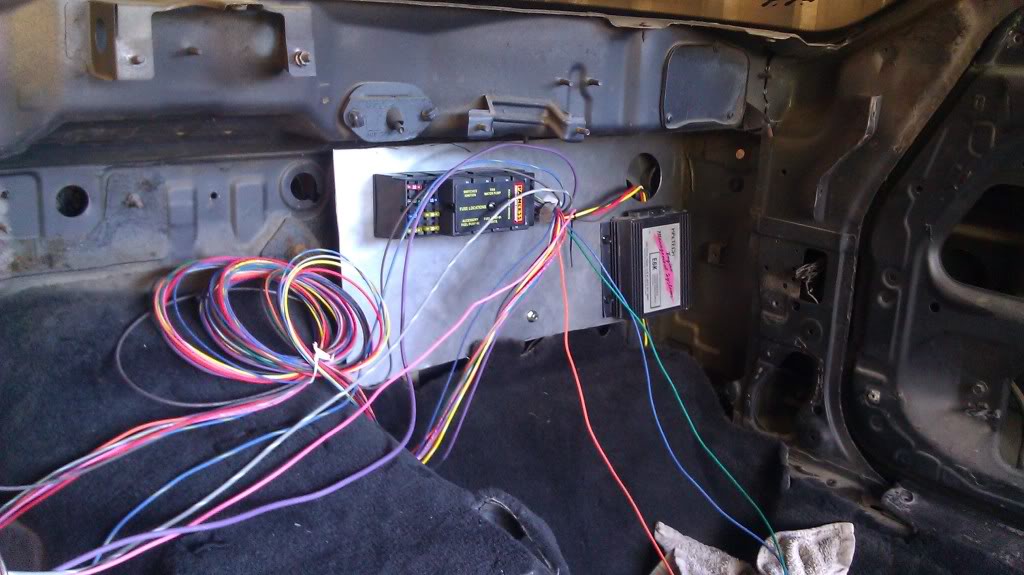

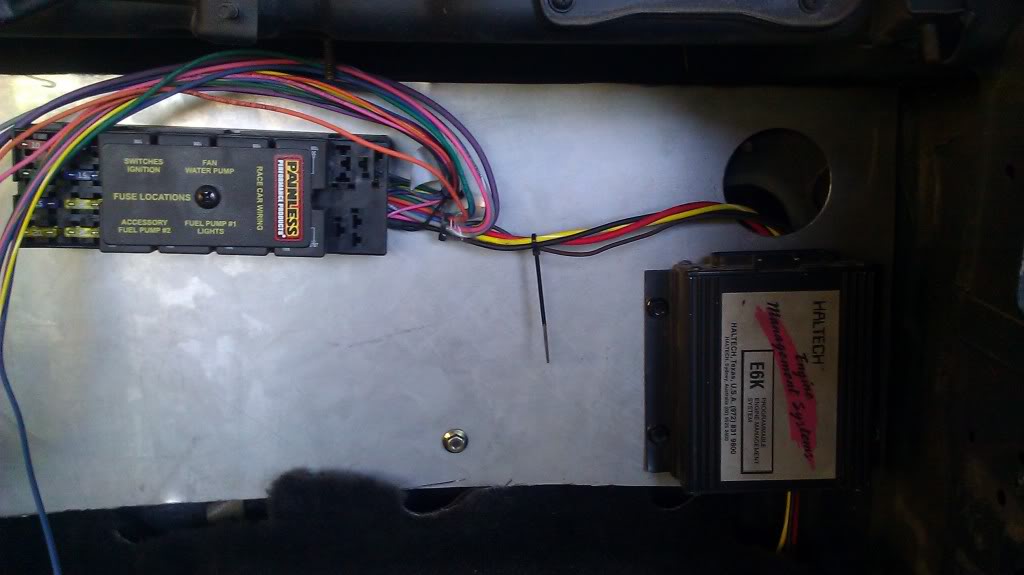

I just got a painless 8 circuit, so I'm installing that... running a Haltech e6k with 1000's all around and ss fuel lines with -6 an. Cosmo 3 rotor fuel pump. Gonna be rockin C16 or Q16 on startup



Name: IMAG0129.jpg Views: 397 Size: 95.8 KB


Name: IMAG0131.jpg Views: 436 Size: 59.0 KB
Zenki FC3S is offline
Reply Like
Old 06-06-11, 11:54 PM
  #5
Magic man
iTrader: (20)

fcrotory's Avatar

Join Date: Nov 2010
Location: grants pass,oregon
Posts: 365
Likes: 0
Received 0 Likes on 0 Posts
Damn, this is how you build a drift car. Very nice.
fcrotory is offline
Reply Like
Old 06-07-11, 12:29 AM
  #6
Dustin Becktold

iTrader: (17)

leftcoastdrifter's Avatar

Join Date: Oct 2007
Location: Salem Or
Posts: 674
Likes: 0
Received 0 Likes on 0 Posts
that angle is retardedly awesome.
leftcoastdrifter is offline
Reply Like
Old 06-07-11, 12:39 AM
  #7
Senior Member

slowgxl's Avatar

Join Date: Jan 2011
Location: houston, tx
Posts: 338
Likes: 0
Received 0 Likes on 0 Posts
Wow....your car is amazing!!
slowgxl is offline
Reply Like

Trending Topics

Old 06-07-11, 02:37 PM
  #8
Rotary Enthusiast

iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Wowzers! Mind posting up some more detailed pictures of you radiator mounting?

Thanks,

Andrew
RotaSpinna69 is offline
Reply Like
Old 06-08-11, 04:04 AM
  #9
Not Even Foo

iTrader: (13)

finishline's Avatar

Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes on 0 Posts
holy cow. full of awesome.
finishline is offline
Reply Like
Old 06-09-11, 09:19 PM
  #10
All Life

iTrader: (21)

GMO-RX7's Avatar

Join Date: Apr 2009
Location: mpls
Posts: 823
Received 7 Likes on 4 Posts
I have those same exhaust manifold gaskets. Not planning on using them, only heard bad things of them blowing. Going with oem.
GMO-RX7 is offline
Reply Like
Old 06-11-11, 02:40 AM
  #11
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts

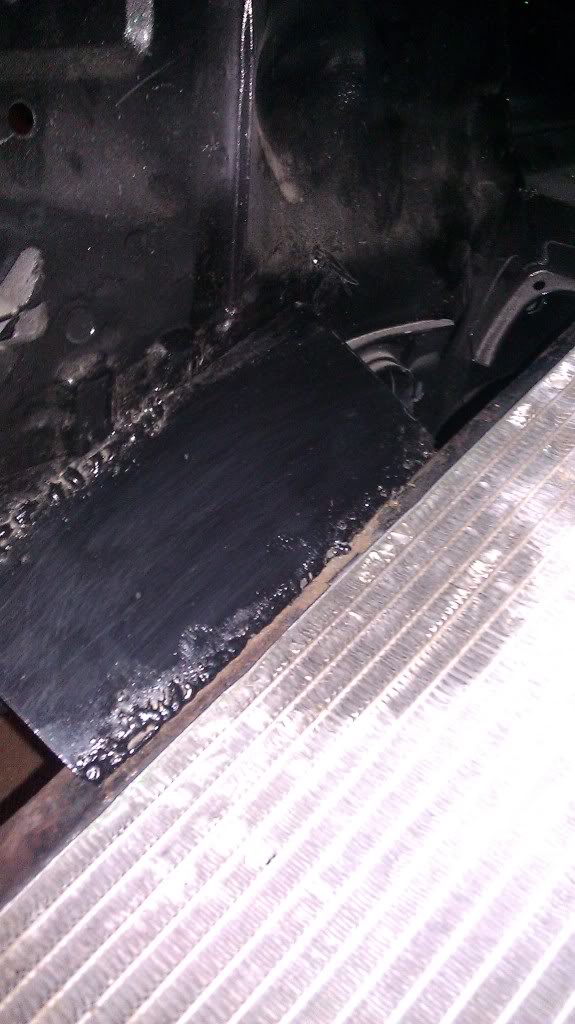

The tabs for the radiator i made outta 18 gauge steel. the bottom plate has a nut welded on the inside for easy install.

I welded it myself and it holds my weight, i can even jump up and down on it.

Name: IMAG0135.jpg Views: 393 Size: 89.7 KB

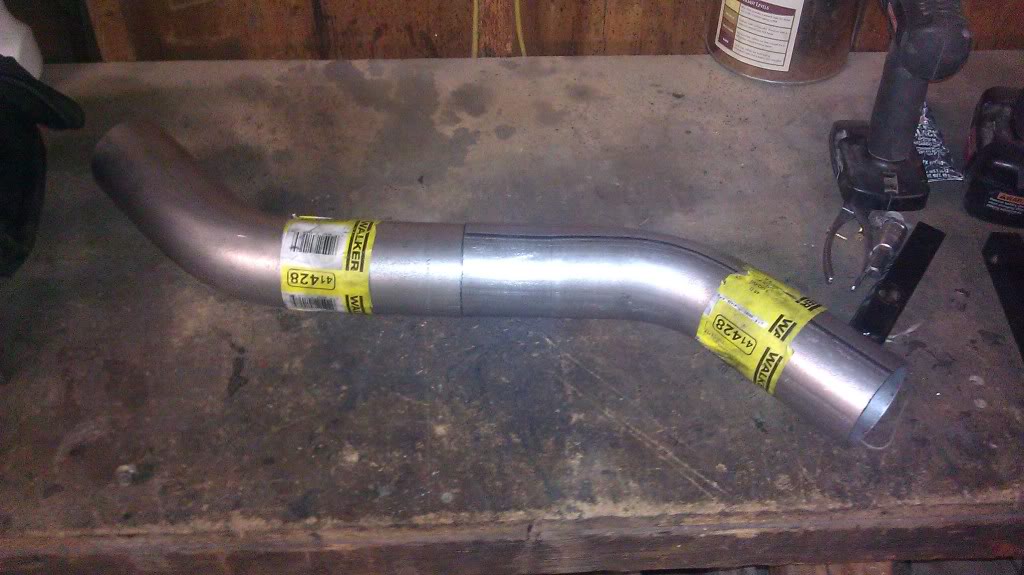

Gonna make a downpipe too.






Name: IMAG0132.jpg Views: 396 Size: 93.8 KB
Zenki FC3S is offline
Reply Like
Old 06-11-11, 07:30 AM
  #12
Rotary Enthusiast

iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Looks good, works better.
RotaSpinna69 is offline
Reply Like
Old 06-12-11, 07:59 AM
  #13
Brewster

are-ex's Avatar

Join Date: Jul 2010
Location: sydney
Posts: 72
Likes: 0
Received 0 Likes on 0 Posts
your car is soo hot, love the equips and the flake in the paint
are-ex is offline
Reply Like
Old 06-20-11, 12:15 AM
  #14
Noob Member

iTrader: (1)

infinite7z's Avatar

Join Date: Aug 2009
Location: Mesa, Az, Pheonix, Az
Posts: 336
Likes: 0
Received 0 Likes on 0 Posts
nice build!! I wanna check out your car one of these days if your not to busy or mind showing it off. I love the equips!
infinite7z is offline
Reply Like
Old 06-20-11, 12:44 AM
  #15
Senior Member

iTrader: (9)

RX7(613)'s Avatar

Join Date: Apr 2003
Location: ottawa
Posts: 713
Received 1 Like on 1 Post
More pictures please ! , build looks good.
RX7(613) is offline
Reply Like
Old 06-21-11, 09:00 AM
  #16
Junior Member

dcrx7dan's Avatar

Join Date: Oct 2010
Location: fresno ca
Posts: 23
Likes: 0
Received 0 Likes on 0 Posts
what angle kit is that? i want that angle so bad!!!
dcrx7dan is offline
Reply Like
Old 06-21-11, 12:45 PM
  #17
ziptied.com hates you


oilcover's Avatar

Join Date: May 2008
Location: Himeji, JPN / Orange County, Ca
Posts: 256
Likes: 0
Received 0 Likes on 0 Posts
this car is pretty sweet.

but those spring rates are out of this world!
oilcover is offline
Reply Like
Old 06-21-11, 03:37 PM
  #18
I break Diff mounts

iTrader: (1)

Digi7ech's Avatar

Join Date: Jun 2002
Location: Avondale, Arizona
Posts: 4,403
Likes: 0
Received 4 Likes on 2 Posts
Wait till you see the rear fenders.

orgasm!
Digi7ech is offline
Reply Like
Old 06-21-11, 06:07 PM
  #19
Needs more seat time

iTrader: (5)

ihavetwins's Avatar

Join Date: Jun 2005
Location: Chicago, IL
Posts: 1,939
Likes: 0
Received 2 Likes on 1 Post
Man i ******* love those wheels.
ihavetwins is offline
Reply Like
Old 06-22-11, 05:12 AM
  #20
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts
Originally Posted by dcrx7dan
what angle kit is that? i want that angle so bad!!!
I have chromolly heim joint ends and studs and my own modified spindles.

Works great for me
Zenki FC3S is offline
Reply Like
Old 06-24-11, 11:31 AM
  #21
Full Member

KryptoniteFC3S's Avatar

Join Date: Jun 2011
Location: Pittsburgh, PA
Posts: 82
Likes: 0
Received 0 Likes on 0 Posts
Car looks awesome. That angle is insane what kind of tie rods are u running? Or just the chromolly heim joint ends on stock tie rods?
Last edited by KryptoniteFC3S; 06-24-11 at 11:43 AM.
KryptoniteFC3S is offline
Reply Like
Old 07-08-11, 09:10 PM
  #22
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts

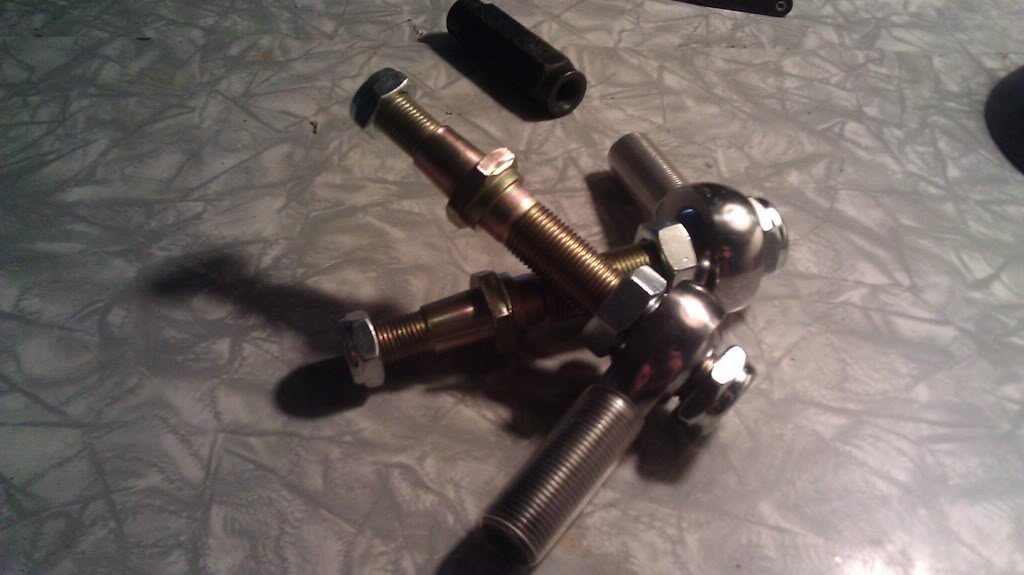

Chromolly ends with hardened chrome *****, and chromolly studs

Name: IMAG0142.jpg Views: 401 Size: 57.6 KB
Zenki FC3S is offline
Reply Like
Old 07-09-11, 06:59 AM
  #23
Rotary Enthusiast

iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Nice parts. Racerpartswholesale.com?
RotaSpinna69 is offline
Reply Like
Old 07-10-11, 07:56 AM
  #24
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts
Nah dude... Soeedway motors

They're 5/8ths shank and stud. Its pretty beefy. I had a weak *** set bend on me, luckily I spotted it before It broke
Zenki FC3S is offline
Reply Like
Old 07-14-11, 08:33 PM
  #25
\\TRASHTALK//

Thread Starter

Zenki FC3S's Avatar

Join Date: Mar 2008
Location: south phoenix
Posts: 1,439
Likes: 0
Received 3 Likes on 3 Posts

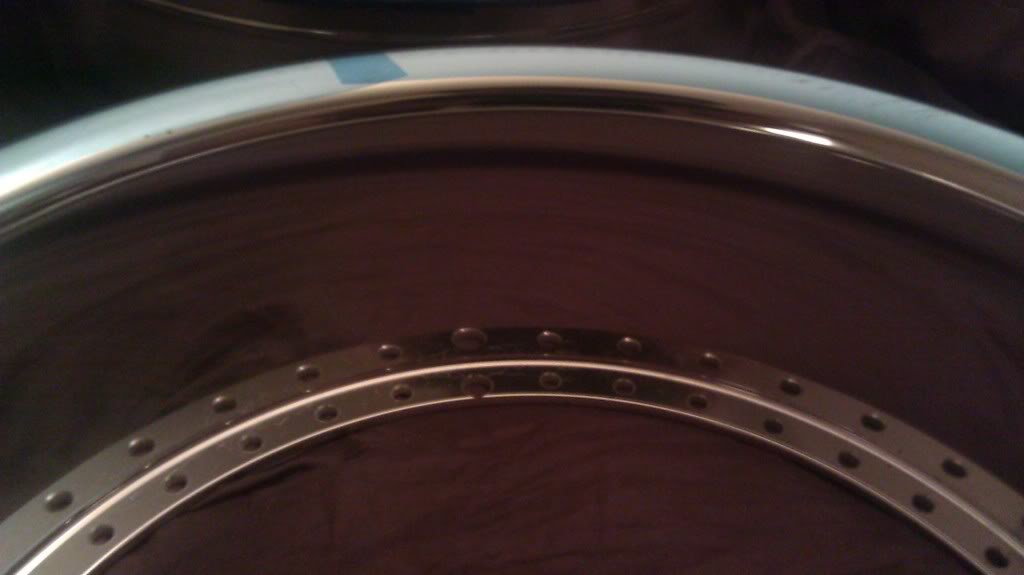

Name: IMAG0144.jpg Views: 414 Size: 37.6 KB






Got another set of barrels. These are 137mm making the fronts 11J's or the spare 12J's 12.5...


I waited 2 months for the 137mm barels and they have a different bolt pattern... Dude fucked my order... So now I gotta send em back and wait for anotber pair. Might order another set so Ill have rebuilt spares too
Zenki FC3S is offline
Reply Like
The following users liked this post:
dejdar85 (07-21-17)
