The OFFICIAL drift setup thread
#1726
Man, how are some of you guys getting so much camber. Does everyone slot their tophats?
I want to say I'm moderately lowered on rebled/tinkered with Megan coilovers, but could only manage -1.7* camber on one side, and -2.0* on the other. I assume something may be bent on my car, but i'm still maxing out at -2*.
I want to say I'm moderately lowered on rebled/tinkered with Megan coilovers, but could only manage -1.7* camber on one side, and -2.0* on the other. I assume something may be bent on my car, but i'm still maxing out at -2*.

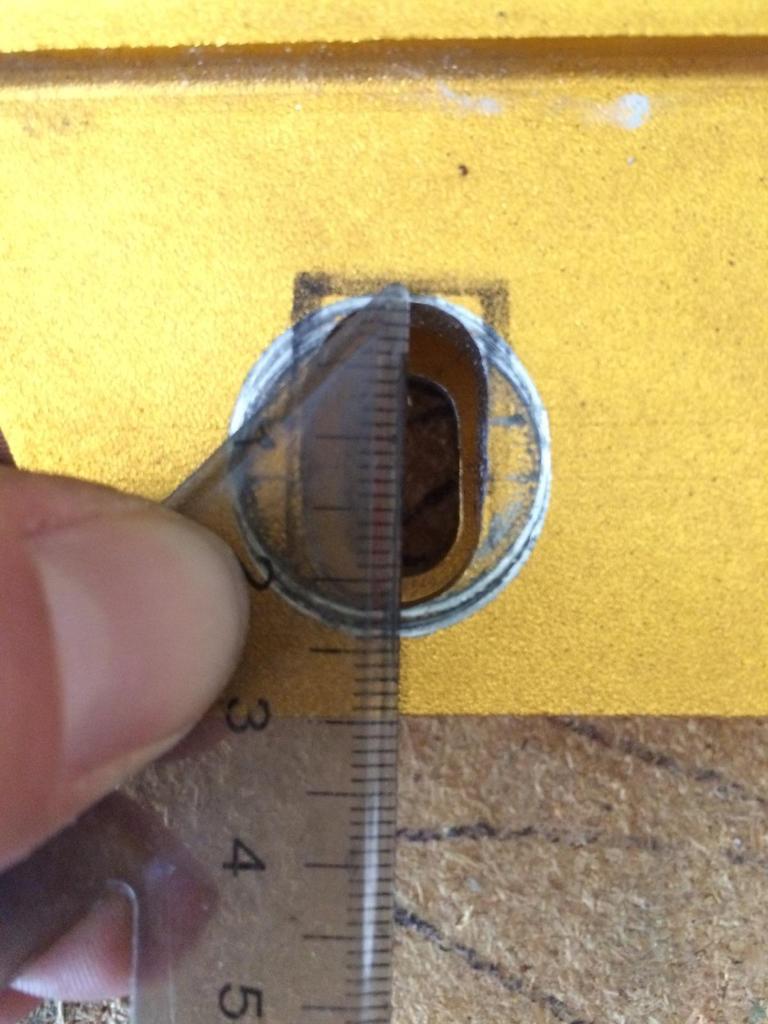

I slotted my PBMS. You can slot the upper camber mount at the strut tower or slot the upper hole on the lower mount (to the knuckle) using a round file. Slotting the lower mount is more worth it for the effort.
Picture to show the camber. Extended ball joints are a good option though!
#1727
Eats, Sleeps, Dreams Rotary
iTrader: (2)
I bought mine from Villians; they're based out of Oregon. I tried extending mine, but ended up melting the plastic bushing inside of them, so this was the most economical option.
They actually have super cheap angle kits if you don't have the means to fab anything yourself.
Villains ? Trick Drift Bits
They actually have super cheap angle kits if you don't have the means to fab anything yourself.
Villains ? Trick Drift Bits
#1728
True Winna
iTrader: (9)

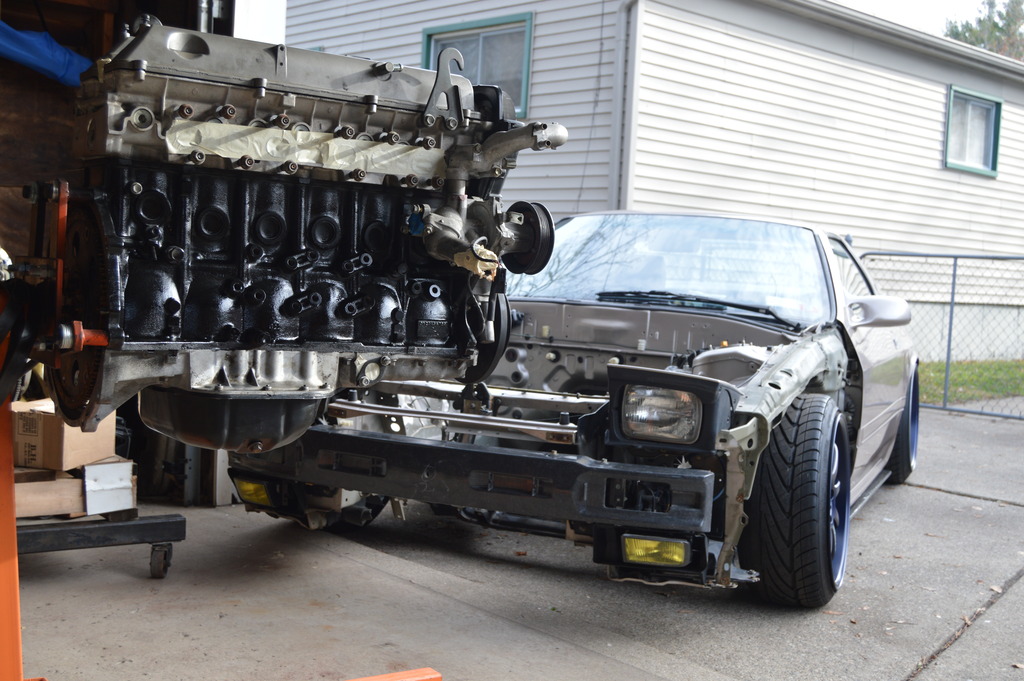

This thread needs to stay alive, so heres my contribution
Engine:
-408hp/380tq at 13psi
-2jz Vvti BW Single Turbo
-V-Mount
-1000cc ID Injectors
-3" to 4" exhaust
-Aem Series2
Interior:
-Bride bucket seats
-6pt cage nascar door bars
-Fully gutted
Suspension:
-Stance Xr1 Coilovers (9k Front/6K Rear)
-PBM Front angle kit
-PBM Rear Toe Arms
-PBM Complete Solid Bushings
-Chopped and welded factory individual camber links
-Welded T2 Diff
-Front factory sway bar/no sway bar rear
Exterior:
-BN Rep Kit
-Extreme Dimensions fenders
-Poorly wrapped in vinyl by yours truly
Wheels:
Front:
Gramlight Optomise 18x9 +22
Tire: Federal RSR 245/35/18
Rear: Ambit Wheels 18x9.5 +15
Tire: 245/40/18 255/35/18 All Seasons
Alignment:
Camber: -5.5 Front / -0.5 Rear
Toe: Tiny bit of toe out Front / Tiny bit of toe in Rear
Impressions: For where my driver skill is currently at, this setup works well for me. Still slightly tweaking the car as well as my driving so nothing is concrete. I will say I've been running this setup for the past 2 years(well minus the 2jz swap, thats fairly new).
Picture of what the camber looks like:
Engine:
-408hp/380tq at 13psi
-2jz Vvti BW Single Turbo
-V-Mount
-1000cc ID Injectors
-3" to 4" exhaust
-Aem Series2
Interior:
-Bride bucket seats
-6pt cage nascar door bars
-Fully gutted
Suspension:
-Stance Xr1 Coilovers (9k Front/6K Rear)
-PBM Front angle kit
-PBM Rear Toe Arms
-PBM Complete Solid Bushings
-Chopped and welded factory individual camber links
-Welded T2 Diff
-Front factory sway bar/no sway bar rear
Exterior:
-BN Rep Kit
-Extreme Dimensions fenders
-Poorly wrapped in vinyl by yours truly
Wheels:
Front:
Gramlight Optomise 18x9 +22
Tire: Federal RSR 245/35/18
Rear: Ambit Wheels 18x9.5 +15
Tire: 245/40/18 255/35/18 All Seasons
Alignment:
Camber: -5.5 Front / -0.5 Rear
Toe: Tiny bit of toe out Front / Tiny bit of toe in Rear
Impressions: For where my driver skill is currently at, this setup works well for me. Still slightly tweaking the car as well as my driving so nothing is concrete. I will say I've been running this setup for the past 2 years(well minus the 2jz swap, thats fairly new).
Picture of what the camber looks like:
#1729
Full Member
iTrader: (1)
Join Date: Jan 2012
Location: WA
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
I shortened my knuckles and extended my outer tie rods. I'm running 17x8.25's at about 55 degrees, and i have about 1/2" of clearance from the frame. I want to throw my 17x9 spares on and run way more tire if i can, but i want to change my KPI by modifying my coilover sleeves. I'd def be rubbing with those bigger wheels.
I'd rather not throw on huge spacers and increase my scrub radius for the sake of angle and tire. However, increasing my KPI is going to affect my rate of camber change while turning.
Then again, I haven't been drifting long enough to really know if having a minimal scrub radius matters.
#1730
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Nope, I just purchased the extensions.
I shortened my knuckles and extended my outer tie rods. I'm running 17x8.25's at about 55 degrees, and i have about 1/2" of clearance from the frame. I want to throw my 17x9 spares on and run way more tire if i can, but i want to change my KPI by modifying my coilover sleeves. I'd def be rubbing with those bigger wheels.
I'd rather not throw on huge spacers and increase my scrub radius for the sake of angle and tire. However, increasing my KPI is going to affect my rate of camber change while turning.
Then again, I haven't been drifting long enough to really know if having a minimal scrub radius matters.
I shortened my knuckles and extended my outer tie rods. I'm running 17x8.25's at about 55 degrees, and i have about 1/2" of clearance from the frame. I want to throw my 17x9 spares on and run way more tire if i can, but i want to change my KPI by modifying my coilover sleeves. I'd def be rubbing with those bigger wheels.
I'd rather not throw on huge spacers and increase my scrub radius for the sake of angle and tire. However, increasing my KPI is going to affect my rate of camber change while turning.
Then again, I haven't been drifting long enough to really know if having a minimal scrub radius matters.
#1731
This thread needs to stay alive, so heres my contribution
Engine:
-408hp/380tq at 13psi
-2jz Vvti BW Single Turbo
-V-Mount
-1000cc ID Injectors
-3" to 4" exhaust
-Aem Series2
Interior:
-Bride bucket seats
-6pt cage nascar door bars
-Fully gutted
Suspension:
-Stance Xr1 Coilovers (9k Front/6K Rear)
-PBM Front angle kit
-PBM Rear Toe Arms
-PBM Complete Solid Bushings
-Chopped and welded factory individual camber links
-Welded T2 Diff
-Front factory sway bar/no sway bar rear
Exterior:
-BN Rep Kit
-Extreme Dimensions fenders
-Poorly wrapped in vinyl by yours truly
Wheels:
Front:
Gramlight Optomise 18x9 +22
Tire: Federal RSR 245/35/18
Rear: Ambit Wheels 18x9.5 +15
Tire: 245/40/18 255/35/18 All Seasons
Alignment:
Camber: -5.5 Front / -0.5 Rear
Toe: Tiny bit of toe out Front / Tiny bit of toe in Rear
Impressions: For where my driver skill is currently at, this setup works well for me. Still slightly tweaking the car as well as my driving so nothing is concrete. I will say I've been running this setup for the past 2 years(well minus the 2jz swap, thats fairly new).
Picture of what the camber looks like:
Engine:
-408hp/380tq at 13psi
-2jz Vvti BW Single Turbo
-V-Mount
-1000cc ID Injectors
-3" to 4" exhaust
-Aem Series2
Interior:
-Bride bucket seats
-6pt cage nascar door bars
-Fully gutted
Suspension:
-Stance Xr1 Coilovers (9k Front/6K Rear)
-PBM Front angle kit
-PBM Rear Toe Arms
-PBM Complete Solid Bushings
-Chopped and welded factory individual camber links
-Welded T2 Diff
-Front factory sway bar/no sway bar rear
Exterior:
-BN Rep Kit
-Extreme Dimensions fenders
-Poorly wrapped in vinyl by yours truly
Wheels:
Front:
Gramlight Optomise 18x9 +22
Tire: Federal RSR 245/35/18
Rear: Ambit Wheels 18x9.5 +15
Tire: 245/40/18 255/35/18 All Seasons
Alignment:
Camber: -5.5 Front / -0.5 Rear
Toe: Tiny bit of toe out Front / Tiny bit of toe in Rear
Impressions: For where my driver skill is currently at, this setup works well for me. Still slightly tweaking the car as well as my driving so nothing is concrete. I will say I've been running this setup for the past 2 years(well minus the 2jz swap, thats fairly new).
Picture of what the camber looks like:
Did you modify your tie rods at all for it?
#1732
Junior Member
Join Date: Aug 2017
Location: San Clemente
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
S5 steering angle
Ok, so i'm starting this thread to help out my fellow Rx7 drifter brethren setup their cars and/or improve their drifting/driving style... if you have a question about your setup, build, driving style, technique post here!!
now keep in mind the better your are at being specific with your question the better chance i have for answering your question.
also, if others have input on questions, please feel free to post your experiences/input!
Let me start in posting my setup...
Suspension:
DG-5 coilovers with 8kg front and 6kg rear springs
GP sports super angle kit
HotLine Spindle modification with special camber modification (total steering angle is 55 degree's and total camber is 4.5deg neg
battle version toe links in the rear
mazdaspeed camber adjusters
mazdaspeed center camber adjuster
mazdaspeed dtts eliminator kit
energy suspension bushing kit
0 toe front 3/8 toe in rear
Brakes:
stock!!!
SS brake lines
pbr pads
hand brake--- STOCK!!
Engine:
street port s5 13b-t
1000cc pri and sec inj
Haltech e8
Borg Warner s300 series turbo
v-mount
setrab 635 dual oil coolers
aeromotive tsunami fuel pump/aeromotive fpr
HotLine fuel surge tank
all -6 fuel lines
Drivetrain:
OS-Giken twin disc clutch
OS-Giken super lock lsd
stock t2 trans/driveshaft/axles
Mazdaspeed hard rubber diff mounts, transmission mounts and motor mounts
Wheel/tire:
Volk TE-37's
17x9.5-18 front 18x10.5-5 rear
Falken RT-615K
235/40/17 265/35/18
and finally... here's the build process of my FC from 2005-present... you gotta start somewhere....
Attachment 710929
Attachment 710930
Attachment 710931
Attachment 710932
Attachment 710933
Attachment 710934
Attachment 710935
Attachment 710936
Attachment 710937
now keep in mind the better your are at being specific with your question the better chance i have for answering your question.
also, if others have input on questions, please feel free to post your experiences/input!
Let me start in posting my setup...
Suspension:
DG-5 coilovers with 8kg front and 6kg rear springs
GP sports super angle kit
HotLine Spindle modification with special camber modification (total steering angle is 55 degree's and total camber is 4.5deg neg
battle version toe links in the rear
mazdaspeed camber adjusters
mazdaspeed center camber adjuster
mazdaspeed dtts eliminator kit
energy suspension bushing kit
0 toe front 3/8 toe in rear
Brakes:
stock!!!
SS brake lines
pbr pads
hand brake--- STOCK!!
Engine:
street port s5 13b-t
1000cc pri and sec inj
Haltech e8
Borg Warner s300 series turbo
v-mount
setrab 635 dual oil coolers
aeromotive tsunami fuel pump/aeromotive fpr
HotLine fuel surge tank
all -6 fuel lines
Drivetrain:
OS-Giken twin disc clutch
OS-Giken super lock lsd
stock t2 trans/driveshaft/axles
Mazdaspeed hard rubber diff mounts, transmission mounts and motor mounts
Wheel/tire:
Volk TE-37's
17x9.5-18 front 18x10.5-5 rear
Falken RT-615K
235/40/17 265/35/18
and finally... here's the build process of my FC from 2005-present... you gotta start somewhere....
Attachment 710929
Attachment 710930
Attachment 710931
Attachment 710932
Attachment 710933
Attachment 710934
Attachment 710935
Attachment 710936
Attachment 710937
So I’ve been looking for an angle kit for my s5 rx7 but it seems like people only make angle kits for s4’s, have any advice for me?
#1734
Senior Member
Been a long time since I have posted on this forum but have you guys seen the kit we have on pre-order over at SLRspeed. Fully bolt on kit that has adjustable ackermand, roll center correction and bolt on outer balljoints that increase track by 100mm overall?
Its pretty sweet. Anyways just FYI
Its pretty sweet. Anyways just FYI
#1735
Good looking out.
Here's a link to their site:
https://slrspeed.myshopify.com/produ...azda-rx-7-fc3s
Here's a link to their site:
https://slrspeed.myshopify.com/produ...azda-rx-7-fc3s
#1736
Senior Member
Anyone know what it actually looks like? The pic on SLR's site is not the FC kit. Same pic as the BMW kit, no ball joint spacer pictured...
about time someone made a bolt on setup like the GK one for s chassis
about time someone made a bolt on setup like the GK one for s chassis
