Next FC project start..
The black FC is pretty much mechanically done, except for fixing the dogmission which will come pretty soon..I think its reached its limits, bridgeported T51 is probably enough at this point..

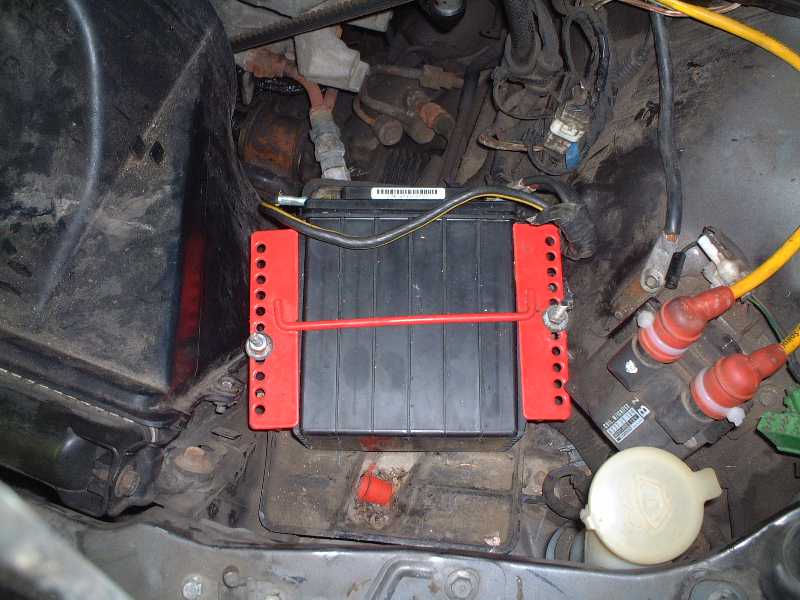

Its time to spend a little time and money on my lowly grey GX beater which I have driven pretty hard over the last 3 years or so..

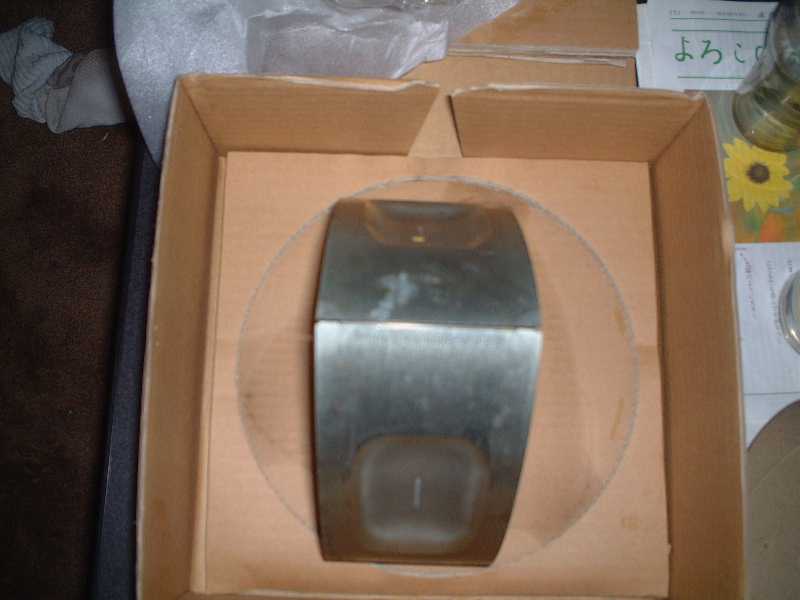

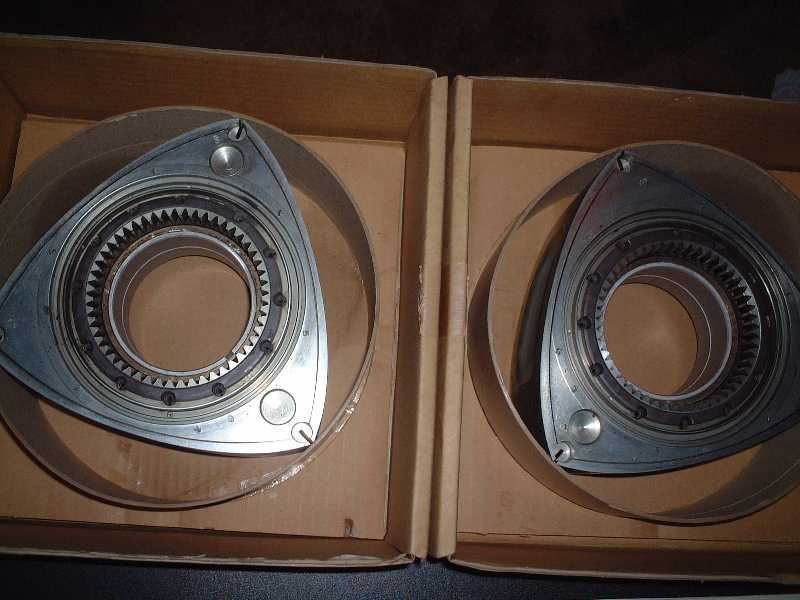

The engine is a little tired, I snapped a few pics of the start of the build for the new motor..Just a basic N/a motor build up... As it progresses I will add to the thread as the parts arrive..
Its time to spend a little time and money on my lowly grey GX beater which I have driven pretty hard over the last 3 years or so..
The engine is a little tired, I snapped a few pics of the start of the build for the new motor..Just a basic N/a motor build up... As it progresses I will add to the thread as the parts arrive..
#5
GrapefruitRacing?
Join Date: Apr 2003
Location: PartSource
Posts: 2,155
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by FC3S.USD
Pp ?
Originally Posted by rotoryrocket1
"Just a basic N/A build-up"....he says!
I just wonder if he's gonna end up boosting this new project somewhere down the line after it's done.?
#6
Freedoms worth a buck o'5
Thread Starter
Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like
on
1 Post

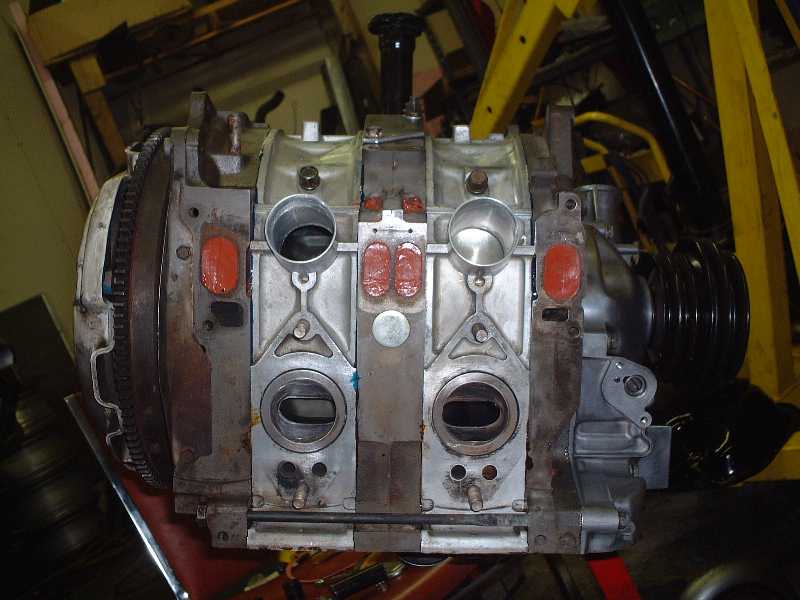

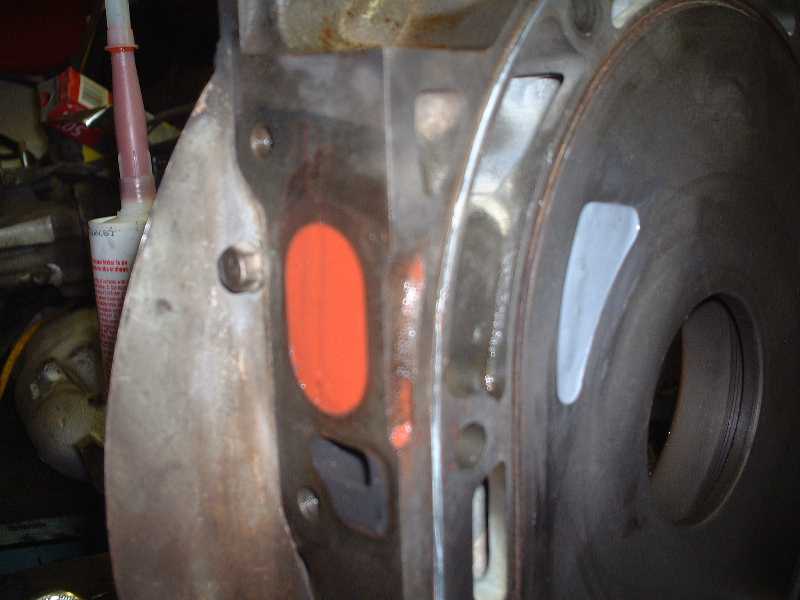

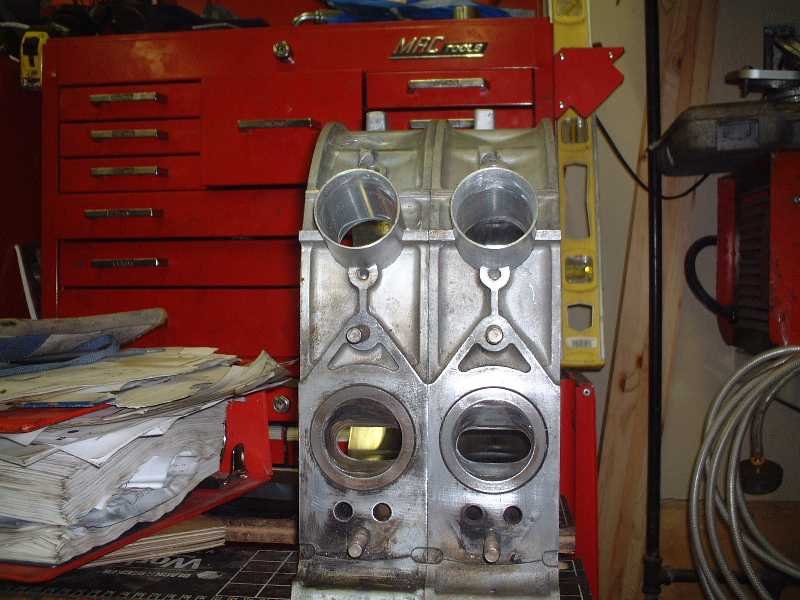

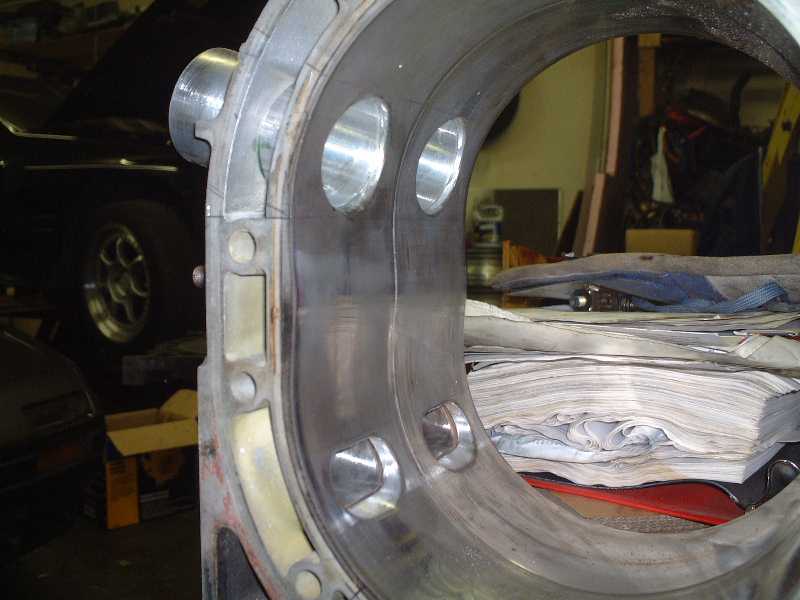

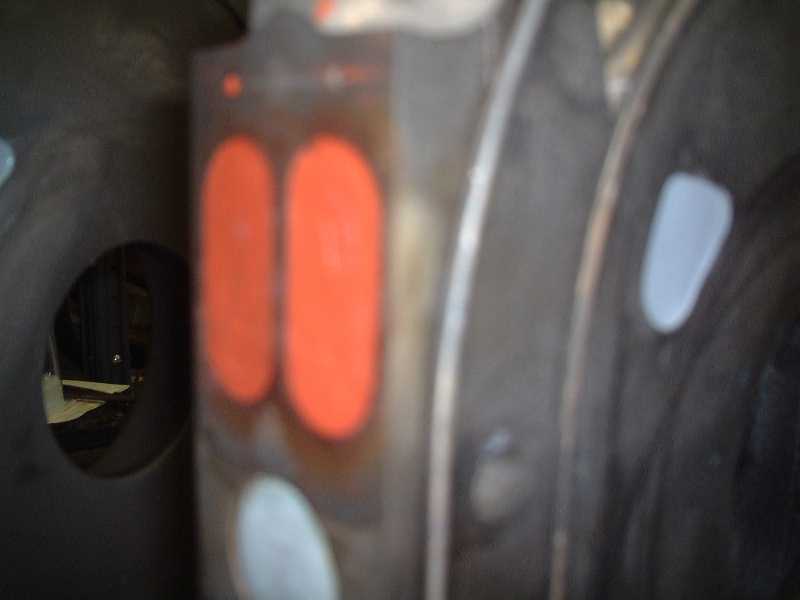

Got the housings back from the machinist today, Spent the evening pressing in the tubes and doing a little more epoxy'ing..

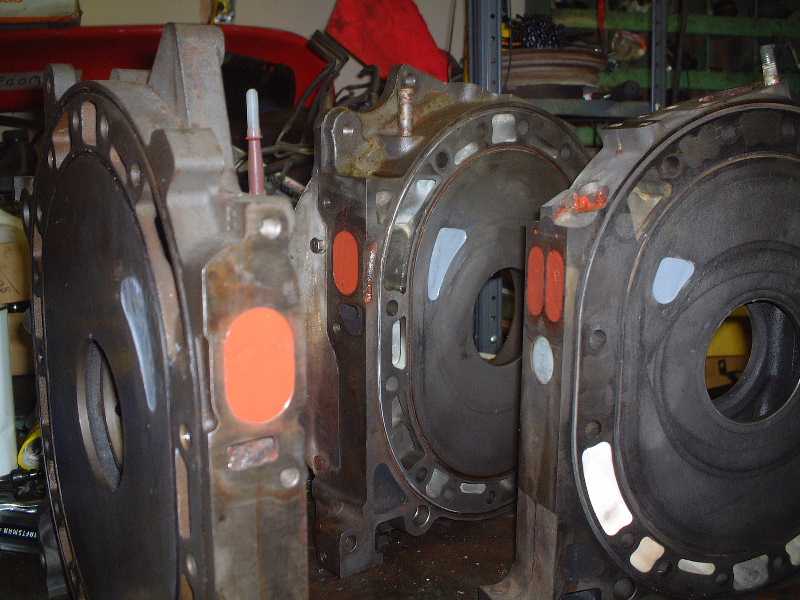

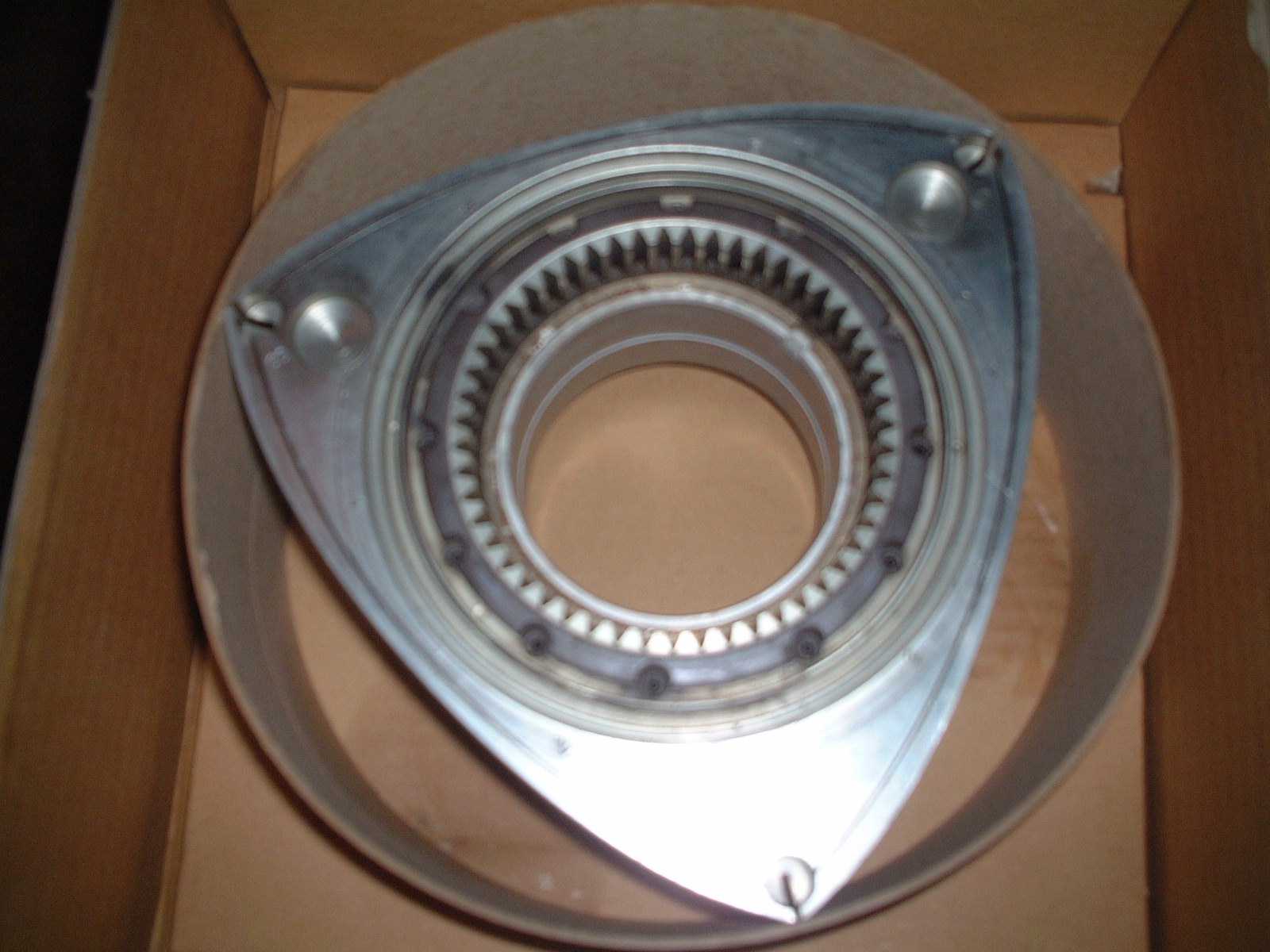

Tomorrow night I will start building the stack, got all the seals fitted to the rotors..
Next decision is what ems to run it with... I am thinking FCON V pro at this point..Max
Tomorrow night I will start building the stack, got all the seals fitted to the rotors..
Next decision is what ems to run it with... I am thinking FCON V pro at this point..Max
Trending Topics
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You know you totally stole my thunder? This winter I was going to post an "I was bored so I built an engine" thread which details the assembly of my 12A NA PP engine....Damn it.
That's very nice work. What the heck did you use to fill the side intake ports?
That's very nice work. What the heck did you use to fill the side intake ports?
#10
Senior Member
Join Date: Mar 2001
Location: Calgary, Alberta, Canada
Posts: 524
Likes: 0
Received 0 Likes
on
0 Posts
What is the expectation when you're done, max? Do you know what you can expect in terms of HP? I assume it's going to be a fairly peaky (and noisy) engine, isn't it? Will it be something suitable for driving on the street, or will it be a track car?
#11
Freedoms worth a buck o'5
Thread Starter
Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by Alak
Can anyone say 350WHP?
Hey Max, how does one go about aquiring PP housings? Where did you get yours made? How would someone like me go about doing that?
I ask on behalf of anyone here that doesnt know how because PP is a little out of my league.
Hey Max, how does one go about aquiring PP housings? Where did you get yours made? How would someone like me go about doing that?
I ask on behalf of anyone here that doesnt know how because PP is a little out of my league.
I am lucky enough to know a machinist who puts up with my sometimes idiotic plans....
Originally Posted by Lawyer's Spirit
I wish you were in Ontario Max!
Originally Posted by Aaron Cake
You know you totally stole my thunder? This winter I was going to post an "I was bored so I built an engine" thread which details the assembly of my 12A NA PP engine....Damn it.
That's very nice work. What the heck did you use to fill the side intake ports?
That's very nice work. What the heck did you use to fill the side intake ports?
Originally Posted by ShaunO
What is the expectation when you're done, max? Do you know what you can expect in terms of HP? I assume it's going to be a fairly peaky (and noisy) engine, isn't it? Will it be something suitable for driving on the street, or will it be a track car?
I have seen a similar engine make 340+hp, however the gentleman that tuned that engine with a motec ecu, has about 15 years more experience under his belt than I.. I would love 300 rwhp, I will be happy with 250-275 tied to the GX with weight reduction down to the 2200-2300 lb range , should make for one fun car... I have never played with this kind of build before, so there will be some changing of headers and intake lengths before I get the combination right and making decent power... Once I am happy with the all-motor tune, I am planning to hit it with a 100- shot of N20 to just for kicks.. This car is my winter beater, its gonna have to be streetable...As long as it starts , its streetable IMHO..
#14
Senior Member
Originally Posted by Maxthe7man
Drop 2 housings and 3 irons with 500.00 in small unmarked bills off on my doorstep, and you shall recieve..
I am lucky enough to know a machinist who puts up with my sometimes idiotic plans....
I am lucky enough to know a machinist who puts up with my sometimes idiotic plans....
#18
Senior Member
Cheers, just wondering what forces would be applied to those tubes to cause them to fatigue and crack? Since those are on the intake side wouldn't your question be about the same as asking if intercooler piping was prone to cracking?
#19
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
No because the intercooler piping isn't supporting the intake manifold's weight, which these pipes will now be doing. Even if Max were to design a nice ultra light weight aluminum intake manifold and plenum those pipes will crack later if it wasn't braced up correctly. That is why you should never use aluminum to make any sort of a bracket or shift lever. Aluminum has very low fatigue life. Even if the forces are 50% of it's tensile strength. You don't need to load up aluminum to it's ulitmate tensile for it to give.
Those tubes are now loaded axially meaning they will fail much more quickly than if there were just hoop stress.
Aluminum is odd that way.
But max is a smart puppy I'm sure he knows what he is doing.
Those tubes are now loaded axially meaning they will fail much more quickly than if there were just hoop stress.
Aluminum is odd that way.
But max is a smart puppy I'm sure he knows what he is doing.
#20
Senior Member
The tubing will be supporting the weight of the manifold but moving in unison with it wouldn't it? If you take a look at the racing beat housings (see picture) they use a thin wall tubing as well. I'm thinking they must be using aluminum to keep the same metal as the housing to avoid corrosion/expansion issues. Have you seen examples of aluminum peripheral port housings cracking as you described? Or is this a matter of even though aluminum has a lower strength than other metals it's still more than sufficient to support the weight of an intake manifold?
#21
Former Rx7 *****
Join Date: Nov 2001
Location: Mississauga
Posts: 4,534
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by soloracer951
The tubing will be supporting the weight of the manifold but moving in unison with it wouldn't it? If you take a look at the racing beat housings (see picture) they use a thin wall tubing as well. I'm thinking they must be using aluminum to keep the same metal as the housing to avoid corrosion/expansion issues. Have you seen examples of aluminum peripheral port housings cracking as you described? Or is this a matter of even though aluminum has a lower strength than other metals it's still more than sufficient to support the weight of an intake manifold?
I have not seen PP rotary engines's intake runner cracking, but I have seen intricate straight 6 and 4 cylinder intake tube manifolds cracking. It is not the lower strength is the aluminum's reistance to fatigue. You can get aluminum alloys that are stronger and lighter than steel. It is vibration and repeated low stress that messes up the grain structure of aluminum causing it to fail.
All I'm saying is you need to brace the thing. just like why you brace big turbos that are mounted on stainless steel tube divided exhuast manifolds.
#22
Freedoms worth a buck o'5
Thread Starter
Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like
on
1 Post

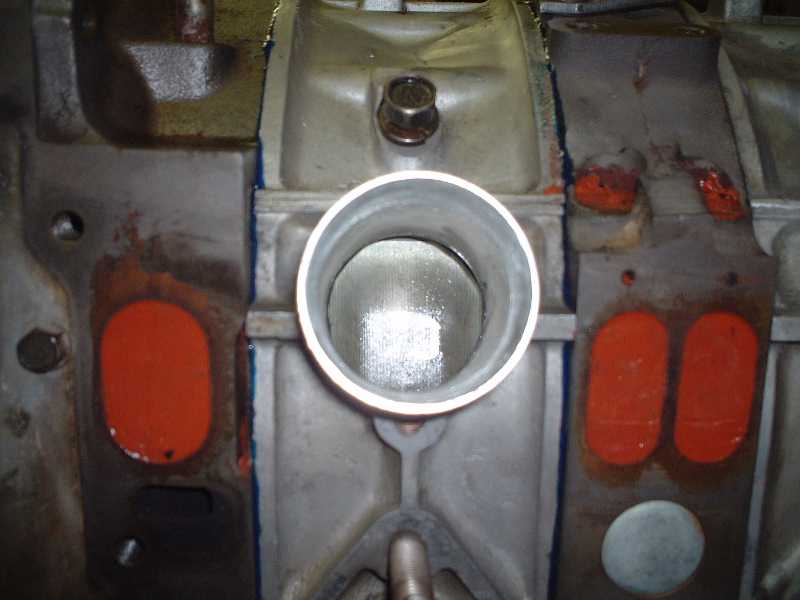

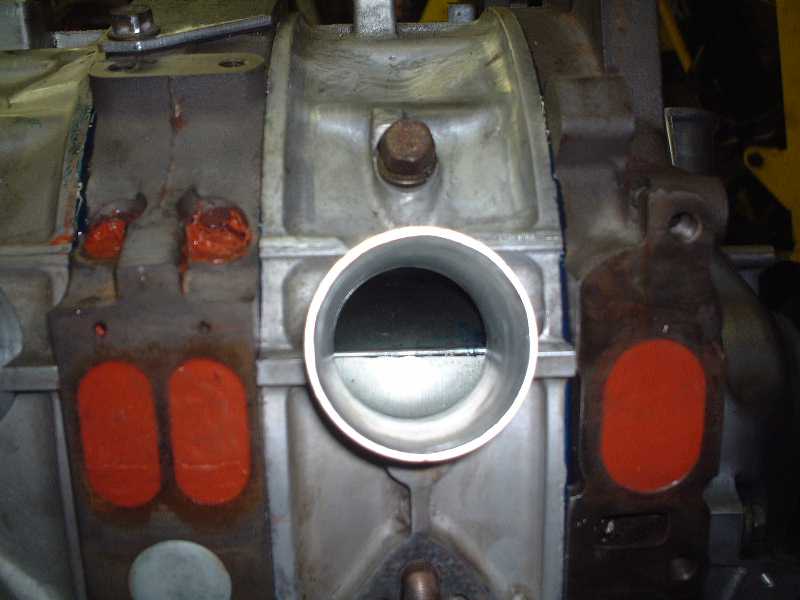

I am not to worried about the tubes cracking or anything like, the intake will be coupled with 2" silicone hose to the port tubes and will be mounted where the omp nozzles were in the housings...
On the subject of bracing, what causes manifolds to crack is usually the bracing itself on the stainless, that stuff grows with heat like crazy and the bracing makes the manifold pull itself apart...

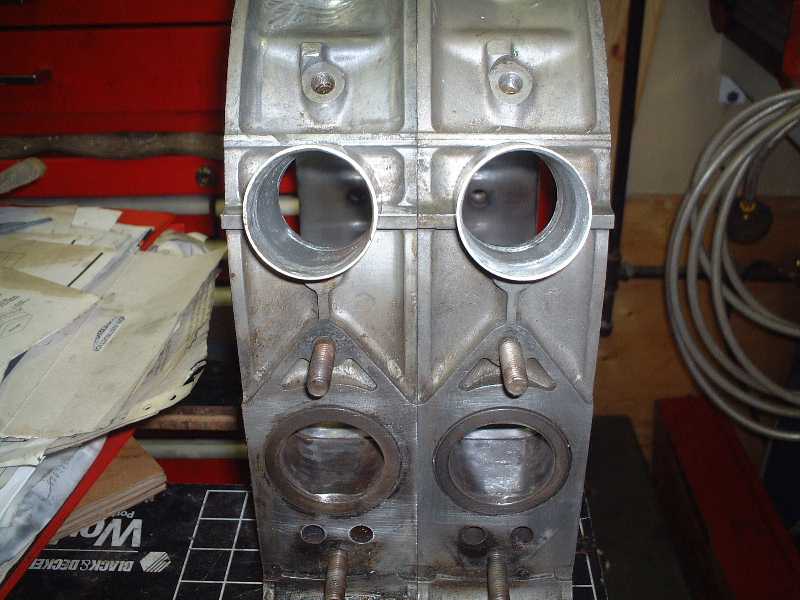

My tubes are shrink fitted into the housings and retained with loctite. The reason for aluminum is so they exand at the same rate, and dont loosen up, as well as steel and aluminium dont get along in the presence of oxygen, the sip process of the rotor housings is such that the outside of of the steel liner has a serated exterior and the housing is die-cast around the liner effectively bonding the aluminum to the steel, something that cant be done at home with tubing..

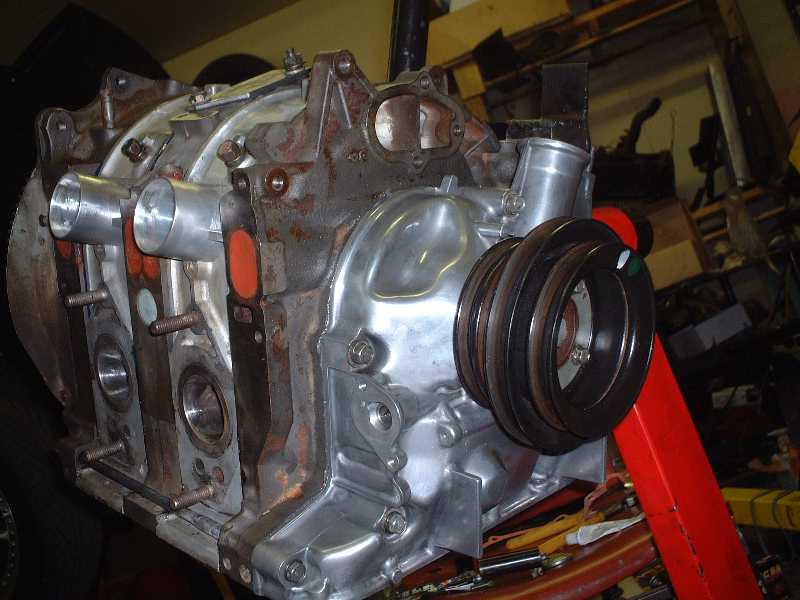

Got the engine together today, its pretty neat , if you cover the port, it will suck your hand in so much it hurts, peripheral port hickies..
Gonna start building the manifold/throttlebody setup tonight..
On the subject of bracing, what causes manifolds to crack is usually the bracing itself on the stainless, that stuff grows with heat like crazy and the bracing makes the manifold pull itself apart...
My tubes are shrink fitted into the housings and retained with loctite. The reason for aluminum is so they exand at the same rate, and dont loosen up, as well as steel and aluminium dont get along in the presence of oxygen, the sip process of the rotor housings is such that the outside of of the steel liner has a serated exterior and the housing is die-cast around the liner effectively bonding the aluminum to the steel, something that cant be done at home with tubing..
Got the engine together today, its pretty neat , if you cover the port, it will suck your hand in so much it hurts, peripheral port hickies..
Gonna start building the manifold/throttlebody setup tonight..
