damn that harness looks crazy.. uhmmm wanna come make mine now
BTW, What was that you were saying saturday about "might as well put all new clutch components"
BTW, What was that you were saying saturday about "might as well put all new clutch components"
05-02-05, 10:53 PM
#52
Brother of Yeti!!!!!!
Join Date: Dec 2004
Location: SCABOROUGH
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
man i cannot wait to see the finished evilstank way to go john and when it's all done we'll get you a nice backrub to take care of the backaches
keep it up man can't wait to see it
keep it up man can't wait to see it
05-03-05, 07:44 AM
#55
Struggles with Idling
Join Date: Mar 2002
Location: Campbellville
Posts: 1,128
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by eViLRotor
Here is a pic of the wrapped Haltech harness. Should be bulletproof.
Today was the first day we fired up the ECU. Everything went well. No cranking or trigger issues like some of the 6X installs seem to be having.
Nik and I also installed my brand new clutch master cylinder, just to find it out it leaks, so we had to put the old one back in
...wtf!
Today was the first day we fired up the ECU. Everything went well. No cranking or trigger issues like some of the 6X installs seem to be having.
Nik and I also installed my brand new clutch master cylinder, just to find it out it leaks, so we had to put the old one back in
...wtf!
(not sure what the technical word for it is).clean that up!!
05-03-05, 08:34 AM
#56
Hmmm...at first I thought you where joking. Then I realized you where serious(ly dumb)
What you are looking at is the inside of my Upper Intake Manifold. Its was just recently cleaned and beadblasted too.

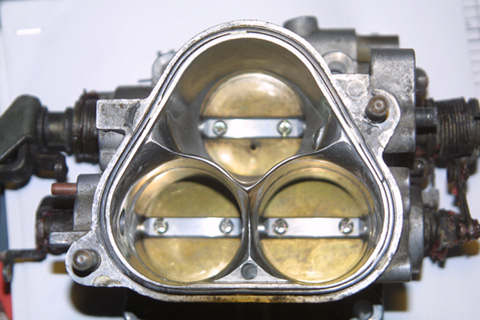

This is my TB with throttle plates....
Notice NO
What you are looking at is the inside of my Upper Intake Manifold. Its was just recently cleaned and beadblasted too.
This is my TB with throttle plates....
Notice NO
black carbon on the throttle body butterfly thingy's?
05-03-05, 09:03 AM
#59
EliteHardcoreCanuckSquad
Join Date: Mar 2001
Location: Toronto
Posts: 2,653
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by eViLRotor
Hmmm...at first I thought you where joking. Then I realized you where serious(ly dumb)
What you are looking at is the inside of my Upper Intake Manifold. Its was just recently cleaned and beadblasted too.
What you are looking at is the inside of my Upper Intake Manifold. Its was just recently cleaned and beadblasted too.
(Go first gen go!
)
05-03-05, 09:17 AM
#60
Struggles with Idling
Join Date: Mar 2002
Location: Campbellville
Posts: 1,128
Likes: 0
Received 0 Likes
on
0 Posts
no, I was being serious, in a silly way. that polished one looks great though.
which one(s) is the primary, and which are secondary?
what rpm do they open at? or is it throttle related?
which one(s) is the primary, and which are secondary?
what rpm do they open at? or is it throttle related?
05-03-05, 09:34 AM
#61
More Mazdas than Sense
Join Date: Aug 2003
Location: Sunny Downtown Fenwick
Posts: 2,168
Likes: 0
Received 0 Likes
on
0 Posts
Primary = big fat guy, secondaries are the smaller dudes.
I believe they are throttle related, but I don't know at what % the secondaries kick in.
I believe they are throttle related, but I don't know at what % the secondaries kick in.
05-03-05, 09:42 AM
#62
Which is funny because with the first gen carb, the primaries are smaller (because there are two of them and they open first, for lower RPM/Load) and the secondaries are bigger.
My, how confusing I'm glad I don't do FI.
Shiney things are nice though. Not one iota of carbon on those butterflies!
Jon
Edit: John, where did you get the beadblasting done?
My, how confusing
I'm glad I don't do FI.Shiney things are nice though. Not one iota of carbon on those butterflies!
Jon
Edit: John, where did you get the beadblasting done?
05-03-05, 12:48 PM
#63
Struggles with Idling
Join Date: Mar 2002
Location: Campbellville
Posts: 1,128
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vipernicus42
Which is funny because with the first gen carb, the primaries are smaller (because there are two of them and they open first, for lower RPM/Load) and the secondaries are bigger.
My, how confusing I'm glad I don't do FI.
My, how confusing
I'm glad I don't do FI.the only thing making the EFI and carb setup different is the float bowl / venturi system of a carb versus the fuel injector spray of the EFI system. (of course there are more differences)
05-03-05, 01:18 PM
#64
No, I was saying it was confusing because on FI
BIG = Primary (single butterfly for low load/RPM operation)
Small = Secondary
(but that's because there's only one "big" one, which I'd assume has a similar surface area to the combined area of the two primaries in the 4bbl carb)
and in the carb it's
small = primary (two smaller barrels for lower RPM/load operation)
big = secondary (two larger barrels for higher RPM/load operation)
BIG = Primary (single butterfly for low load/RPM operation)
Small = Secondary
(but that's because there's only one "big" one, which I'd assume has a similar surface area to the combined area of the two primaries in the 4bbl carb)
and in the carb it's
small = primary (two smaller barrels for lower RPM/load operation)
big = secondary (two larger barrels for higher RPM/load operation)
05-03-05, 01:30 PM
#65
More Mazdas than Sense
Join Date: Aug 2003
Location: Sunny Downtown Fenwick
Posts: 2,168
Likes: 0
Received 0 Likes
on
0 Posts
The reason being that carbs need high velocity (and consequently, low presure) to work, so you need more restriciton at low vacuum/ part throttle.
FI works independantly of TB velocity. The single opening just makes it easier to modulate the changes in air flow, or said another way, makes throttle transitions smoother, increasing drivability.
FI works independantly of TB velocity. The single opening just makes it easier to modulate the changes in air flow, or said another way, makes throttle transitions smoother, increasing drivability.
05-03-05, 06:14 PM
#67
Stop contaminating my Rice Thread with Tech Talk, geeks!!!!
I had my stuff beadblasted and powdercoated at Absolute Powder (1455 Michael Street, 742-6100). I can only recommend them. Good work, good service and good pricing.
I had my stuff beadblasted and powdercoated at Absolute Powder (1455 Michael Street, 742-6100). I can only recommend them. Good work, good service and good pricing.
Last edited by eViLRotor; 05-03-05 at 06:30 PM.
05-03-05, 06:29 PM
#68
Originally Posted by FC3S.USD
Soon , John is working 25 hours a day on '' it ''
Lots of
and
No
or

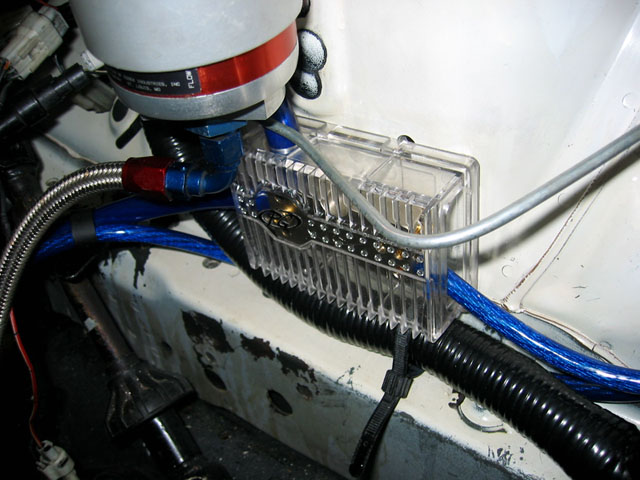

....Here are some more pics of work today. Installed my distribution block. This takes 0 AWG from battery and sends it to starter. It also sends 4 AWG to main fuse box, and will power my 2 efans with 8 AWG.

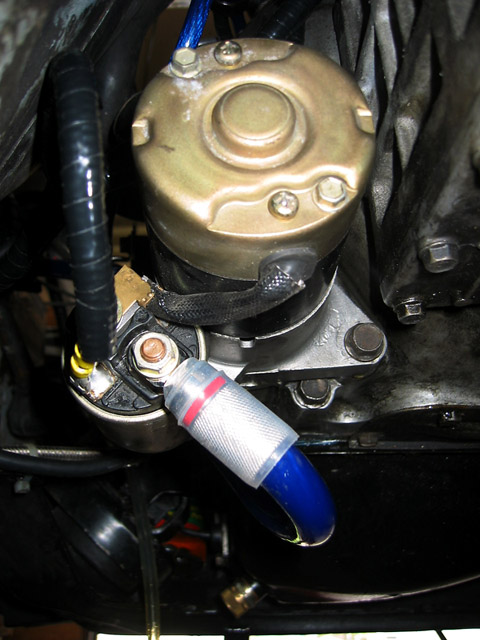

How do you connect a 0 AWG wire to the starter. With this 'Overkill' Series Stinger Audio connector lol....
05-04-05, 11:07 AM
#69
EliteHardcoreCannuckSquad
Join Date: May 2001
Location: Acton, Ontario, Canada
Posts: 4,126
Likes: 0
Received 4 Likes
on
4 Posts
NICE! Where's you get it, and how much $$?
Originally Posted by eViLRotor
Damm right.
Lots of and No or ....
Here are some more pics of work today. Installed my distribution block. This takes 0 AWG from battery and sends it to starter. It also sends 4 AWG to main fuse box, and will power my 2 efans with 8 AWG.
How do you connect a 0 AWG wire to the starter. With this 'Overkill' Series Stinger Audio connector lol....
Lots of
and No or ....Here are some more pics of work today. Installed my distribution block. This takes 0 AWG from battery and sends it to starter. It also sends 4 AWG to main fuse box, and will power my 2 efans with 8 AWG.
How do you connect a 0 AWG wire to the starter. With this 'Overkill' Series Stinger Audio connector lol....
05-04-05, 08:59 PM
#71
EliteHardcoreCannuckSquad
Join Date: May 2001
Location: Acton, Ontario, Canada
Posts: 4,126
Likes: 0
Received 4 Likes
on
4 Posts
I'm wiring in two stinger fuse blocks this w/e to replace my crappy stock fusible links, but that distribution block is SWEET and would clean things up... where'd you buy it?
05-04-05, 10:31 PM
#72
EliteHardcoreCannuckSquad
Join Date: May 2001
Location: Acton, Ontario, Canada
Posts: 4,126
Likes: 0
Received 4 Likes
on
4 Posts
Just ignore my last post... didn't read your post carefully enough, lol...
I just figured out how to wire-up my system like yours
Cool!
I just figured out how to wire-up my system like yours
Cool!
Last edited by smnc; 05-04-05 at 10:59 PM.
05-10-05, 10:21 AM
#74
Well, I got the car home last night.
I've got a few small issues, like the oxygen sensor not screwing into the bung correctly and a small coolant leak.
My basemap, with some tweaking, drove me home nicely. Now just need to tune with WB for Ottawa Meet
I've got a few small issues, like the oxygen sensor not screwing into the bung correctly and a small coolant leak.
My basemap, with some tweaking, drove me home nicely. Now just need to tune with WB for Ottawa Meet
