welcome home (drift build)
. Good work so far
10-16-13, 06:58 AM
#129
Full Member
Just started reading this from the beginning, amazing build man. Will read the rest on the train tomorrow, or I'll be up all night! Ahah
Just wanted keep up the good work man, and MOAR pics
Just wanted keep up the good work man, and MOAR pics
10-16-13, 04:45 PM
#131
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
small update:
been working on some other things and haven't had a chance to update you guys on whats been going on with the build so my apologies for that. However there are a few things I did manage to do. the wiring is done and in the car however I am working on the interior wiring such as the gauges and my circuit box from Rowe Electronics I also had to wiring in the resistor balace for the injectors. I also managed to upgrade my waste gate with a universal waste gate from fr sport it holds 12 to 14 psi which is a lot better than the stock one and finishing up some wiring on my gauge panel I also managed to install my hood pins on the hood as well.... here are a few pics just to keep you guys in the loop

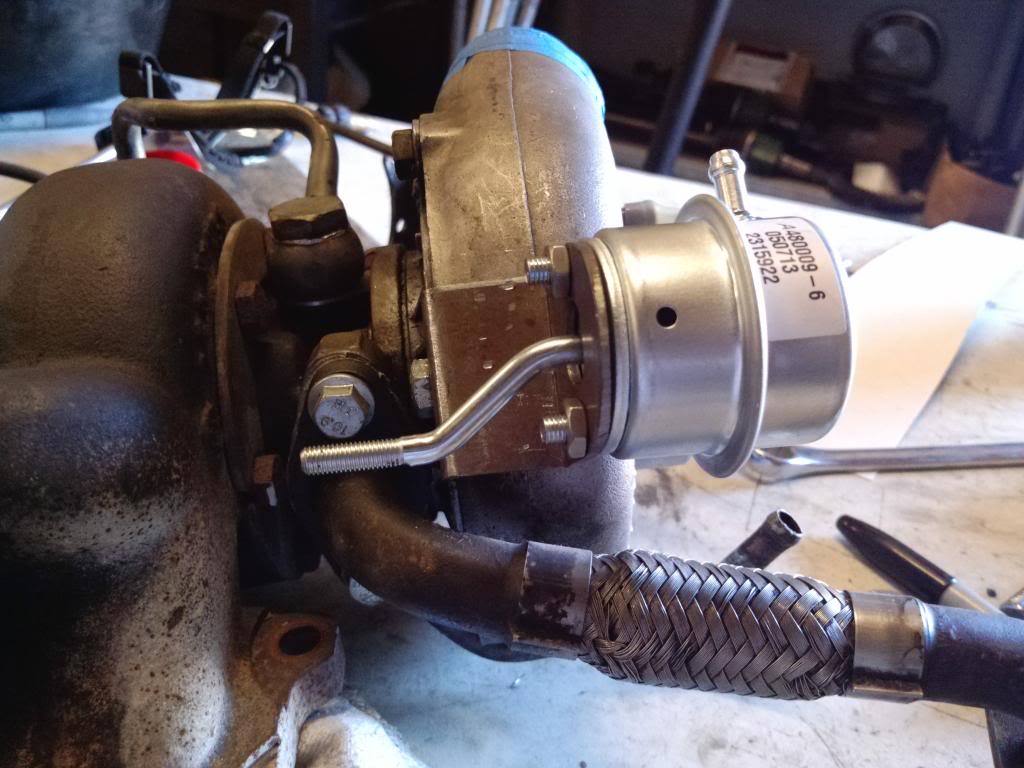

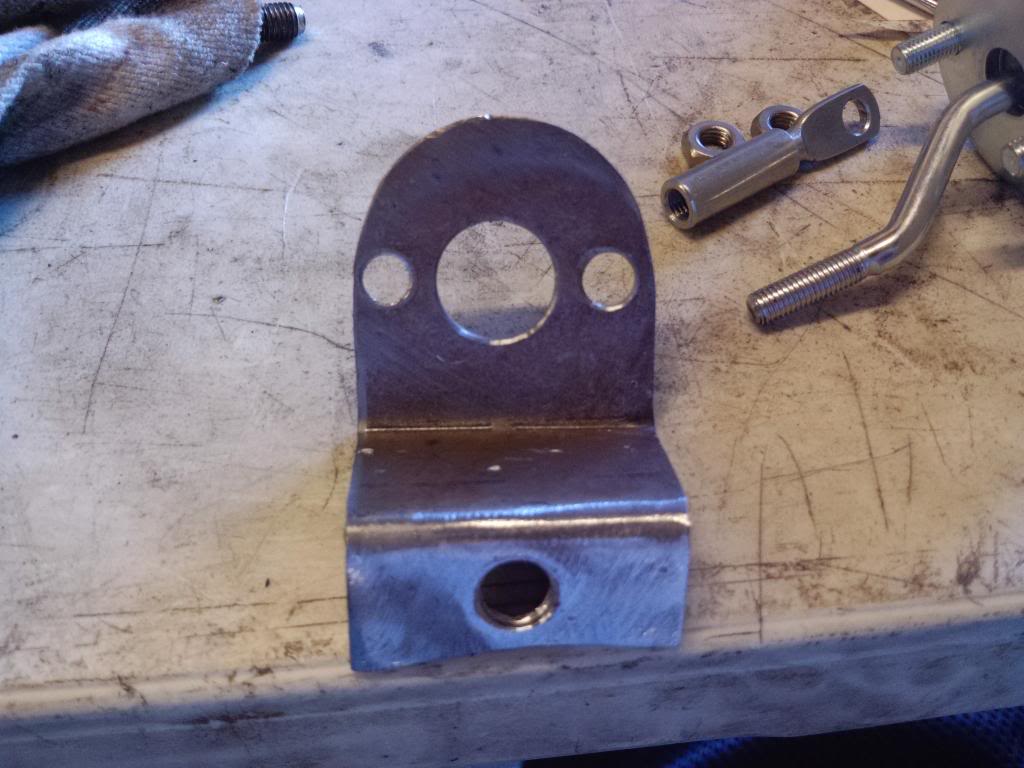

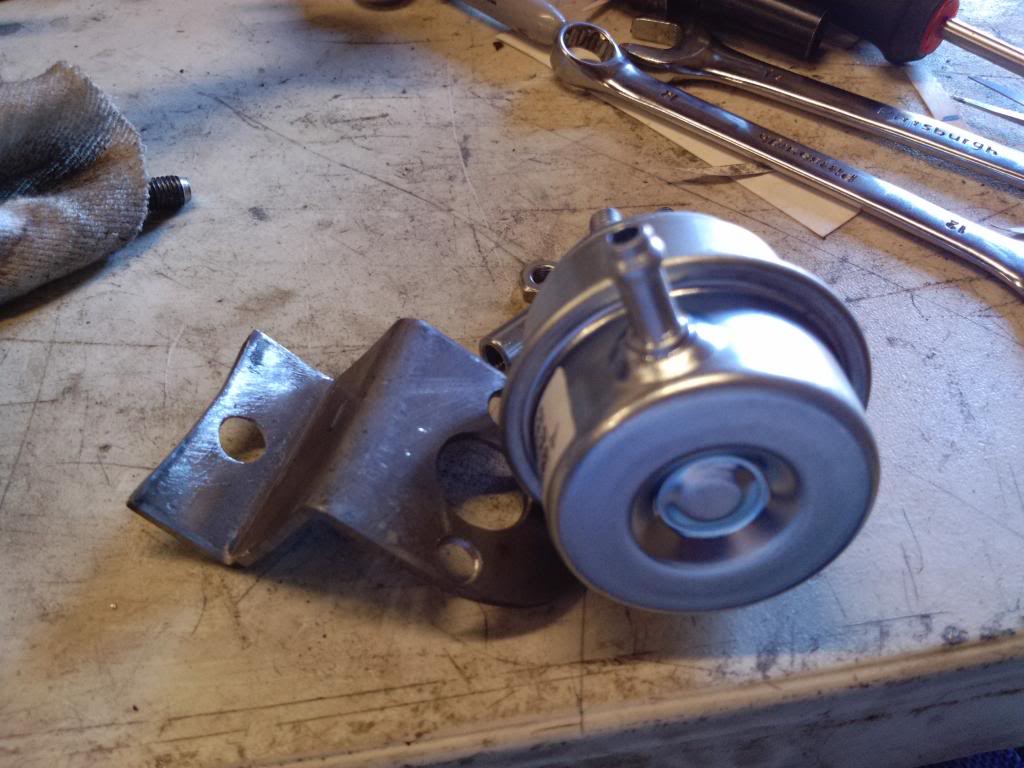

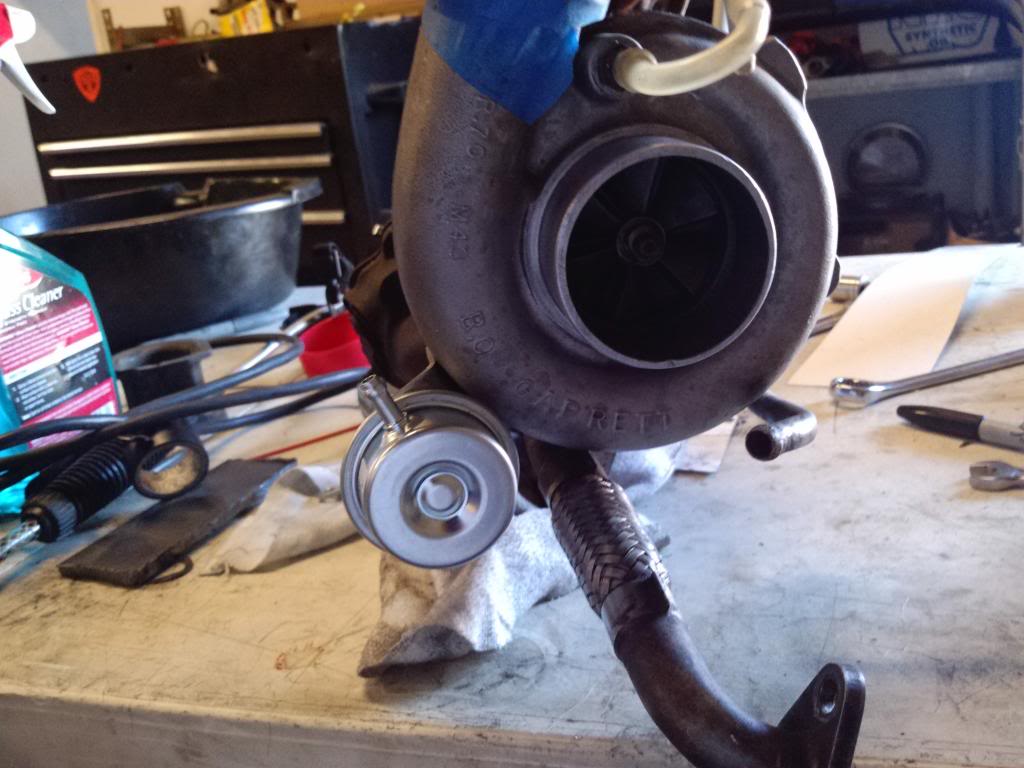

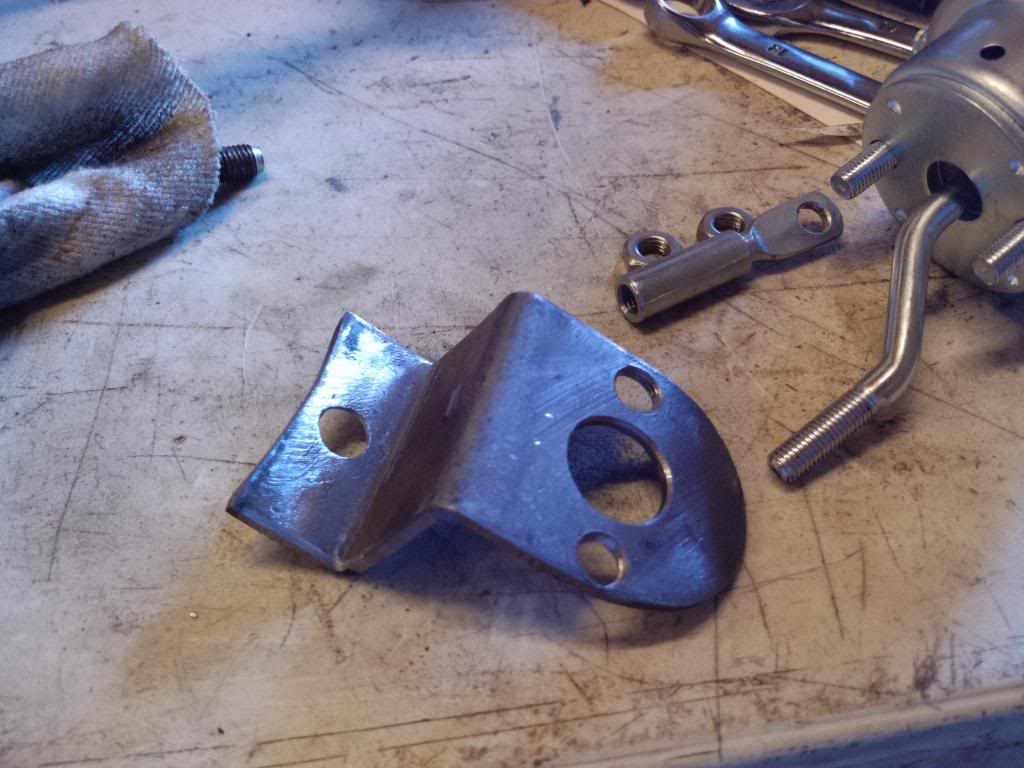

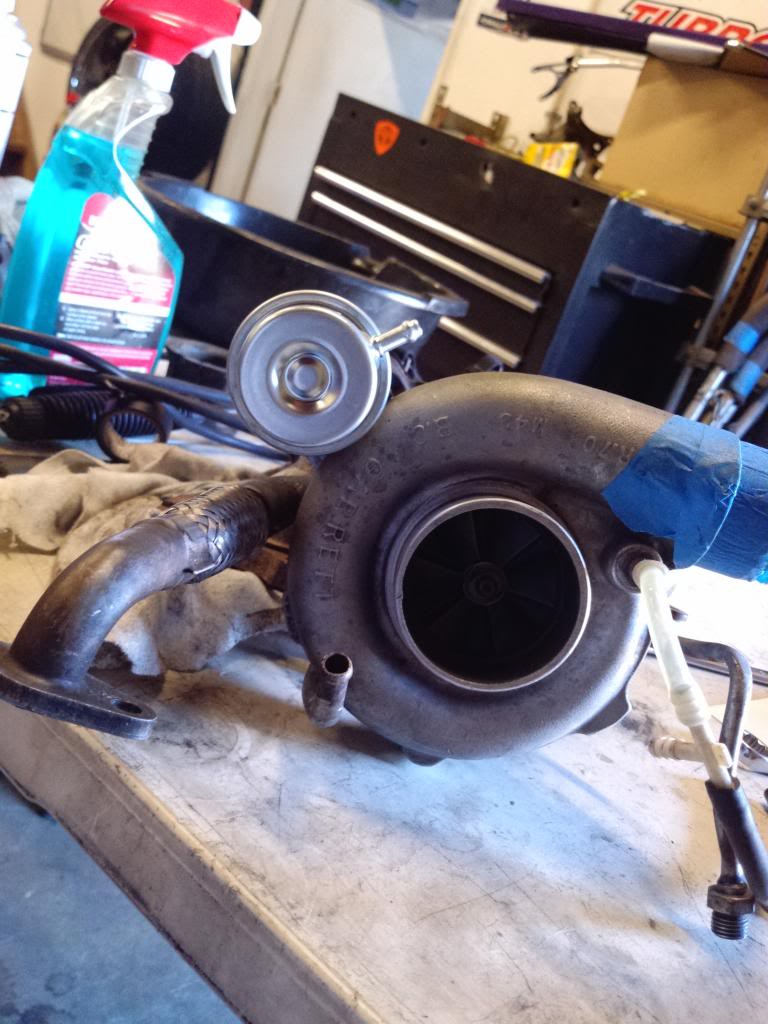

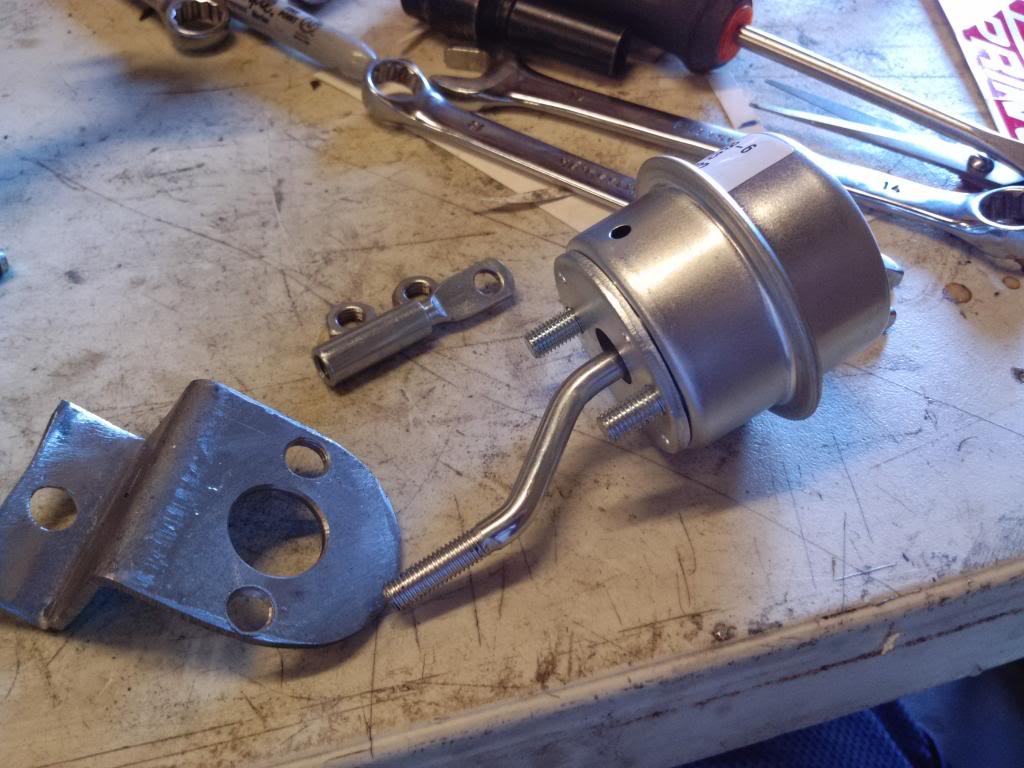

pics of the waste gate, turbo and the bracket I had to make for it
been working on some other things and haven't had a chance to update you guys on whats been going on with the build so my apologies for that. However there are a few things I did manage to do. the wiring is done and in the car however I am working on the interior wiring such as the gauges and my circuit box from Rowe Electronics I also had to wiring in the resistor balace for the injectors. I also managed to upgrade my waste gate with a universal waste gate from fr sport it holds 12 to 14 psi which is a lot better than the stock one and finishing up some wiring on my gauge panel I also managed to install my hood pins on the hood as well.... here are a few pics just to keep you guys in the loop
pics of the waste gate, turbo and the bracket I had to make for it
10-16-13, 04:50 PM
#132
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
a few more pics

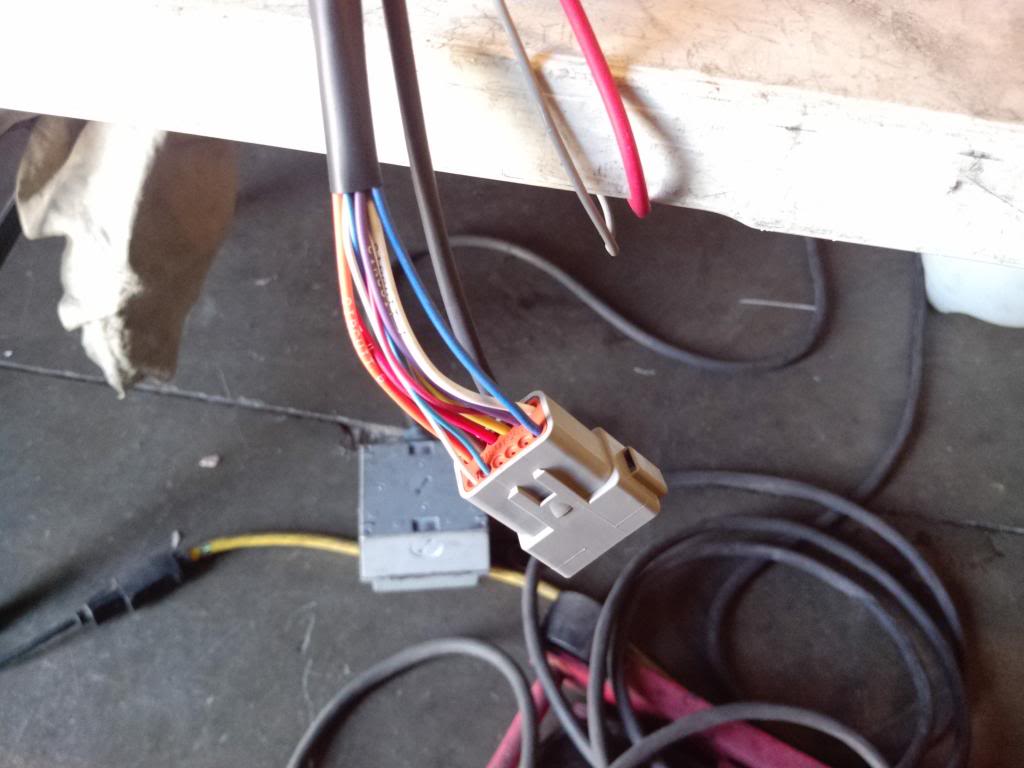

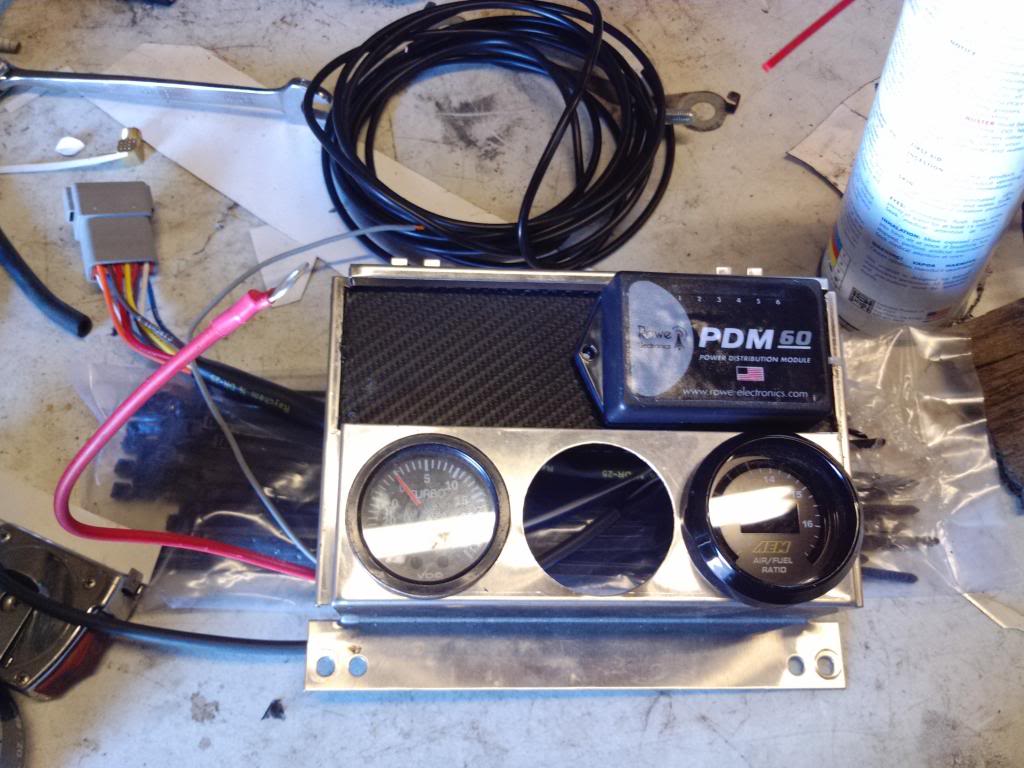

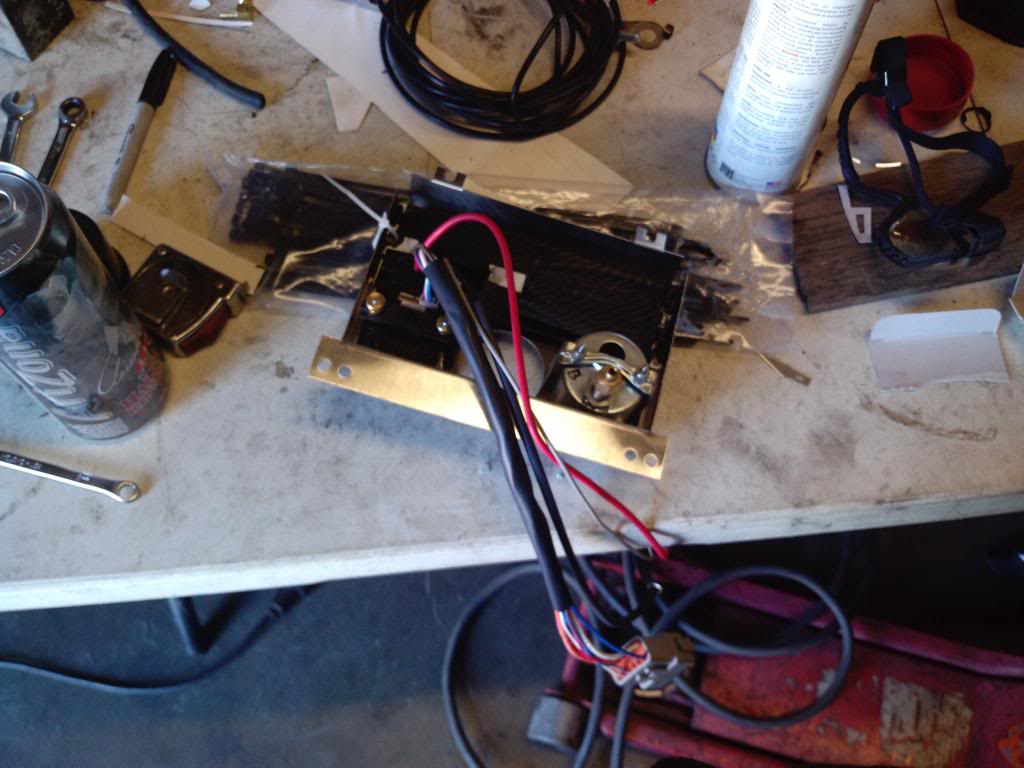

Here are a few pics of the guage panel that im using with the Rowe Electronics PDM60
ill update you guys later this week with more pics and things. the car did run today however I need to check the timing to make sure it's set ill keep you guys posted with that as well. Stay-Tuned
Here are a few pics of the guage panel that im using with the Rowe Electronics PDM60
ill update you guys later this week with more pics and things. the car did run today however I need to check the timing to make sure it's set ill keep you guys posted with that as well. Stay-Tuned
12-10-13, 10:39 AM
#135
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
small update:
been really busy working on other projects however I got the car started and worked on some other things. preparing for the dyno will update with more pics and possibly videos
been really busy working on other projects however I got the car started and worked on some other things. preparing for the dyno will update with more pics and possibly videos
12-18-13, 11:32 AM
#136
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
small update

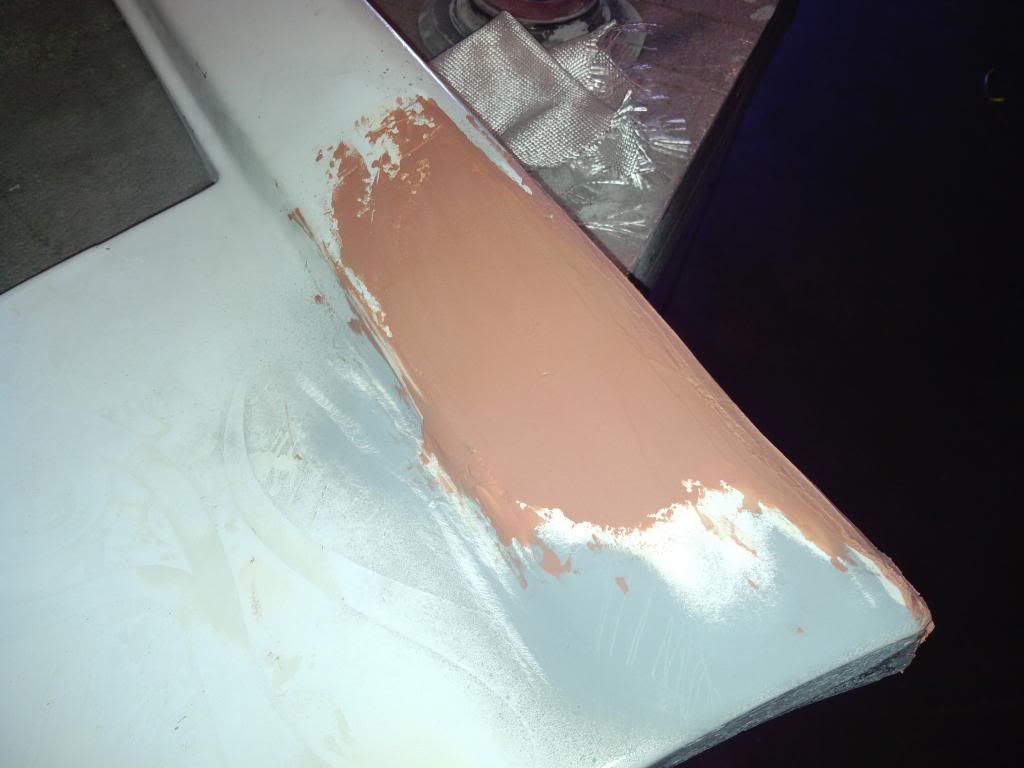

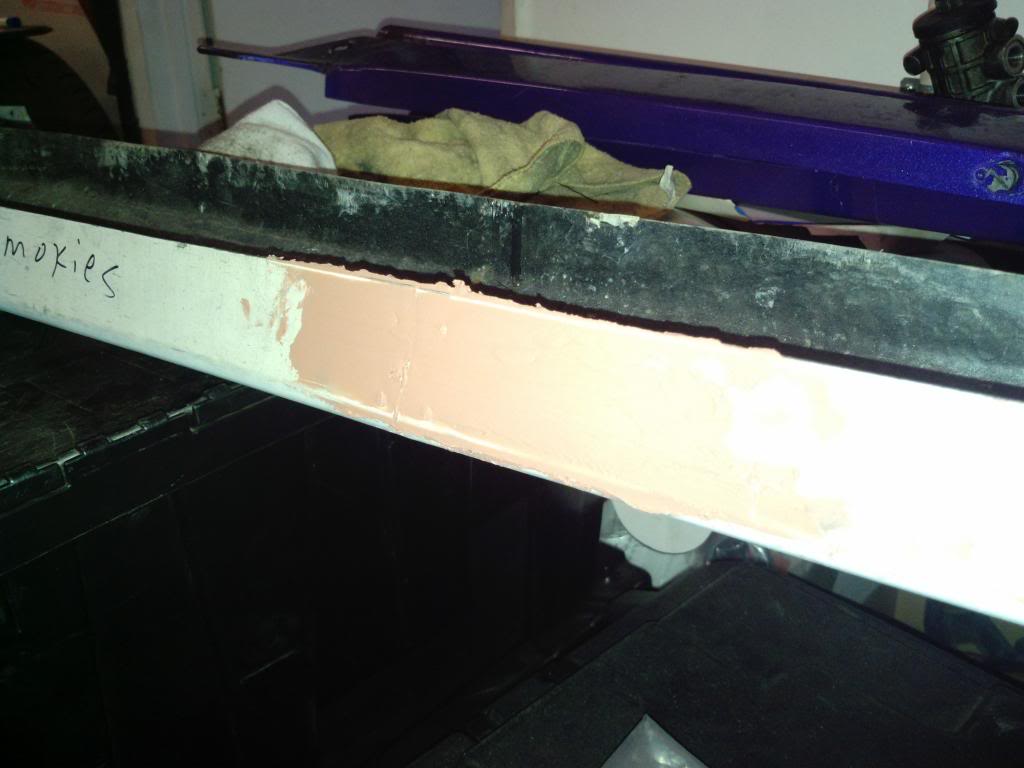

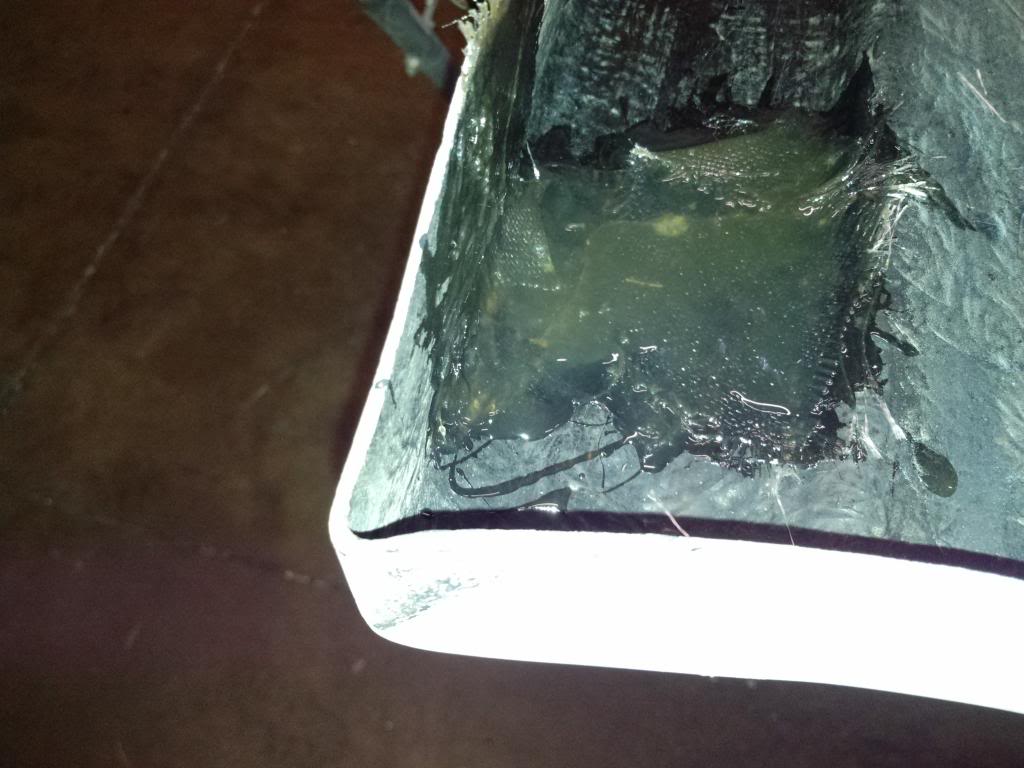

since im saving up and waiting for my dyno tune, I figured I would work on the body work and get that going. I got the body kit for free and I am truly grateful for it however it does have some cracks here and there so im going to attempt to fix them since I have been learning how to do fiberglass and bondo....

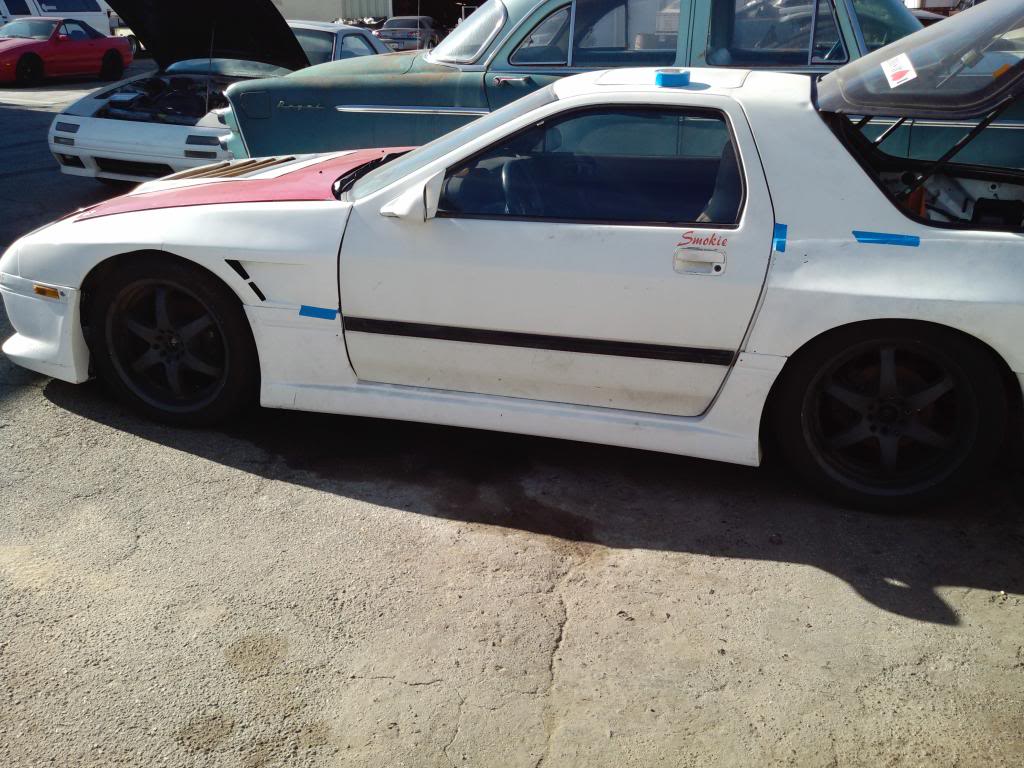

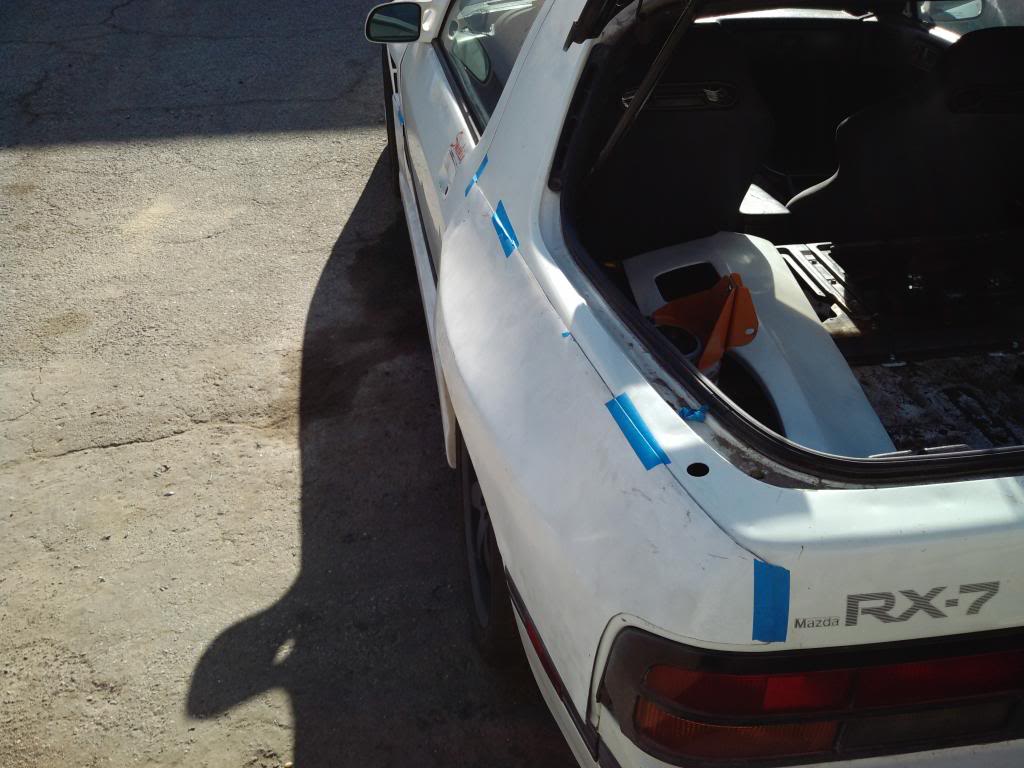

mocked up the rear fenders and side skirts just to see what it would look like

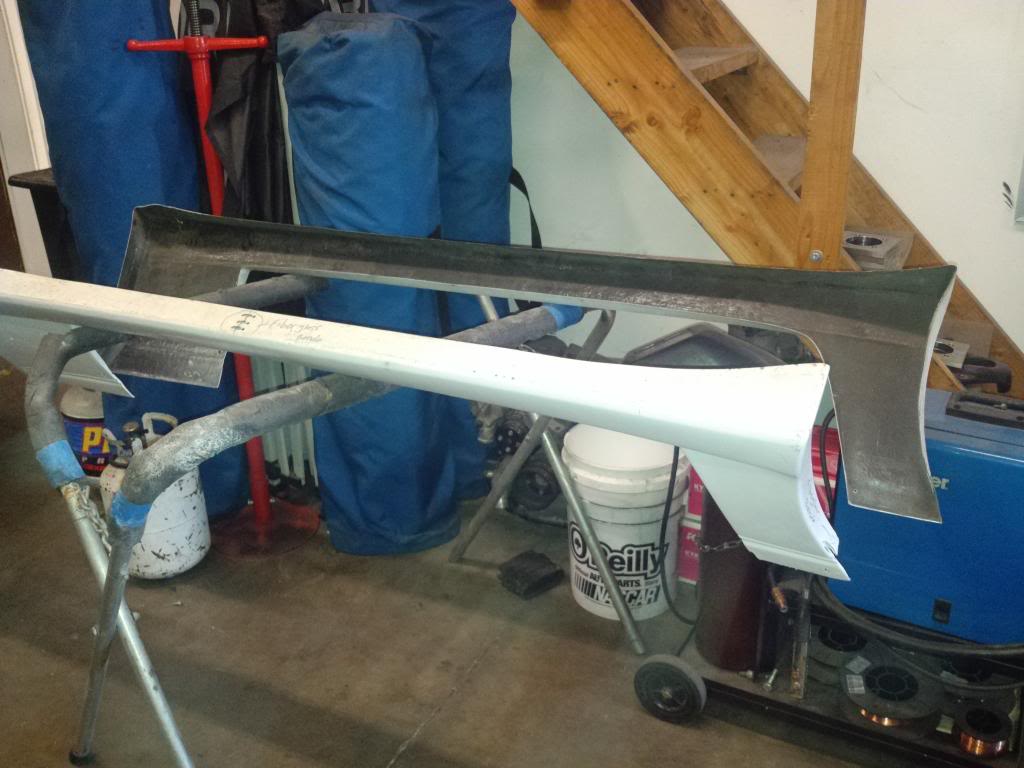

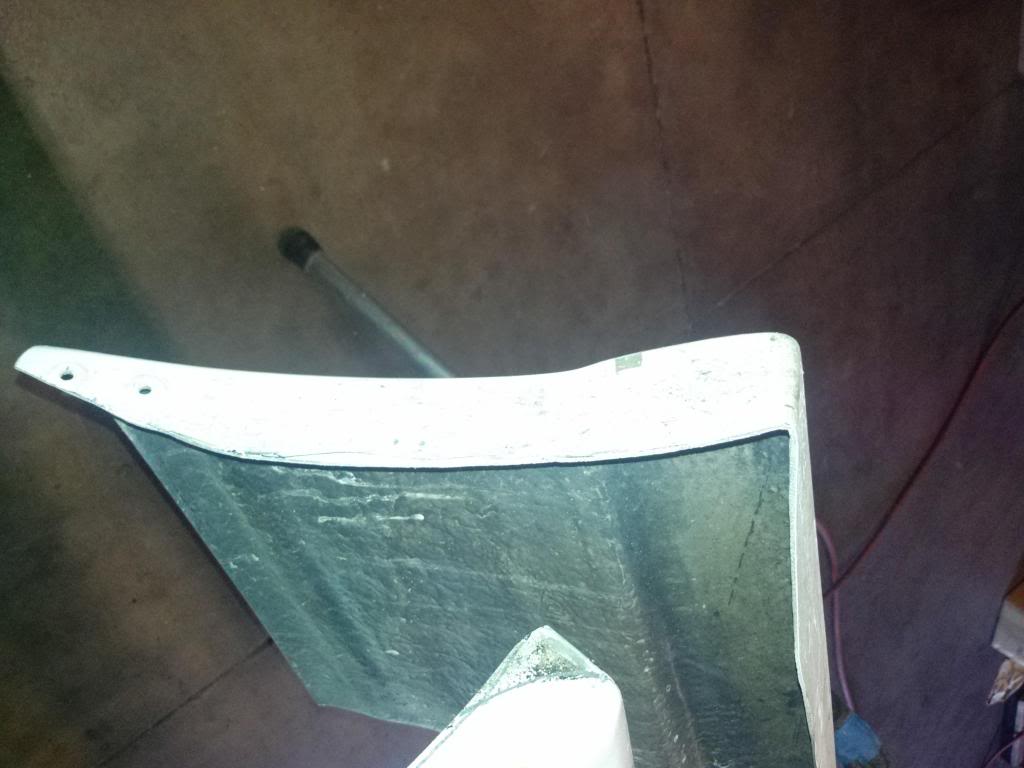

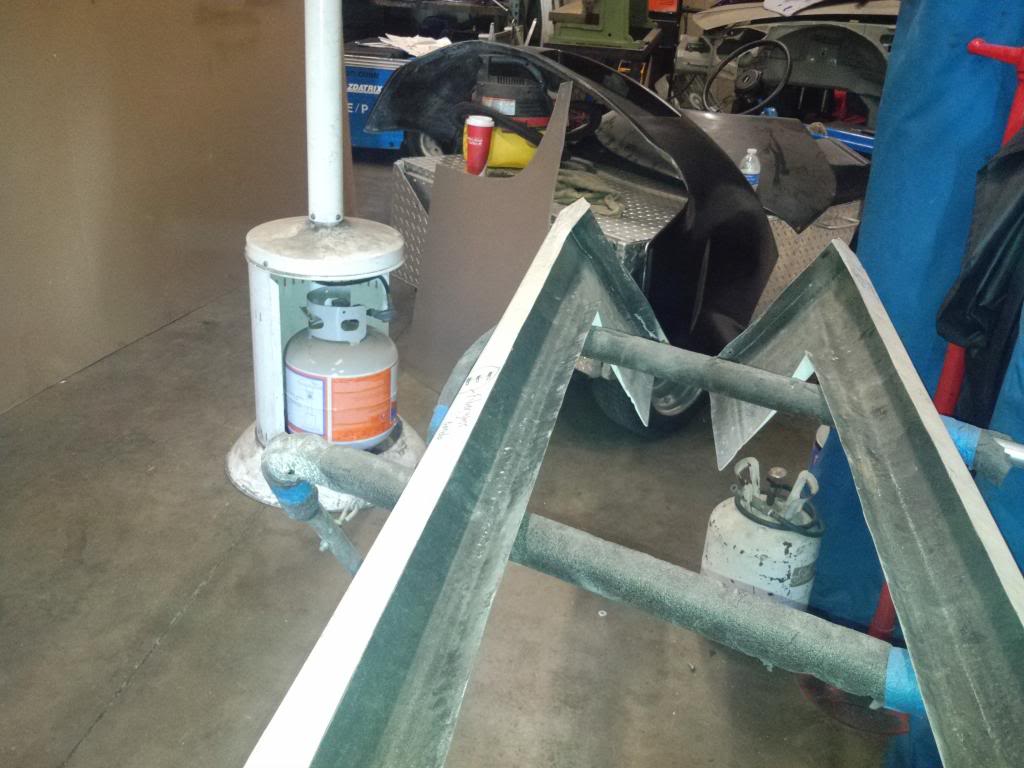

since I spaced the front wheels out, I had to modify the side skirts because when I turn the wheels it hits the side skirts so I decided to cut for clearance

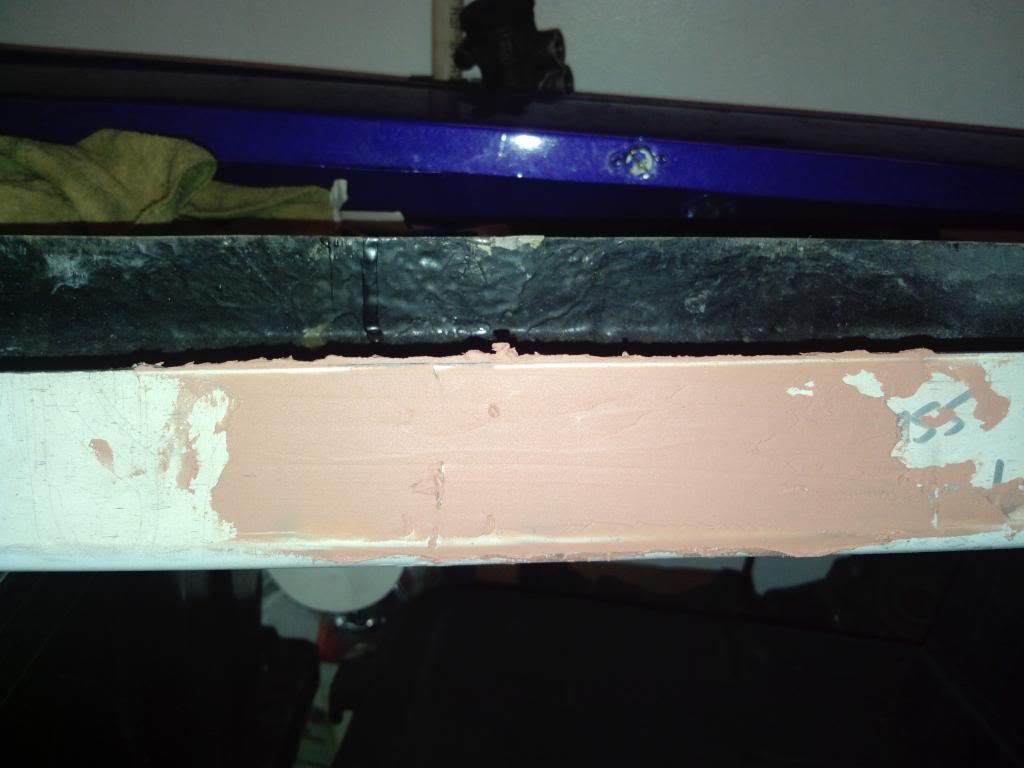

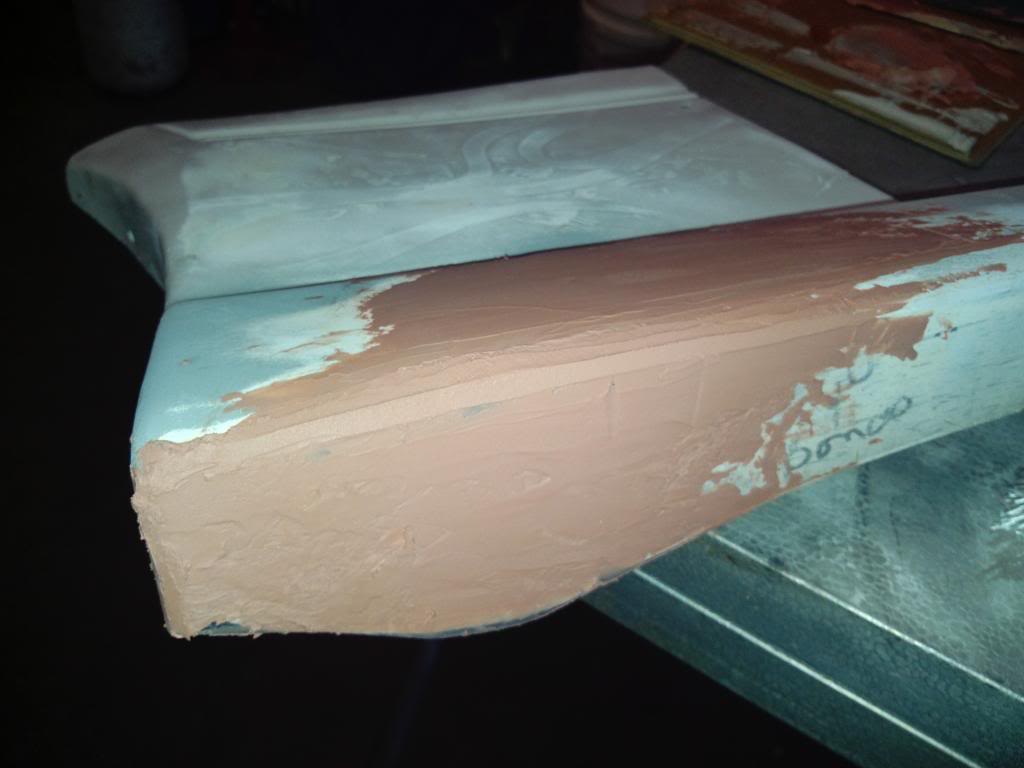

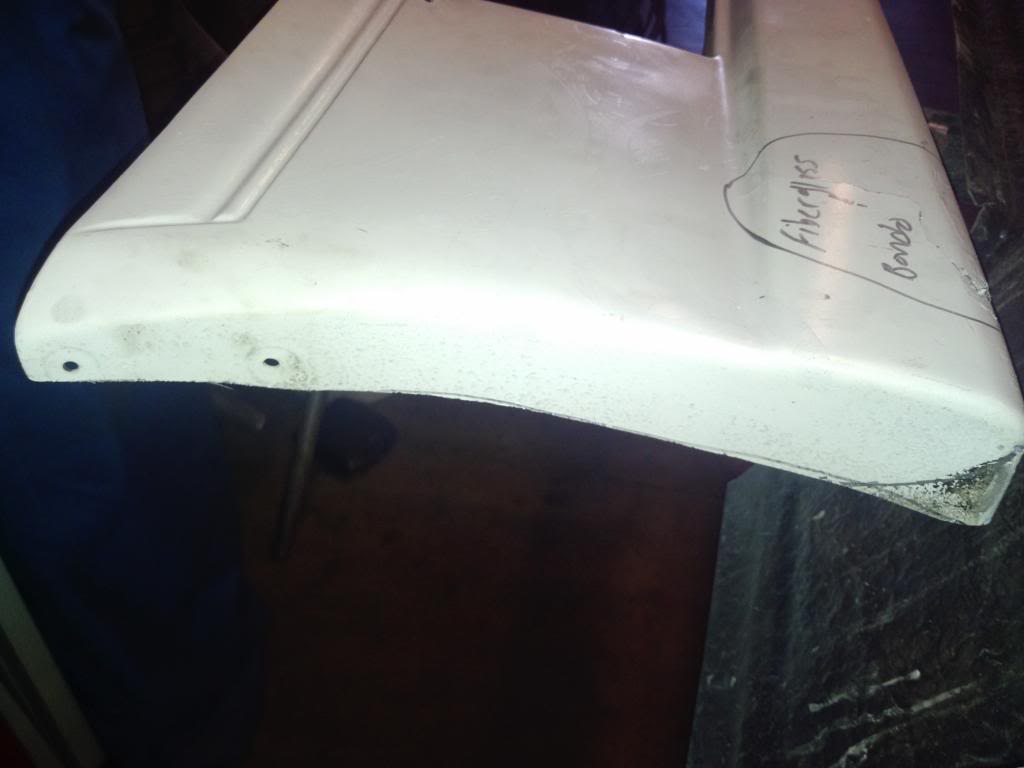

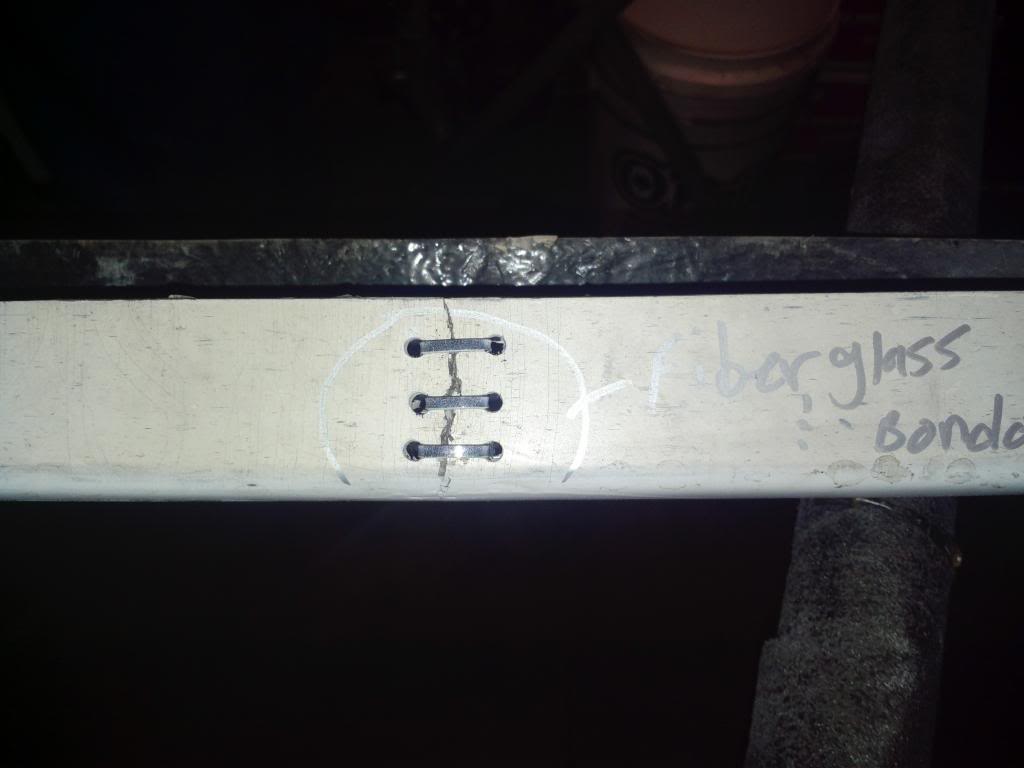

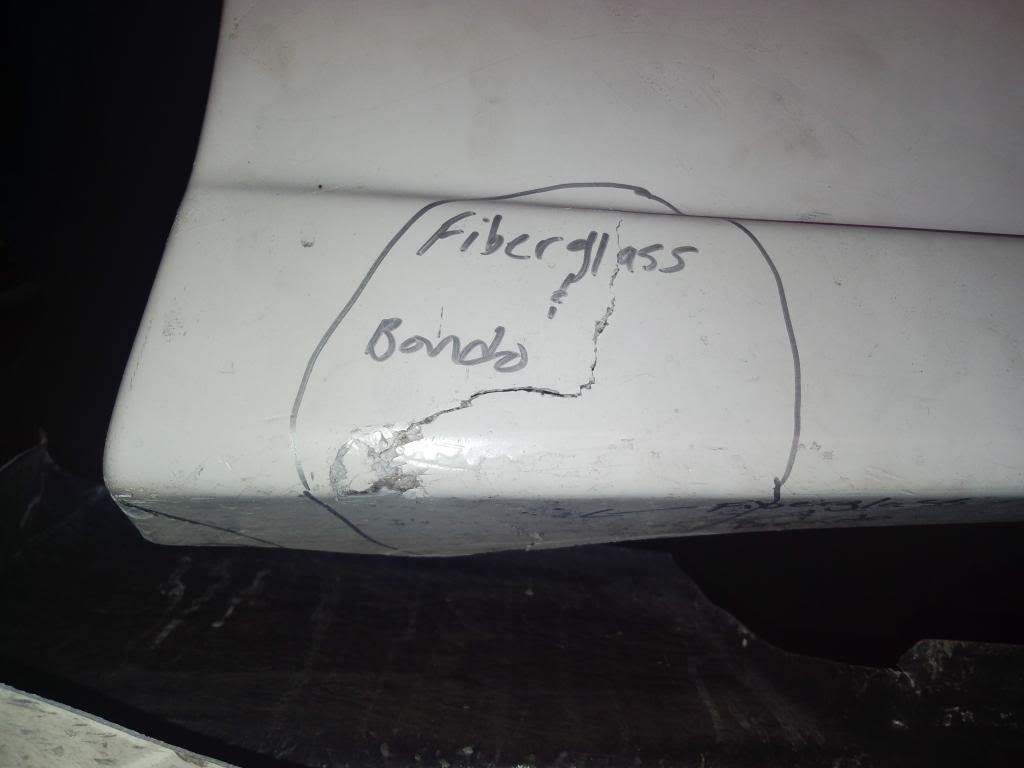

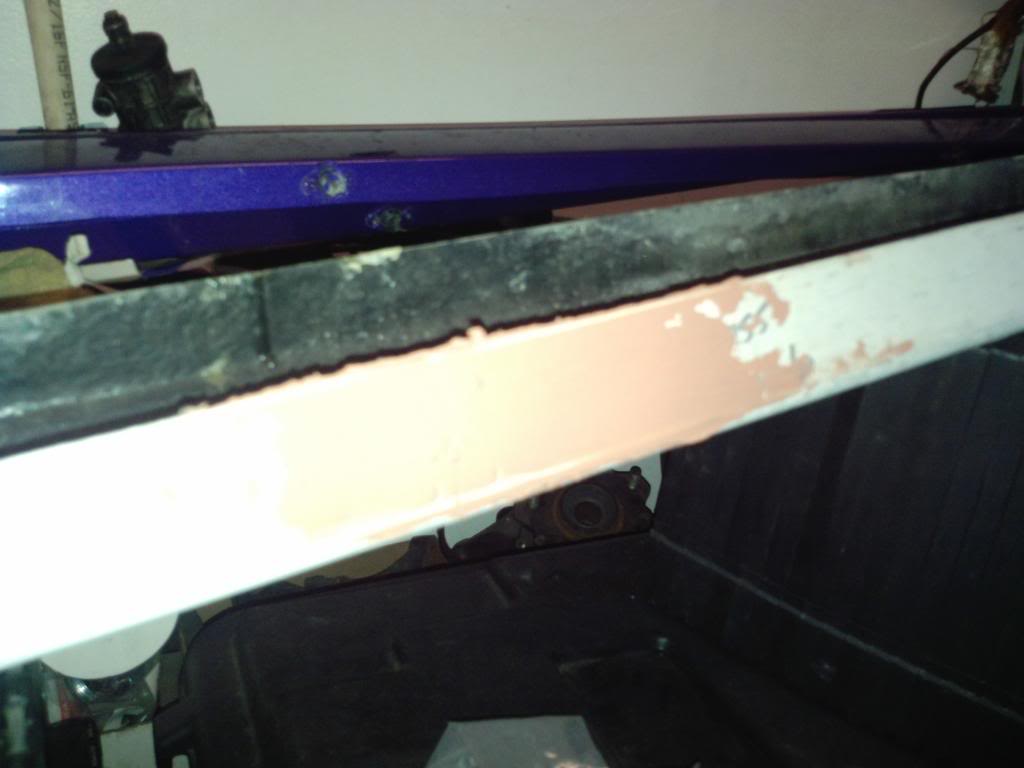

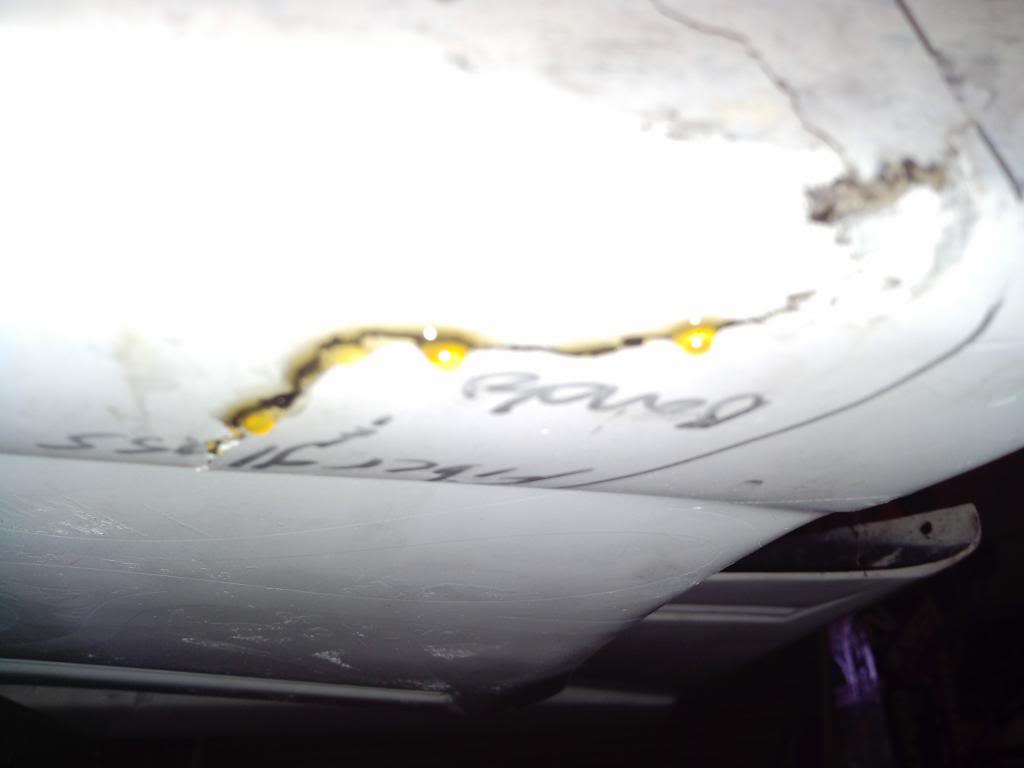

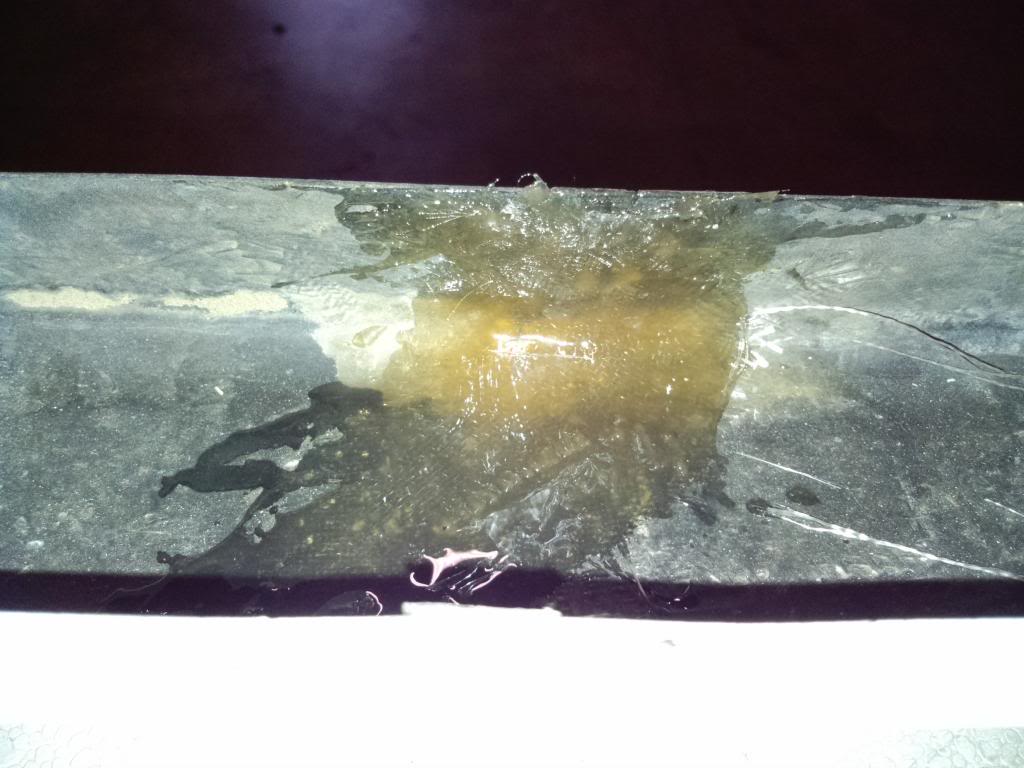

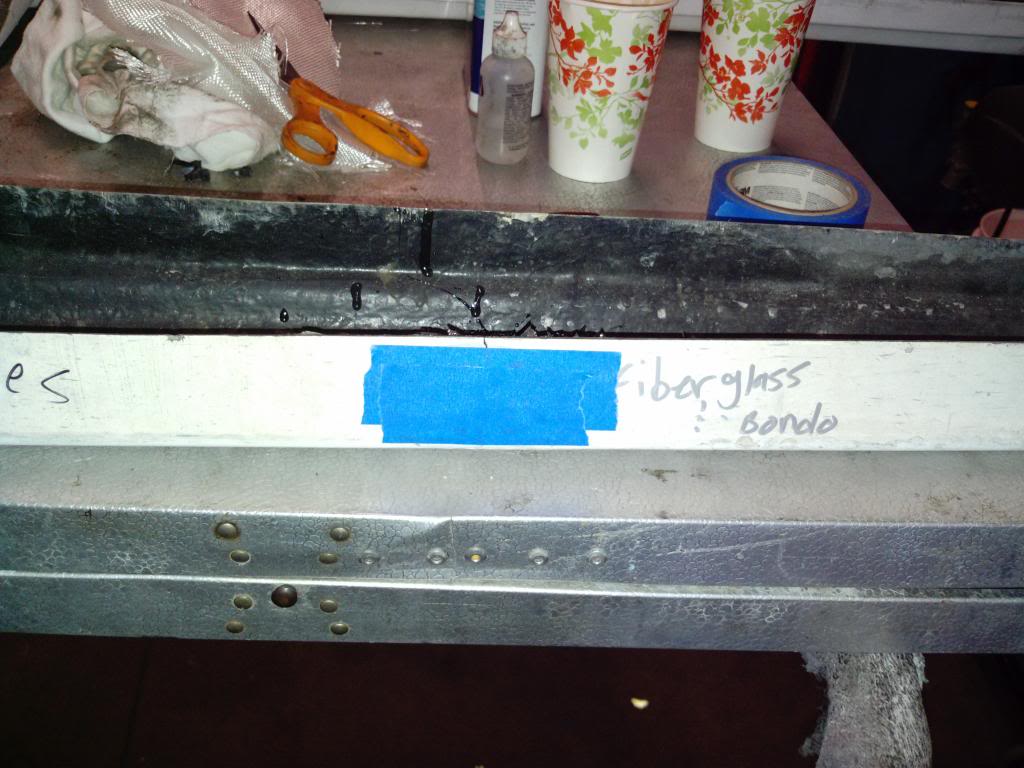

so I then started to mark what needed to be repaired

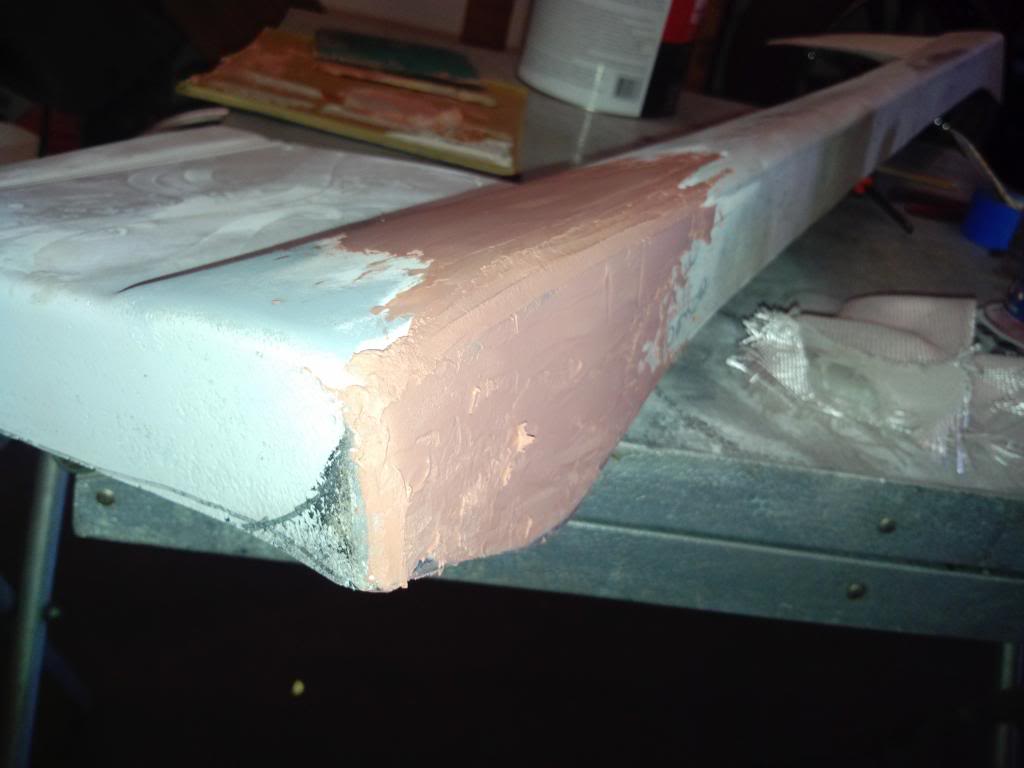

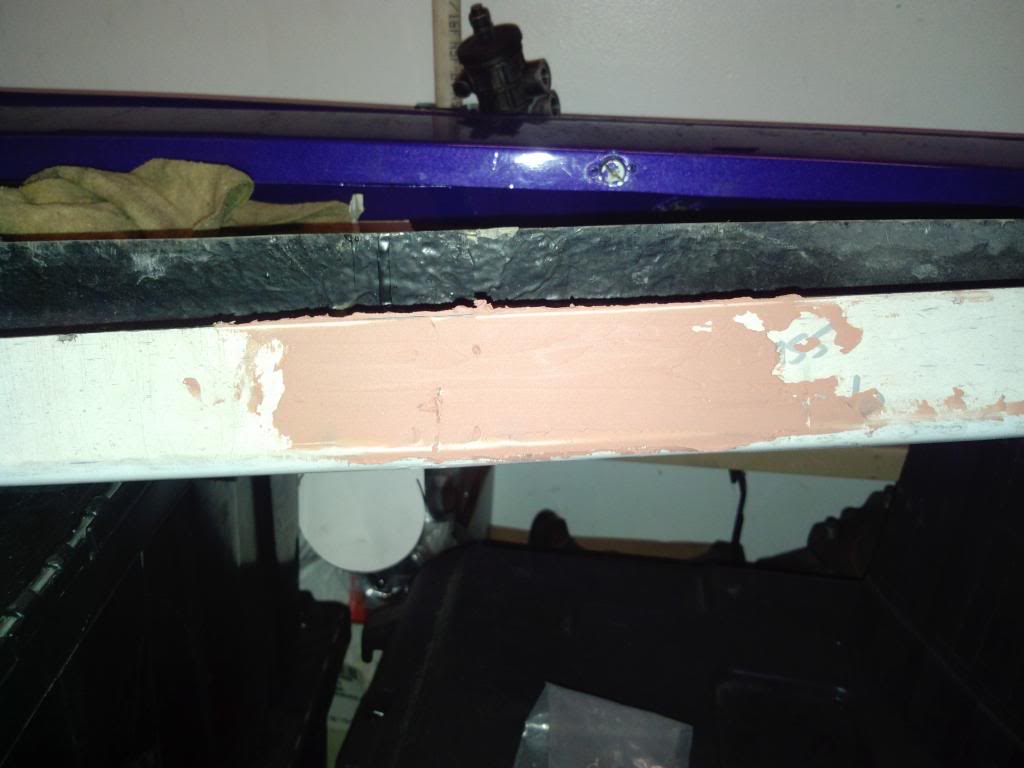

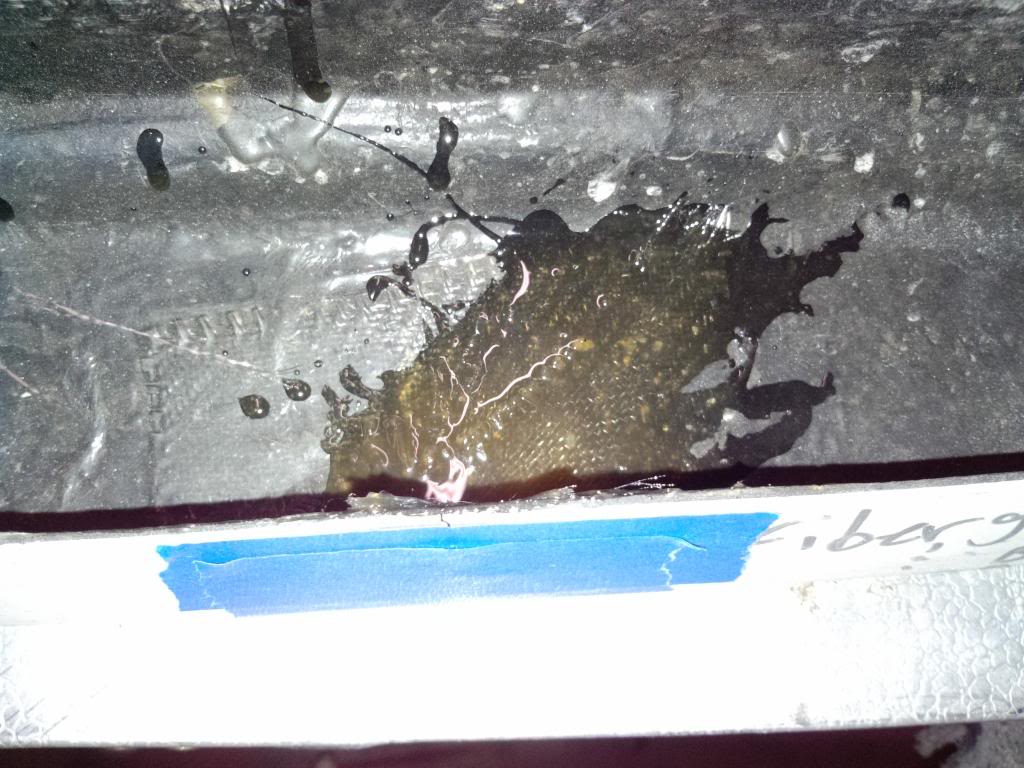

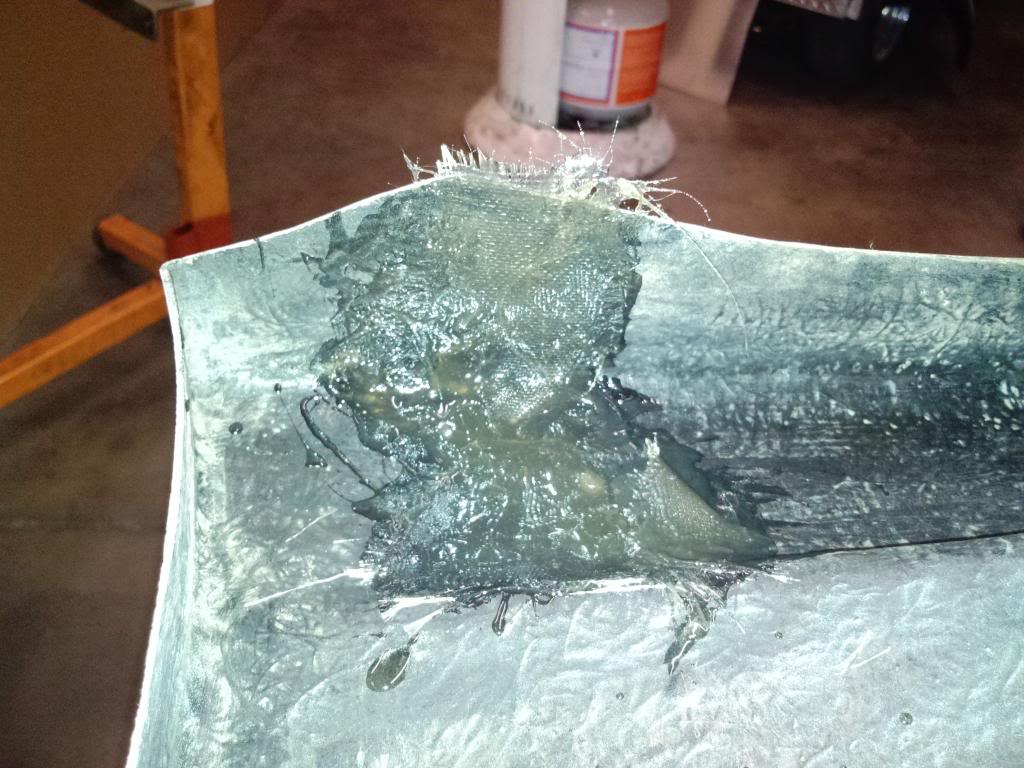

I have some more pics of the repairs up soon...stay tuned
since im saving up and waiting for my dyno tune, I figured I would work on the body work and get that going. I got the body kit for free and I am truly grateful for it however it does have some cracks here and there so im going to attempt to fix them since I have been learning how to do fiberglass and bondo....
mocked up the rear fenders and side skirts just to see what it would look like
since I spaced the front wheels out, I had to modify the side skirts because when I turn the wheels it hits the side skirts so I decided to cut for clearance
so I then started to mark what needed to be repaired
I have some more pics of the repairs up soon...stay tuned
12-20-13, 02:02 PM
#137
Good stuff, just got done reading the whole build thread. I also drift but have a s13.4 v8 coupe for drifting and build a 13b FC as a street car.
Kudos for doing all your own work.
What's this team you are on? is it for FD?
I like the PDM60 and looking into it. Where did you get the heat shrink for the wiring harness?
And how much HP you hoping to put down?
Kudos for doing all your own work.
What's this team you are on? is it for FD?
I like the PDM60 and looking into it. Where did you get the heat shrink for the wiring harness?
And how much HP you hoping to put down?
12-24-13, 07:18 PM
#138
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
Good stuff, just got done reading the whole build thread. I also drift but have a s13.4 v8 coupe for drifting and build a 13b FC as a street car.
Kudos for doing all your own work.
What's this team you are on? is it for FD?
I like the PDM60 and looking into it. Where did you get the heat shrink for the wiring harness?
And how much HP you hoping to put down?
Kudos for doing all your own work.
What's this team you are on? is it for FD?
I like the PDM60 and looking into it. Where did you get the heat shrink for the wiring harness?
And how much HP you hoping to put down?
01-19-14, 12:12 AM
#142
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
update on the car:
got the car running and made it to the dyno unfortunately there were a lot of small issues that caused us to run out of time mainly my fault for not checking and verifying the pats i had. The spacer that goes between the plenum and throttle was wrong causing a vacuum leak then the throttle bod butterflies wouldn't close all the way causing another leak my secondary injectors were leaking due to the grommets being to small so i had to run custom metal inserts so the injectors sit lower and top inserts so the fuel rail could reach. after all of that i finally got the idle down. the original manifold i gave to a friend and that one i got from someone else and i should have verified it but i didnt so the car was tuned for street driving with a 2lb boost cut. before i go back i wanna button up some more small issues so that the tune will go smoothly...i also painted the front end so that it could look a little more uniformed. pics soon to come
got the car running and made it to the dyno unfortunately there were a lot of small issues that caused us to run out of time mainly my fault for not checking and verifying the pats i had. The spacer that goes between the plenum and throttle was wrong causing a vacuum leak then the throttle bod butterflies wouldn't close all the way causing another leak my secondary injectors were leaking due to the grommets being to small so i had to run custom metal inserts so the injectors sit lower and top inserts so the fuel rail could reach. after all of that i finally got the idle down. the original manifold i gave to a friend and that one i got from someone else and i should have verified it but i didnt so the car was tuned for street driving with a 2lb boost cut. before i go back i wanna button up some more small issues so that the tune will go smoothly...i also painted the front end so that it could look a little more uniformed. pics soon to come
02-04-14, 01:26 PM
#143
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts
UPDATE:
been driving the car for a few weeks on a basic street tune...trying to fix some issues before i have it completely tuned and long behold my turbo oil seals are worn so my plan now is to have it rebuilt and upgraded so that when i do my tune everything is done and out the way and i can drive this beast the way i want to lol....ill post some pics up later so you guys can see
been driving the car for a few weeks on a basic street tune...trying to fix some issues before i have it completely tuned and long behold my turbo oil seals are worn so my plan now is to have it rebuilt and upgraded so that when i do my tune everything is done and out the way and i can drive this beast the way i want to lol....ill post some pics up later so you guys can see
03-02-14, 10:03 PM
#144
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts

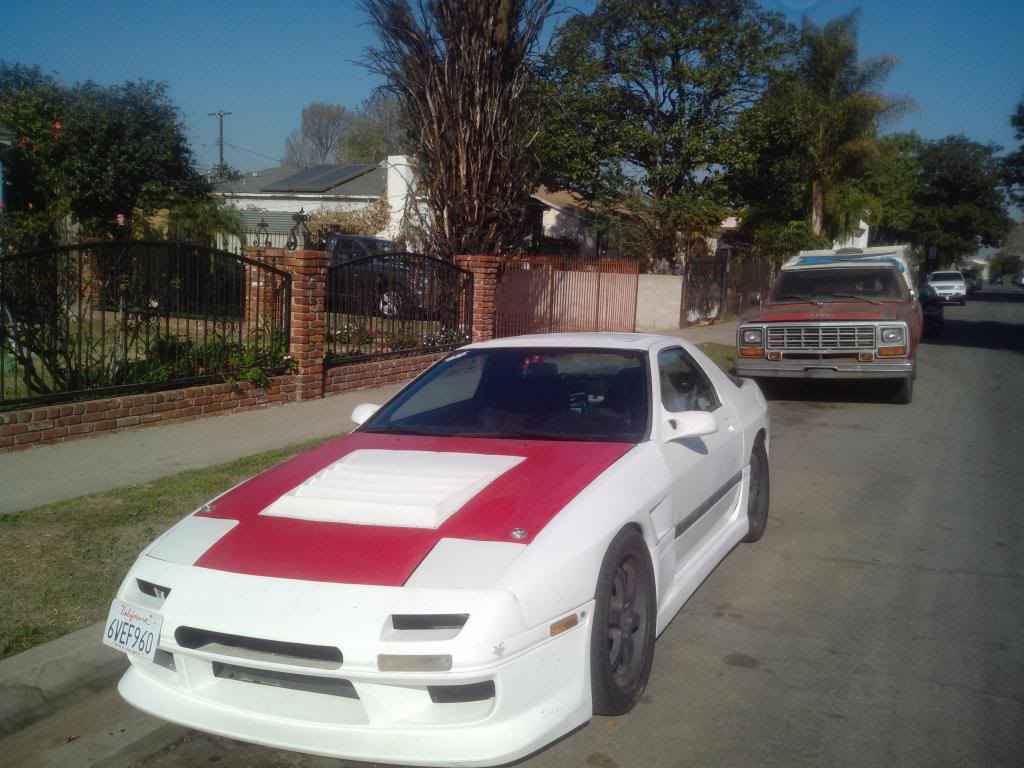

Update: been working on some things and really really busy but here are a few pics of whats been going on

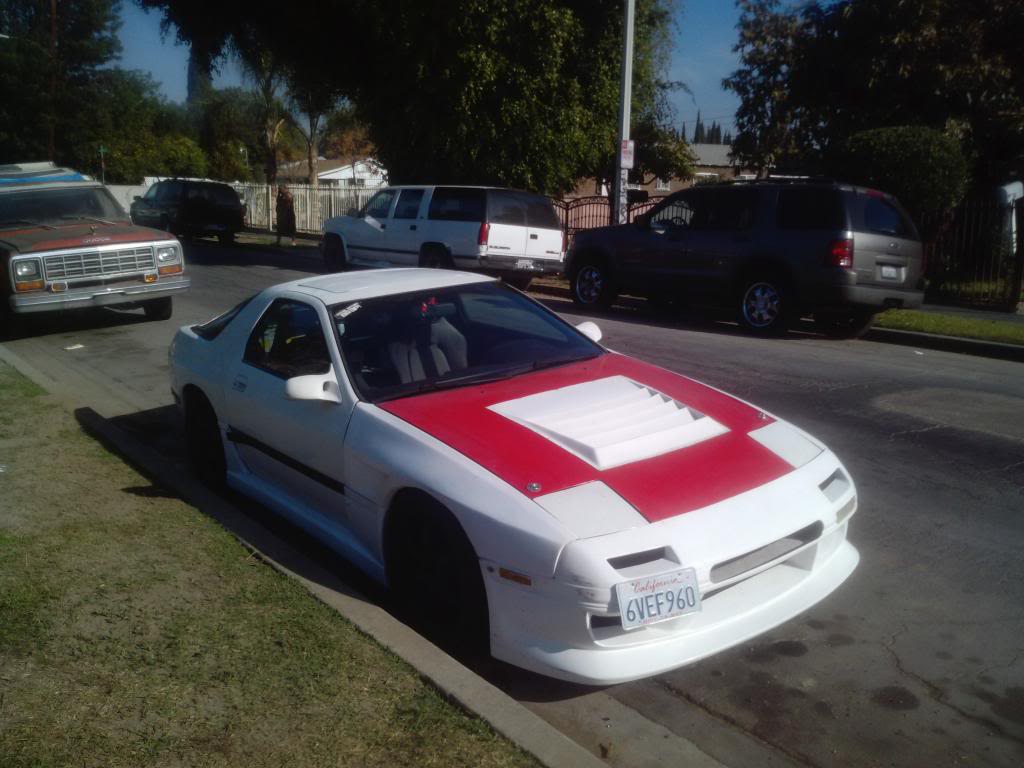

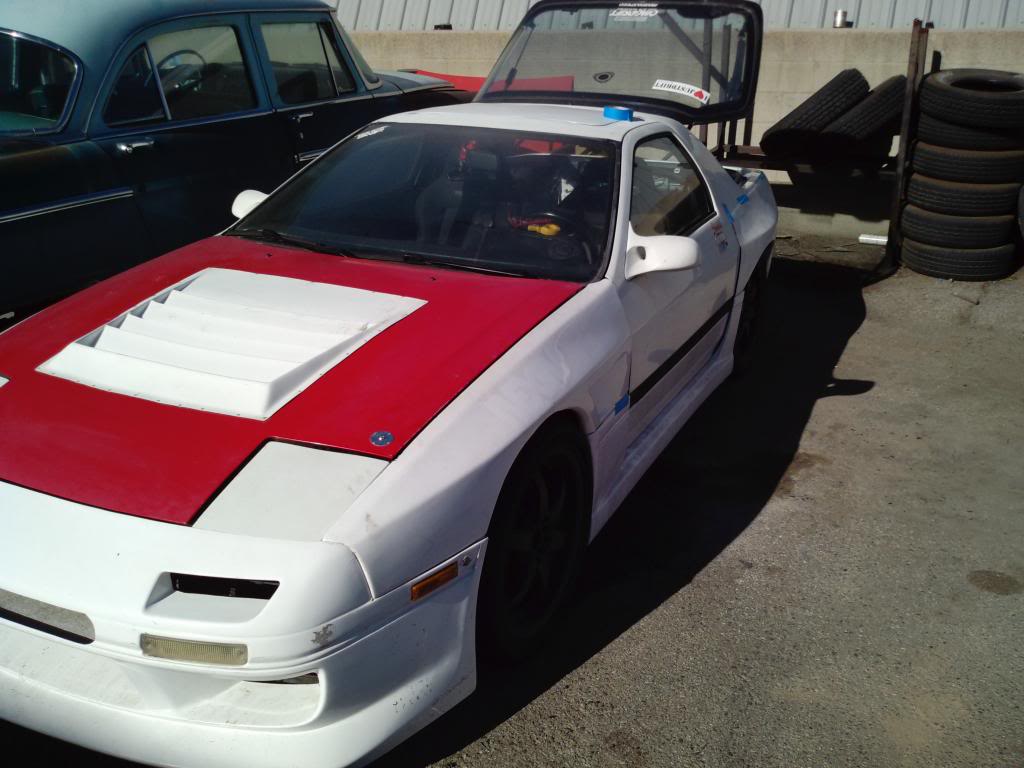

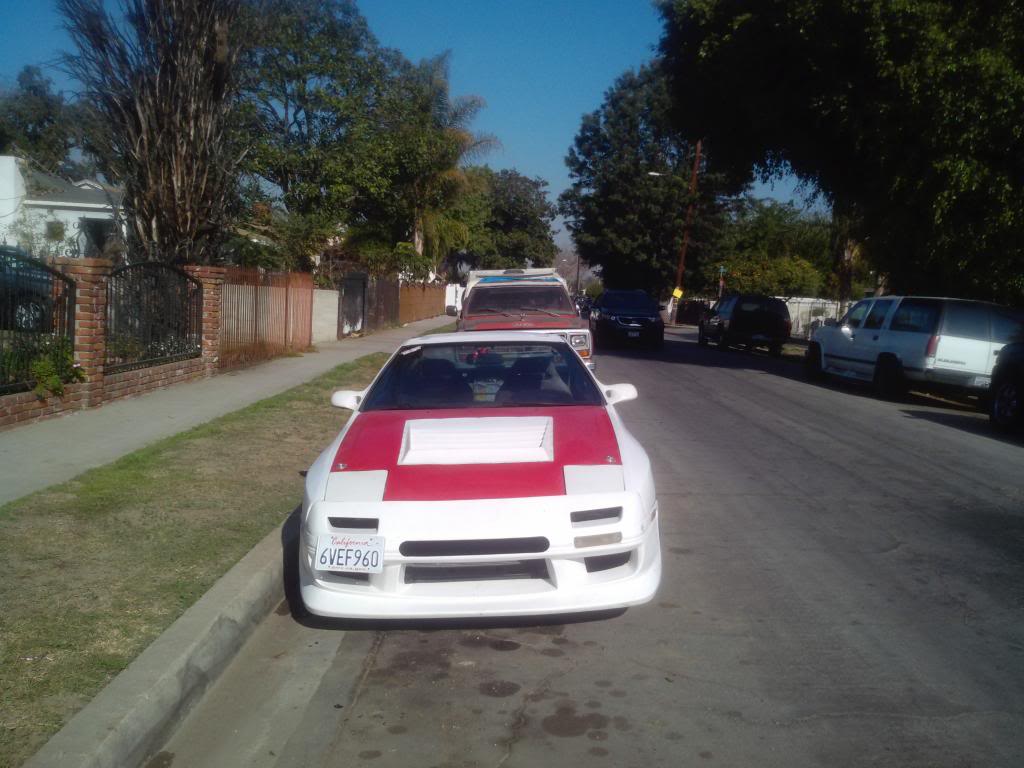

before painting the front end all white

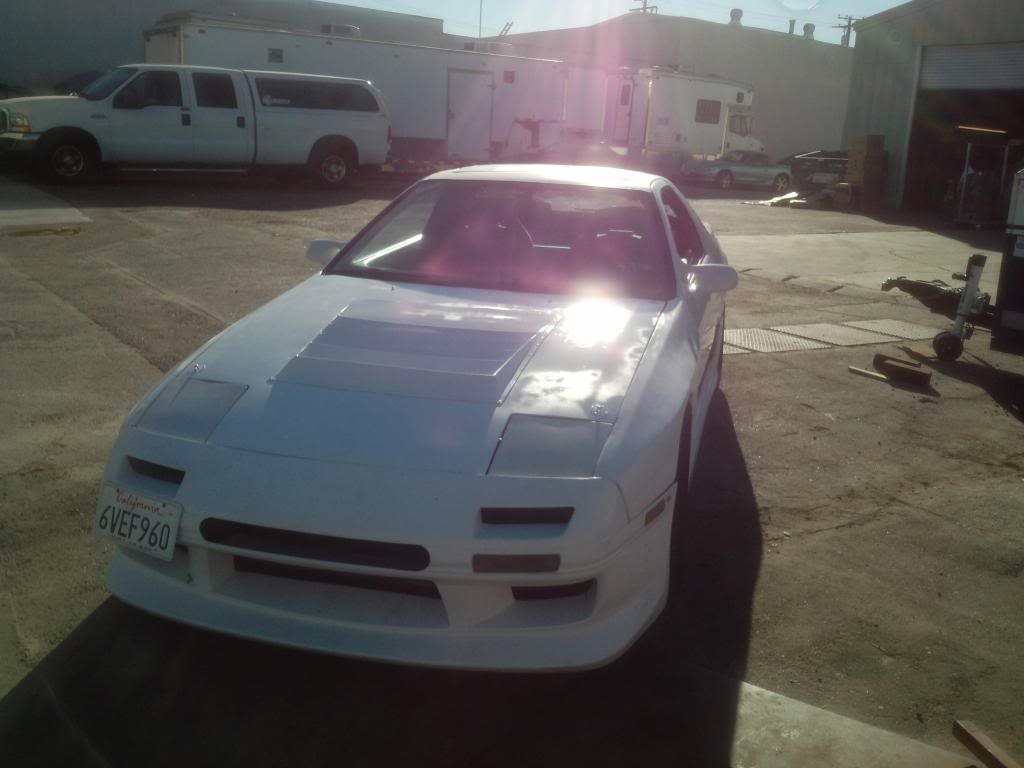

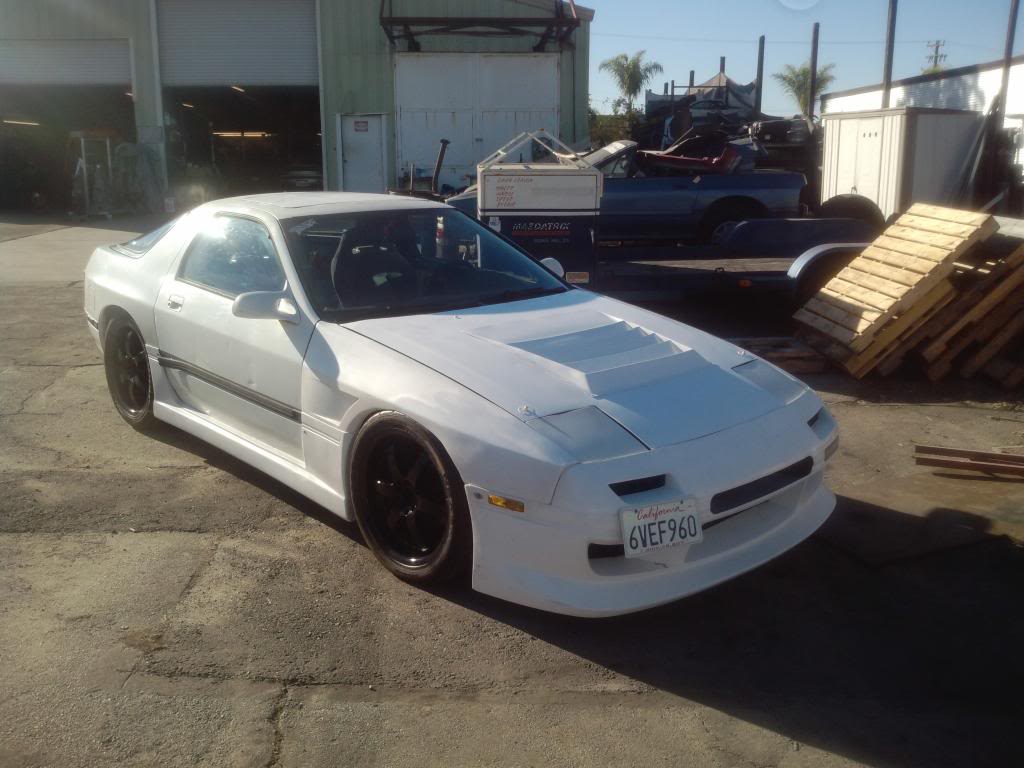

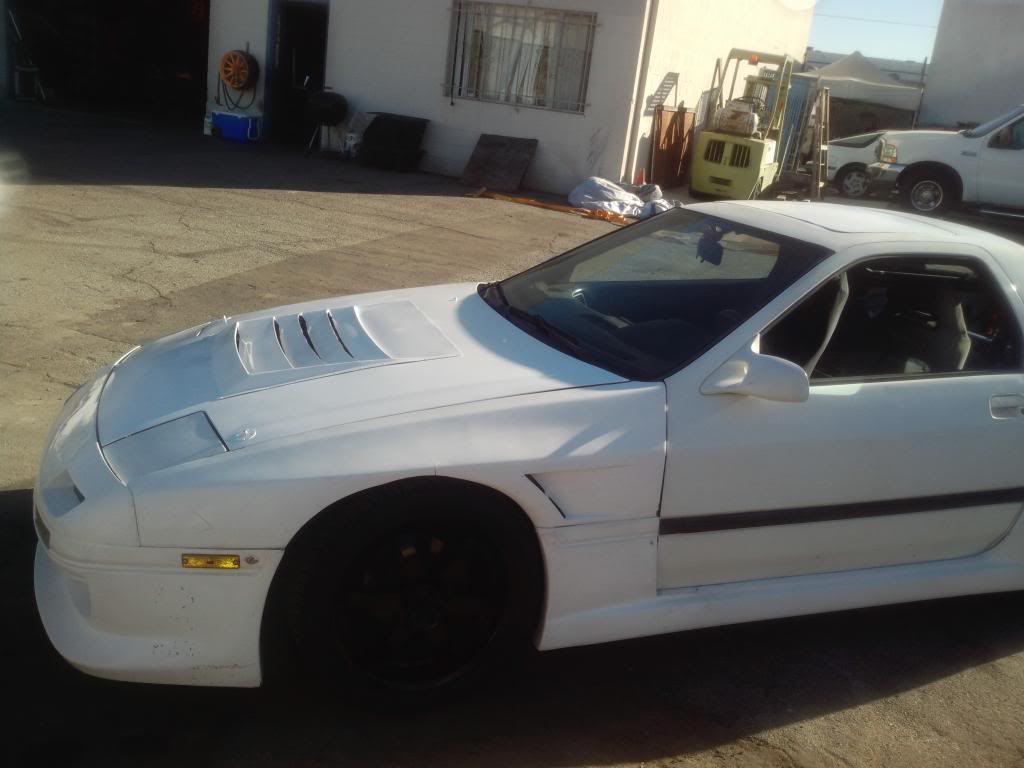

painted all white
before painting the front end all white
painted all white
03-02-14, 10:08 PM
#145
garageRE
Thread Starter
iTrader: (5)
Join Date: Jun 2006
Location: Compton
Posts: 1,041
Likes: 0
Received 0 Likes
on
0 Posts

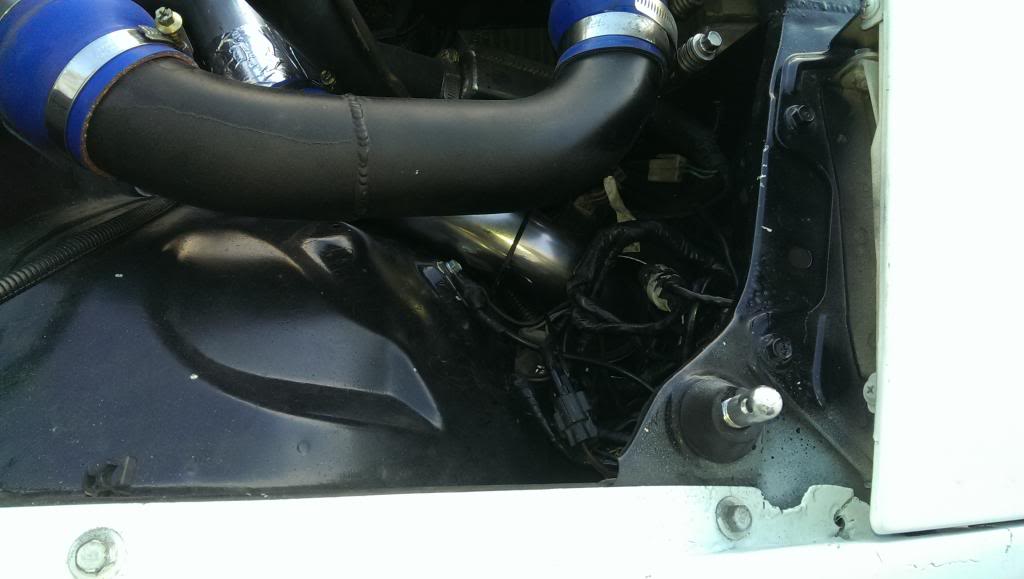

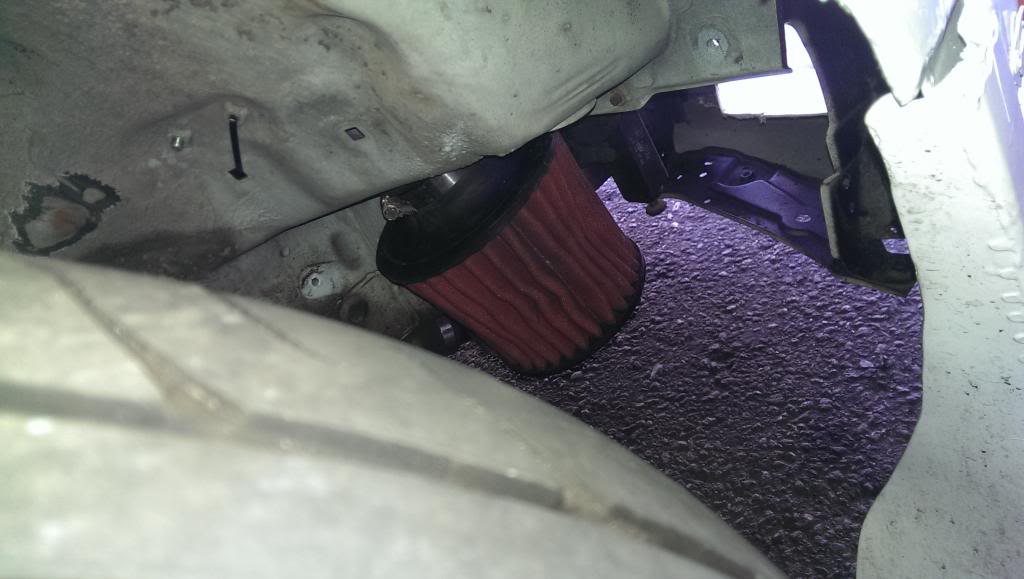

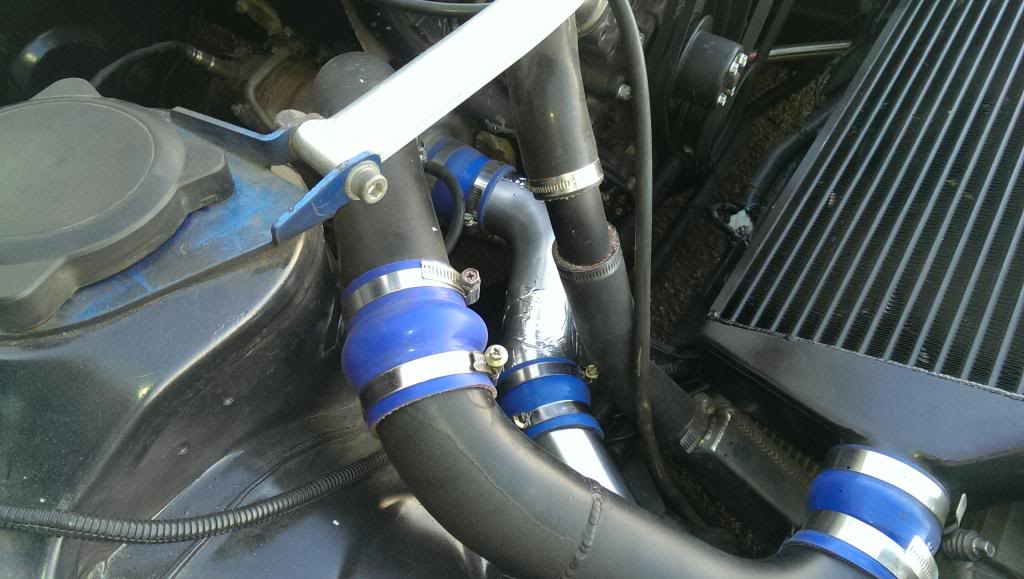

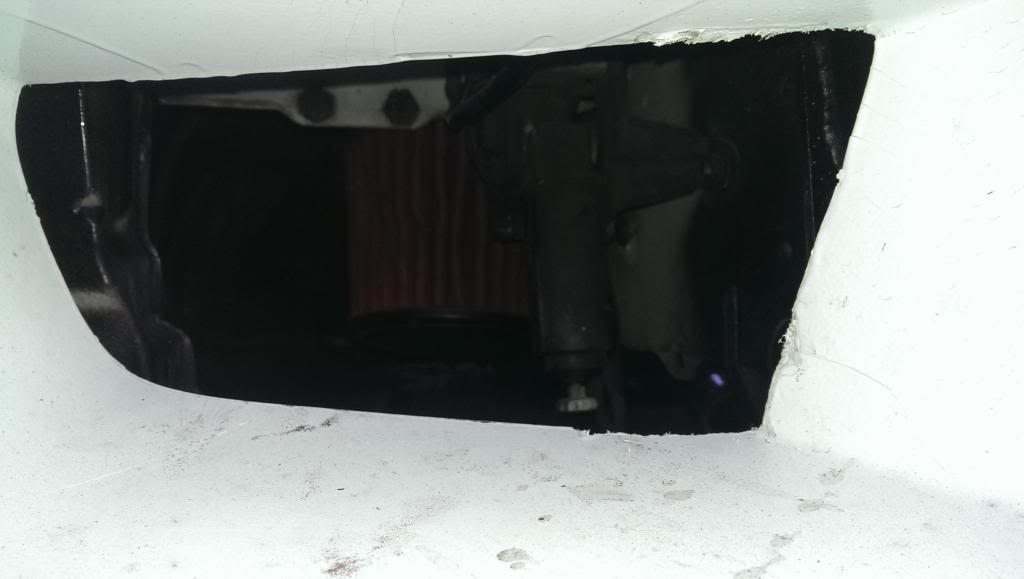

also decided to do a custom cold air intake with some aluminum piping laying around the shop....
gonna take more pics of what I have been working on with the car. turbo needs to be rebuilt and wires under the dash need to be cleaned up other than that its starting to come along...also going to be working on the body to get it ready for paint. stay tuned....
gonna take more pics of what I have been working on with the car. turbo needs to be rebuilt and wires under the dash need to be cleaned up other than that its starting to come along...also going to be working on the body to get it ready for paint. stay tuned....
