Guess I'll start my build thread being that I'm about halfway through it.
I've got a 1987 TII that I'm in the process of completely rebuilding. Sadly I blew the TII, have yet to take that apart to see exactly what the damage is, but now I've got a 13B-RE swap with.
This is only going to be a weekend driver by the way.
The engine is all done.
Complete rebuild with...
Rotary Aviation 2mm super seals
Solid corner seals
Rotary Aviaton overhaul kit
Large streetport and polished
Banzai racing fuel rails
1600 RC fuel injectors (primary and secondary)
Block-off plates for OMP, ACV, ISC and rear turbo oil return line
Ported exhaust sleeves
Ported UIM and LIM
90mm TB with custom elbow
As of now I have a godspeed 40mm wastegate and an HKS SSQV BOV, but those will both be change out with 2 Tial BOV's and either a 44mm or 60mm Tial wastegate, not sure yet.
That's it as far as the engine block goes.
Everything else...
Microtech LT10C ECU
Magnafuel fuel pump, filter, fuel pressure regulator and FPR guage
Fuel tank sump
streetlite flywheel
ACT 577 ft/lb clutch kit
All AEM gauges-wideband, tru-boost, oil pressure and water temp
Godspeed radiator
Koni adjustable shocks
5-lug conversion
S5 tail lights
Short throw shifter
I also have an AEM AI system that I bought but am now debating whether I need/want to use it.
I'll put pic's up later, and more as the build goes on.
Questions, comments, pointers, recommendations, pointers, etc. are all welcome.
I've got a 1987 TII that I'm in the process of completely rebuilding. Sadly I blew the TII, have yet to take that apart to see exactly what the damage is, but now I've got a 13B-RE swap with.
This is only going to be a weekend driver by the way.
The engine is all done.
Complete rebuild with...
Rotary Aviation 2mm super seals
Solid corner seals
Rotary Aviaton overhaul kit
Large streetport and polished
Banzai racing fuel rails
1600 RC fuel injectors (primary and secondary)
Block-off plates for OMP, ACV, ISC and rear turbo oil return line
Ported exhaust sleeves
Ported UIM and LIM
90mm TB with custom elbow
As of now I have a godspeed 40mm wastegate and an HKS SSQV BOV, but those will both be change out with 2 Tial BOV's and either a 44mm or 60mm Tial wastegate, not sure yet.
That's it as far as the engine block goes.
Everything else...
Microtech LT10C ECU
Magnafuel fuel pump, filter, fuel pressure regulator and FPR guage
Fuel tank sump
streetlite flywheel
ACT 577 ft/lb clutch kit
All AEM gauges-wideband, tru-boost, oil pressure and water temp
Godspeed radiator
Koni adjustable shocks
5-lug conversion
S5 tail lights
Short throw shifter
I also have an AEM AI system that I bought but am now debating whether I need/want to use it.
I'll put pic's up later, and more as the build goes on.
Questions, comments, pointers, recommendations, pointers, etc. are all welcome.
Last edited by rotorboat13; 01-29-13 at 02:25 AM.
#3
ignoring check eng. light
Thread Starter
Sorry, I mixed that list up with stuff that is already done and stuff i need to get. I'll go back and edit it to make sense. As for your question, haha, i don't know why I thought that. My bad. I was just over thinking everything I have done to the car I guess.
Last edited by rotorboat13; 01-30-13 at 10:29 AM.
#4
ignoring check eng. light
Thread Starter
...Edit to mod list...
Everything else...
Microtech LT10C ECU
ACT Streetlite flywheel and 577 lb/ft torque clutch kit
All AEM gauges- Tru-boost gauge/controller, wideband, oil pressure, water temp
Godspeed radiator
Koni adjustable shocks
S5 tail lights
Short throw shifter
I also have an AEM AI system that I bought, but am now debating whether or not I want/need to use it.
Next to buy is the fuel system...
Magnafuel pump and filter
Aeromotive fuel pressure regulator
Fuel tank sump
Everything else...
Microtech LT10C ECU
ACT Streetlite flywheel and 577 lb/ft torque clutch kit
All AEM gauges- Tru-boost gauge/controller, wideband, oil pressure, water temp
Godspeed radiator
Koni adjustable shocks
S5 tail lights
Short throw shifter
I also have an AEM AI system that I bought, but am now debating whether or not I want/need to use it.
Next to buy is the fuel system...
Magnafuel pump and filter
Aeromotive fuel pressure regulator
Fuel tank sump
#5
lol it happens, it just had me boggled
#7
ignoring check eng. light
Thread Starter

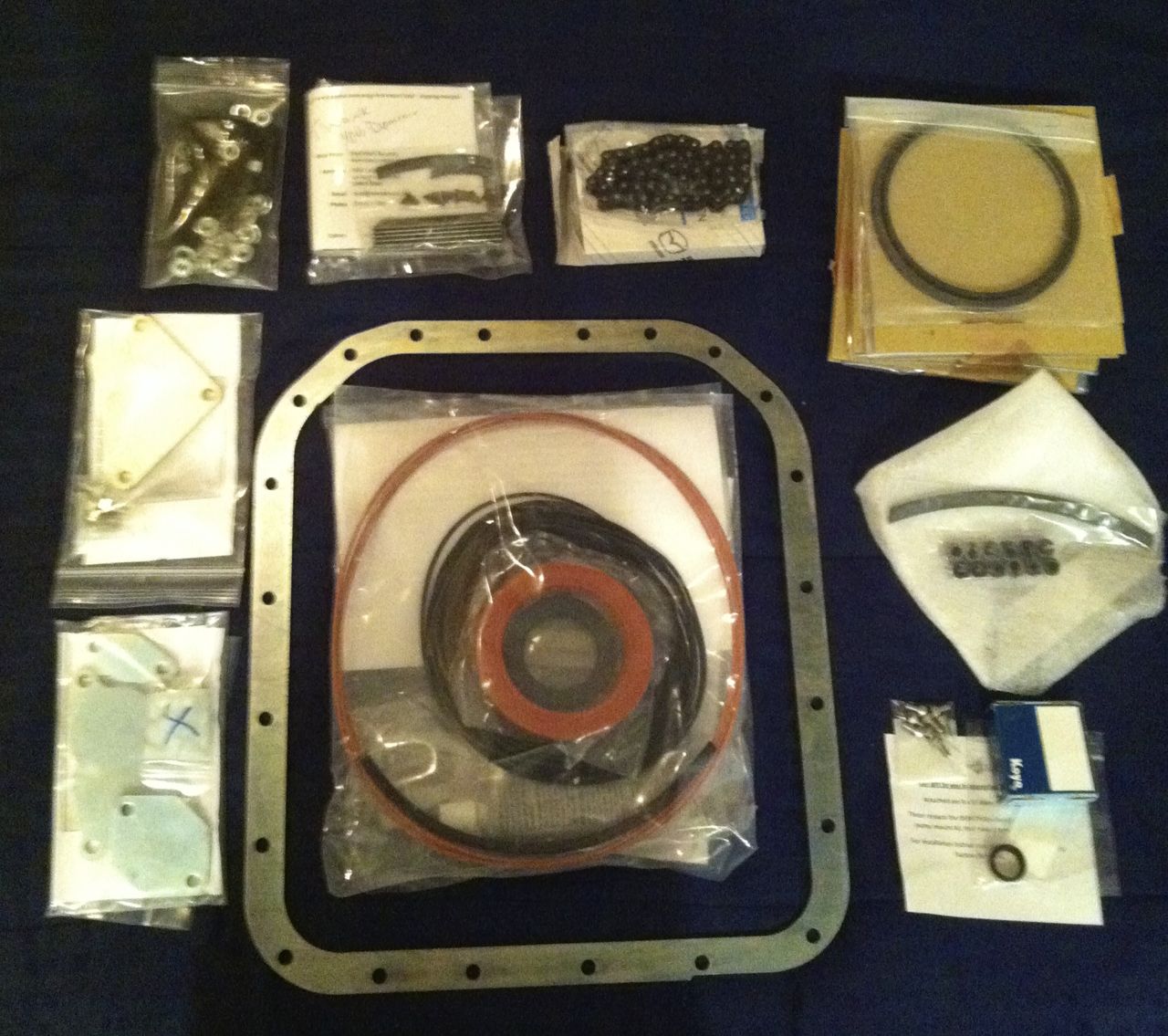

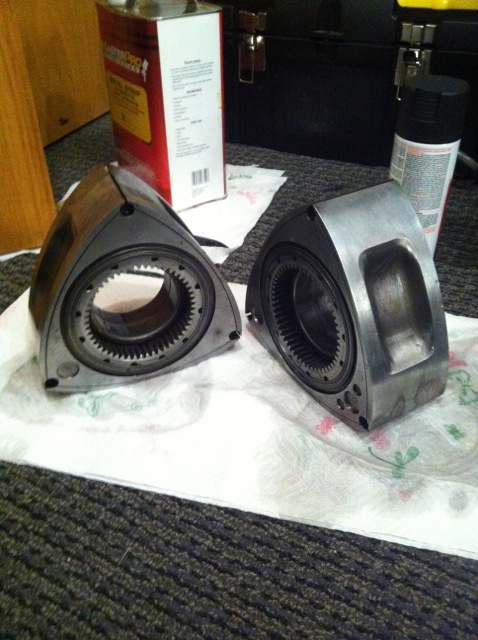

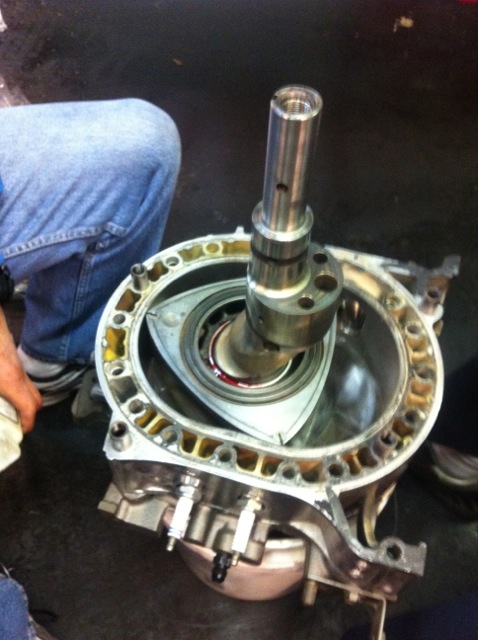

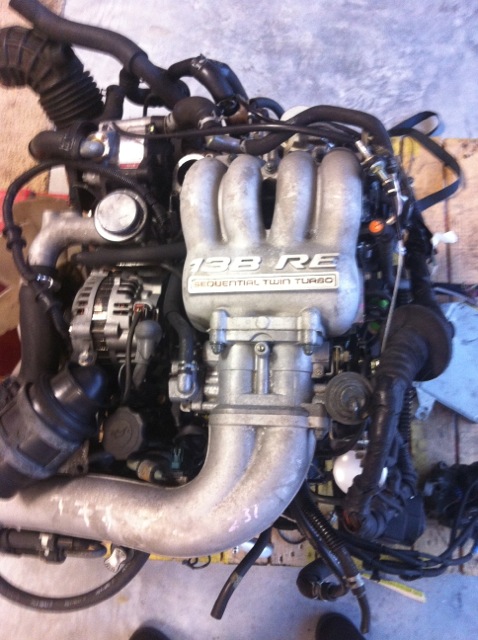

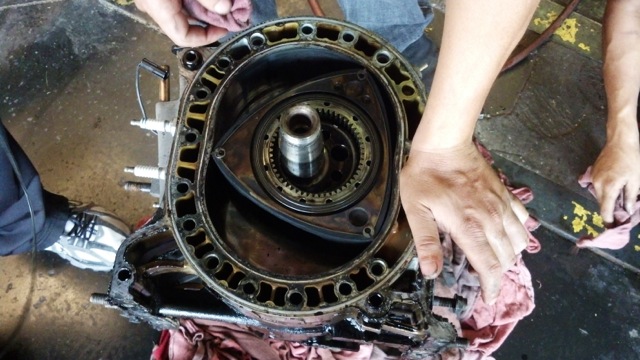

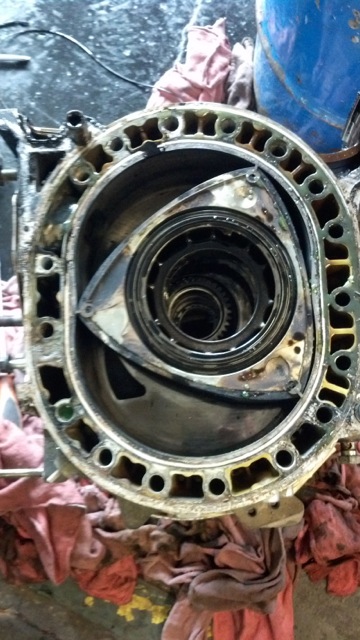

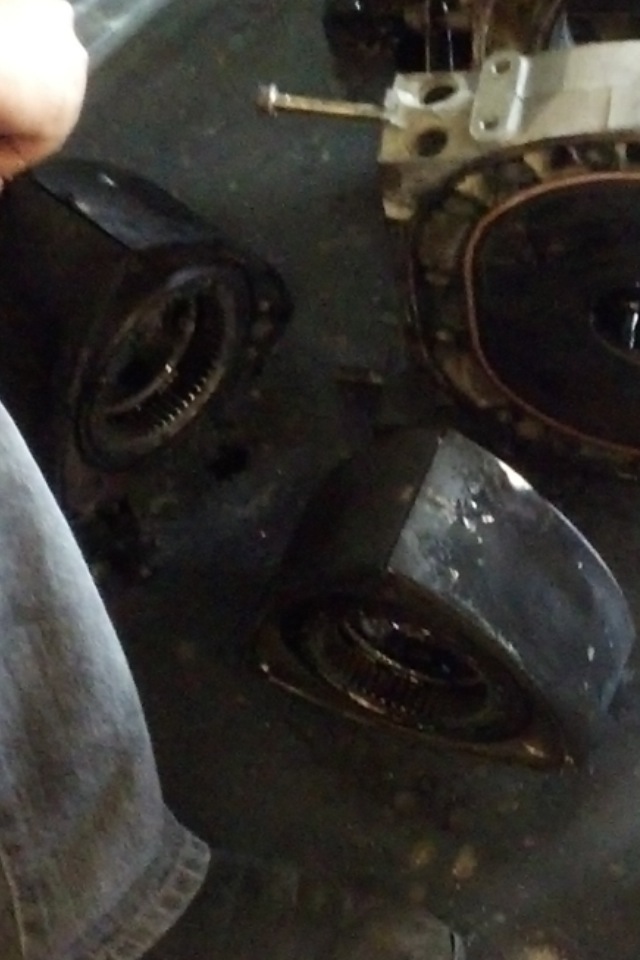

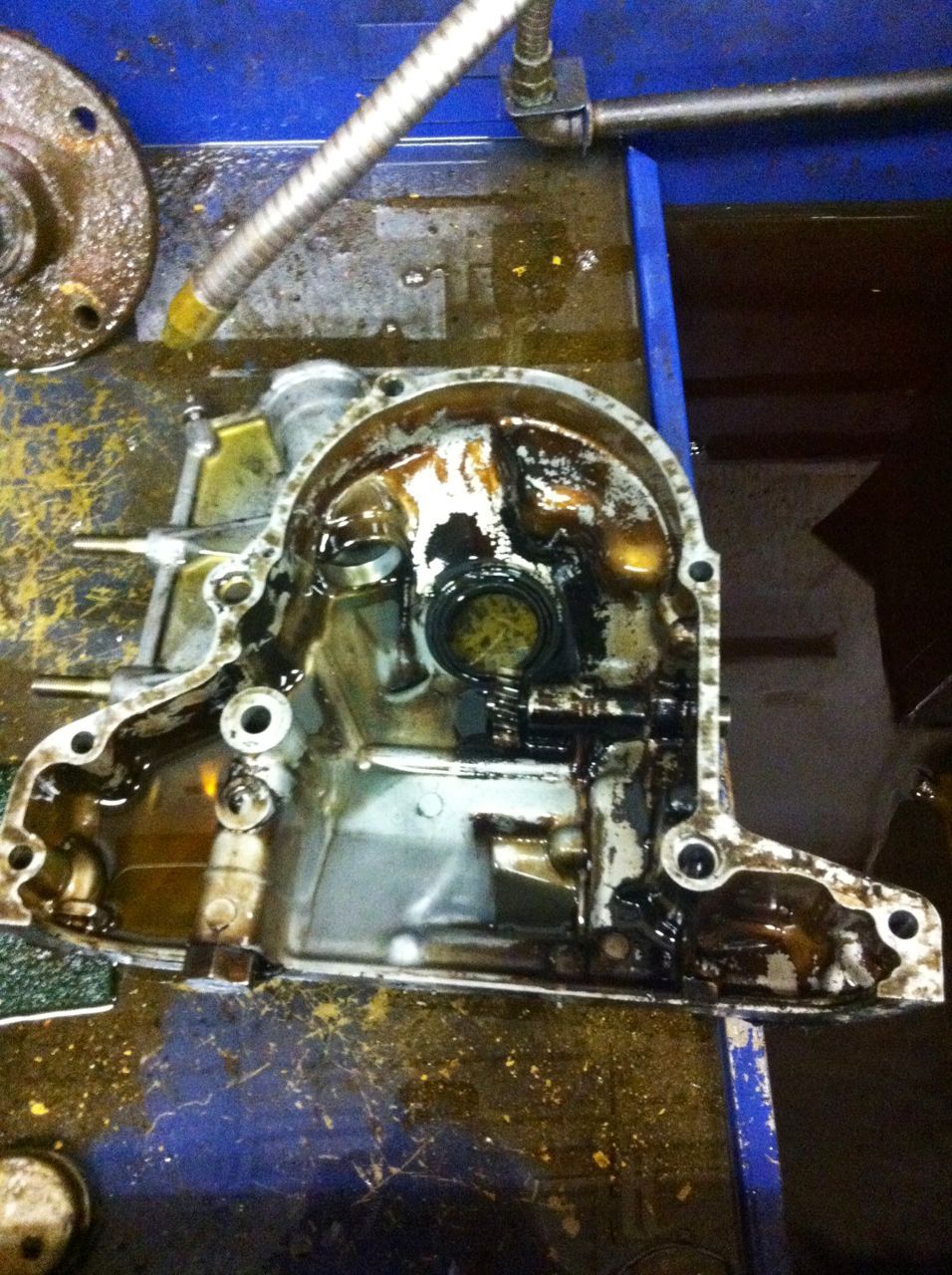

Pics of disassembling my 13B-RE, the carbon caked rotors, the process of cleaning my water pump housing (notice the shiny clean spot and the not so clean grime), and the Rotary Aviation overhaul kit I used.
Trending Topics
#8
ignoring check eng. light
Thread Starter

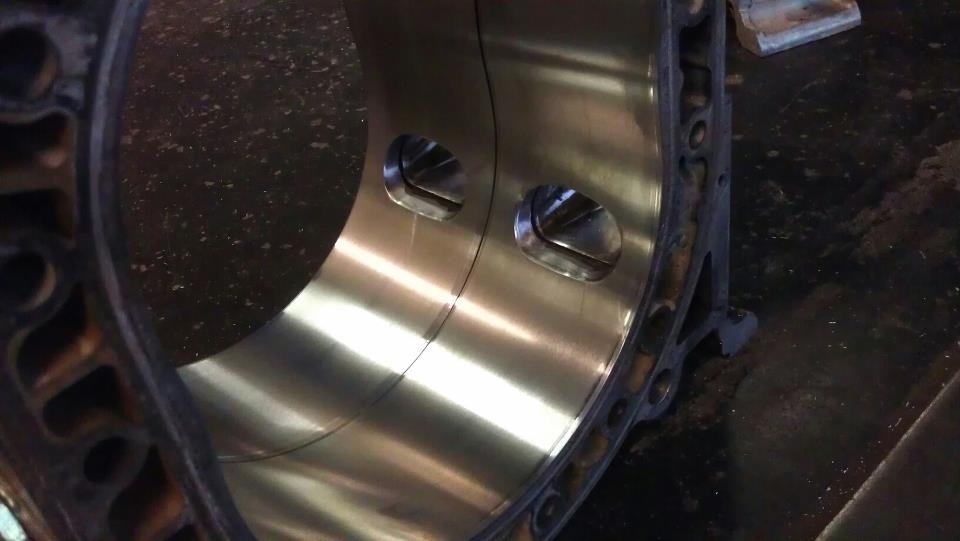

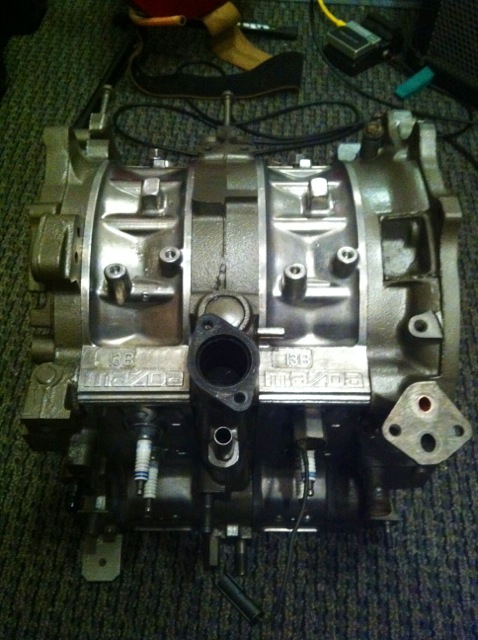

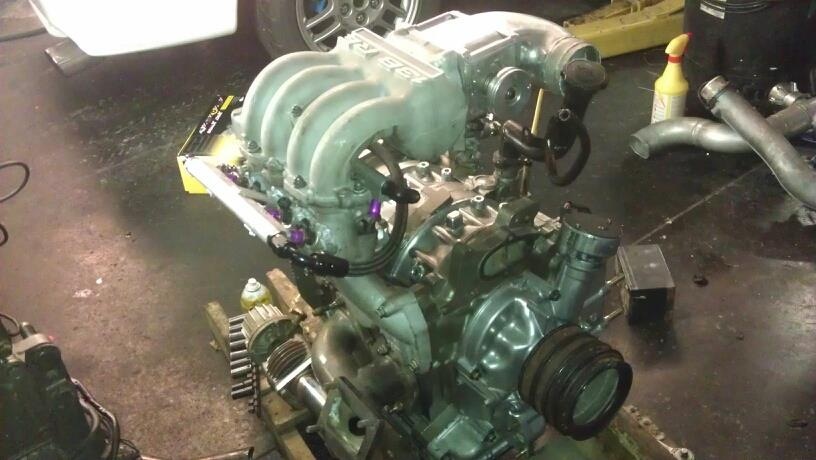

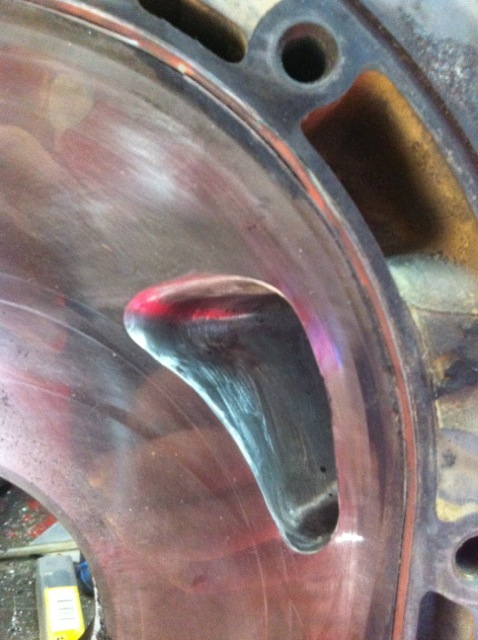

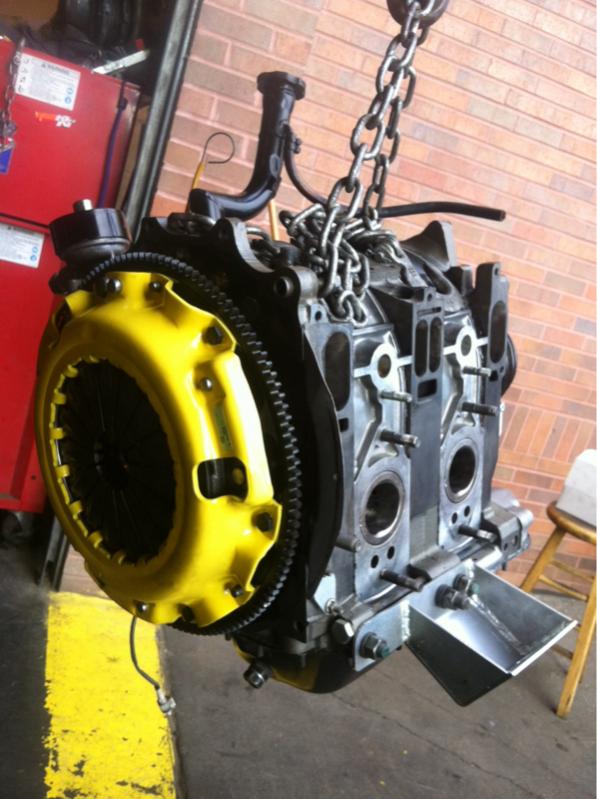

Pics of my streetport, ported exhaust sleeves, cleaned rotors, engine being put together, engine with polished housings and painted irons, engine put together.
#9
ignoring check eng. light
Thread Starter

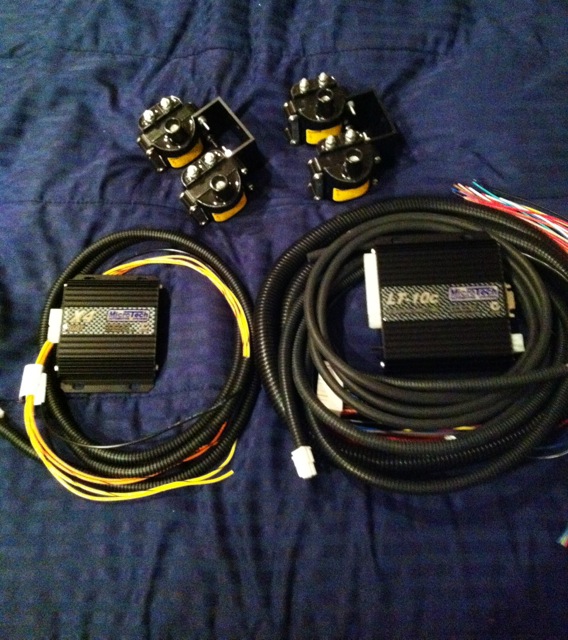

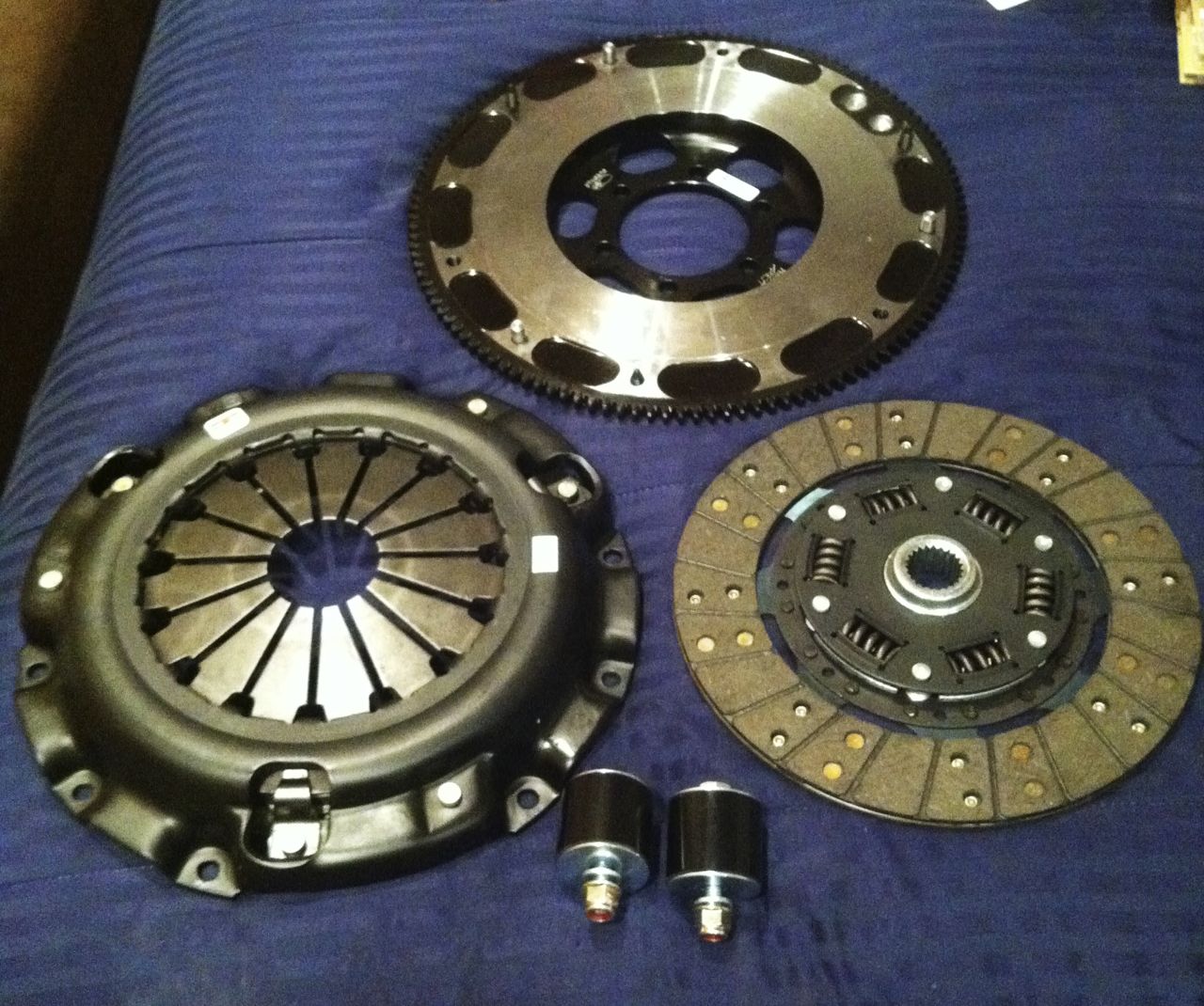

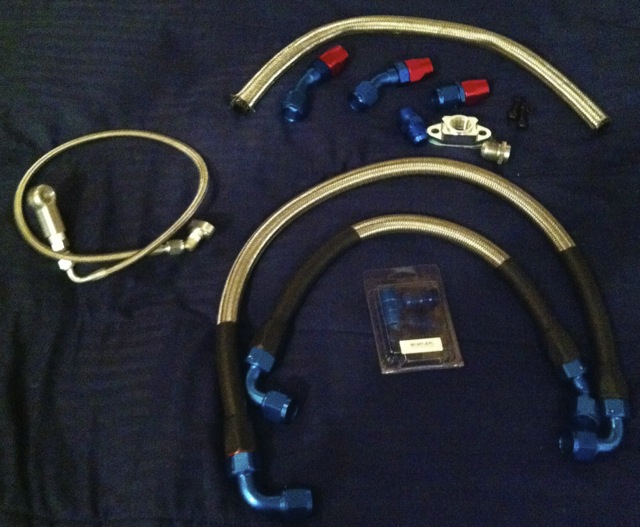

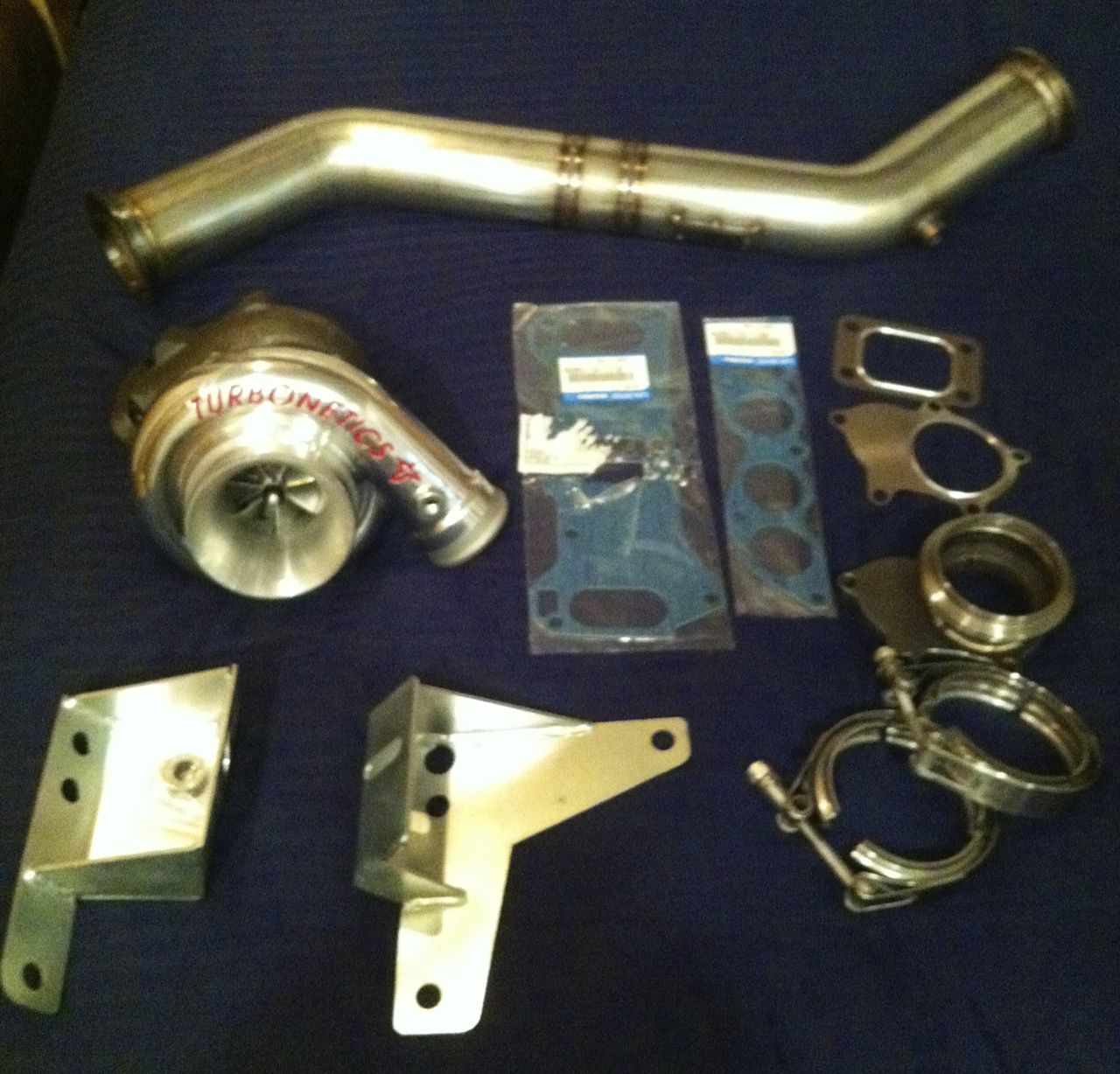

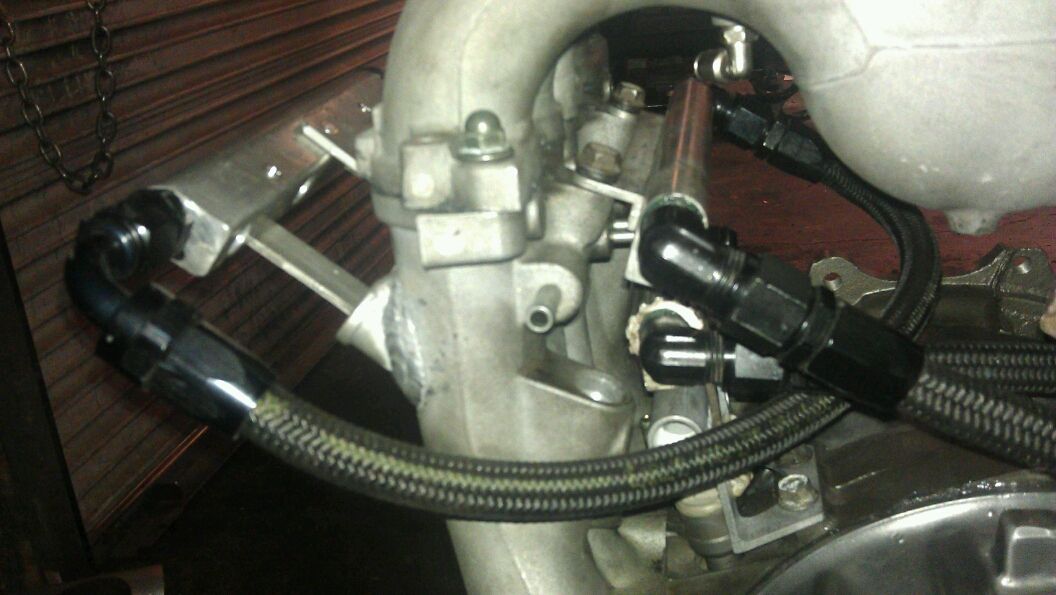

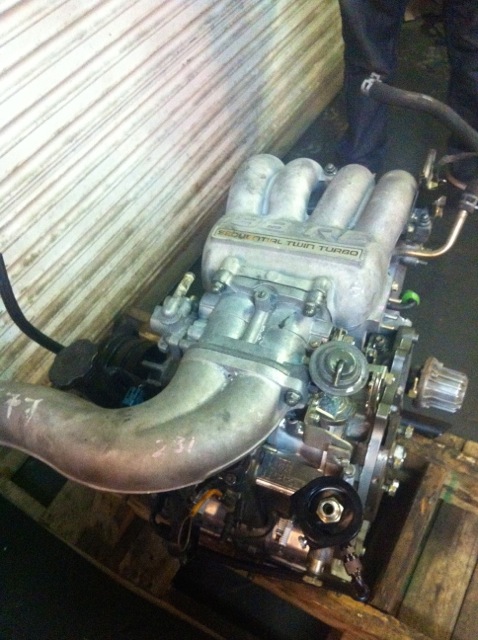

Pic of my engine assembled with my fuel rails (those ID2000's aren't mine, I'll be using RC 1600's), ported UIM and LIM, 90mm. Rotary Works TB and intake elbow. My 3 fuel rails w/o injectors. My lightweight flywheel, poly transmission mounts, and Comp clutch kit that I was going to use but then realized I need a bigger better one. The one I'll be using is the one stated in my first post, which I have, just not a picture of it. My 13B-RE motor mounts, intake manifold gaskets, and parts I will no longer be using such as the 3" down pipe (I will have a full 4" exhaust), 3" v-bands and flanges, and the brand new t3t4 turbo. My SS oil cooler lines, and turbo oil feed and return lines. My Microtech LT-10c ECU.
#10
ignoring check eng. light
Thread Starter

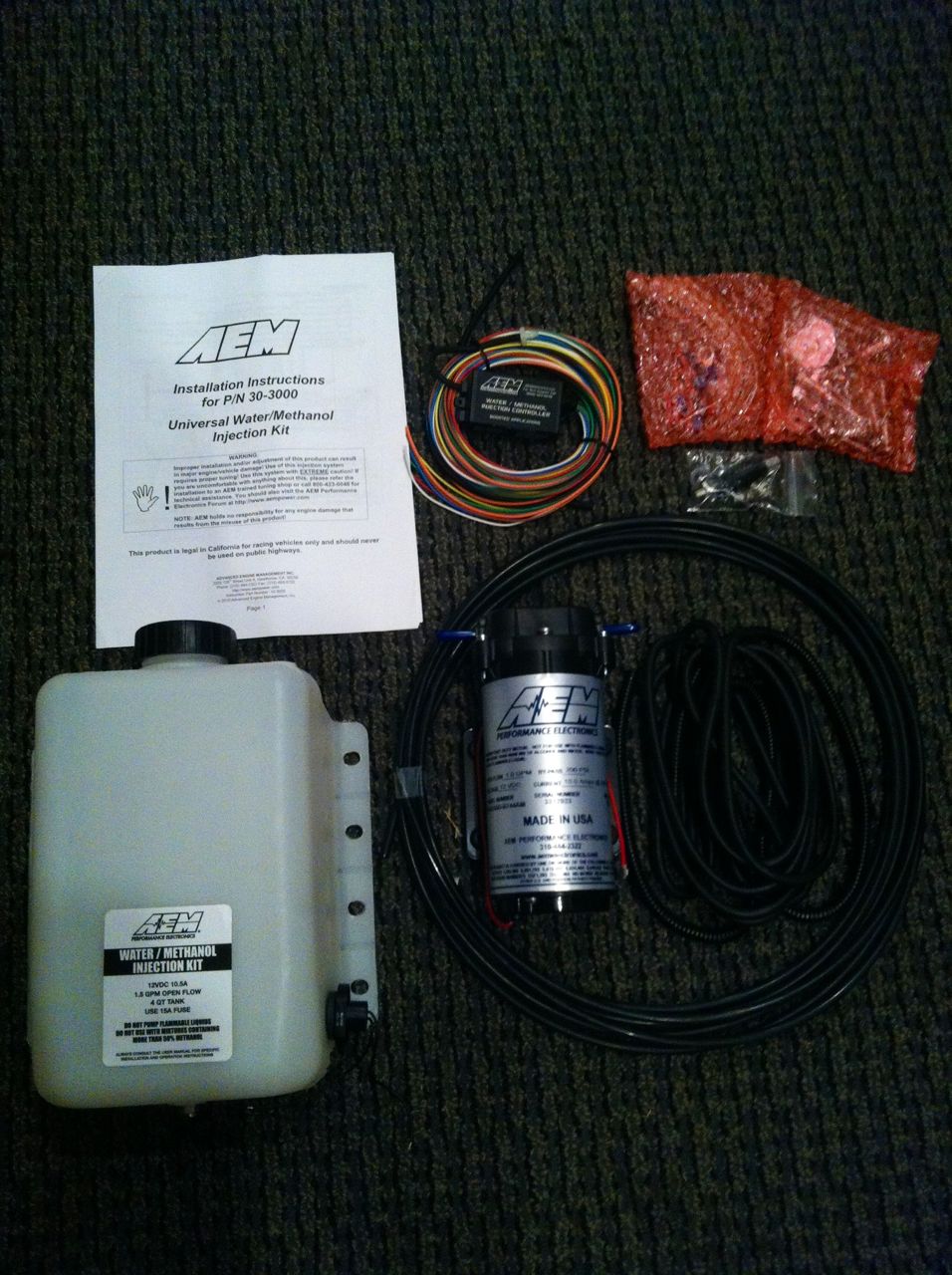

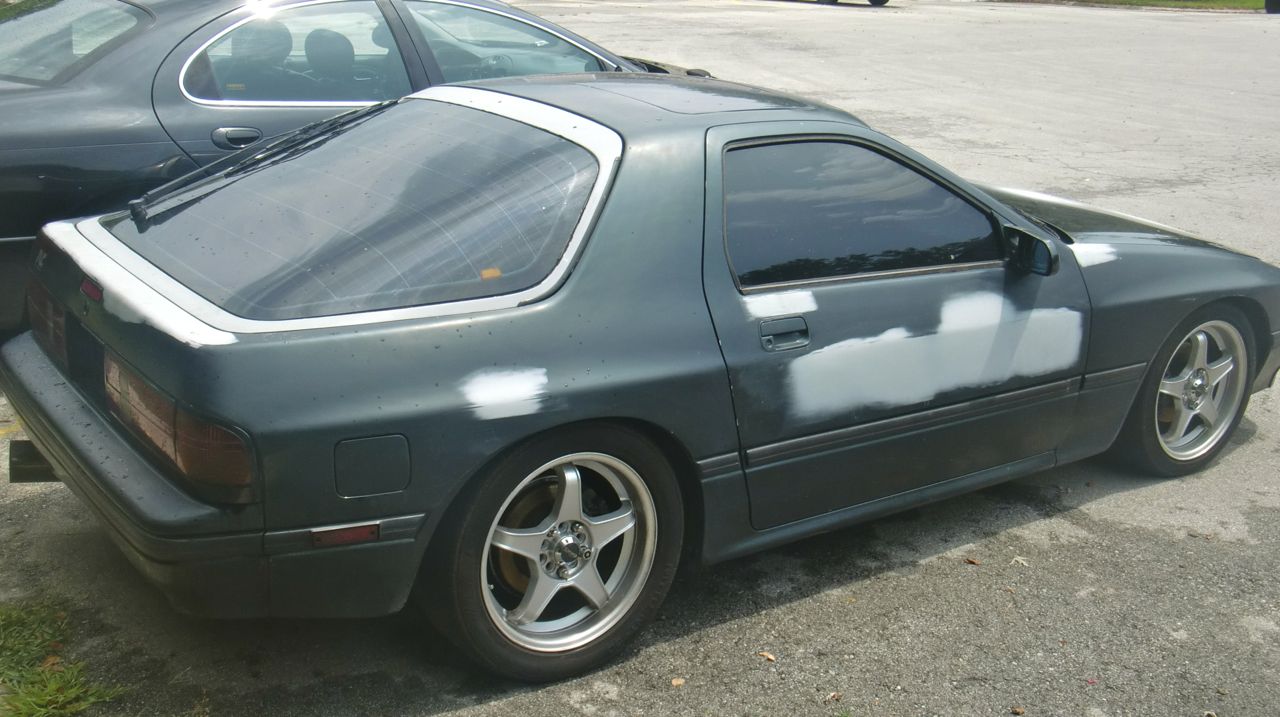

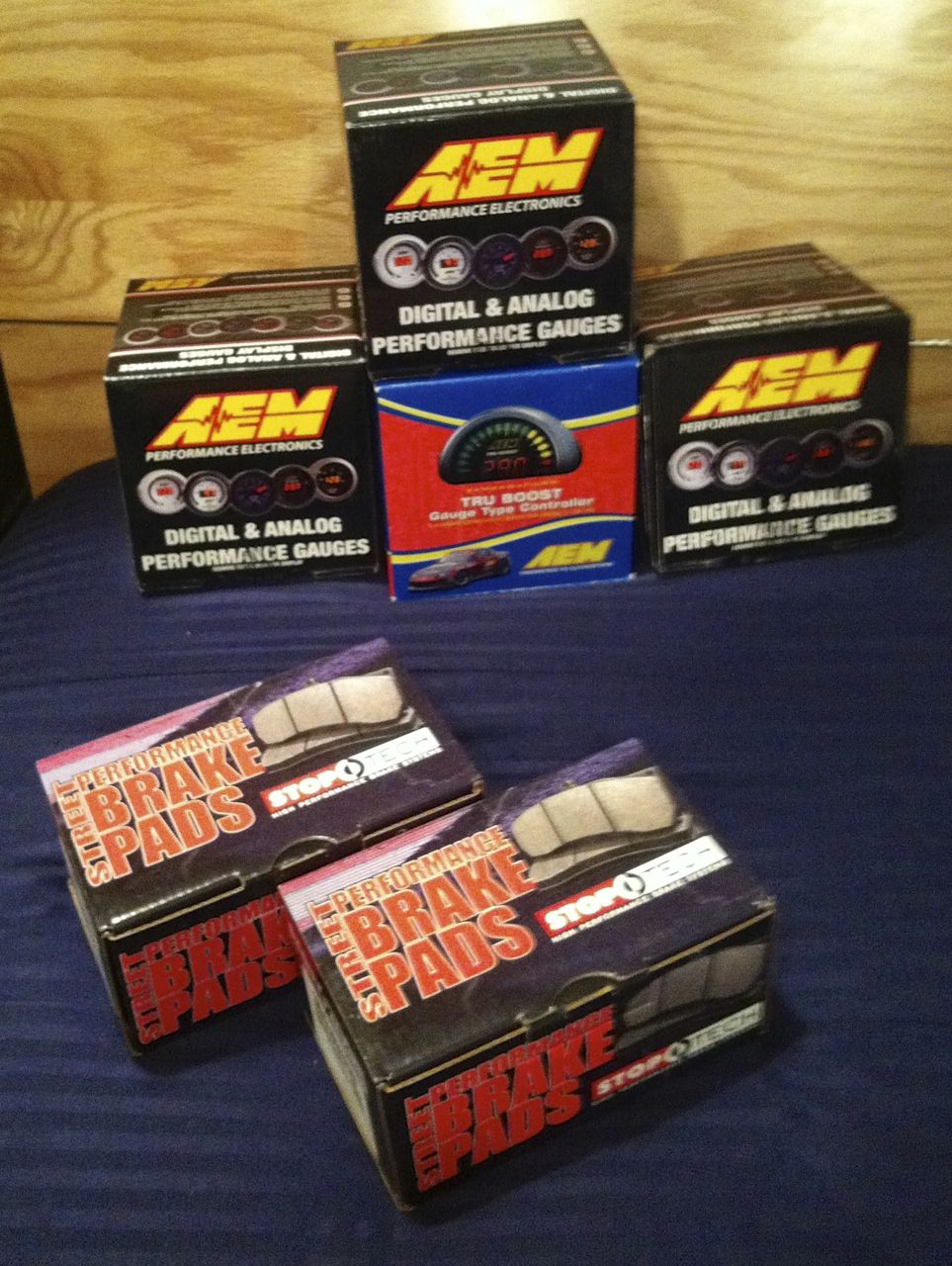

Pic of my AEM gauges and brake pads. My AEM aux. injection kit that I'm not sure if I'm going to be using. My hood being paint stripped. My car painted primer black.
