I am sorry if this has been covered already. I have looked and could not find anything. I have a turbo II shell that i am looking to upgrade it to the new 3rd gen platform. If anyone has a website or links to a build page i would greatly appreciate it.



https://www.rx7club.com/rotary-car-p...to-fc-1010444/

13B REW FC engine swap mounts |

86 N/A FC swap to 13B-REW - NoPistons -Mazda Rx7 & Rx8 Rotary Forum

FC3S Pro v2.0:&nbsp Engine Swaps - 13B-REW Engine Swap

That should get you started.



Running as much fd stuff as possible, front cover, sensors, fd turbos(non sequential) and sump.


Theres a lot of bullshit out there and somethings particularly mounting the fd isnt as easy as many sites will tell you that you just need to drill and tap the bottom mount, the other side mount has no where to mount thou. If you have any questions feel free to ask or have a read through my thread.

https://www.rx7club.com/build-thread...rsion-1050620/



Wow thank you so much. I will be reading a ton of stuff tonight!!



What a clean swap!!! I see you also have it V-mounted.. I was looking at pics earlier for V-mount setups. I made the one in my last FD and it worked out better than any other setup for cooling purposes here in florida.

I was also shopping around for a bumper that look close to stock but with a bigger opening.

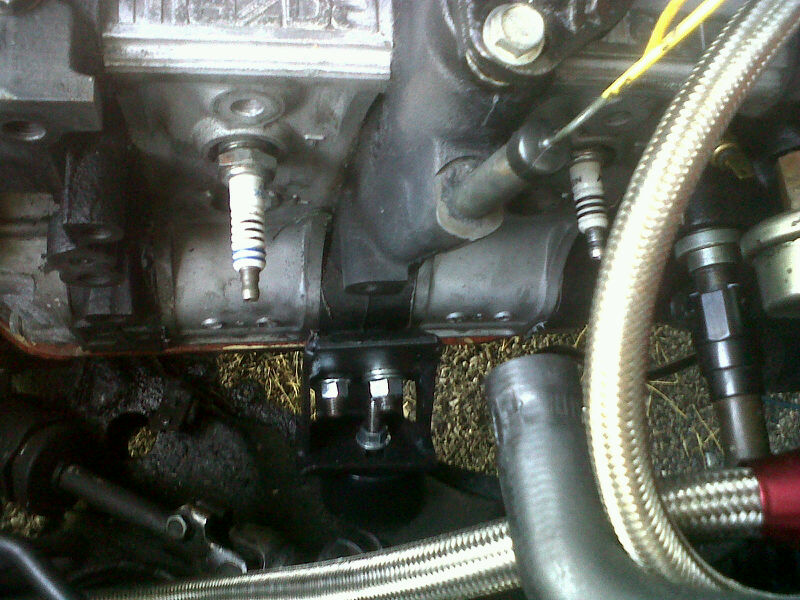

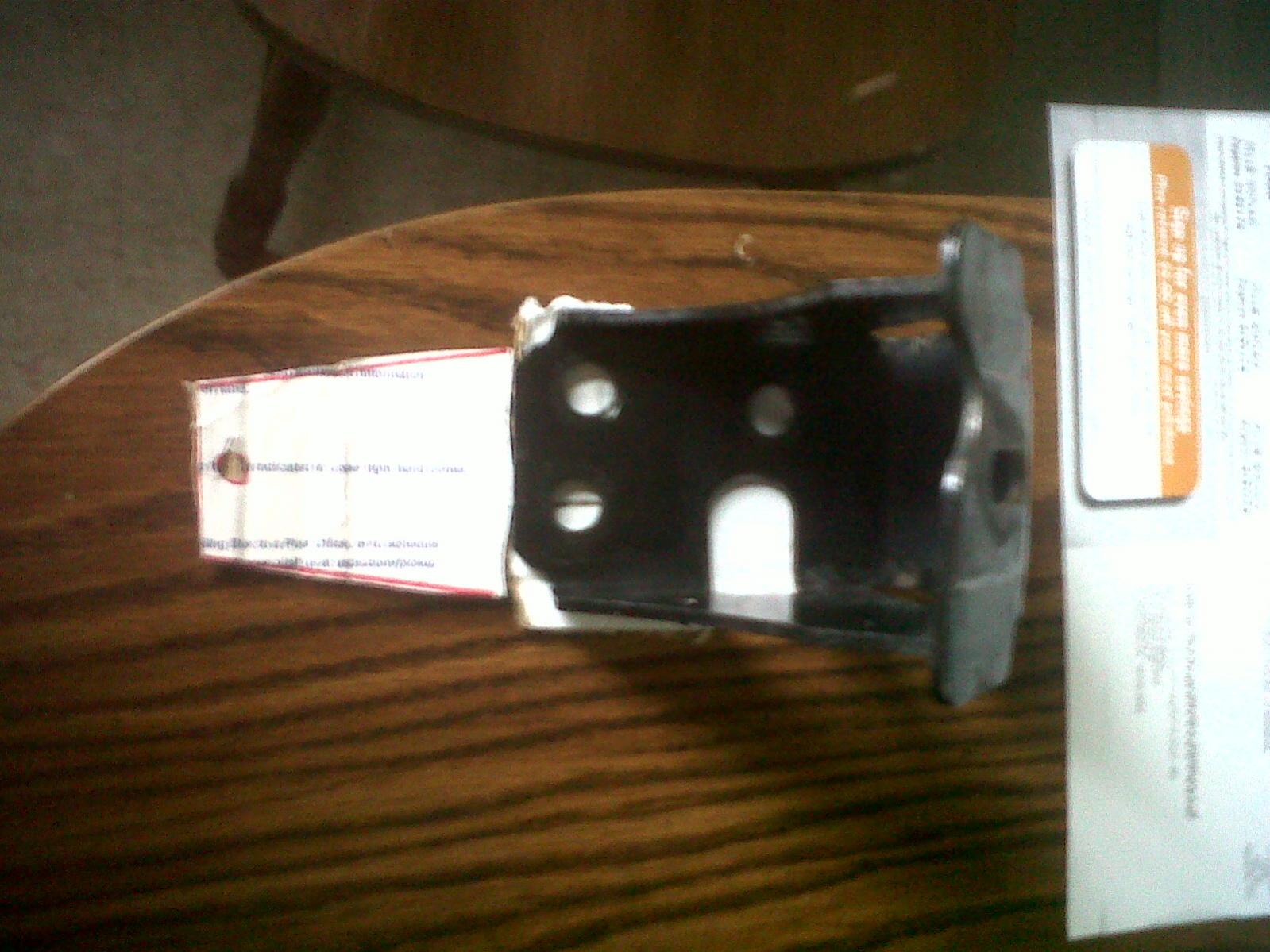

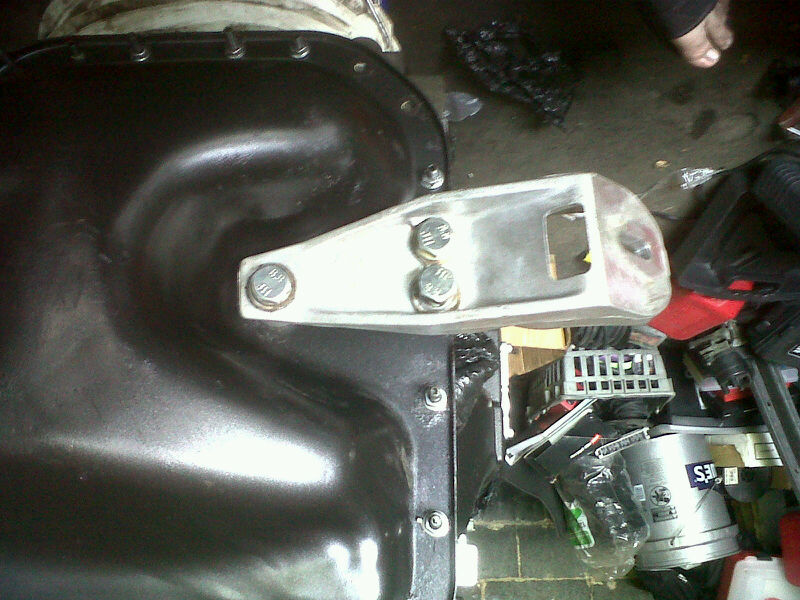

REW on fc with drilled and tapped right hand side fc mount and pictures of how i modified the left hand side mount.
