In Tank Fuel Sump For SA and FB's!!
One thing I always envied from the fd guys was the availability of parts. one of them is the in tank fuel setups that they can choose from...single bosch, dual bosch etc. So I began looking around various forums to see if anyone or any company had built anything like that for the first gens. I ran across a forum member under the name "elwood" and saw a pic of the setup he had. i contacted him about building one for me. after some back and forth he agreed and i was happier than a kid at a candy store. this meant i could get rid of my external fuel lines on an old school style sump.
this was my old setup.

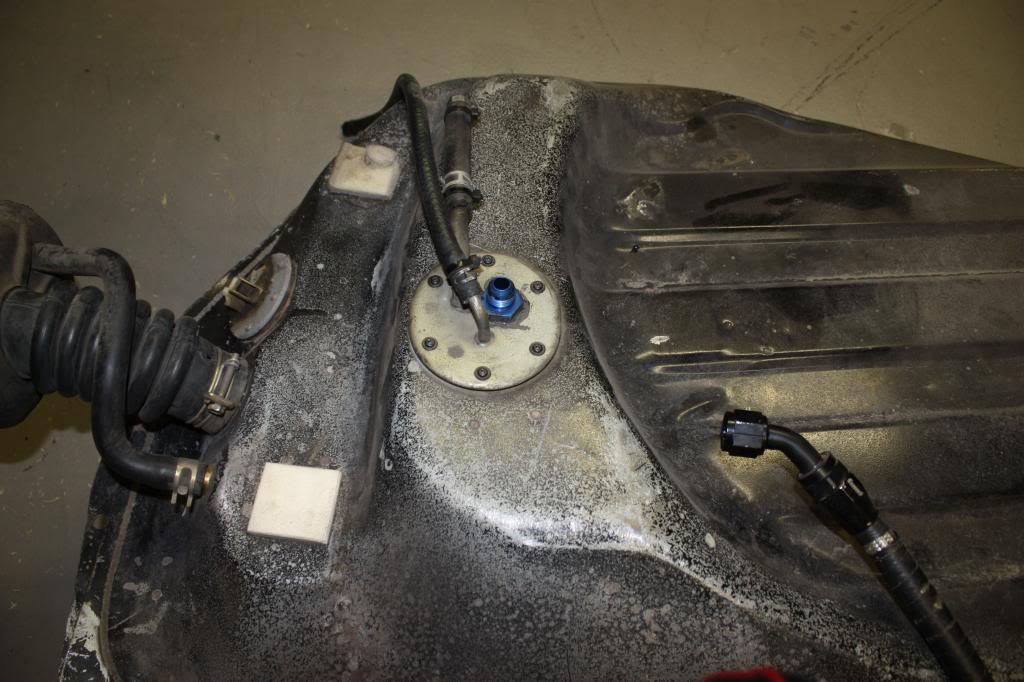

external -10 line running to an Aeromotive A1000 with a filter in between. It was good but for what I am going to be doing soon, not good enough. for the return i simply put a -8 fitting on the stock tank pick up tube cap. it worked, but it honestly wasnt very efficient. the aeromotive pump is best mounted below tank lavel and my fuel line curved upward, this caused some cavitation and i never wanted to go past 12-14 psi boost out of fear of running dry and leaning out.

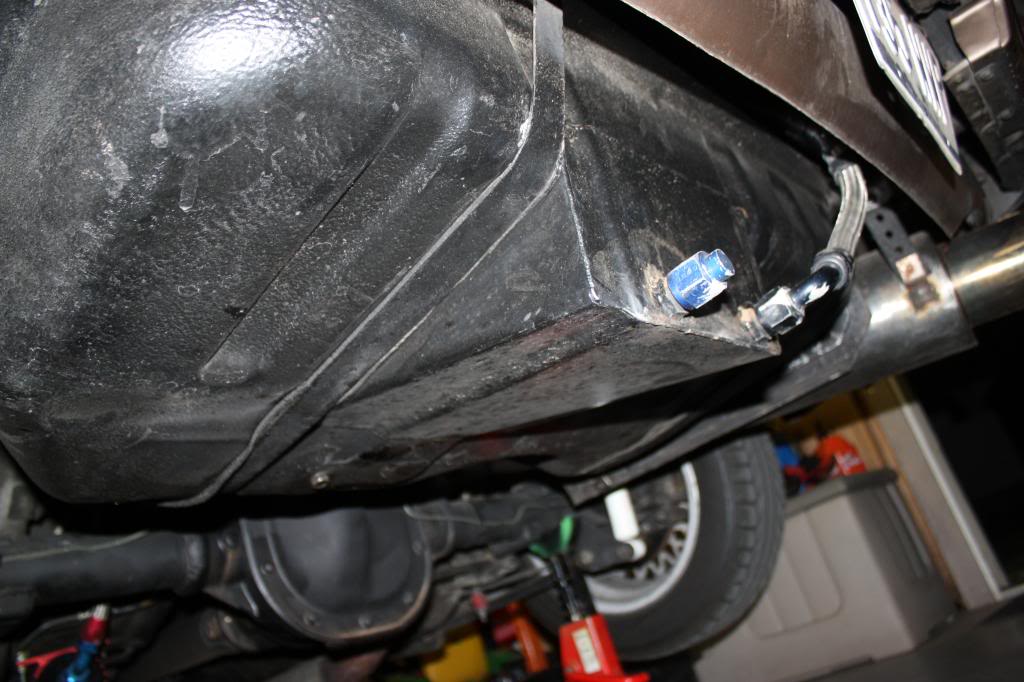

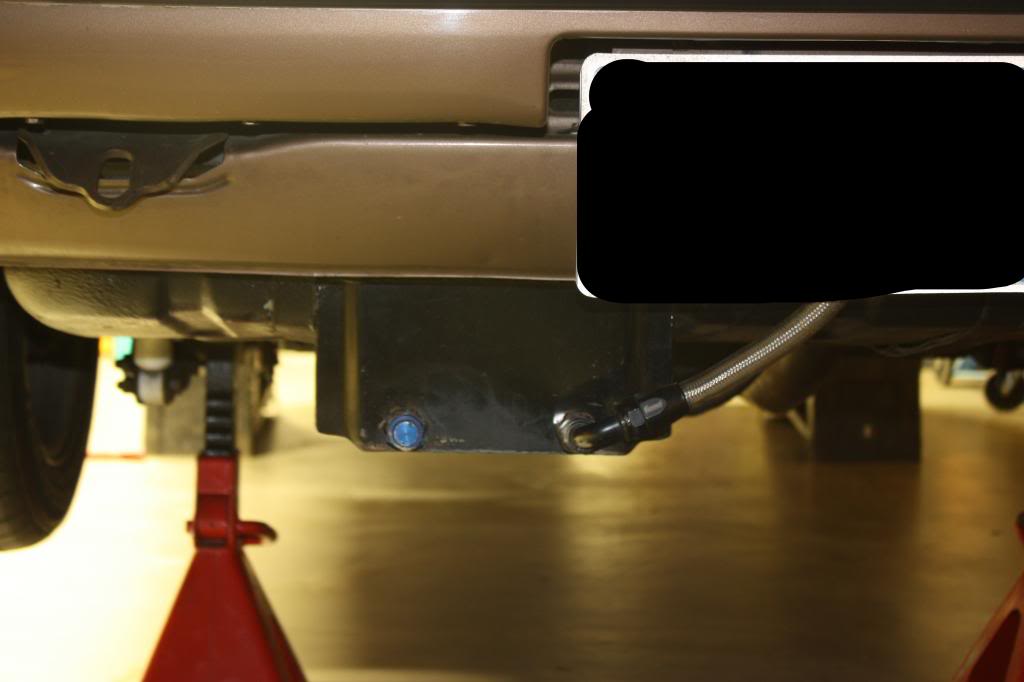

sump was done by Rick's Hot Rods here locally. if anyone knows of their work, you know they do it right. tank was cleaned out and welded properly and then checked for leaks. either way, i wanted to go to a more "stock" look.
This is what elwood at Coachman Performance designed and built.
it is a complete unit with a bosch 044 inside keeping that small tank filled at all times.
to mount this i sent elwood a gas tank so he could do his test fittings and modifications to make it fit with a very well built flange with an o-ring that holds the entire unit in place. bye bye external line, hello "stock" tank!!

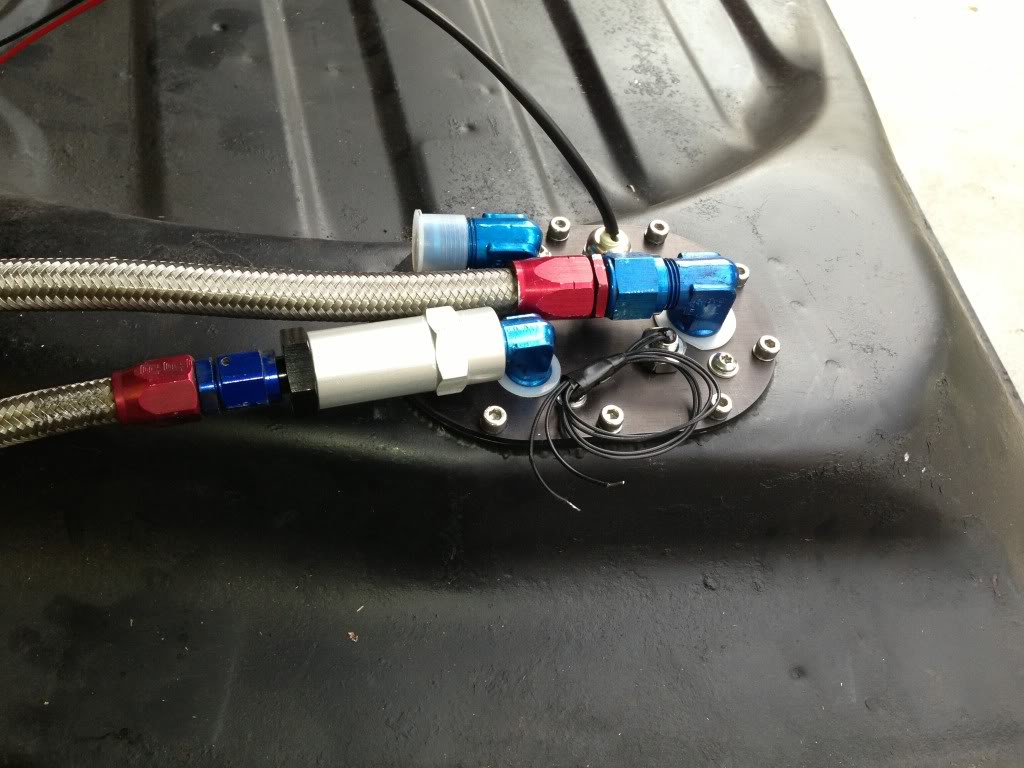

this is the unit mounted on the tank. clean!

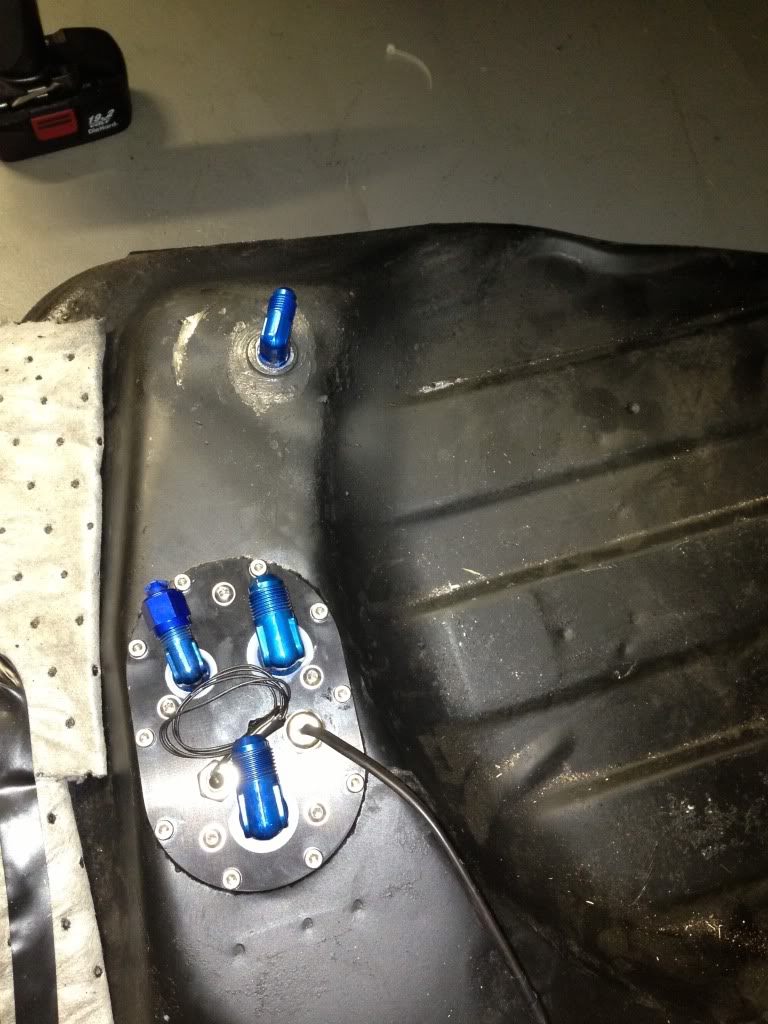

This was a test unit so i was prepared for a possible roadblock. the only one was the location of the vent itself. i contacted elwood and we went over some remedies. finally all we did was block off the old vent on the unit and move it forward on the tank. here is how it sits on my tank currently.
this solved the leak issue. that simple.
with this setup i had the option to run one or two bosch 044 externally. i went with two...the entire system runs -8 lines from tank to engine and back.

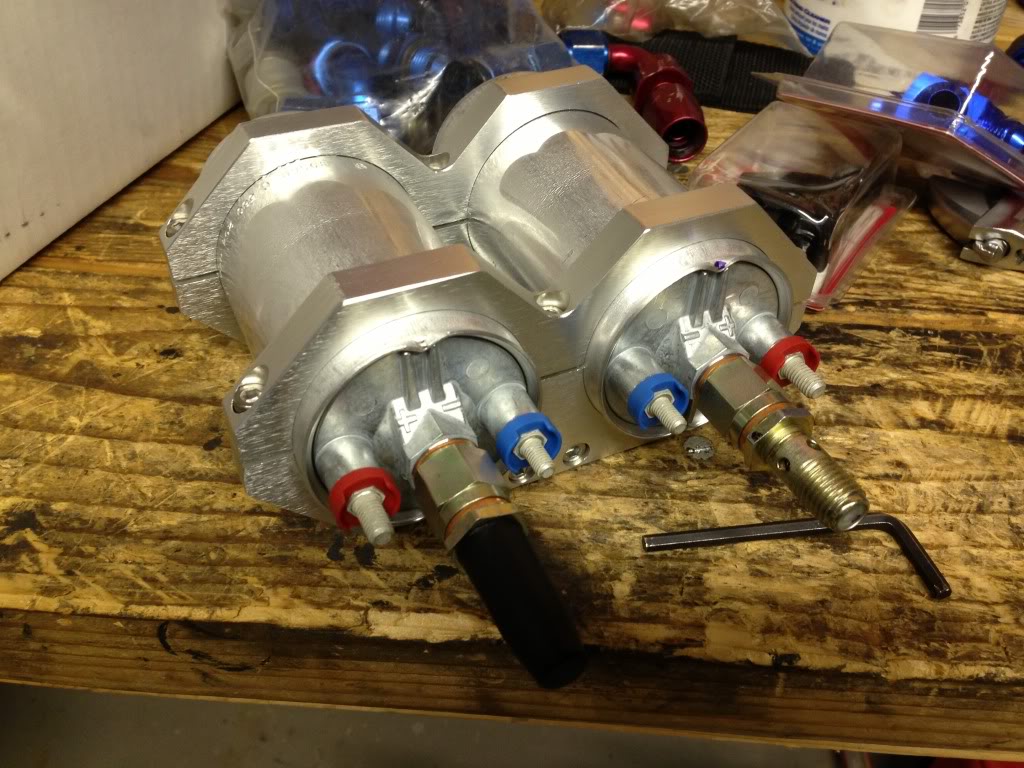

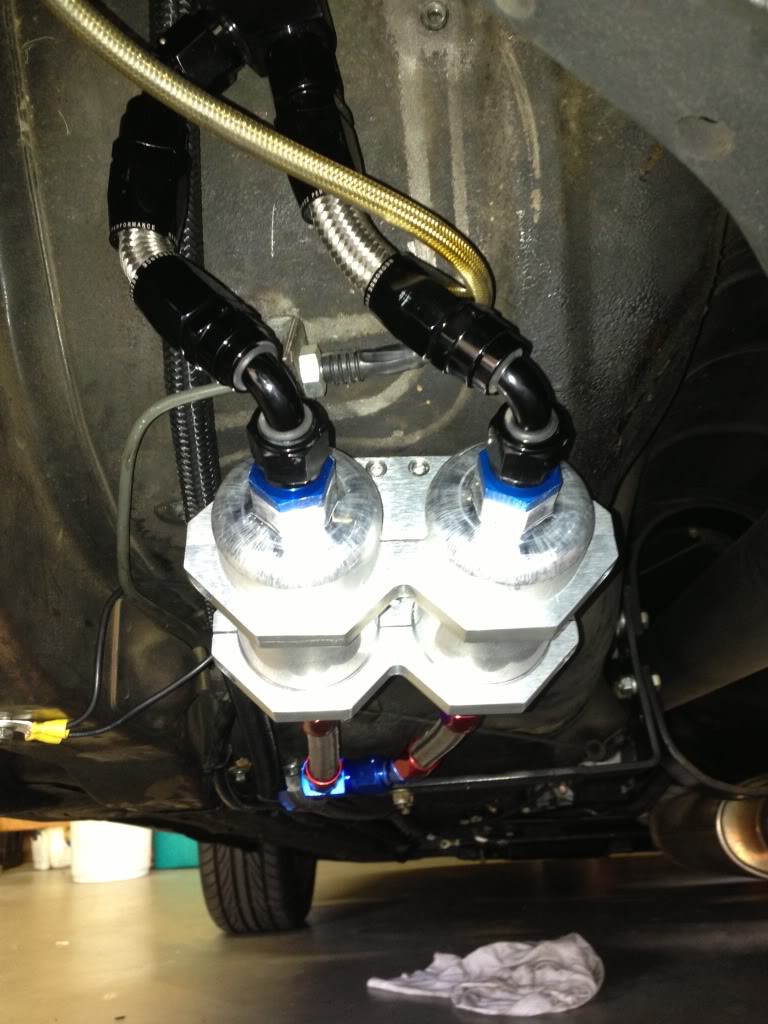

this is the setup on the two external pumps. it looks bulky but it really isnt. not even visible when looking at car sideways.
I had a local guy Eric from ProDrag chassis do the wiring with each pump running its own relay, a cutoff switch to the whole system and even individual LED's to let me know each pump is running. i checked everything and turned the key. with the old setup i was running 43 psi at idle. with this the same regulator not being adjusted was marking 57psi!! i had to turn down the pressure before turning the car on!!
after sitting for about a month while i changed out all this, i expected the car to be a bit stubborn to fire up. it fired right up, idled right away, and even sounds better. my explanation is that since it has a steady flow of fuel at an even rate, it just runs a helluva lot better...
here's a video of car under some slight boost (just for fun)
It is obviously a much more efficient and well designed system. i am happy as can be with this setup and finally am making plans to dial up the boost and run some C16 in this!!
Big thanks to "elwood" at Coachman Performance for his help and extreme professionalism with this. if you are interested, hit him up!! you will not be dissapointed.
