Build Threads The place for complete build threads of 1st Gen RX-7s.

My New FB, Turbo swap to come

Old 06-05-13, 11:14 AM
  #76
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
Got some new parts today!

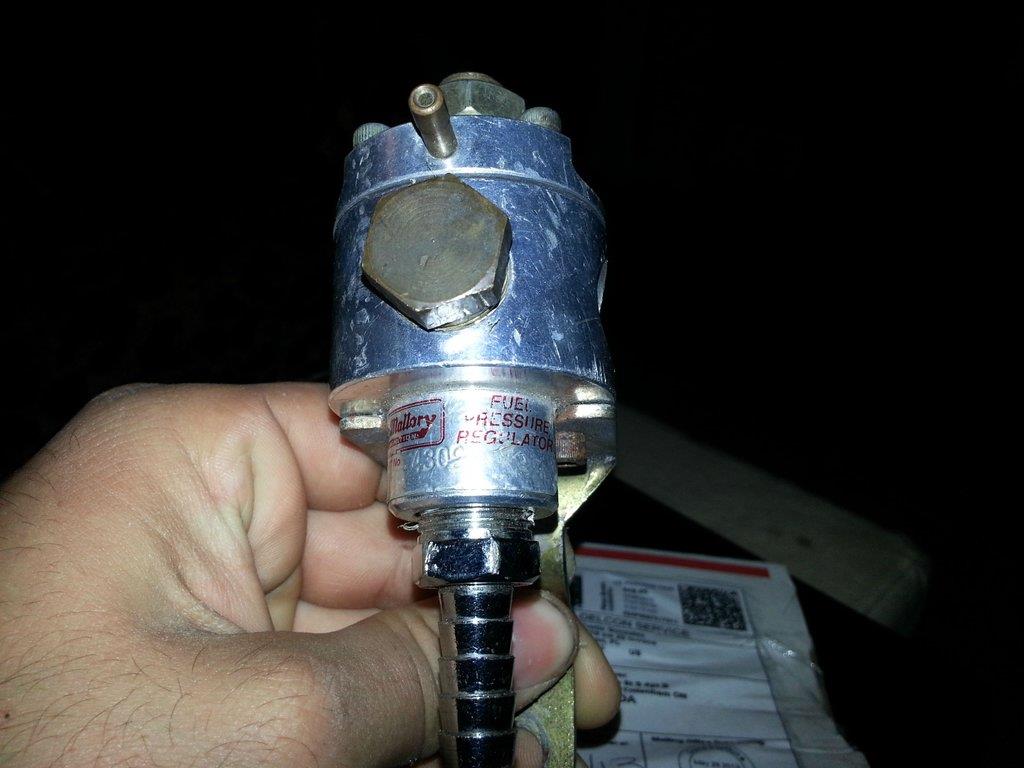

Mallory Return reg

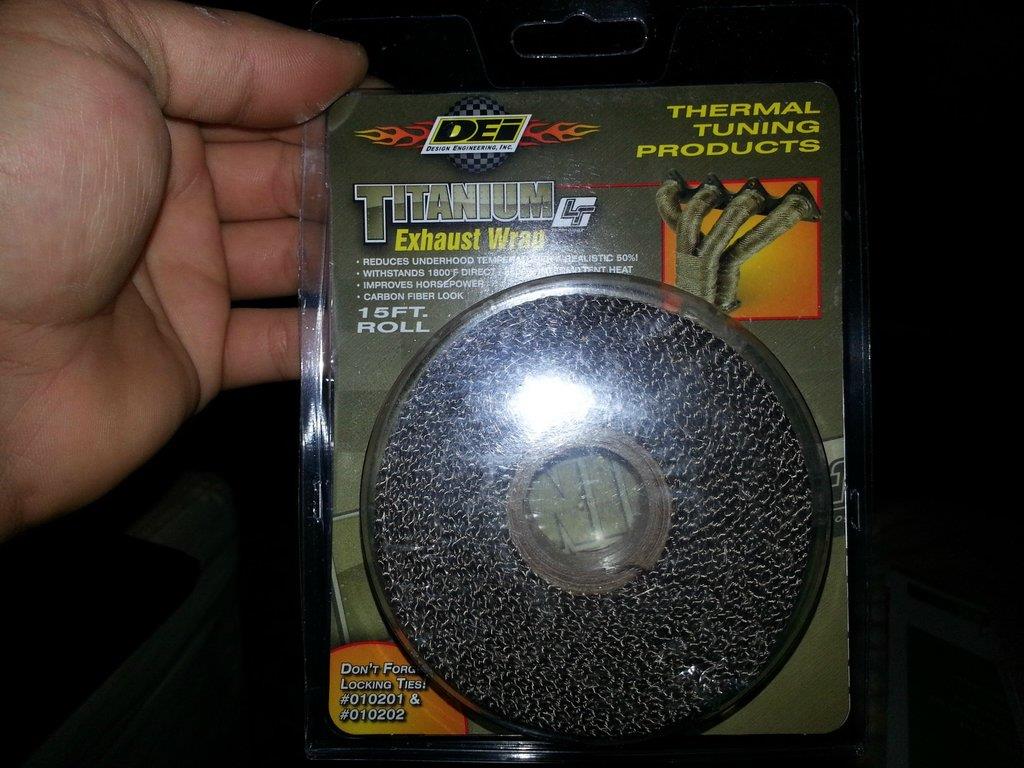

DEI Titanium Exhaust Wrap...doesnt look like enough Ill probably have to get more.

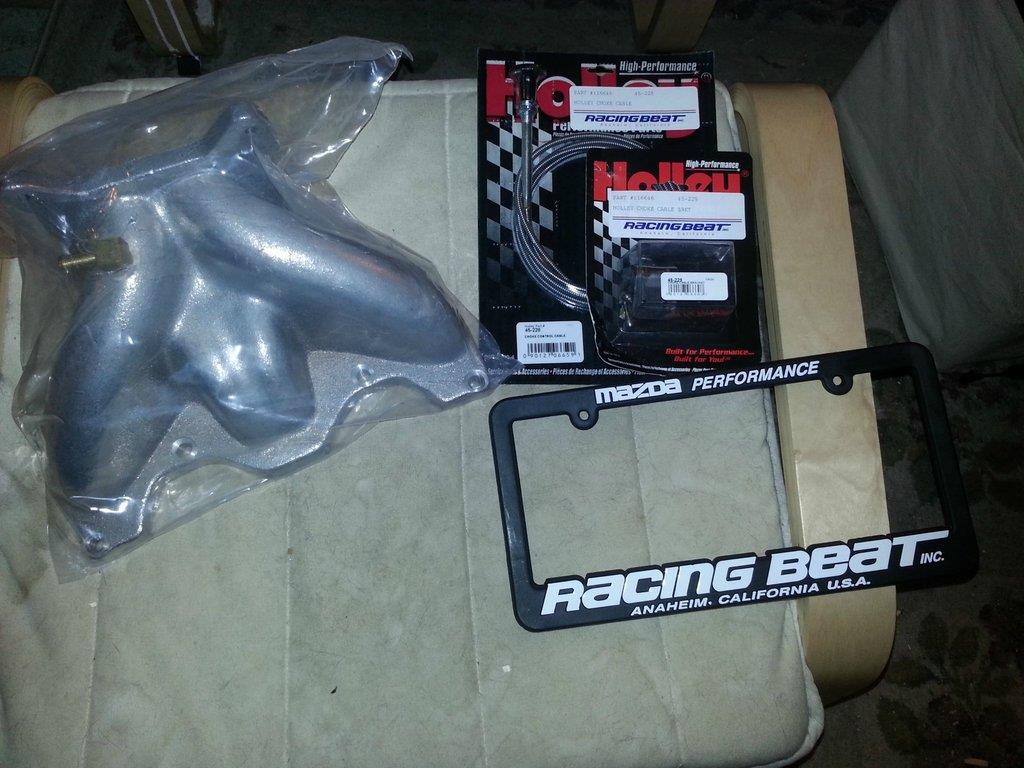

RB Holley TII Manifold, Choke cable, mounting bracket and license plate
MazdaMike02 is offline
Old 03-29-14, 11:12 PM
  #77
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
Well I haven't updated this in a very long time lol. The RX7 got ignored basically most of the summer. I moved into a nicer apartment, bought a new car a 2008 Mazda 3 GT, its an awesome DD. Work was insane last summer! Unforunately I was too busy spending money on other things, working a lot, working saturdays, generally too tired to work on it.
I have received an amazing job offer actually at a previous employer, way better schedule, hours and pay. I've gone over the list for the car and its pretty short now only need a clutch kit to drop the engine and trans in. I start my new job soon and should be able to get this thing done by the start of summer! I hope.

Anyway, heres to an awesome 2014!
MazdaMike02 is offline
Old 07-30-14, 09:23 PM
  #78
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts

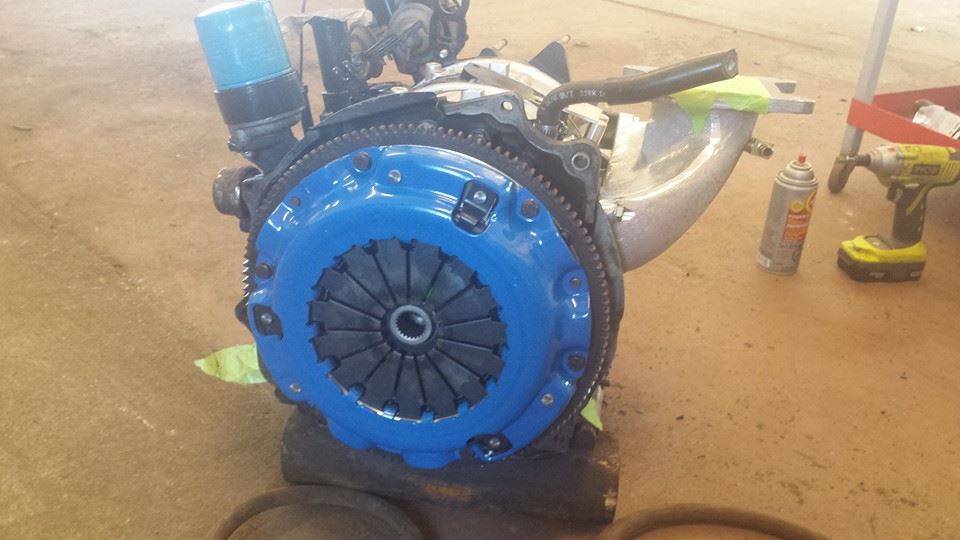

Here is the engine for the car. I plan on completing the turbo swap later. For now I'm going to drive it NA with a Holley 4160 650 vac sec carb. Its being rebuilt I've got 4150 centre float bowls, converted secondary side to metering block, jet extensions, not sure about jets yet, nitrophyl floats. Be good for racing and autocross.



S4 Irons, massive streetport, pineapple exhaust porting, s5 TII rotors 9.0:1, racing beat tII holley manifold, fidanza aluminum flywheel, f1 stage 2 clutch, racing beat underdrive pulley

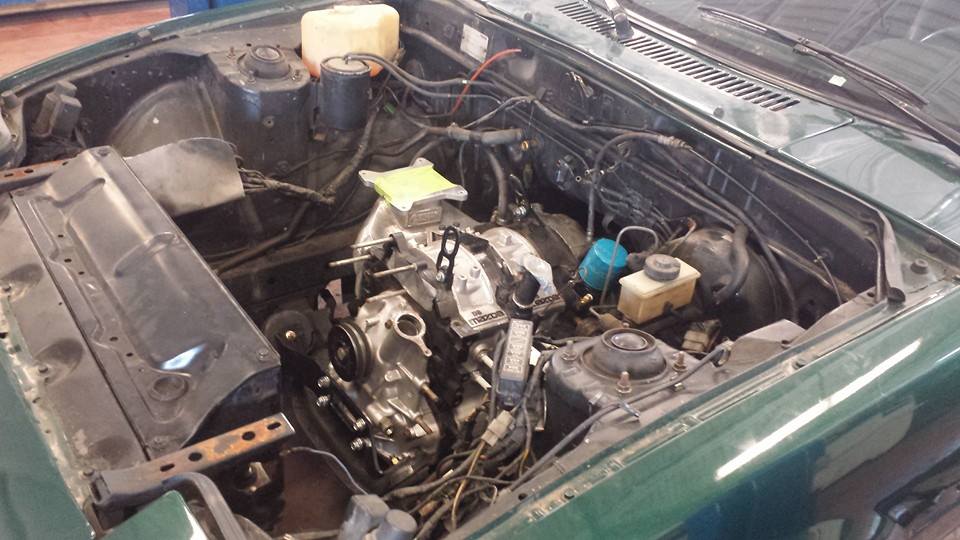

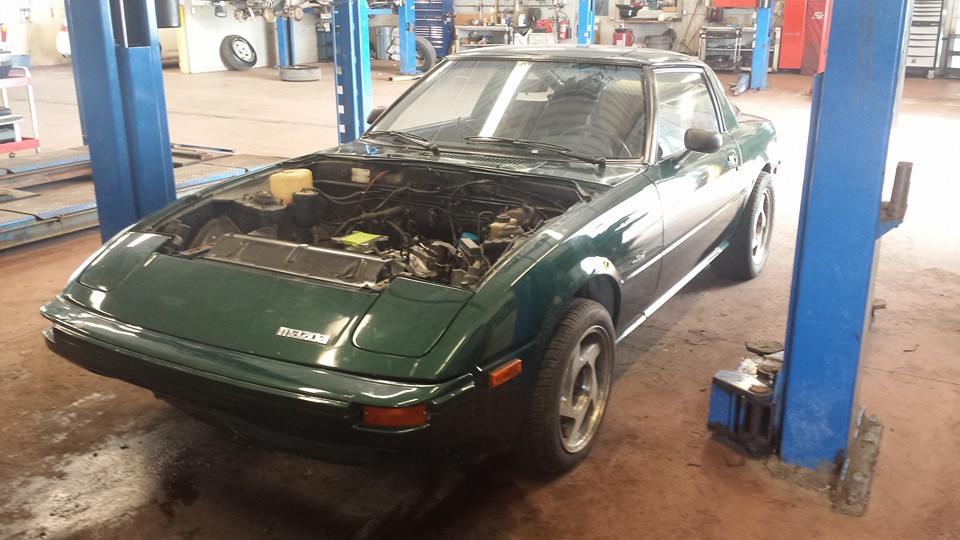

And here it is in the car, currently running on ford 15x7 wheels. I dont like them and ill be getting some steel racing wheels.



Close up

MazdaMike02 is offline
Old 07-30-14, 09:27 PM
  #79
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts

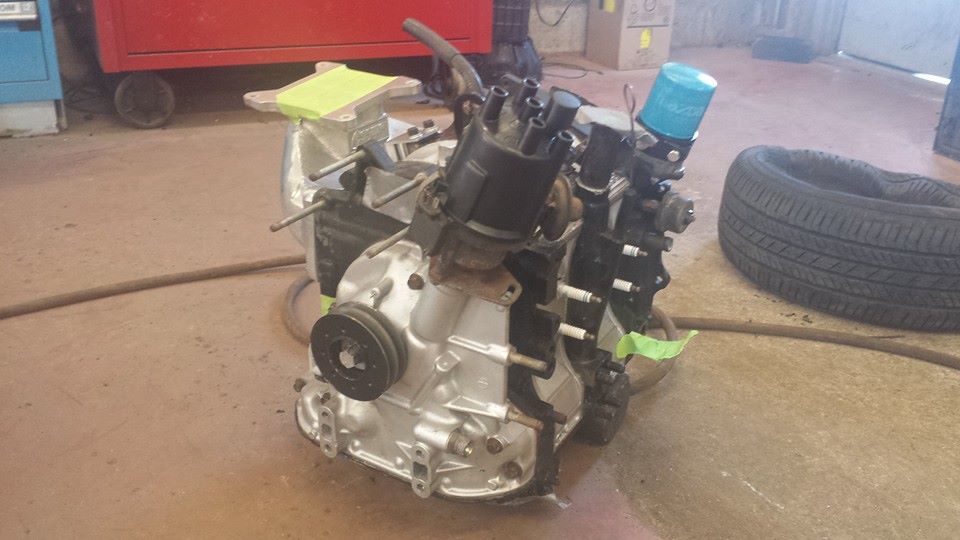

12a front cover, 12a front mount slotted for 13b, fb dizzy, gonna be running FC coils, with MSD Ignition when I buy it all.
Transmission is an s5 TII one. S5 mount welded to stock fb mount, gsl lsd diff.

Suspension: Energy suspension bushings all around, kyb rear shocks, fronts are tokico blues, eibach springs, poly watts link bushings, re speed strut bar, re speed bumper mounts

Brakes: Re speed big brake kit, TII 4pots up front, TII single piston in the rear. Probably gonna get a larger bore master and booster. Stainless braided lines
MazdaMike02 is offline
Old 12-30-14, 10:16 PM
  #80
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
Updates! I've had lots of time to work on the car as work has been slow over the christmas holidays. Heres what I've done.

Fuel System Completed (needles and seats aren't in the picture)

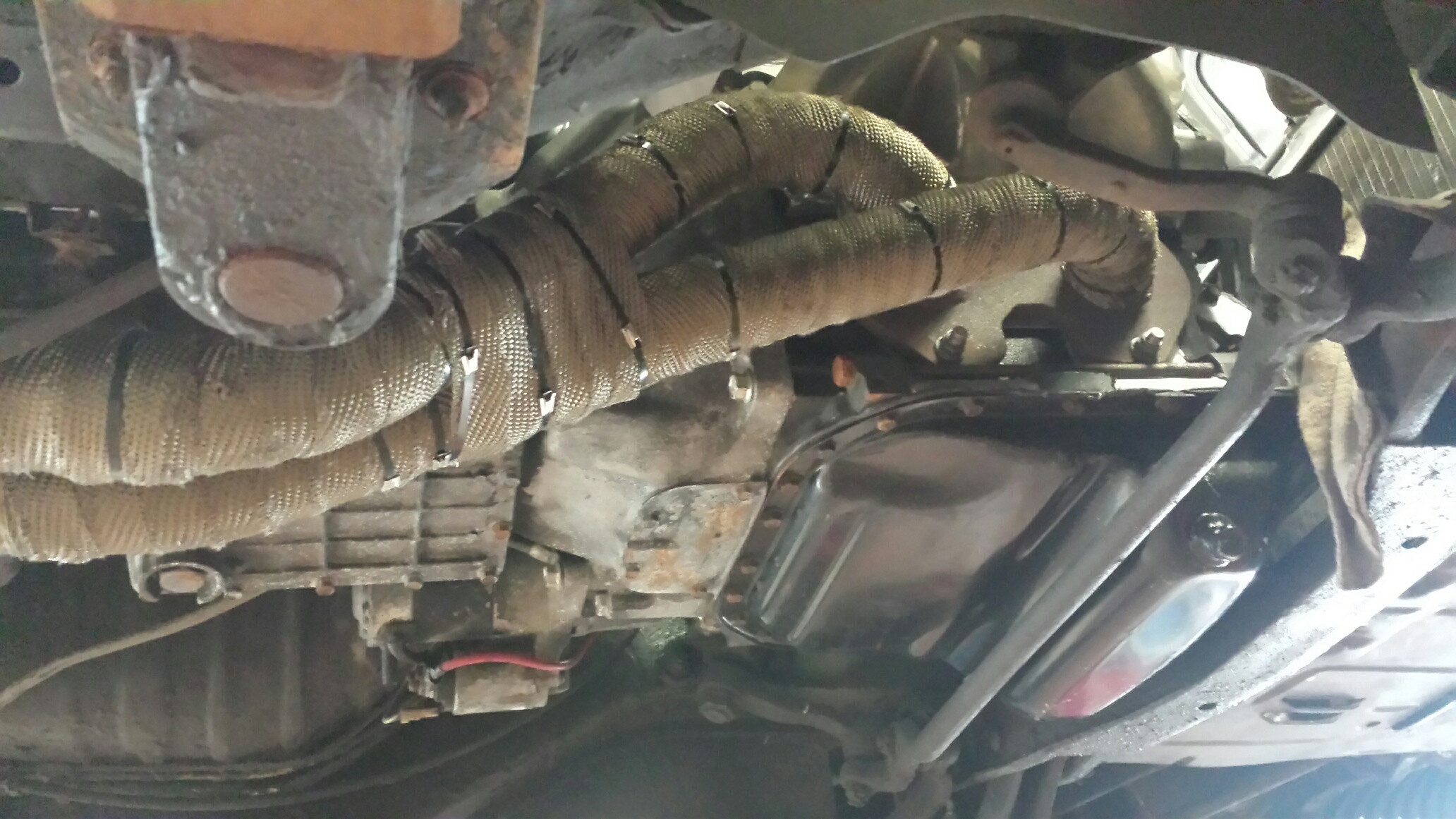

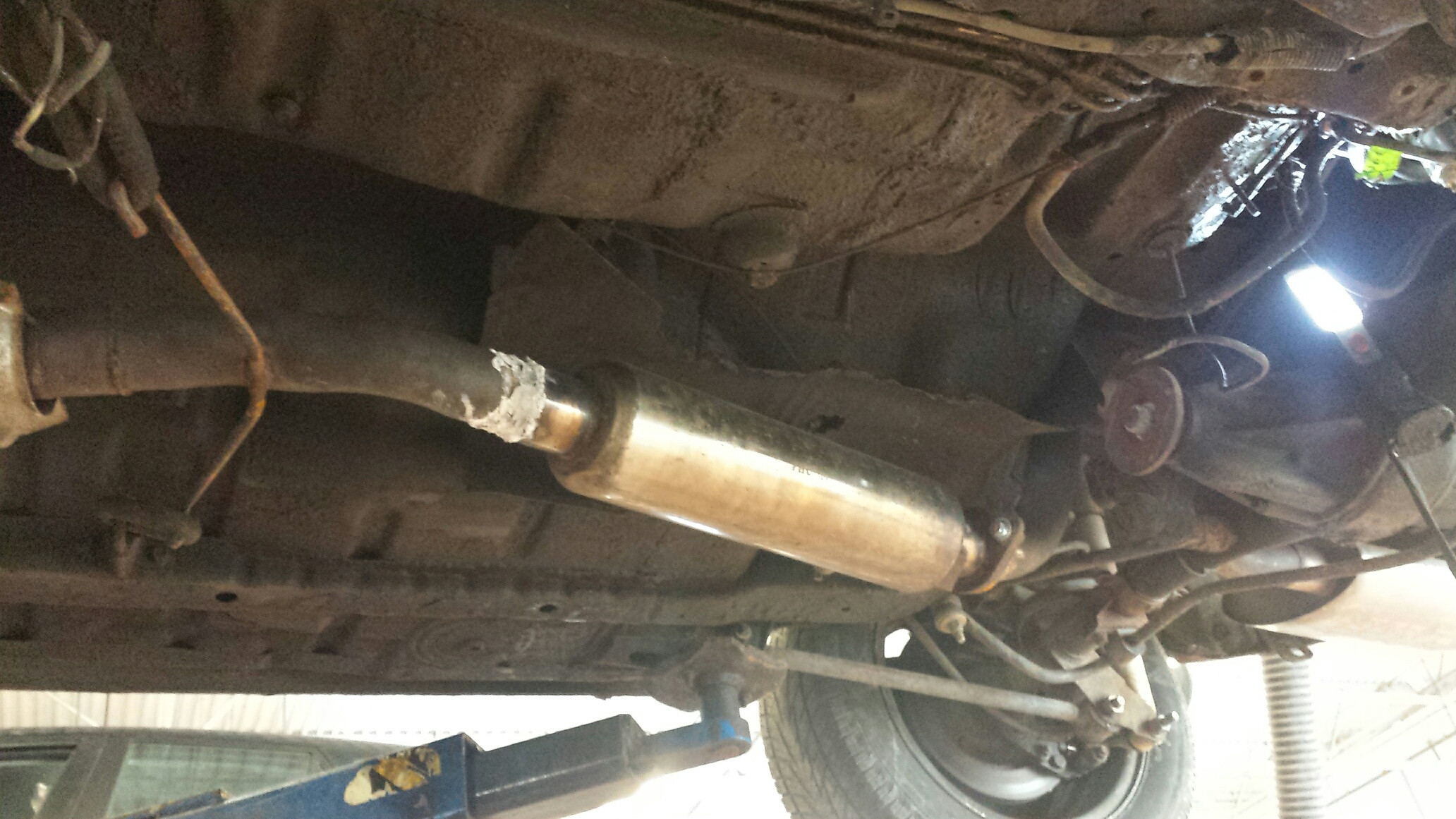

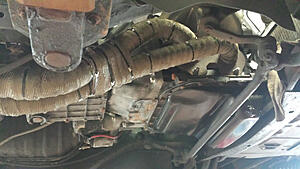

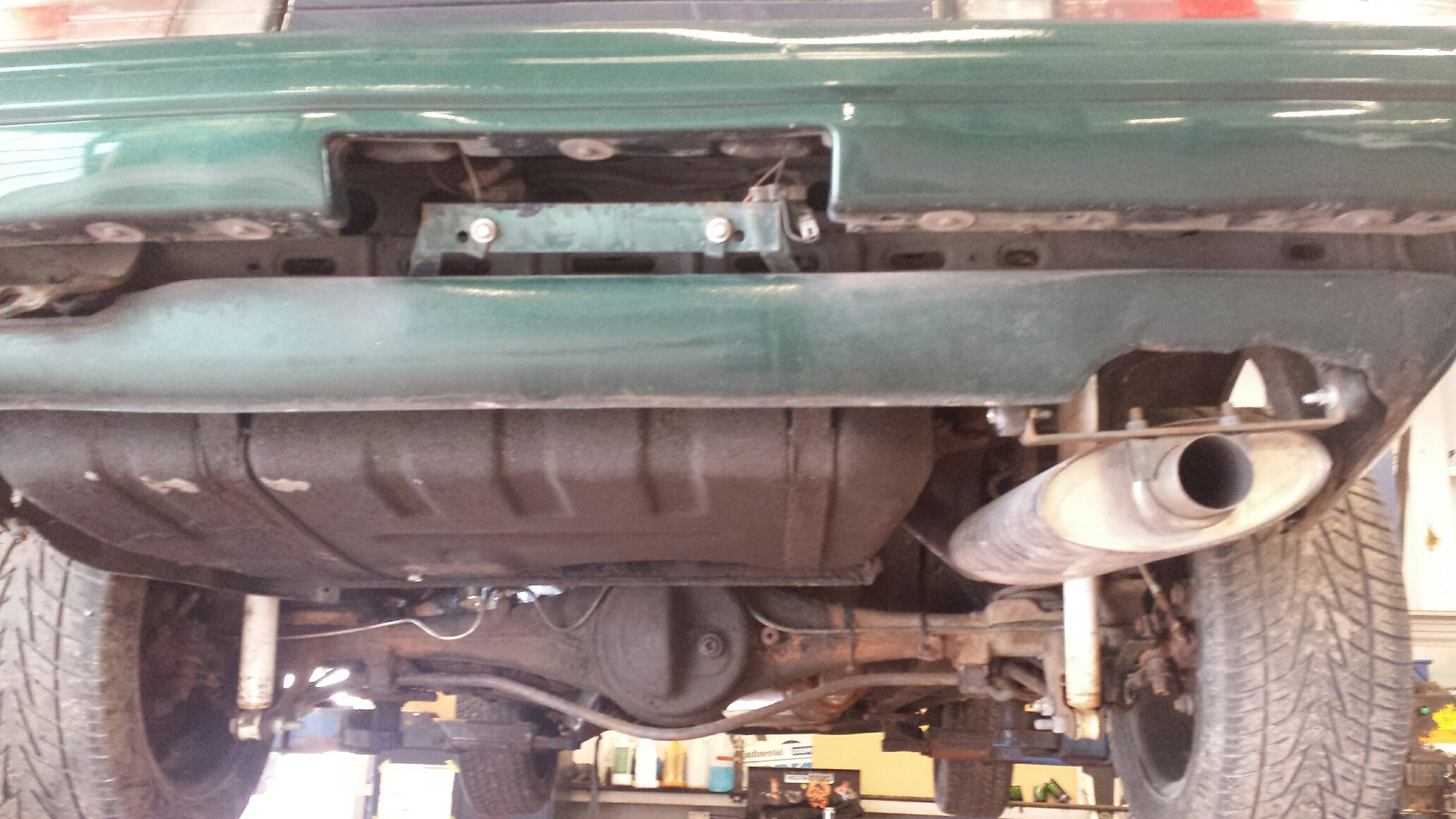

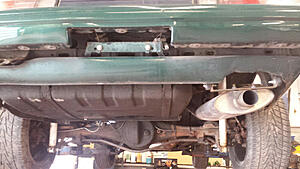

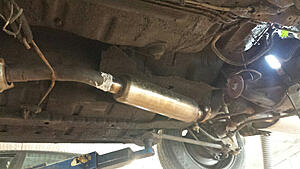

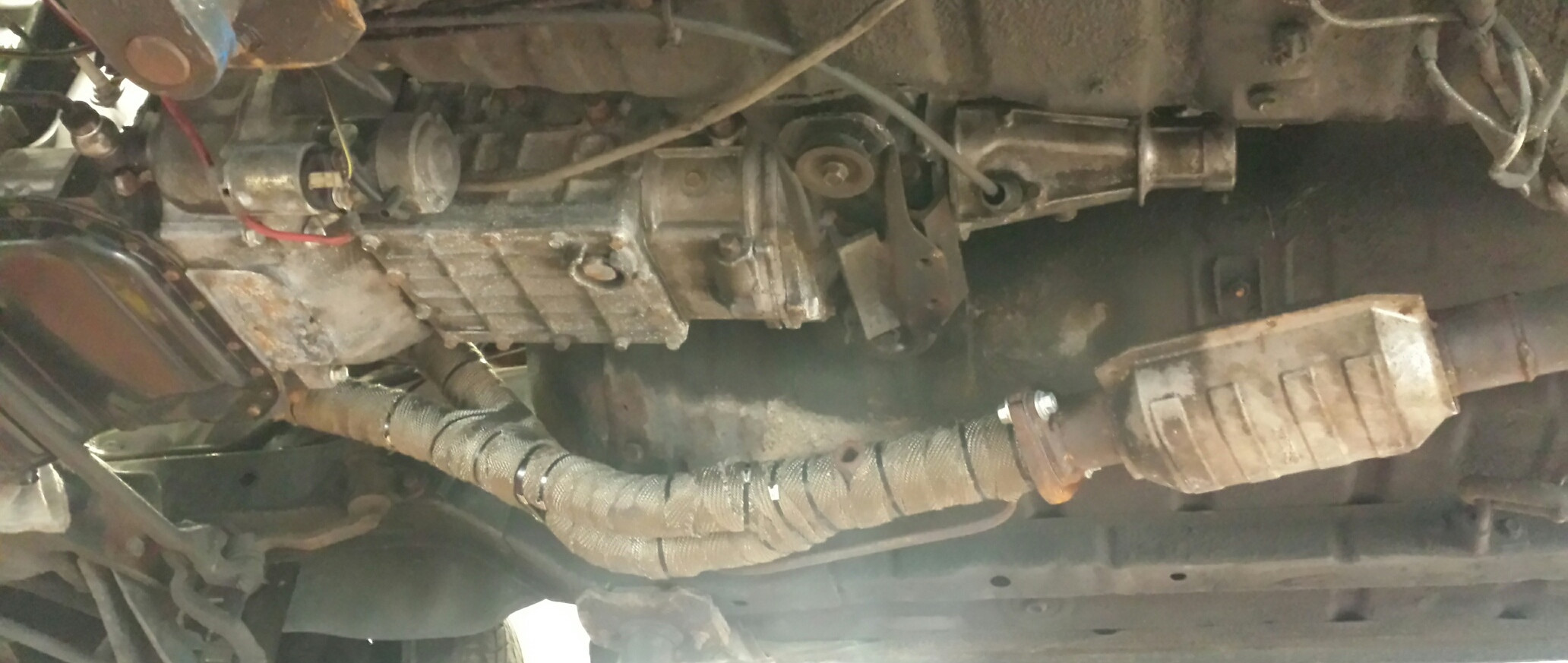

Exhaust Completed

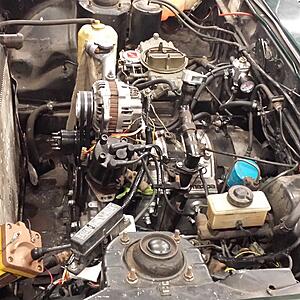

Alternator, belts and accessories

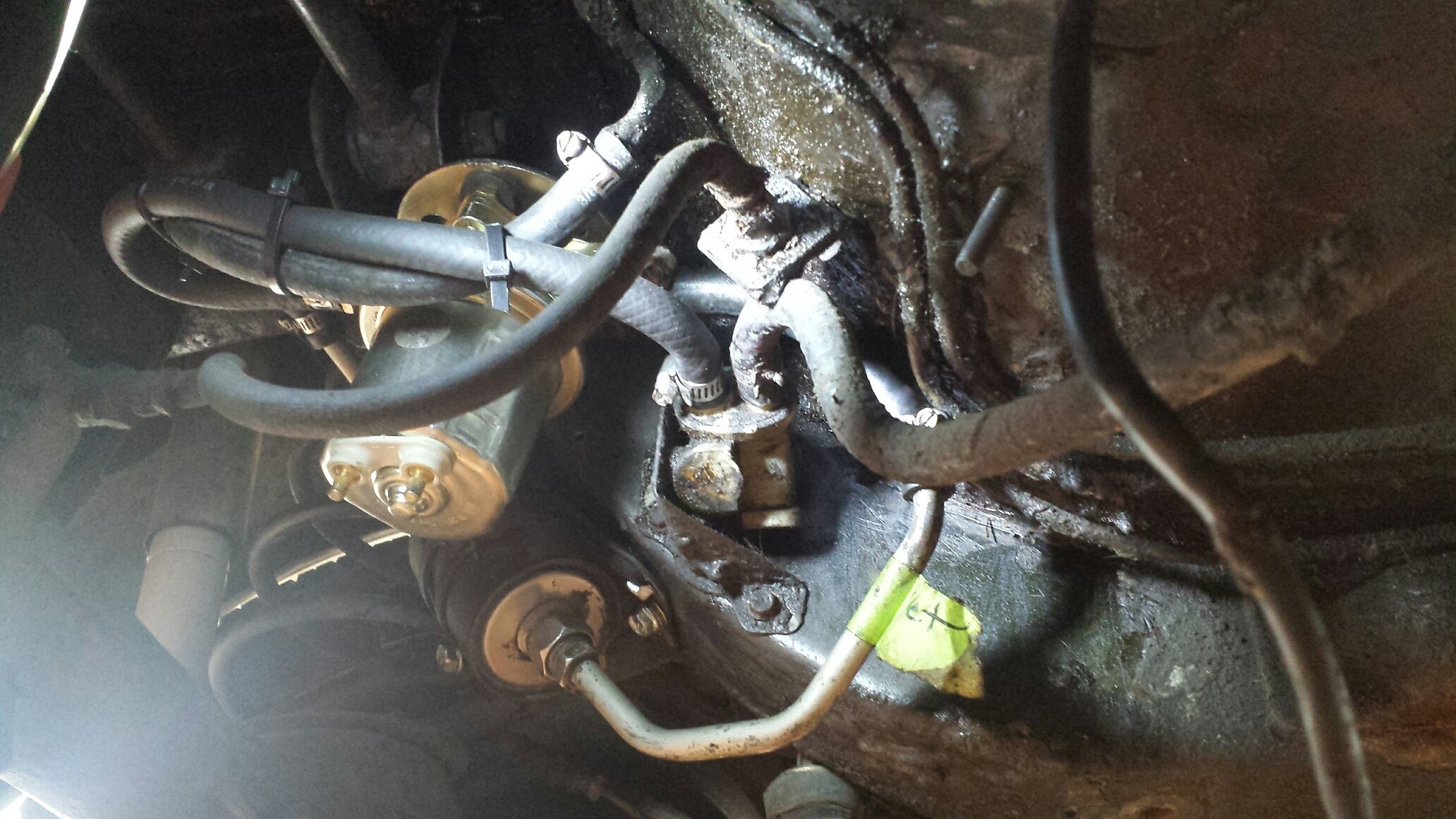

Fuel Pump wired to a hidden switch
New Gear oil in trans and diff







MazdaMike02 is offline
Old 12-31-14, 09:41 PM
  #81
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
MazdaMike02 is offline
Old 01-30-15, 05:04 PM
  #82
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts

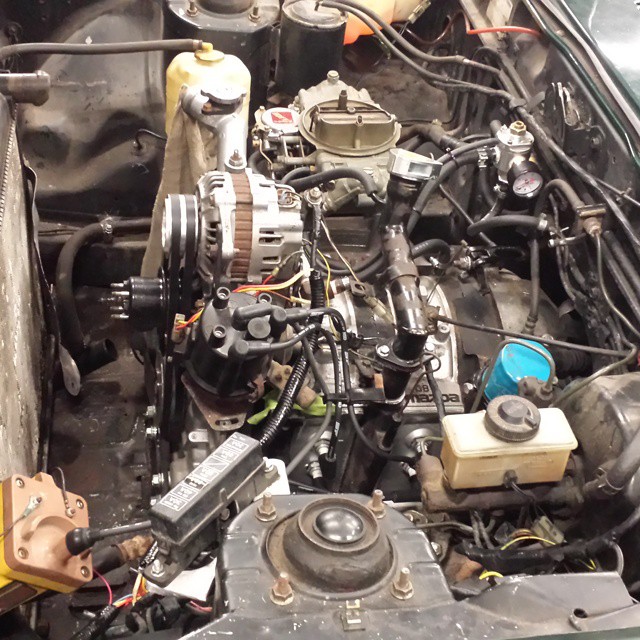

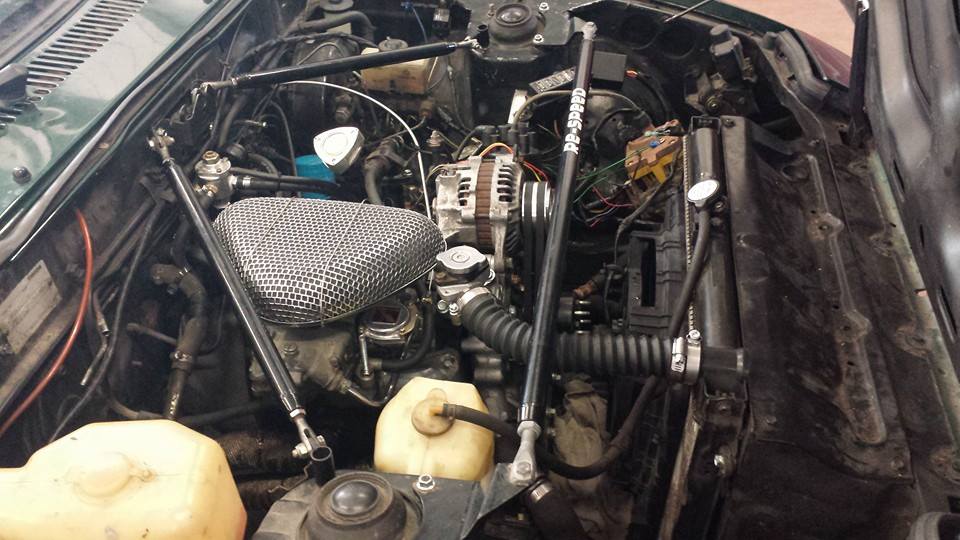

Updates! I've been hard at work. The car runs now, engine bay is complete.

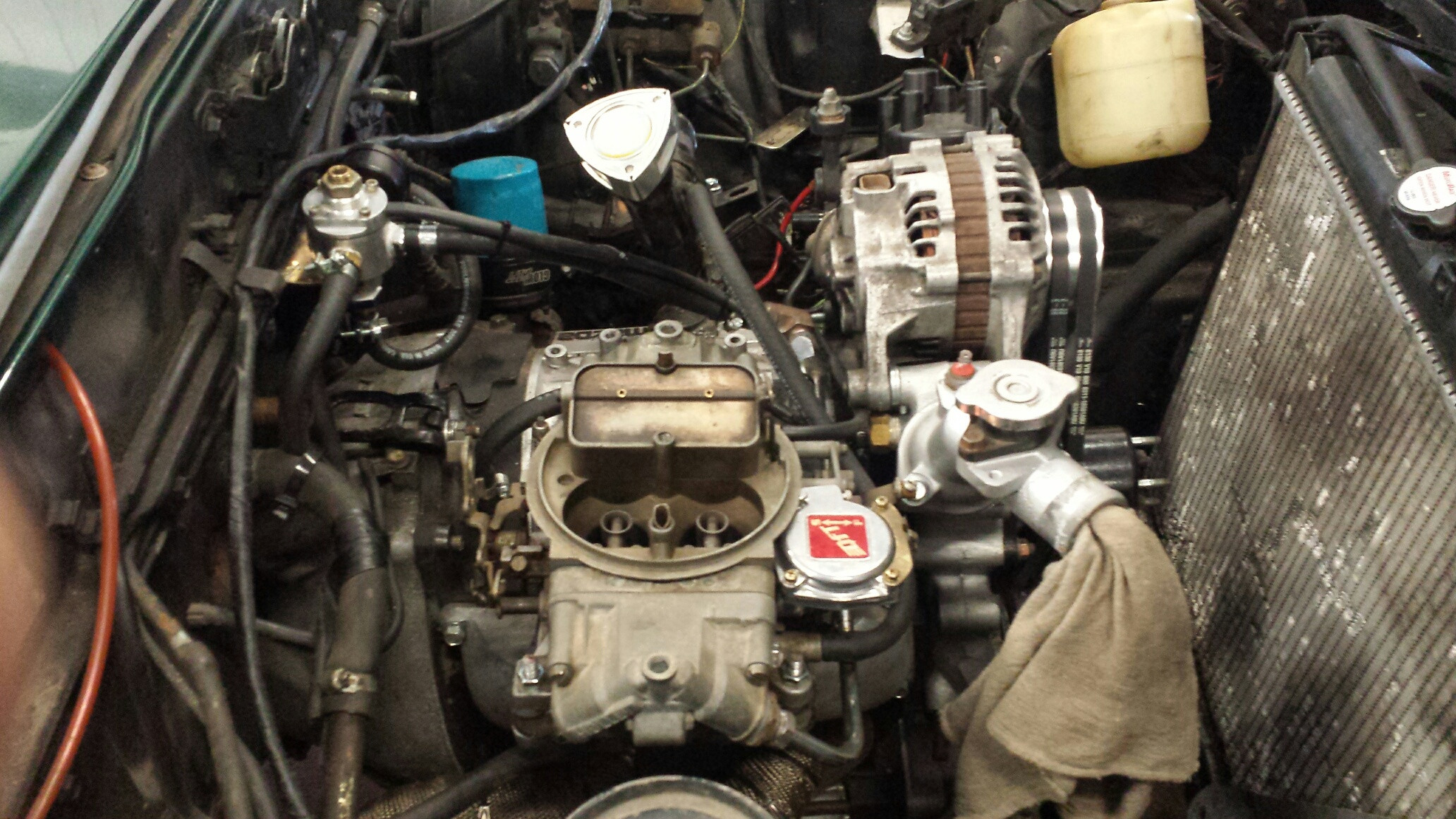

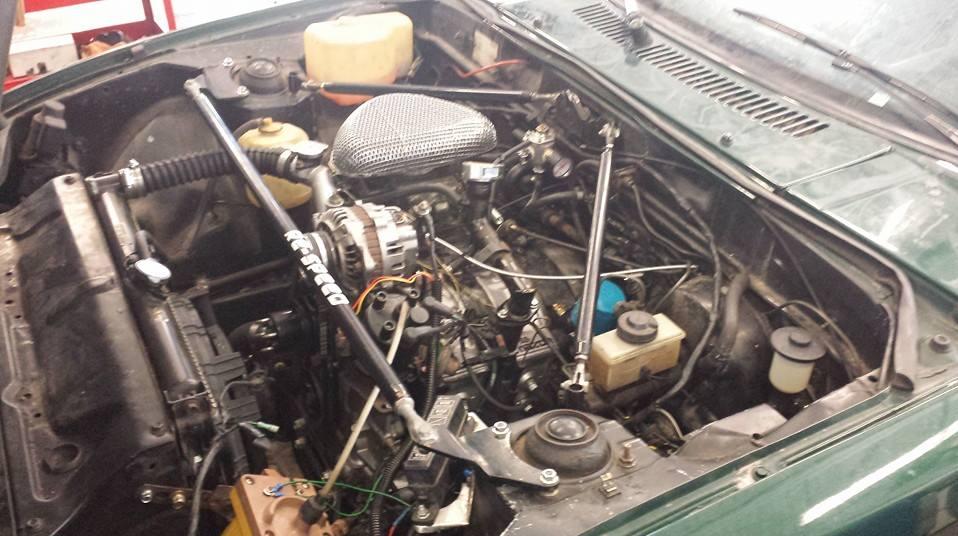

Engine bay is completely assembled. Need to tune the carb still.


MazdaMike02 is offline
Old 01-30-15, 07:55 PM
  #83
turbo or bust
iTrader: (8)

erick31876's Avatar

Join Date: May 2012
Location: bristol,pa
Posts: 870
Likes: 0
Received 0 Likes on 0 Posts
Great job Mike, what did you do for your driveshaft
erick31876 is offline
Old 02-23-15, 12:25 PM
  #84
Mazda Tech
Thread Starter
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
Nothing yet. I read that a TII yoke would swap onto the GSL shaft...so I bought one and sold my TII swap shaft I already had..stupid mistake as clearly the TII ujoints are bigger than FB so thats not going to work.
Guess Im gonna have to get one made.
MazdaMike02 is offline
