Finally, my build thread, some weird crap in here :)
Excellent fab skills. Looking forward to where this is going!!
08-12-11, 12:48 PM
#52
Okay, so you basically just took both of my cars and combined them
I'm usually the first one to whip out the flamethrower when I see pistons on here but this is pretty cool and I admire your ingenuity with this... thing... you're building. I rallycrossed my Legacy GT a couple years ago and actually ran against a couple first gens, so I wanted to take my first gen out and give it a try in the dirt. Unfortunately they quit having races after that season. I never thought of combining the two. Can't wait to see how it turns out.
I'm usually the first one to whip out the flamethrower when I see pistons on here but this is pretty cool and I admire your ingenuity with this... thing... you're building. I rallycrossed my Legacy GT a couple years ago and actually ran against a couple first gens, so I wanted to take my first gen out and give it a try in the dirt. Unfortunately they quit having races after that season. I never thought of combining the two. Can't wait to see how it turns out.There seem to be quite a few of us (Rx7 and Subaru owners) on here, strange that we all like the same cars lol.
I'm really looking forward to seeing more progress on this build!
08-17-11, 08:51 PM
#54
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

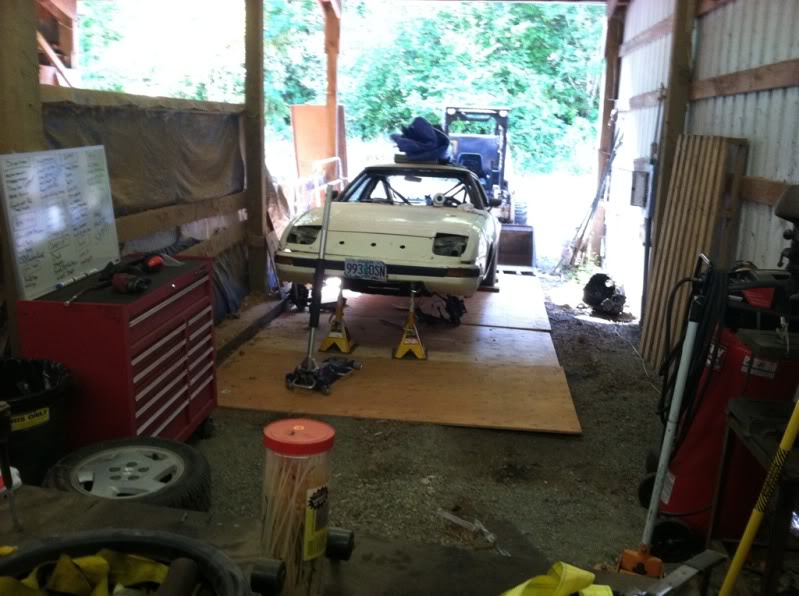

Finally got a chance to make a small place so i can get some work done.
oh and i made my small list of things that need to be done.
oh and i made my small list of things that need to be done.
Last edited by mellow65; 07-22-17 at 10:03 PM.
08-19-11, 11:13 AM
#57
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

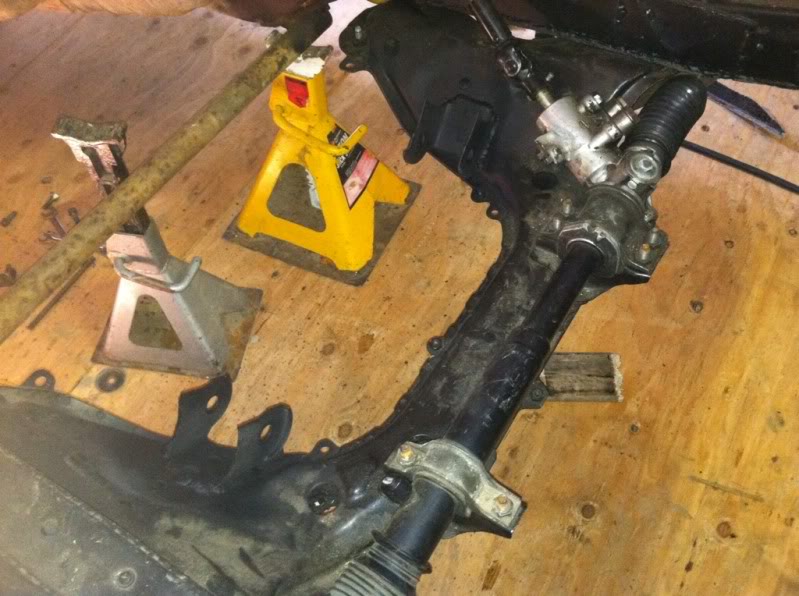

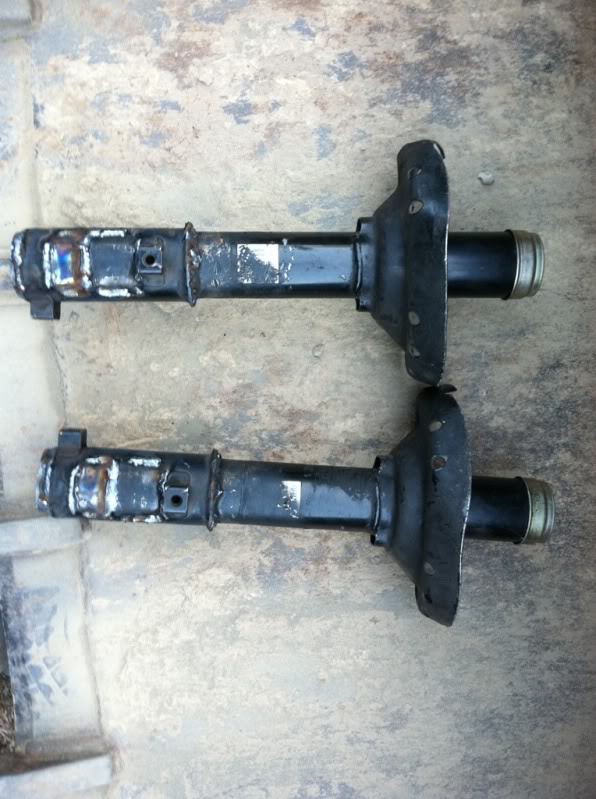

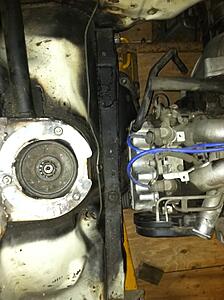

got some time in the garage yesterday, got the sub frame all leveled up and finished up my STI/mazda front struts.
next on the list, mount the motor and trans. this is what i have been looking forward to.
next on the list, mount the motor and trans. this is what i have been looking forward to.
Last edited by mellow65; 07-22-17 at 10:04 PM.
08-23-11, 11:05 PM
#60
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

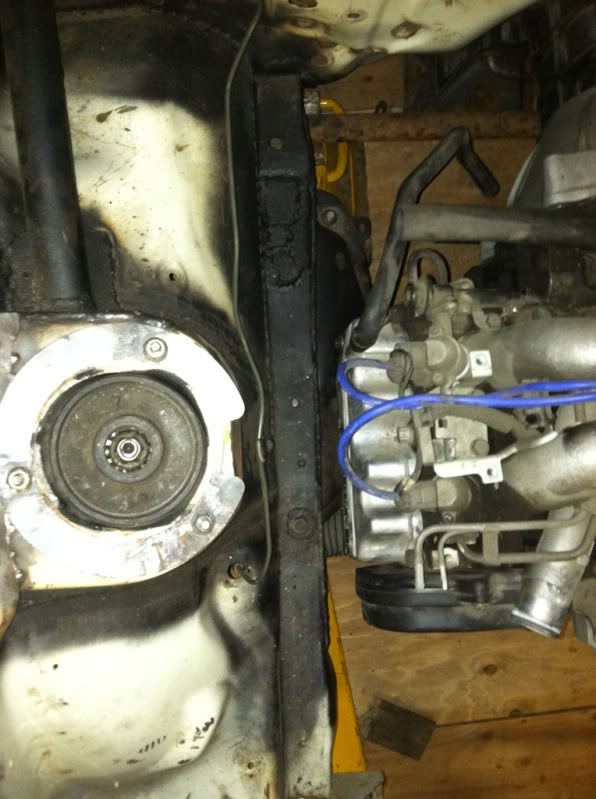

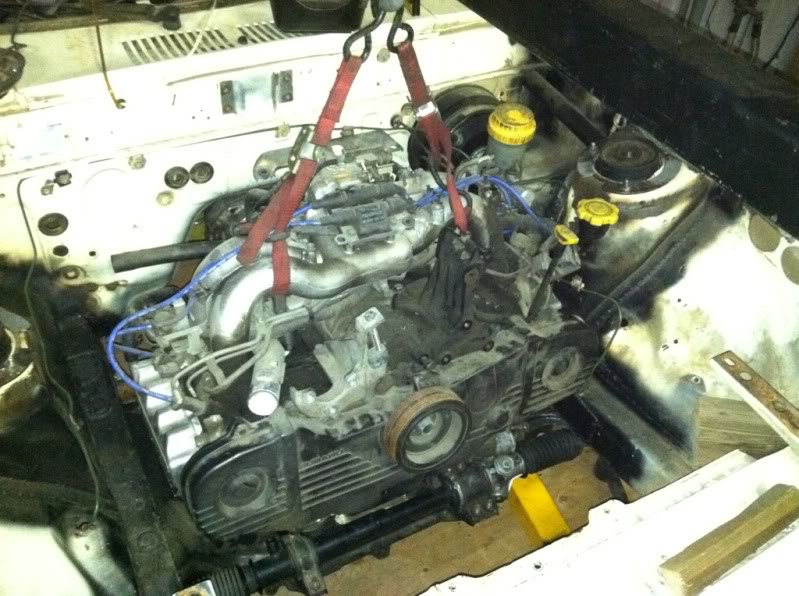

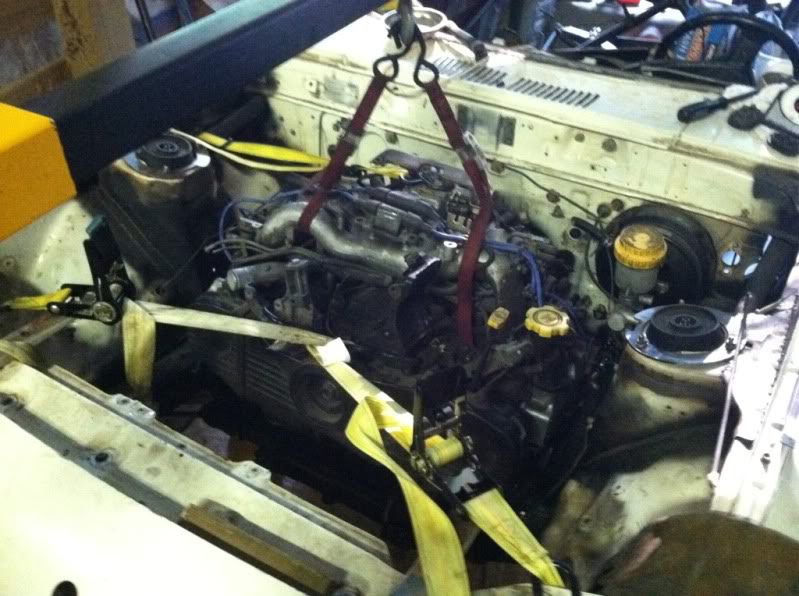

Got some more time out in the garage today. Didn't get tons done but I was able to hang the motor and trans in and start to figure out my mounts.
Look ma almost no hands.
Drivers side
Passengers side

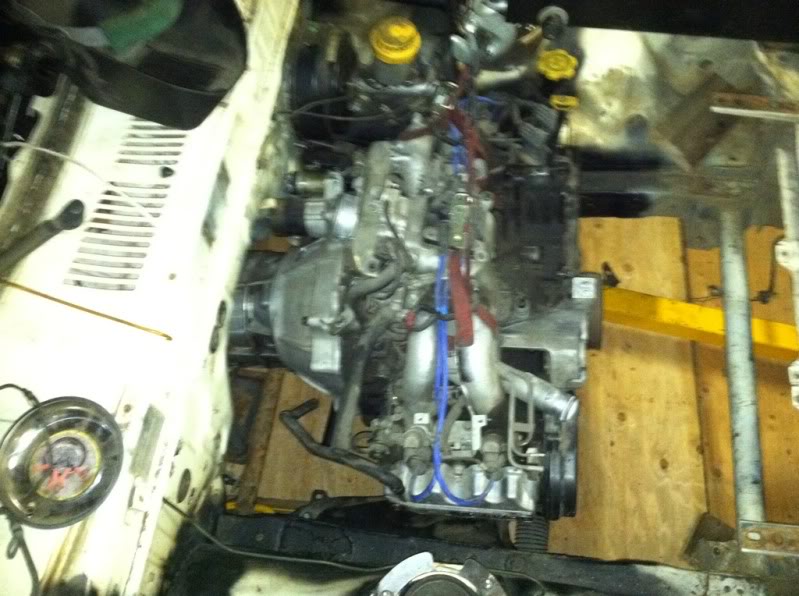

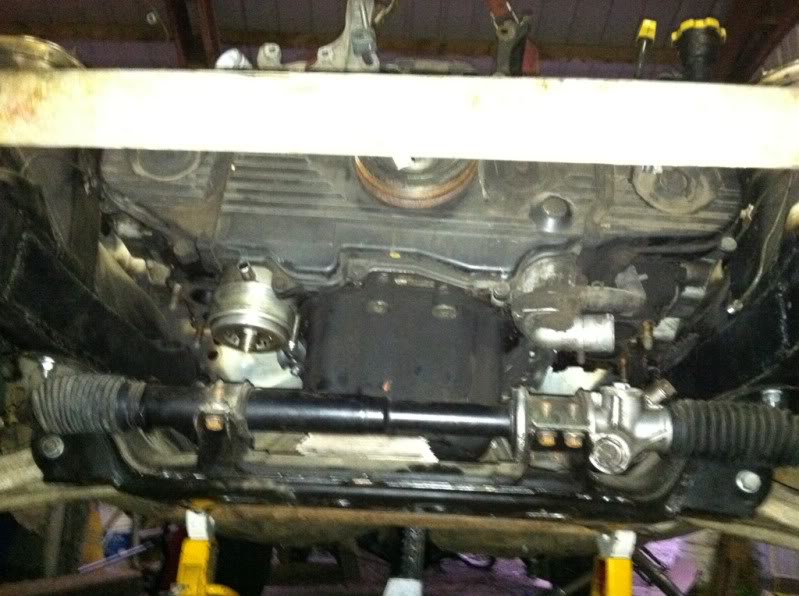

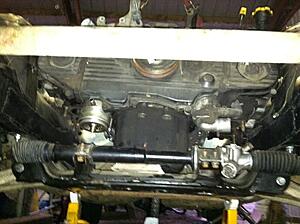

front view
shot from the rear

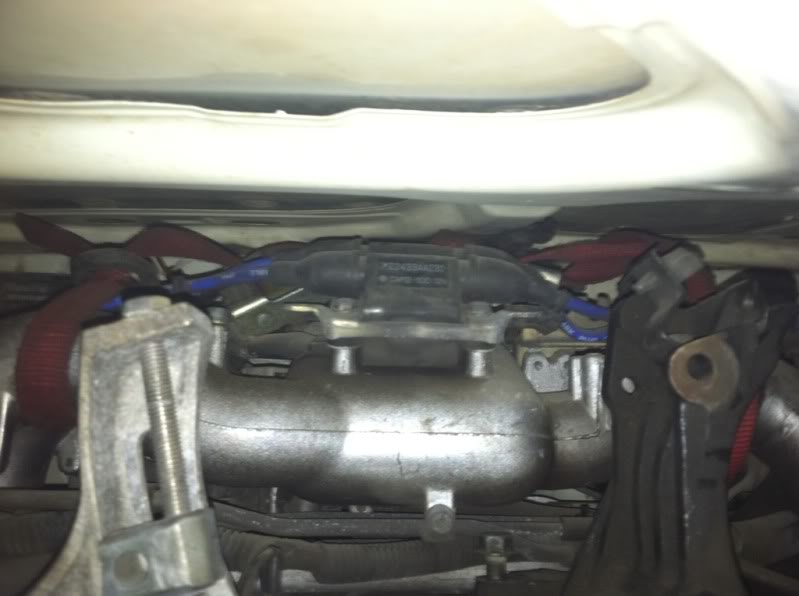

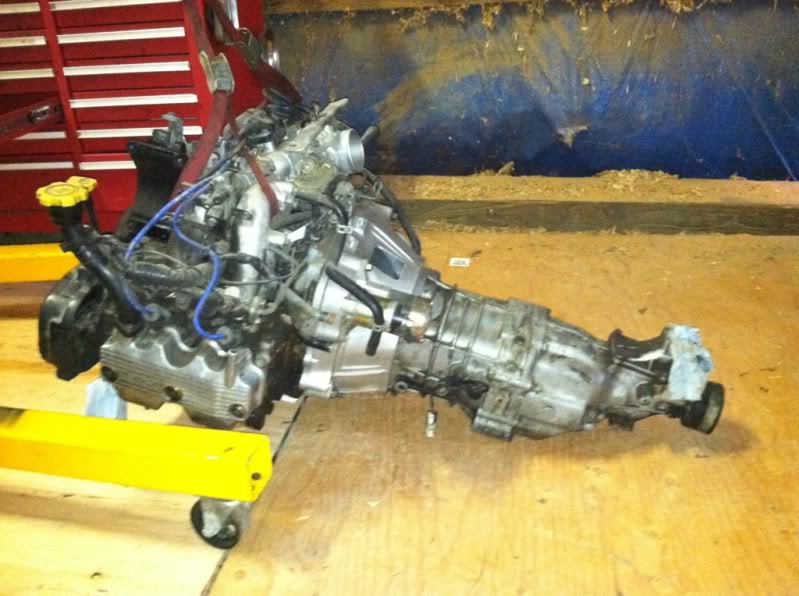

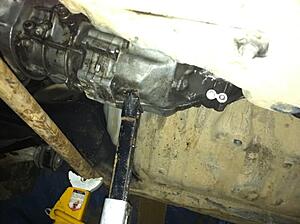

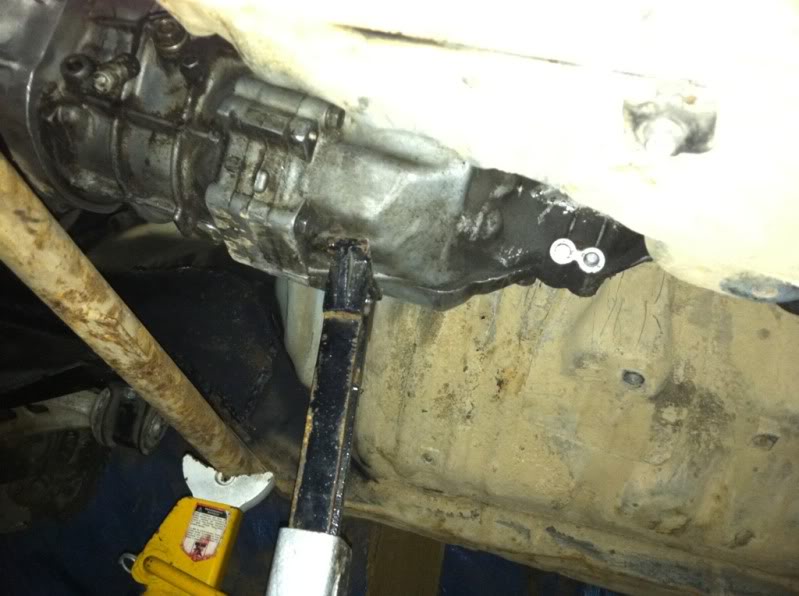

crappy pic of the tranny sitting there

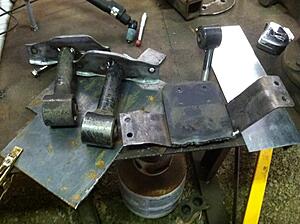

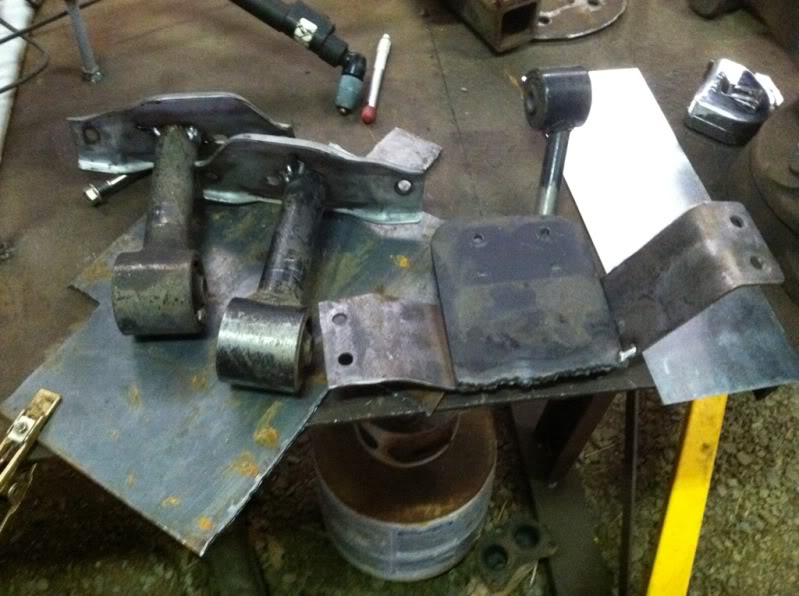

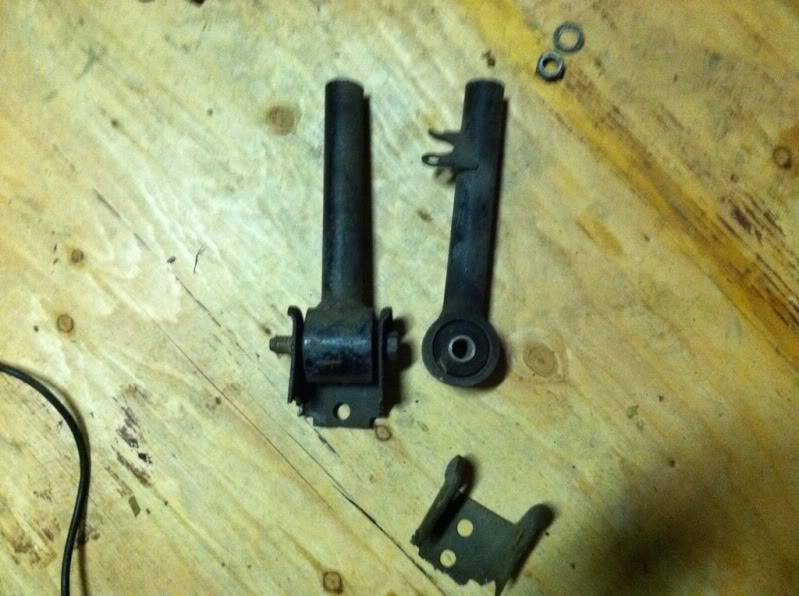

What i'm using for motor mounts. Nothing like reusing parts that would have been tossed other wise. this is a link bar from the 4 runner rear axle chopped in half. I love free parts.
I'm hoping to have the mounts more figured by tomorrow. I just was getting to tired laying under the car looking at them to make any really good decisions.
To be continued...
Look ma almost no hands.
Drivers side
Passengers side
front view
shot from the rear
crappy pic of the tranny sitting there
What i'm using for motor mounts. Nothing like reusing parts that would have been tossed other wise. this is a link bar from the 4 runner rear axle chopped in half. I love free parts.
I'm hoping to have the mounts more figured by tomorrow. I just was getting to tired laying under the car looking at them to make any really good decisions.
To be continued...
Last edited by mellow65; 07-22-17 at 10:07 PM.
08-25-11, 07:37 PM
#61
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts
well not tons of time in the garage today. I swear i end up with more things to do when i have time off from everything then when i am supposed to be at work or school.

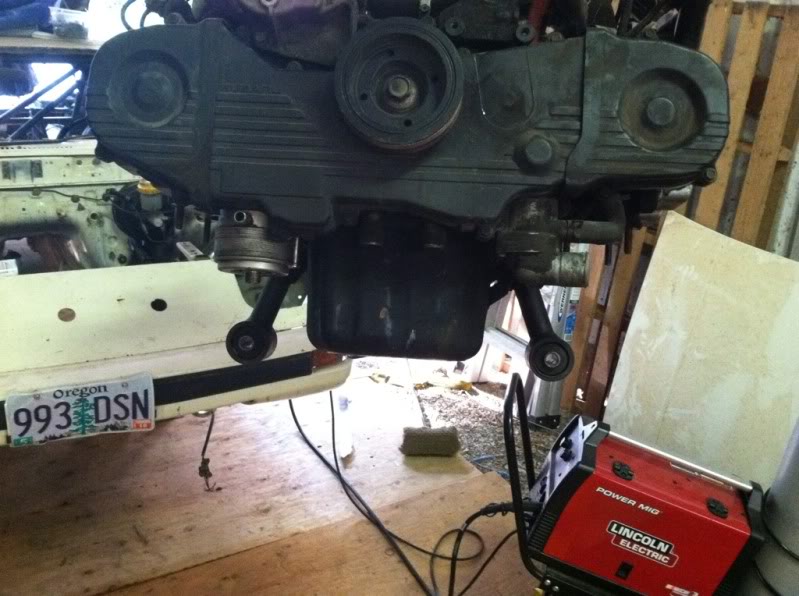

but regardless i did get my motor as squared up as some guy in his garage probably really can. sinched it all down with some ratchet straps so it wouldn't move around and started to work on the mounts.

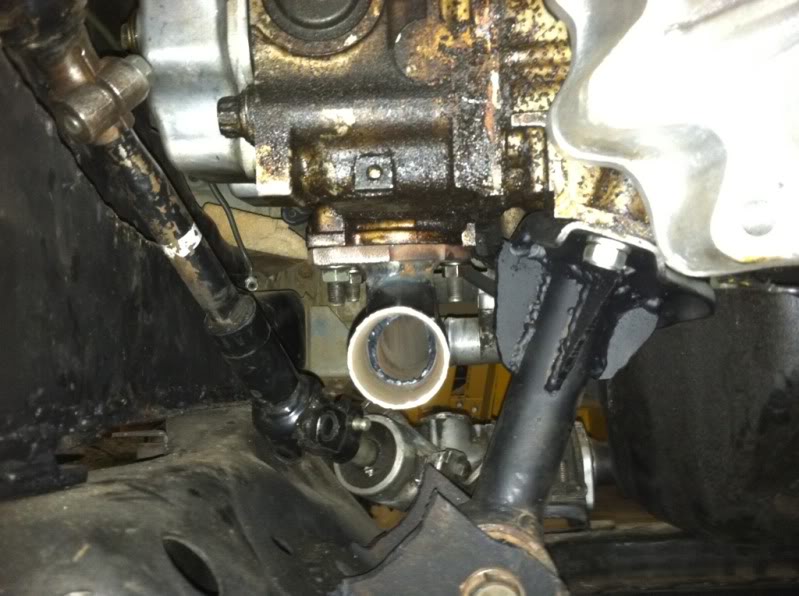

after a couple of hours i came away with this.
it's not finished welded yet, but it's all tacked in real good so it's not coming apart. going to do some bracing around the tube to make it way stronger then it needs to be, but that's how i like to build my stuff, overkill.
but regardless i did get my motor as squared up as some guy in his garage probably really can. sinched it all down with some ratchet straps so it wouldn't move around and started to work on the mounts.
after a couple of hours i came away with this.
it's not finished welded yet, but it's all tacked in real good so it's not coming apart. going to do some bracing around the tube to make it way stronger then it needs to be, but that's how i like to build my stuff, overkill.
Last edited by mellow65; 07-22-17 at 10:08 PM.
08-26-11, 09:52 PM
#62
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts
more pics, because everyone loves pics.

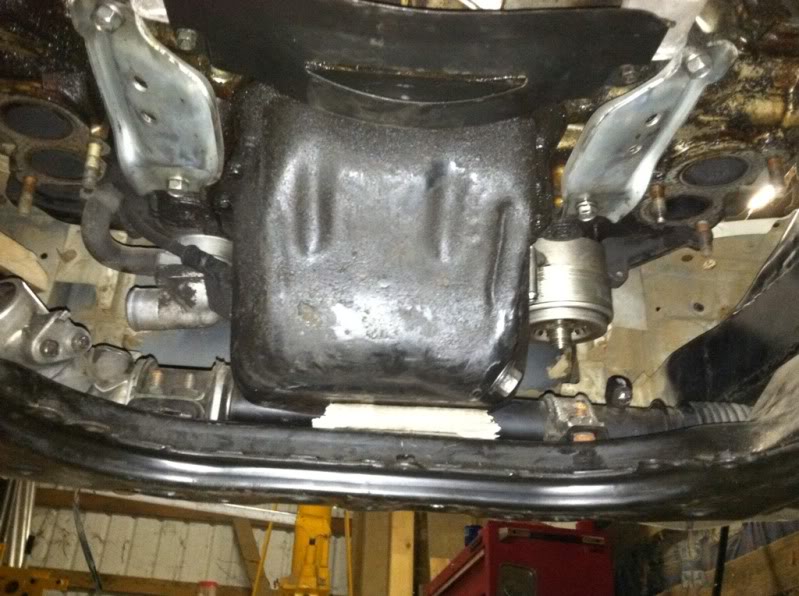

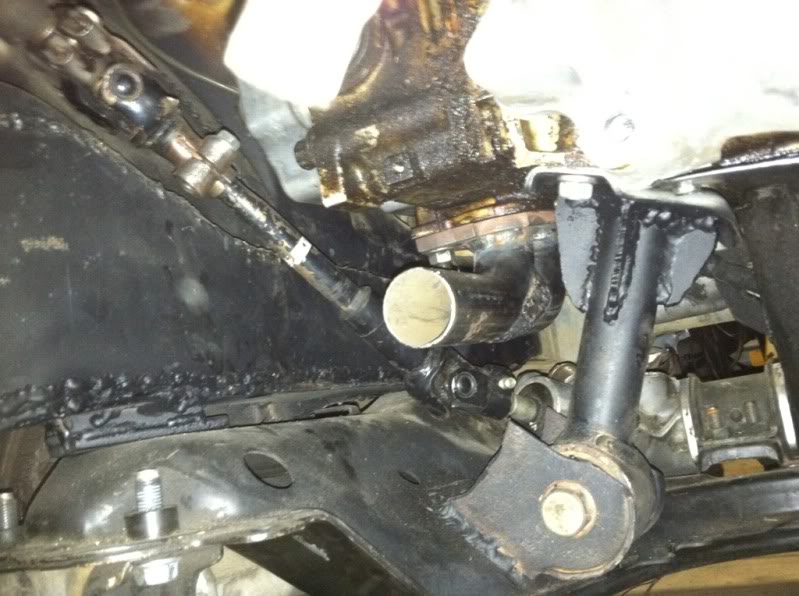

got my mounts all finished up today, got the tabs welded to the sub frame
bolted them on and crossed my fingers that i hadn't messed up some how.

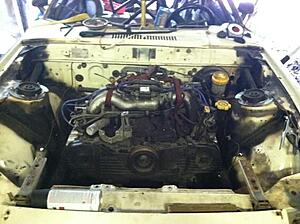

after some push and pulling and getting things lined up i took a step back and had a big **** eating grin. look ma, no hands. it's kind of wrong how well it fit in there, but i'll take what i can get.
couple other things that i learned today that made this an even more bad *** swap.
1: the hood closes with no trimming.
and 2: the stock radiator and shroud will fit. the only down side is the bottom hole on the rad is on the wrong side, but i'll figure out how to deal with that later.
more to come, but i have to go to a wedding tomorrow so no garage time, boooooooo.
got my mounts all finished up today, got the tabs welded to the sub frame
bolted them on and crossed my fingers that i hadn't messed up some how.
after some push and pulling and getting things lined up i took a step back and had a big **** eating grin. look ma, no hands. it's kind of wrong how well it fit in there, but i'll take what i can get.
couple other things that i learned today that made this an even more bad *** swap.
1: the hood closes with no trimming.
and 2: the stock radiator and shroud will fit. the only down side is the bottom hole on the rad is on the wrong side, but i'll figure out how to deal with that later.
more to come, but i have to go to a wedding tomorrow so no garage time, boooooooo.
Last edited by mellow65; 07-22-17 at 10:10 PM.
08-29-11, 01:09 PM
#64
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts
thanks, i'm pretty happy with how well this has not brought people into an ALL CAPS RAGE because it wont have a rotary in it. regardless how people feel, i always figure credit has to be given for thinking outside of the box.
at least it's not a some v8 swap.
got some more time out in the garage yesterday, got my rear caliper brackets all shimmed and centered up. I bent up my hard lines and trying to figure out what i'm going to use for soft lines.
Does anyone know if you can just get FB rear brake lines in braided steel by themselves, or do i have to buy a whole kit?

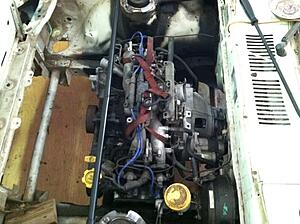

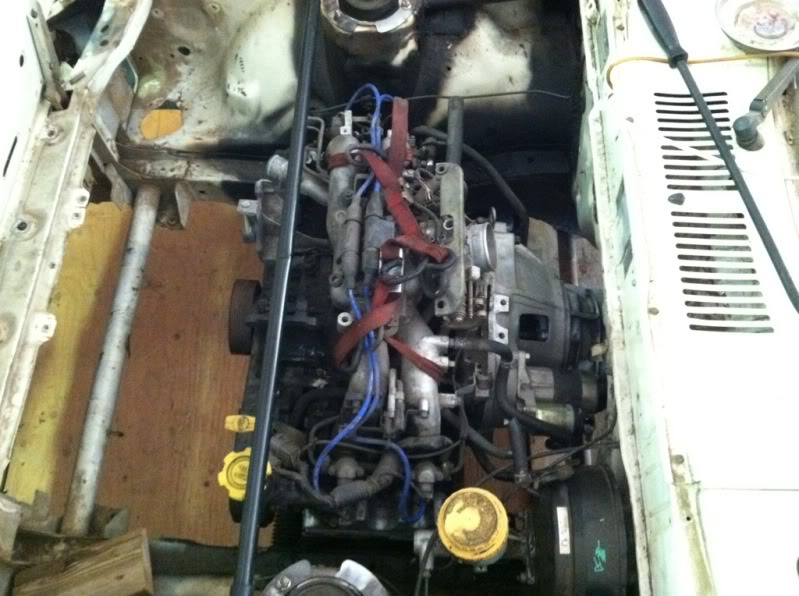

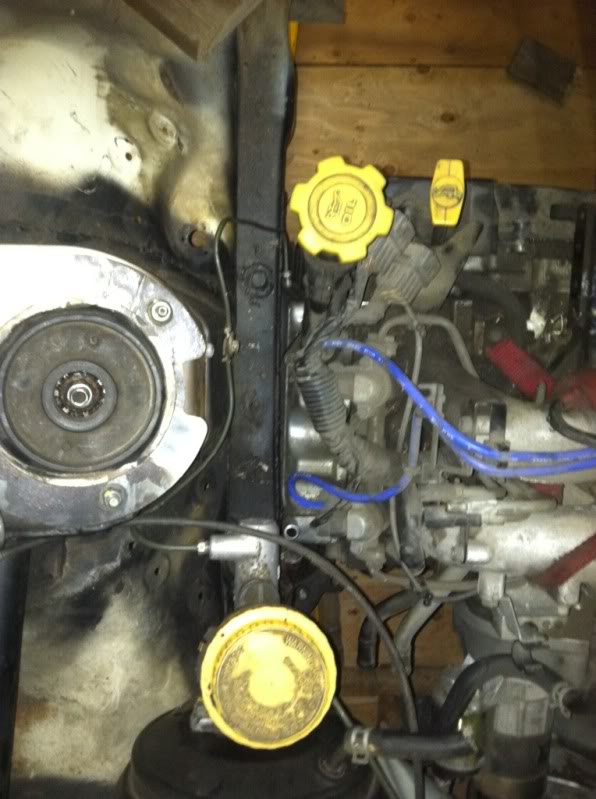

thought i would at least share a pic i took for another forum. the pole across the engine bay is the front axle center line. and a large chunk of the motor is behind it. I think that counts as a mid engine right?
at least it's not a some v8 swap.
got some more time out in the garage yesterday, got my rear caliper brackets all shimmed and centered up. I bent up my hard lines and trying to figure out what i'm going to use for soft lines.
Does anyone know if you can just get FB rear brake lines in braided steel by themselves, or do i have to buy a whole kit?
thought i would at least share a pic i took for another forum. the pole across the engine bay is the front axle center line. and a large chunk of the motor is behind it. I think that counts as a mid engine right?
Last edited by mellow65; 07-22-17 at 10:10 PM.
08-31-11, 01:42 AM
#68
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

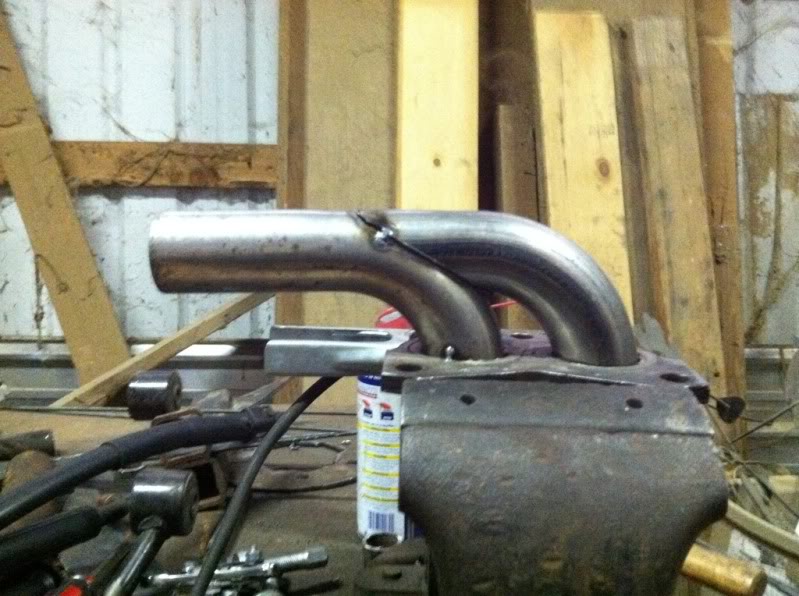

got some more time out in the garage today, yesterday i swear i spent most of the day running around snagging parts, and dropping crap off. but after getting some tube bends for my header, dropping off my drive line to be shortened, and getting a bunch of brake fittings so i can finishing running my hard lines i got some time to get my drivers side header done.
i should have more time tomorrow now that i have all my tubing to finish the passenger header and bring them all together. and then some brake lines, and then about a million other things.
Last edited by mellow65; 07-22-17 at 10:12 PM.
08-31-11, 06:33 PM
#71
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts
Well ok since you asked so nicely,
Here's a picture of my cat
Heres a sweet deck that I built
If you want some thing specific just ask, I'm taking pics and posting them pretty much as I do them.
Today's project is finishing the header, needed to run up and get an O2 bung so I can weld it in
I'll post pics of it later today.
08-31-11, 11:17 PM
#73
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

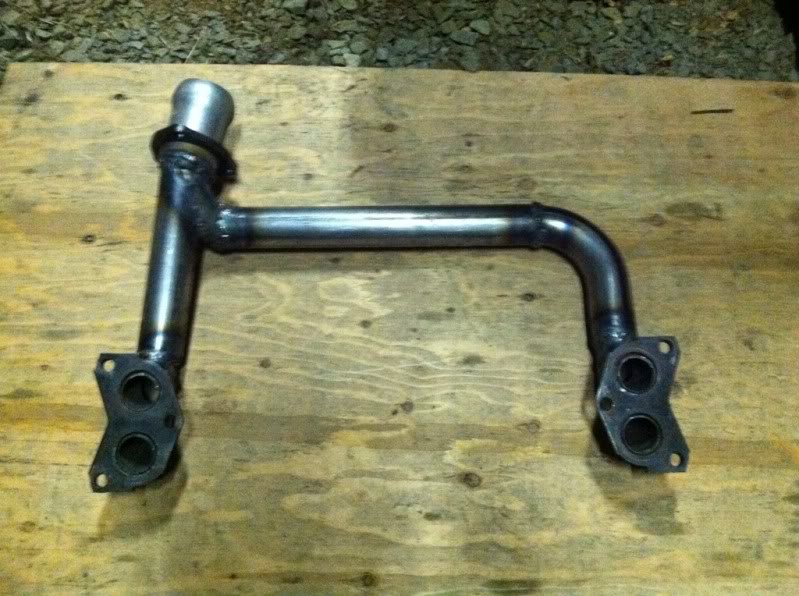

any who, got the other side exhaust done, ran some pipe between them brought them together into a flange that I can build the rest of the exhaust off of.
only thing not in the picture was the O2 bung, and it wasn't until i looked at the picture and realized that i forgot to put it in.
tomorrow i'm going to dress up the welds, see if i can figure a way to check if i have any leaks at the welds, and then put it in it final resting place.
Last edited by mellow65; 07-22-17 at 10:13 PM.
09-02-11, 02:03 PM
#75
Full Member
Thread Starter
iTrader: (2)
Join Date: Jun 2006
Location: Portland OR
Posts: 244
Likes: 0
Received 0 Likes
on
0 Posts

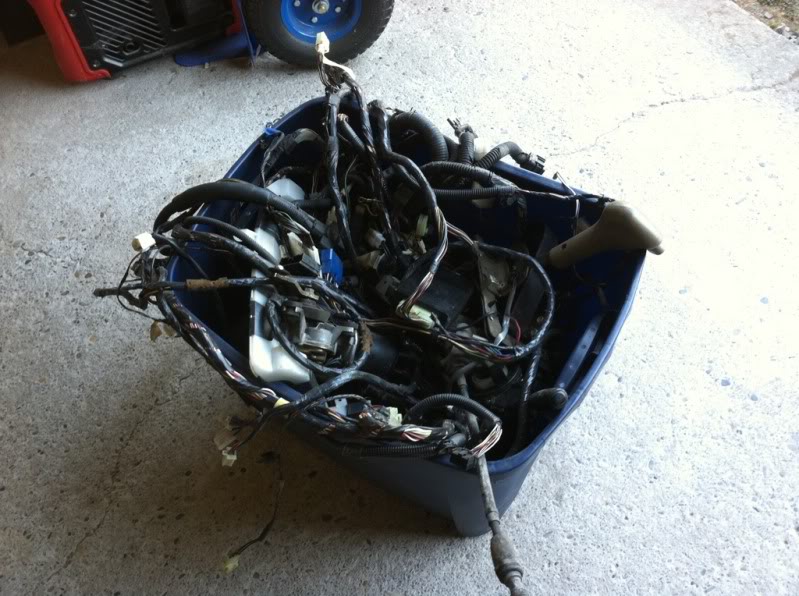

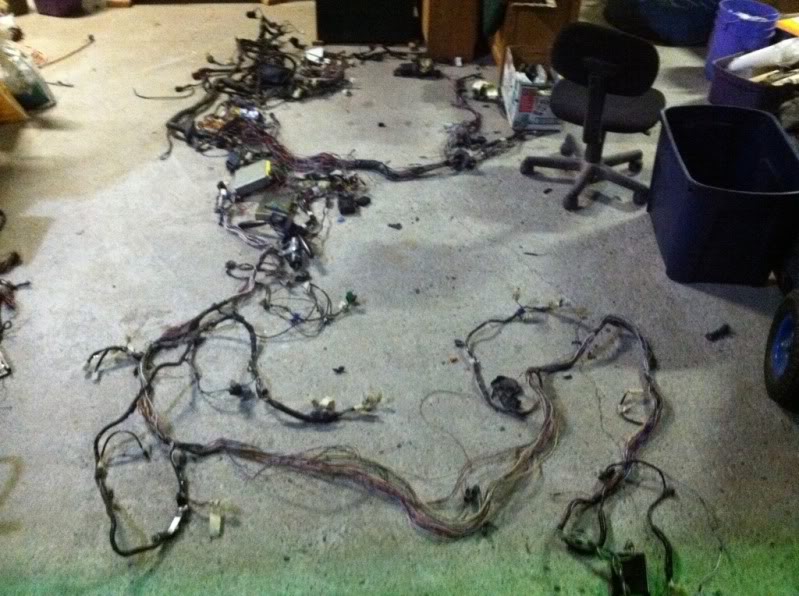

have i ever mentioned i hate wiring
going through and removing stuff i dont need, still a bunch to do but it is getting smaller.
going through and removing stuff i dont need, still a bunch to do but it is getting smaller.
Last edited by mellow65; 07-22-17 at 10:13 PM.
