Cookboy

iTrader: (10)

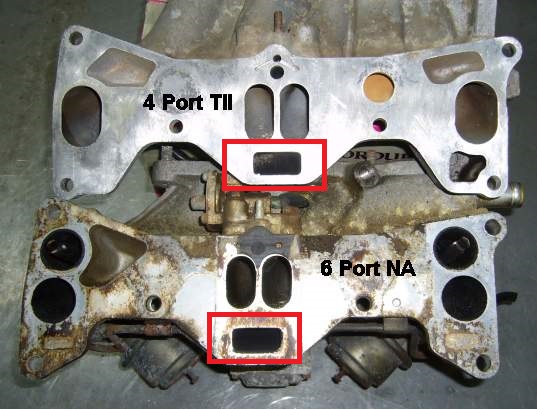

What he's saying is the passage from the front, (small rectangle opening at bottom) as well as the coolant passages in the manifold, should be filled with quiksteel or equivalent when coolant passages from the block are plugged. Failure to do so will superheat the manifold.

Posting this merely because it seems to this reader that the question is unanswered.

Coltdaddy47

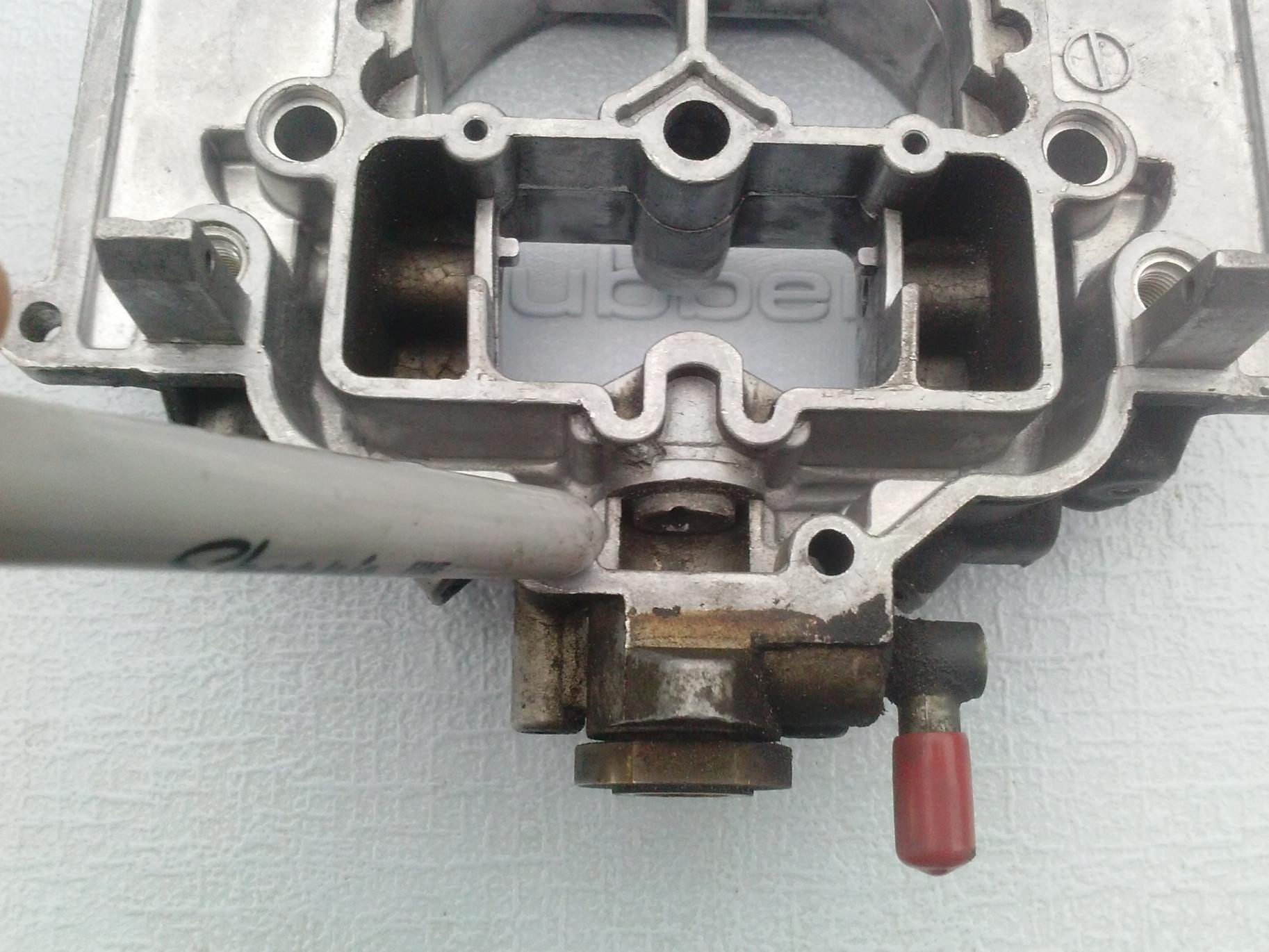

The hole in the block needs to be filled in is what their saying. The solonoid you wired in is probally causing the car not to start. If its not wired in to the factory harness then unhook it and cut the plunger out. The pic shows what im talking about. Then you can put a bolt, the old solenoid, or those screw cap thingys in there.

Shrimp

Ah... So these things:



Do I need to seal it on the engine block or the manifold?

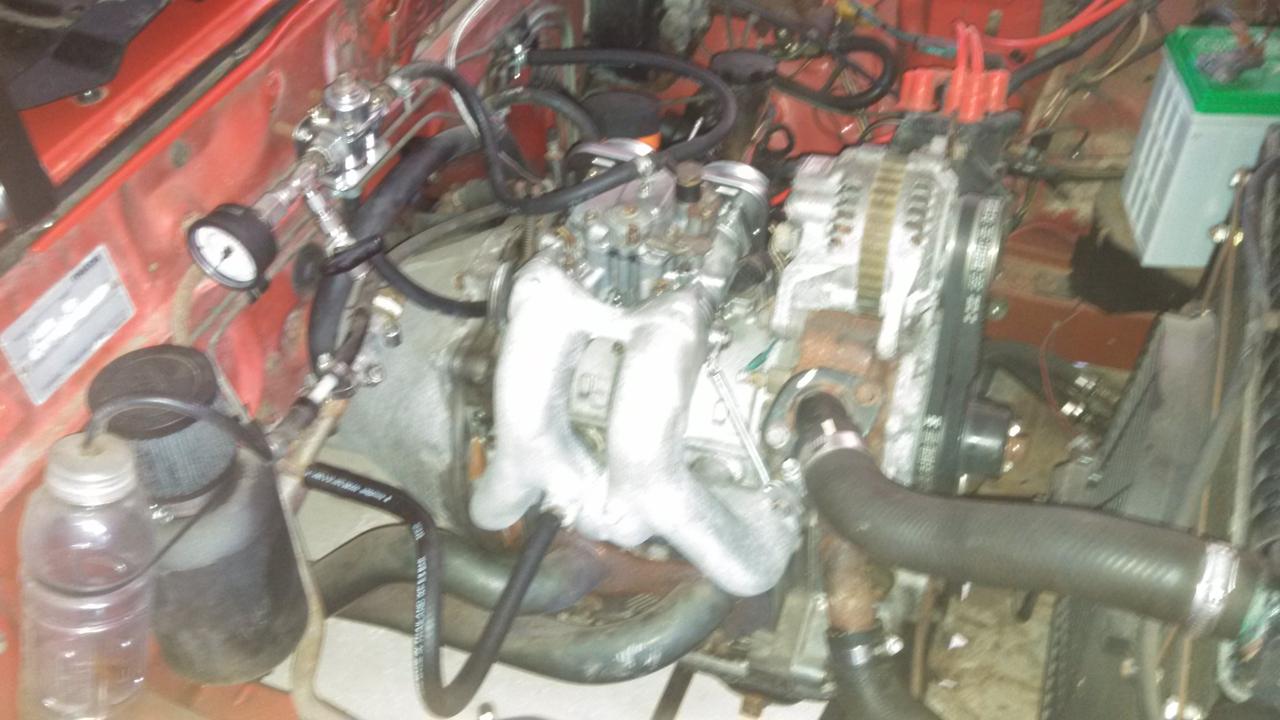

As for what I did today... I figured I would cut some new gaskets for the Mikuni manifold (both between the manifold and engine and the carb and manifold). Got it put back together and I put it on the car (easy at this point to hot swap them). Figured if I could get it started then something was wrong with the Nikki, but I can't get the Mikuni to run anymore either so I don't know what's wrong at this point.

I disconnected the fuel input and made sure I had fuel coming out, no problem there, and 3lbs through the regulator. I had to block off the return line, it does do too well on the mikuni since it doesn't have to run through the carb to return, it's just a T line and the pump can't put out more than 2 lbs with the return hooked up.


EDIT: Went back and looked at the videos I have of the Mikuni running. One of the ports was open when it was working and I had it blocked off. Opened it up and it started and idled, worked the throttle a bit and it started running lumpy and the engine was shaking badly, worked the throttle a little more and got backfire in the carb. Going to re-read the tuning manual I was reading earlier today.

Shrimp

Man this is frustrating... Everything appears to be correct. I checked the float level and reset it to 12-12.5mm it was like 1mm off or so, and I checked the seal on the starter system, no problem there... I even stretched the spring a bit to give it a little more pushing power to seal.

No clue what is wrong... It's getting fuel for sure and when I use the starter it wants to start up so bad it's almost like it's idling at 100-200rpm when I am trying to start it.

Coltdaddy47

Yes fill in that port that it matches to on the block.

Jeff20B

iTrader: (13)

Yes, fill the "block" side.

Shrimp

Gotcha, I'll do that next then. The manifold on the mikuni has no coolant ports and no acv port actually. Should I still fill it?

DreamInRotary

iTrader: (49)

Gotta ask about the roll cage, was it pre-installed I'm assuming? I really like the look of it and it appears to be removable which would be an awesome feature. Something like 6 point?

Anyways, awesome carb work and cool build!

Shrimp

Yeah, the cage was in it when I bought it. It is bolt-in only because spec Rx-7 does not allow for weld-in cages.

DreamInRotary

iTrader: (49)

Nice! Looks well-constructed and nicely done. If you have any more pics feel free to share, I like the bolt-in idea..

Jeff20B

iTrader: (13)

You should. Aluminum transfers heat far easier than iron so filling the ACV port will keep your manifold that much cooler.

Shrimp

I guess if you were running the Mikuni you'd have to fill the port then since there is no coolant ports on the manifold and the ACV is blocked off as well.

The manifold on the mikuni actually runs cool near the carb, cold almost, but I think this is just the fuel cooling it off.

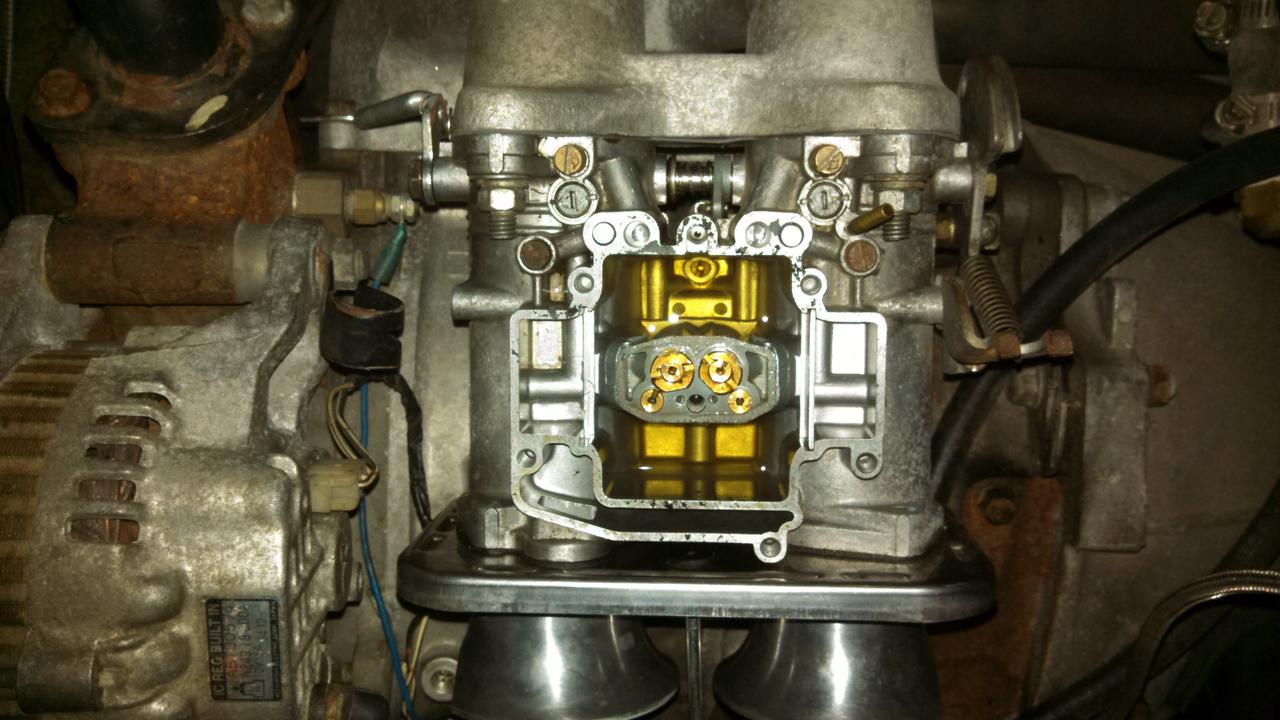

So if you are using a manifold like this:



It's basically mandatory to fill the acv port on the block?

Shrimp

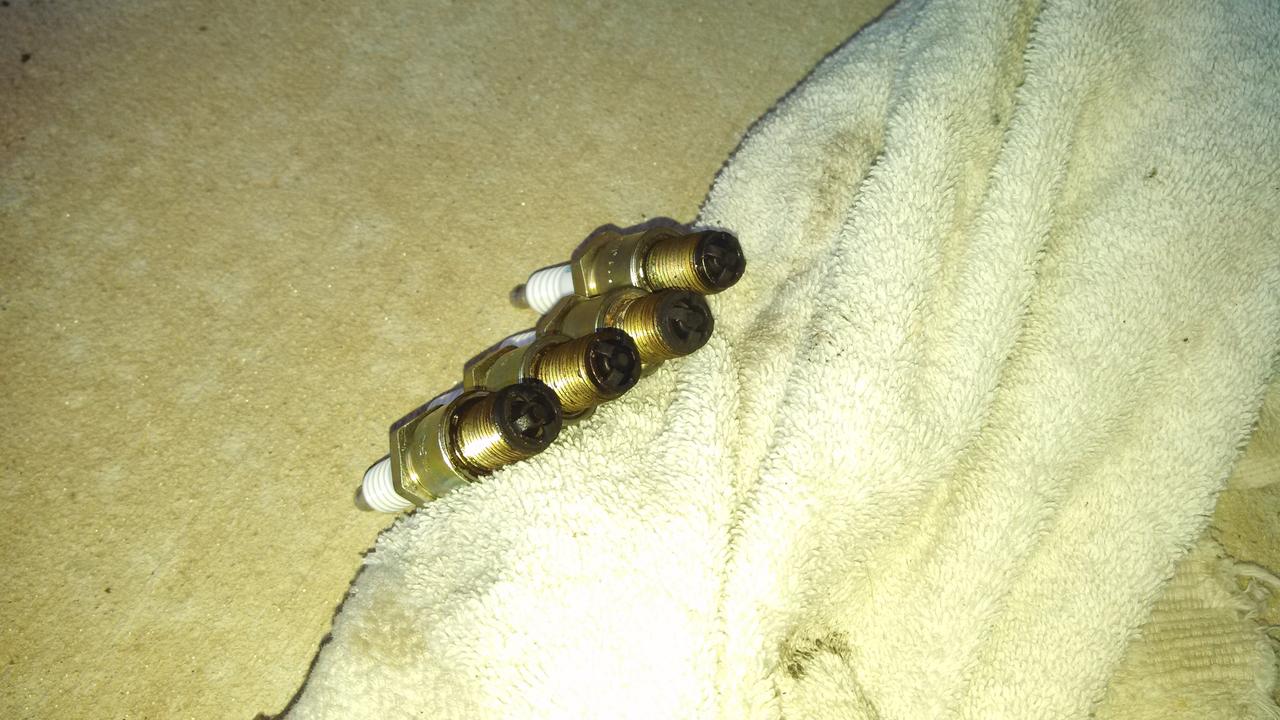

Spark plug tips are black and there is fuel vapor coming out the exhaust. I think I am flooding with the Mikuni, I just don't know why.

Shrimp

Forum... y u no hab edit for me!?

Only forum I use that locks me out of editing after a certain amount of time.








Are these still good? My guess would be no, but again, I'm no car expert. This is my first project car.



I've been looking for tuning info to get me started. I read the process in the Mikuni manual and it's extremely straight forward. Get the car running, test drive, based on conditions re-jet. Problem is step 1 for me right now. Getting it running.

Step two would be re-jetting and I have no clue where to start. What size inner/outer venturi should I be running in hot Louisina weather for a 12a with no porting work done, same for the main jet, pilot jet, and main air jet.

I can source the parts from Wolf Creek Racing it seems... They are expensive though...

Shrimp

After reading the "End all for my Rx-7 won't start" thread... I took the plugs out and turned over the engine. There are "clouds of fuel" coming out, not sure if this means flooding as it didn't say that. It just said "observe if clouds of fuel are coming out". Based on the description of the sound it's supposed to make I would have to say the seals are still good.

MazdaMike02

iTrader: (4)

Thats exactly what flooding is. Its flooded. The Carb is tuned way rich.

Shrimp

So I shouldn't see the fuel coming out the engine then? The mix should be lean enough to be clear and still smell of fuel?

Shrimp

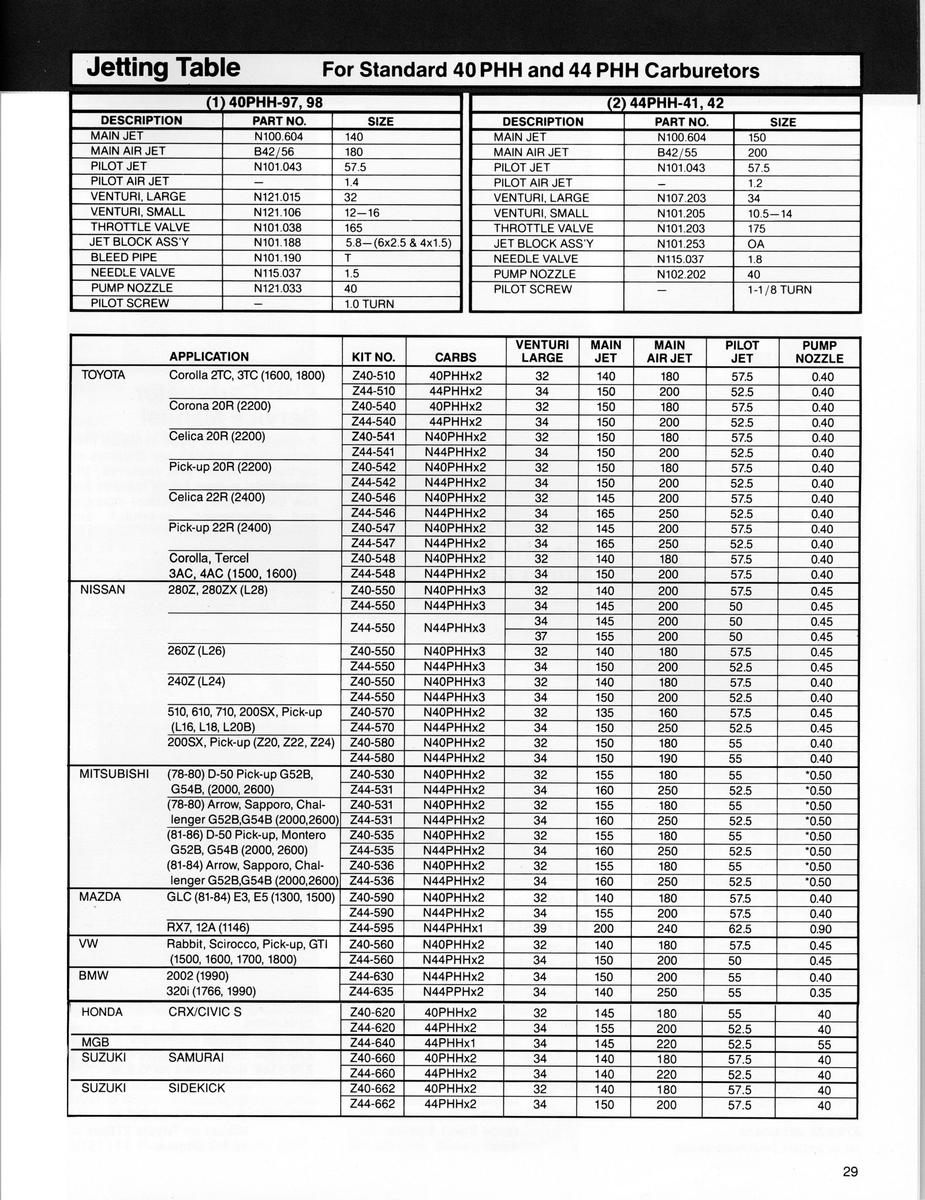

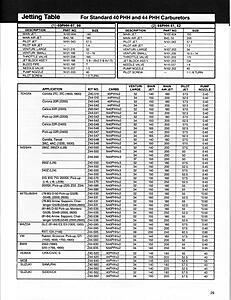

I found this page on mikunipower.com that has jetting info for the 12a apparently.



Gonna check the jetting around lunch time and see what I got inside.

Also, something that got me thinking was the solution to a flooded engine was to add oil where the spark plug goes to restore compression... I believe this engine has had the oil metering pump removed. Does that require me to run a heavier premix of oil than the Idemitsu premix recommends (1/2 oz per gallon). Once I figure the jetting out, what would be my next step? Clean or get new spark plugs and put a small amount of oil in the plug holes to restore compression (as stated in the guide)?

MazdaMike02

iTrader: (4)

Dude your all over the place man, and don't have a lot of correct information.
The engine is flooding either due to low compression or the carb is tuned too rich. If its flooding out at low rpm and idle I would lean out the idle/low speed jets and go from there.

To deflood yeah a couple teaspoons of oil will help to restore compression. With all the plugs out disable spark and fuel and crank the engine until no more fuel comes out the exhaust ports. Replace the spark plugs...theyre inexpensive..might want to get FC plugs as they are a better design.

And the premix ratio is proper for OMP disabled..you don't premix with a functioning omp..

Shrimp

Yeah I am a bit all over the place, kinda, but due to going from modding the nikki to swapping to the mikuni. I changed my mind partly due to the time I am spending on this project. I figure if I am going to put a lot of time into tuning this thing properly I may as well do it with something that is for one easier to work on and two should perform better.

My next step is to check the jetting on the carb and compare it with the mikuni recommendations above to figure out where to start. Pilot jet is what I need to start with, I believe, to get the car running at least (if jetting is the problem). The pilot jet is used to regulate the fuel from fully closed to 20% throttle so if I am flooding while cranking that's the jet I need to change, right? And is compression is the problem.. well.. that's a bigger problem, but I don't think it's that. As for what jets to get, based on the available sizes and the recommended jets for the 12a, I'd have to imagine I should just get smaller jets than what I have. For instance, 210 is the largest main jet they make and 200 is the recommended jet for the 12a and they are in increments of 5.

Shrimp

The recommended jets according to Mikuni are:

Main Jet: 200
Main Air Jet: 240
Pilot Jet: 62.5
Pump Nozzle: 0.90

What is inside the Mikuni right now:

Main Jet: 200
Main Air Jet: 190
Pilot Jet: 62.5
Pump Nozzle: 0.90

So I have the "recommended" pilot jet in there right now but the Main Air Jet is too small. This regulates the supply of air and should affect the flow of fuel at medium to high speed driving so it shouldn't be the flooding problem (I am guessing, correct me if I am wrong please. I am still learning). Looking for guidance.

j9fd3s

iTrader: (3)

yep, main air jet is a bleed for the main air jet, so it isn't really doing anything under 2000rpm.

have you tried the float level? fuel pressure? idle mixture?

Shrimp

The idle mixture (I think this is the Pilot Screw, right?) is set to 1 1/8 turn as per the Mikuni guidelines. Everything I have read says if it's not within 1/2 turn of 1 1/8 turns then the jetting is wrong.

I checked the float level. It needs to be between 12-12.5mm. It appeared to be within spec based on a tape measure conversion from mm to in (0.4822" = 12.25mm) but I will double check this with a set of calipers.

As I understand the procedure to be:

You take the float system out of the carb and leave it attached to the upper mounting plate. You put it on a very slight angle so the float arm just comes in contact with the needle valve but DOES NOT compress the needle valve spring. Measure the distance between the float and the upper mounting plate and make changes with the set screw, 1 turn = 2mm.



On top of this I checked to make sure the floats weren't sticking. The pin that holds them in is in great condition and there is no resistance when actuating the float.

Fuel pressure is recommended from 2.84 PSI to 4.98 PSI. I am currently running 3 PSI to the carb (with the return line hooked up).

Shrimp

I re-checked the float level, it was around 13.5mm, so a little low, I rest it to 12.28mm, right between 12 and 12.5.

I also removed the jets and made sure there was no blockage. The pilot screws look slightly malformed on the tips. As if they are shrunk in. Like someone tightened the ever living fudge out of them. Should I replace?

Also, how should I go about filling the ACV port on the block? Just leave the engine in the car and clean it out then fill it with quicksilver?

Shrimp

New plugs will be in tomorrow morning.

One thing I didn't use were the silicon spacer/gasket, I had made a paper gasket, I am gonna put the silicone ones back on... The o-rings looked a little flat, I may order some new ones.

I put a little oil in the bottom spark plug hole of each rotor housing and carefully re-assembled the carb and put it back on. I double checked where the pilot screws bottom out at without the spring (4.5mm) and made sure they went down that far before backing them off 1 1/8 turn. I used the starter system and the car really wanted to start. I didn't try to start it but twice because it was getting late and the car is ridiculously loud. I need to figure out a way to work on the car without annoying the neighbors as much.
