taylor177

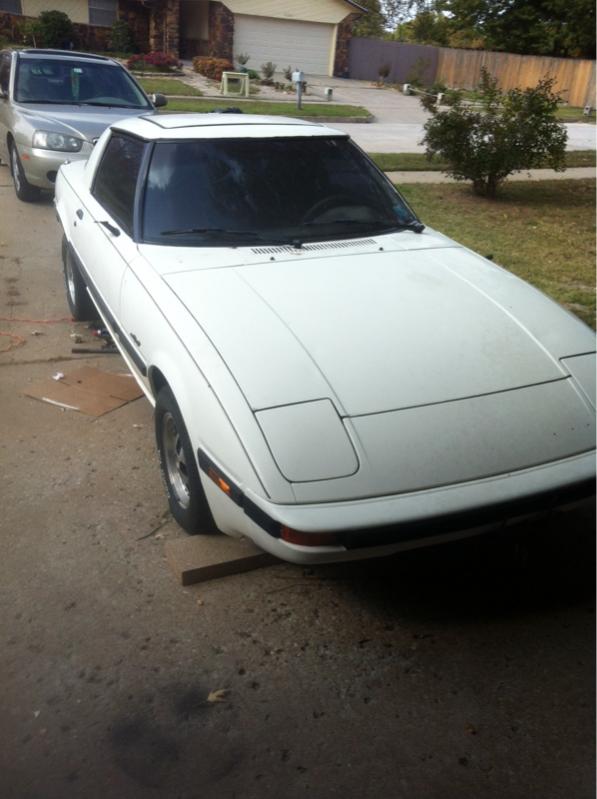

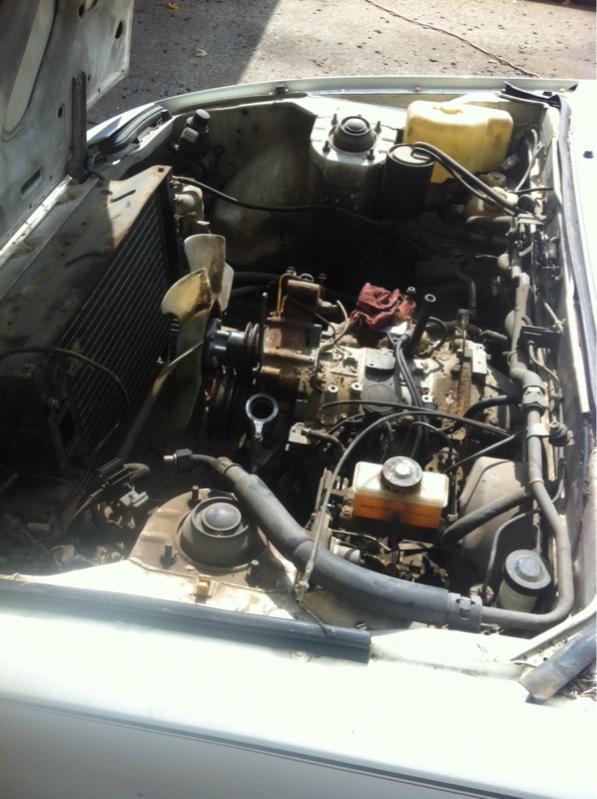

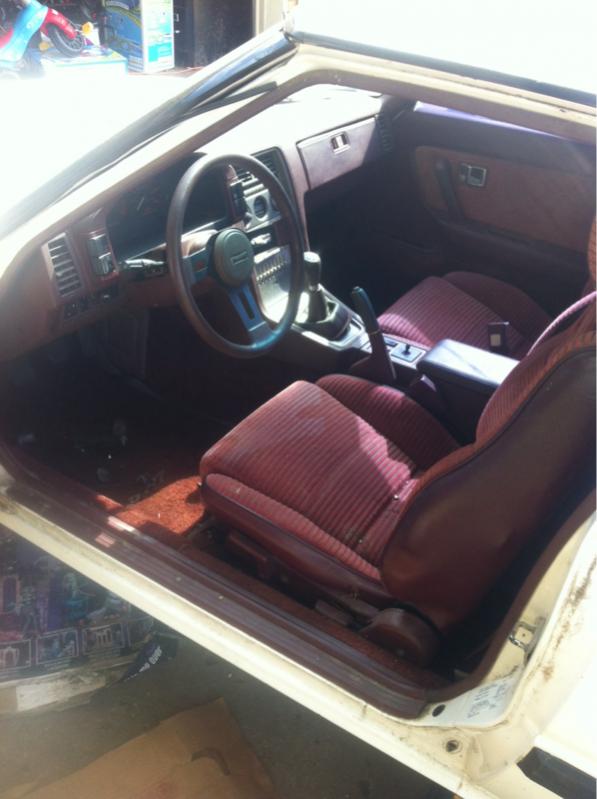

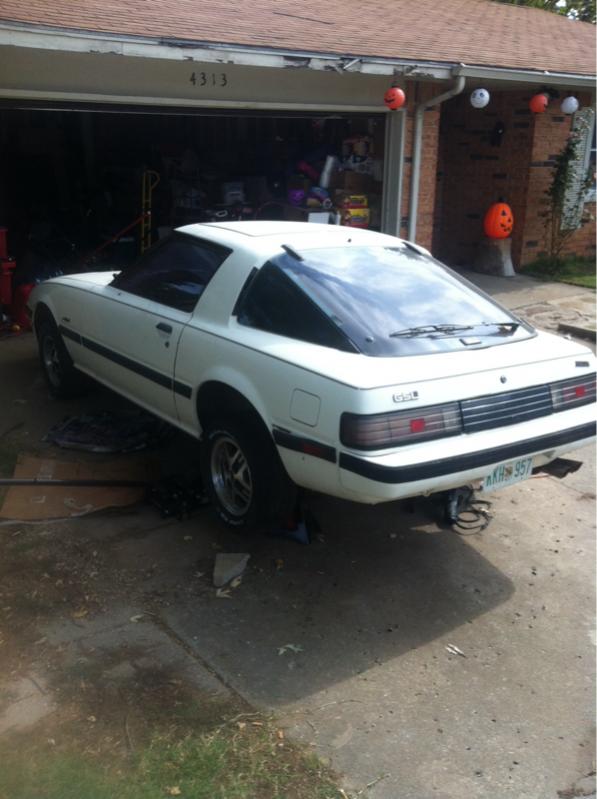

Starting my project of swapping a 12a out with the s5 13bt. Picked this up for $300. Will be pulling the engine this week.

boostedHULK

iTrader: (1)

What kinda plans do u have for the swap? Running stock turbo and ecu or stand alone? Should be a fun little project. Good luck!

taylor177

For now I'm goin to run stock turbo and ecu. I have a buddy of mine with an mk3 supra that I'm determined to look like a Prius after I'm done with my project thought. Haha

DreamInRotary

iTrader: (49)

I have done this swap myself as well. Takes some time and a few headaches but is definitely worth it in the end.

Here's the video that I made for the swap, you can see my other ones as well if you're interested.

taylor177

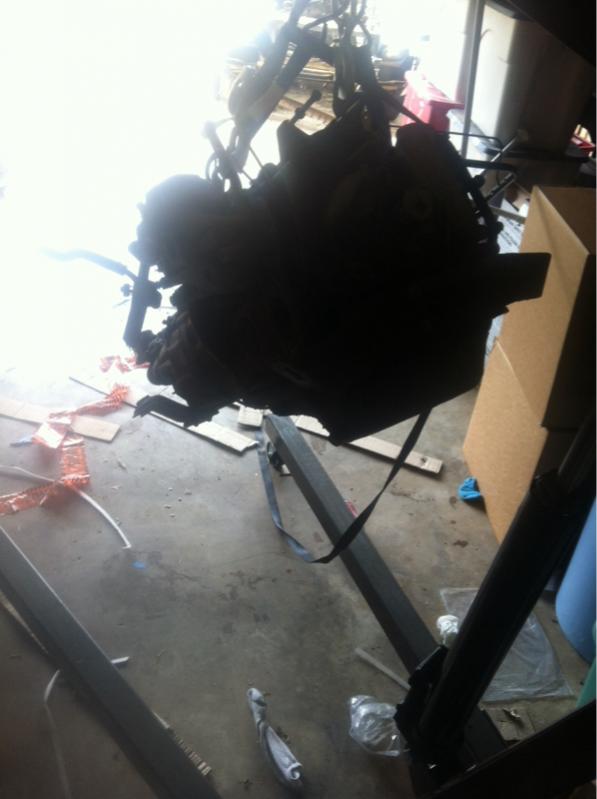

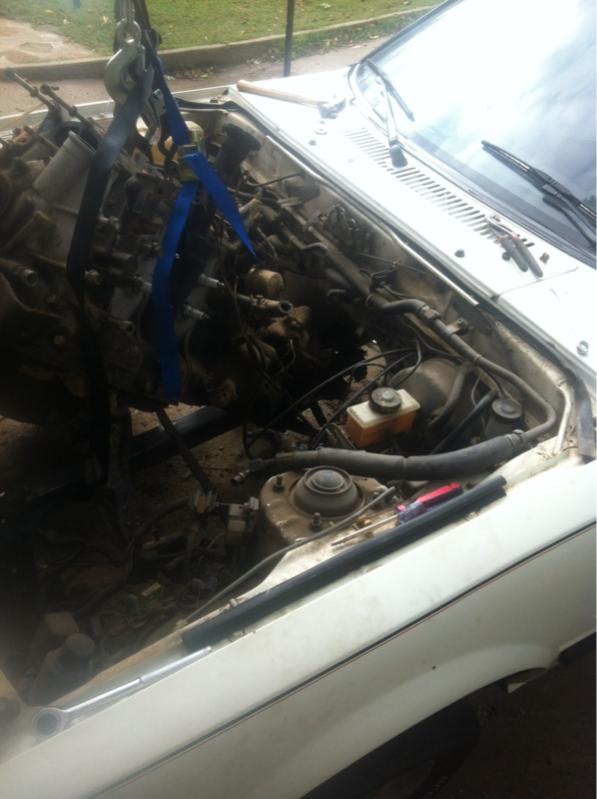

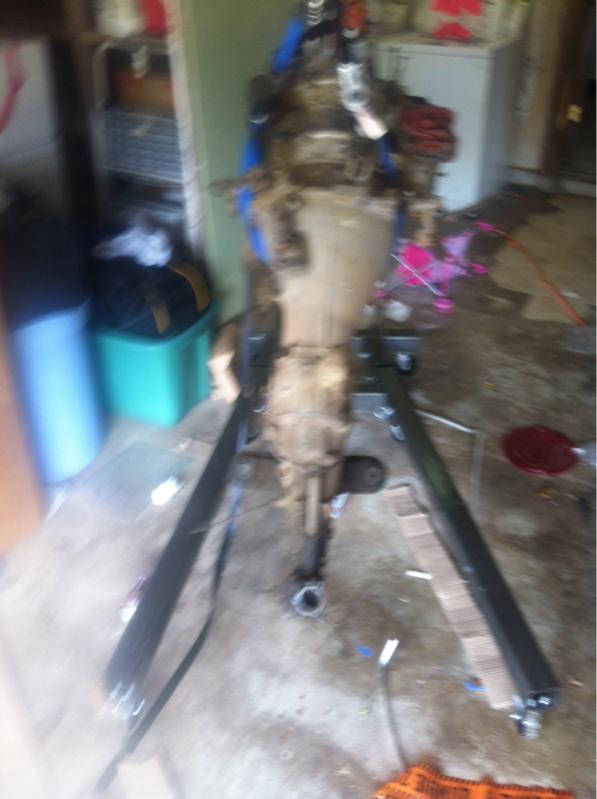

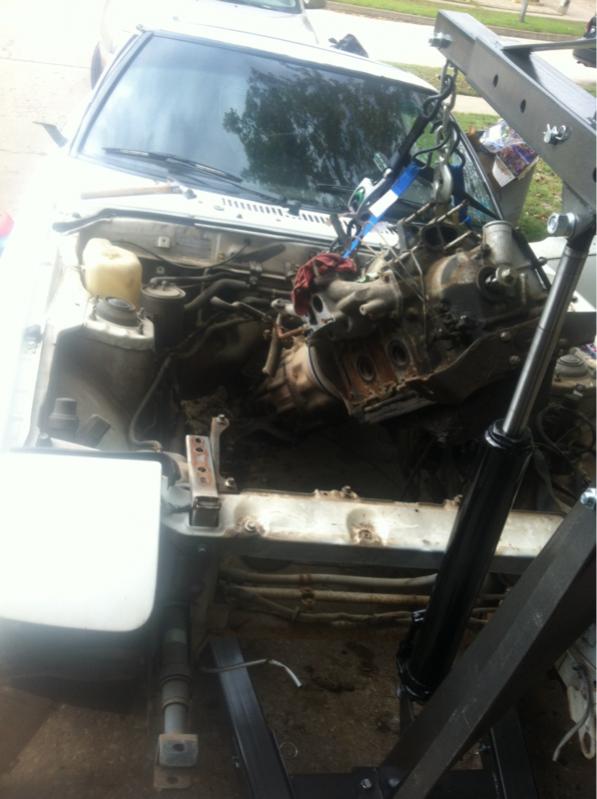

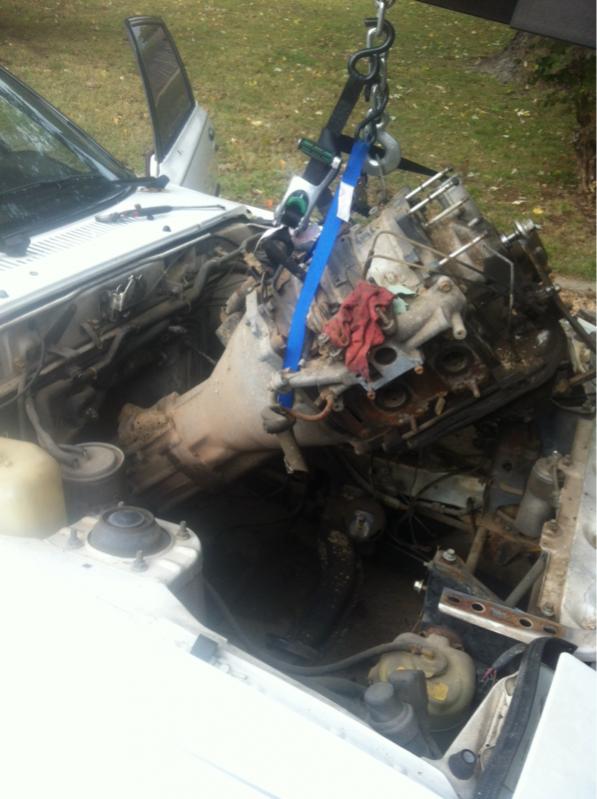

Finished pulling the engine today. Gonna take the good parts and sell them to put back into the project

placd1

iTrader: (3)

Great project, going to keep my eye on this.

taylor177

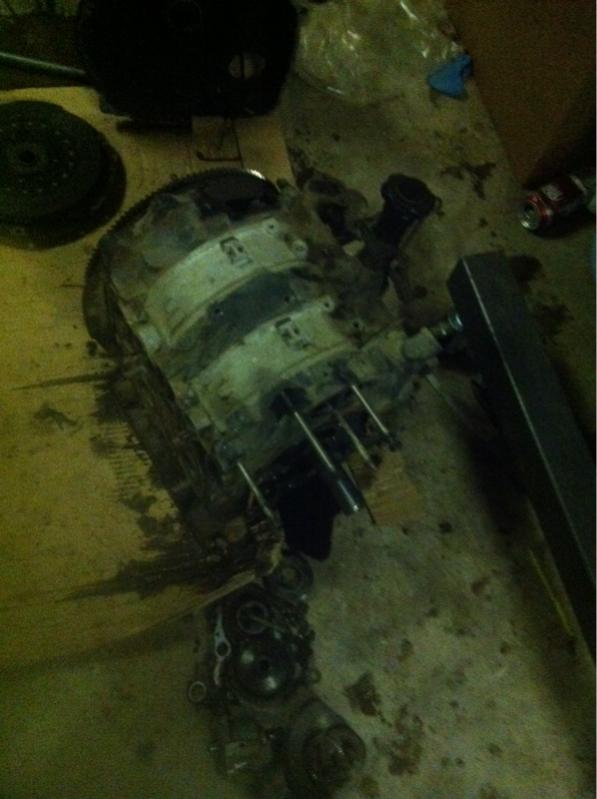

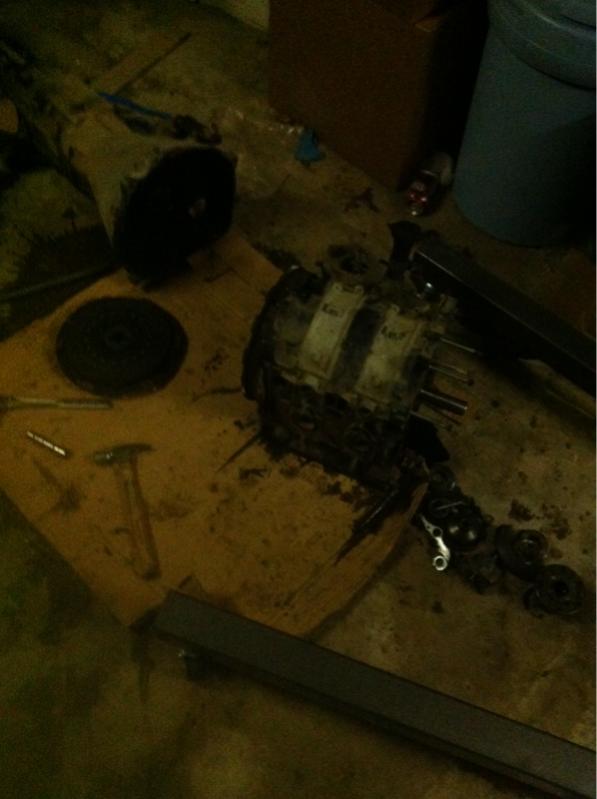

Started breaking down the engine, but was stopped by the giant flywheel nut. Gotta wait to order that from mazdatrix, but more to come soon!

taylor177

So to those of you that have accomplished this swap before, I have a question. I will be obtaining the s5 transmission with the engine, so I know this will be slightly larger than the 12a. Would you be able to point me in the right direction for mounting the tranny? Thanks!

rotorican85

iTrader: (9)

if you dont mind doing some odds and ends swap, use a S4 tranny rear cone on the tranny. using the flat mount cone will allow you to bolt the tranny right in. however, putting a s4 cone on a s5 tranny requires some very careful grinding to a section on the inside where the counterweight of the tranny is. you'll find the spot real quick when fitting the cone. take your time doing this, it will be a fit, grind, sand, fit, take off, sand, fit take off again type of thing.

or just use a s4 tranny. only difference is the 5th gear ratio, not enough to make a significant difference.

mine bolts right in using the fb mount, a stock fb tranny mount with holes opened up, and a thick set of rubber mounts and washers on the crossmember. sounds complicated, but it really isn't.

there'sno going back once you turbo an fb....mine runs an fd motor with a garrett gt4094r....like free heroin for an addict!!

taylor177

Awesome so it have not purchased the engine/ tranny yet, so I will aim for an s4 tranny instead. Being a turbo charged car, 5th gear will not be as important to me anyways haha

DreamInRotary

iTrader: (49)

This is the way to go to make it easier. 82transam may chime in here soon about his S5 TII transmission in his car. It doesn't look too much more difficult but putting the S4 TII in mine was pretty easy as stated above. Just widen the holes and custom mount the thing.

It is super addictive - I'm already planning my next build after college

taylor177

Yeah based on research, it seems like lining up the shifter will be much more difficult then actually doing the mount itself.

rotorican85

iTrader: (9)

the shifter on mine sits just about the same location as the stock 85 gel-se trans did. it's only back about 1/4 to maybe 1/2 inch.

taylor177

Do you happen to know if the shifter position will be the same with the GSL? I don't have an SE.

rotorican85

iTrader: (9)

Should be the same. Chassis is the same.

taylor177

Ok that's what I thought. So were you able to get away without drilling and tapping the shift rod?

rotorican85

iTrader: (9)

Yup. Almost in stock location. I can post pics tonite.

taylor177

Whew! That makes me feel much better! Thanks!!
