My first Rx7, Doing it Right
Well i picked up my first Rx7 in late May this year nearly bone stock with some needed TLC.
Car:
roughly 86k
and 15k on a reman in the car.
stock aside from the PFC, Intake, and turbo back exhaust.
Car would not run over 4.5k rpm due to a random fuel cut because the prior owners suck.
My overall plans for the car are to make it a fast "highway" car as well as a fun car for a few track days a year.
I bought the car with the intentions of going with a large single turbo and solid fuel system.
Shortly after buying the car I started talking with Robert (3rdgensleeper, theBuilder and Fabricator- I was the assistant) about the steps i wanted to take on building the car to my expectations. This prompted me to bust out the credit card
I took the car over to Roberts and we got started removing basically everything in the engine bay. Fortunately parts started rolling out of Robert build that he no longer needed, but would work perfectly in my build so this saved me bit.
Roberts first words of advice for the build was to ditch the PFC, and go with the big boys ECU.... The Adaptronic ( Thanks Elliot at Turblown/Turbosource for the ECU!!)
So Current mod list to the car are as Follows ---
-Adaptronic ECU
-4 AEM Smart Coils
-S366 Turbo
-FFE rails with ID2000 sec and ID1000 prim
-E85
-single 340 stealth in tank
-Custom Surge tank with 2 Bosch 044s ( thanks Robert)
-Custom V-ish IC setup (again Thanks Robert)
- 8AN feed from surge tank with Fuel Lab Filter to Fuel rails
- 6AN return from FPR to surge tank
-Flex Fuel Sensor
-Ceramic coated turbo, UIM, LIM, Water pump housing.
-Cleaned up harness and removed all rats nest parts.
-ACT 6 Puck disc and Extreme PP
-ACT pro-light flywheel
-Relocated battery to the rear
-Solid Motor mounts
-Greddy Oil Catch Can
-Pettit AST
-AN Fittings FOR DAYS!
More to come as i remember
Pics to Follow as they are uploading to PhotoBucket
Car:
roughly 86k
and 15k on a reman in the car.
stock aside from the PFC, Intake, and turbo back exhaust.
Car would not run over 4.5k rpm due to a random fuel cut because the prior owners suck.
My overall plans for the car are to make it a fast "highway" car as well as a fun car for a few track days a year.
I bought the car with the intentions of going with a large single turbo and solid fuel system.
Shortly after buying the car I started talking with Robert (3rdgensleeper, theBuilder and Fabricator- I was the assistant
) about the steps i wanted to take on building the car to my expectations. This prompted me to bust out the credit card I took the car over to Roberts and we got started removing basically everything in the engine bay. Fortunately parts started rolling out of Robert build that he no longer needed, but would work perfectly in my build so this saved me bit.
Roberts first words of advice for the build was to ditch the PFC, and go with the big boys ECU.... The Adaptronic ( Thanks Elliot at Turblown/Turbosource for the ECU!!)
So Current mod list to the car are as Follows ---
-Adaptronic ECU
-4 AEM Smart Coils
-S366 Turbo
-FFE rails with ID2000 sec and ID1000 prim
-E85
-single 340 stealth in tank
-Custom Surge tank with 2 Bosch 044s ( thanks Robert)
-Custom V-ish IC setup
(again Thanks Robert)- 8AN feed from surge tank with Fuel Lab Filter to Fuel rails
- 6AN return from FPR to surge tank
-Flex Fuel Sensor
-Ceramic coated turbo, UIM, LIM, Water pump housing.
-Cleaned up harness and removed all rats nest parts.
-ACT 6 Puck disc and Extreme PP
-ACT pro-light flywheel
-Relocated battery to the rear
-Solid Motor mounts
-Greddy Oil Catch Can
-Pettit AST
-AN Fittings FOR DAYS!
More to come as i remember
Pics to Follow as they are uploading to PhotoBucket
09-01-13, 01:24 PM
#5
I love my FD
iTrader: (10)
Join Date: Aug 2003
Location: saint michael, MN
Posts: 907
Likes: 0
Received 0 Likes
on
0 Posts
I daily drove a FD with a half bridge for years with solid mounts. These cars are not meant to be luxury cars... I guess its preference but I personally love the feel of a solid mount gives you a ton more feedback to whats doing on under the hood. I was the one to recommend it to him, knowing full and well how they are on the street.
Robert
09-02-13, 01:23 PM
#7
Full Member
you driven with any?
I daily drove a FD with a half bridge for years with solid mounts. These cars are not meant to be luxury cars... I guess its preference but I personally love the feel of a solid mount gives you a ton more feedback to whats doing on under the hood. I was the one to recommend it to him, knowing full and well how they are on the street.
Robert
I daily drove a FD with a half bridge for years with solid mounts. These cars are not meant to be luxury cars... I guess its preference but I personally love the feel of a solid mount gives you a ton more feedback to whats doing on under the hood. I was the one to recommend it to him, knowing full and well how they are on the street.
Robert
Trending Topics
09-02-13, 11:11 PM
#8
I love my FD
iTrader: (10)
Join Date: Aug 2003
Location: saint michael, MN
Posts: 907
Likes: 0
Received 0 Likes
on
0 Posts
David- post the damn pics
09-03-13, 08:12 PM
#12
Junior Member
Thread Starter
Join Date: May 2013
Location: Minneapolis, MN
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
09-05-13, 12:50 PM
#13
Junior Member
Thread Starter
Join Date: May 2013
Location: Minneapolis, MN
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
So here's a few Pic's still have more i need to upload and organize a bit.
Starting with the day i bought the car

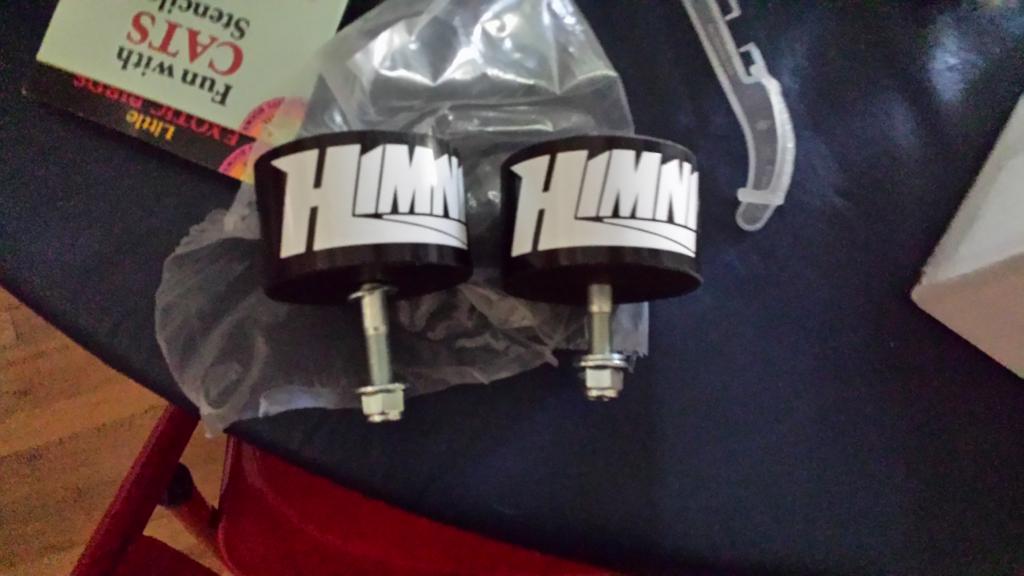

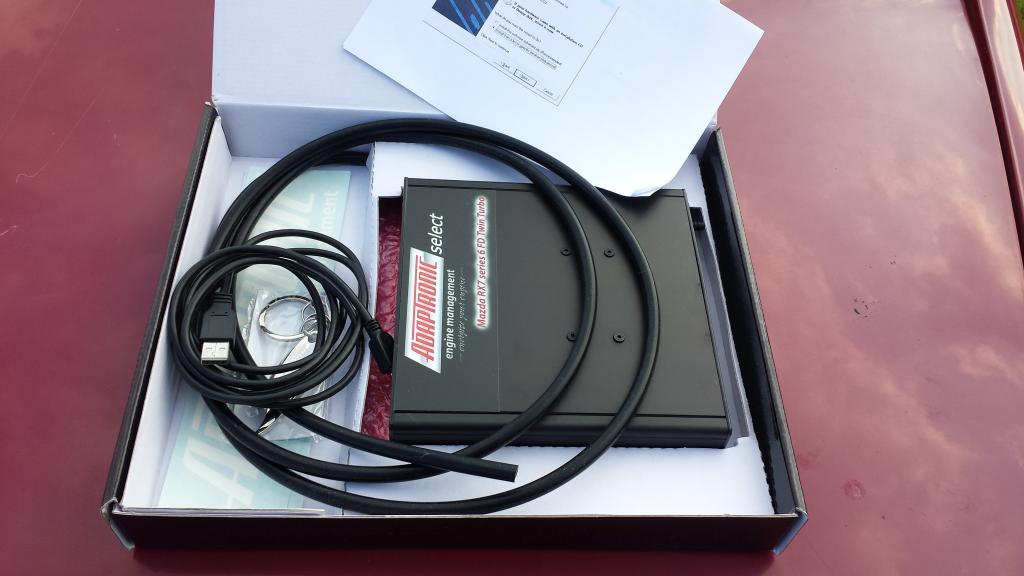

Over the next couple weeks it sat in my garage waiting for parts to arrive
After i got the main assortment of parts we decided to trailer the car out to Robert's to get started on the build

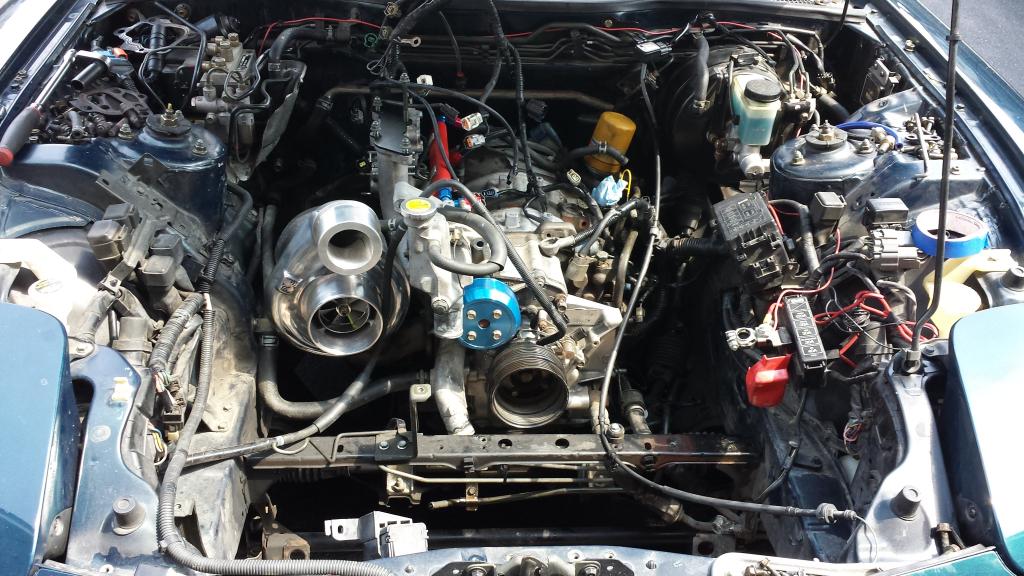

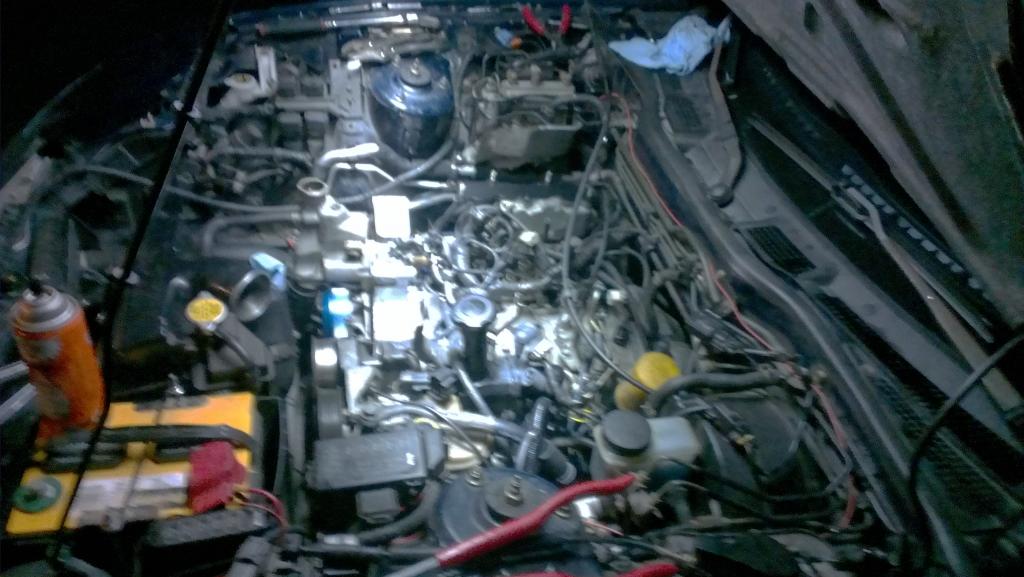

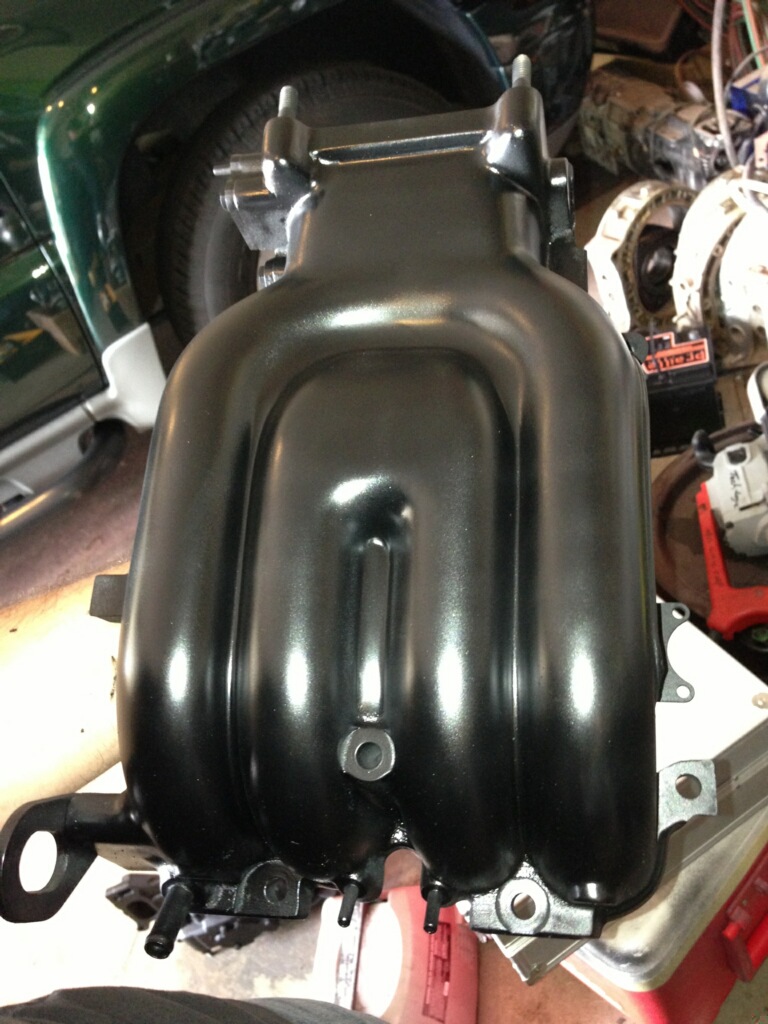

After we got it off the trailer and situated we decided to get started... Picture of when we first removed the UIM

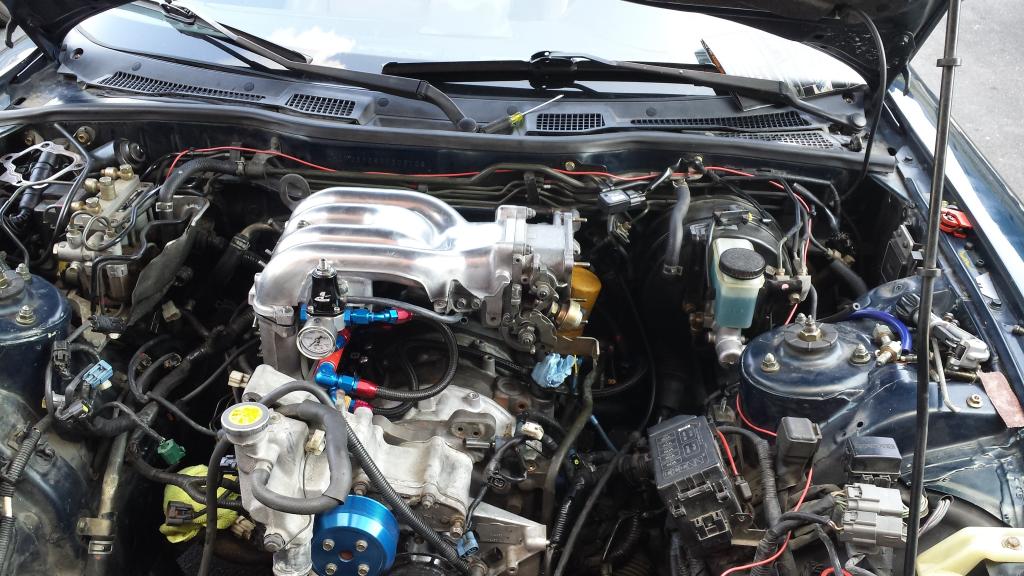

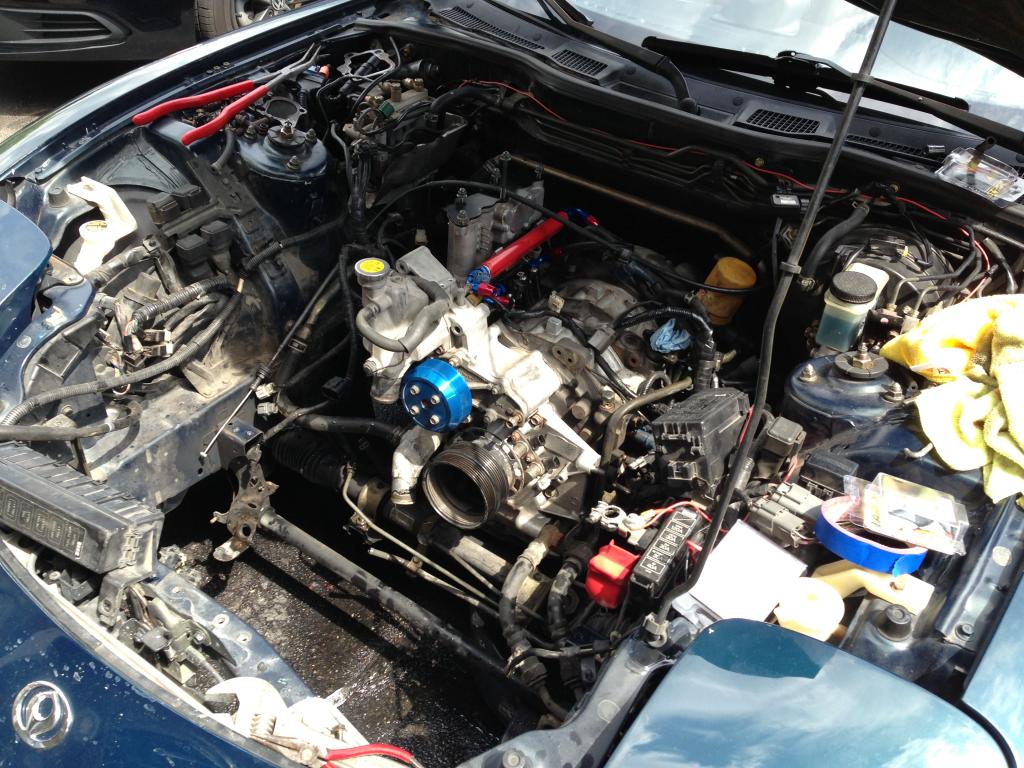

The following day... Rats Nest removed.. New fuel rail's fitted

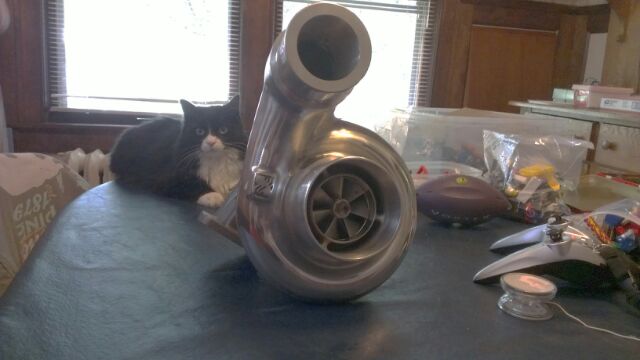

Test fitting the S366
Starting with the day i bought the car
Over the next couple weeks it sat in my garage waiting for parts to arrive
After i got the main assortment of parts we decided to trailer the car out to Robert's to get started on the build
After we got it off the trailer and situated we decided to get started... Picture of when we first removed the UIM
The following day... Rats Nest removed.. New fuel rail's fitted
Test fitting the S366
09-05-13, 12:51 PM
#14
Junior Member
Thread Starter
Join Date: May 2013
Location: Minneapolis, MN
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts

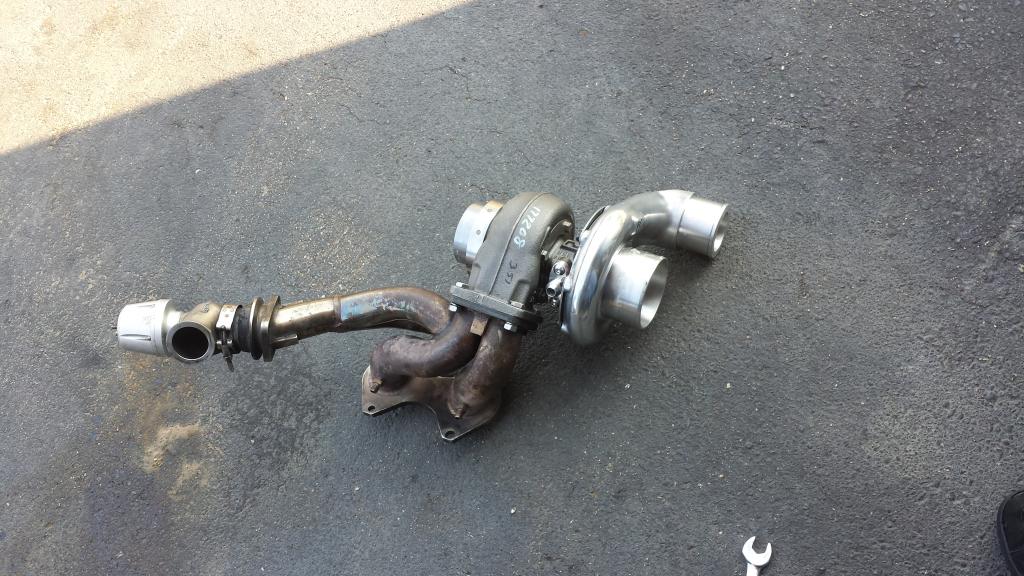

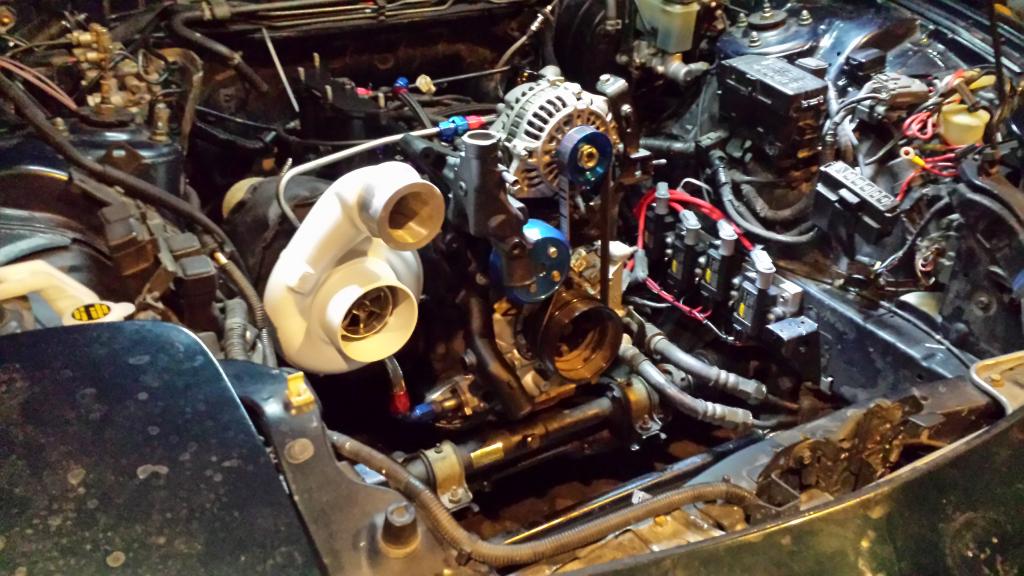

Mounting the Turbo on the manifold with Synapse WG

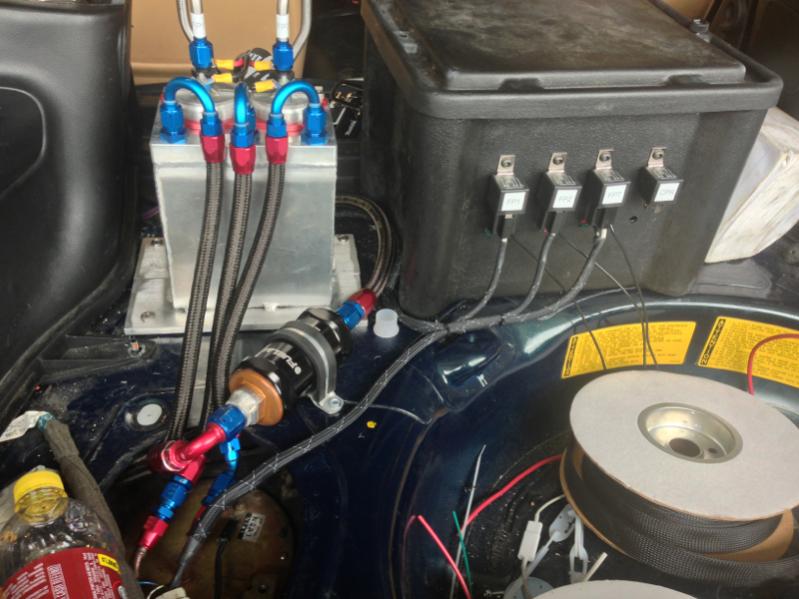

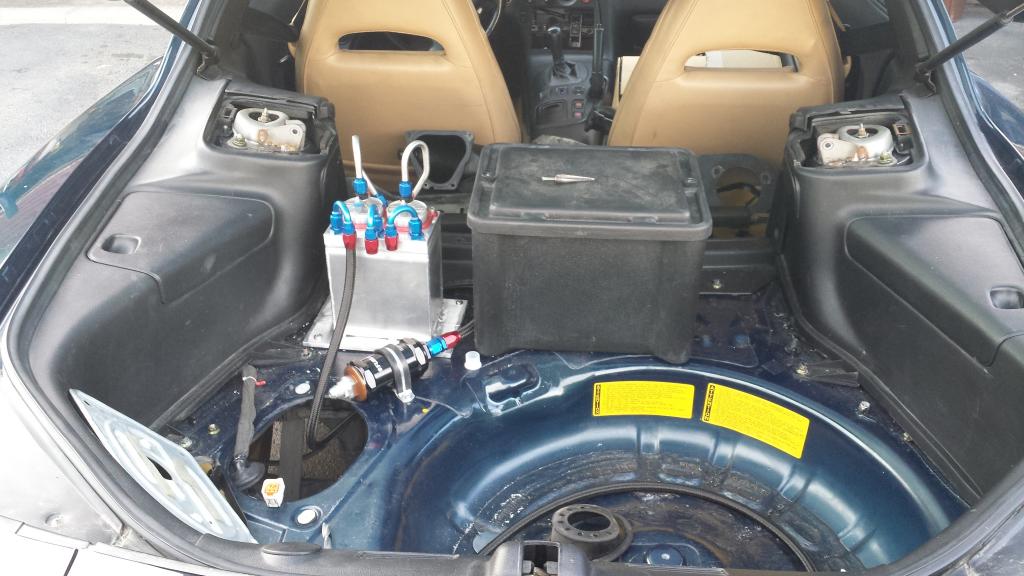

We removed the fuel tank and fuel lines from under the car and relocated the battery to the hatch and mounted the Surge Tank + Fuel Filter

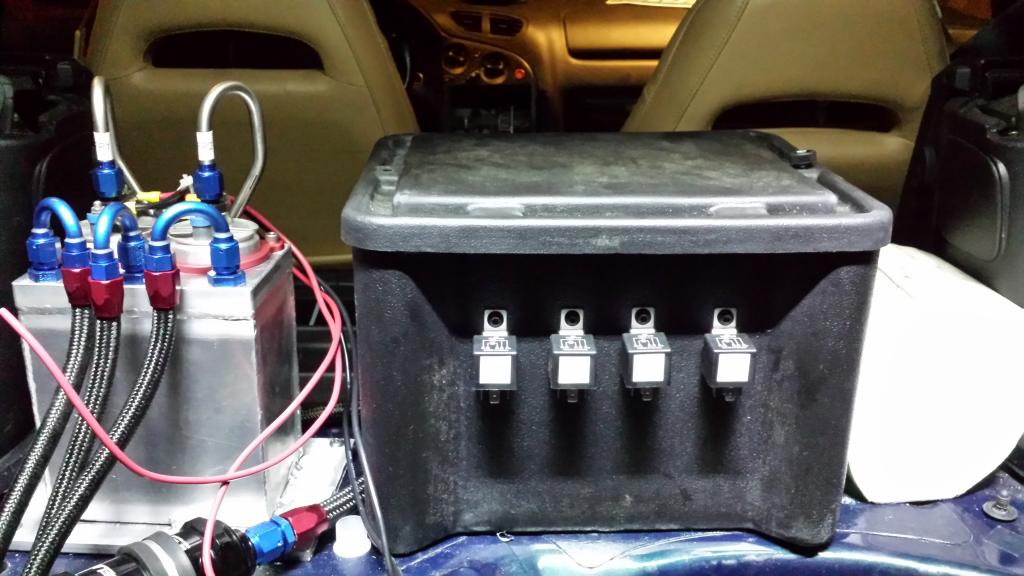

Wiring The Surge Tank + Battery Box.

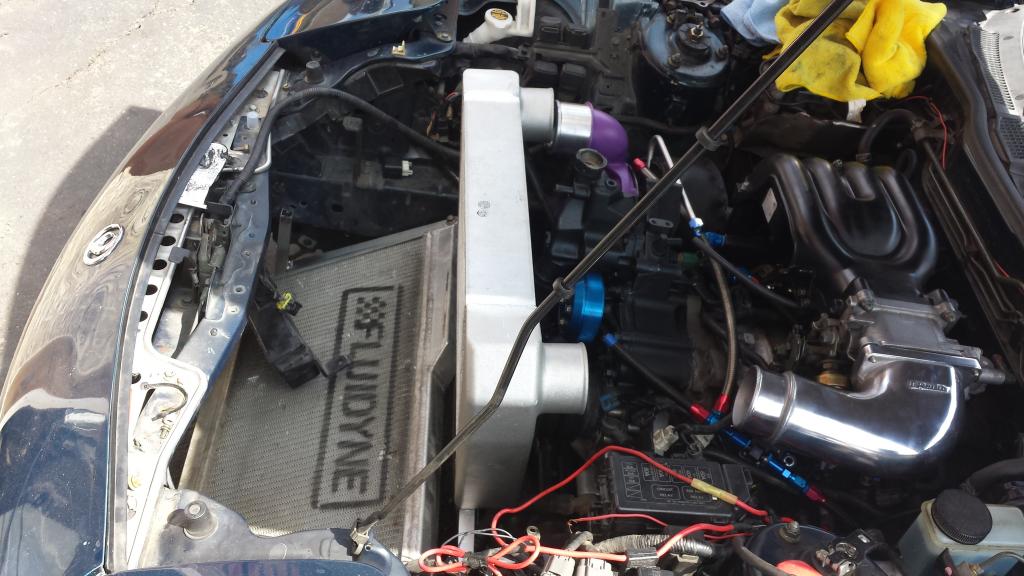

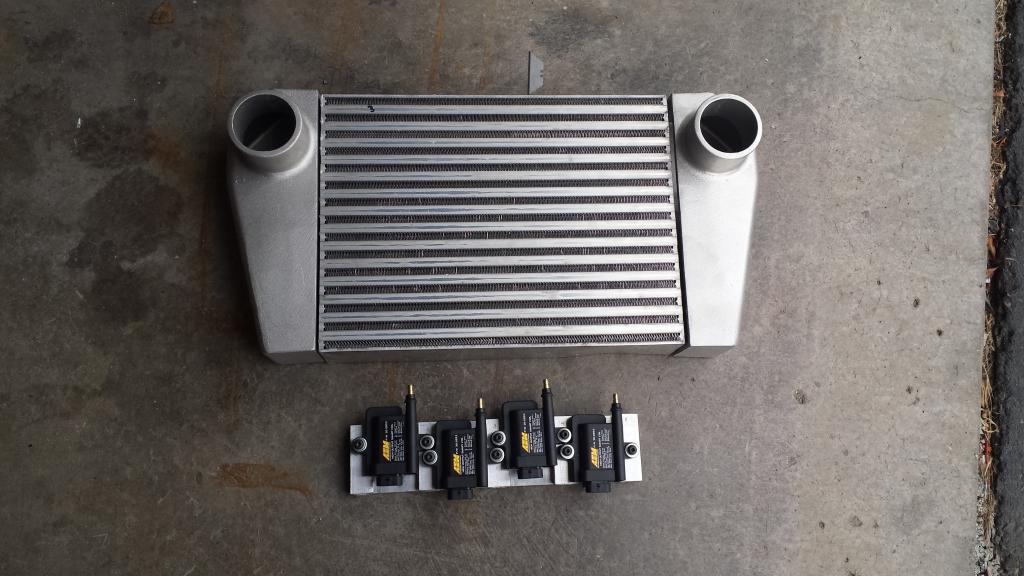

AEM Coils on mounting plate and Intercooler core + End tanks

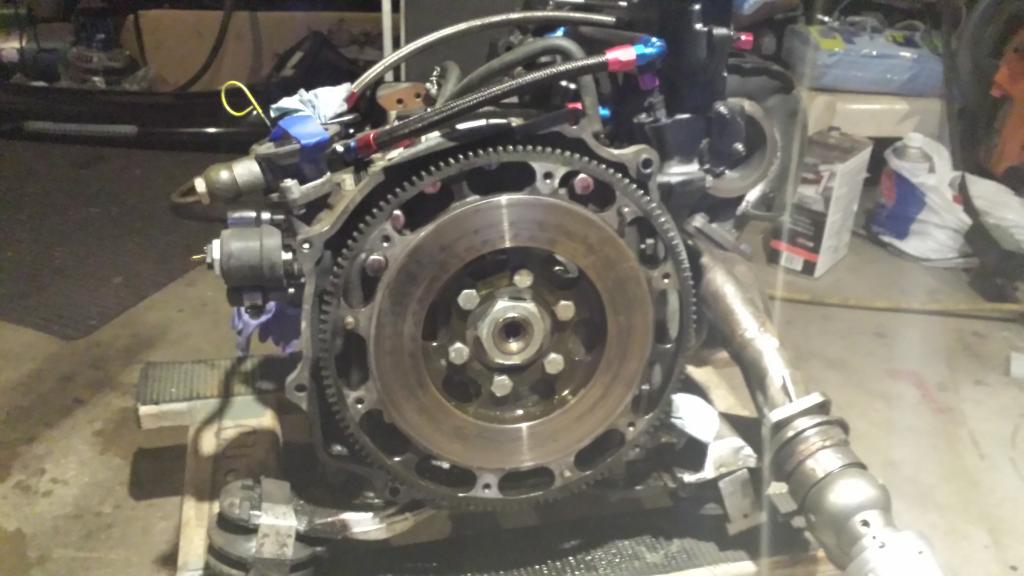

We decided that the Exedy Stage 1 Clutch wouldnt be efficient and decided to swap Robert's ACT Prolite Flywheel and Extreme PPlate over to my car and i purchased a new 6 Puck.

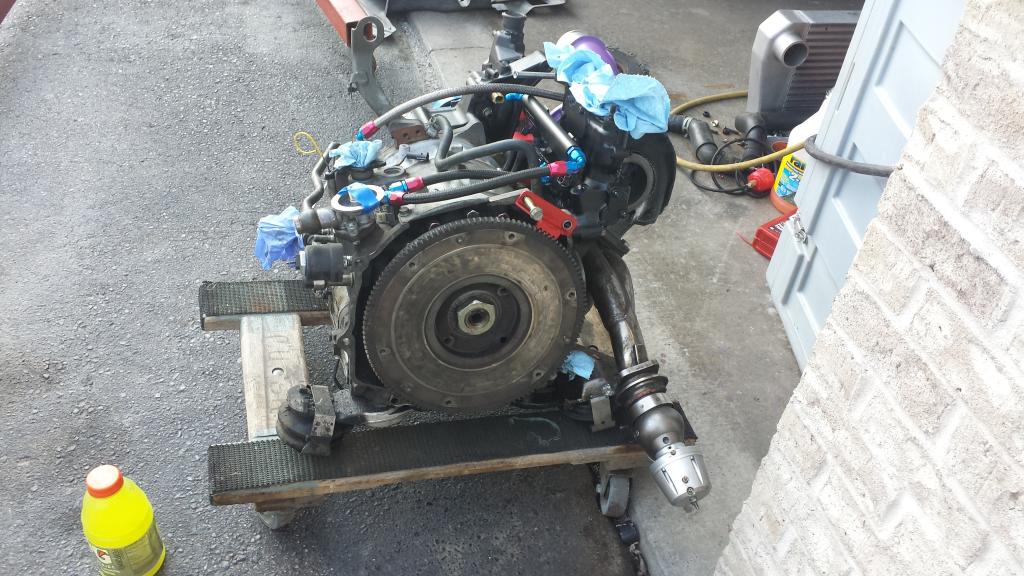

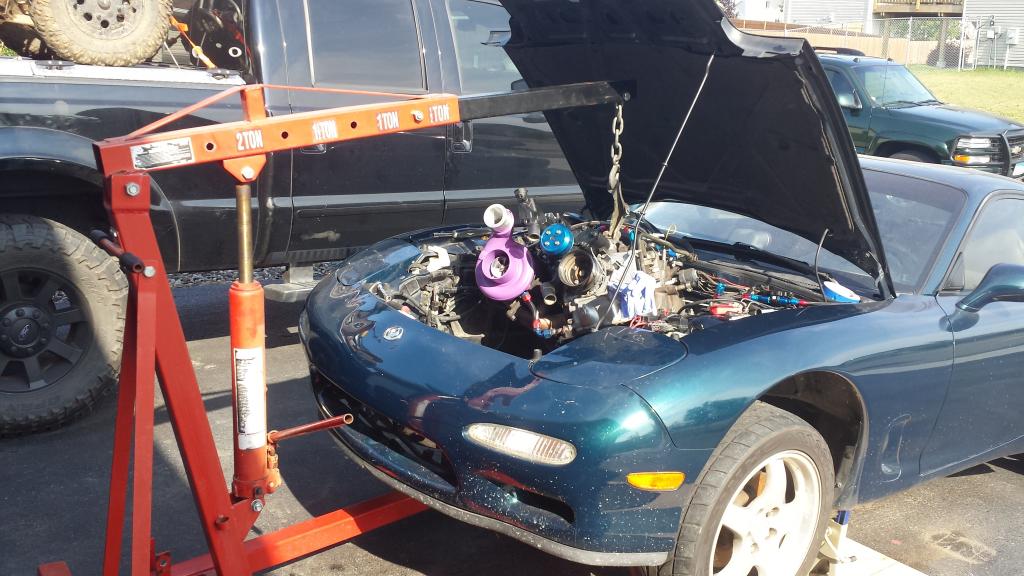

Motor remounted and changed the color of the Compressor housing on the turbo... Purple was too much for me..
