My build - 94 PEP

Greetings! I recently purchased a black 94 RX-7 to replace my dead 03 WRX. Originally thought it was a Touring but a little research showed its a PEP (apparently only 150 black 94 PEPs were made). It has about 100,000 miles on it and runs well.

It came with three binders full of records and receipts that I am still sorting through, but so far the list of modifications done is:

Custom Solenoid Rack
RX7.com smoke signal lamps
The armrest
Nardi Steering Wheel
Boost, Oil temp, Oil pres, Water temp gauges
Kenwood stereo
Silicone vacuum hoses
Efini badges & key
SS brake lines
Hi-Flow catted mid-pipe.
Optima 35R RedTop battery
R1 oil coolers
JasonS floor and cargo mats w/ Red rotor logo
Pettit Racing Alt and Water pulleys

As I figure more out I'll post it

Issues:
She does flood, which threw me for a loop at first but a quick search revealed the deflooding methods.
Oil temp gauge lights up but doesn't register - occasionaly does a full sweep but that's it
Tachometer does not work - lights up but does not move, previous owner replaced gauge - I figure must be a short in the wire that runs in the bumper? Read about it somewhere. It does work on really hot days though
Driver's door seal is loose right next to exterior door handle

Plans:
Exhaust wrap or ceramic coat the hot stuff
Need Efini center caps for wheels

I did a lot of weight reduction on my WRX and am planning to do the same here (while keeping the twins). I have already pulled the entire A/C, and the emissions stuff is next. Coupled with simplified wiring harnesses I'm working on, deleted Bose, I should be well on my way to at least removing my own weight from the car (240 lbs) Seats are a big one, as is the cast iron in the exhaust. There can be a decent amount of enjoyment in finding something not needed or a lighter way of securing something etc... Just from the Dash, Instrument, and Rear harnesses I have about 3 lbs of tape and plastic bits, plus the extra wires and connectors. If anyone has Front, Emission, Floor, or Door harnesses please hit me up!

Last edited by b3delta; 11-20-17 at 09:53 AM.
b3delta is offline
Reply With Quote
Old 12-28-16, 12:51 PM
  #2
Senior Member
iTrader: (5)

ROTARY_ADDICT-1's Avatar

Join Date: Aug 2016
Location: claremont, CA
Posts: 397
Thanks: 0
Thanked 6 Times in 6 Posts
nice any pic's of it ?
ROTARY_ADDICT-1 is offline
Reply With Quote
Old 12-28-16, 01:30 PM
  #3
Super Moderator
iTrader: (143)

caredden's Avatar

Join Date: Jul 2002
Location: Okinawa
Posts: 2,236
Thanked 23 Times in 22 Posts
OP,

Welcome! Very nice to see a new owner that has spent some time doing research.

Looking forward to seeing some pics!
caredden is offline
Reply With Quote
Old 12-28-16, 04:38 PM
  #4
SEMI-PRO
iTrader: (2)

ZoomZoom's Avatar

Join Date: Feb 2001
Location: New Jersey
Posts: 2,846
Thanked 25 Times in 24 Posts
Mods on these cars are a slippery slope. Enjoy!
ZoomZoom is offline
Reply With Quote
Old 01-04-17, 04:19 PM
  #5
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
OK finally got home and have an updated list of what came with the car to go with the above! Pics to follow

140A alternator
Act Streetlight flywheel w/ counterweight
Pettit CCIII intercooler, silicone hoses and fan
180 degree thermostatat
Turbologic vacuum hose kits 6mm and 3.5mm
Custom Solenoid rack by Eric Zheng
Sakebomb Garage SS brake lines and clutch line
Hallman MBC black and red


It's the oil temp gauge that isn't working properly not the oil pressure.
b3delta is offline
Reply With Quote
Old 08-19-17, 04:24 PM
  #6
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Sadness! The Army has decided to move me to Ft Carson Colorado. As of now I will probably only have a 1 car garage and can't justify leaving the RX7 in there as my wife would kill me, so it is probably going to be stored for the 3 years until I return to NC. If I do end up getting a 2 car garage, I will have her shipped out to me in CO to be able to work on it. CO apparently gets some nasty hail and I don't want to risk ruining my precious FD. However I have plans and some updates.

The headlights work now, just needed to open up the retractors and clean the grease off the contacts so they both work flawlessly now!

The oil temp gauge is just not connected to the sensor and that's why it doesn't read.

The tachometer works when its really hot outside and the car sits in the sun. I figure its some metal expanding in the heat. But I'm planning to get a whole set of speedhut gauges so it all matches and can get wired up nicely.

I would like to acquire a beat up FD and take the entire car's wiring harness to rebuild it with new wires and possibly connectors so that I have a new, and lighter harness to drop into mine when I get it back. Remove connections and wires to unneeded stuff (Bose, rear wiper, cruise control, etc.) and wire in spots for new sensors for when I buy an Adaptronic ECU.

I'd like to get new rims, but I also like having the ability to put Efini logos in the stock ones...who knows

A guy on norotors.com makes incredible floormats and trunk carpet. I'm having him make me some black ones with red efini logos in the center of them.

I've tried looking at different mods and DIY stuff but it seems there's not much in that dept for the FD, at least in comparison to the WRX world I previously lived in. But there's also the idea of keeping the car clean and looking as it deserves to.

I also want a new steering wheel, a flat bottom, since I'm 6'4". I like the Momo 27a with the cutout but don't trust myself to drill the holes for the hub centered.
b3delta is offline
Reply With Quote
Old 08-22-17, 03:33 PM
  #7
RedSuns Unite!
iTrader: (11)

THE TECH's Avatar

Join Date: Apr 2017
Location: Midwest
Posts: 326
Thanked 25 Times in 24 Posts
Congrats.
THE TECH is offline
Reply With Quote
Old 09-10-17, 07:08 PM
  #8
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Removing rest of the A/C. Entire system is for sale/trade.
Removed Bose - looking for non-Bose rear speaker brackets
b3delta is offline
Reply With Quote
Old 09-11-17, 04:18 PM
  #9
It Just Feels Right
iTrader: (10)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 1,465
Thanked 27 Times in 26 Posts
IMO a decent car cover beats abandoning it for 3 years (there are outdoor versions that are made to withstand minor hail). If you store it, fill the radiator with 100% quality coolant (eg Shell Rotella Ultra ELC) and run it through the engine. Also top off your fuel tank and add plenty of anti-gel.
TomU is offline
Reply With Quote
Old 09-14-17, 04:08 PM
  #10
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
On the way, 185 degree fan switch, 180 degree thermostat, Pettit air pump delete kit, heated O2 sensor.

Just bought another LIM, UIM, TB to port match, and remove unnecessary stuff, will remove ACV, EGR, AWS upon install, hopefully with a thermal coating.

Decided to ship the car to Colorado with me, just store it there so I can work on it.
b3delta is offline
Reply With Quote
Old 09-14-17, 04:29 PM
  #11
It Just Feels Right
iTrader: (10)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 1,465
Thanked 27 Times in 26 Posts
If you have a PFC, you don't need the fan switch. If you don't, removing all the emissions stuff may play havoc with the stock ECU

And reading your first post, I don't find FDs flood like earlier gens. You may have a faulty injector
TomU is offline
Reply With Quote
Old 09-14-17, 04:41 PM
  #12
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
No PowerFC yet, going to buy an Adaptronic. It doesn't flood often, maybe twice so far, after sitting for a few weeks. I'm waiting to remove the ACV and EGR and AWS til I have the ECU, air pump is going though
b3delta is offline
Reply With Quote
Old 10-13-17, 11:16 AM
  #13
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
CO

Arrived in Colorado, car works well despite the altitude, though they only have as high as 91 octane here. trying to install the stock foglights, can't find the mounting points. Discovered a set of rear speaker mounts in my box of goodies from the previous owner, really made my day!

Have a battery harness and dash harness on the way, time to being the wiring harness run around of rewiring and deleting unneeded stuff
b3delta is offline
Reply With Quote
Old 10-30-17, 01:17 PM
  #14
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Fabbing phenolic spacers for intake, bought an efini y-pipe, JasonS floor mats arrived!, installed one rear speaker - no sound though weird. need to fab brackets for foglights, anyone have a picture of what they look like? there isn't much help in the FSM or even google for the OEM foglights brackets, they aren't on the bumper or rebar.
b3delta is offline
Reply With Quote
Old 10-30-17, 01:21 PM
  #15
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,280
Thanked 54 Times in 43 Posts
You should be able to get factory fog light brackets out of the FS section for cheap. I'm sure Fritz or Tomsn16 could help you out.

Let us know how the spacers work out. Most people find they warp and leak in our application.
Narfle is offline
Reply With Quote
Old 11-13-17, 02:13 PM
  #16
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Phenolic spacer is done! Lots of Dremel work but it's finally complete. Need to buy 2 UIM-LIM gaskets to sandwich it and prevent leaks. Then fire up the car get a heat reading on the UIM, swap the spacer in, heat it up and temp again, hopefully all this work is worth it. If it is I'll fab up a few more for selling, prob charge $75 each (good amount of labor in making it, plus price of dremel bits and the sheet itself) - not to mention posting results for all to see. They're only about 2 inches wide and I bought a 24x12" chunk of Garolite.

Also began to PnP the manifolds, TB, efini Y-pipe, crossover pipe, and rear turbo inlet. Manifolds getting port match and a lot of "milling" out excess - gonna find a welder to close holes. everything else before the TB butterflies getting a "as polished as I can" interior, also cleaned up the exterior of the Crossover pipe, it's no Robinette polishing, but a hell of a lot better than before.
b3delta is offline
Reply With Quote
Old 11-19-17, 11:13 PM
  #17
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Milling the manifolds is laborious! Dremel was taking way too long and I was flying through bits, apparently this is some interesting aluminum, seeing as its ruining my tungsten dremel bits. So I bought and angle grinder and what a difference! Also have some aluminum specific bits on the way for the more detailed work. Cut off a lot of the excess on the LIM, everything that had emissions stuff bolted to it - GONE. Also going to polish the manifolds exterior to look better than sand casting.

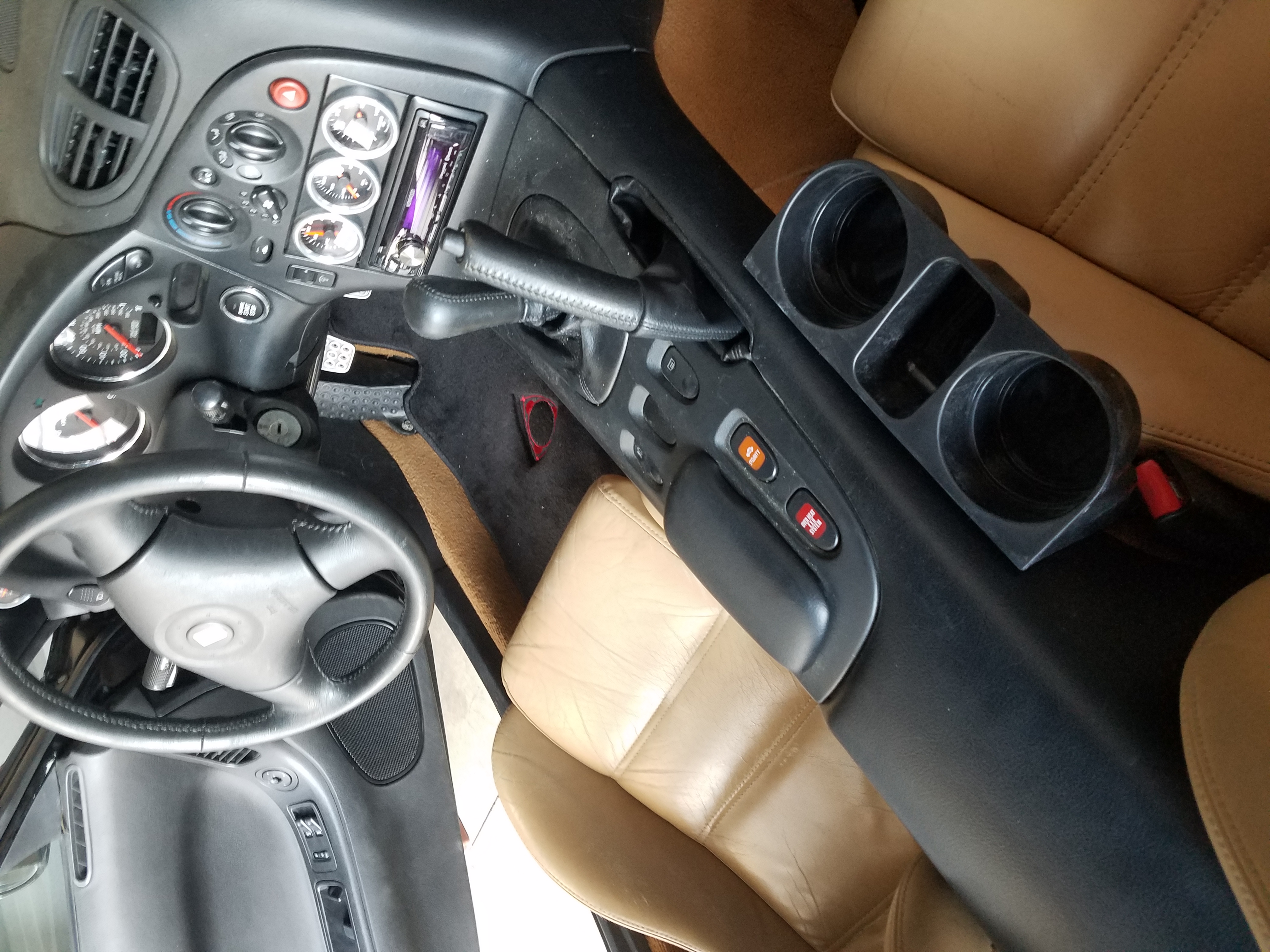

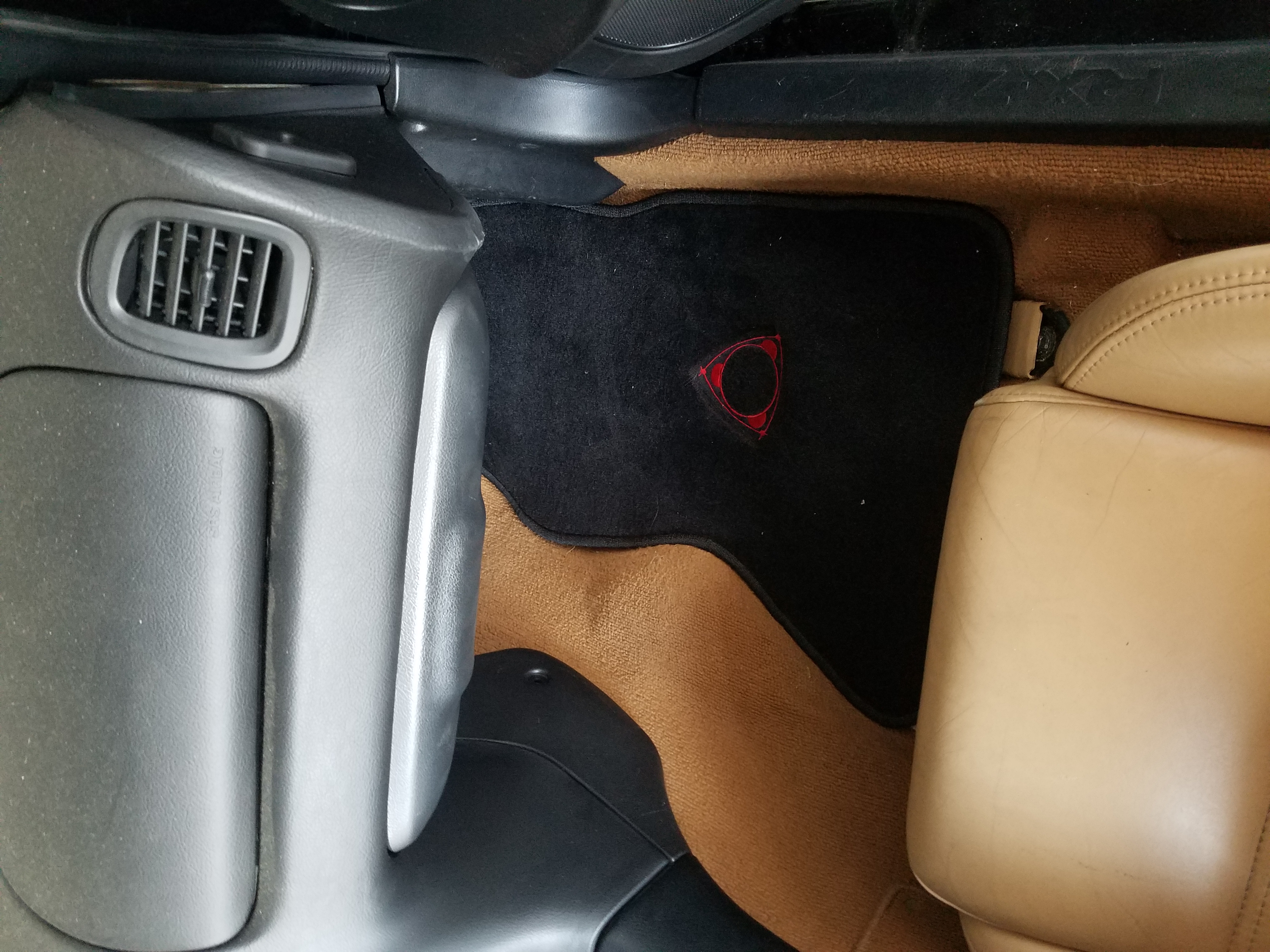

Finally putting some pictures up. 3 are the interior with the JasonS floormats, pretty sure he has a group buy going on right now. And an engine bay shot, because engine.
Attached Thumbnails My build - 94 PEP-20171115_145935.jpg   My build - 94 PEP-20171115_145950.jpg   My build - 94 PEP-20171115_145958.jpg   My build - 94 PEP-20171115_150014.jpg
b3delta is offline
Reply With Quote
Old 12-01-17, 11:39 PM
  #18
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts

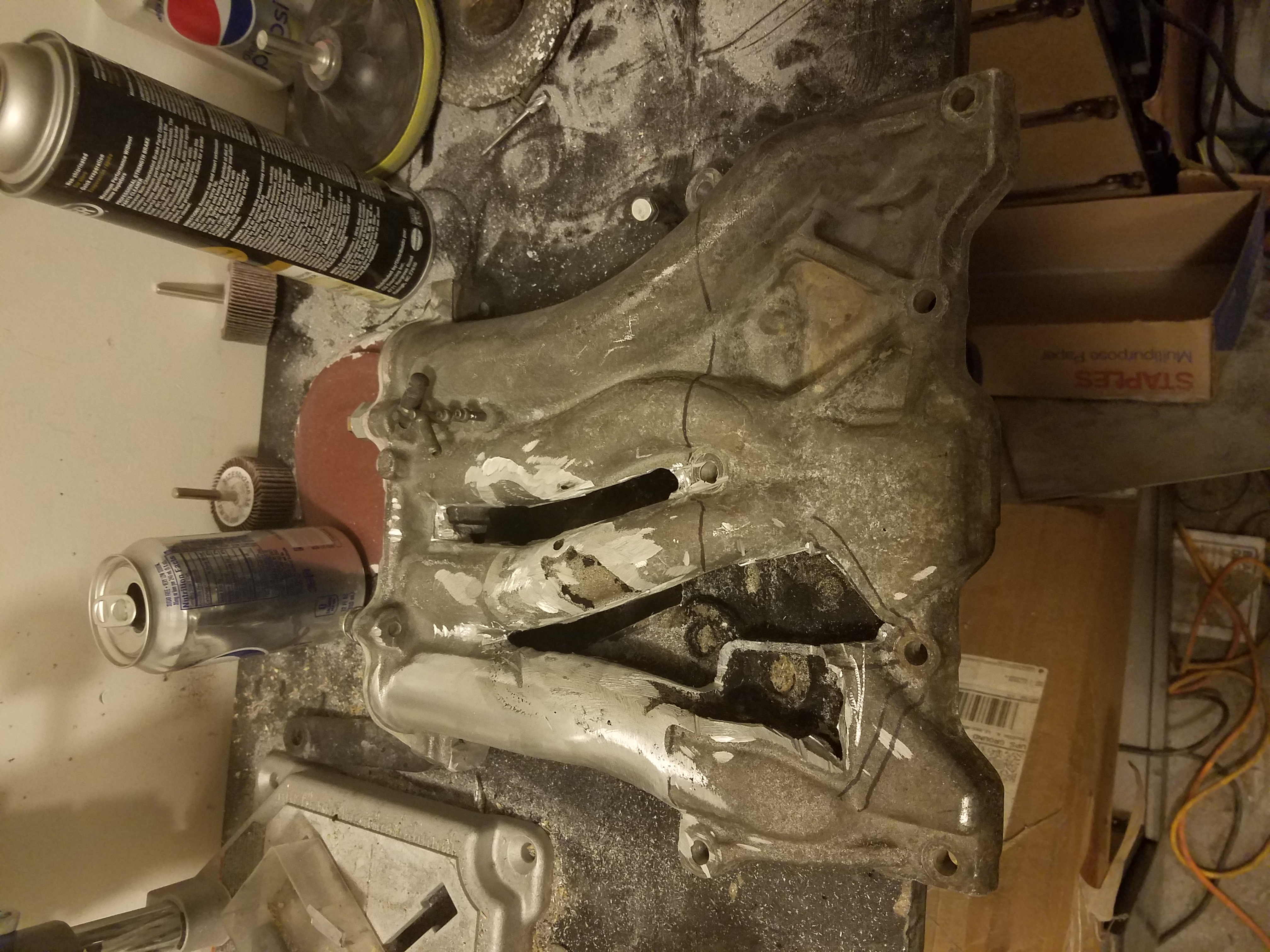

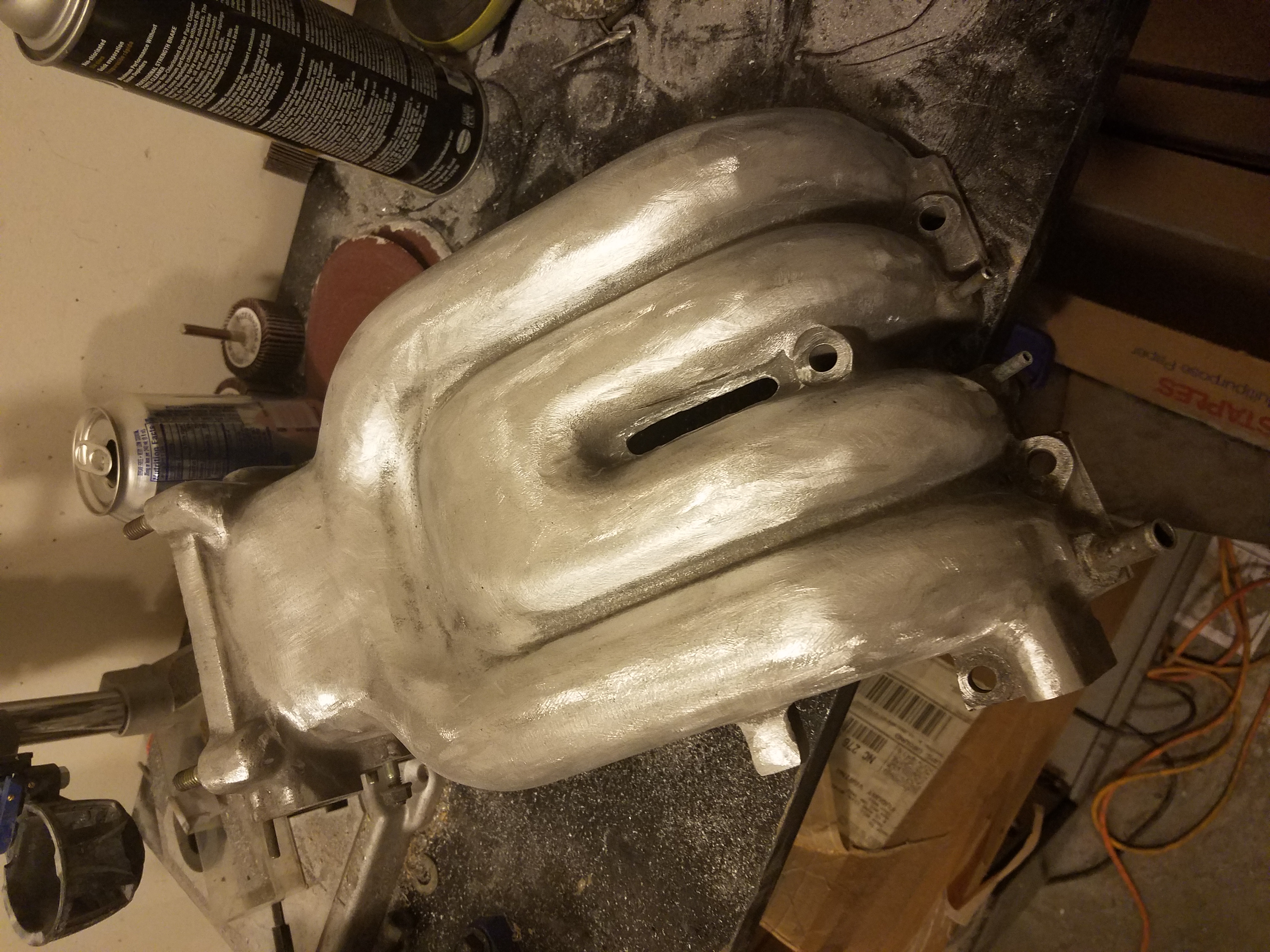

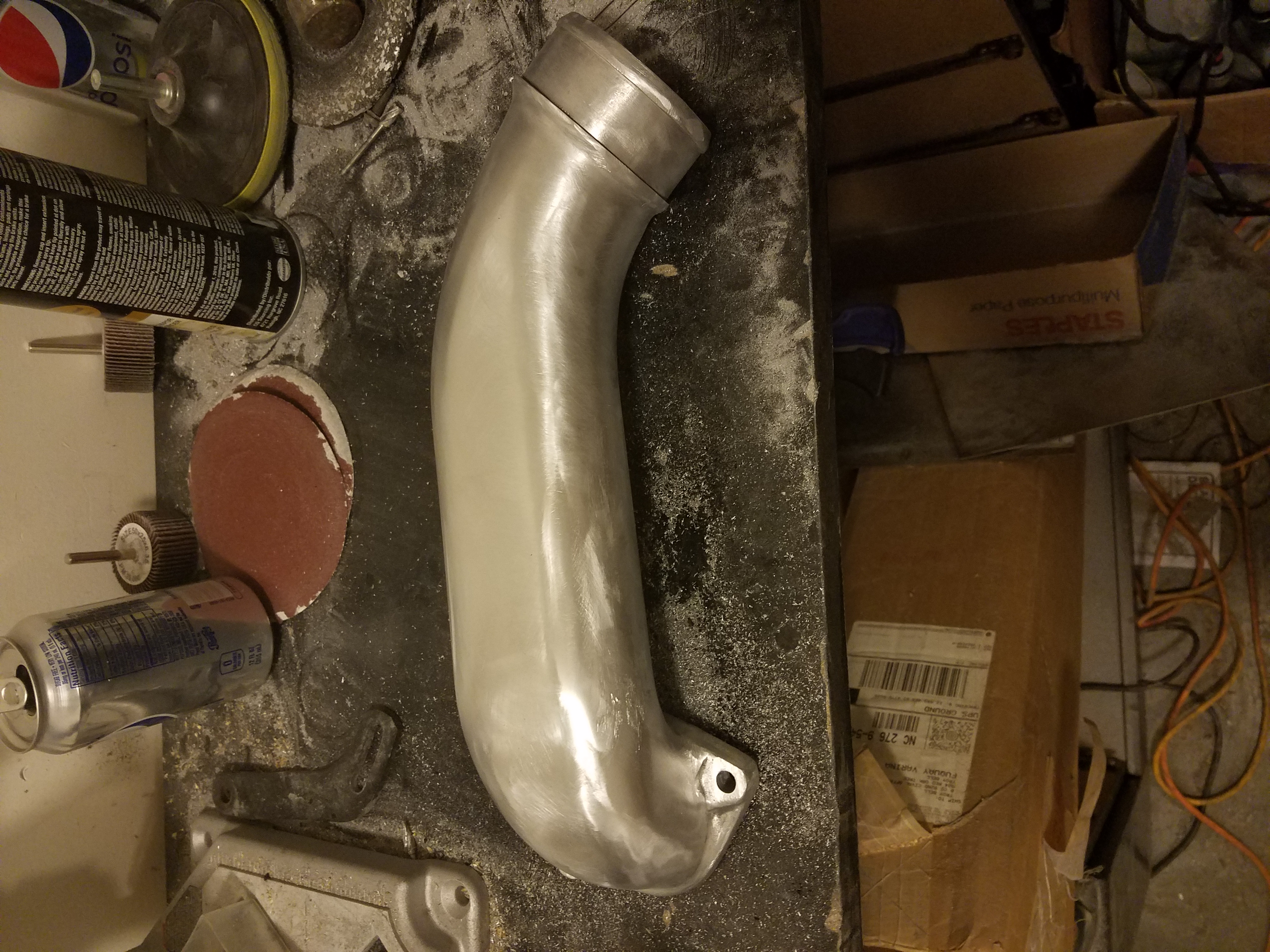

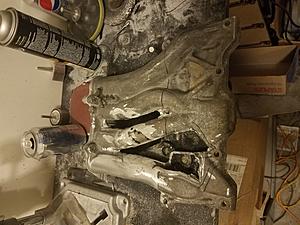

Polishing progress is so slow! Every time I get a good shine going I find a spot that has a deep gouge and need to go down (up?) a grit. The crossover pipe is starting to look pretty damn good though, its been sanded down to an 800 grit, so the polishing wheel is next, once I triple check there's no bad spots left. LIM is very slow going, I'm still working on cutting out the unneccessary stuff. Are the vacuum pipes that run through the LIM (between front primary and secondary) needed if all the emissions solenoids are being deleted? The UIM and TB have some very difficult spots to reach due to all the vacuum lines and stuff, those will be tough, may need to do some of it without power tools..
Attached Thumbnails My build - 94 PEP-20171201_222148.jpg   My build - 94 PEP-20171201_222209.jpg   My build - 94 PEP-20171201_222222.jpg
b3delta is offline
Reply With Quote
Old 02-16-18, 07:22 PM
  #19
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Haven't done much in a while, too cold in CO and I haven't bought a space heater for the garage yet. Made the templates for LIM-engine, y pipe-turbos, and intake pipes - turbos on the phenolic sheet. And have 2 gaskets for each one to sandwich the spacer and seal. Left the emission holes on the LIM closed.
Bought a metal dead pedal and OEM gas pedal in the group buy - looks awesome.
Have a whole new set of vac hoses and a new driver's door seal.
Car is in pieces, I'm working on removing the extra stuff (bose, rear wiper stuff, antenna motor, etc...) as well as getting the wiring harnesses lightened and new connectors (huge project, and slow). I have a huge bag of removed stuff from wiring harnesses - tape, plastic, loom, excess wires. its got some weight to it. Some of the ground connections are weird though, y-connections branching out which makes me need to cut instead of just de-pin.

Have a set of braided OMP lines to go in as well. Anyone know if defined autoworks is still in business? I sent an email and got no reply.
b3delta is offline
Reply With Quote
Old 02-25-18, 03:32 PM
  #20
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Began polishing the crossover pipe, had the wrong rouge and wheel combination so I have some very shiny scratches in the metal, waiting on a rougher rouge to come and then I should be able to get it to a mirror. Other pipes (y and rear turbo inlet) are just a bitch - still sanding, like the manifolds and TB

Have a new interior carpet coming, black. to replace the tan OEM one. Need to find a place in CO that I can try out seats at. The ones I had on my WRX were a little tight on the hips and the fabric wore fast from getting in and out.
b3delta is offline
Reply With Quote
Old 03-02-18, 04:18 PM
  #21
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts

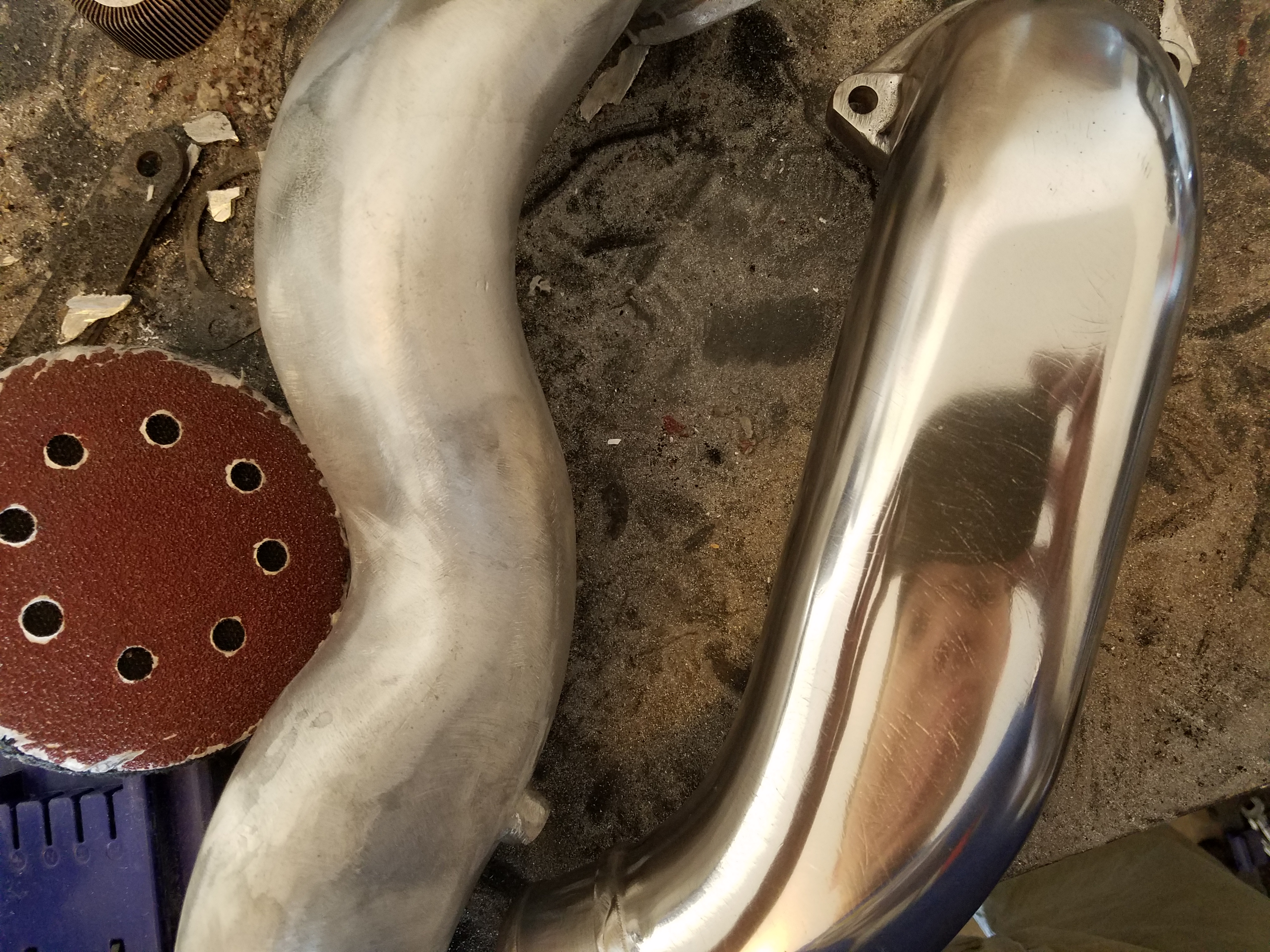

on left, the rear turbo inlet pipe, sanded with 40 grit to remove sand casting (step 1)
on right crossover pipe, polished with jewelers rouge (last step)
in theory, this could help with heat soak, or at least delay it....by how much idk. (less surface area and more reflective, prob will just look nice)
Attached Thumbnails My build - 94 PEP-20180302_151222.jpg

Last edited by b3delta; 03-02-18 at 04:23 PM.
b3delta is offline
Reply With Quote
Old 03-13-18, 04:57 AM
  #22
Full Member
iTrader: (9)

av8r01's Avatar

Join Date: Oct 2015
Location: NM
Posts: 64
Thanked 3 Times in 3 Posts
nice build, man. have you met any of the forum members there? there are a few I know of and met up with on my monthly trip to the springs. My FD is in So Cal til the end of summer, but I might take my RX-8 on my next trip.
av8r01 is offline
Reply With Quote
Old 03-20-18, 06:21 PM
  #23
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Haven't linked up with anyone yet, talked a lil with speedjunkie on the phone though. Mine is in pieces so it won't be meeting anyone soon, unless someone wants to help remove the entire interior so I can get to the instrument and dash harnesses
b3delta is offline
Reply With Quote
Old 04-05-18, 07:36 PM
  #24
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Whilst taking a break from polishing aluminum, I did some more work on the wiring harness.

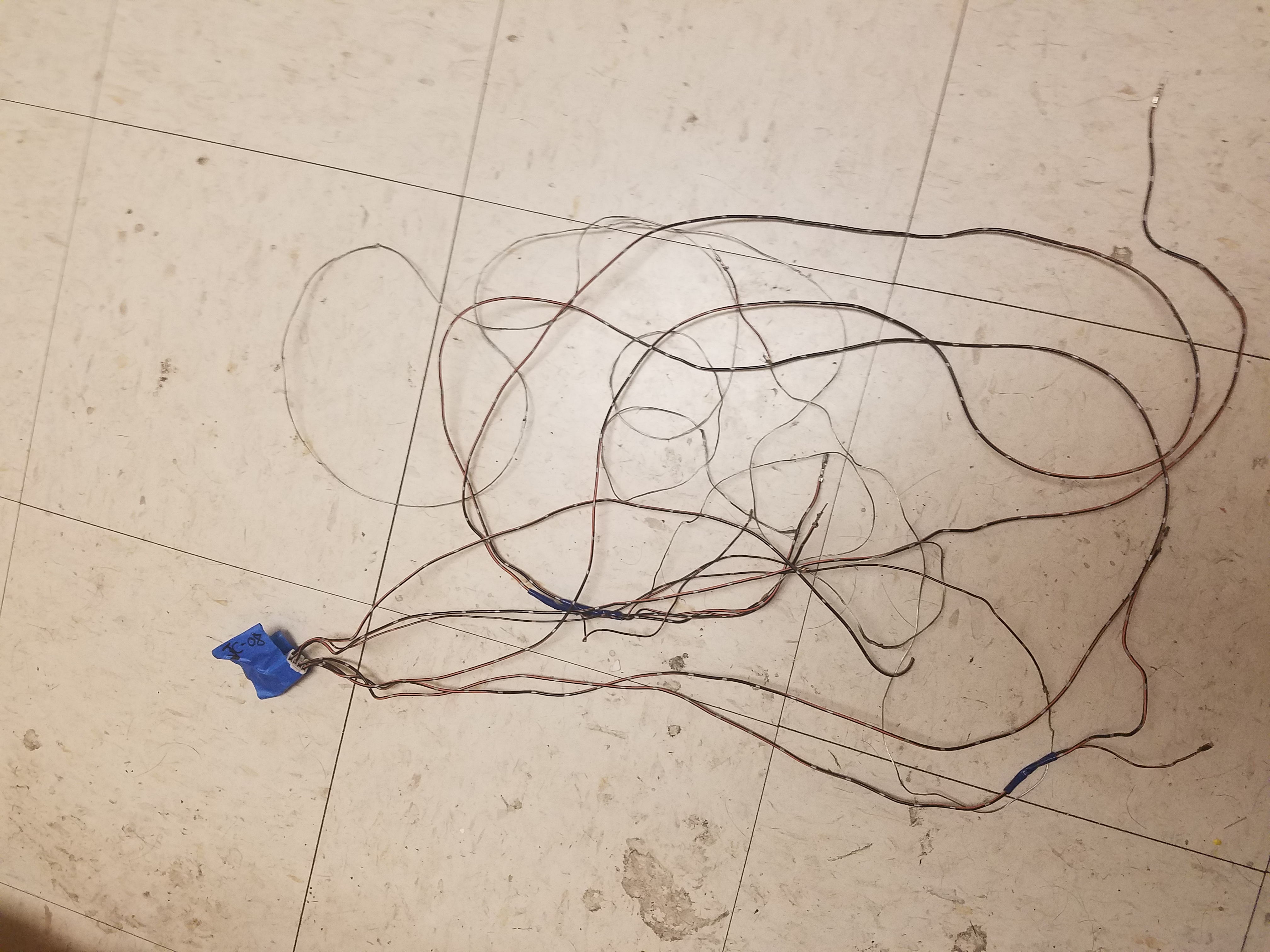

For those curious on how much extra wiring there is, here's the ground wiring for the BOSE.....just the dash harness section. (shielding not pictured)
Attached Thumbnails My build - 94 PEP-20180405_183125%5B1%5D.jpg
b3delta is offline
Reply With Quote
Old 04-13-18, 05:27 PM
  #25
Full Member
Thread Starter
iTrader: (1)

Join Date: Aug 2016
Location: Ft Carson, CO
Posts: 76
Thanked 6 Times in 2 Posts
Speedhut gauges are here!!!! Time to modify the gauge cluster to fit em and wire it up all clean with a Delphi 24 pin connector. It is amazing how much wiring can come out just for switching from Bose to standard and no center speaker. I'm somewhat tempted to make a large spreadsheet of connectors and which wires go where, make it easier than thumbing through the FSMs - especially with X connectors.


24 pin Delphi gt connection kit

Last edited by b3delta; 04-13-18 at 07:29 PM.
