QC JDM FD 20B Built
Hi, here a built thread from Québec, CANADA!

My friend want a 20b rx7 so he ask me if i want to build it for him with his help. How can i said no to that!

So here the car fresly paint:

Name: DSC03628.jpg Views: 2109 Size: 365.9 KB

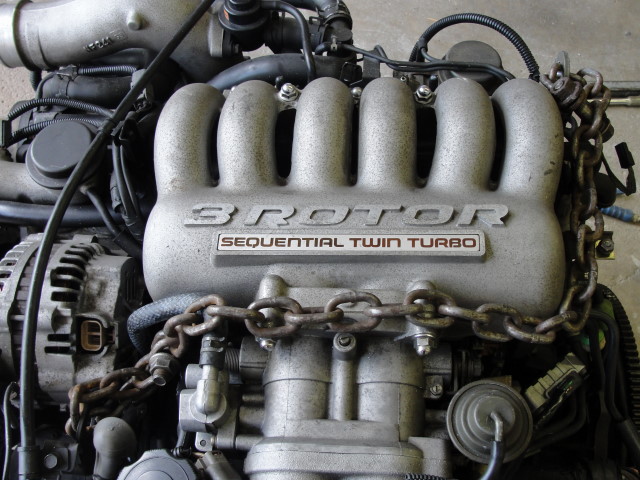

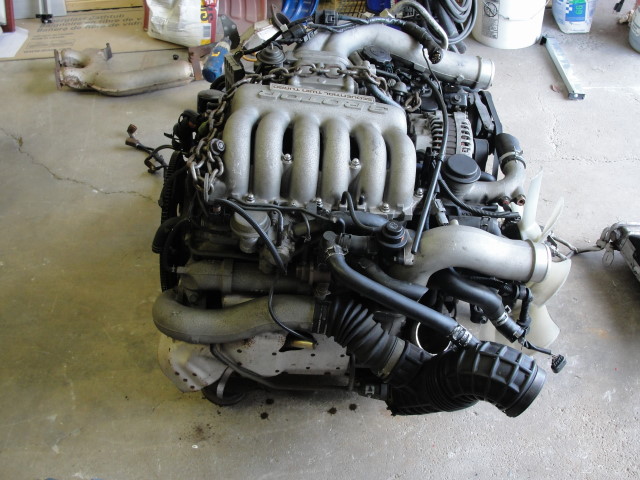

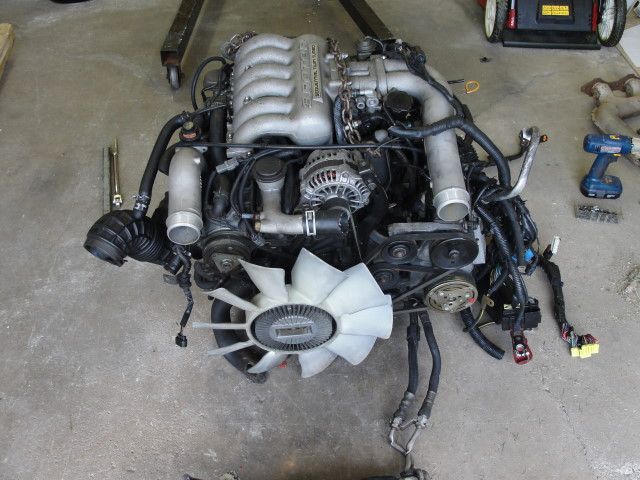

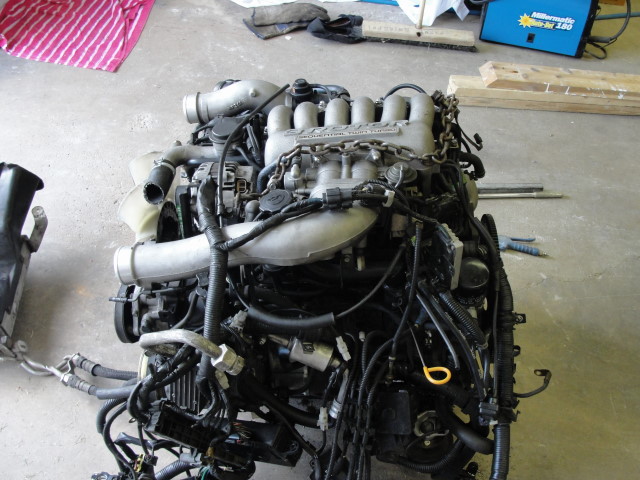

And here the motor 20B C code:

Name: DSC04380_zpsdc9b56fd.jpg Views: 263 Size: 100.5 KB
Name: DSC04381_zpsdb884af1.jpg Views: 254 Size: 102.2 KB

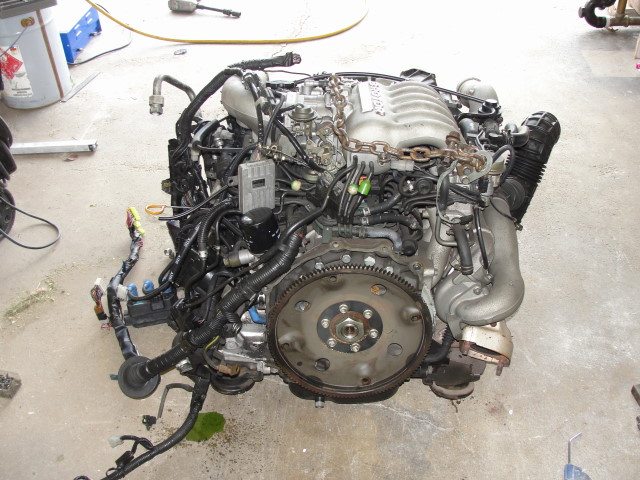

Name: DSC04382_zpsbea1b9f3.jpg Views: 218 Size: 110.8 KB
Name: DSC04383_zpsc5e4480c.jpg Views: 244 Size: 105.8 KB
Name: DSC04384_zps1de4a124.jpg Views: 213 Size: 111.6 KB

We are both french Canadian so excuse our bad english
Erix7rew is offline
Reply Like
Old 05-31-14, 11:11 AM
  #2
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

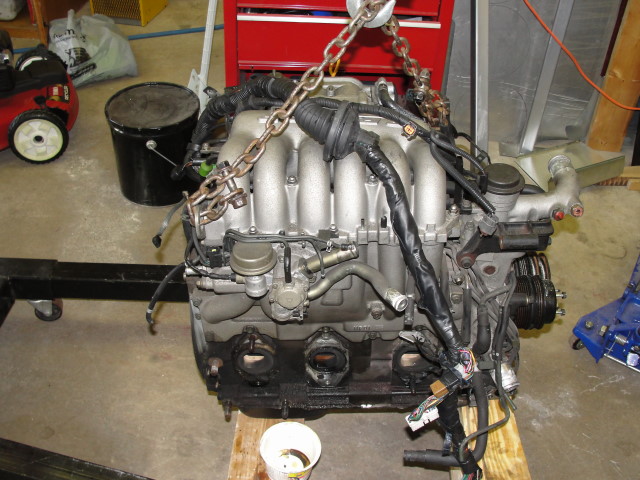

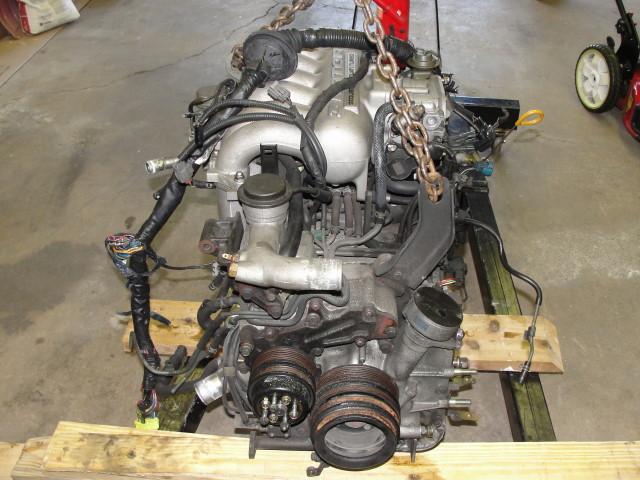

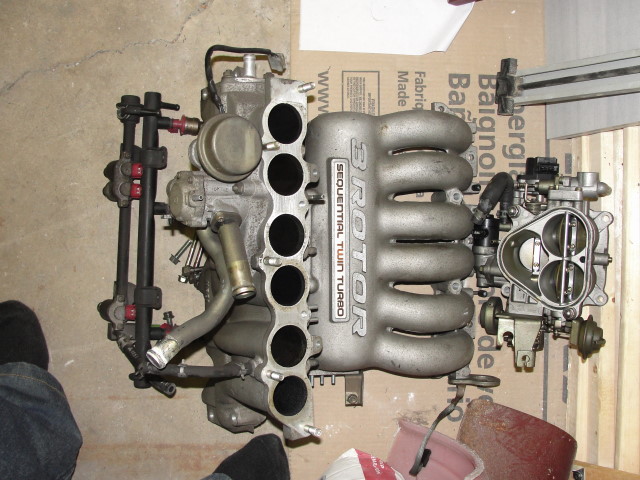

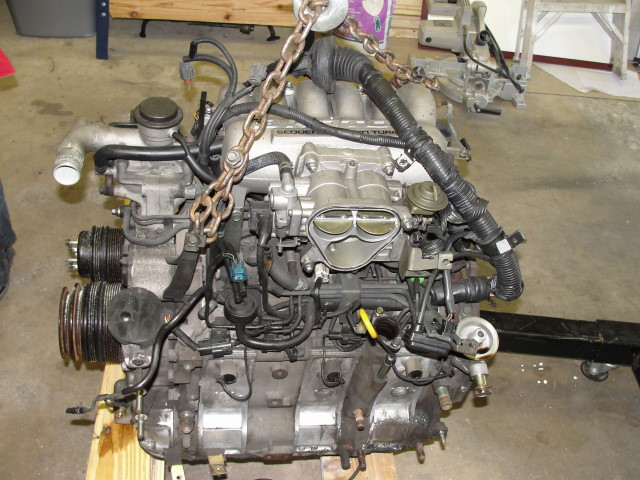

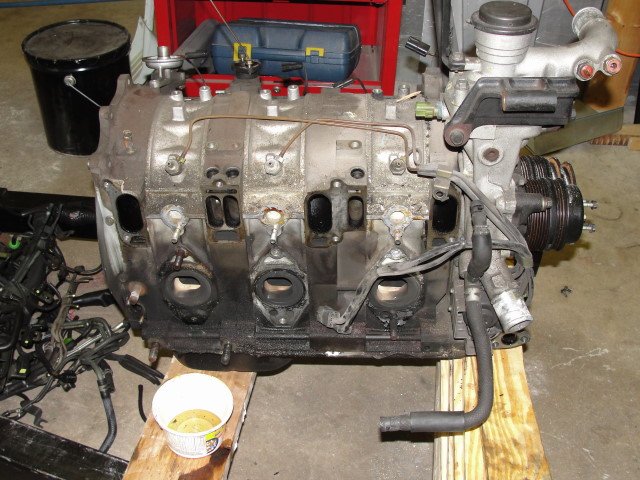

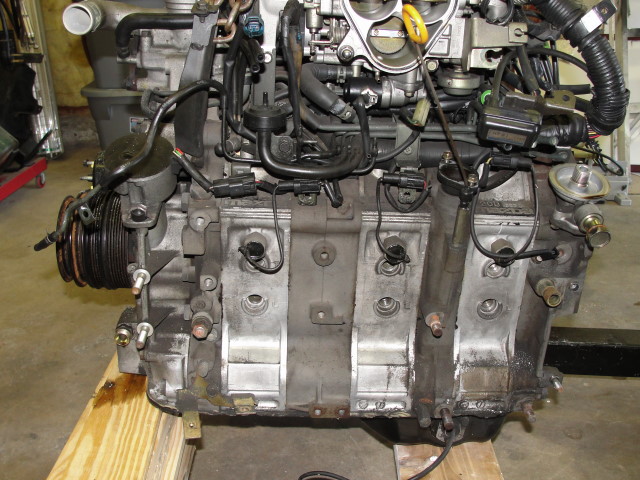

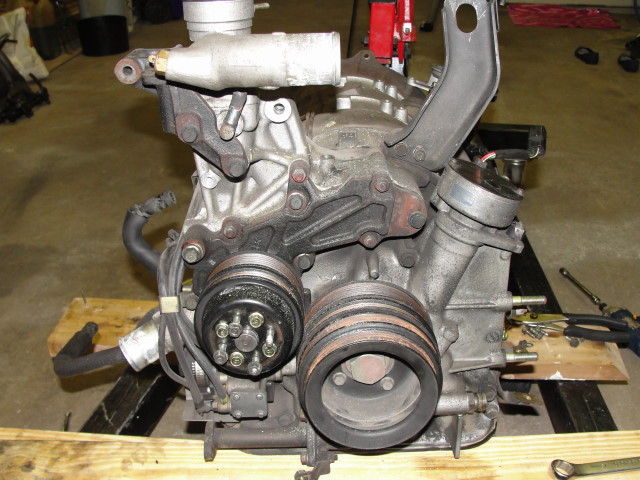

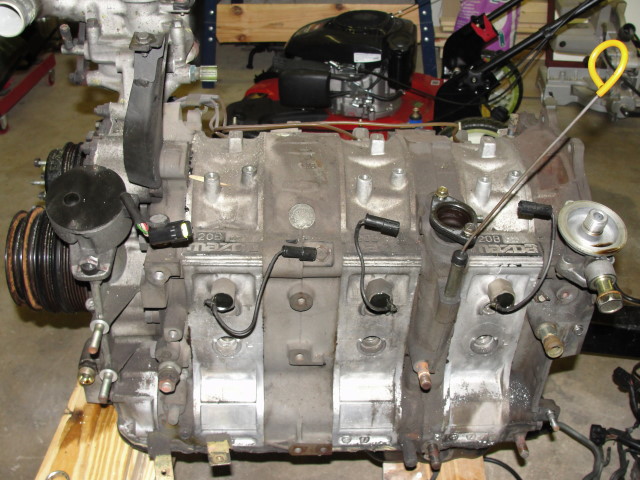

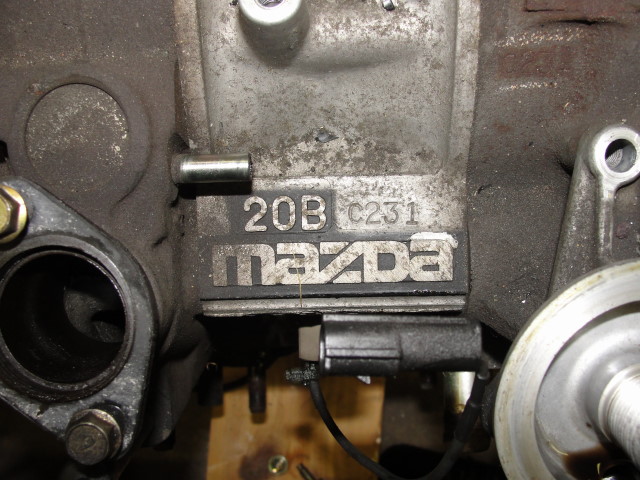

Time for the longblock to becore a little shorter

Name: DSC04385_zpsf74228d6.jpg Views: 181 Size: 114.6 KB
Name: DSC04386_zps68abc438.jpg Views: 211 Size: 106.0 KB
Name: DSC04387_zps24b495c0.jpg Views: 202 Size: 109.2 KB

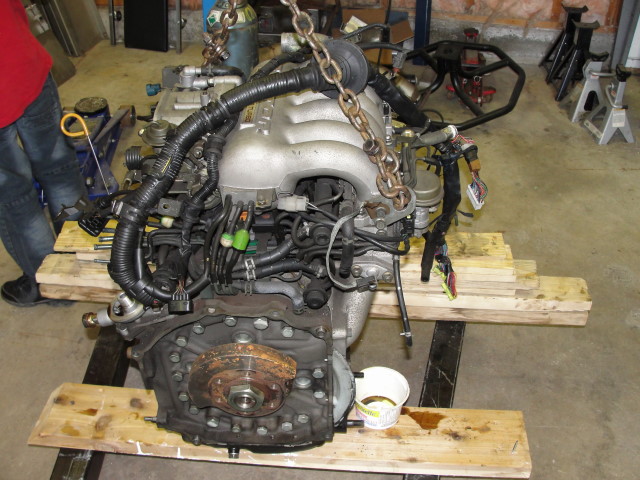

Name: DSC04388_zps7f9a55f2.jpg Views: 177 Size: 112.9 KB

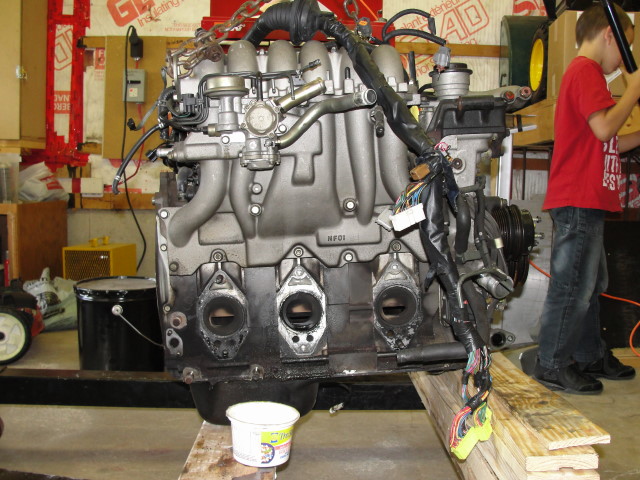

Name: DSC04389_zps48b89588.jpg Views: 250 Size: 120.1 KB
Name: DSC04390_zps75d8394e.jpg Views: 182 Size: 118.6 KB
Name: DSC04391_zpsd26ec014.jpg Views: 209 Size: 107.3 KB
Name: DSC04392_zps8ab6a341.jpg Views: 167 Size: 116.0 KB
Name: DSC04393_zps05b84ab0.jpg Views: 197 Size: 110.6 KB
Name: DSC04394_zps334179c9.jpg Views: 180 Size: 103.2 KB
Name: DSC04395_zps4d2625ed.jpg Views: 179 Size: 106.8 KB
Erix7rew is offline
Reply Like
Old 05-31-14, 11:14 AM
  #3
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

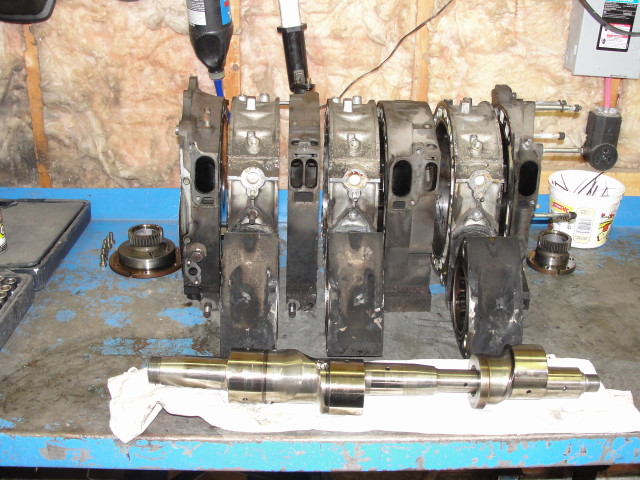

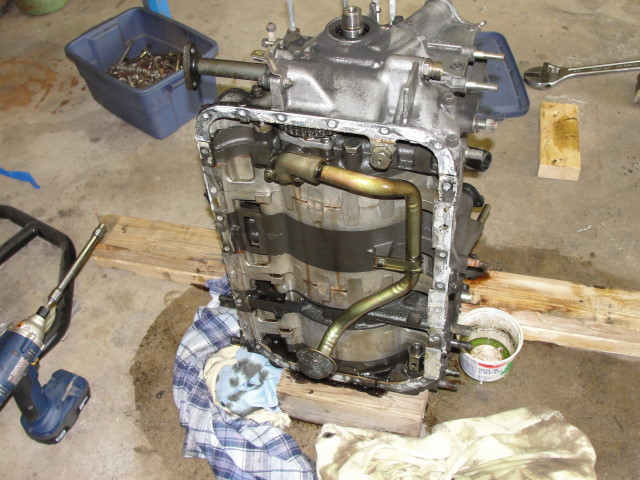

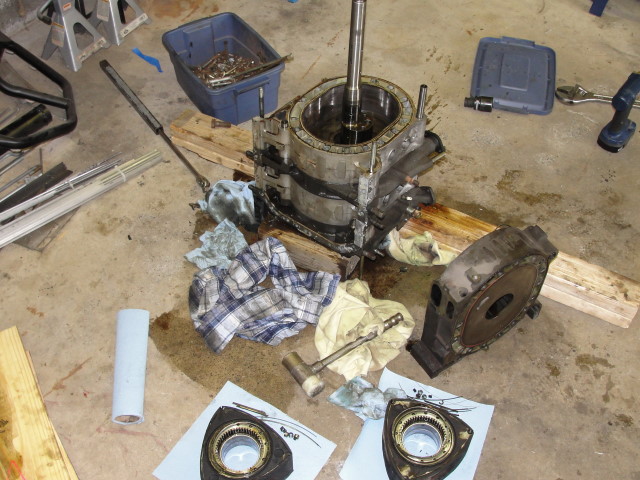

Time to open the beast:

Name: DSC04398_zpse23b0514.jpg Views: 153 Size: 111.5 KB

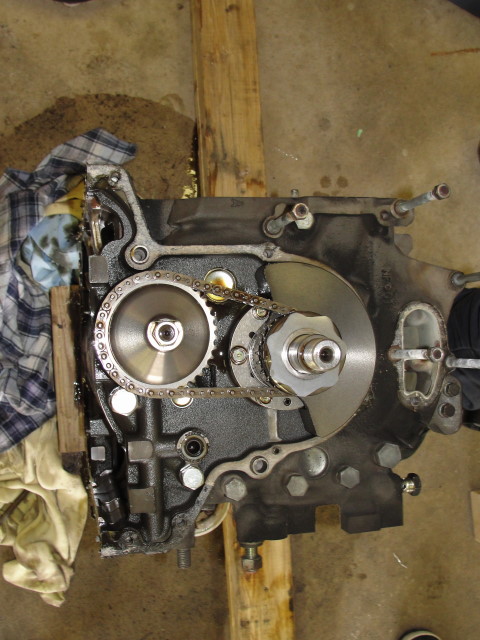

Name: DSC04399_zps059dc5a2.jpg Views: 158 Size: 97.2 KB

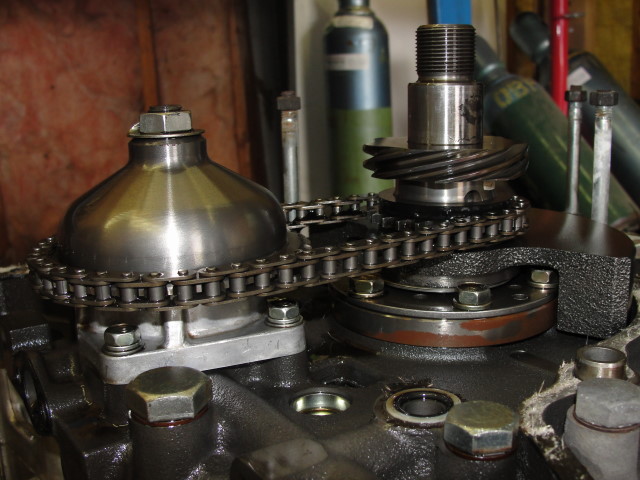

Name: DSC04400_zps3b1ac903.jpg Views: 157 Size: 90.1 KB

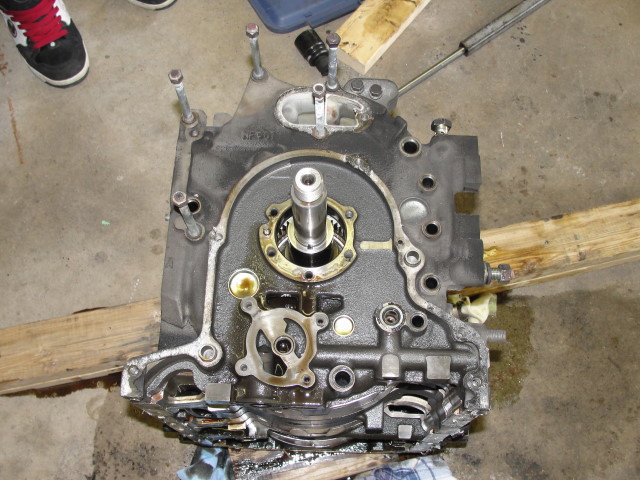

Name: DSC04401_zpsc88d44f8.jpg Views: 171 Size: 109.8 KB
Name: DSC04402_zps1d96a670.jpg Views: 163 Size: 114.0 KB

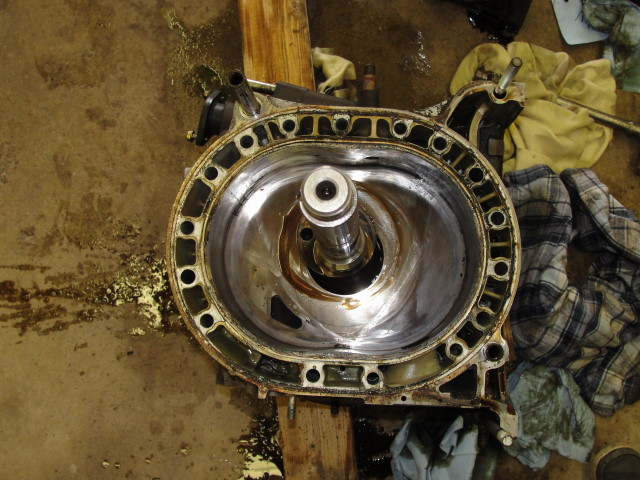

Name: DSC04403_zps05628793.jpg Views: 176 Size: 115.8 KB
Name: DSC04405_zpsa62413a3.jpg Views: 150 Size: 120.1 KB
Erix7rew is offline
Reply Like
Old 05-31-14, 11:39 AM
  #4
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

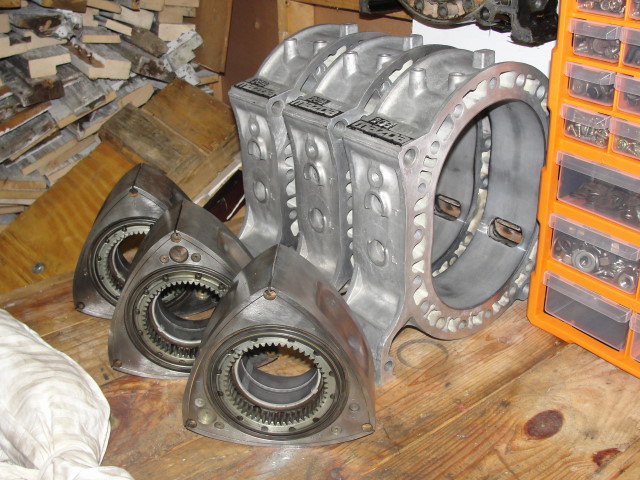

Cleanup!

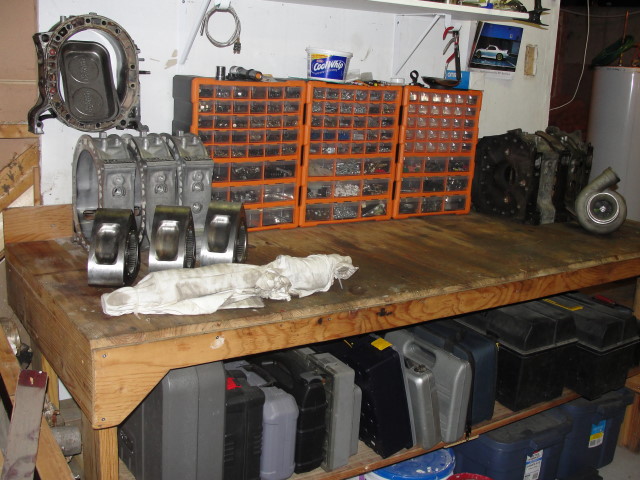

Name: DSC04517_zps30d46d41.jpg Views: 159 Size: 107.4 KB

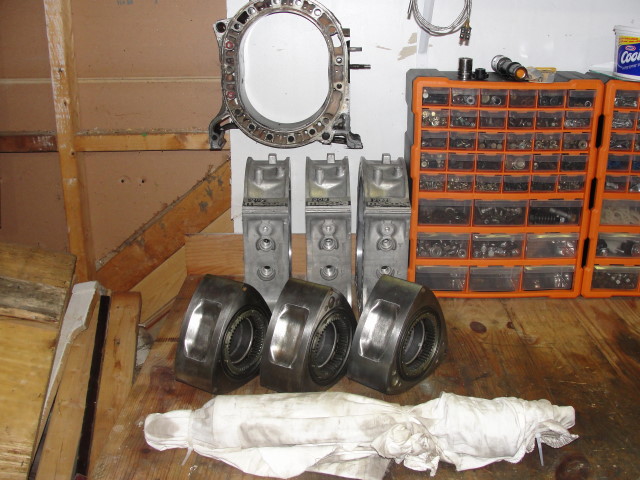

Name: DSC04518_zps9d5ed7f0.jpg Views: 156 Size: 103.9 KB
Name: DSC04521_zpsb813da24.jpg Views: 158 Size: 120.5 KB

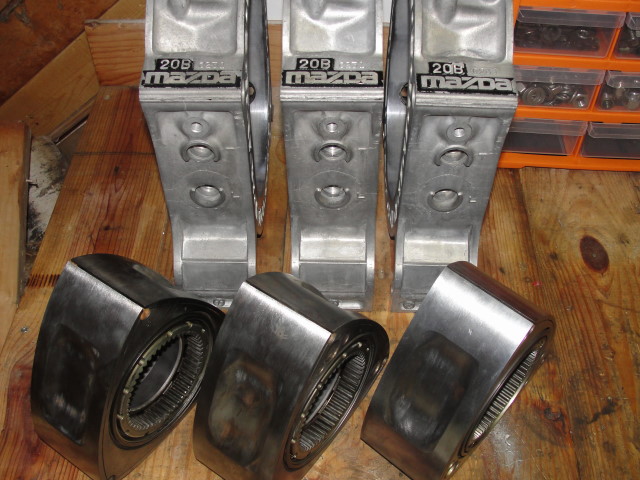

Name: DSC04522_zpsf0eac563.jpg Views: 150 Size: 101.5 KB
Name: DSC04523_zpseb135946.jpg Views: 167 Size: 94.6 KB
Erix7rew is offline
Reply Like
Old 05-31-14, 11:41 AM
  #5
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

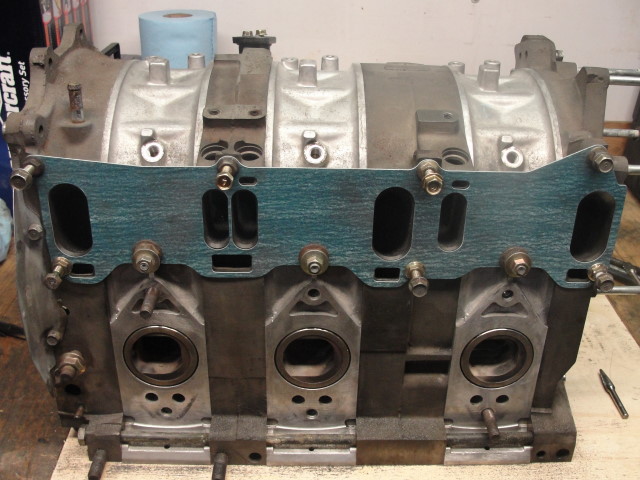

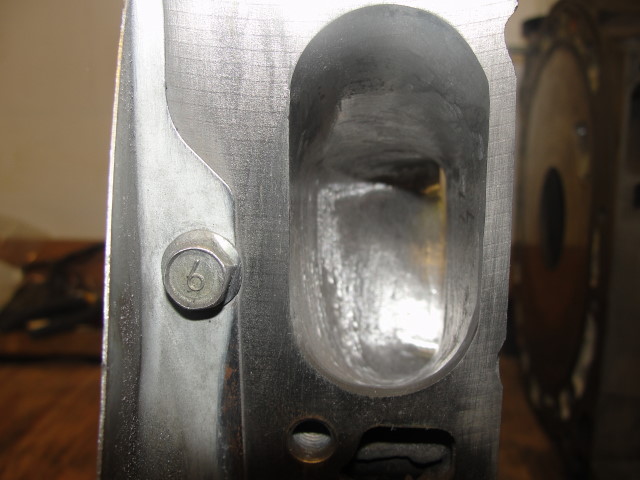

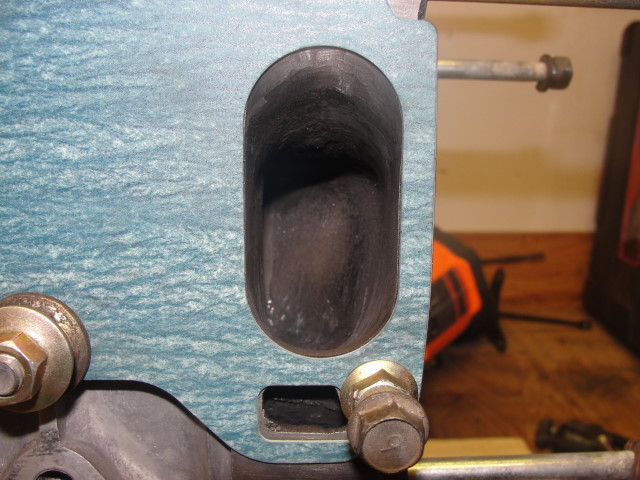

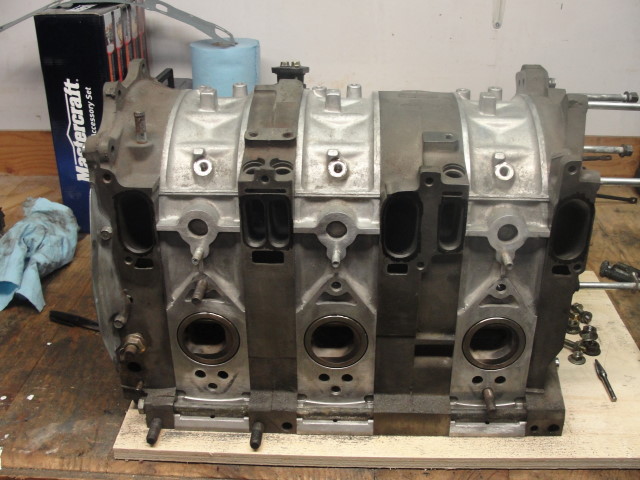

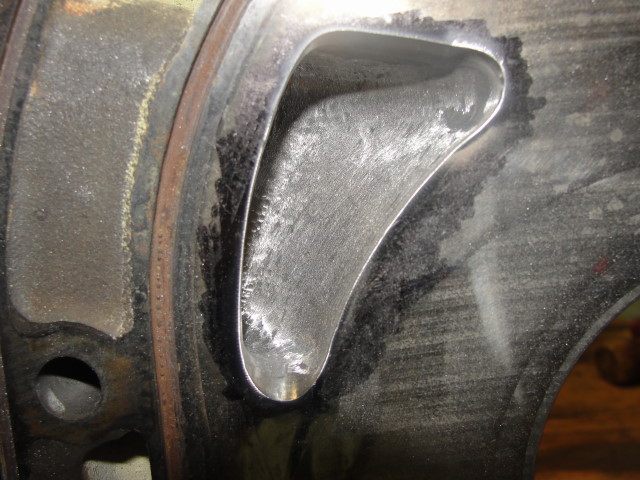

LargeStreet port:

Name: DSC04693_zps4f934674.jpg Views: 192 Size: 89.9 KB
Name: DSC04694_zps2ca27e99.jpg Views: 160 Size: 95.1 KB
Name: DSC04695_zps2ccb3077.jpg Views: 149 Size: 96.9 KB
Name: DSC04696_zps96653d78.jpg Views: 152 Size: 68.4 KB
Name: DSC04698_zps77d520e6.jpg Views: 153 Size: 94.3 KB

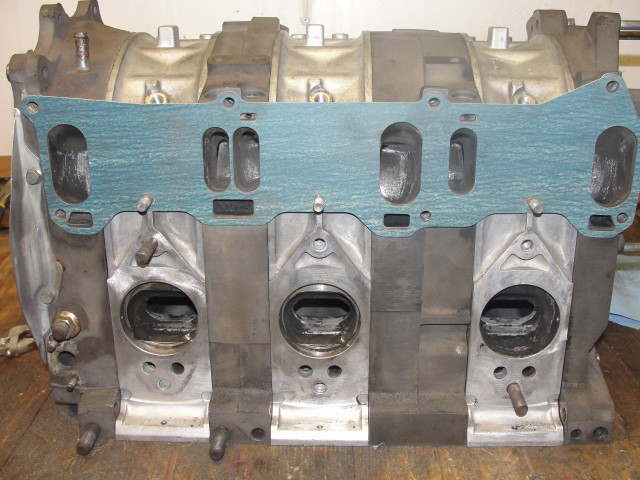

Name: DSC04699_zps74ee8d45.jpg Views: 154 Size: 100.3 KB

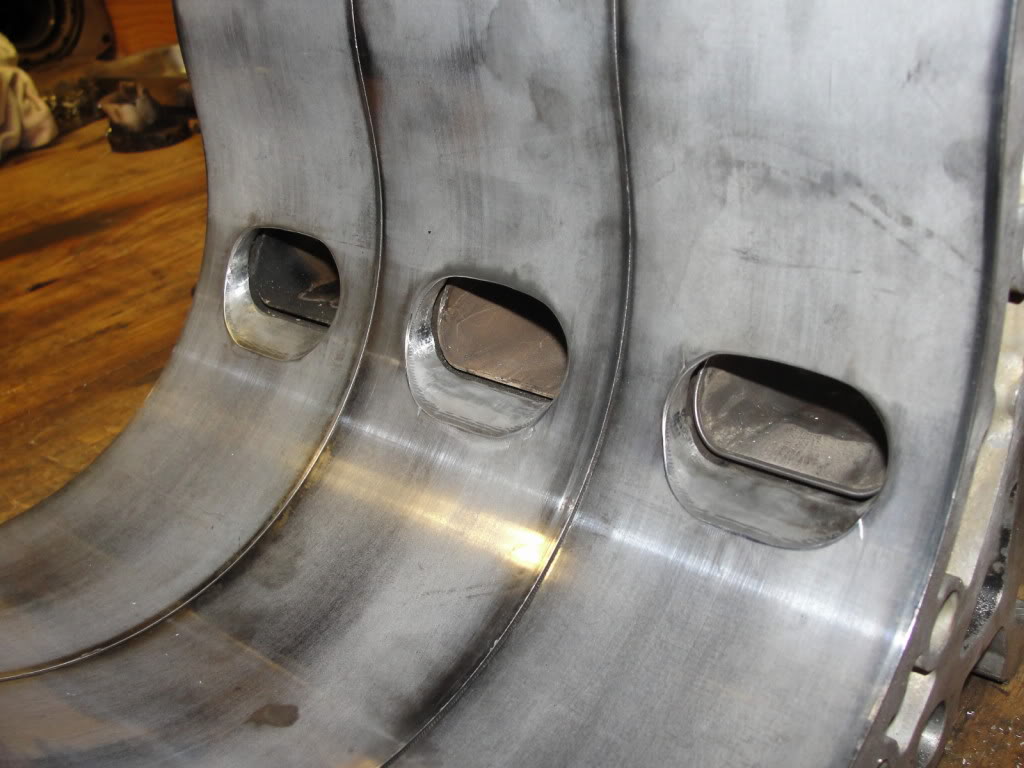

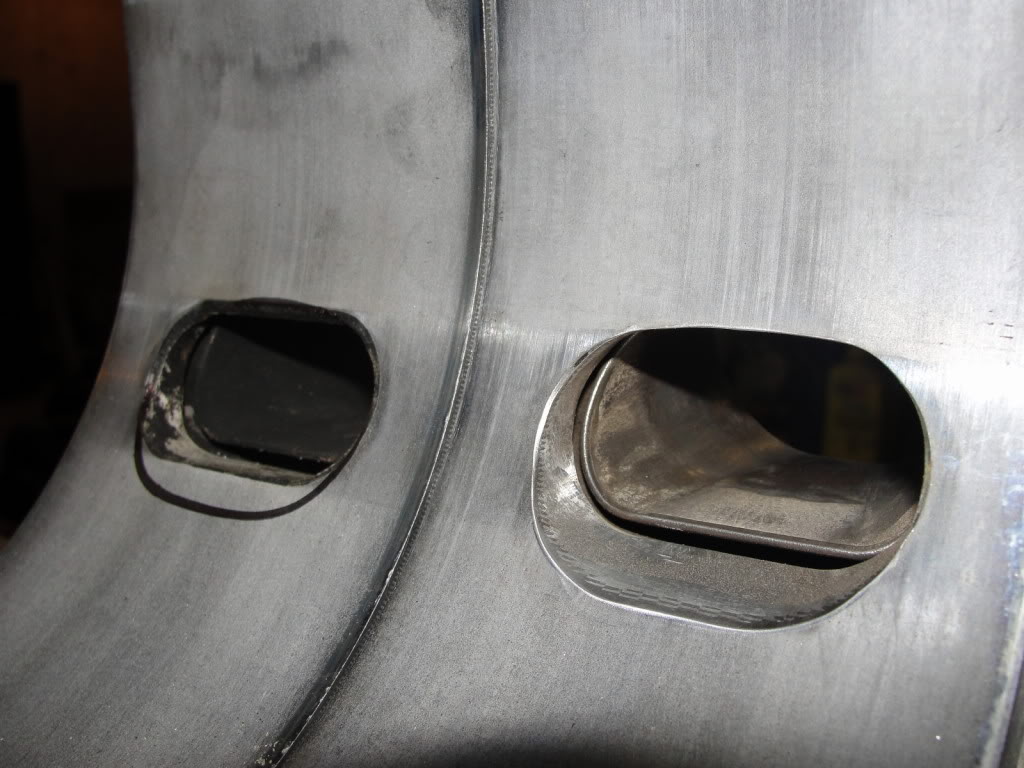

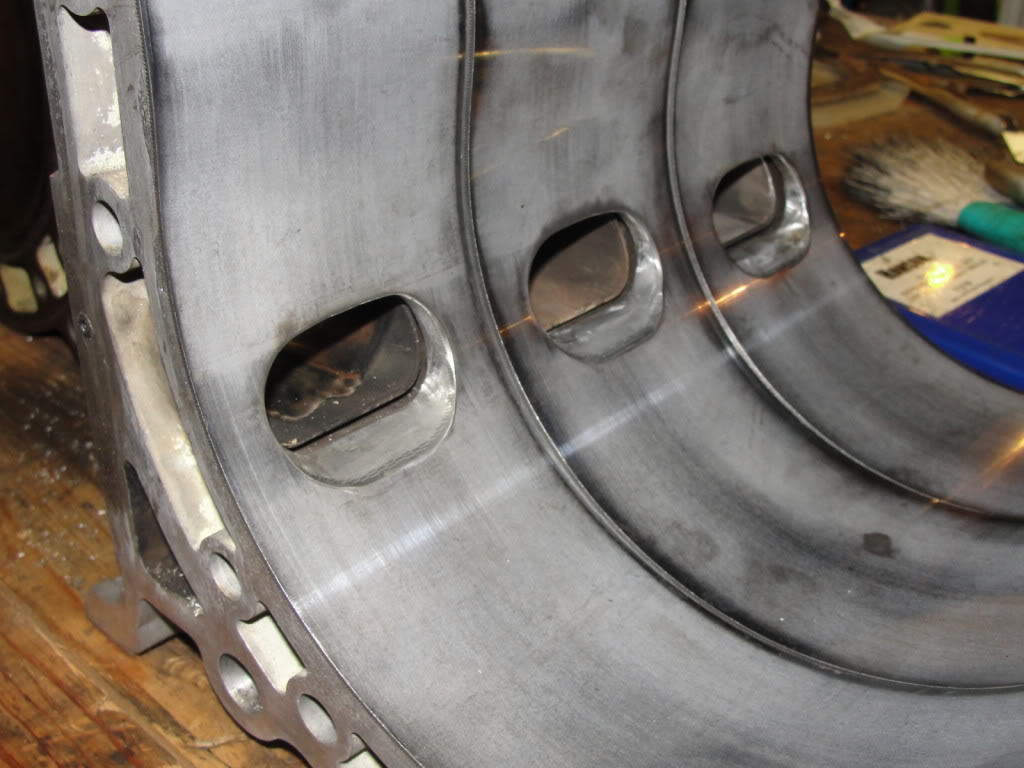

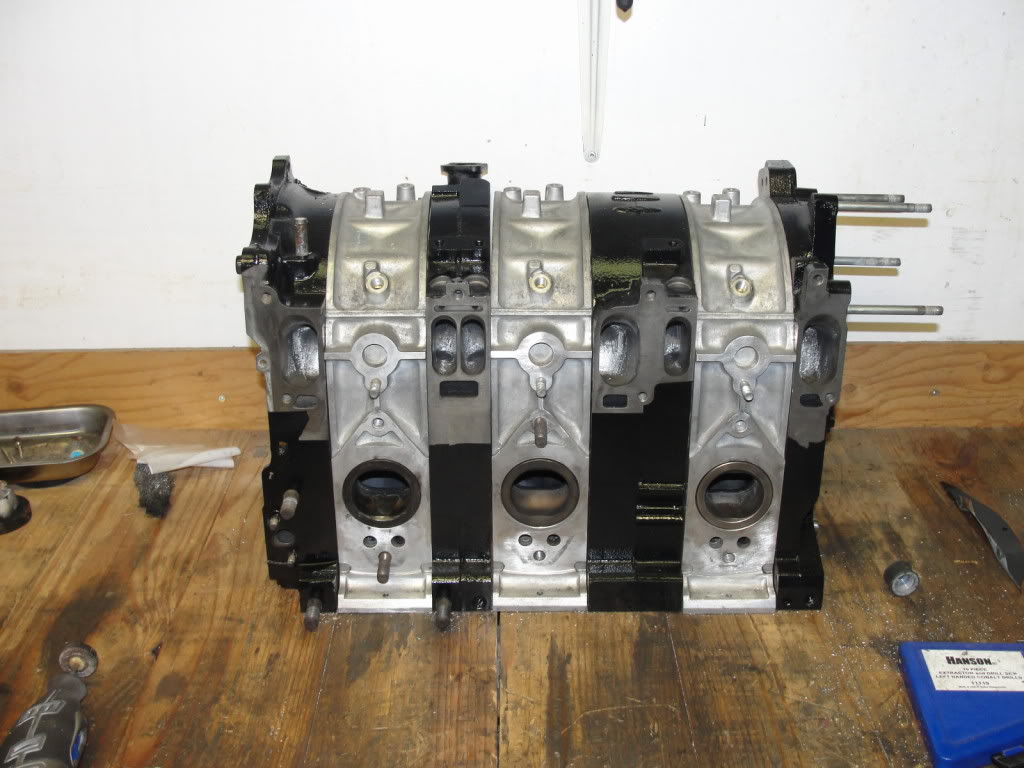

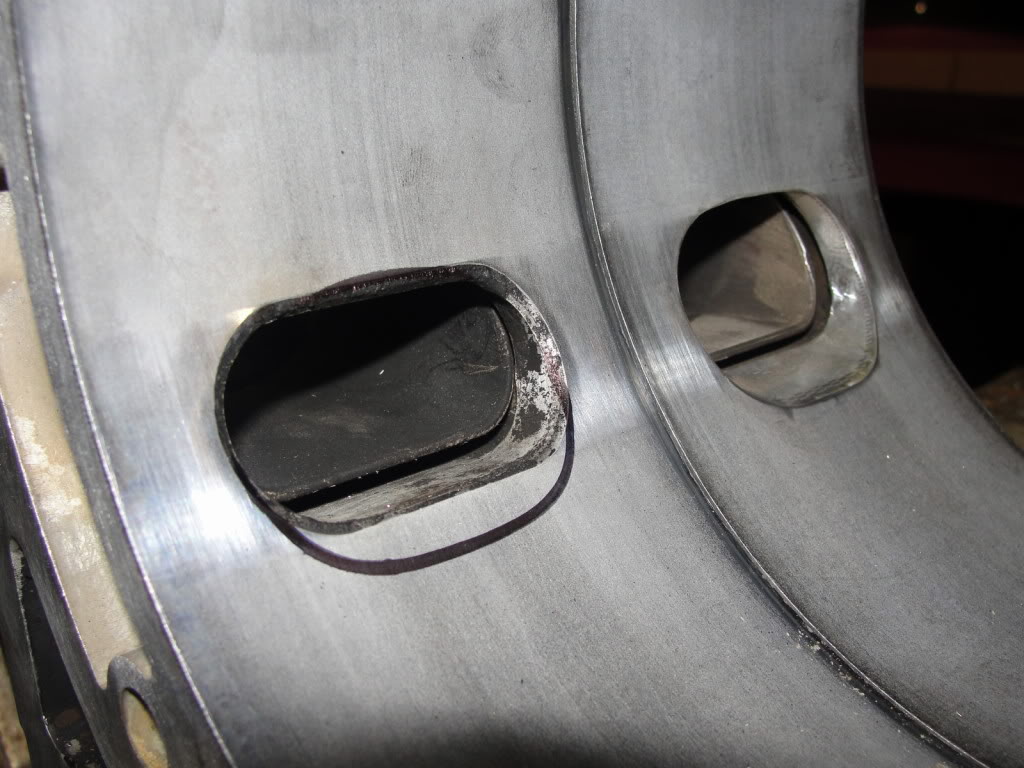

EP4A exhaust port with FD sleeve:

Name: DSC04887_zpsbd78aa00.jpg Views: 168 Size: 76.3 KB
Name: DSC04888_zps7eef224d.jpg Views: 165 Size: 106.6 KB
Name: DSC04889_zps0358cf67.jpg Views: 167 Size: 112.7 KB
Name: DSC04894_zps40a2ef7f.jpg Views: 157 Size: 111.1 KB
Name: DSC04895_zps8d3a2515.jpg Views: 158 Size: 93.2 KB
Name: DSC04896_zps46faf948.jpg Views: 181 Size: 93.7 KB
Erix7rew is offline
Reply Like
Old 05-31-14, 11:44 AM
  #6
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

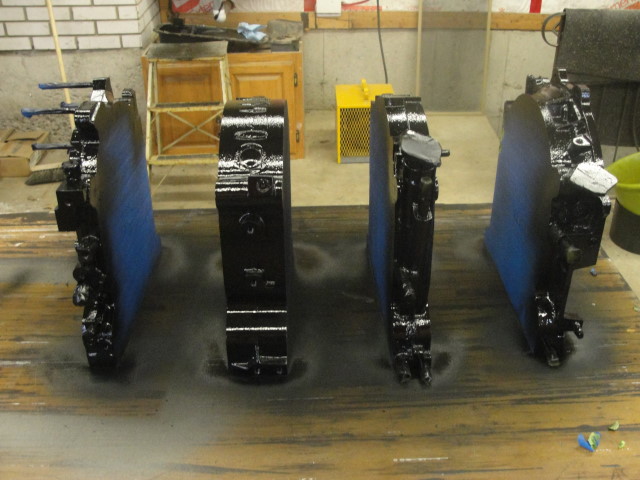

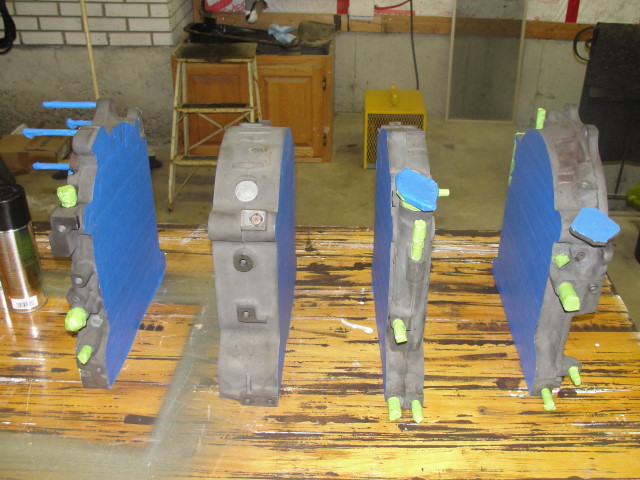

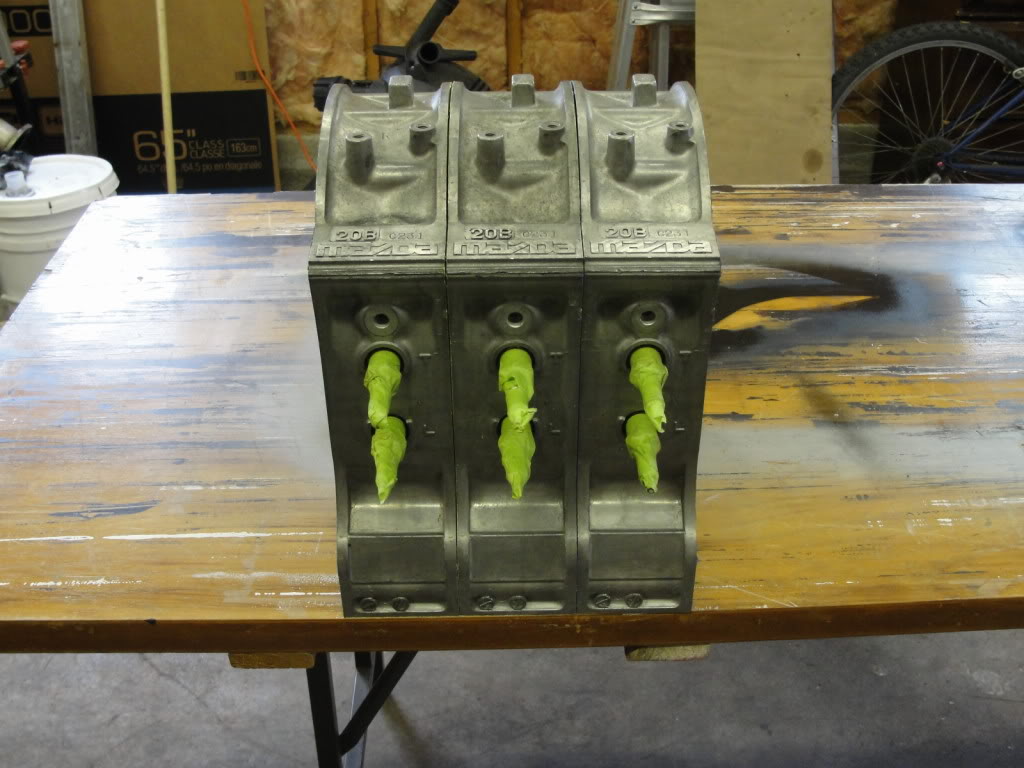

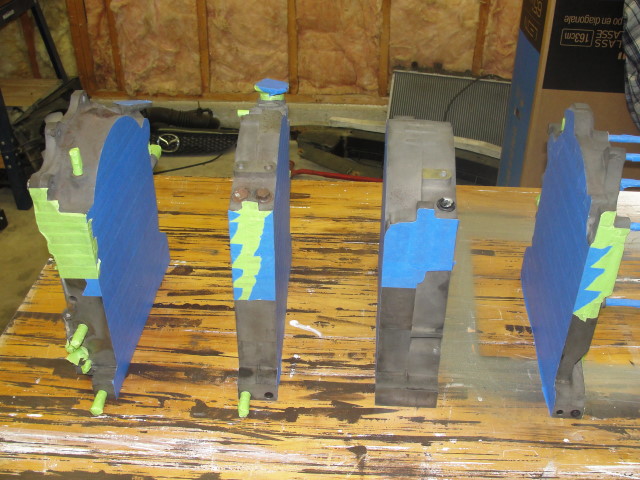

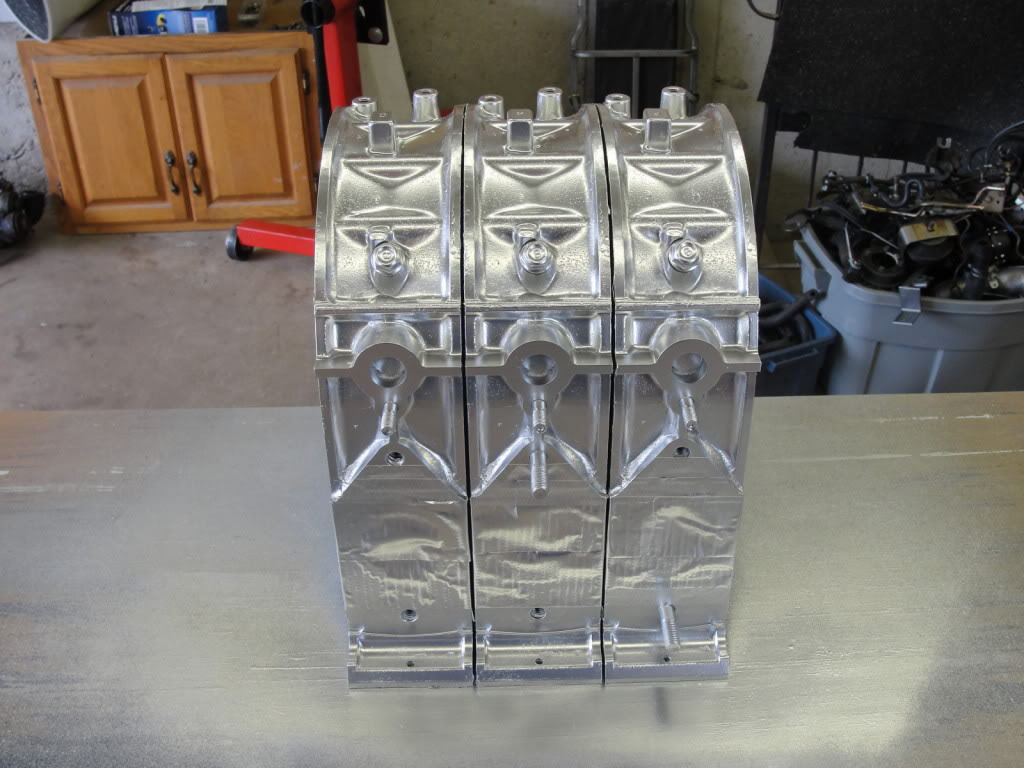

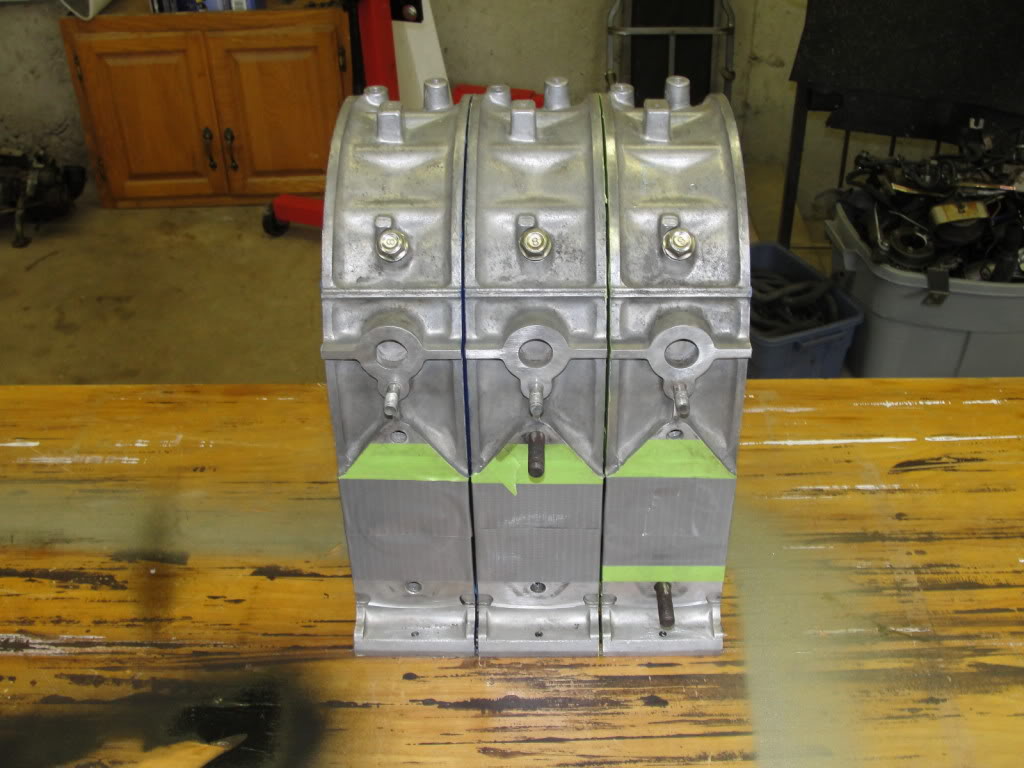

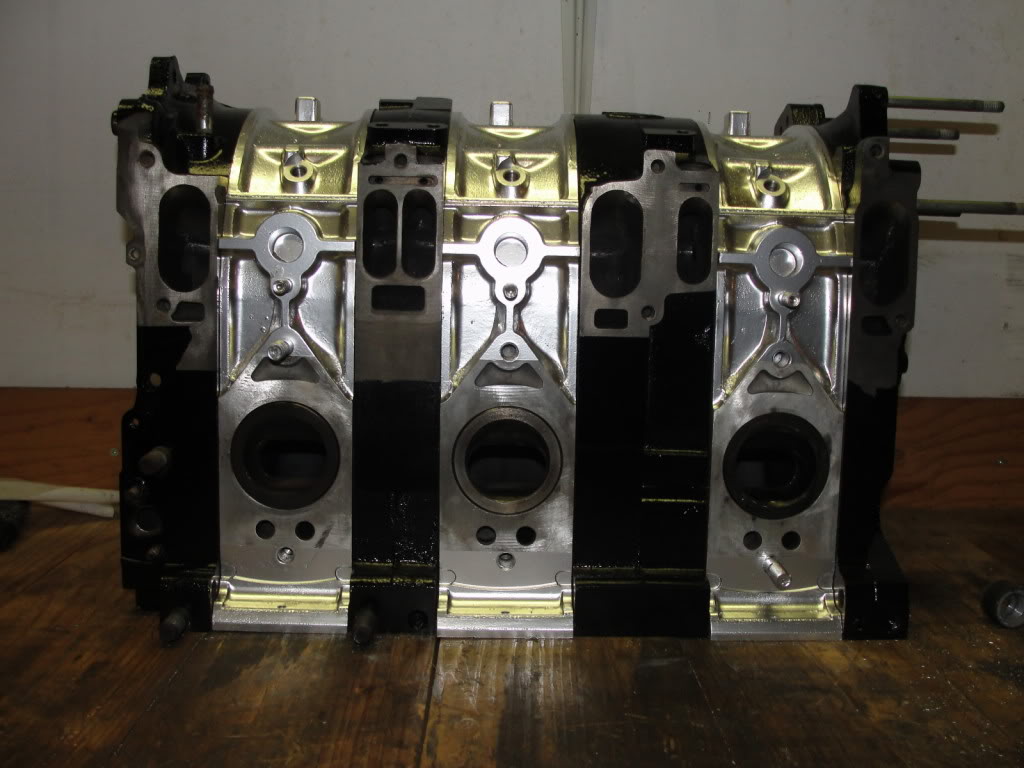

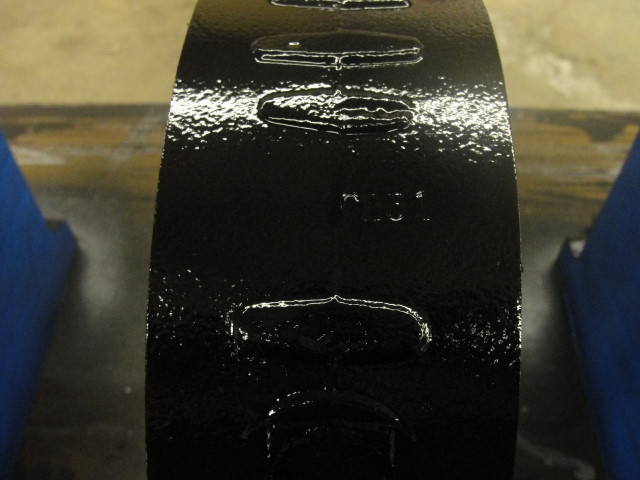

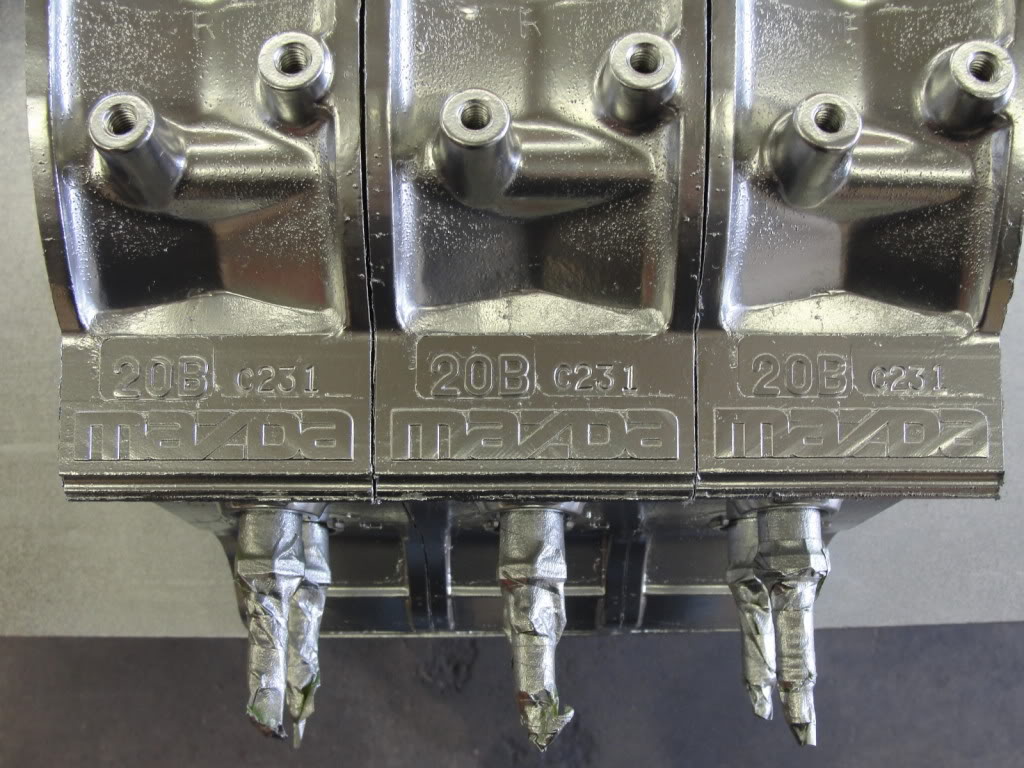

Classic paint sheme:

Name: DSC04710_zps4d4c0245.jpg Views: 153 Size: 112.5 KB
Name: DSC04711_zpsc9229092.jpg Views: 155 Size: 105.1 KB
Name: DSC04714_zpsdf2e295f.jpg Views: 158 Size: 96.8 KB
Name: DSC04715_zps903998e8.jpg Views: 172 Size: 84.5 KB
Name: DSC04716_zps7b91a991.jpg Views: 156 Size: 65.7 KB
Name: DSC04897_zps8f36754b.jpg Views: 163 Size: 106.3 KB
Name: DSC04898_zpsa3206011.jpg Views: 192 Size: 103.1 KB

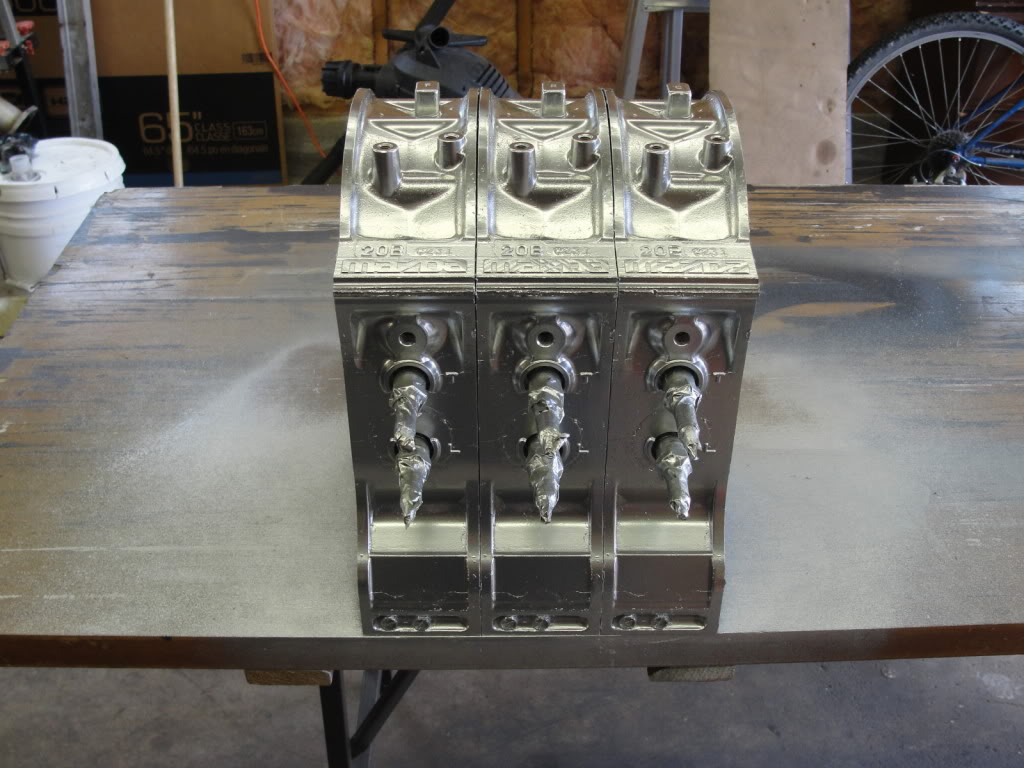

Name: DSC04899_zps69f914a1.jpg Views: 160 Size: 119.9 KB
Name: DSC04900_zps210fc02f.jpg Views: 166 Size: 117.2 KB
Name: DSC04901_zps40236c88.jpg Views: 209 Size: 152.7 KB

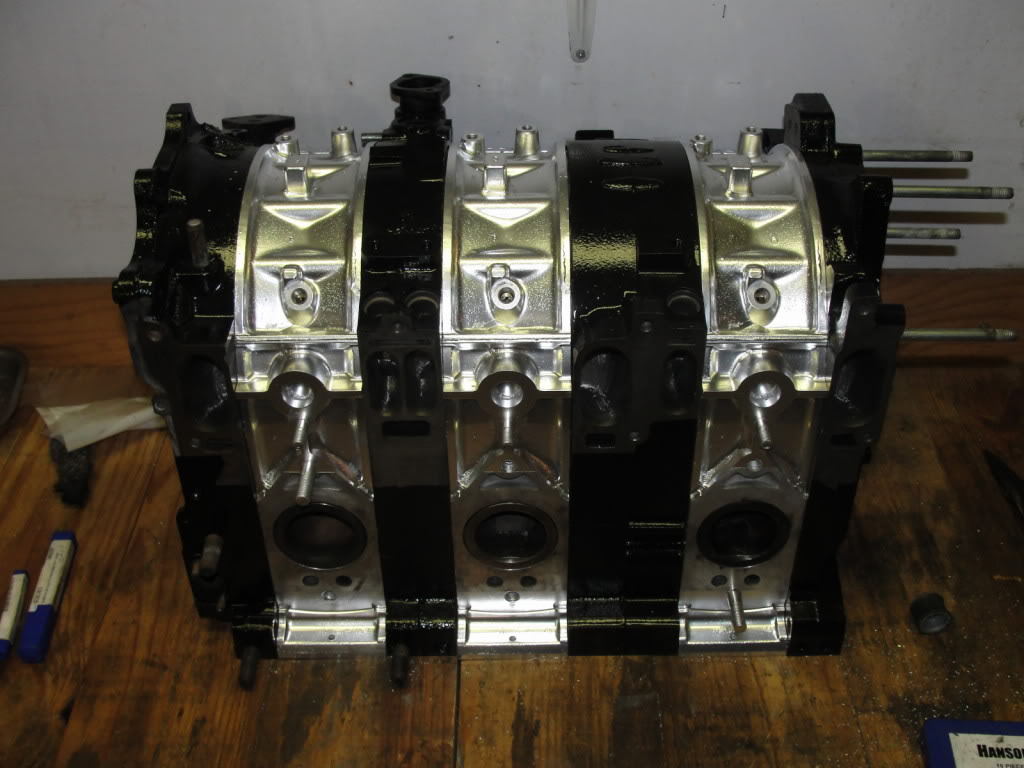

Name: DSC04904_zps3430c62d.jpg Views: 204 Size: 101.9 KB
Name: DSC04905_zps9e673783.jpg Views: 174 Size: 100.1 KB
Erix7rew is offline
Reply Like
Old 05-31-14, 11:48 AM
  #7
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

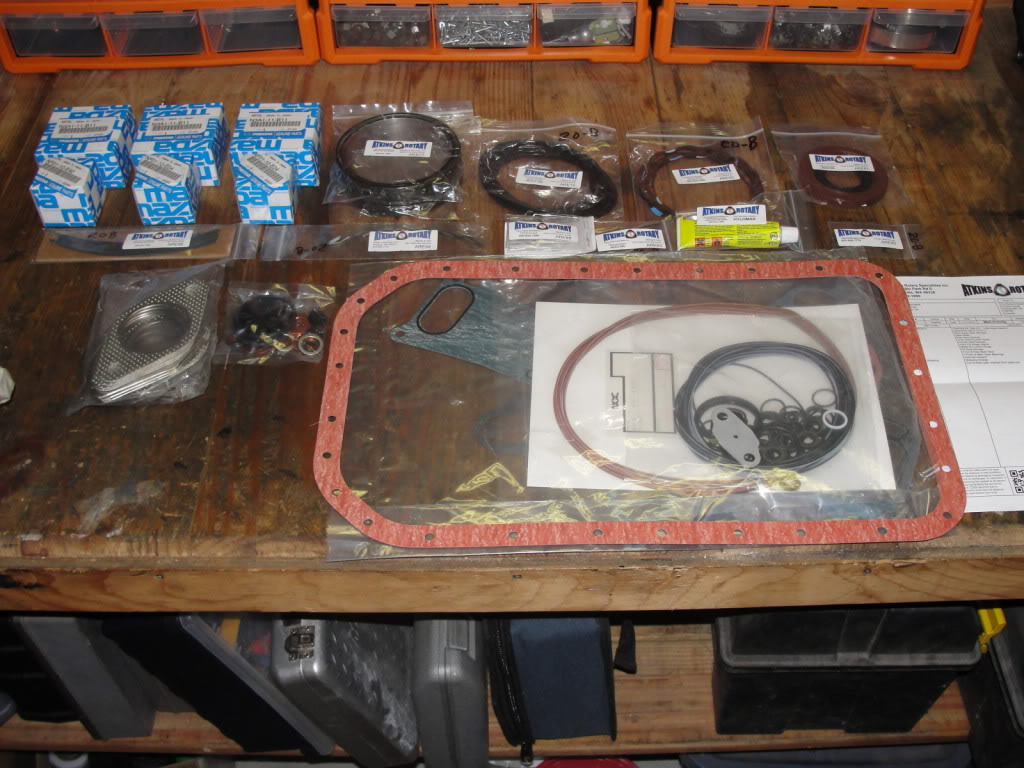

Now ready to assemble!

Atkin 20b full rebuilt kit with solid corner seal
Goopy Apex seal

That all for now! We hope to put the motor back together next weekend but first i have to made a engine stand adapter for 20b and a jig to grind the side seal to spec!

Name: DSC04525_zps580f2989.jpg Views: 205 Size: 137.8 KB
Erix7rew is offline
Reply Like

Trending Topics

Old 05-31-14, 11:49 AM
  #8
20B/5 Speed/JC!

iTrader: (2)

LoneStarS30Z's Avatar

Join Date: Jul 2007
Location: Sahuarita, AZ
Posts: 406
Likes: 0
Received 0 Likes on 0 Posts
Ugh that looks so delicious. I would love to have my 20B ported, I can only imagine how crazy it'd be.
LoneStarS30Z is offline
Reply Like
Old 05-31-14, 11:59 AM
  #9
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
Originally Posted by LoneStarS30Z
Ugh that looks so delicious. I would love to have my 20B ported, I can only imagine how crazy it'd be.
We have to ported for our power goal 600-700RWHP!!!
Erix7rew is offline
Reply Like
Old 05-31-14, 12:51 PM
  #10
Senior Member
iTrader: (3)

placd1's Avatar

Join Date: May 2013
Location: Kelowna, BC
Posts: 434
Likes: 0
Received 0 Likes on 0 Posts
Nice build. Subscribed!
placd1 is offline
Reply Like
Old 06-03-14, 10:56 AM
  #11
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
No photo yet but right now i just fit the fd front cover, waterpump and alu braket that hold the fd power steering pump. The alternator would be in the place of A/C unit and i custom made a double idler pulley and double waterpump pulley.

I order next week an xcessive short lower manifold and 6 port injector fuel rail.

Tonight i will make the engine stand adaptor plate to hold the 20B and also the jig to grind down the side seal to spec!
Erix7rew is offline
Reply Like
Old 06-03-14, 11:44 AM
  #12
Recovering Milkaholic

iTrader: (7)

Fd3BOOST's Avatar

Join Date: Jan 2002
Location: Budds Creek, Maryland
Posts: 8,203
Likes: 0
Received 0 Likes on 0 Posts
This is going to be fun to follow. Looking good!
Fd3BOOST is offline
Reply Like
Old 06-03-14, 02:44 PM
  #13
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

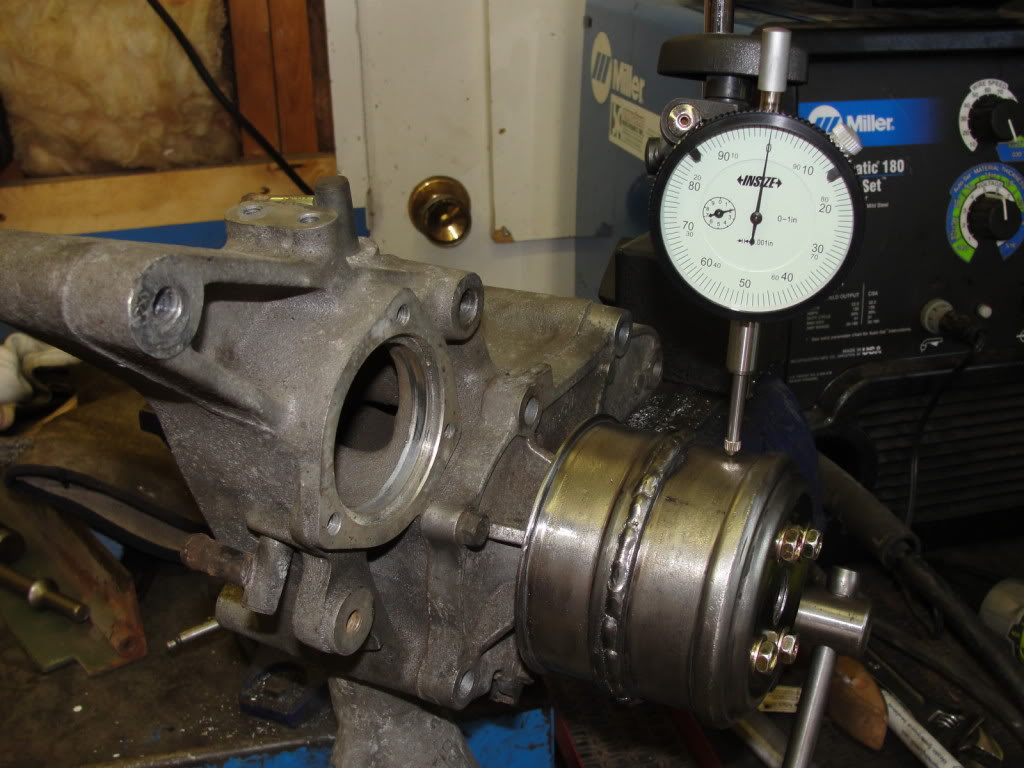

Not a big update but the double water pump pulley is almost complete!

Name: DSC04961_zps022c6e84.jpg Views: 175 Size: 107.8 KB
Erix7rew is offline
Reply Like
Old 06-27-14, 09:23 AM
  #14
Bat mobile driver


Eli063's Avatar

Join Date: Dec 2010
Location: Florida
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
sub'd
Eli063 is offline
Reply Like
Old 06-29-14, 09:06 PM
  #15
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
Small update but no pic yet! I order the excessive shorter lower intake manifold with the new secondary fuel rail made by FFE with 6 port injector!
Erix7rew is offline
Reply Like
Old 07-10-14, 09:14 PM
  #16
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

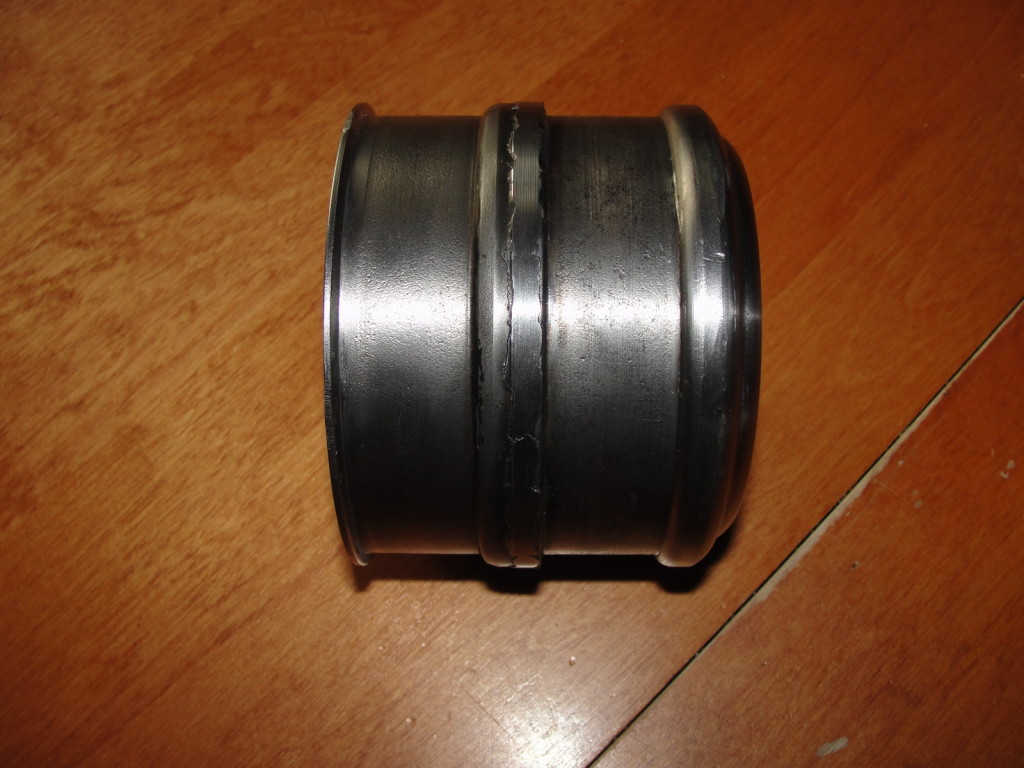

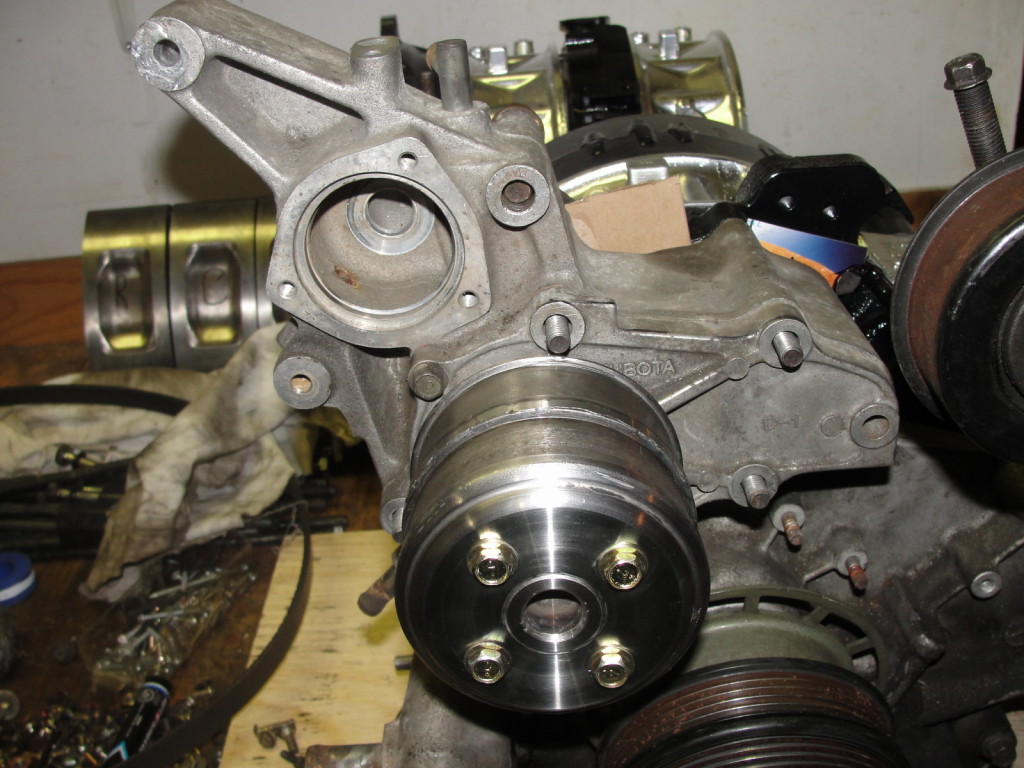

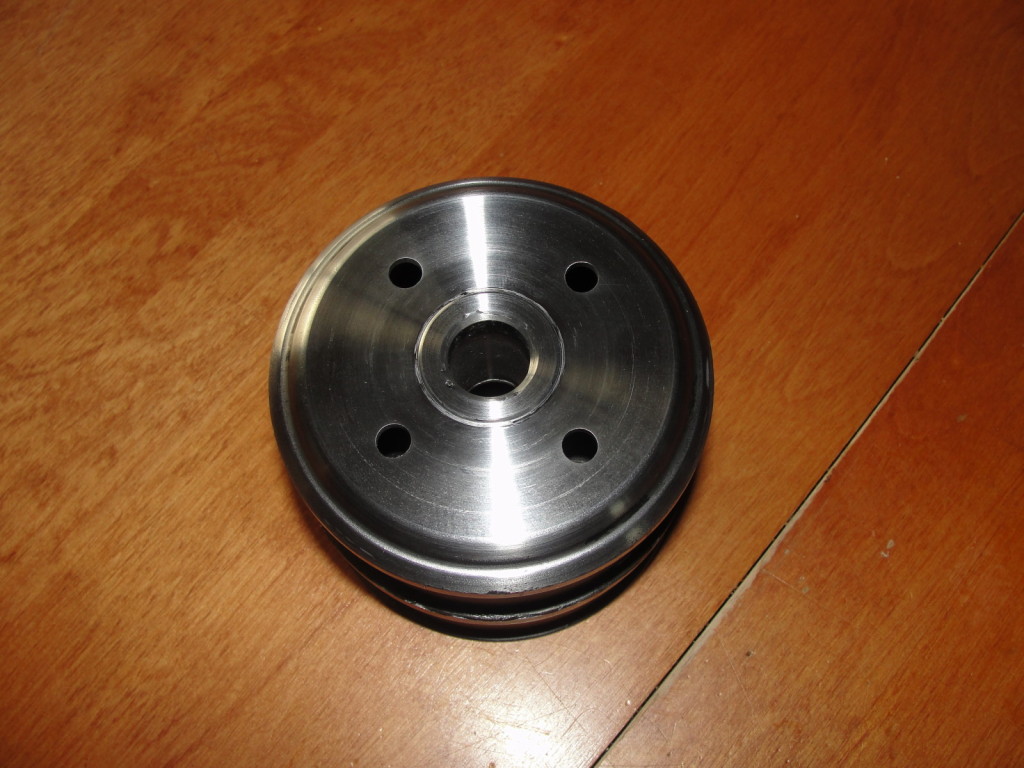

Just finished my custom double waterpump pulley and will have my custom double idler pulley tomorrow. Xcessive lower intake manifold and FFE fuel rail should arrive next week

Name: DSC05061_zpsd02b716f.jpg Views: 159 Size: 169.9 KB
Name: DSC05062_zps2b679b25.jpg Views: 163 Size: 155.0 KB
Erix7rew is offline
Reply Like
Old 07-10-14, 11:01 PM
  #17
Senior Member


fd3s7007's Avatar

Join Date: Nov 2001
Location: Malaysia
Posts: 567
Likes: 0
Received 0 Likes on 0 Posts
Awesome!
fd3s7007 is offline
Reply Like
Old 07-11-14, 12:26 AM
  #18
Senior Member

iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Likes: 0
Received 1 Like on 1 Post
Double belt water pump, very interesting idea but why not go with electric water pump or add a pivot pulley?
bufferovrflo is offline
Reply Like
Old 07-11-14, 08:22 AM
  #19
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
Originally Posted by bufferovrflo
Double belt water pump, very interesting idea but why not go with electric water pump or add a pivot pulley?
For now the waterpump cost nothing versus an 600$+ electric waterpump.

We will run an adaptronic e1280s ecu with AEM smart coil and 6 ID1000 secondary with twin denso pump in parallel!

Everything will be order soon
Erix7rew is offline
Reply Like
Old 07-11-14, 04:03 PM
  #20
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post

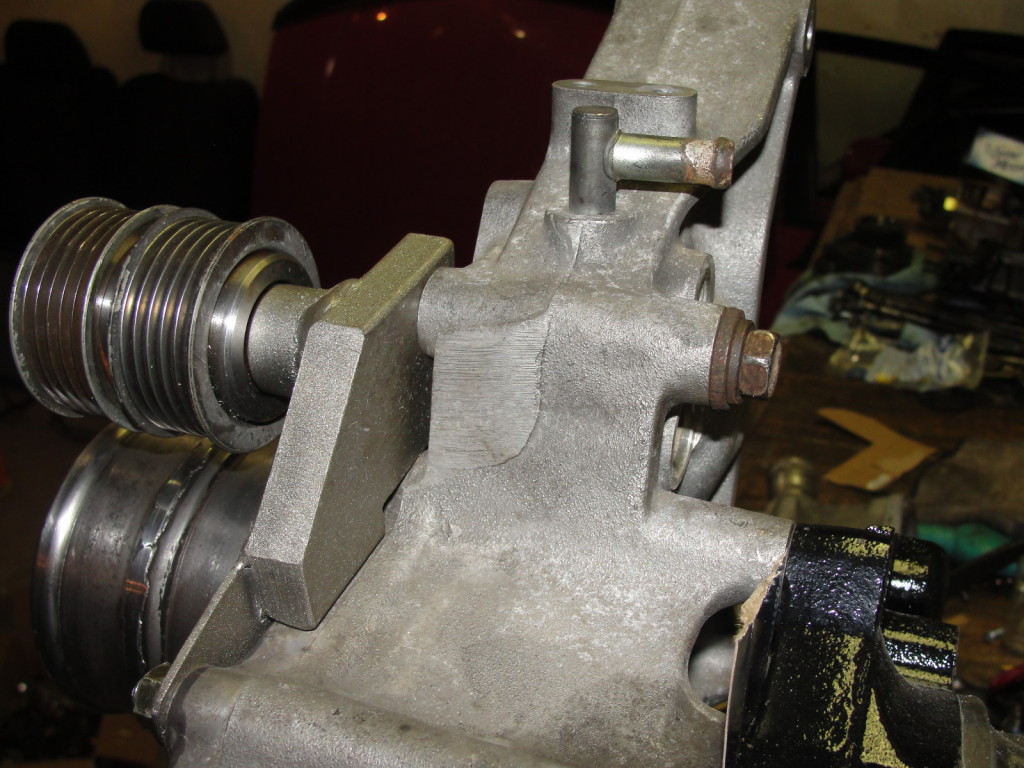

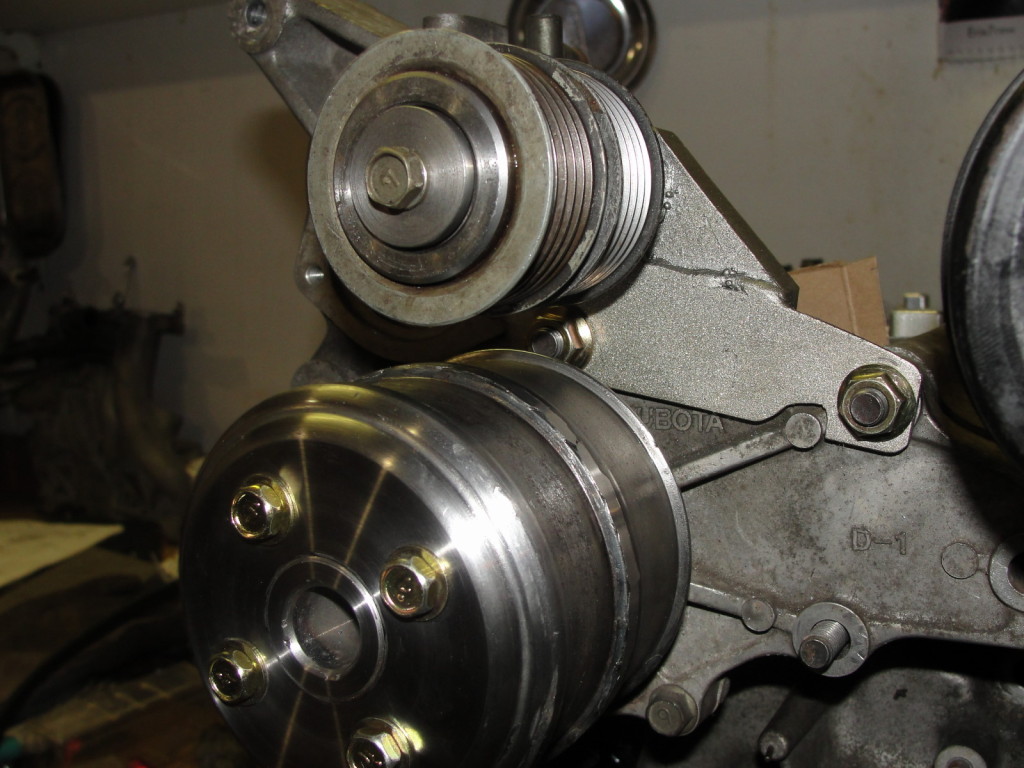

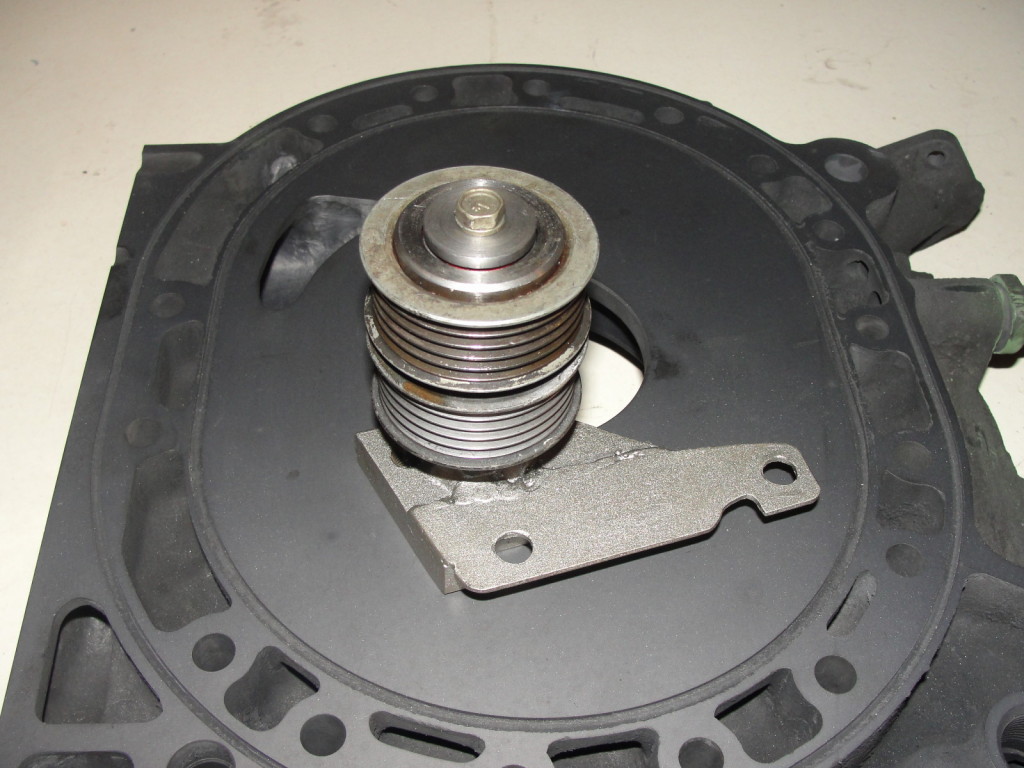

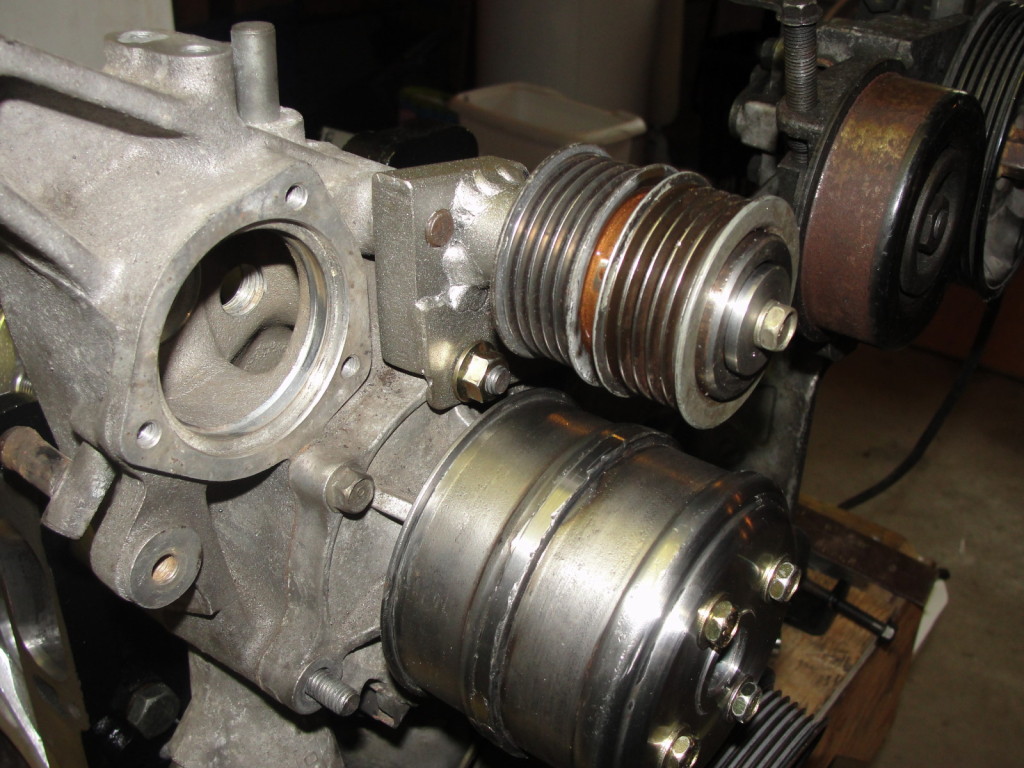

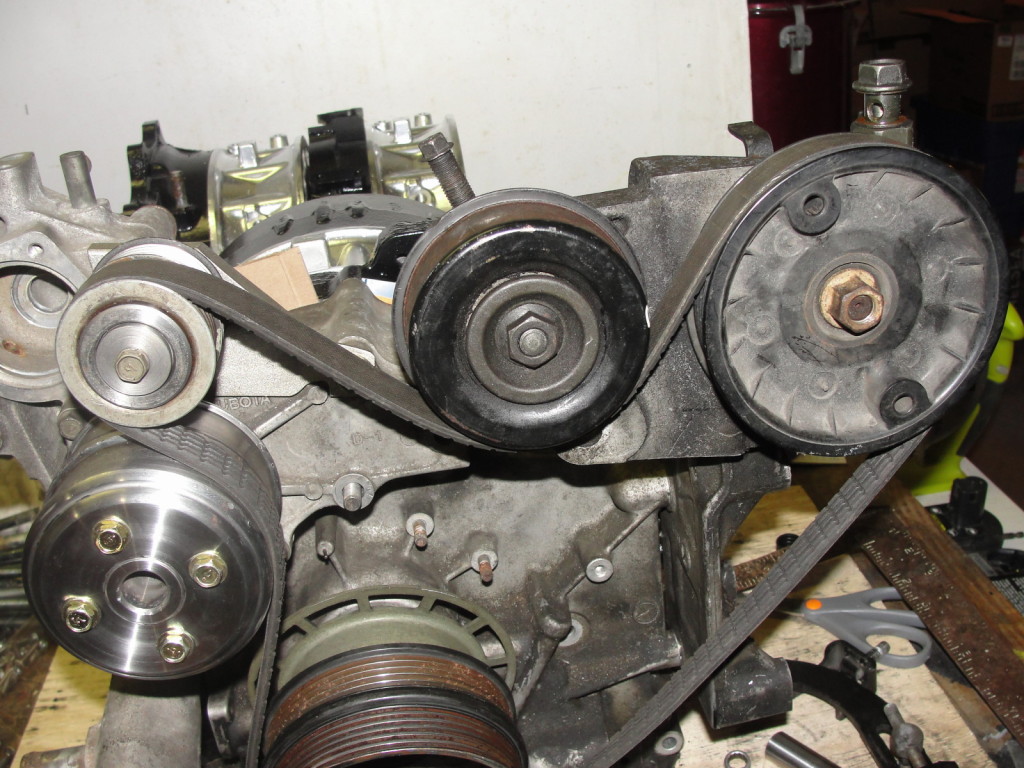

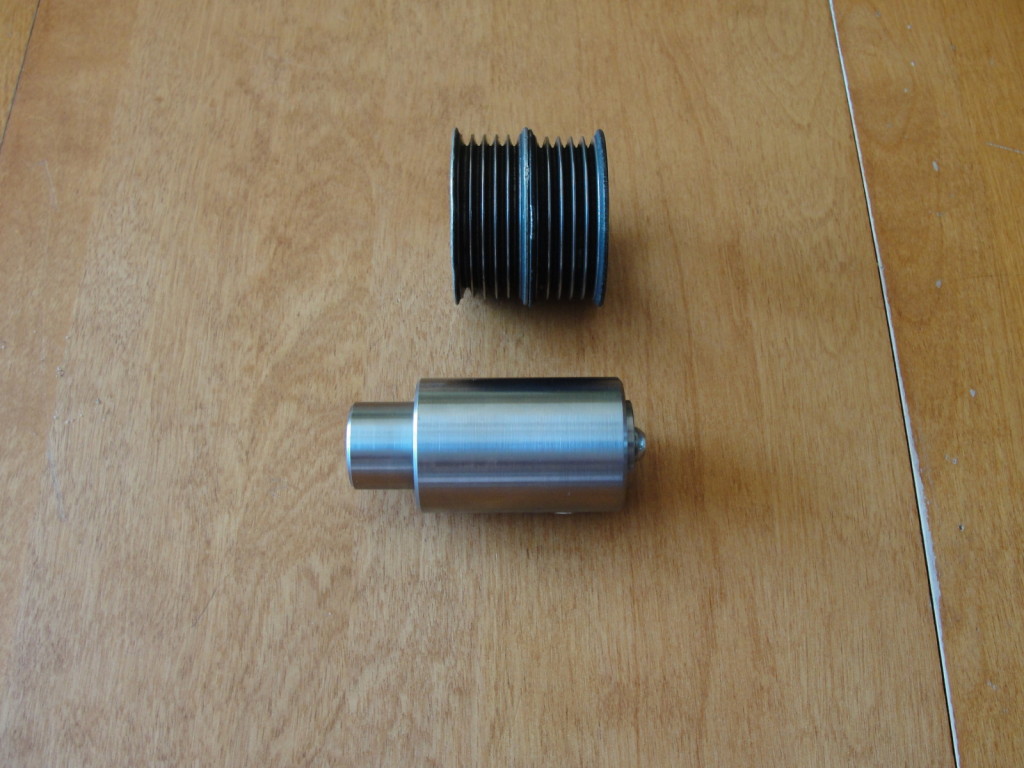

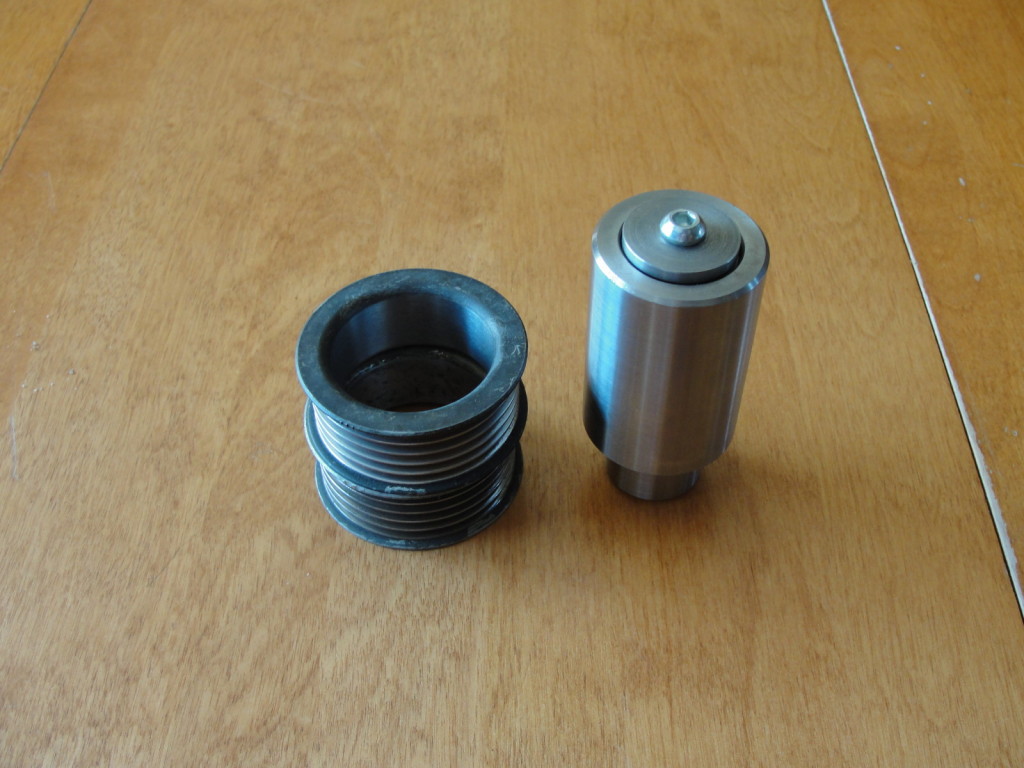

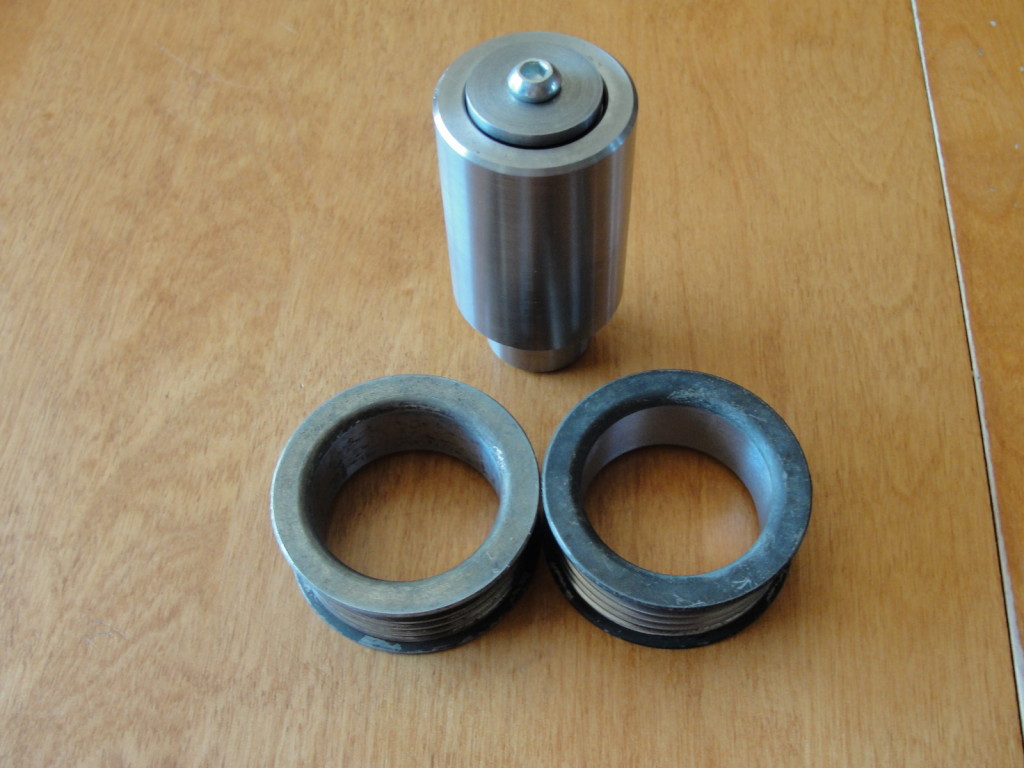

Custom made double idler pulley!! I use 2 FD alternator pulley and made a new center housing with 2 6000vvc3 bearing

Name: DSC05064_zpsf929ef1d.jpg Views: 219 Size: 160.6 KB
Name: DSC05065_zps9f8398ee.jpg Views: 160 Size: 165.0 KB
Name: DSC05066_zps298ab226.jpg Views: 171 Size: 152.4 KB
Erix7rew is offline
Reply Like
Old 07-11-14, 04:37 PM
  #21
7777777

iTrader: (13)

REsuperOG's Avatar

Join Date: Jan 2009
Location: So. Cal
Posts: 348
Received 10 Likes on 5 Posts
cool! #subscribed
REsuperOG is offline
Reply Like
Old 07-11-14, 08:20 PM
  #22
Turn up the boost
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 7,067
Received 91 Likes on 77 Posts
What turbo is going on this? Subscribed!
__________________
Rotary Performance Parts


Turblown is offline
Reply Like
Old 07-11-14, 10:46 PM
  #23
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Turblown
What turbo is going on this? Subscribed!
GTX4202r with Adaptronics e1280s ECU! The only part that we shearched again and again is a turbo manifold that fit RHD car!
Erix7rew is offline
Reply Like
Old 07-12-14, 10:34 PM
  #24
Always Wanting to Learn

iTrader: (49)

DreamInRotary's Avatar

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 3,078
Received 42 Likes on 40 Posts
Holy clean 20B batman! Nice work so far, can't wait to see where this goes!
DreamInRotary is offline
Reply Like
Old 07-13-14, 12:44 PM
  #25
Senior Member

Thread Starter
iTrader: (7)

Erix7rew's Avatar

Join Date: Oct 2008
Location: Victoriaville
Posts: 374
Likes: 0
Received 1 Like on 1 Post
Idler pulley almost done! Just need a good cleanup and paint!

Next is the alternator placement under the power steering pump!

Name: DSC05067_zpscab47c24.jpg Views: 164 Size: 163.8 KB

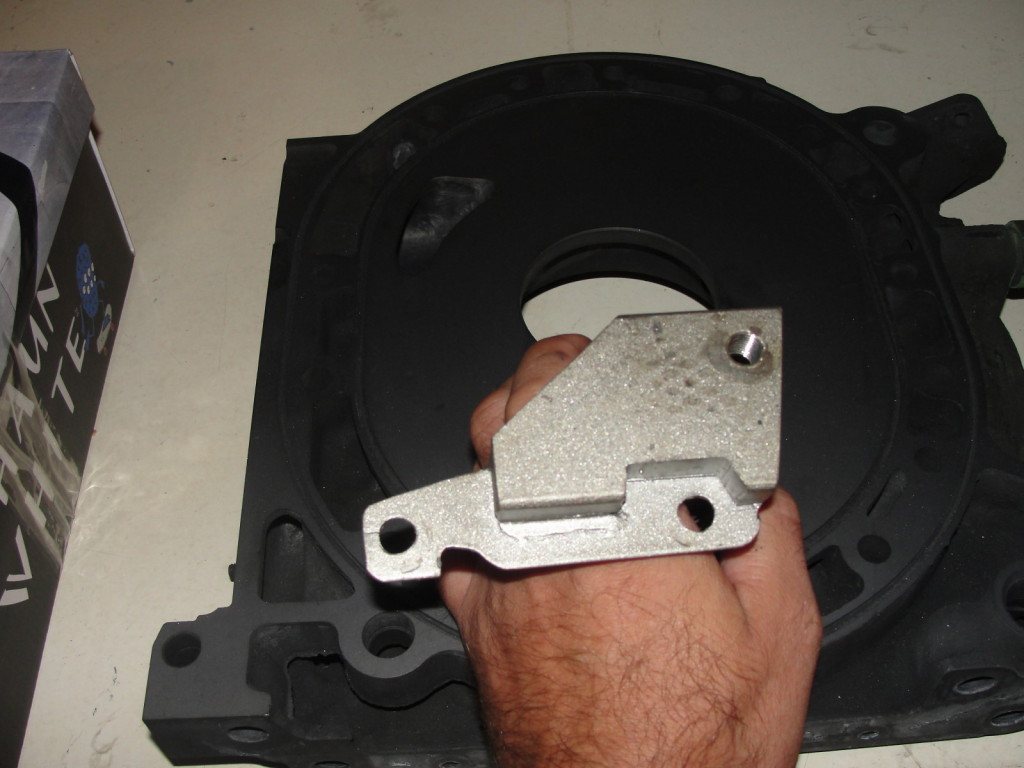

Name: DSC05068_zps9581fcbe.jpg Views: 146 Size: 130.1 KB
Name: DSC05069_zpsff521fc2.jpg Views: 187 Size: 191.6 KB
Name: DSC05070_zpsf62172e3.jpg Views: 189 Size: 199.8 KB
Name: DSC05071_zps5fda22cc.jpg Views: 184 Size: 170.8 KB
Name: DSC05072_zpsd11d04f5.jpg Views: 171 Size: 200.4 KB
Name: DSC05073_zps95bd2339.jpg Views: 236 Size: 225.2 KB

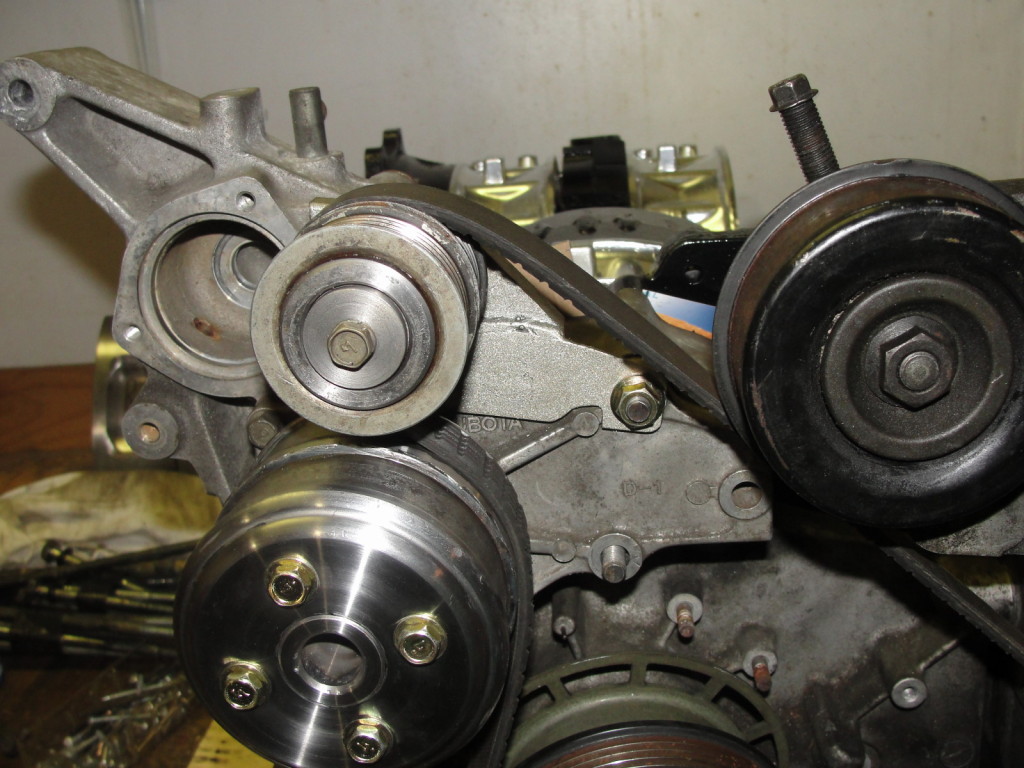

Name: DSC05074_zps0a0cc338.jpg Views: 165 Size: 188.4 KB
Erix7rew is offline
Reply Like



Advanced Search

All times are GMT -5. The time now is 10:16 AM.
