IV-Rotor Build: 12 plugs/ 9 bearings/ 8 ports = 1 monster
Great build, curious to see the dyno sheet once its completely set up
03-09-14, 10:29 PM
#211
So its been a while since posting, but the car has finally been put on the dyno and laid down some prelim numbers.
Did run into stupid issues, alternator decided to stop charging so battery voltage was 12.0v for all the tuning. Definitely hurt spark power.
Fuel pumps were not keeping up with the injectors. Pressure was dropping after 7k
Individual rotor AFR were not the same. I didn't have the EGT's in each one to see it at the time.
Still it did us all very proud and put out 610rwhp@9700 and 365rwtq
Later in the day the highest I took it was 10,800 but the fuel pressure was so low it just killed the power output.
Pretty confident it will do 630-650rwhp once the issues are fixed

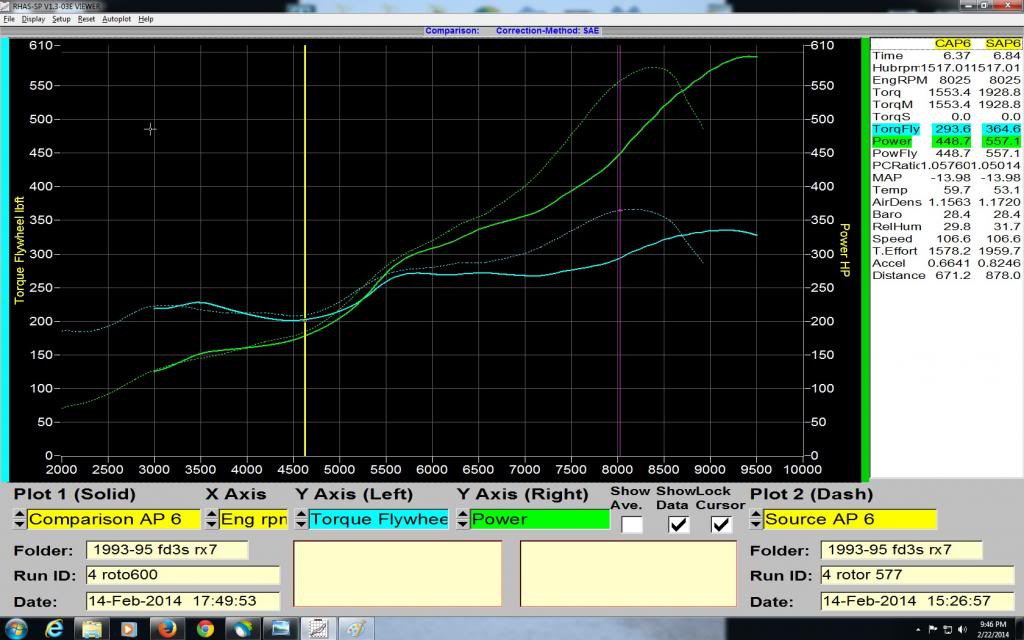

So here are two charts overlapping each other. One is with the intake at the longest setting, the other on a shorter setting. I forgot to save the 610rwhp run but you can go see that video actually on our DefinedAutoworks Facebook page.
I would have posted all this earlier, but tragically my Dad passed away unexpectedly from a heart attack two weeks ago. Never had a chance to give him a ride in the 4-rotor, but at least he heard it fire up once. My father was the person directly responsible for me going down the rotary path. One of the few factory trained rotary rebuilders for Mazda. He will be missed!! Ken Carswell 2-21-14
Did run into stupid issues, alternator decided to stop charging so battery voltage was 12.0v for all the tuning. Definitely hurt spark power.
Fuel pumps were not keeping up with the injectors. Pressure was dropping after 7k
Individual rotor AFR were not the same. I didn't have the EGT's in each one to see it at the time.
Still it did us all very proud and put out 610rwhp@9700 and 365rwtq
Later in the day the highest I took it was 10,800 but the fuel pressure was so low it just killed the power output.
Pretty confident it will do 630-650rwhp once the issues are fixed
So here are two charts overlapping each other. One is with the intake at the longest setting, the other on a shorter setting. I forgot to save the 610rwhp run but you can go see that video actually on our DefinedAutoworks Facebook page.
I would have posted all this earlier, but tragically my Dad passed away unexpectedly from a heart attack two weeks ago. Never had a chance to give him a ride in the 4-rotor, but at least he heard it fire up once. My father was the person directly responsible for me going down the rotary path. One of the few factory trained rotary rebuilders for Mazda. He will be missed!! Ken Carswell 2-21-14
03-09-14, 11:17 PM
#212
As I said when you posted on FB, congrats. That's a great accomplishment. Can't wait to see what she'll do when everything is all dialed in and you let 'er scream. Out of curiosity, even as it is have you ever gone WOT through a full gear or 2? Sub 2400lbs and 600+whp would be borderline terrifying on the street
03-09-14, 11:38 PM
#213
As I said when you posted on FB, congrats. That's a great accomplishment. Can't wait to see what she'll do when everything is all dialed in and you let 'er scream. Out of curiosity, even as it is have you ever gone WOT through a full gear or 2? Sub 2400lbs and 600+whp would be borderline terrifying on the street
Sadly I have not even got to feel this yet! Its killing me! The fuel pumps are out of it now and its sitting in the corner on these nice days. Oh well, soon enough I'll get to see what its like. Cant wait.
03-10-14, 07:20 AM
#215
Damn that sucks about your father Logan. Hope all is well with you and your family.
Now I'm not gonna lie, I'm really liking the power band on the longer runner dyno. Theres quit a bit more power under the curve there for the street. Great job bro. Do you still plan on having them slide on their own or is it just set and forget type of thing? One last thing, I know it's not setup for the strip but, you gotta run it a couple times to see what she traps. I would love to see that on YouTube.
Now I'm not gonna lie, I'm really liking the power band on the longer runner dyno. Theres quit a bit more power under the curve there for the street. Great job bro. Do you still plan on having them slide on their own or is it just set and forget type of thing? One last thing, I know it's not setup for the strip but, you gotta run it a couple times to see what she traps. I would love to see that on YouTube.
03-10-14, 08:48 AM
#217
Very sorry to hear about your father Logan. Growing up around Columbus he was definitely known as the rotary guru and I remember his shop in Pataskala.
Congrats on getting the 4 rotor going and the initial numbers. That's a crazy amount of N/A power for a FD.
Congrats on getting the 4 rotor going and the initial numbers. That's a crazy amount of N/A power for a FD.
03-10-14, 09:01 AM
#218
Logan, my condolences to you regarding your father. I know he was am inspiration to you and all the cool things you do. My prayers go out to you.
Those are some pretty impressive numbers and I look forward to seeing you happily driving that bad boy.
Those are some pretty impressive numbers and I look forward to seeing you happily driving that bad boy.
Great power numbers and extremely unique setup
03-12-14, 01:35 AM
#222
Damn that sucks about your father Logan. Hope all is well with you and your family.
Now I'm not gonna lie, I'm really liking the power band on the longer runner dyno. Theres quit a bit more power under the curve there for the street. Great job bro. Do you still plan on having them slide on their own or is it just set and forget type of thing? One last thing, I know it's not setup for the strip but, you gotta run it a couple times to see what she traps. I would love to see that on YouTube.
Now I'm not gonna lie, I'm really liking the power band on the longer runner dyno. Theres quit a bit more power under the curve there for the street. Great job bro. Do you still plan on having them slide on their own or is it just set and forget type of thing? One last thing, I know it's not setup for the strip but, you gotta run it a couple times to see what she traps. I would love to see that on YouTube.
But you are correct on the above chart the long setting is beefier. The short setting continues to push a epic curve beyond 10k but that chart didn't get saved.

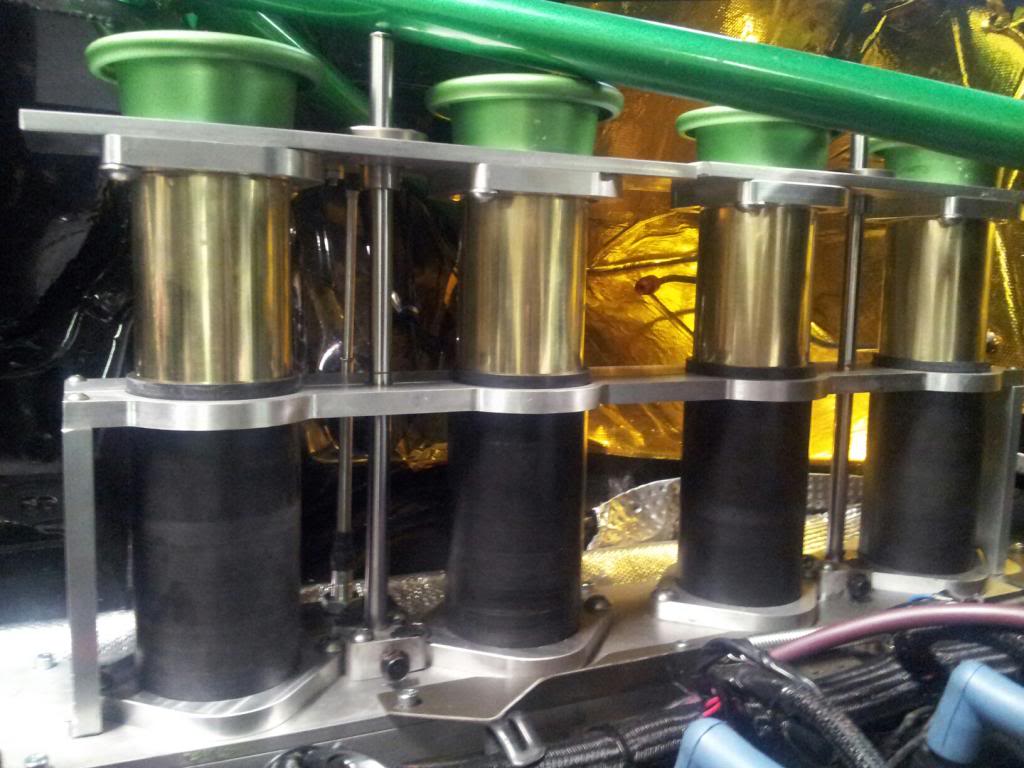

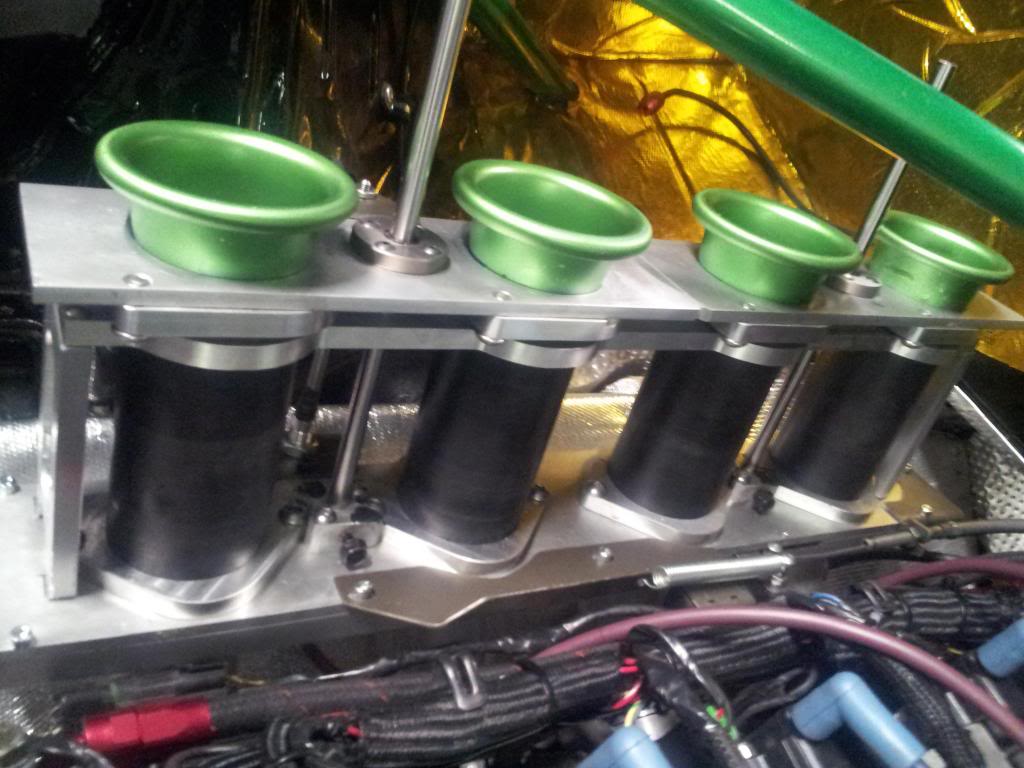

The intake has always been planned to be continuously variable just like the 787b. I have the servos for operation, the cables are on the car. Only hurdle is building a conversion box to change the electromotive signal (duty cycle) to the servo controller signal (0-5v) Then she will work and the above charts will be one giant torque curve. Hopefully I can get that accomplished soon!!
When this is complete, what do you think the next project will be? You know it's really hard for us creative fabricators/engineering type people to just sit back on are thoughts.
03-12-14, 07:52 AM
#225
Hey Logan,
Your web site lists several build and pricing options for 4 rotor engines. Are you planning to do something similar for 3 rotor engines? Just curious. Something similar to Gordon Monson's solution might be appealing to me (360 to 400 RWHP).
Thx
Your web site lists several build and pricing options for 4 rotor engines. Are you planning to do something similar for 3 rotor engines? Just curious. Something similar to Gordon Monson's solution might be appealing to me (360 to 400 RWHP).
Thx
