Hey Team, yes i'm very green here, but I'd like to share what I've got going at the moment.
Bit of a background..

Over here in NZ, we have a class called GTRNZ where it's split up into three classes. GT run by themselves in the slower bracket,
and GT2/GT1 run in the same class but are in different time brackets.
We're aiming for GT2, as GT1 cars are ex V8 Supercars, GT3 cars, and TraNZam cars.
Also we want to run endurance races here as well. We have a north and south island series and they run after the GTRNZ sprint series.
These are 1, 3, 6 and one 12 hour races.

We've experience running 650hp V8 BMWs in sprint and endurance racing, E30s and 36s in Targa rally,
Couple of McLaren CanAm cars and F5000s.

Our aim for the car is to be around 500hp(or more) and weight in less than 1000kg.

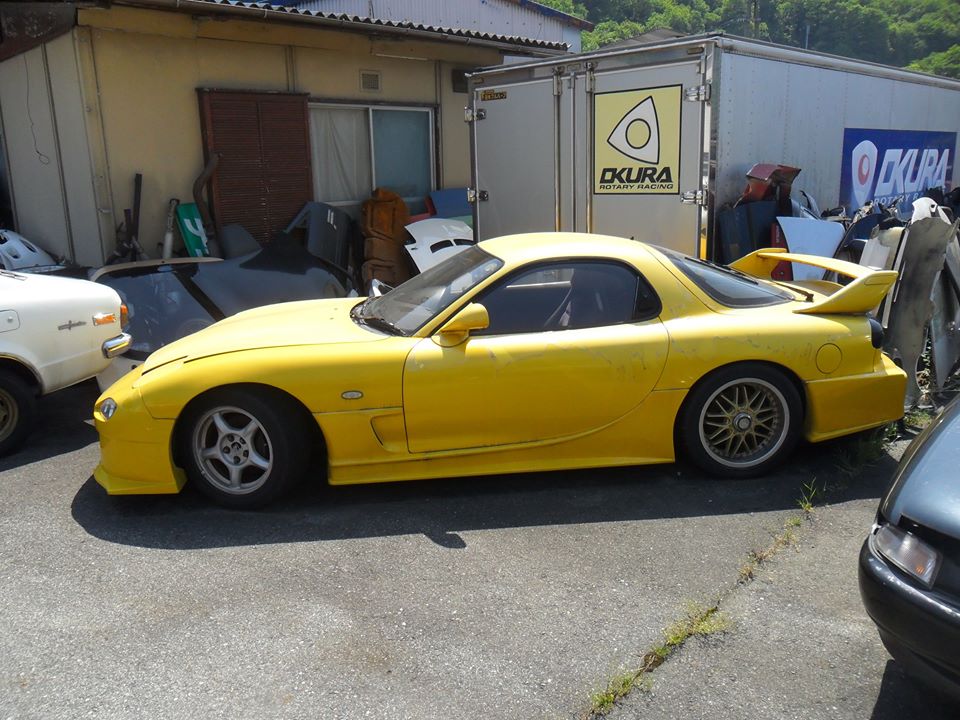

We picked the car up from Japan, to help someone bringing in a special car fill a container,
It was full of the usual stuff, bolt in cage, Tein Susp, EDFC, broken triangles etc.

So we started parting that out to keep our shop clean and to plan on how were going to attack the car.

I've only got shitty phone photos at the moment, because no real need to use a real camera just yet on the boring parts..

I'll keep you guys posted as we're a bit past this stage as of tonight, and the next few weeks will be more interesting.

Thanks.

Rotate86

awesome.
I always like a good race car build. especially from our little place in the world I follow Andy Duffins racing and car builds. keeping with 13b turbo?

F1Eng

subscribing. Best of luck with the build!

BGR

Hey mate, Andy Duffins is amazing, have been following that and he's been really great about the little questions I ask.
No, sold the engine already =)


Thank you!

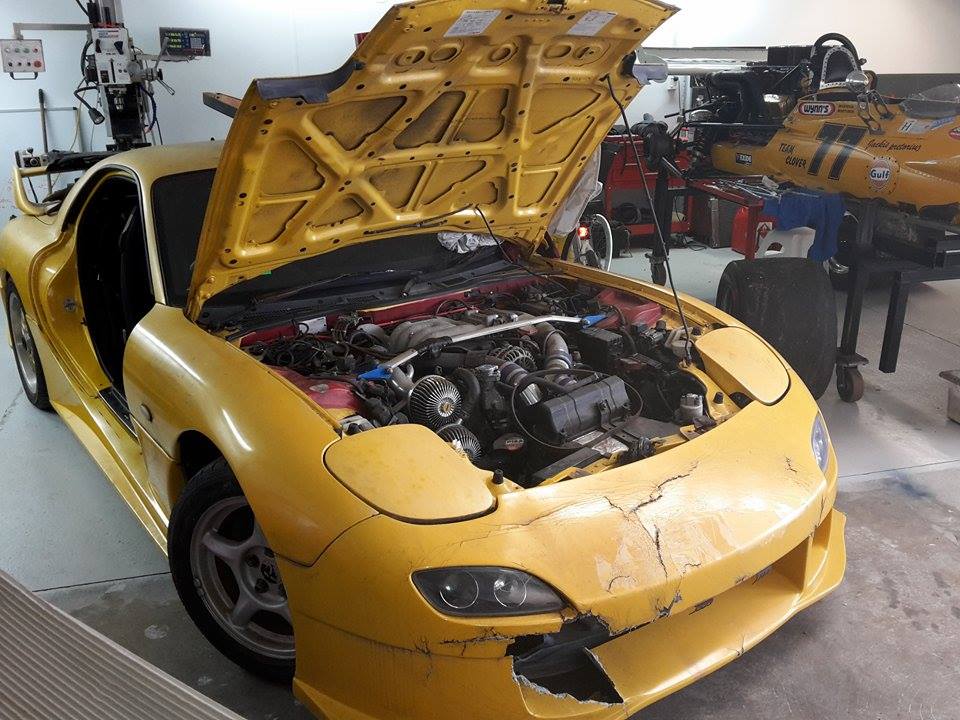

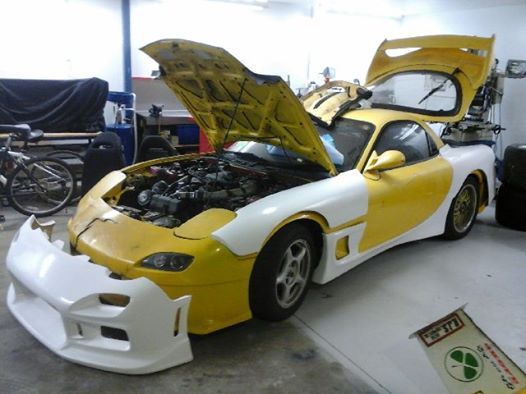

This is how it was in our shop before the part out. We still have plenty of parts left over.

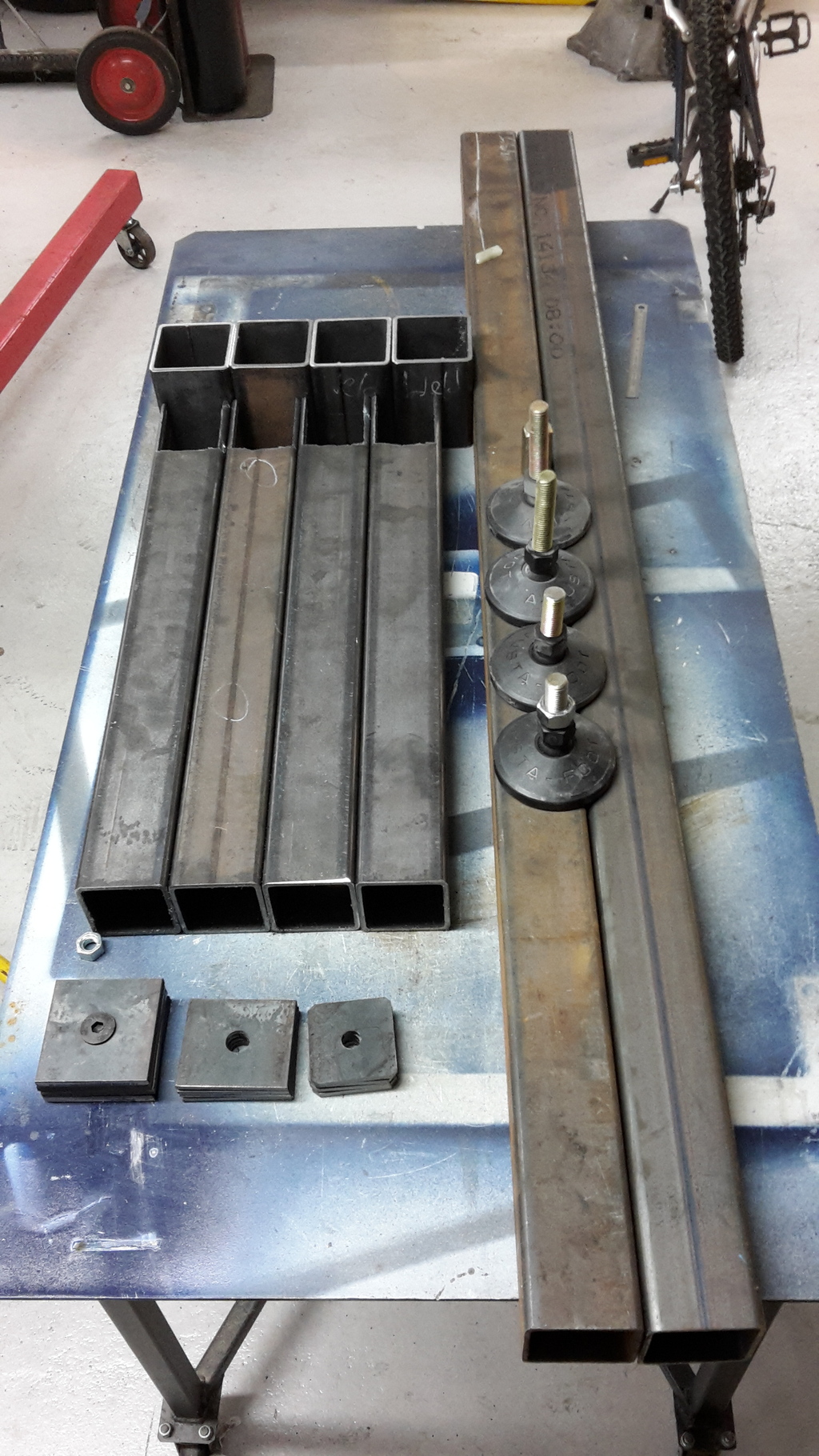

Cutting steel for a jig so it dosnt move when we cut it to pieces.

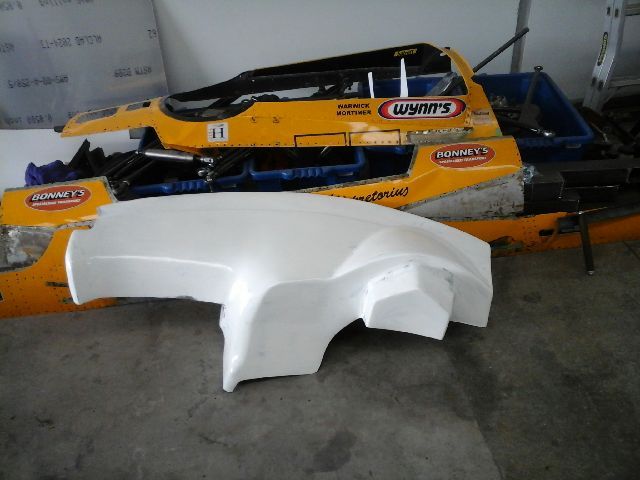

Mike Shaw Wide body, same as the 90s Porter car.

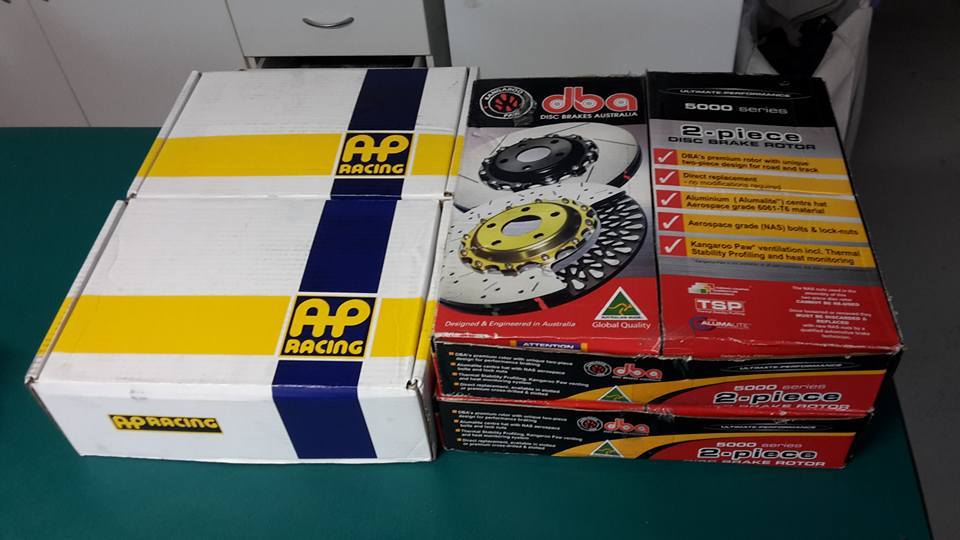

Brakes

and Dash that's ready to take a Stack dash XD

We've had the car for a few months and we're at the stage now where we can start designing subframes and arms.

Got wheels in from Japan..

96fd3s

Welcome, I have a friend who races a tube frame FC with inverted suspension in, I believe GT1 class.
Mr S Judd

BGR

Sean!
GT2 I'm sure.
I've been following his car for a while, its very cool! Very low!

96fd3s

Yep that's him!
Indeed its an interesting piece of engineering all right
Sean gave me much advise with my build

Rotate86

Dude are you doing 20b Na aswell? please say so!
seans turbo was built down here in Nelson . by Craig at nz turbochargers. I was told he's running less boost then he's capable of so his tyres last the day lol rather then a single race.
Damn this build is full steam ahead already. Big brake kit already lol

BGR

I've just seen your thread! Very clean and simple build. It's great!


I havnt seen it run with the turbo set up, but NA it was great.
With the BMWs we look after, they're obviously not on the same weekend, and apart from doing our race meetings, we don't get along to much else.
I think he's going to 280 wide all round now?
How much power is he making?

Not doing a 20b sorry!


Have wheels as well!

diyman25

Nice build up,
I am restore JDM endurance car my self
I am about to do a first.shakedown next week

BGR

Very cool!
Do you have a thread or anything on that?

genzer

iTrader: (2)

very nice!!!

diyman25

here you go~

https://www.rx7club.com/build-thread.../#post11978658


the scale of build is very small compare to yours

BGR

Hey team, been a bit slow the past couple of weeks.
My father and I have been quite busy.

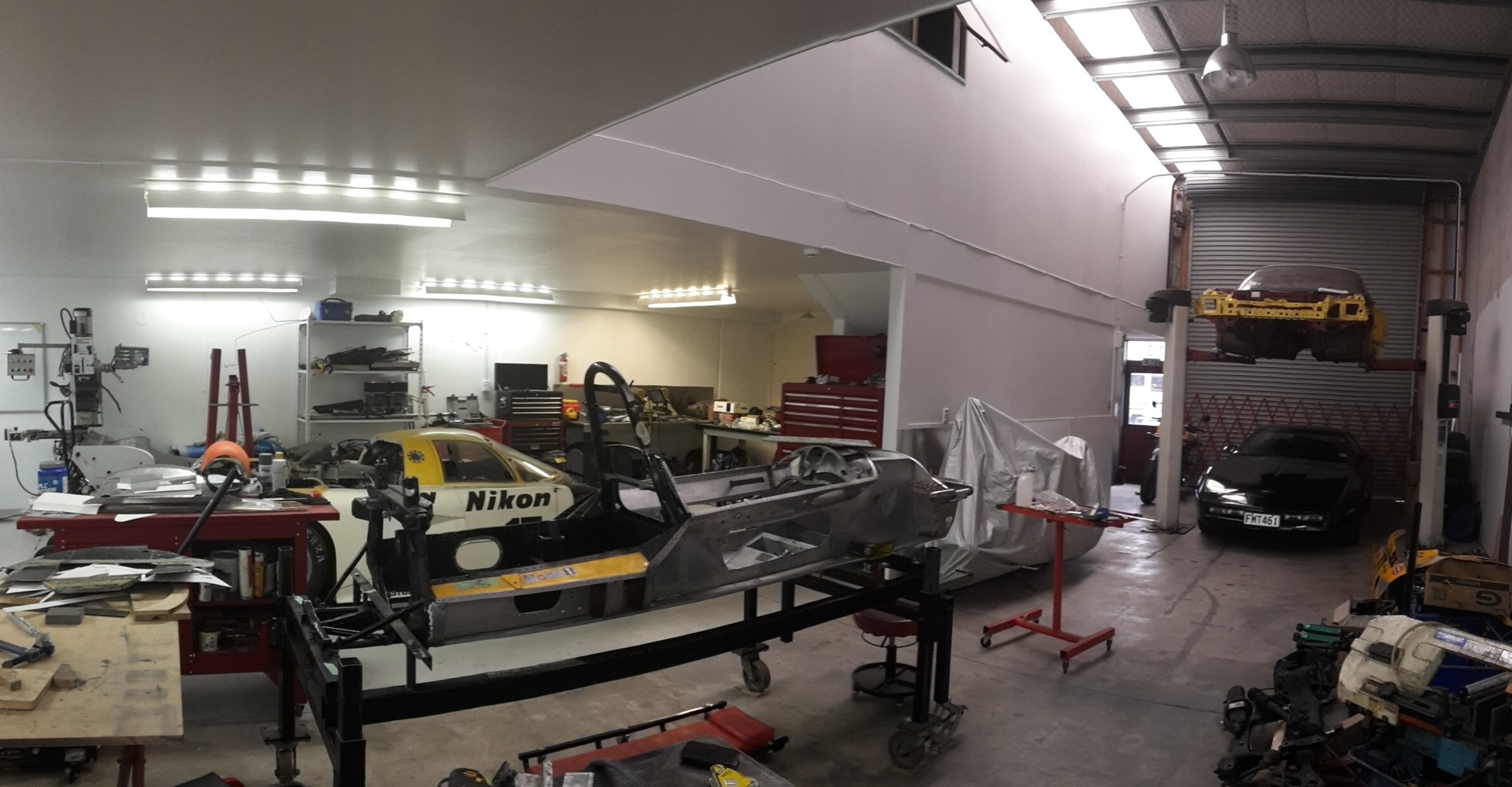

Work shop is a mess as you can see.

Few updates from the last couple of weeks though.

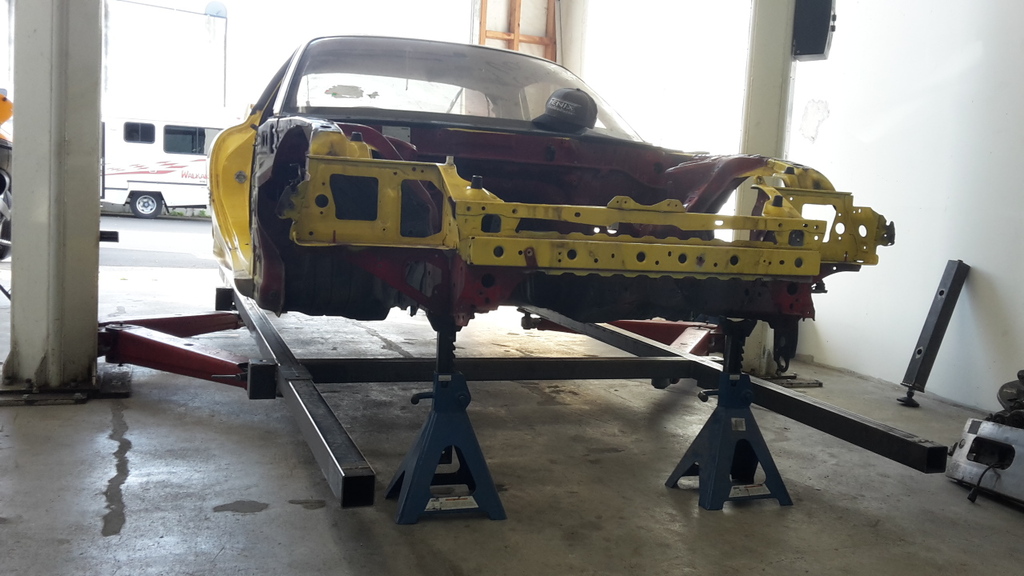

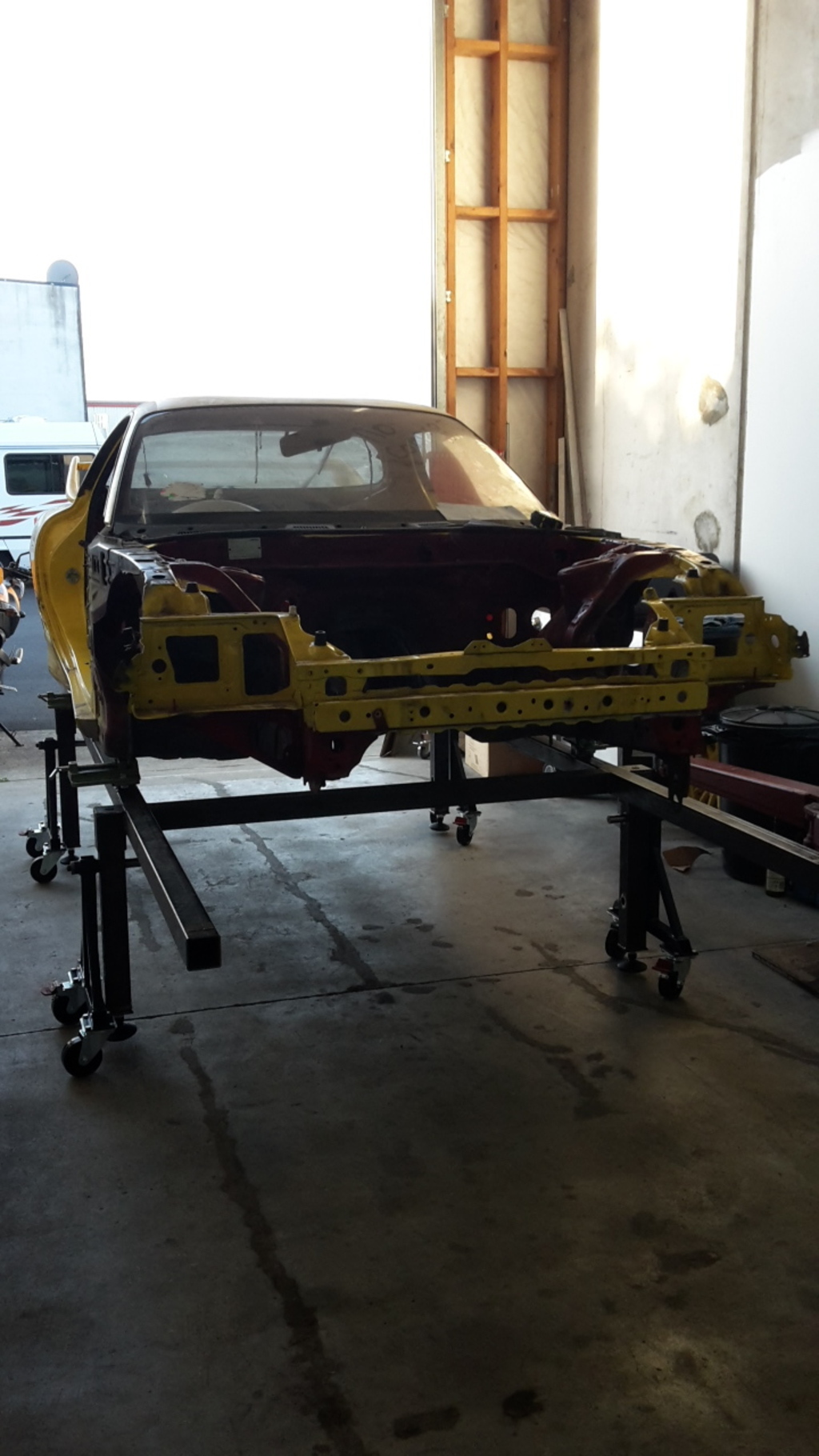

Finalizing jig and setting car up.



Jig on Castors. Can easily been changed by lifting up with hoist or jack, sliding out legs then onto the floor.
It's very simple and very strong.
Perfect for what we need.

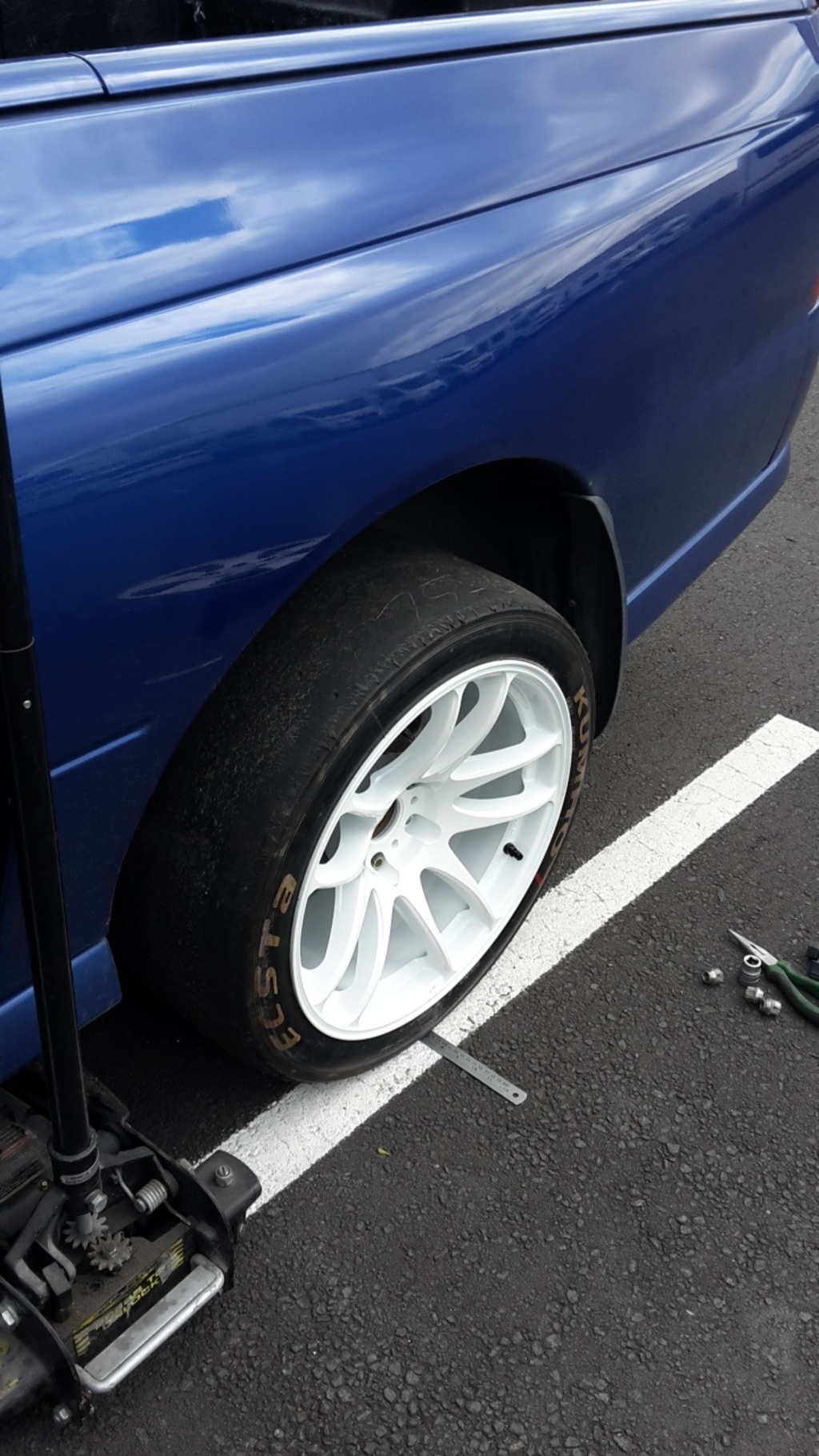

After we decided what our ride height would be, we needed to check tyre deflection to compensate for that into the height the car sits off the jig.
So we measured from the floor to the bottom of wheel.
Then bolted it to the ute, weighted it and measured again.
At 28psi (which would be our hot pressure, the tyre dropped 10mm for the 280 wide rear and about 13mm for the 245 front.
This helps with setting our car up with about 10mm of rake.

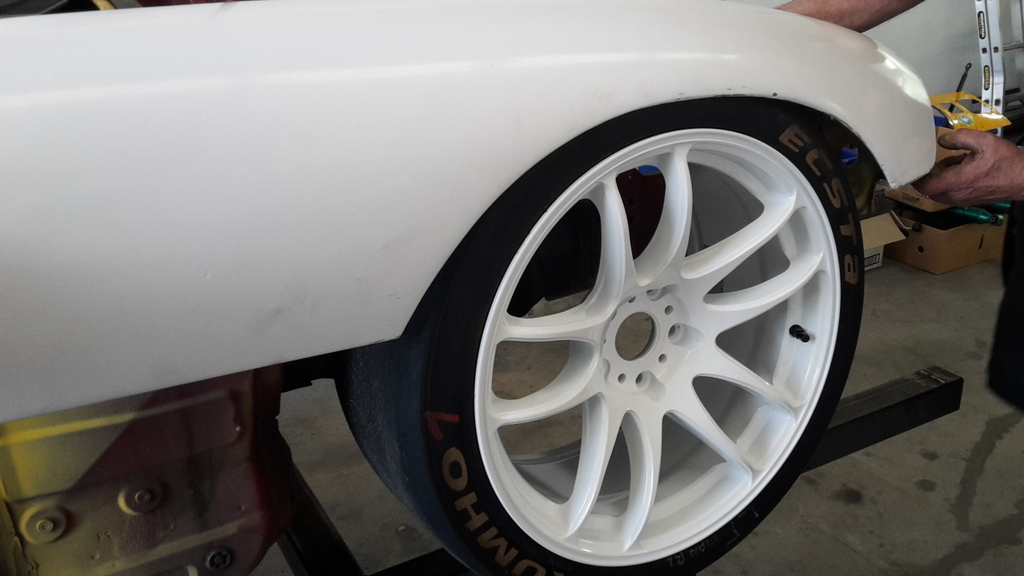

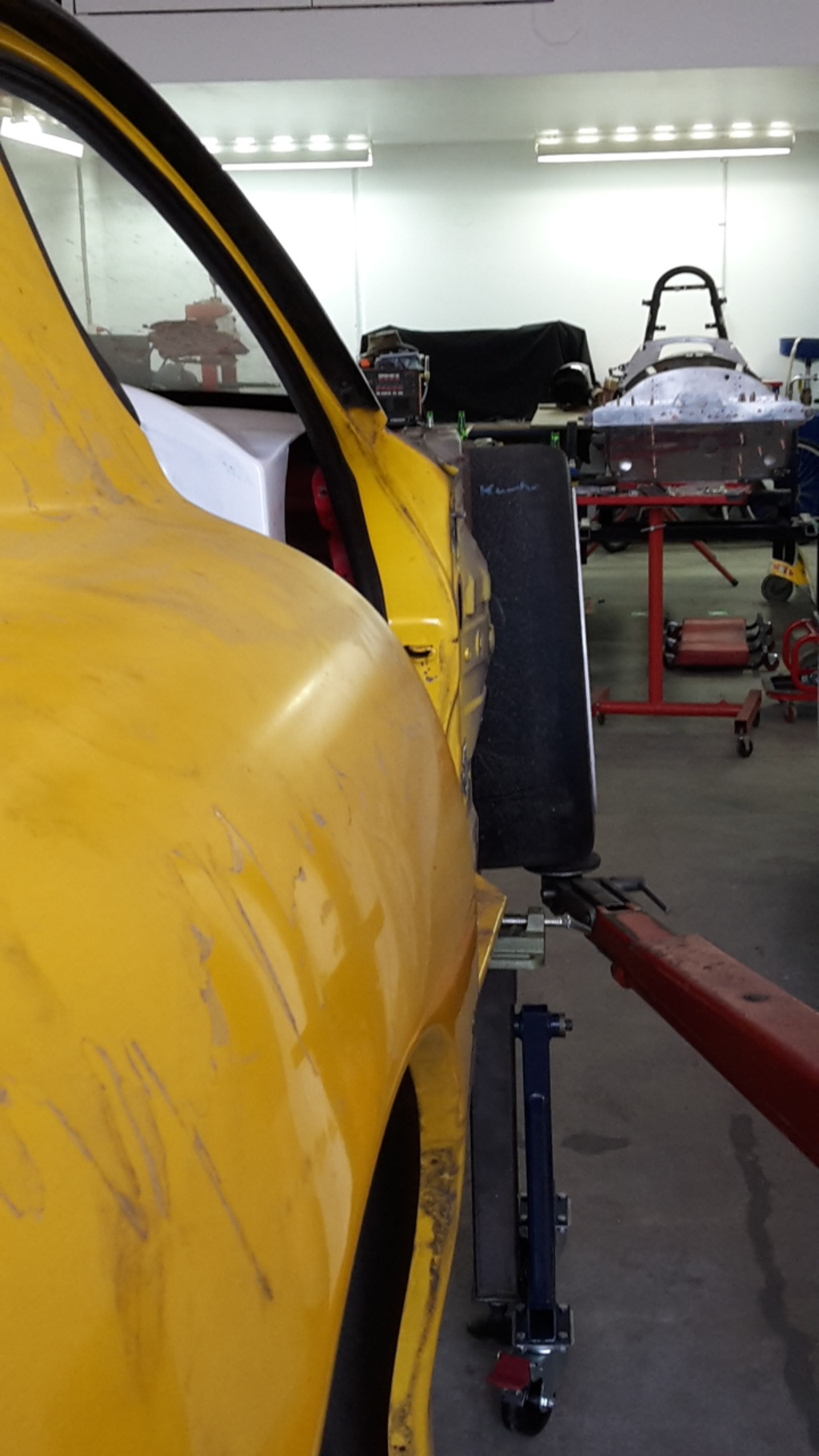

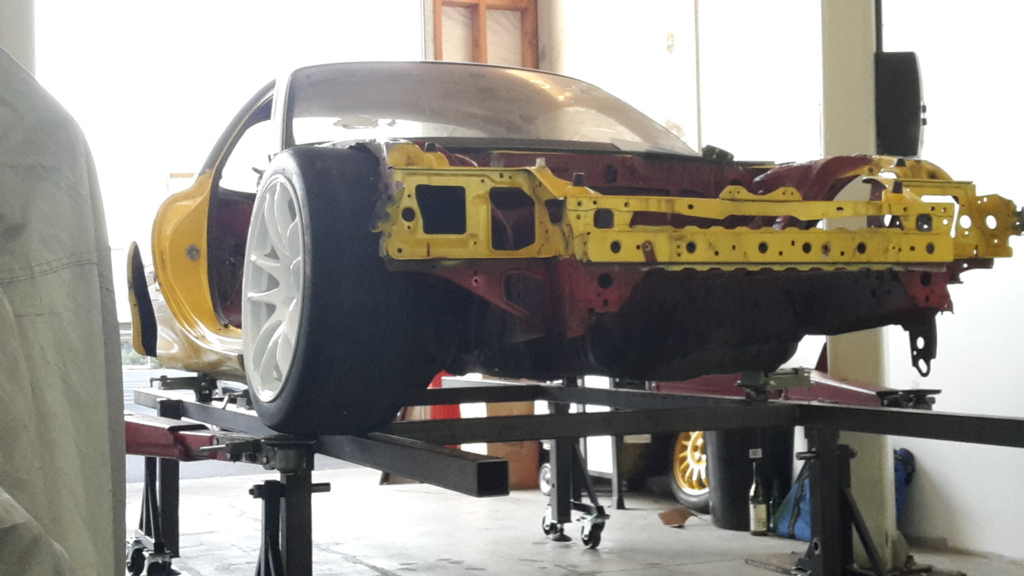

After spending about 30mins centering the car on the jig, we had had enough and wanted a look with a guard and wheel on.
The guards are only about 20mm wider than stock, but are higher so we can go lower.



We'll be cutting shortly.
It'll be as much space frame as we can get out of WTAC rules.
As our measurements are, from floor to roof will be 1130mm.
