FC Pre Turbo Rice Racing pics

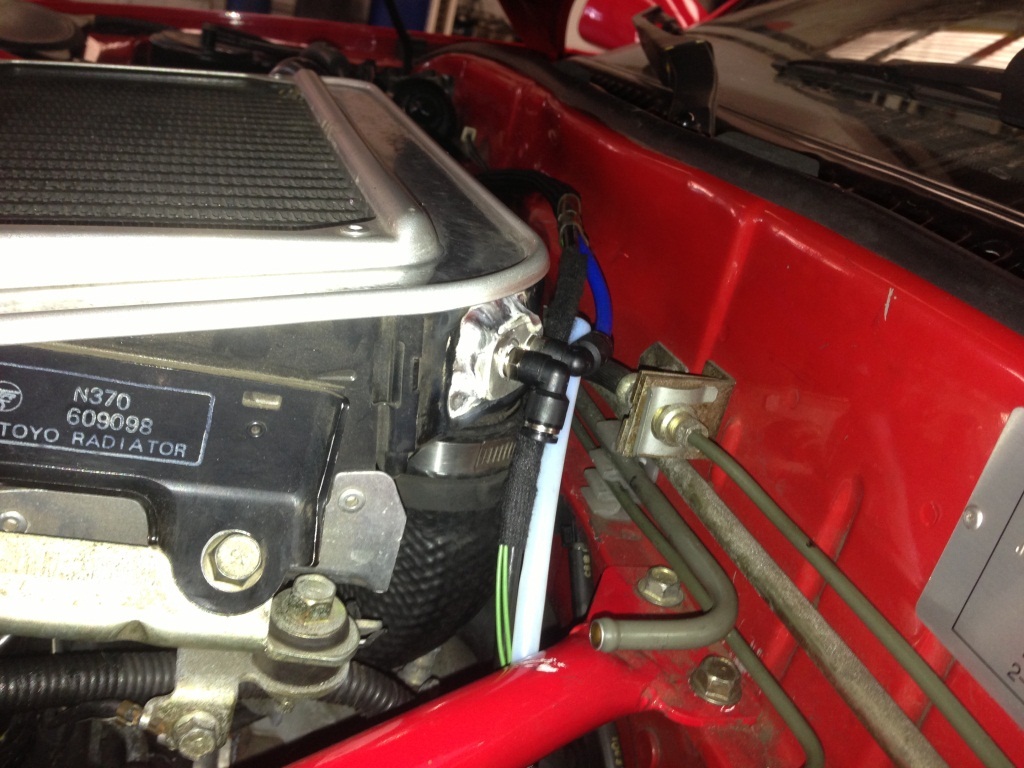

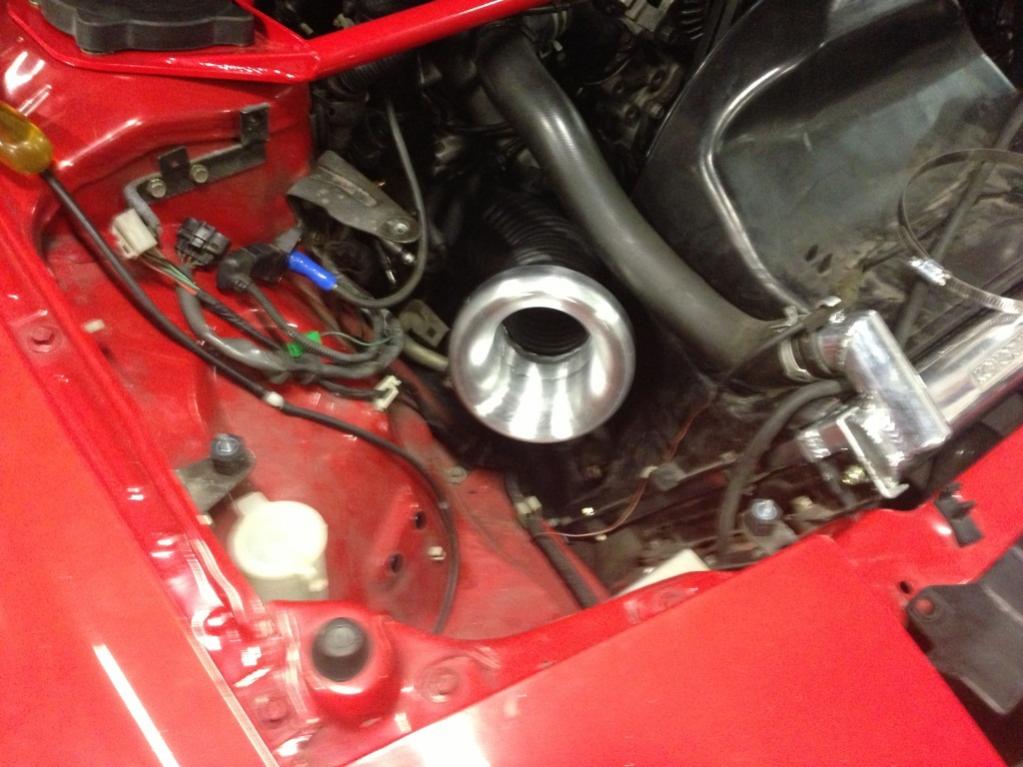

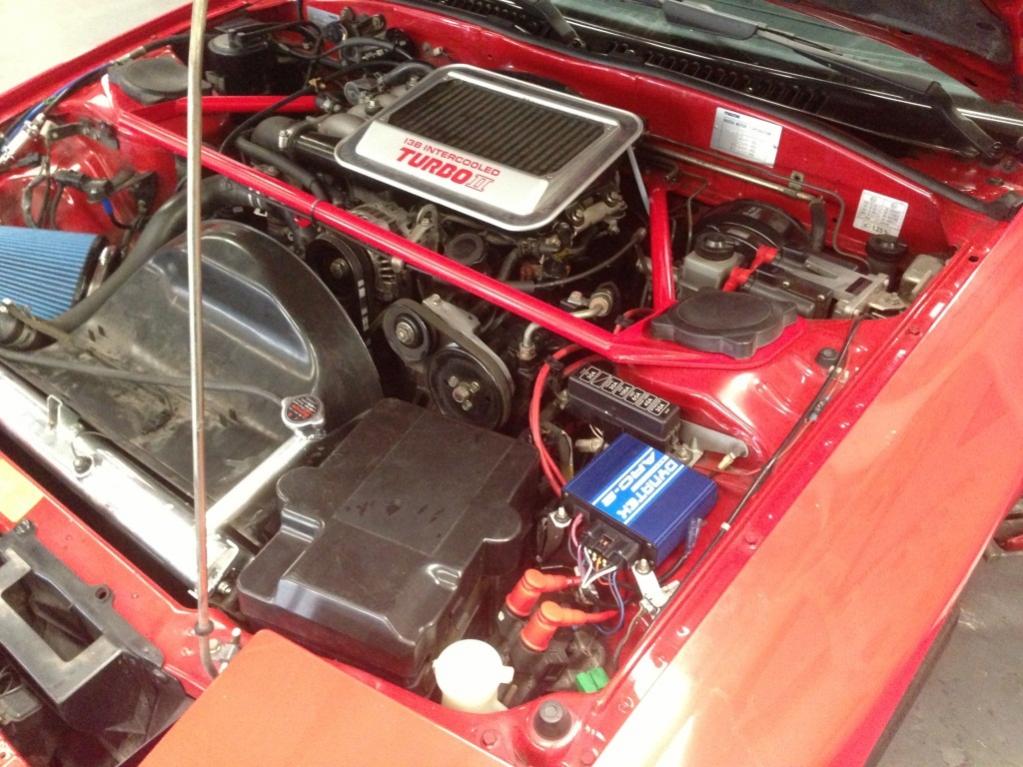

I tought it would be good for reference if I would post some pics from a car of a friend where I am in the process of fitting the kit. the car has a streetported engine, bnr stage4 and AP Engineering PFC. 550/1600 injectors. bosch 250 kPa mapsensor.

the tank is mounted in the trunk, but I am sill lacking a few connection for the 8mm line to pressure the tank. I will probaly have them tomorrow and post pics of that too.

Grtz

Ruben
Attached Thumbnails FC Pre Turbo Rice Racing pics-img_0394.jpg   FC Pre Turbo Rice Racing pics-img_0395.jpg   FC Pre Turbo Rice Racing pics-img_0402.jpg   FC Pre Turbo Rice Racing pics-img_0403.jpg   FC Pre Turbo Rice Racing pics-img_0406.jpg

Rub20B is offline
Old 04-04-13, 05:30 AM
  #2
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts

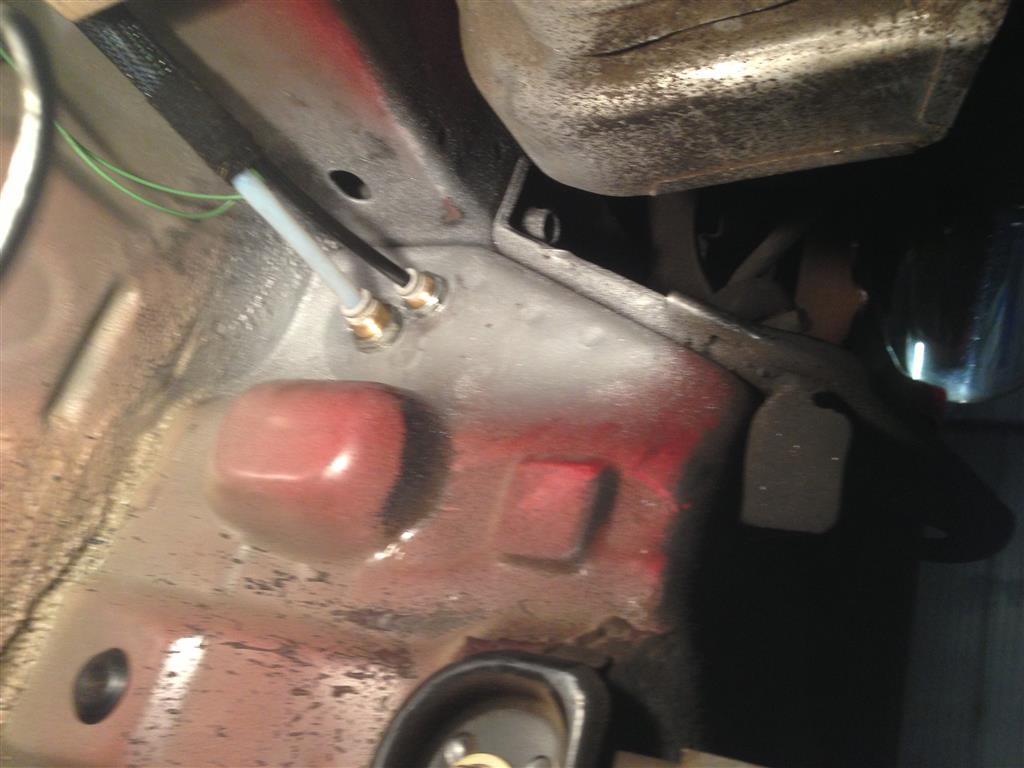

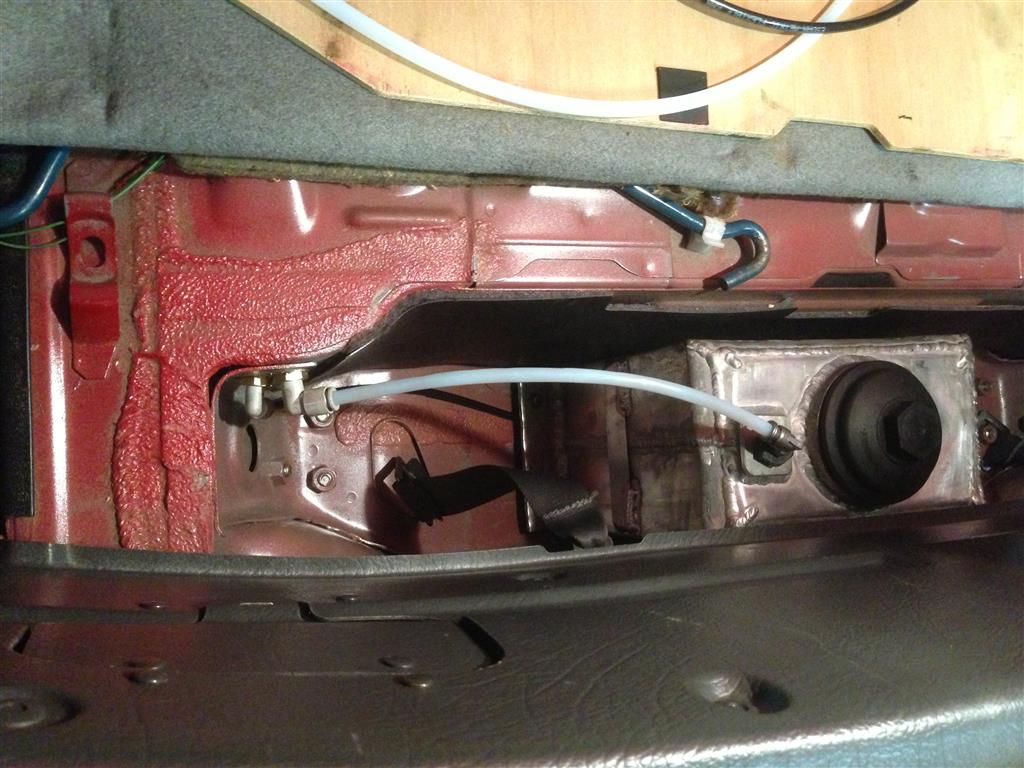

Some more pics of the tank.
Attached Thumbnails FC Pre Turbo Rice Racing pics-img_0410.jpg   FC Pre Turbo Rice Racing pics-img_0408.jpg
Rub20B is offline
Old 04-04-13, 10:40 AM
  #3
B O R I C U A
iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,376
Received 9 Likes on 9 Posts
Wonder if the lenght of the lines will affect pressurizing the tank, and its effect at the nozzle.

The installation looks good, and I might have pics of mine soon.
KNONFS is offline
Old 04-04-13, 12:27 PM
  #4
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
hmmz I also tought about that, therefore I used an 8mm line instead of the recommanded 6mm.

I think as long as the tank is quite full it won't make much of a difference, but if the tank is lmost empty there is about 5l buffer.. if I have the time I can put a pressure sensor in the water line near the solenoid, and measure the response of the pressure on a load step.
Rub20B is offline
Old 04-10-13, 11:37 PM
  #5
T2 Duo!
iTrader: (6)

tuscanidream's Avatar

Join Date: Oct 2010
Location: RI/CT
Posts: 1,665
Likes: 0
Received 0 Likes on 0 Posts
Sweet. You should dyno with and without the water injection!
tuscanidream is offline
Old 04-11-13, 03:56 AM
  #6
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
:icon_tdow

Problem will be that on a dyno it will be near impossible to keep the TMIC cool without WI..

also because of some nasty boostcreep and follwing detonation due to unknow reason (AFR 12, boost 1,4 bar, IGL 10 deg) I managed to crack the rear plate..

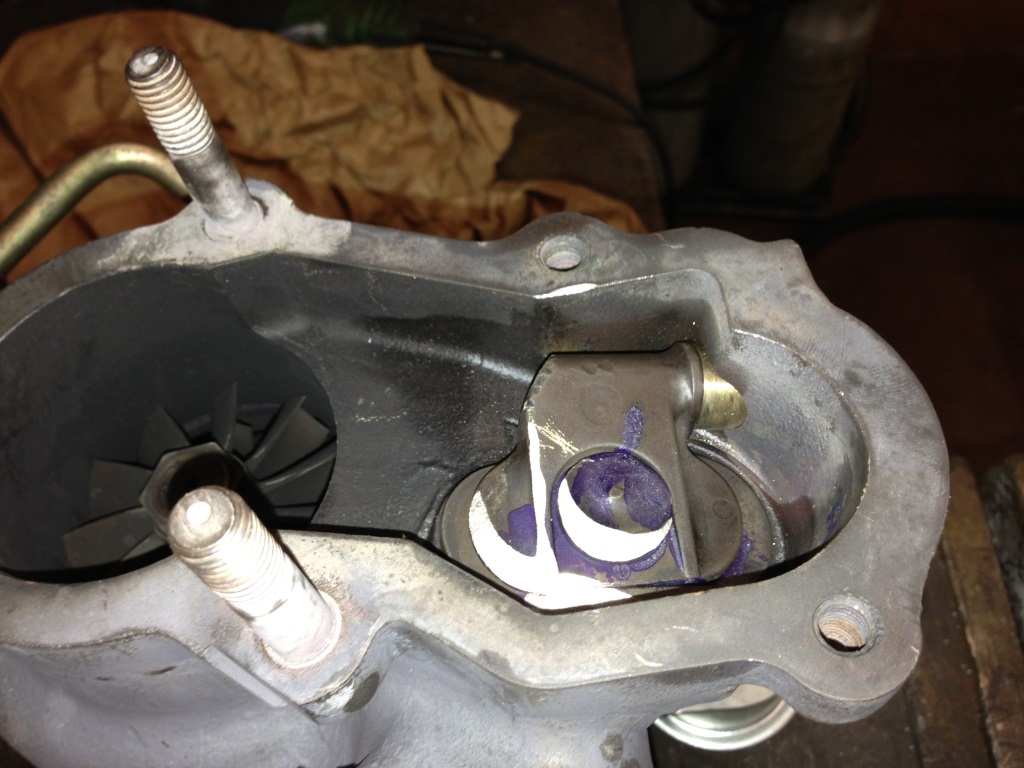

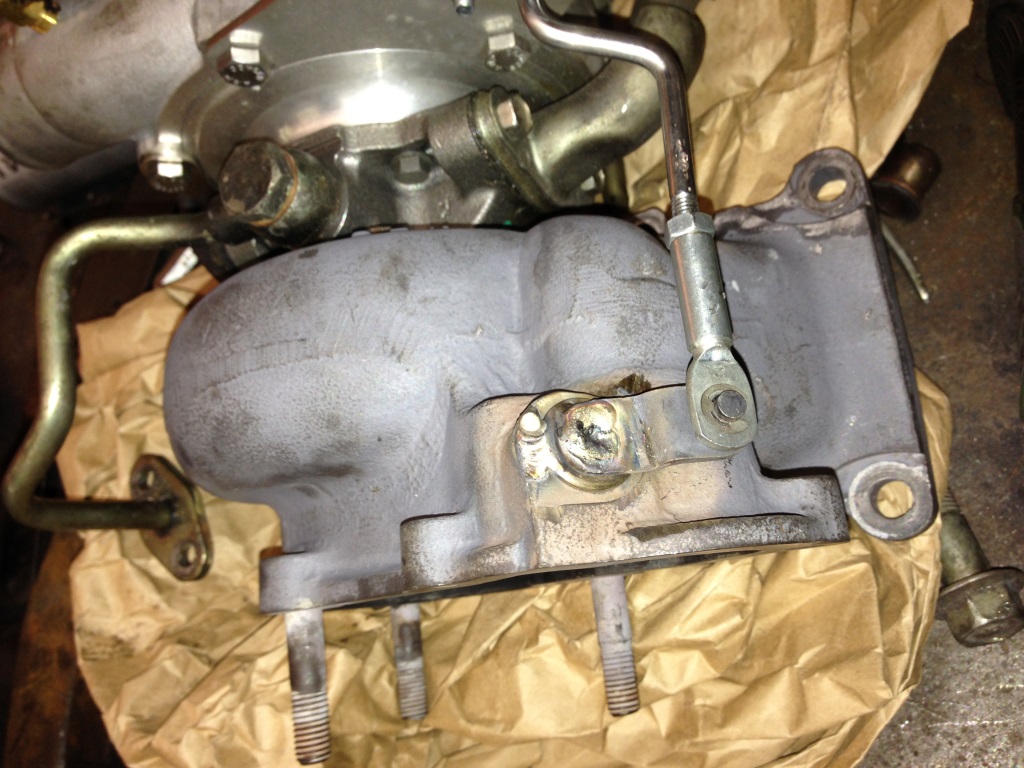

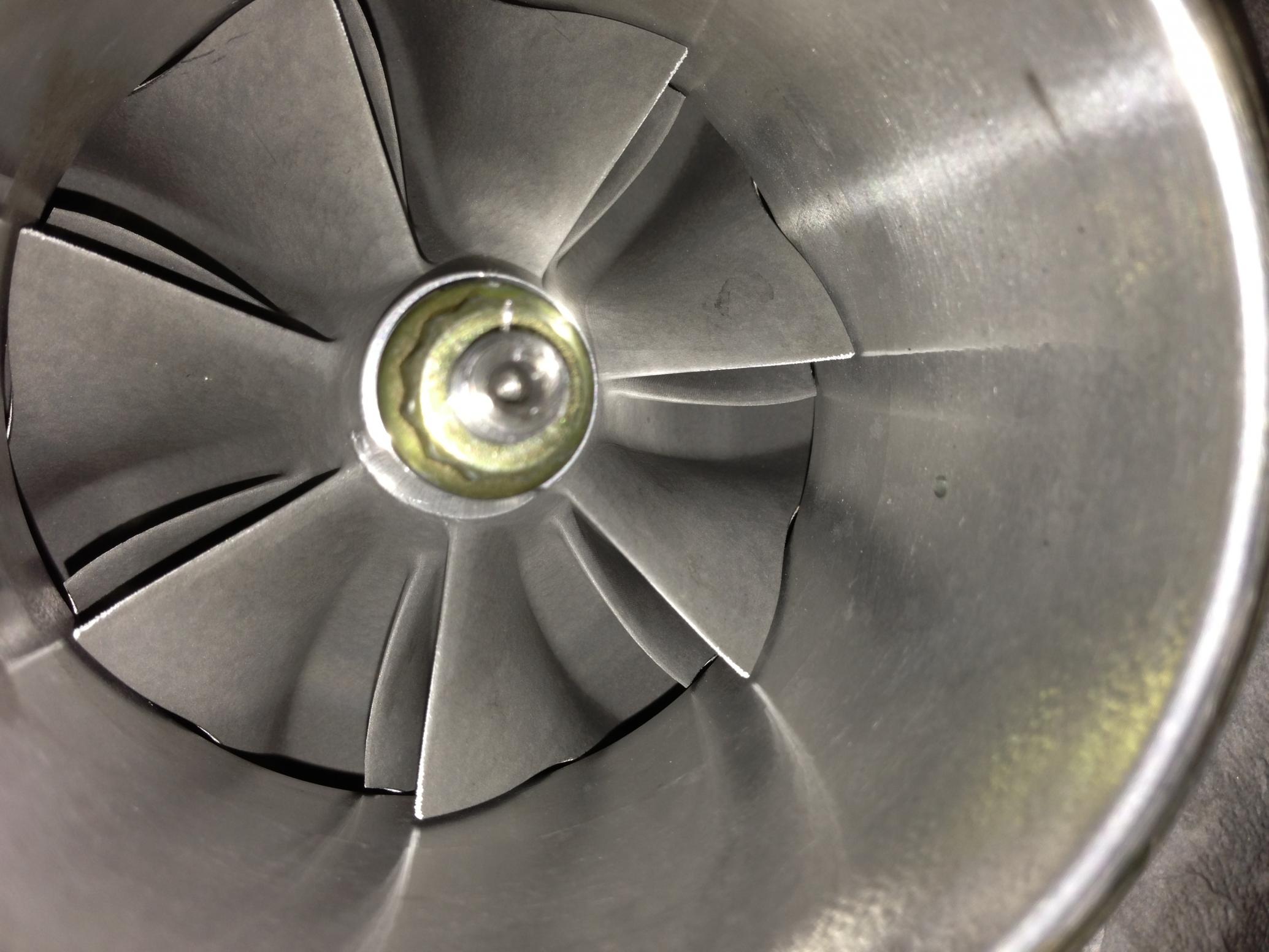

Also I was slightly disapointed when I inspected the turbo after removal that Bryan did not replace the more than worn out bushing in the turbine housing. it was worn out so bad the the rear rotors gate was 1.5-2mm open due too the force of the actuator pulling the gate closed and the play on the bushing.

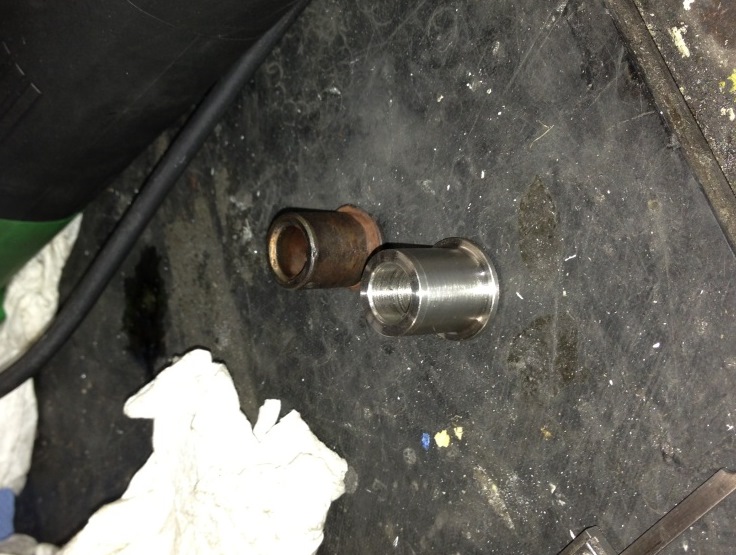

we then made a new bushing out of stainless (anyone know what the OEM bushing is made of? stellite or also stainless??), I hope it will not seize. and I ported the rear rotors WG alot more to direct the flow much more in the WG then before.

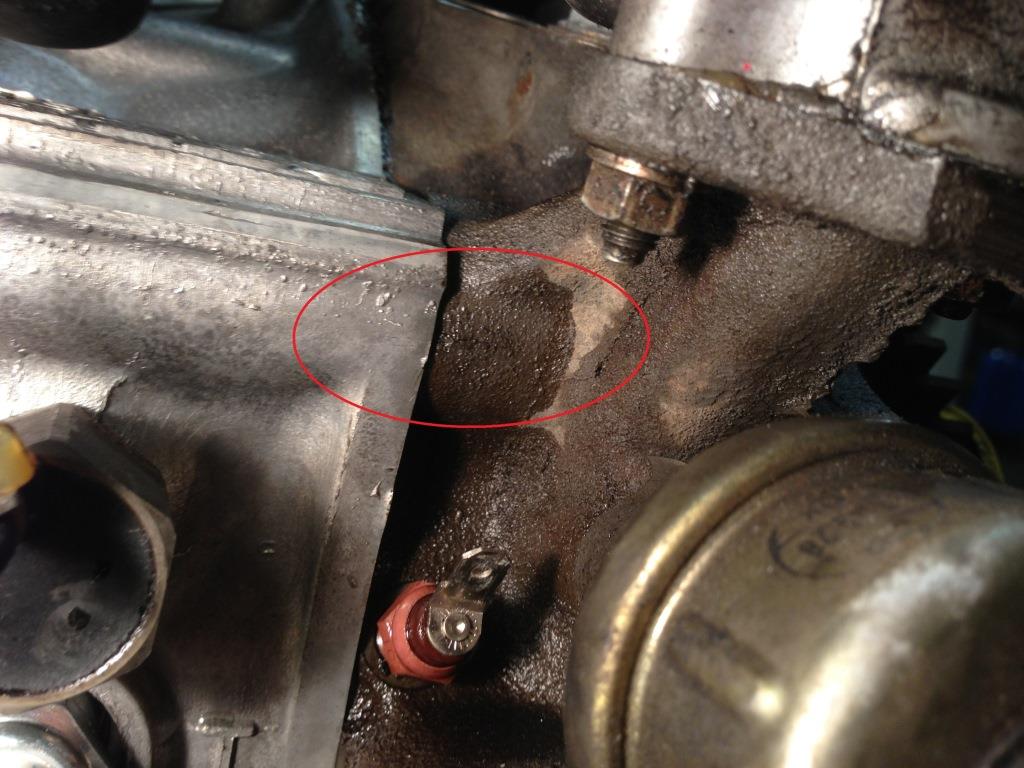

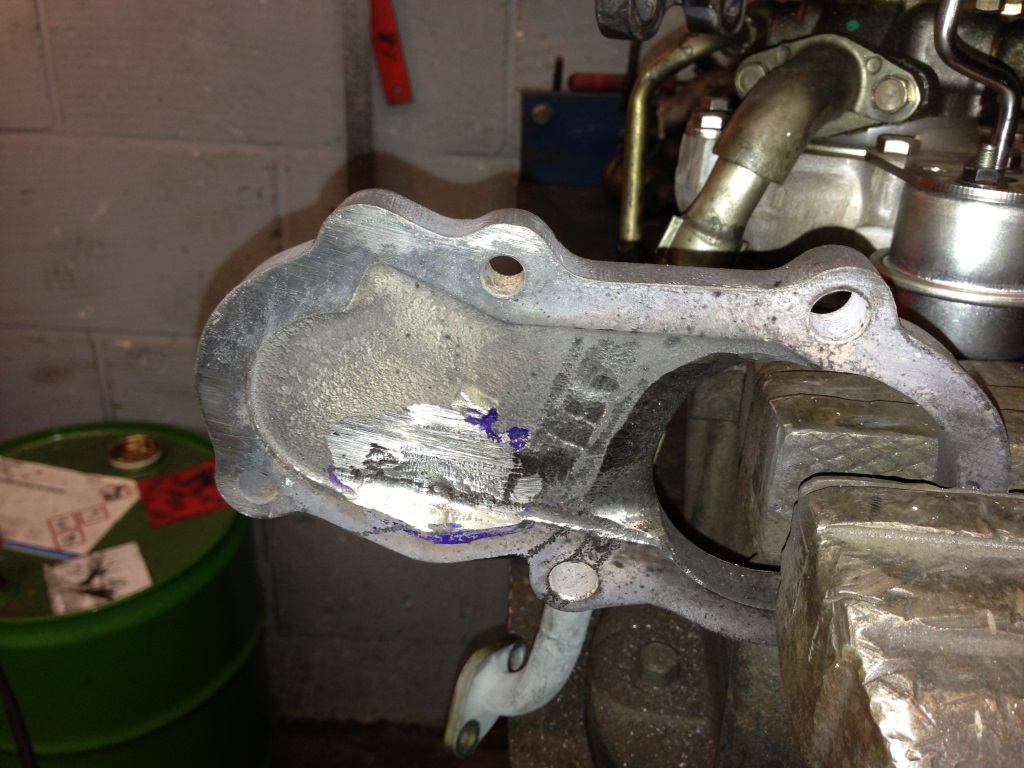

Some pics:

Engine is back together with a new end plate, will now simulate 0-1,5 bar boost with 8k rpm with the injectors spraying in separate cans to find out if its the fuel filter, fuel pump (AEM 50-1000) or an injector or a combination that crapped out and killed the plate
Attached Thumbnails FC Pre Turbo Rice Racing pics-img_0414.jpg   FC Pre Turbo Rice Racing pics-img_0423.jpg   FC Pre Turbo Rice Racing pics-img_0432.jpg   FC Pre Turbo Rice Racing pics-img_0433.jpg   FC Pre Turbo Rice Racing pics-img_0434.jpg

FC Pre Turbo Rice Racing pics-img_0436.jpg
Rub20B is offline
Old 04-24-13, 03:12 AM
  #7
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts

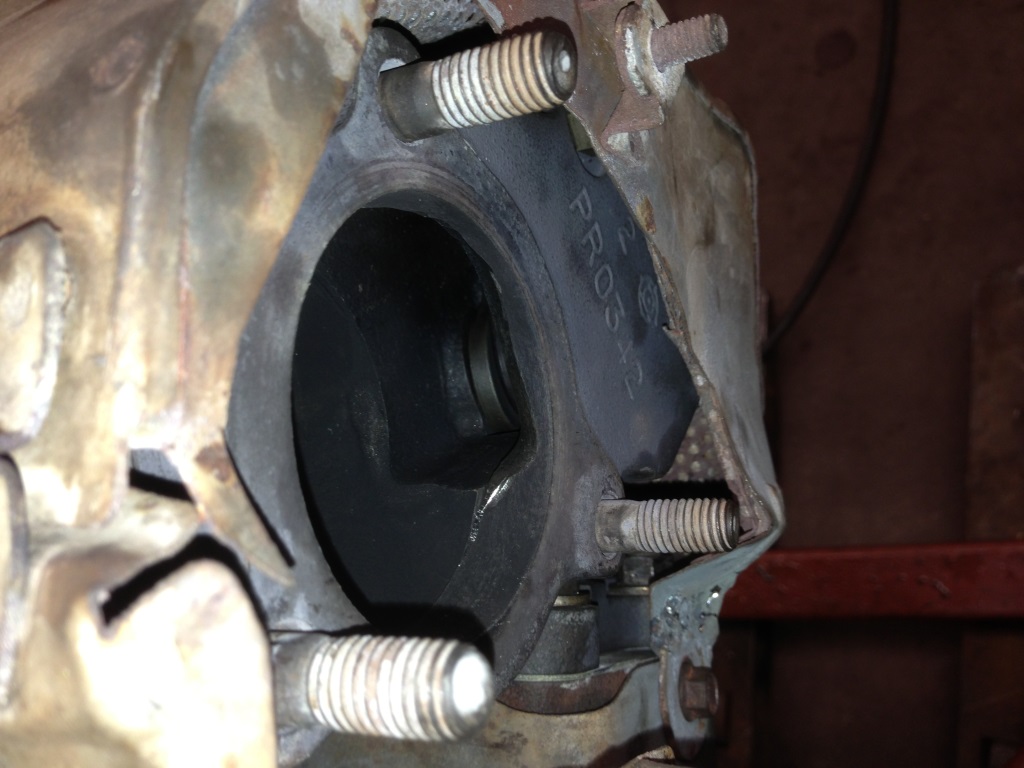

I found the cause for the cracked iron, fuel pressure was dropping over a bar with 1.4 bar at 7k rpm simulated. cause for this was that the pump was seeing only around 9v (over 3v loss in the relay and wiring). so I ran a 4mm2 wire to the pump fixing this. this gave a new problem. when the relay closes to bypass the resistor for the fuel pump, the fuel pressure rose from stock 2.4-2.5 bar to 4 bar due to the stock fpr not flowing enough.

installed a fuellab regulator to fix this.

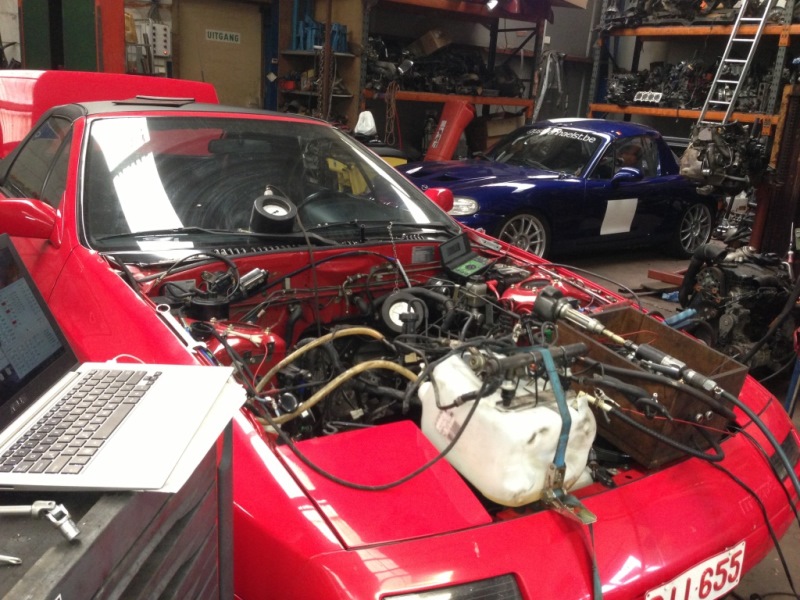

All is back together and car is back on the road. Did not WOT it yet but somehow even when rolling into boost in 3rd gear at the transition from vacuum to boost it gave audible knock again, afr < 14

it seem to always give a lean spot during tip in, which I still need to fix

at the moment I am pretty scared to WOT it again as I would definately hate to pull the engine again to swap the iron once more, but when I read on the forum, most people first see knock rise gently in the powerfc before even hearing or feeling in the car, in my case I see really low knock reading <10 and then the next measuring row it is 45-50 and you feel/hear it like a missfire.

I checked the base timing 3 times, it is spot on, plugs are 9 leading and 11 trailing, its a fresh tank of 98 ron fuel.

does anyone know a way to verify the wideband is reading correctly? it is a zeitronix unit, whoch does not have a free air calibration feature.
Attached Thumbnails FC Pre Turbo Rice Racing pics-img_0438.jpg   FC Pre Turbo Rice Racing pics-img_0439.jpg
Rub20B is offline
Old 04-24-13, 03:53 AM
  #8
Senior Member

S4 Vert's Avatar

Join Date: Nov 2012
Location: LA
Posts: 455
Likes: 0
Received 0 Likes on 0 Posts
What strut tower / firewall brace is that?
S4 Vert is offline
Old 04-24-13, 04:03 AM
  #9
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
No idea, it was on the car..
Rub20B is offline
Old 04-25-13, 12:11 PM
  #10
Senior Member

S4 Vert's Avatar

Join Date: Nov 2012
Location: LA
Posts: 455
Likes: 0
Received 0 Likes on 0 Posts
CA

Darn
S4 Vert is offline
Old 04-25-13, 04:45 PM
  #11
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
tested it today on the road, pulls fukking hard with 1 bar! spraying 50/50 based on volume mix water and methanol after 0.65 bar boost

Midrange boost on spring is only around 0.55-0.6 bar after 5500 rpm it creeps to around 1 bar but not higher, seems the wastegate porting really helps quite a bit.

fuel pressure is also nice and stable now, peak inj duty around 75% at 7000 rpm 1 bar boost.

anyone has a feeling about timing? now running at 1 bar 10-11 deg leading with 7-9 deg split

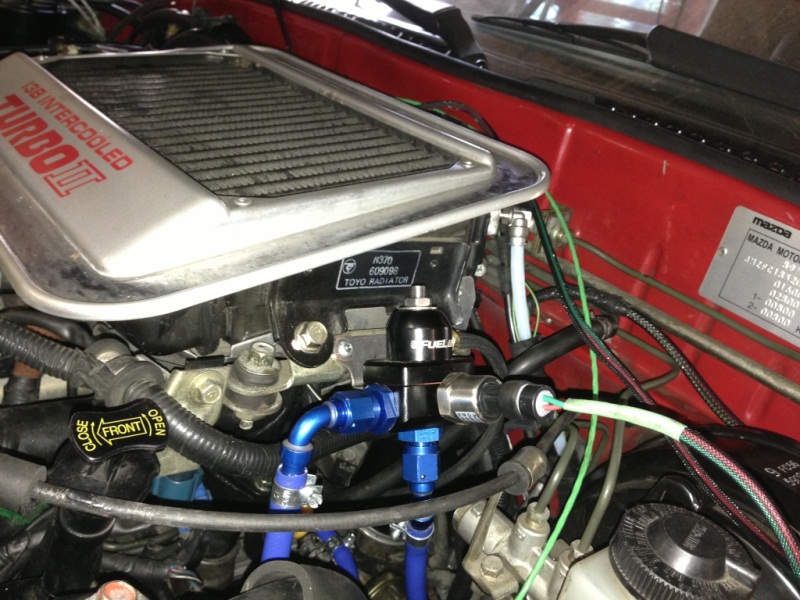

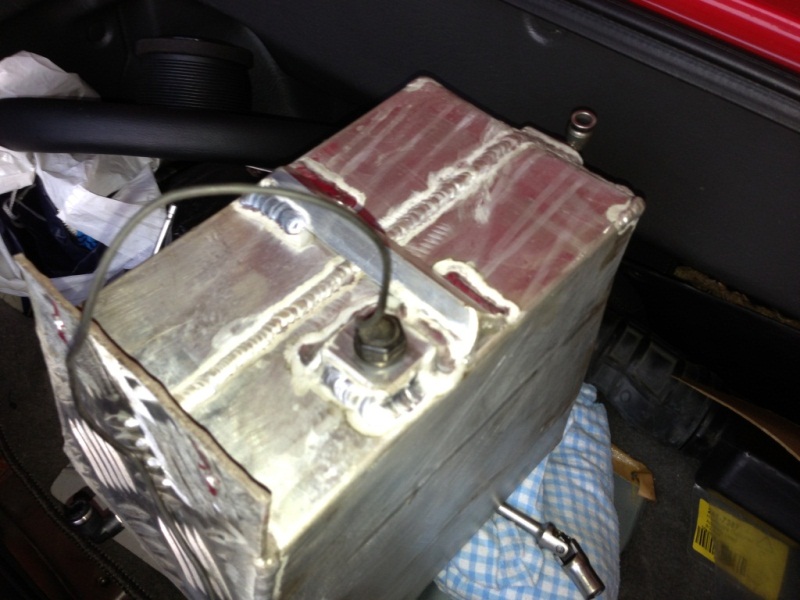

Photo of the fuellab regulator and sensor on the watertank. I will use a obsolete IC to monitor the sensor. an LM1830N
Attached Thumbnails FC Pre Turbo Rice Racing pics-photos1.jpg   FC Pre Turbo Rice Racing pics-photos2.jpg
Rub20B is offline
Old 05-02-13, 04:19 PM
  #12
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
Nice to see some pictures of an FC setup!

With the 'Rice Racing' setup, is the picture showing dual nozzles in the intercooler and is that another nozzle in the air filter or the 'Pump'?

Have you had any problems with corrosion between the aluminum and the methanol? As I understand it, the 2 don't mix very well?

Last edited by orange; 05-02-13 at 04:22 PM. Reason: re-read post
orange is offline
Old 05-03-13, 02:38 AM
  #13
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
only pre turbo. the fittings on the intercooler are air source for the nozzle and to pressureize the tank.

Dunno about the Alu and methanol, until now there is no corrosion at all visible.
Rub20B is offline
Old 05-03-13, 09:14 AM
  #14
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,357
Received 49 Likes on 31 Posts
knock should look something like this....



your broken rear plate is another supportive result of the need to log fuel pressure. simple, inexpensive thru your Datalogit.

hc
Howard Coleman CPR is offline
Old 05-03-13, 11:27 AM
  #15
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by howard coleman View Post
knock should look something like this....



your broken rear plate is another supportive result of the need to log fuel pressure. simple, inexpensive thru your Datalogit.

hc
actually once I fixed the fuel issue my knock is way lower.. only about 10-15 max during WOT. I had one occurence where I heard the knock and the log showed 1 line with 92 at 5000 something rpm, as I said afr was 11.3, 0.92 bar boost, 50 degIAT and timing I think around 9deg leading. so I dont know where that knock came from, for the rest the car is now knock free even with IAT above 70 degC and 1.1 bar. (top mount)
Rub20B is offline
Old 08-13-13, 02:38 AM
  #16
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Dynatek arc-2 unit died after about 2000 km..and it seems it doesnt like running on trailing only =) will send it in for warranty.
Rub20B is offline
Old 08-13-13, 04:34 AM
  #17
IAN
Rotary Reborn!
iTrader: (3)

IAN's Avatar

Join Date: Mar 2001
Location: Canada
Posts: 5,248
Likes: 0
Received 0 Likes on 0 Posts
I thought everything was replaced on a Stage 4 turbo build? Also you still have boost creep on a stage 4!
IAN is offline
Old 08-13-13, 04:39 AM
  #18
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
had.., after I ported the hell out of the wastegate runners/ports and modified the plate of the turbo (as you can see on the pics) for more wastegate opening it is fine now
Rub20B is offline
Old 08-14-13, 08:34 PM
  #19
IAN
Rotary Reborn!
iTrader: (3)

IAN's Avatar

Join Date: Mar 2001
Location: Canada
Posts: 5,248
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rub20B View Post
had.., after I ported the hell out of the wastegate runners/ports and modified the plate of the turbo (as you can see on the pics) for more wastegate opening it is fine now
Thats no good. I thought that the turbo was modified from BNR such that it would be fine?
IAN is offline
Old 08-20-13, 05:08 AM
  #20
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
that was also what I tought first yep, I mounted the turbo as it came from bnr.. with the nasty boostcreep as result
Rub20B is offline
Old 08-21-13, 06:27 PM
  #21
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
How much power are you putting out with the BNR turbo, do you see any reason to change from the tmic to fmic?
orange is offline
Old 08-22-13, 04:01 AM
  #22
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Dunno, didnt dyno it, but its 75% duty on 1680/550 injector with quite a bit methanol on top and 11:1 afr, so if you do the math its performing very well..
Good fmic would easily gain another 40-50hp if iat would drop from 80 to 30 deg C
Rub20B is offline
Old 09-12-13, 05:48 PM
  #23
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
Iat

What IAT are you running on this setup, just the stock one?

I can't seem to find much information on the stock IAT sensors with regard to how quickly they respond etc. I understand that the stock ones being open element should be pretty quick, is this what you've found? If you;re running the stock one, that is!
orange is offline
Old 09-13-13, 01:39 AM
  #24
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
I was first using fd one, but that one was really lazy.. now I switchted to a motorcycle one and its much faster
Rub20B is offline
Old 09-13-13, 02:17 AM
  #25
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rub20B View Post
I was first using fd one, but that one was really lazy.. now I switchted to a motorcycle one and its much faster
I understand the resistance curves are different for the IAC's between the FD And FC, did you adjust these in your ecu?
orange is offline
