Auxiliary Injection The place to discuss topics of water injection, alky/meth injection, mixing water/alky and all of the various systems and tuning methods for it. Aux Injection is a great way to have a reliable high power rotary.

FC Pre Turbo Rice Racing pics

Old 09-13-13, 02:28 AM
  #26
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
erm, no I first switched the stock FC one out with stock FD to make the PFC happy. but I found the raction time of the FD too slow, especially after heatsoak at stoplight and when taking off it would result in a lean spot as the sensor was stlll displaying warm IAT but in reality the air would already be alot cooler. so then I switched the FD one out and used a I think triumph on. it was geen with same treads and bosch connector. has the same curve and open element
Rub20B is offline
Old 09-13-13, 02:37 AM
  #27
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rub20B View Post
erm, no I first switched the stock FC one out with stock FD to make the PFC happy. but I found the raction time of the FD too slow, especially after heatsoak at stoplight and when taking off it would result in a lean spot as the sensor was stlll displaying warm IAT but in reality the air would already be alot cooler. so then I switched the FD one out and used a I think triumph on. it was geen with same treads and bosch connector. has the same curve and open element
Ok, so the triumph one has the same resistance curve as the FD?

Is the curve the same between the FC and FD? I had the understanding they were different!

I'm running a similar setup to you, modified top mount with twin nozzles post turbo. Just trying to get the quickest reacting IAT I can find.
orange is offline
Old 09-13-13, 03:04 AM
  #28
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
no fc and fd are different resistance


http://www.ebay.com/itm/2002-Triumph-Sprint-ST-955i-air-sensor-/231043140675?pt=Motorcycles_Parts_Accessories&hash=item35cb3e8c43&vxp=mtr
this is what you want
Rub20B is offline
Old 09-13-13, 03:19 AM
  #29
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rub20B View Post
no fc and fd are different resistance


2002 Triumph Sprint St 955i Air Sensor | eBay

this is what you want
Cheers!
orange is offline
Old 10-28-13, 05:37 AM
  #30
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
After 2.5 momths I still do not have the Dynatek unit back, after getting in touch with Dynatek itself it seems in all this time the unit did not even reach them and it lied all the time at the German dealer where I bought the unit.. damnit
Rub20B is offline
Old 10-28-13, 10:41 AM
  #31
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 16 Likes on 15 Posts
go stab some ******* with butter knives.
RotaryEvolution is offline
Old 03-25-14, 06:54 AM
  #32
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
got the dynatek back finally. car is still going strong and maybe we'll dyno it in the following weeks.
Rub20B is offline
Old 07-20-14, 04:33 AM
  #33
I
iTrader: (3)

Pr˘digy2nd's Avatar

Join Date: Oct 2005
Location: Alberta, Canada
Posts: 992
Likes: 0
Received 0 Likes on 0 Posts
update?


J.
Pr˘digy2nd is offline
Old 07-20-14, 09:09 AM
  #34
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
not really, car still goign well.. only turbo has to come of again at the wastegate arm is binded into the stainless bushing I made, therefore its spools a bit late and doesnt reach full boost.. better convinece the owner to get a EFR in there =)
Rub20B is offline
Old 12-23-14, 05:32 AM
  #35
Boost knob
iTrader: (13)

incubuseva's Avatar

Join Date: Feb 2004
Location: Lake Stevens
Posts: 1,716
Received 2 Likes on 2 Posts
Nice thanks for all the info. Good thread here
incubuseva is offline
Old 05-25-15, 12:02 PM
  #36
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts

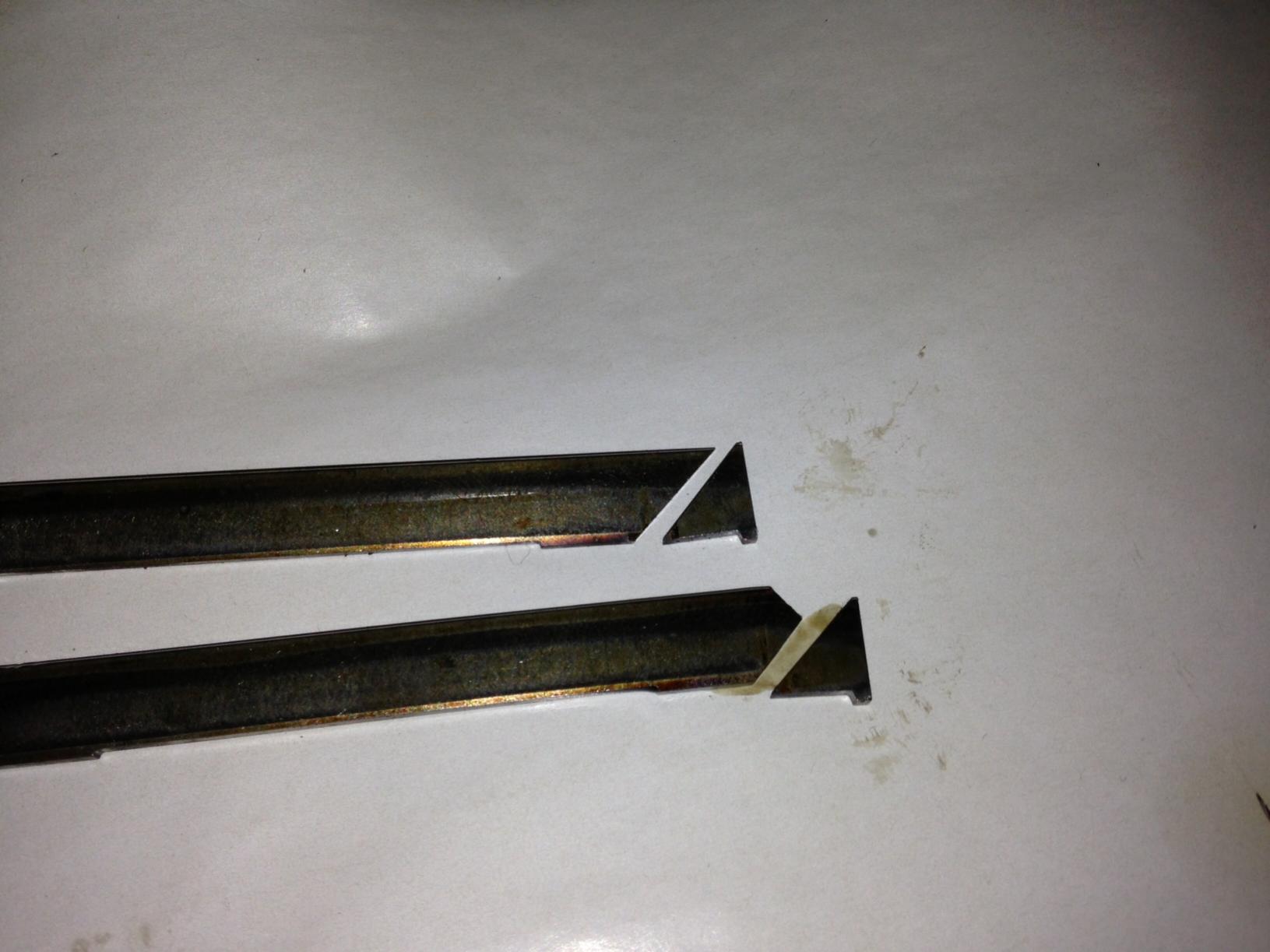

owner brought car in to fix the turbo, only idling on1.5 rotor. rear rotor the small tip cracked of the big part of the 2pc seal.

rotor housing is for the parts bin. rotor and rest of the engine are still mint..

I have not really a clue as to why it detonated.. maybe it boostcreeped, will ask the owner. time for 1 piece seals now
Attached Thumbnails FC Pre Turbo Rice Racing pics-photo_seal.jpg

Last edited by Rub20B; 05-26-15 at 06:37 AM.
Rub20B is offline
Old 06-06-15, 09:58 AM
  #37
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Car is on the road again, installed gt35r with synapse 50mm wastegate and NRS 1 piece seals. this turbo is just a different league than the bnr stage 4. spools much better and top end is wild, even wit .82 T3 housing. running 1.1 bar (16psi) with a lot of water. tried a tank of 95 RON, could advance timing 5 deg before I started to hear a sign of knock so I really have no idea what caused the knock that killed the mazda seal. maybe it was carbon deposit starting to glow? I now dailed back the OMP to 20% and running 1% of 2 stroke premix

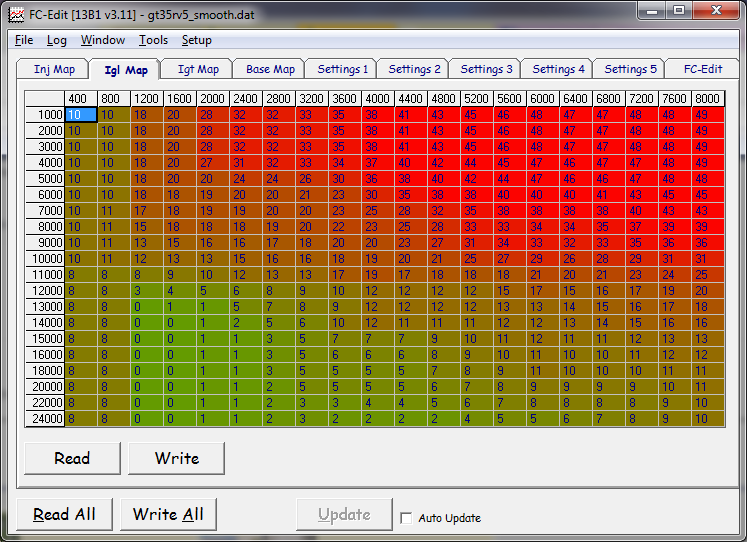

now its tuned to run afr in high 10's with following leading timing, does this seem to make any sense? bear in mind that this is for standard condition which is temp after intercooler between 70 and 80 degC. at 120 deg there is a additional retard in timing of 9 deg. split is 13 deg

didnt hit the dyno but we're reaching 80% duty with 550/1680 combo at afr 10.7 at 7-8k rpm
Attached Thumbnails FC Pre Turbo Rice Racing pics-igl_gt35r_v5.png

Last edited by Rub20B; 06-06-15 at 10:00 AM.
Rub20B is offline
Old 07-31-15, 09:03 AM
  #38
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts
Good investigation on compressor wheel damage caused by droplets.

http://users.telenet.be/veerle_haai/...or_erosion.pdf
Rub20B is offline
Old 06-15-17, 03:25 PM
  #39
Exhaust Manifold Leak
Thread Starter

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 624
Likes: 0
Received 0 Likes on 0 Posts

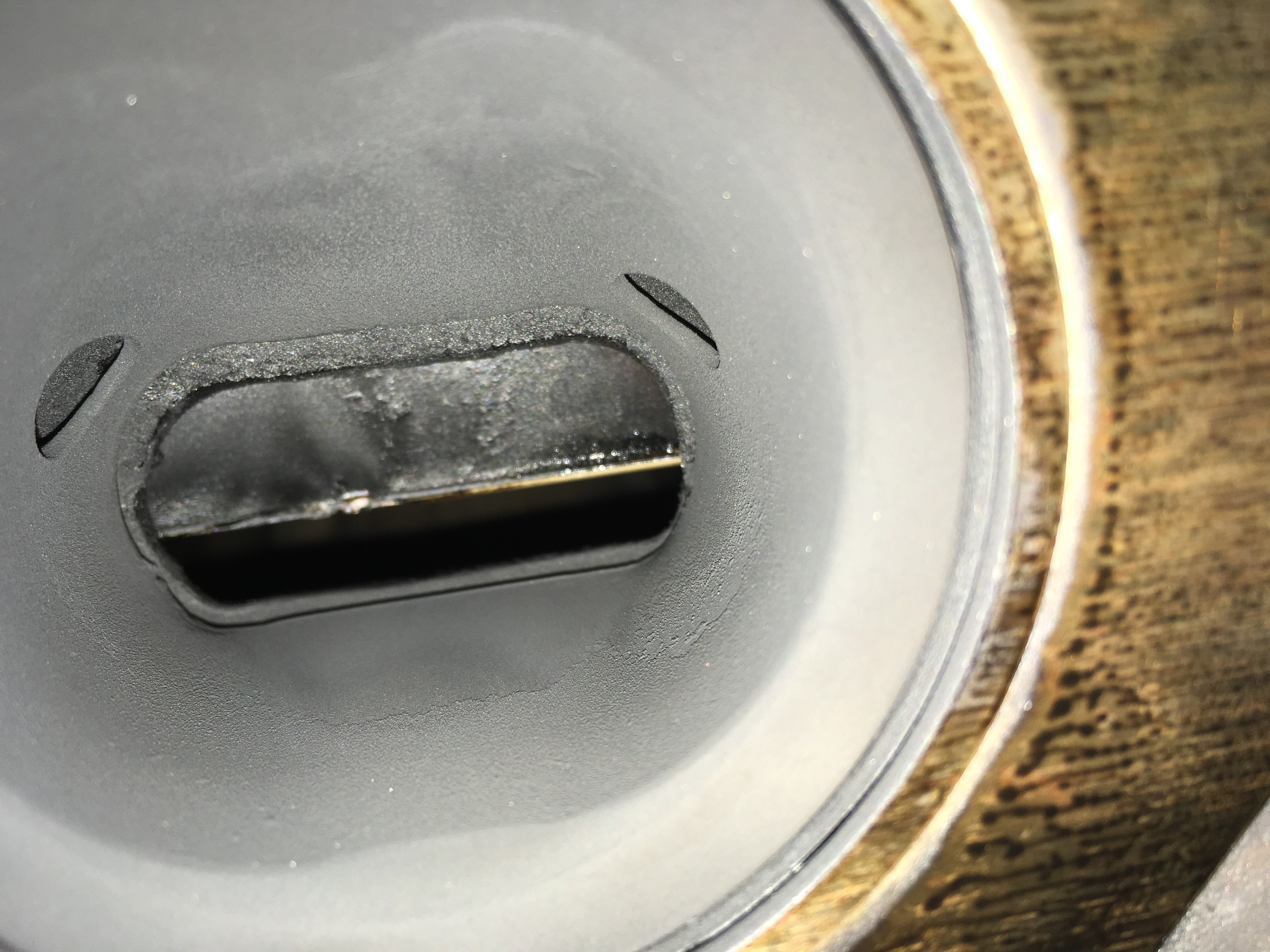

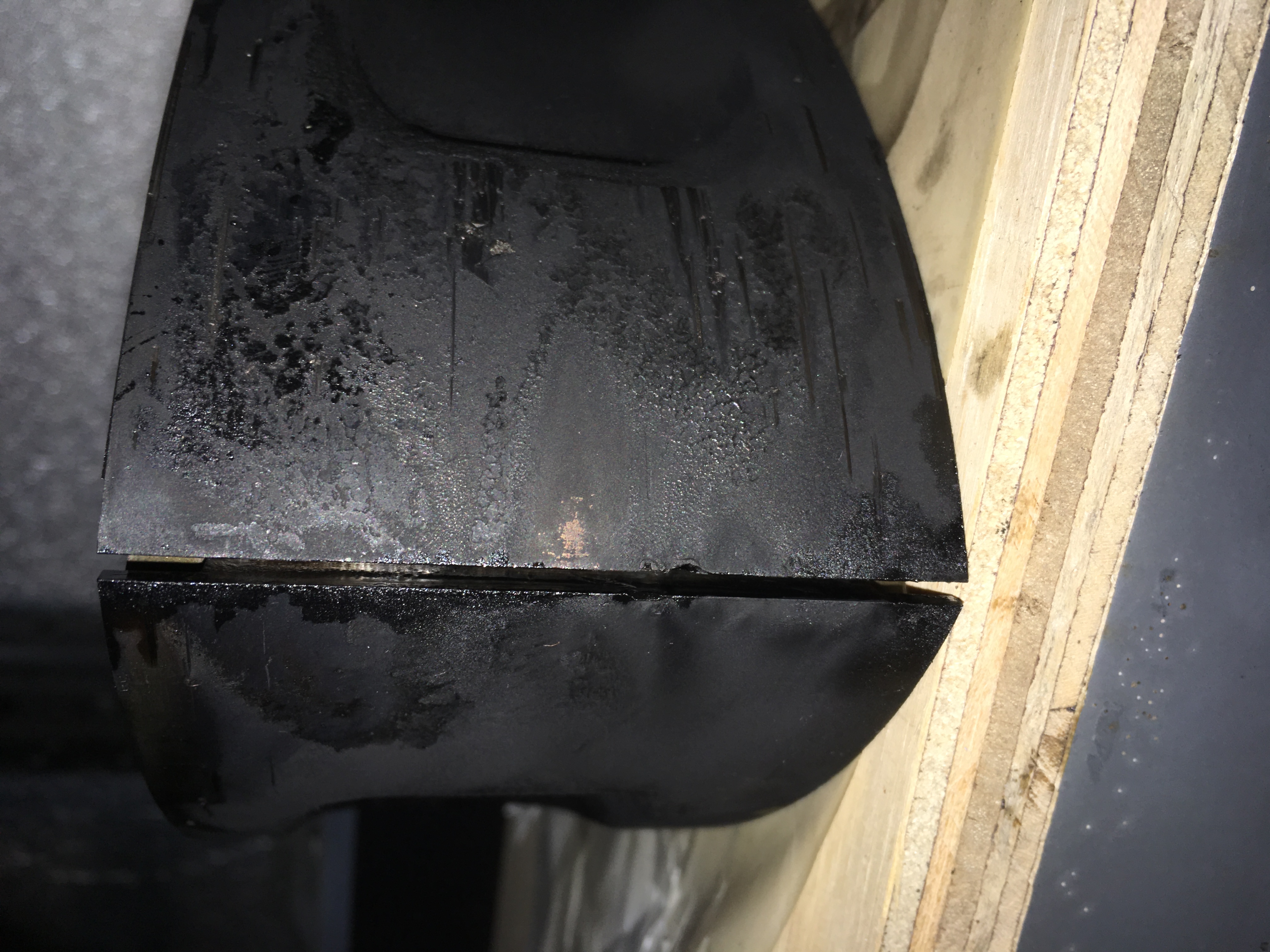

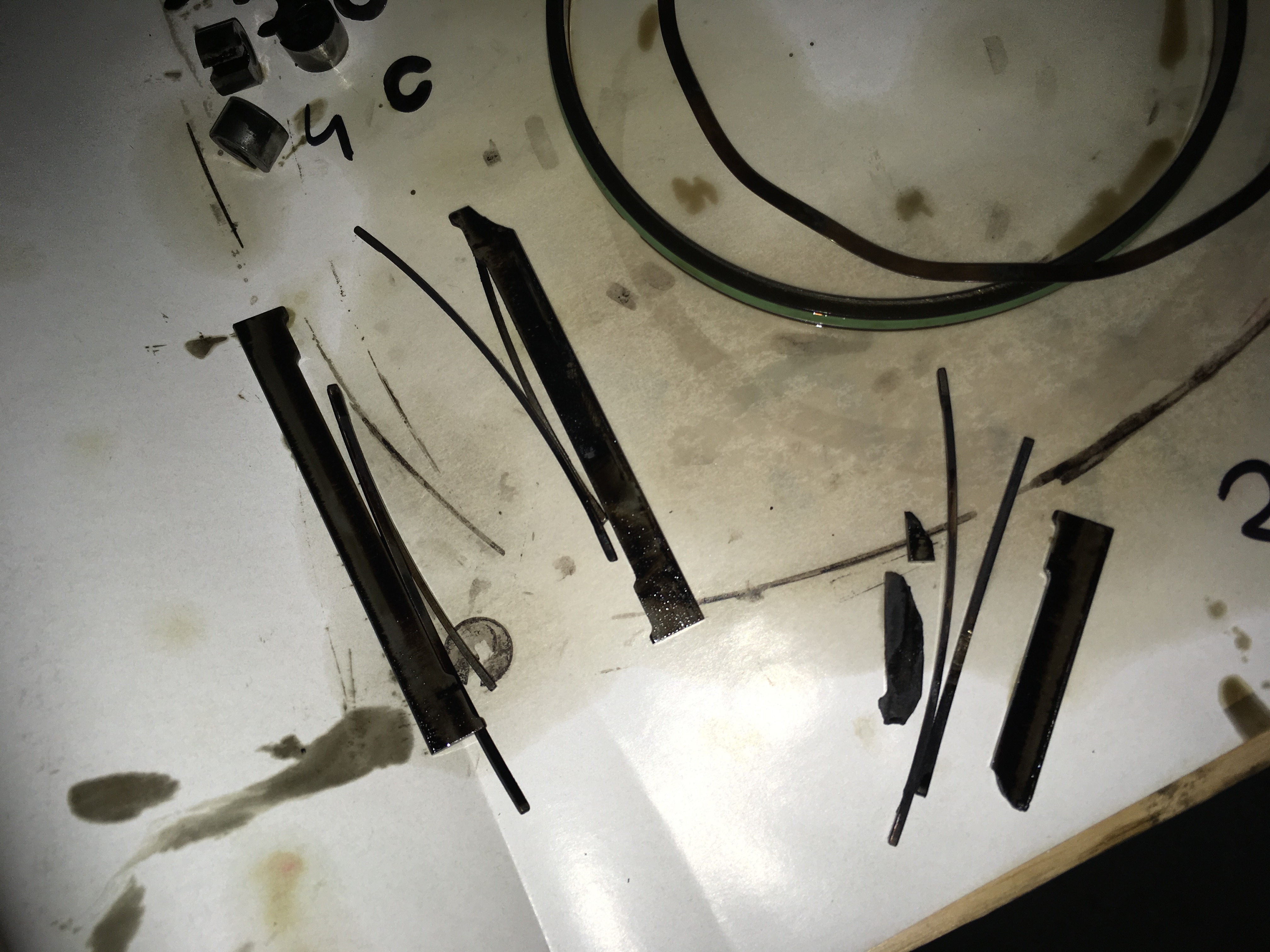

Update. Some years later.. the engine again lost the rear rotor. it was running 1 pc NRS 2mm. 1 seal cracked, owner said it happened after giving some light throttle when traffic jam cleared.

could be detonation or maybe pre ignition from glowing carbon buildup? spark plug show no sign at all from detonation.

the question is what seal to put to prevent this from happening in the future? 3mm ceramic? 3mm steel 1 piece?
Attached Thumbnails FC Pre Turbo Rice Racing pics-img_2833%5B1%5D.jpg   FC Pre Turbo Rice Racing pics-img_2834%5B1%5D.jpg   FC Pre Turbo Rice Racing pics-img_2835%5B1%5D.jpg
Rub20B is offline
