the "500 ON PUMP-AI CLUB"
#101
Racing Spirit
iTrader: (2)
Join Date: Jun 2007
Location: NNJ
Posts: 557
Likes: 0
Received 0 Likes
on
0 Posts
What size is a supersize nozzle? And what turbo is this with? Very Nice results. Have you been retuning for the different ratios of meth to water? Also i'm sure the knock reading is low, but are you sure the knock sensor is working? For a long time my knock sensor just showed 1 on the pfc at all times. then after several months it started working all of a sudden. When it did start working knock was around 20 at 20 psi. i just considered this no knock and just engine noise being picked up. Even under low speed driving and cruise it would show around 10 or so at a minimum.
- This video will demo the nozzles at the end. the #3 550cc was too large.
- Turbos is t04r or T67 w/ .7(a/r) from garret (stamped and serialized)
- knock sensor i'm using is brand new mazda oem unit my previous one just stopped giving readings so its replaced. AEM won't give you whole numbers for readings like power fc it just read the volts which (knock is read in) once i get my tune 100% complete i will post data logged tables.
- My tune is at the moment a full throttle tune so at partial i'm still getting sputter and un-trackable behavior which hopefully guys at PFS can handle since my current tuner is just trying to screw me out of money.
#102
BOOSTLI
iTrader: (2)
Join Date: Apr 2005
Location: Minnesota
Posts: 728
Likes: 0
Received 0 Likes
on
0 Posts
Hey guys I just got my car dyno'ed by steve kan in MN and made 500 flat.
Here are my mods:
KG R85 turbo kit
1600cc sec and 850cc prims
coolingmist variocool II kit with (2) M10 injectors running straight 100% alcohol
21lbs of boost made 500hp and 417 max torque
engine is a Howard Coleman build with Howard Colman large street port. The man him self.
Tuner was Steve Kan the number one man tuner for fd's.
And as for all the other stuff I dont know what my knock and stuff is. But Howard can confirm my power and dyno cause he came all the was from green bay wis to MN to see my car dyno. and I have to wait for MA performance here in mn to email me my dyno sheet and I will post it in here. I couldnt push any more boost cause my wastegate spring was maxed out.
Here are my mods:
KG R85 turbo kit
1600cc sec and 850cc prims
coolingmist variocool II kit with (2) M10 injectors running straight 100% alcohol
21lbs of boost made 500hp and 417 max torque
engine is a Howard Coleman build with Howard Colman large street port. The man him self.
Tuner was Steve Kan the number one man tuner for fd's.
And as for all the other stuff I dont know what my knock and stuff is. But Howard can confirm my power and dyno cause he came all the was from green bay wis to MN to see my car dyno. and I have to wait for MA performance here in mn to email me my dyno sheet and I will post it in here. I couldnt push any more boost cause my wastegate spring was maxed out.
#104
When in Rome...
iTrader: (2)
Join Date: Apr 2008
Location: San Francisco
Posts: 288
Likes: 0
Received 0 Likes
on
0 Posts
Hey touturborx7 I was actually looking into that turbo kit and was wondering at what RPM did you get boost at and when did you reach FULL boost? Although it may not be such a big thing on most people but I like the fact that the wheel is made out of Inconel.
~Shar
~Shar
#105
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
blizzaga
i will shortly have touturborx7's dyno sheet so you will have the details but i did notice that his runs made 200 rwhp at 4300 rpm which is excellent for a turbo making a bunch of hp on the topend. many 500 hp runs posted show 200 around 4750.
hc
i will shortly have touturborx7's dyno sheet so you will have the details but i did notice that his runs made 200 rwhp at 4300 rpm which is excellent for a turbo making a bunch of hp on the topend. many 500 hp runs posted show 200 around 4750.
hc
#107
BOOSTLI
iTrader: (2)
Join Date: Apr 2005
Location: Minnesota
Posts: 728
Likes: 0
Received 0 Likes
on
0 Posts
Hey howard I was hoping to see you post in here. LOL. I am really happy with this turbo it spools hard and gives good HP. Plus with howards great build and ports Had to do alot of it also. Thanks alot howard for the great motor you built for me. I would recommend getting this turbo. At 13lbs it was at high 300hp close to 400hp. that was shocking to me and howard. I wish my spring didnt max out as for I would have wanted more boost and hp close to the 600hp range. But all in all 500 is really really good and lots of power. I babbied my car after the tune cause I just feel like one day of 2 hrs of beating was good enough on her. LOL I havent driven the car ever since the tune starting it up and warming her up and checking my fluids. LOL
#109
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
as Bruce mentioned i am very impressed w the R85 (Tec 300) turbo....
note 200 rwhp at 4300... most 500 hp setups make 200 at 4700. it should be a street rocket.
also 417 Standard Tq is monsterous.
nice job Bruce and Steve and Coolingmist/methanol.
howard
note 200 rwhp at 4300... most 500 hp setups make 200 at 4700. it should be a street rocket.
also 417 Standard Tq is monsterous.
nice job Bruce and Steve and Coolingmist/methanol.
howard
Last edited by Howard Coleman; 08-09-09 at 11:03 AM.
#110

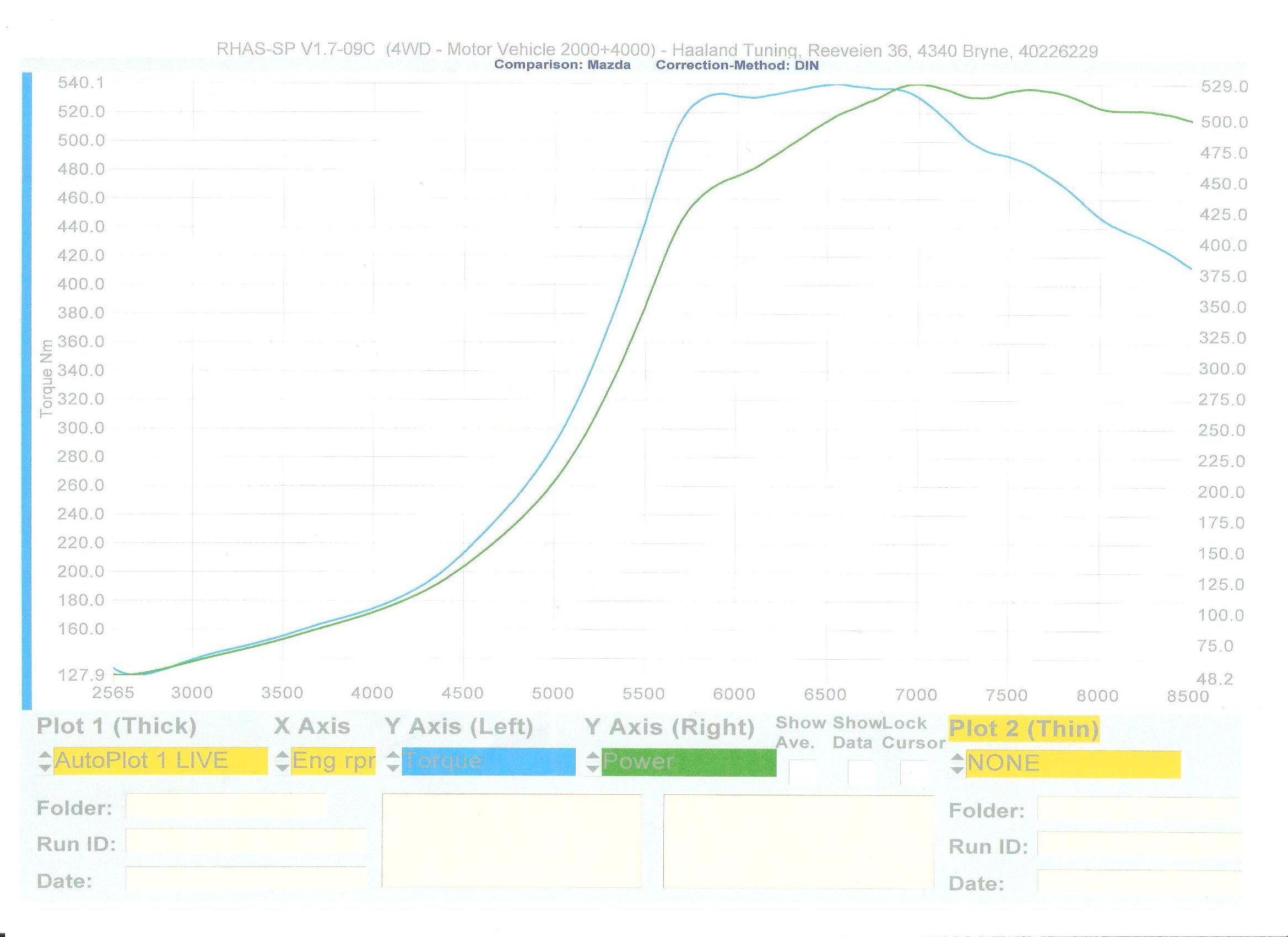

here comes the sheet!
like i wrote before, full bridge rew, t78 at 1.6bar at hp top, and 50/50 water-meth with a coolingmist progresive controller. all the way 3" exhaust.
engine is built by me a year ago, last year it did 455rwhp @ 1.3bar all year on track and road. only thing ugraded is nrs ceramic apex seals.
stig
like i wrote before, full bridge rew, t78 at 1.6bar at hp top, and 50/50 water-meth with a coolingmist progresive controller. all the way 3" exhaust.
engine is built by me a year ago, last year it did 455rwhp @ 1.3bar all year on track and road. only thing ugraded is nrs ceramic apex seals.
stig
#111
Racing Rotary Since 1983
Thread Starter
iTrader: (6)
thanks for the post and congrats.
doing some converting from DIN and NM (it looks like DIN is very similar to our Standard Correction) you made about 519 Standard 509 SAE and torque converts to 391 pound feet STD and 383 SAE.
spool looks pretty good w 200 rwhp being reached at just below 4500.
howard
doing some converting from DIN and NM (it looks like DIN is very similar to our Standard Correction) you made about 519 Standard 509 SAE and torque converts to 391 pound feet STD and 383 SAE.
spool looks pretty good w 200 rwhp being reached at just below 4500.
howard
#115
Senior Member
iTrader: (2)
Join Date: Mar 2006
Location: gloucester
Posts: 665
Likes: 0
Received 0 Likes
on
0 Posts
So many systems out there that I dont know which to buy. My set up is the normal single turbo 850cc/1680cc with a streetport. I have read thur the stickied threads, but im unsure on what system is best for me. Goal is 500hp!!!
#120
Rotary Enthusiast
iTrader: (5)
Today I made 528 rwhp 428 ft/lbs torque, 24 psi boost, 93 pump and a AEM WI kit with one coolingmist CM7 super atomizing injector (500cc/min at 150psi) spraying water only, with a 200/250psi new AEM recirculating pump, nozzle near the exit of my greddy 3 row fmic. T04r single turbo, .96 A/R. 850s and 1680s, Aero 340lph pump. Mild streetport engine built by djseven, my tuning, Power FC.
At 528 HP my Torque was 403, 6878 rpm, AFR was 11.8 (11.2-11.8 afr across the powerband), leading timing logged at 9 (7 in the map) split 12, knock 4, PIM 26231, 1.59 bar on pfc, inj. duty 80.4 , AirT 23C.
200 hp at 4300 rpm. 300 hp at 4700 rpm. 400 hp at 5200 rpm. 500 hp at 6300 rpm.
457 hp at 8000 rpm.
Glad to be in the 500 club haha.
At 528 HP my Torque was 403, 6878 rpm, AFR was 11.8 (11.2-11.8 afr across the powerband), leading timing logged at 9 (7 in the map) split 12, knock 4, PIM 26231, 1.59 bar on pfc, inj. duty 80.4 , AirT 23C.
200 hp at 4300 rpm. 300 hp at 4700 rpm. 400 hp at 5200 rpm. 500 hp at 6300 rpm.
457 hp at 8000 rpm.
Glad to be in the 500 club haha.
