Hi everyone,

Sorry for such a stupid thread, but I'm wrestling with my fuel pump harness connector and I CAN'T GET IT OFF FOR THE LIFE OF ME.

I don't know if the previous owner broke one of the clips or something but.. I don't see any clips to depress and I can't slide it off no matter how much I wiggle.

Does anyone have any advice? I feel like an idiot..

JSmith0101

iTrader: (6)

Pull harder.

Wompa164

iTrader: (4)

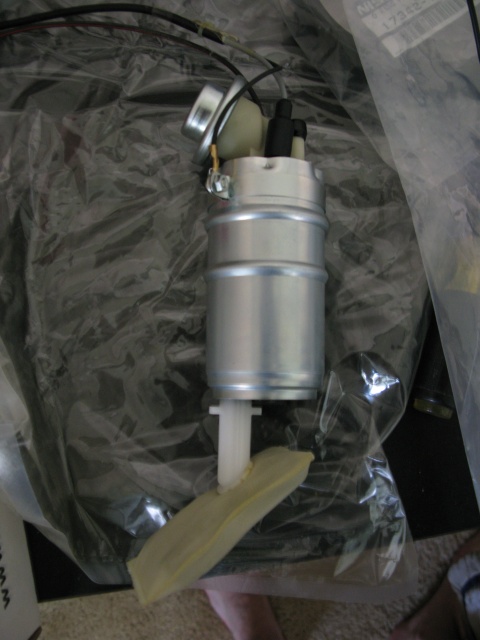

Here's a shot of the connector and a bonus shot of the new fuel pump (Apex'i GTR33 Pump):

j-specfd3s

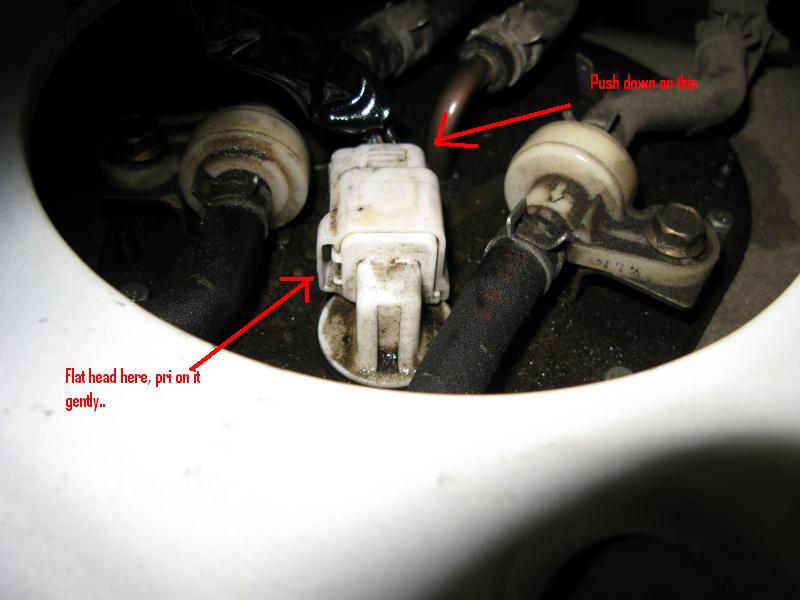

DONT PULL ON THE HARNESS!!!!!!!!!! YOU CAN PULL THE WIRES OUT! this happened on a juck car that i had... Mine was the same way when i was installing the walbro (learned from the juck car) i used a flathead driver and pried against it, came right out, after that slides in and out with no problem. Guess it was gunk or something and it just got stuck.

j-specfd3s

how much did you pay for that pump?

Stanello

iTrader: (1)

Push in on the left side (going by the pic) of the connector and pull.

j-specfd3s

if tab is broken

dgeesaman

iTrader: (7)

The latch is on the left side of the white connector. It can be a little hard to get it pushed in all the way. I've used a screwdriver to gently push the connector apart while using another tool to push in on the latch.

Dave

Wompa164

iTrader: (4)

I got it, thanks a bunch everyone!

Now I've just gotta figure out how to mount the fuel pump on the tree..

j-specfd3s

Pretty much you are going for the same setup as the stock pump... Take your old pump off, place the pump/intake filter thru the bottom of the bracket and hose clamp it in, connect all tubes, wiring, etc. Button it all up and you should be good to go..
