KaiFD3S

iTrader: (37)

I am doing a bunch of stuff to the car and have the UIM removed, I am running a single turbo so I have a lot of unused wires in the harness and I want to cut them off, will I affect anyting by doing this.

I have a pic of all the unused wires I want to chop off...

I know I will never go twins again so I dont really need this, I plan to do it the right way if I ever do a rebuild

Thanks in advance

dubulup

you can cut them off but stager them and use dielectric caps or tape on the hot wires. The idle speed controller gets power from some emissions hot wire so re splice that I side the harness.

I've done this mod for many forum members PM me if interested. Search the for sale section someone just sold one of my modified harnesses...there are some pics.

KaiFD3S

iTrader: (37)

Is the Idle speed controller the orange plug?

dubulup

No its white and plugs into a stepper motor on the back of the UIM

KaiFD3S

iTrader: (37)

daym, maybe I should just send you my harness, electrical stuff is my weakness..

dubulup

I can usually turn the harness around in two or three days

KaiFD3S

iTrader: (37)

now, just need to figure out how to completely take it off...lol..how much you charge to do this mod anyway?

DMoneyRX-7

iTrader: (2)

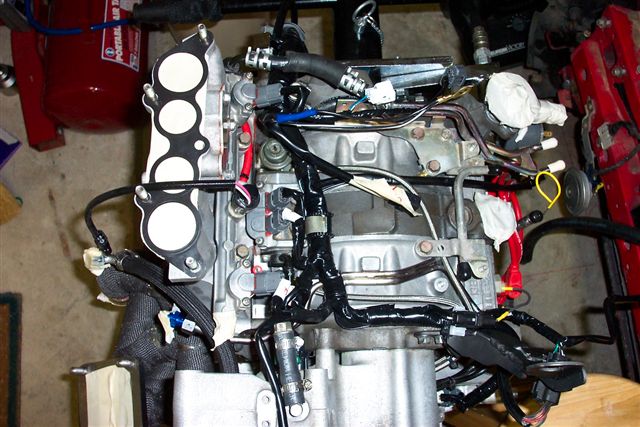

idk if this helps but here is a pic of my cut harness
