rescueranger

iTrader: (15)

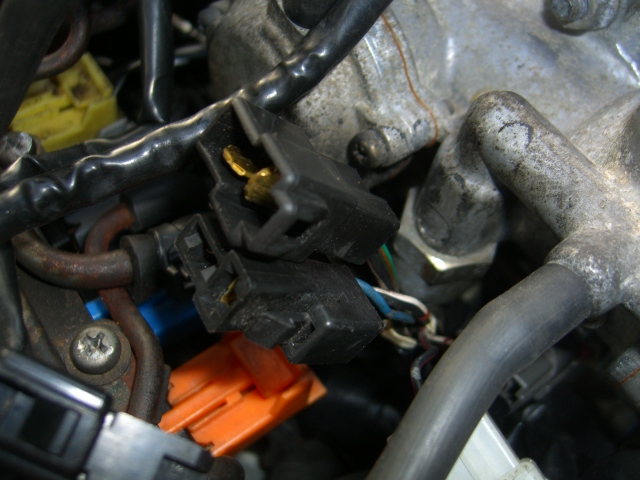

what are these cables and where are they supposed to go?

Mahjik

iTrader: (1)

Acv

getgone

iTrader: (2)

Bottom one plugs into the top one

rescueranger

iTrader: (15)

they do fit into each other, but its strange that theyre on the harness together and there would be ends for it to connect, when they could of easily wired it into each other

getgone

iTrader: (2)

Well, then there is a compatible plug coming from the ACV that matches each of them. Make sure the two from the ACV that go to those pictured are not plugged into one another.

rescueranger

iTrader: (15)

? so are they supposed to go to the acv or are the ones pictured supposed to connect to one another? and where is the acv located? the uim or the lim?

rescueranger

iTrader: (15)

found this on another thread, but cant find where acv connects to

getgone

iTrader: (2)

There are three sensors in the ACV. Each has a wire with connector. The harness (as shown) has three connectors that correspond. One is white two are black. Its pretty much connect the dots stuff. Not trying to be insulting.

The ACV is shown in the background of your first photo above.

jd to rescue

iTrader: (3)

If the two exposed connectors are coming from the harness, then the joined connectors you are touching with your finger (or at least just to the left of it) in the first photo are the corresponding connectors for the two exposed. Someone plugged the two sensor wires together. Disconnect them and match them to the proper connector from the harness.

rescueranger

iTrader: (15)

hehe im not easily insulted

rescueranger

iTrader: (15)

wow i'm retarded, i didnt even notice, thats why i couldnt find any openings or any open cables it would match to, you were right they two sensor wires were plugged into each other, thanks a million
