Window missing seal and new antenna?

Ok, so when I got the car, the window would sometimes fall off the track when I would roll the window down and close the door. The window would also rattle if it was rolled down a little. I thought it was a bad track or something, but then I got my windows tinted today, and they were saying that there is supposed to be a seal on the bottom I guess inside of the door and they said that I am missing it. Anyone know where I can pick one of these up and for how much?

Anyone else experience this problem?

Along with this problem, my radio is acting up. When I also got the car I had horrible radio reception from the radio. I would only get certain stations. When I installed the new deck a couple days ago, I found out that the antenna adapter that goes into the back of the aftermarket deck was broken. I went ahead and just put the connecter back onto the wire, but I just basically stuck it on there and then plugged it back in, and it still has about the same problem. I don't know if that is the problem or if it is my antenna because the antenna is not coming up all the way. Even when I pull the antenna up all the way to full extension it doesn't seem to help pickup stations that I get all the time so I don't know which one is causing my problem.

Anyone experiencing this problem? Help!
Reply
Old Jan 26, 2006 | 12:30 AM
  #2
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
Bump for answers
Reply
Old Jan 26, 2006 | 01:25 AM
  #3
kuning's Avatar
Full Member
Tenured Member 05 Years

Joined: Apr 2004
Posts: 240
Likes: 0
From: Rotors Vallhalla
I got that rattle too when my passengger window is not fully wind-up....havent got the chance to open the whole thing and have a look but...
Reply
Old Jan 26, 2006 | 10:08 PM
  #4
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
Ok, so I went today and the window is missing a seal. If you look at your door from the outside right near the handle, there is a seal there that starts by the handle and goes all the way down into the actual door and that's what the window sits in so that is my problem.

Anyone know where I could pickup this seal?
Reply
Old Jan 26, 2006 | 10:13 PM
  #5
DMoneyRX-7's Avatar
Derek
Tenured Member: 20 Years
iTrader: (2)

Joined: Sep 2005
Posts: 2,011
Likes: 4
From: Treasure Coast, FL
ive been looking for one forever.
Attached Thumbnails Window missing seal and new antenna?-dscf0189.jpg
Reply
Old Jan 26, 2006 | 10:40 PM
  #6
quicksilver_rx7's Avatar
Rotary Enthusiast
Tenured Member 15 Years

Joined: Feb 2005
Posts: 1,336
Likes: 0
From: Charlotte, NC
I've got one for sell if you're interested. The one I have came from a driver's side door, but they should be the same for both sides. You can check the part numbers at your local dealer, or I can do it at mine.

Joe
Reply
Old Jan 26, 2006 | 10:41 PM
  #7
DMoneyRX-7's Avatar
Derek
Tenured Member: 20 Years
iTrader: (2)

Joined: Sep 2005
Posts: 2,011
Likes: 4
From: Treasure Coast, FL
no, they arent the same.
Reply
Old Jan 26, 2006 | 11:21 PM
  #8
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
Dmoney, it's not the seal you are pointing at. If you move your finger up there is a seal going along the line of the door handle panel there. That seal goes from there and goes down into the door/door panel, that is the one I'm missing.
Reply
Old Jan 26, 2006 | 11:48 PM
  #9
quicksilver_rx7's Avatar
Rotary Enthusiast
Tenured Member 15 Years

Joined: Feb 2005
Posts: 1,336
Likes: 0
From: Charlotte, NC

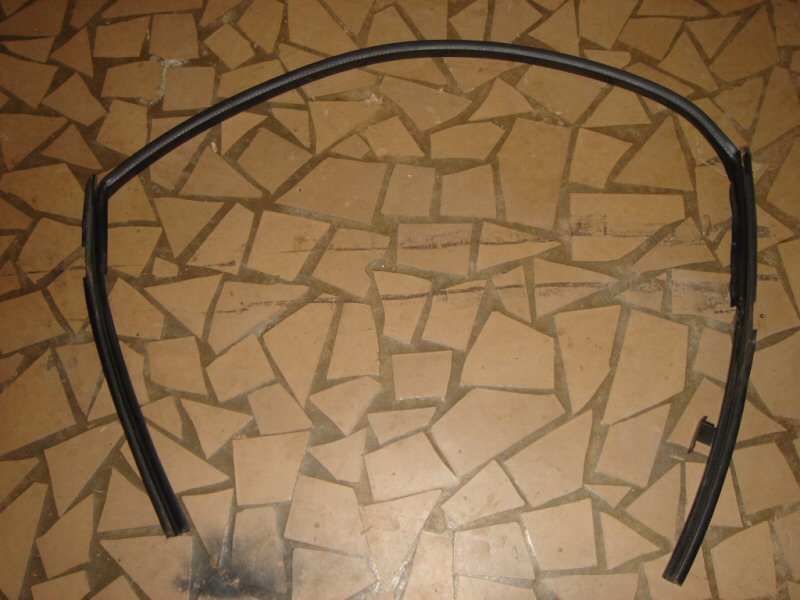

This is the seal/window track that is needed to replace what is missing.

Attached Thumbnails Window missing seal and new antenna?-parts-009a.jpg

Last edited by quicksilver_rx7; Jan 26, 2006 at 11:50 PM.
Reply
Old Jan 26, 2006 | 11:51 PM
  #10
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
I think that's what I need, do you know where to get one of them?
Reply
Old Jan 26, 2006 | 11:54 PM
  #11
quicksilver_rx7's Avatar
Rotary Enthusiast
Tenured Member 15 Years

Joined: Feb 2005
Posts: 1,336
Likes: 0
From: Charlotte, NC
Mazmart probably has one.
Reply
Old Jan 26, 2006 | 11:55 PM
  #12
danny hahn's Avatar
Senior Member
Tenured Member 15 Years

Joined: May 2001
Posts: 297
Likes: 0
From: laurel, md usa
runs down the glide? Pull the panel, check inside the door, sometimes they drift down and fall within.

radio: am reception, fm reception?

Last edited by danny hahn; Jan 26, 2006 at 11:58 PM.
Reply
Old Jan 27, 2006 | 12:35 AM
  #13
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
For the radio I think I'm going to go ahead and replace that adapter with a new one and hopefully it will work. If it doesn't work then it has to be the antenna from the car and not the connector

Danny, I just got my windows tinted and they pulled the panel to take the window out and they said that it was missing and that's why it was causing my window to sometimes fall off track and why a whistling sounds when on the freeway.
Reply
Old Jan 27, 2006 | 06:43 AM
  #14
DMoneyRX-7's Avatar
Derek
Tenured Member: 20 Years
iTrader: (2)

Joined: Sep 2005
Posts: 2,011
Likes: 4
From: Treasure Coast, FL
oh ok, i was confused then.
Reply
Old Jan 27, 2006 | 06:53 AM
  #15
rescueranger's Avatar
Senior Member
Tenured Member: 20 Years
Liked
Loved
iTrader: (16)

Joined: Jul 2003
Posts: 736
Likes: 1
From: nova
ray crowe @ malloy mazda
Reply
Old Jan 27, 2006 | 09:42 AM
  #16
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
do you know how I can contact Ray Crowe from Malloy Mazda?
Reply
Old Jan 31, 2006 | 12:11 AM
  #17
danny hahn's Avatar
Senior Member
Tenured Member 15 Years

Joined: May 2001
Posts: 297
Likes: 0
From: laurel, md usa
Ray's number is in the sticky in the first couple of threads.

I'd still pull the panel and check the well of the door, I doubt if that piece went anywhere but down.

careful not to break the two plastic guide pins near the window. Off the top of my head, unscrew 3 perimeter, 1 by the inside door release. Pull the plastic covers left and right of window, the bin, then you should be ready to pull bottom out 4-5 inches to free the push connectors, bring back to door and lift upward to remove)
Reply
Old Jan 31, 2006 | 02:25 AM
  #18
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
I'll go ahead and check it out when I deaden my doors this weekend. Hopefully it just dropped down and I'll be able to check it out.
Reply
Old Feb 4, 2006 | 01:53 AM
  #19
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
Ok, so I deadened my doors today and took a look at my problem with the seal. When you take off the door panel and look within the actual door, you will be able to see the track that the window goes up and down on. That is the seal I am missing and I need. Is there any way to get this seal?
Reply
Old Feb 10, 2006 | 08:29 PM
  #20
HardHitter's Avatar
Thread Starter
Rotary Freak
Tenured Member 10 Years
iTrader: (4)

Joined: Aug 2005
Posts: 2,150
Likes: 0
From: US
Ok, I found out the piece is called a Window Channel Seal I think that's it. Where could we find one?
