I guess a lot of people had already done replcaced thier shifter bushing, I had searched but no one really mention my problem. Here is my question.
i just ordered all the shifter bushing form ray at Mollay Mazda, But there is one piece of plastic bushing that I am not sure what it does nor where it goes.

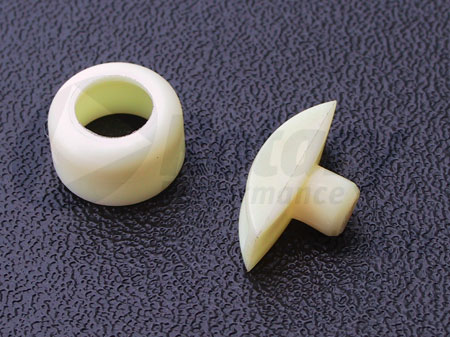

I atteched pic of the bushing hope this will help you guys ID this thing.
it is the one on the right, not the round one.
thank you for your input.
i just ordered all the shifter bushing form ray at Mollay Mazda, But there is one piece of plastic bushing that I am not sure what it does nor where it goes.
I atteched pic of the bushing hope this will help you guys ID this thing.
it is the one on the right, not the round one.
thank you for your input.
#2
Broken...always
Join Date: Jan 2002
Location: Houston, TX
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
That goes in the pivot point of the shifter. The big round part of it. You know how the shifter lines up with this little piece that sticks out in the casing or whatever. Well thats the plastic piece that is in the shifter that lines it up. Its what prevents you from spinning the shifter around while you drive. Im not sure how to pop the old one out, and its not really known to wear out, but thats the replacement.
#3
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: VA
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
new finding
thank for your input. That is what thought at first when I got the parts, but once I opened up my shifter assemebly I was lose. My shifter looks nothing like what the FSM discriped. I can explain that later on in the post, but first i want to say i did put it back together with what i think is right and it seem to shfit fine with the car not running. (My baby is sleeping, I don't want to wake her up, My 7 is loud )
I just want to share my finding and some interesting pic i took when i was putting it back together. Let me start by telling you guys about the car.
I brought the car off a older gentelmen in his late 40's or early 50's. The car has a salvage title. The car was salvage cause of an engine fire. The engine and the transmission were replace by used part off of a what he refer to as Peter Ferral Super car lol. I guess he mean the engine and the transmission was mod by PFS. Base on that info, I am assuming the shifter Mechanism was mod some how.

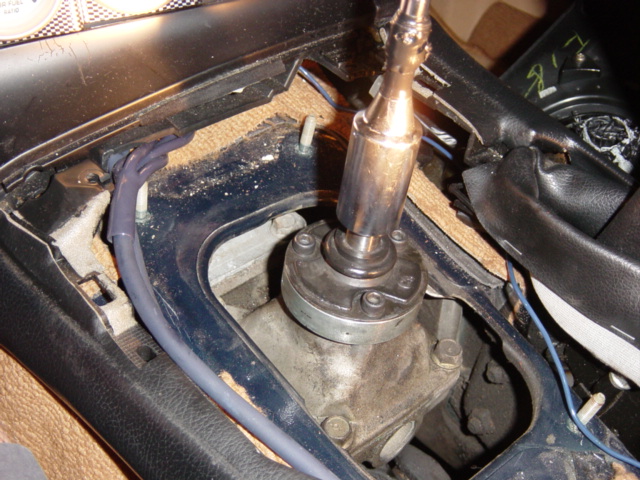

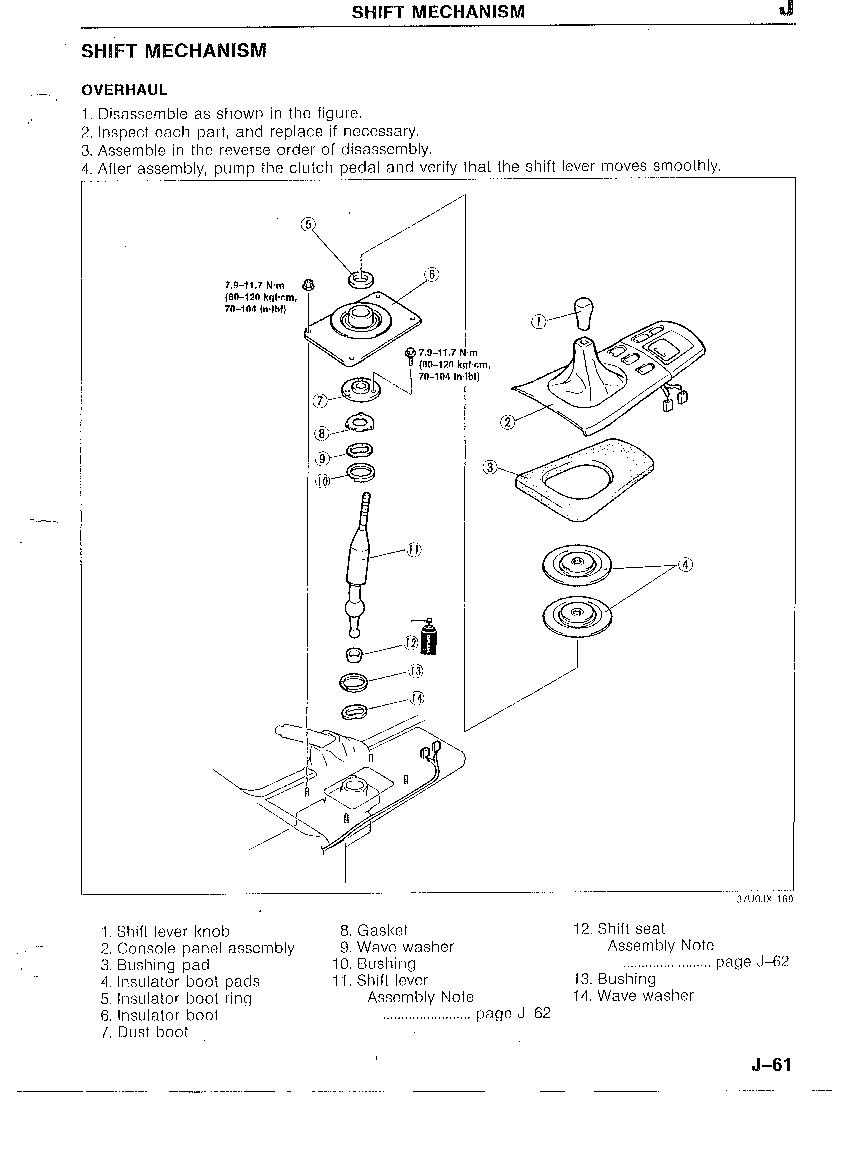

I attached what the stock shifter looks like in the FSM and what my shifter looks like when is all back together. can you tell the different? DId you notice the spacer between the transmission and the factory dust cover.
I just want to share my finding and some interesting pic i took when i was putting it back together. Let me start by telling you guys about the car.
I brought the car off a older gentelmen in his late 40's or early 50's. The car has a salvage title. The car was salvage cause of an engine fire. The engine and the transmission were replace by used part off of a what he refer to as Peter Ferral Super car lol. I guess he mean the engine and the transmission was mod by PFS. Base on that info, I am assuming the shifter Mechanism was mod some how.
I attached what the stock shifter looks like in the FSM and what my shifter looks like when is all back together. can you tell the different? DId you notice the spacer between the transmission and the factory dust cover.
#4
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: VA
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts

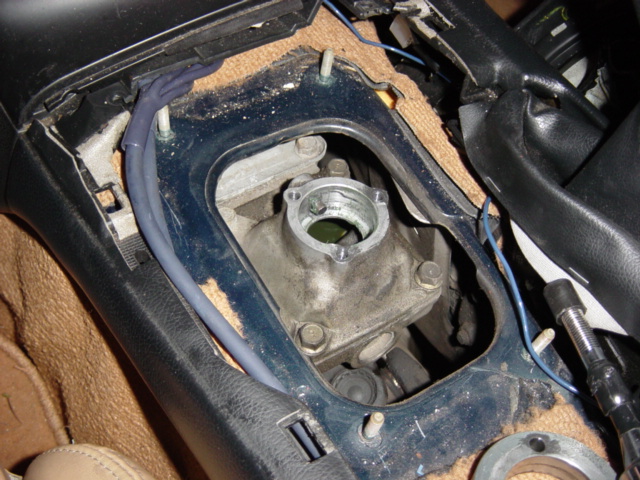

more pic of what is inside the shifter housing

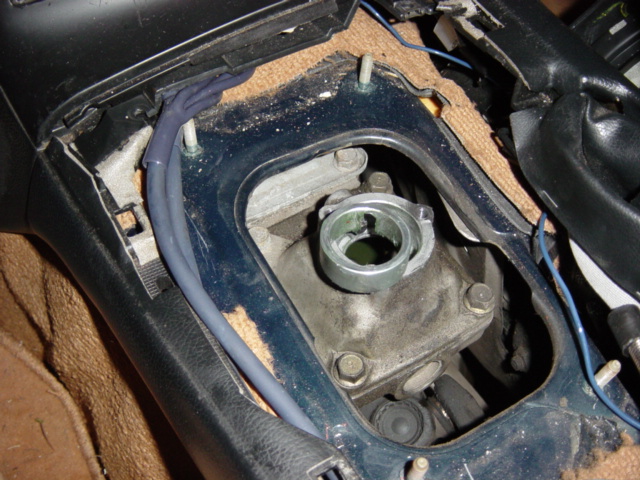

first pic show the stock transmission shifter housing. see the little thingy inside. I thought that piece of bushing goes on to that before I open it up. According to the FSM the bottom bushing should set below the little thingy, and the ball is gudie by the little shaft. but my has something else there????

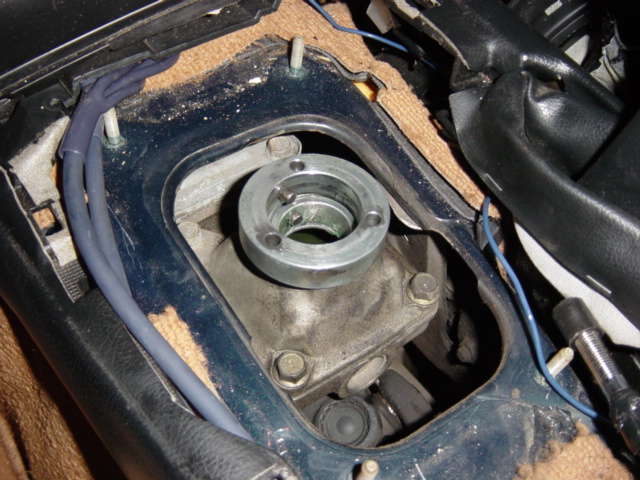

but now look at the second picture. My shifter housing has a race looking thingy inside of it, and it kind of covered up the little shaft that sticks out. see the third pic.
On the third picture you can see the race is now providing a new seat for the bottom bushing. The large ball on the shifter now rest on top of it instead of in the shifter housing.

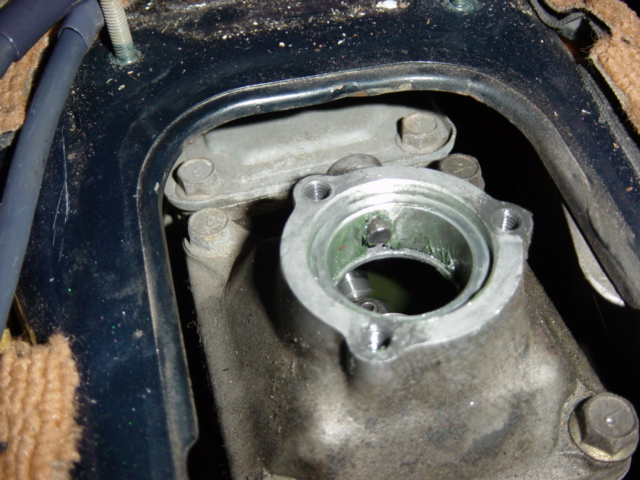

Now on the fourth picture you can see the spacer/ new gudie pin (or the little shaft thingy, gudie pin just sounds more professional )
With this setup pushing the ball higher, and extending the bottom part off the shifter. I really think it is a aftermarket shifter. I don't want to use the word short shifter, cause the throw does not feel short to me at all. Then again this is the only RX7 I have driven, so i have nothing to compare it with.
The fifth pic shows my shifter itself with all the bushing on it. Does it seem short to you guys who has seen a stock shifter before? You can' t really see it but the ball section of the shifter has no place for the bushing peice i was asking about at the beginning of the post, so I just left it out. If anyone want it pm me.
The sixth pic shows my bottom bushing. the one on the left is what ray sent me, and the one on the right is what was on my transmission.
Beside sharing picture, can anyone tell me what shifter this is?
thank you for your help
chino
but now look at the second picture. My shifter housing has a race looking thingy inside of it, and it kind of covered up the little shaft that sticks out. see the third pic.
On the third picture you can see the race is now providing a new seat for the bottom bushing. The large ball on the shifter now rest on top of it instead of in the shifter housing.
Now on the fourth picture you can see the spacer/ new gudie pin (or the little shaft thingy, gudie pin just sounds more professional )
With this setup pushing the ball higher, and extending the bottom part off the shifter. I really think it is a aftermarket shifter. I don't want to use the word short shifter, cause the throw does not feel short to me at all. Then again this is the only RX7 I have driven, so i have nothing to compare it with.
The fifth pic shows my shifter itself with all the bushing on it. Does it seem short to you guys who has seen a stock shifter before? You can' t really see it but the ball section of the shifter has no place for the bushing peice i was asking about at the beginning of the post, so I just left it out. If anyone want it pm me.
The sixth pic shows my bottom bushing. the one on the left is what ray sent me, and the one on the right is what was on my transmission.
Beside sharing picture, can anyone tell me what shifter this is?
thank you for your help
chino
#7
silver ghost
iTrader: (11)
Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,061
Likes: 0
Received 5 Likes
on
5 Posts
Definately an aftermarket shifter. It is a short shifter. Cant tell the make though. B & M maybe ? I have a Pettit sort shifter and I know that one is not it. What part number(s) did you get from Ray? My shifter is spinning and I need to replace those. Thanks Garret..
Trending Topics
#8
Moderator
iTrader: (7)
The pin in this pic https://www.rx7club.com/attachment.p...hmentid=133182 should match a groove in the shifter ball. The shifter ball is cut bigger and that plastic piece is an insert that fits into the shifter ball and smooths contact with the pin. See here: https://www.rx7club.com/showpost.php...49&postcount=5. The parts from Malloy looked just slightly different from the originals, but the thickness/height were the same.
You have an aftermarket shifter. I really have no idea if it uses identical parts as stock or not. I don't see any wave washers in your pics - look for broken pieces of one (use a magnet to fish through the oil in the shifter housing). If it appears they were there but broke off, I'd install the new ones.
Dave
You have an aftermarket shifter. I really have no idea if it uses identical parts as stock or not. I don't see any wave washers in your pics - look for broken pieces of one (use a magnet to fish through the oil in the shifter housing). If it appears they were there but broke off, I'd install the new ones.
Dave
#9
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: VA
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by G's 3rd Gen
Definately an aftermarket shifter. It is a short shifter. Cant tell the make though. B & M maybe ? I have a Pettit sort shifter and I know that one is not it. What part number(s) did you get from Ray? My shifter is spinning and I need to replace those. Thanks Garret..
#10
Eats, Sleeps, Dreams Rotary
to me it looks like the rx7store or gotham mazdaspeed knock off one. It should use the same end bushing.
But in regards to your first picture and the bushing to the right...I really have no idea where that goes???
But in regards to your first picture and the bushing to the right...I really have no idea where that goes???
#11
Lives on the Forum
Bushing on the left goes on the end of the shifter where it engages the tranny. The bushing on the right fits into the shifter rod itself just under the large ball shaped pivot. It faces the front of the car IIRC.
#12
Eats, Sleeps, Dreams Rotary
Originally Posted by DamonB
Bushing on the left goes on the end of the shifter where it engages the tranny. The bushing on the right fits into the shifter rod itself just under the large ball shaped pivot. It faces the front of the car IIRC.
#13
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: VA
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DamonB
Bushing on the left goes on the end of the shifter where it engages the tranny. The bushing on the right fits into the shifter rod itself just under the large ball shaped pivot. It faces the front of the car IIRC.
thanks for your input.
chino
#15
Lives on the Forum
Originally Posted by chinoflyer
well, after I looked around online, I am sure it is a mazdaspeed short shifter or a copy verison. Does it still use that bushing?
#17
Rotor Shaped Blood Cells
Join Date: Sep 2002
Location: San Diego
Posts: 569
Likes: 0
Received 0 Likes
on
0 Posts
Are the mazdatrix website part numbers the same as the Mazda Dealer Part numbers? I need the little cup piece on the "ball" end of the shifter. Is there a way to explain this to my local dealer? I tried to explain it to him, and he couldn't find the part. Is it also a similar part used in another Mazda vehicle? Miata maybe?
part number from Mazdatrix: 17-462A-0398
part number from Mazdatrix: 17-462A-0398
#18
Senior Member
iTrader: (4)
Originally Posted by Stevey629
Are the mazdatrix website part numbers the same as the Mazda Dealer Part numbers? I need the little cup piece on the "ball" end of the shifter. Is there a way to explain this to my local dealer? I tried to explain it to him, and he couldn't find the part. Is it also a similar part used in another Mazda vehicle? Miata maybe?
part number from Mazdatrix: 17-462A-0398
part number from Mazdatrix: 17-462A-0398
