Where can I get "bulk" 12mm metric power steering hose?

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Where can I get "bulk" 12mm metric power steering hose?

Old 08-19-07, 03:43 PM
  #1
sdrawkcab
Thread Starter
iTrader: (1)

rotarypower101's Avatar

Join Date: Mar 2002
Location: Portland Oregon
Posts: 1,845
Likes: 0
Received 0 Likes on 0 Posts
Arrow Where can I get "bulk" 12mm metric power steering hose?

Hi guys need to find some 12mm power steering hose, and I cant find a place local or online that will supply metric hose that is compatible.

I would use a standard equivalent, but this just does not work, as the hose is fiber reinforced, and no sizes seem to be compatible.

Any suggestions or sources?

If I canot locate a source, I guess I will just have to get a 2nd stock line and barb fitting it together. Though I would much rather just be able to source the correct tubing for my little project.


Why is this such a problem to get metric “bulk” tubing anywhere?
I can get English sizes in any shape type grade or color ect. I want, but no metric, what gives?

Thanks for any assistance.
rotarypower101 is offline
Old 08-19-07, 04:18 PM
  #2
All Spooled Up
10 Year Member
iTrader: (7)

badddrx7's Avatar

Join Date: Nov 2001
Location: Ironton,ohio
Posts: 2,752
Likes: 0
Received 1 Like on 1 Post
If you can't find it, I have that 2nd hose, $30 shipped

later
badddrx7 is offline
Old 08-19-07, 06:05 PM
  #3
***** "Nazi"...lol!

bajaman's Avatar

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,958
Received 13 Likes on 13 Posts
Have you tried Grainger's or another industrial supply company? How about you local John Deere dealer or another implement dealer? Shoot...we have about 6 auto shops that custom make ANY hydraulic hose around here, as there as so many farmers that are constantly blowing hoses. Check companies like Gates also.
A quick Google search turn up MANY possibilities...

http://www.google.com/custom?q=12mm+...D%3A1%3B&hl=en
bajaman is offline
Old 08-19-07, 07:29 PM
  #4
sdrawkcab
Thread Starter
iTrader: (1)

rotarypower101's Avatar

Join Date: Mar 2002
Location: Portland Oregon
Posts: 1,845
Likes: 0
Received 0 Likes on 0 Posts
I will look into those sources.
have you physicaly bought metric ps hose from any of these sources?
rotarypower101 is offline
Old 08-20-07, 11:00 AM
  #5
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
I used a 1/2" hose.

I couldn't find any other size (especially metric)
gracer7-rx7 is offline
Old 08-20-07, 11:38 AM
  #6
Moderator
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,298
Likes: 0
Received 4 Likes on 4 Posts
Do you have the appropriate tools to make the high pressure fittings for the hose?

(I ask because PS runs at very high pressure and the fittings don't look like they were put together with any old tool)

Dave
dgeesaman is offline
Old 08-20-07, 02:07 PM
  #7
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Oops, I was referring to the return line...
gracer7-rx7 is offline
Old 08-20-07, 06:36 PM
  #8
sdrawkcab
Thread Starter
iTrader: (1)

rotarypower101's Avatar

Join Date: Mar 2002
Location: Portland Oregon
Posts: 1,845
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gracer7-rx7 View Post
Oops, I was referring to the return line...
So was I. I guess I should have made that abundantly clear instead of assuming everyone knew the return line was 12mm

It is the return hose that I am asking about.i have no idea what the ID of the pressure side is

I know exactly where I could get a pressure side made if I needed one, though it would be a lame way since there are new and used available….


I still cannot find anyone willing to sell me standard power steering compatible hose that is 12mm in custom lengths.

Like I said I would use a standard equivalent but the strand reinforcement seems to be a limiting factor as the stuff just does not want to stretch far enough without failing structurally and the 1/2" is a little too large.
rotarypower101 is offline
Old 08-20-07, 06:41 PM
  #9
sdrawkcab
Thread Starter
iTrader: (1)

rotarypower101's Avatar

Join Date: Mar 2002
Location: Portland Oregon
Posts: 1,845
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gracer7-rx7 View Post
I used a 1/2" hose.

I couldn't find any other size (especially metric)
I know I have looked for it more than once, I guess they just assume the only people that works on cars and mod them are the good ol' boys that only use ye old English measurements?
rotarypower101 is offline
Old 08-21-07, 02:45 AM
  #10
Turd Ferguson
5 Year Member
iTrader: (1)

grimple1's Avatar

Join Date: Jul 2006
Location: Sherman Oaks, California
Posts: 2,047
Likes: 0
Received 0 Likes on 0 Posts
1/2 is equiv. to 12.7mm. does the .7 make that much of a difference?
grimple1 is offline
Old 08-21-07, 11:20 AM
  #11
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
It did not for me. I also used 2 clamps on each side just in case. Holding up well so far. I think I bought 2' and slid it far down over the hard line.
gracer7-rx7 is offline
Old 08-21-07, 11:23 PM
  #12
Turd Ferguson
5 Year Member
iTrader: (1)

grimple1's Avatar

Join Date: Jul 2006
Location: Sherman Oaks, California
Posts: 2,047
Likes: 0
Received 0 Likes on 0 Posts
^^ yeah i wouldn't think it would.
grimple1 is offline
Old 08-30-07, 04:21 PM
  #13
sdrawkcab
Thread Starter
iTrader: (1)

rotarypower101's Avatar

Join Date: Mar 2002
Location: Portland Oregon
Posts: 1,845
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by grimple1 View Post
1/2 is equiv. to 12.7mm. does the .7 make that much of a difference?

In a word YES
We are talking about a sealing surface here are we not?
I don’t particularly care to pull up to a friends or acquaintance and pull away with small drips or a puddle of fluid left behind for someone else to clean.

The way I had it before was to actually convert with barb fittings from metric to imperial or english, but I would really like to find a place that will sell 12mm hose or any metric hose for that matter.

The question was not can I make a 1/2'”~12.7mm hose fit a 12mm fitting; it was simply a question “Where can I get 12mm power steering hose”

I called my local “big” hose and fittings distributors and no one could tell me how to procure 12 mm hose?
I also got ahold of a few guys that said they would look into it and get back to me, but you know how that goes….

I haven’t been looking hard as of late but will this weekend when I have some time.

If anyone has found a seller that they have purchased from please post a source.

Any help from someone that has ran into this problem and found a distributor would be very helpful.

Thanks
rotarypower101 is offline
Old 08-30-07, 04:38 PM
  #14
TANSTAFL
iTrader: (10)

alexdimen's Avatar

Join Date: Oct 2003
Location: Richmond, Va.
Posts: 3,426
Received 37 Likes on 28 Posts
7/16 hose is ~11.1 mm.
alexdimen is offline
Old 09-18-12, 07:24 PM
  #15
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Received 0 Likes on 0 Posts
wow, I know this thread is old but since I make a ps kit with my vm's I'll shed light on hose sizes I use.

The hose connected to the resivior is 12mm / 8AN / 1/2 or what ever you want to call it. I actually use a 12mm hose with parts number "53431". I attach this hose to an 8an barb with a -8an to -6an reducer to the ps cooler. The ps cooler has -6an fittings. Here is the other thing you need to know. The low pressure side has two size hoses that attach to the s-ps cooler line. So the other side _ have a -6an to 3/8 barb. On the 3/8 barb a 9.5mm hose is really tight but doable. This will go to the lower ps line near the rack. This 9.5mm hose has part number "70416". It will be better using a 10mm hose for this lower line. Just go to carpartsdiscount and type in those part numbers to find your hoses. They will work.

Ben

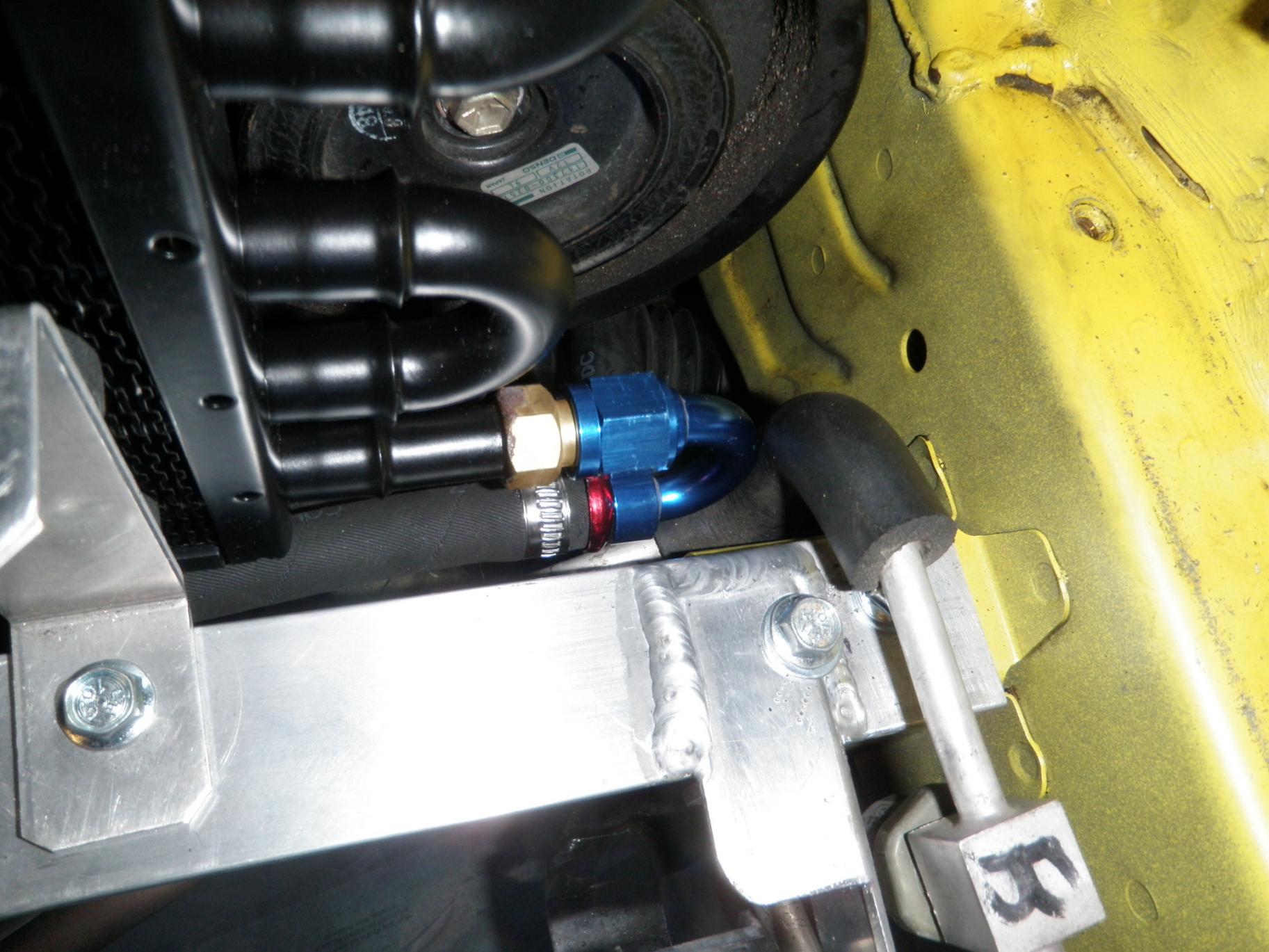

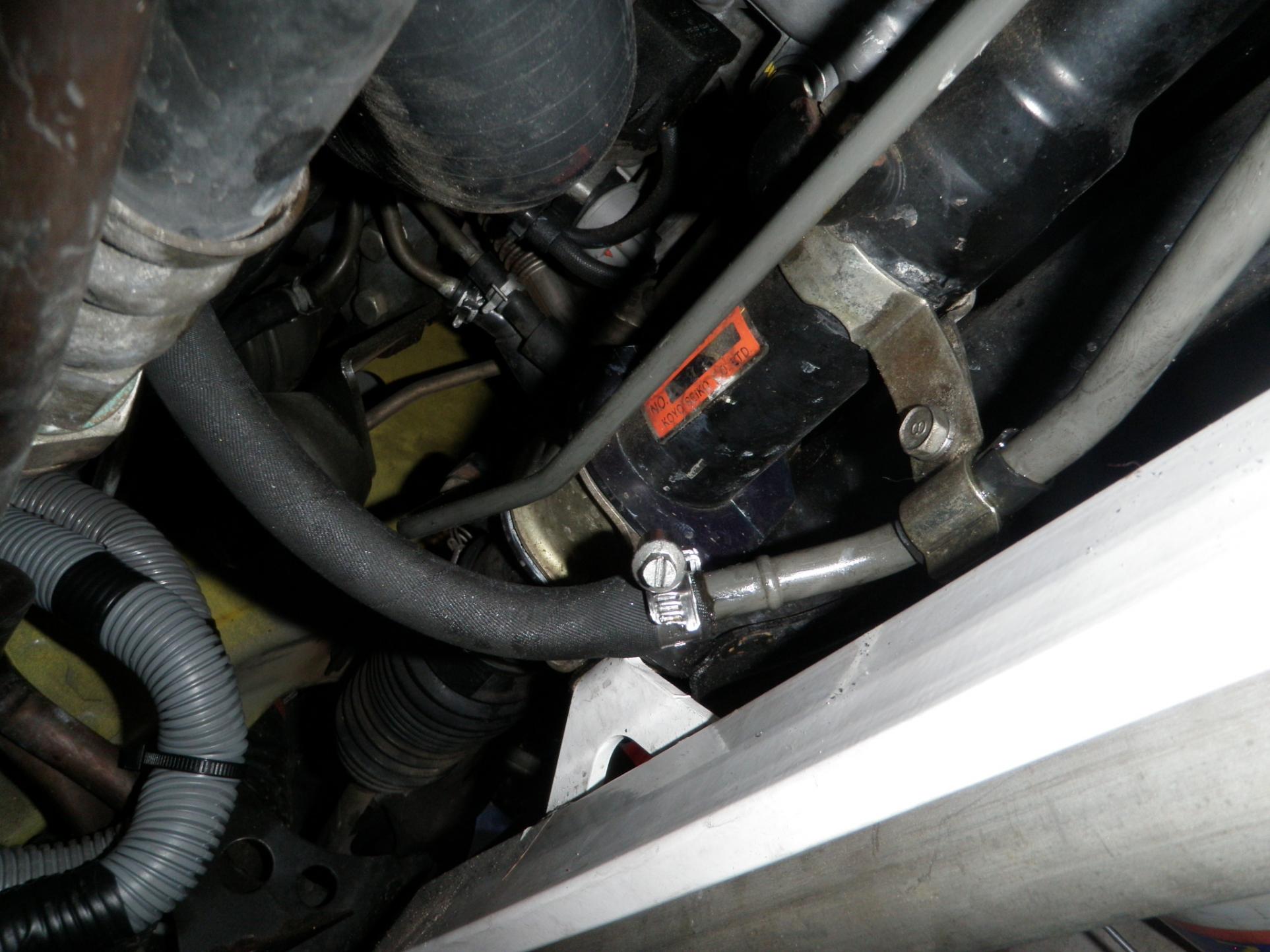

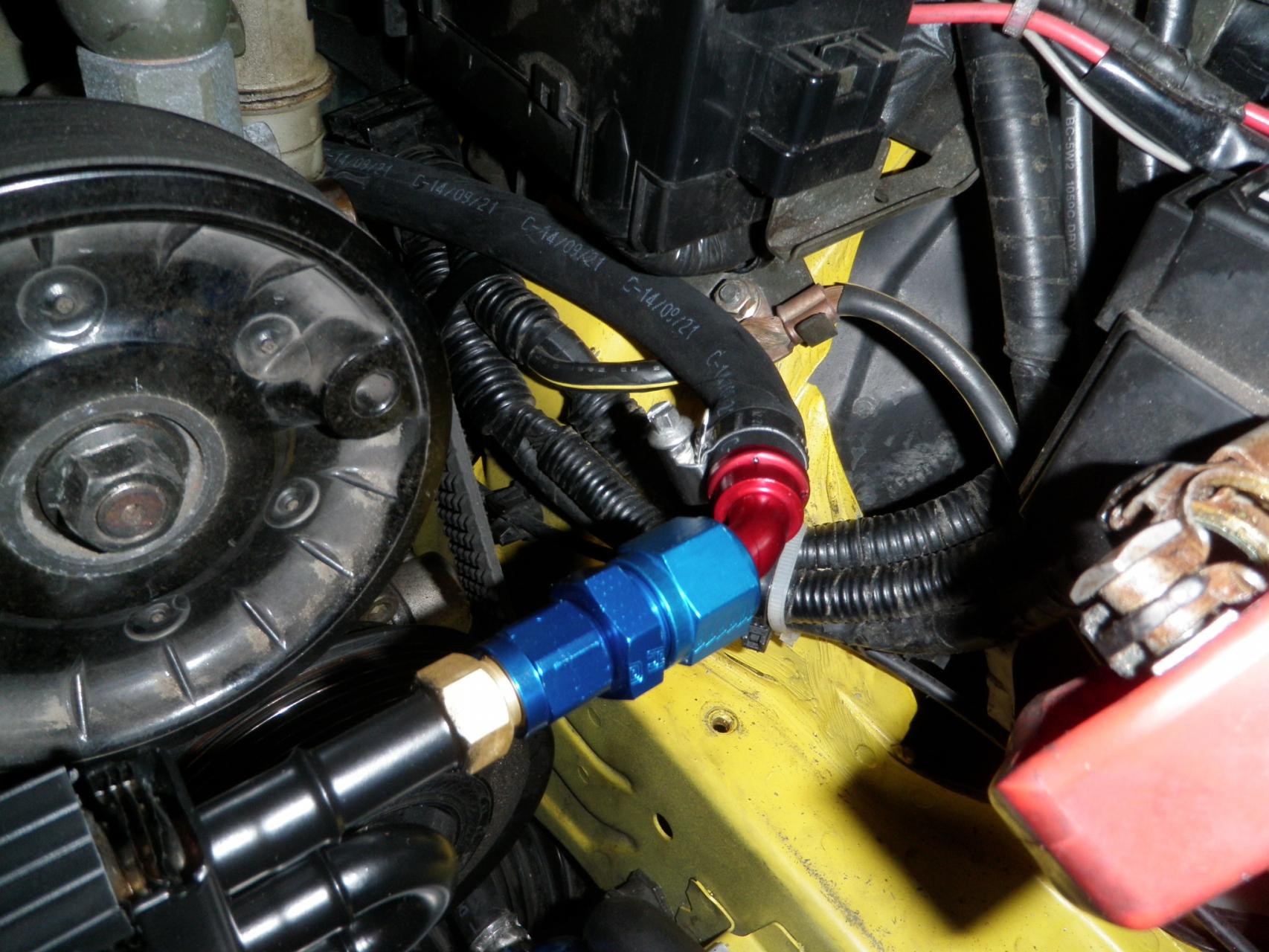

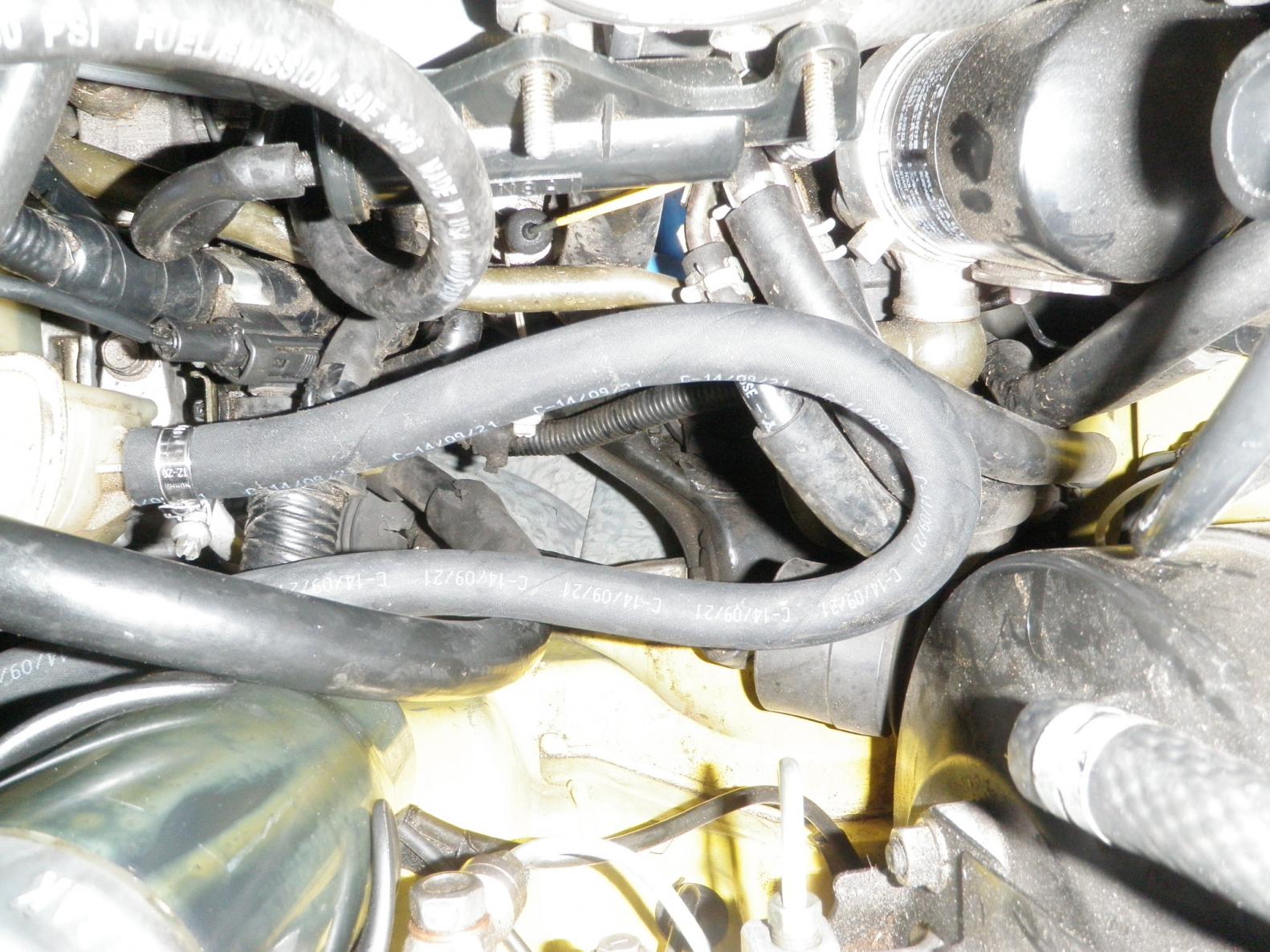

Attached Thumbnails Where can I get "bulk" 12mm metric power steering hose?-p7210315.jpg   Where can I get "bulk" 12mm metric power steering hose?-p7210318.jpg   Where can I get "bulk" 12mm metric power steering hose?-p7210319.jpg   Where can I get "bulk" 12mm metric power steering hose?-p7210317.jpg

Last edited by Rotary Extreme Sales 1; 09-18-12 at 07:30 PM.
Rotary Extreme Sales 1 is offline
Old 09-19-12, 04:16 PM
  #16
*BOV sound*
iTrader: (16)

Radial GT's Avatar

Join Date: Feb 2001
Location: Northern Minnesota
Posts: 1,156
Likes: 0
Received 0 Likes on 0 Posts
For the fear of sounding like I don't know what I am talking about, but why in the world would I need ANOTHER cooling surface in my engine bay? Is cooling the power steering fluid that important that this type of modification would improve performance???
Radial GT is offline
Old 09-19-12, 05:31 PM
  #17
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Received 14 Likes on 13 Posts
Originally Posted by Radial GT View Post
For the fear of sounding like I don't know what I am talking about, but why in the world would I need ANOTHER cooling surface in my engine bay? Is cooling the power steering fluid that important that this type of modification would improve performance???
your car came with one.
RotaryEvolution is offline
Old 09-19-12, 07:29 PM
  #18
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Radial GT View Post
For the fear of sounding like I don't know what I am talking about, but why in the world would I need ANOTHER cooling surface in my engine bay? Is cooling the power steering fluid that important that this type of modification would improve performance???
No worries bro, I'll explain why youd need another one inmy application, its a replacement.

The pics I posted are of the ps cooler upgrade that comes with my vmount kits. When you go vmount is pushes the ps line very low and interfers with putting on the lower panel. With my kit you ditch the long cooling "s" line and replace it with a ps cooler. Also in drifiting, back canyon roads and autox youll be using the steering quite a bit so the cooler is there to help keep the temps cooler.

It does not really improve performance per say, but it prevents the ps bearing from getting too hot during extended spirited driving on windy roads. Its for protection. Same thing as a larger radiator and oil cooler, it keeps temps in check so parts dont fail.

Ben

Last edited by Rotary Extreme Sales 1; 09-19-12 at 07:32 PM.
Rotary Extreme Sales 1 is offline
Old 04-01-14, 01:28 PM
  #19
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Received 0 Likes on 0 Posts
The lower ps hose that's close to a 10mm and fits good is a gates 361960.
Rotary Extreme Sales 1 is offline
