Goukid2

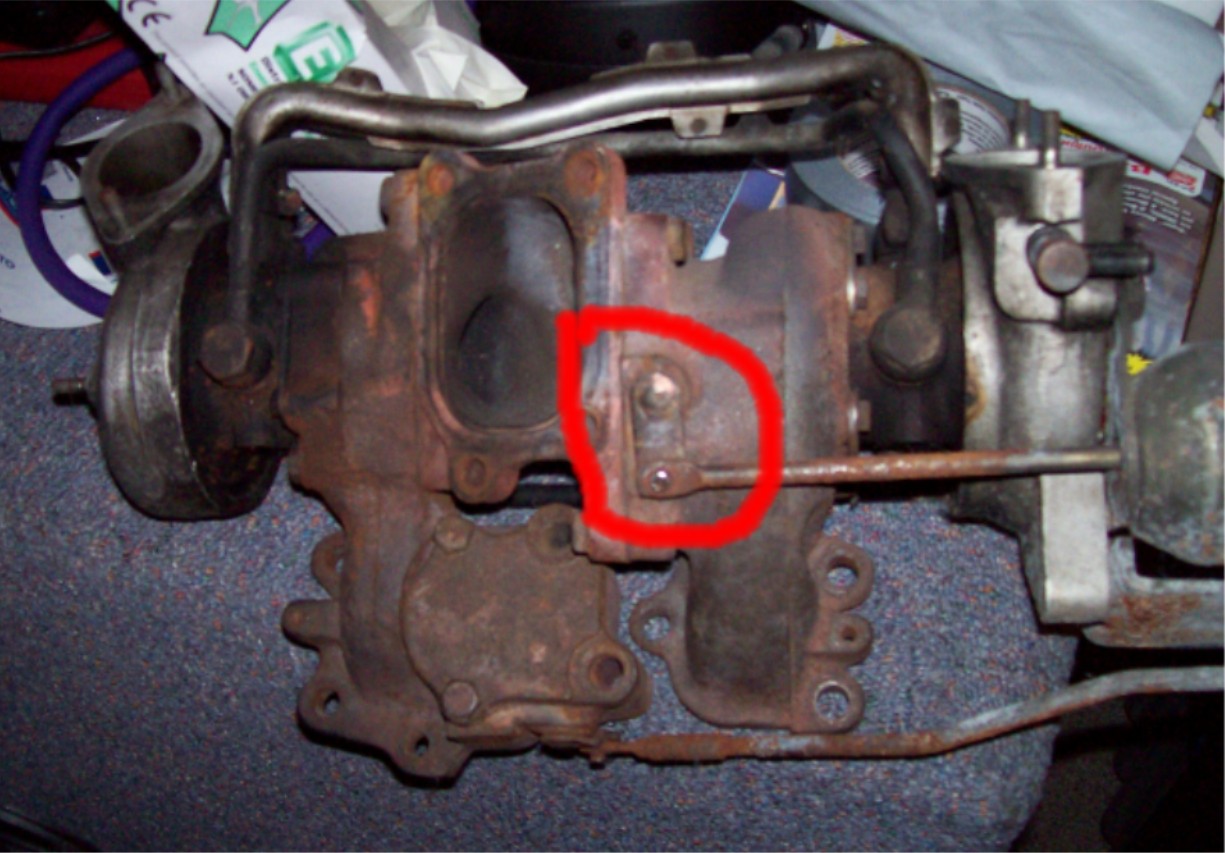

Well my original set i ported the wastegate and the precontrol gate. I thought there were two wastegates hence two turbos and ported both the gates. I kinda jacked them up but i just got another set that im going to put in next weekend so i want to make sure this time. Which one gets ported?? The wastegate right? Which is circled in red right??

turboIIrotary

iTrader: (9)

are you going non sequential?

Goukid2

Im staying Sequential. Just need to know which one to port so i dont do the wrong one.

jdhuegel1

This pic help at all? Left is stock, right is ported. Compliments of an old Jimlab post.

Goukid2

No dude i know how to port. Very well to i might add, But when I originally ported my twins i ported both gates and i know thats wrong. Only the wastgate is supposed to be ported to prevent creep with a open exhaust which I have. So i just want to make sure that the one I circled is the one that gets ported. Im almost positive that thats it but i just want to make sure.

Goukid2

Now that i look at your pic closer that is the gate that im talking about in my picture circled in red?? Just want to make sure.

jdhuegel1

Yes, that is the correct one.

Goukid2

Thanks! Close thread.
