adamrs80

iTrader: (7)

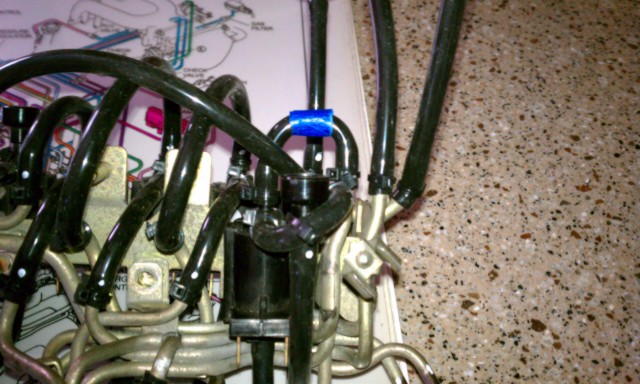

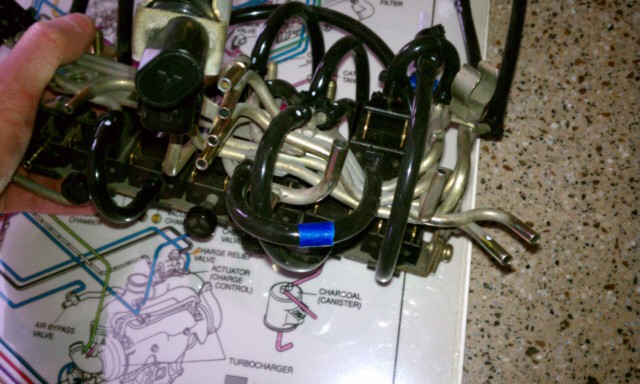

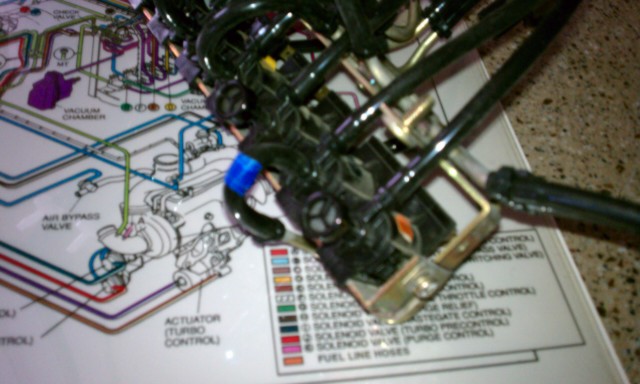

Finished with the solenoid rack and I am double checking against my vac diagram. The attached pictures show 3 I am not certain of. I changed them 1 by 1 so they should not be wrong but I want to be sure. I could not trace these even with the full size transparent FSM vac chart. Two of them are on the charge relief solenoid and one is on the secondary air bypass valve

dgeesaman

iTrader: (7)

It's hard to be sure with the angle of the pictures but I don't see anything wrong.

I prefer this version of the diagram:
http://www.davidgeesaman.com/rx7/93v...lor.edited.jpg

adamrs80

iTrader: (7)

I appreciate it, that link did not work.

israel

iTrader: (3)

The link didn't work for me either, but if you go to his site, the link is right on the front page. Sorry I'm of no help on your original question.

dgeesaman

iTrader: (7)

Hopefully fixed now

adamrs80

iTrader: (7)

I am going to go to Kinkos and print that diagram.

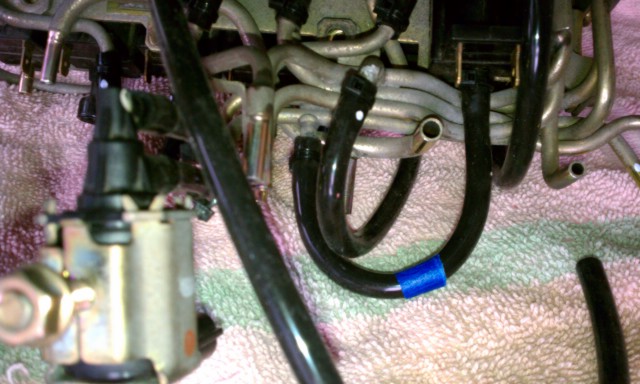

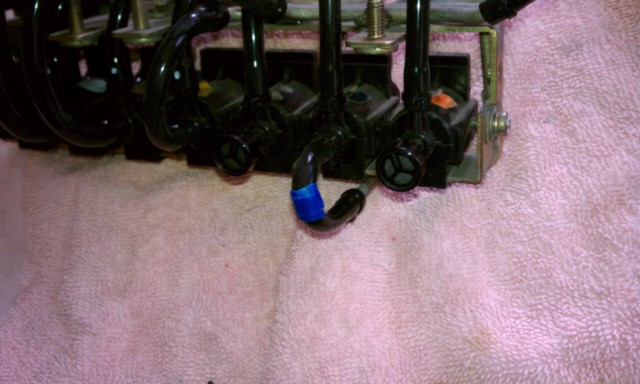

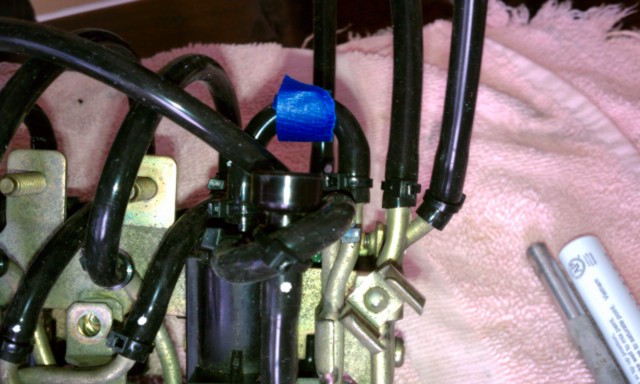

Here are a few more pictures, maybe they will make it easier to see.

dgeesaman

iTrader: (7)

The first and last look correct.

The middle one I'm not sure because the way I know I've got them is to trace the colored picture to a feature I can absolutely identify.

David

adamrs80

iTrader: (7)

Thanks David. Once I get it printed out I should be able to confirm. Your page is much easier to read than the one I have from Mazda printed on transparency.
