vacuum hose question

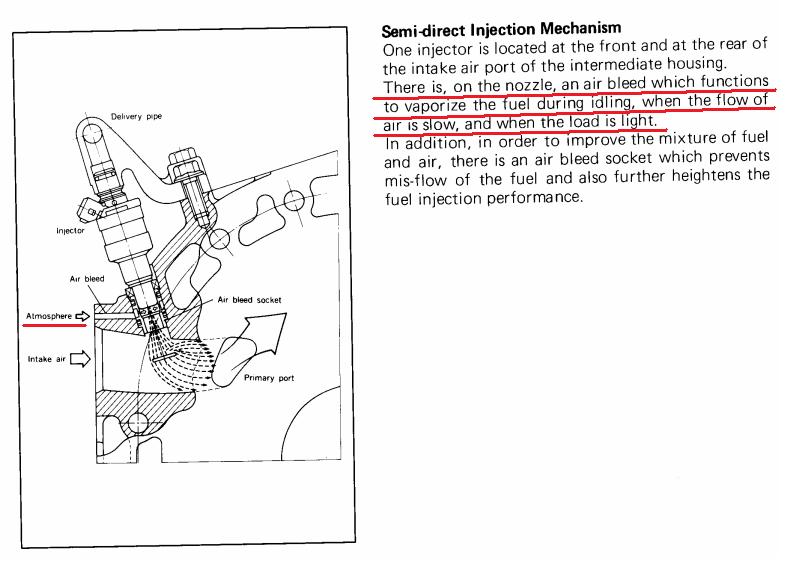

in this diagram :
there is a yellow Vacuum line that goes from the turbo y pipe ... to the Lower Intake Manifold .. that feeds some air to the primary injectors ...
what`s the deal with this hose .. it is necessary.... isn't this really a vacuum leak
would it make a huge different in fuel atomization if it`s capped off ?
thx
there is a yellow Vacuum line that goes from the turbo y pipe ... to the Lower Intake Manifold .. that feeds some air to the primary injectors ...
what`s the deal with this hose .. it is necessary.... isn't this really a vacuum leak
would it make a huge different in fuel atomization if it`s capped off ?
thx
#4
Senior Member
Thread Starter
iTrader: (6)
Join Date: Jan 2008
Location: Montreal , Canada
Posts: 436
Likes: 0
Received 0 Likes
on
0 Posts
on the OEM setup it is fed to a nipple which also sees positive pressure
and on the diagram ^ ... it says atmosphere ... should i... or have any of you ever left the hose with a filter ( from the rat nest solenoids ) vented to atmosphere ... ?
im really out of things to twiner with on my car lol
and on the diagram ^ ... it says atmosphere ... should i... or have any of you ever left the hose with a filter ( from the rat nest solenoids ) vented to atmosphere ... ?
im really out of things to twiner with on my car lol
#5
rotorhead
iTrader: (3)
sorry, it says atmosphere because that diagram is from a series 3 GSL-SE naturally aspirated engine (notice the top feed injectors). Boost pressure (and atmospheric depending on engine load) is fine. That's how the 2nd gen turbos did it--the atomization ports were fed by a port on the UIM that pulled air from before the throttle plates. in fact, the series 5 had 3 atomization ports, one for the primaries and two separate ones for the secondaries. all were fed by the UIM.
Trending Topics
#8
My 1986 Mazda RX-7
Join Date: Sep 2006
Location: Illinois
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
were can i find this diagram for a single turbo setup on an fc??? caus i pulled my motor a few days agio to rebuild it and the vacuum lines like nuts under the intake manifold ima need help aka diagram to put it back together lmao
