Upgrading 100% 93 Stock FD. Suggestions...
#26
Urban Combat Vet
iTrader: (16)
Yep, I think everyone is in agreement that it's his absolute right to do with the car what he wants. But otherwise this is hollow statement. If it's tasteless, self-destructive to the car, dumb or just plain silly, he should know people will be shaking their heads or snickering and he might get his feelings hurt.
#27
Full Member
Thread Starter

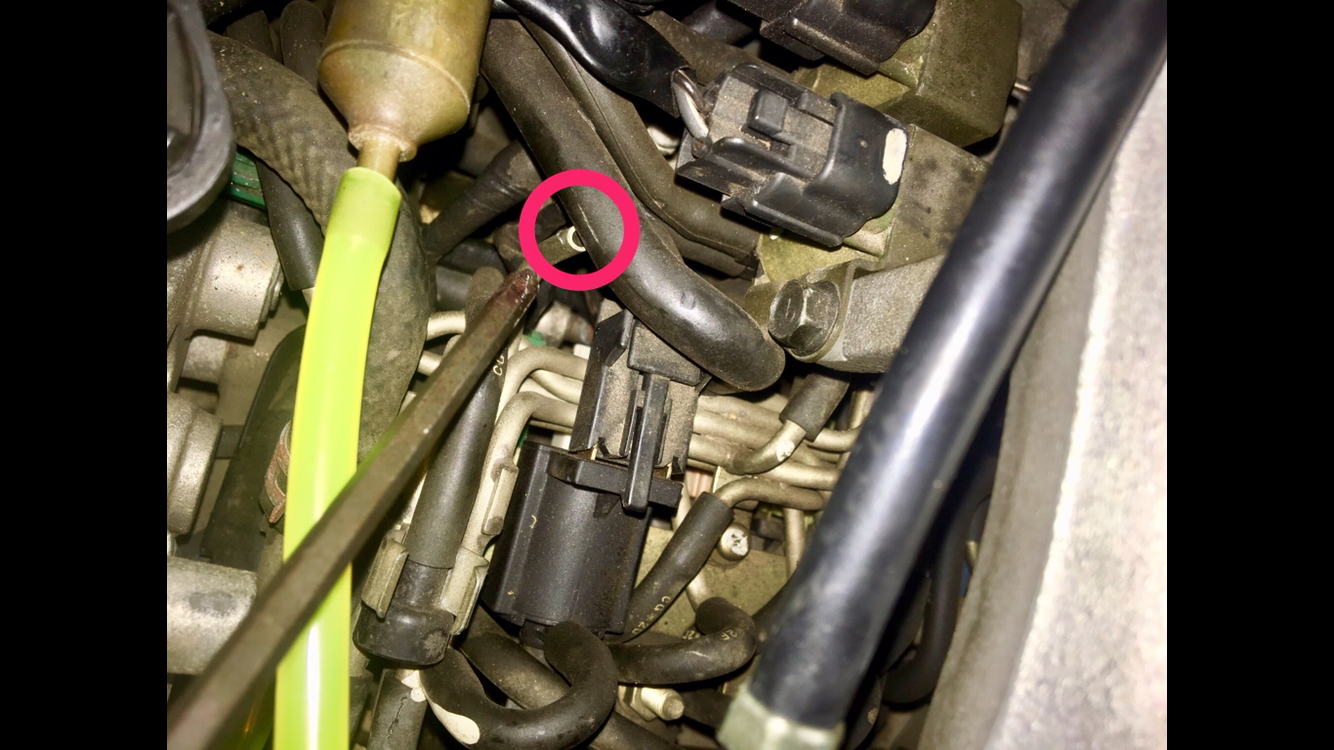

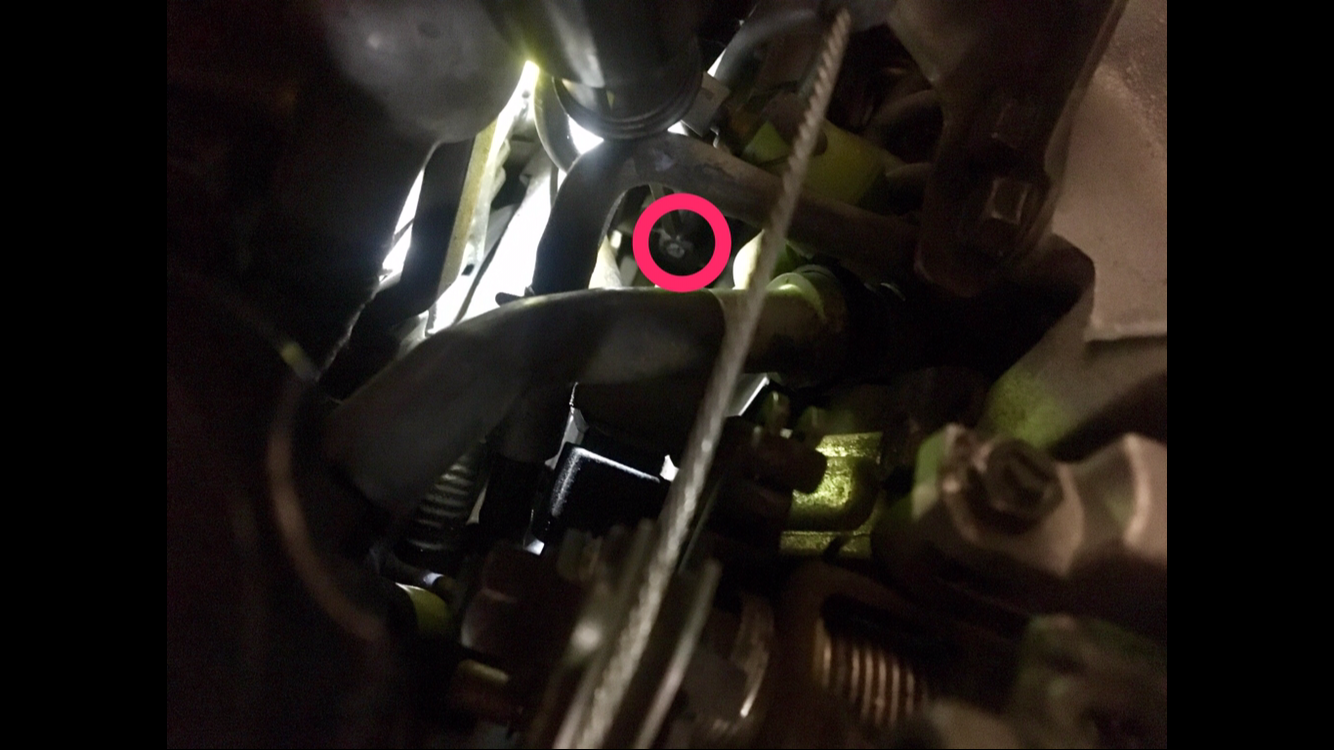

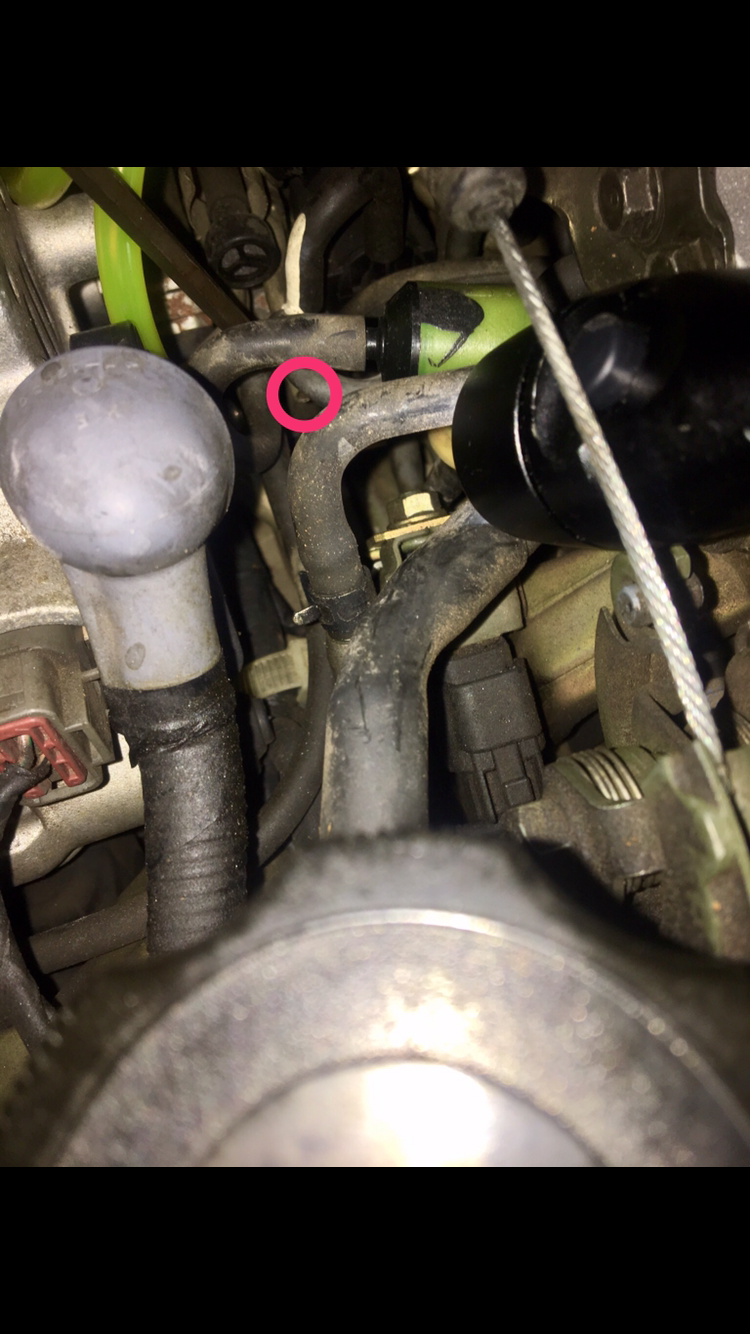

So do a good amount of stuff last night. Checking the vacuum lines I noticed one the plastic nipples on one of the solenoids is broken off and attached to the check valve hose. I added pictures. Looks like I am going to have to replace that . Also I noticed that two metal lines do not have anything on them, I added pictures of those too. Looking at the vacuum hose FAQ I think they are just open to the air...is that correct what I am seeing?
#29
Full Member
Thread Starter
Thanks for the info, yes it is the most forward bottom one solenoid. Will look into getting that fixed going to be fun. Probably will just replace all those hoses under there while I am at it.
Also I ordered a downpipe from you guys looks like it will be a little while. Will put it on as soon as I get it
Also I ordered a downpipe from you guys looks like it will be a little while. Will put it on as soon as I get it
Last edited by rowdog_14; 09-23-17 at 08:43 AM.
#31
Full Member
Thread Starter
Removed the pan below the trans and found a small leak on one of the trans pans bolts.
Took the car for a drive after a late night maintenance and no more hesitation at 3k and 4500k! This sucker is pulling smooth now!!! Get these last two leaks fixed and that one broken vacuum line from the post above and just wait until my down pipe comes in from Banzai.
Took the car for a drive after a late night maintenance and no more hesitation at 3k and 4500k! This sucker is pulling smooth now!!! Get these last two leaks fixed and that one broken vacuum line from the post above and just wait until my down pipe comes in from Banzai.
#33
Full Member
Thread Starter

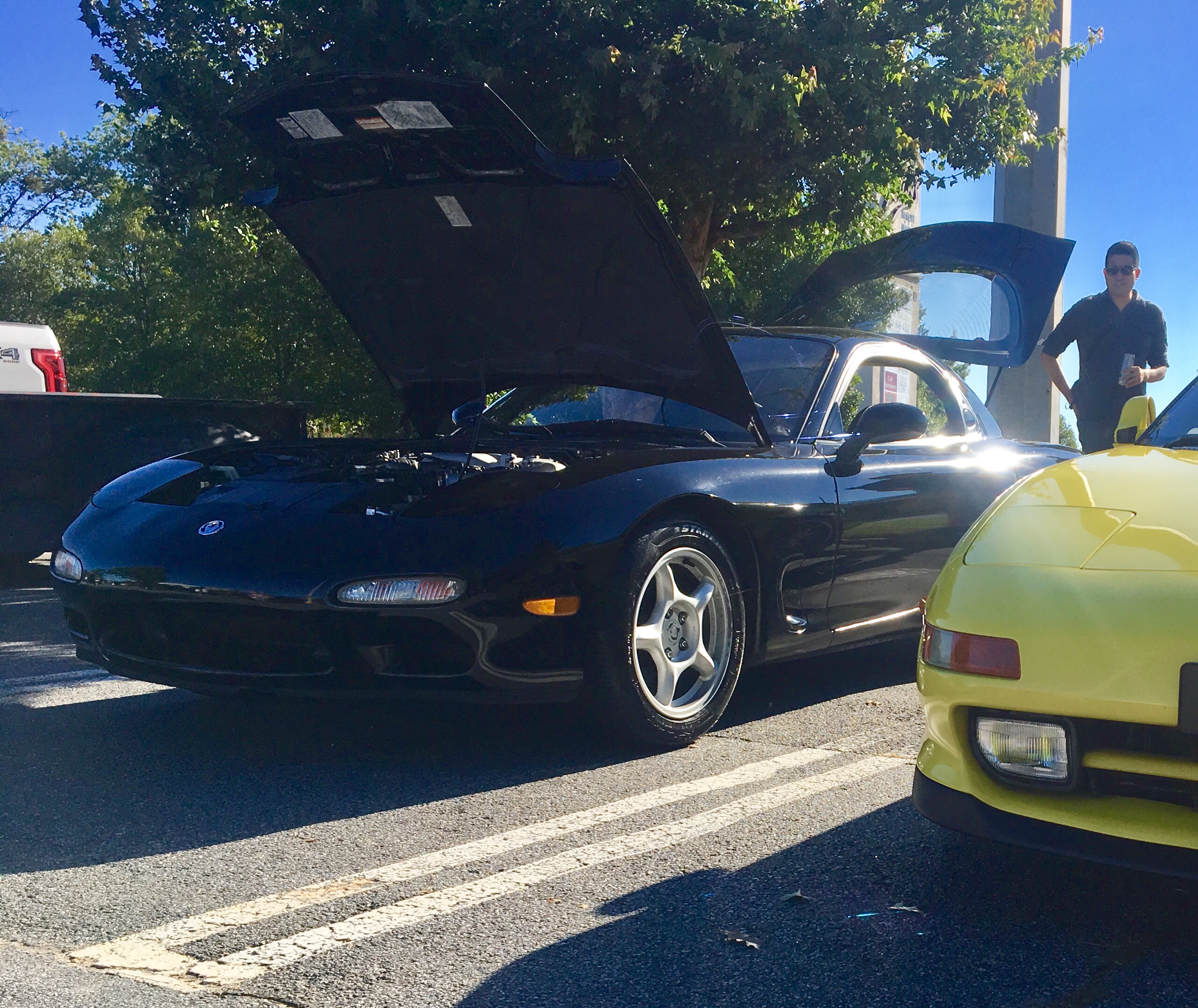

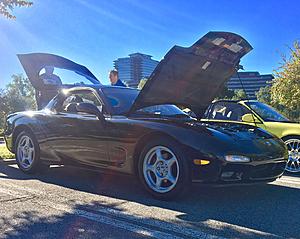

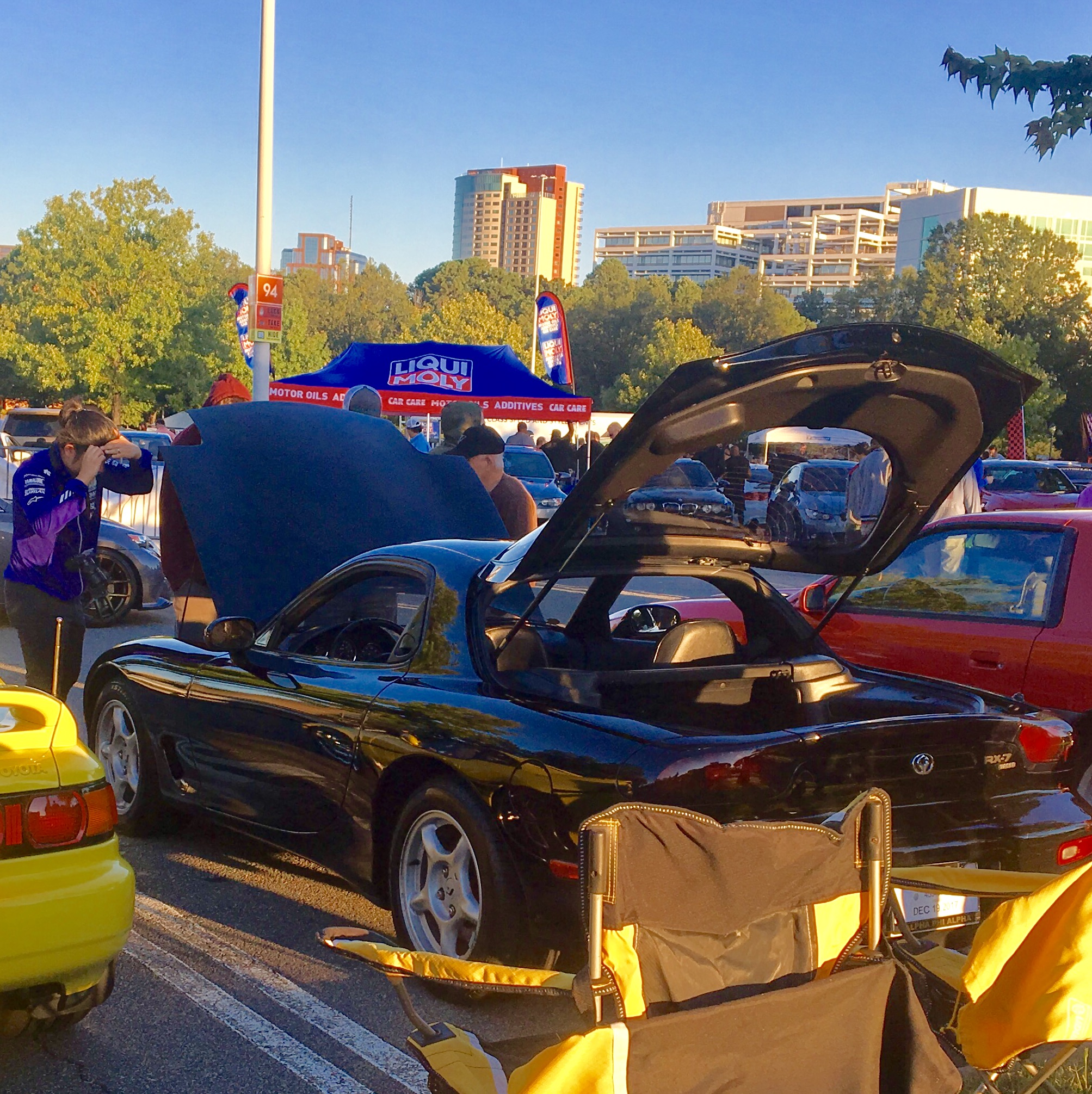

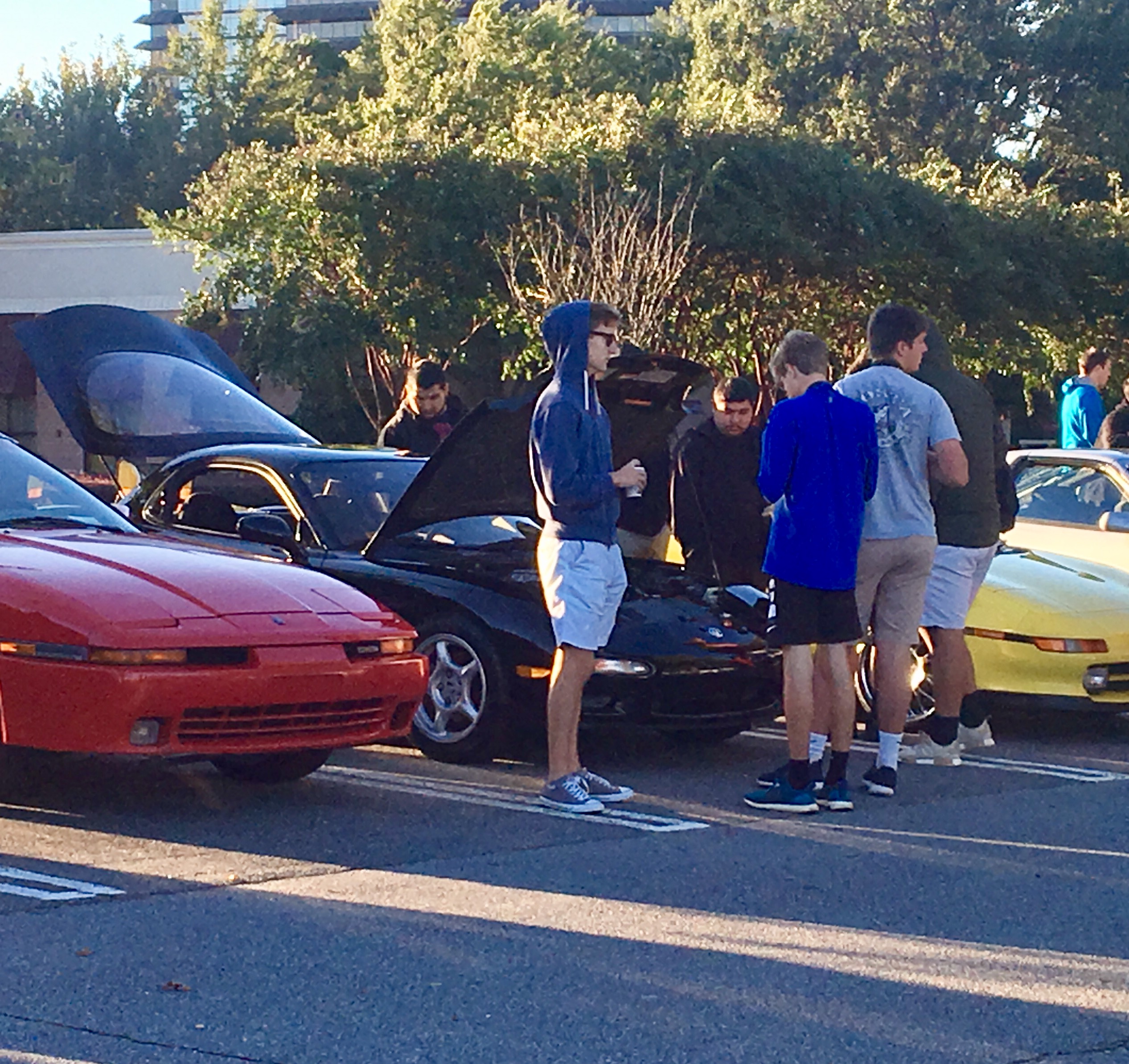

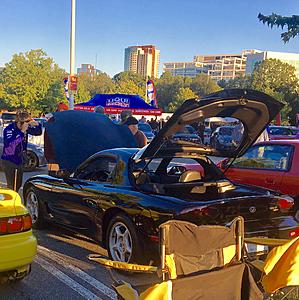

Thanks for the complement on the car. Last night moving the car I tagged the rear bumper of my wife car. 99% of the time always park in Neutral and last night I park in our driveway which is steep, so I put in gear+Ebrake just to be on the safe side. Went to start the car let off the clutch and it went under the wife bumper lol. two small dings on the hood and a scratch. Will get some touch up paint and pull out my paintless dent repair and see how much of the dent I can pull out. Really not bad though.
#35
Full Member
Thread Starter
Yep the ground update was going to be one of my upgrades but seems like that was not an issue for me. I am still going to do the ground update though. I warm up all my cars even the daily beater...I was still getting bad hesitation at 3k and around 4500k which made me believe it was something else beside the ground.
Seems the trans leak is fixed after changing the fluids and tightening the bolts back down. I will give it a few days and see, if not I will drain the fluid replace the gasket and refill back up. Really happy how things are going but I will say adding the fluid back in was a pain even with a pump .
I have a few things left on my list but main things are bleed brakes and install the gauges and I will stay off of it until I get the down pipe, y-pipe, new AST, and cat back exhaust.
Seems the trans leak is fixed after changing the fluids and tightening the bolts back down. I will give it a few days and see, if not I will drain the fluid replace the gasket and refill back up. Really happy how things are going but I will say adding the fluid back in was a pain even with a pump .
I have a few things left on my list but main things are bleed brakes and install the gauges and I will stay off of it until I get the down pipe, y-pipe, new AST, and cat back exhaust.
Last edited by rowdog_14; 09-25-17 at 09:46 AM.
#36
Don't worry be happy...
iTrader: (1)
My $0.02...
1. Down Pipe - Yep I used the Rx-7 store brand and it served me well
2. Cat-Back - My preference is racing beat. Love the sound and how low key it is
3. Mid-Pipe - RESONATED is a must
4. AST Tank - I prefer deletion of that infernal thing.
5. Rear window spoiler - Your car, your choice
6. Duck Tail spoiler - Your car, your choice
7. Mazda RX-7 JP USA Vizage Body Kit - 7PC or just do a R1 front lip - my preference is the R1 lip or 99 lip
8. Gauges(Boost, Temp, Oil Pressure, Fuel Pressure, AFR(last gauge since I am not modified) - Only the boost gauge, the others are unecessary for this level of mods
9. Wheels - A must!
10. Y Pipe - waste of money
11. Modify Stock Airbox - Good mod
12. Boost Controller - To control boost given that you will have exhaust mods
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported wastegate
14. Upgrade SMIC - the stock unit really sucks
1. Apexi Power FC - Unless you are planning to boost past 10 psi otherwise leave well enough alone
2. Turbo Timer(Is this even needed if not modified heavily?) - RICER MOD *always* no matter the level of mods
1. Down Pipe - Yep I used the Rx-7 store brand and it served me well
2. Cat-Back - My preference is racing beat. Love the sound and how low key it is
3. Mid-Pipe - RESONATED is a must
4. AST Tank - I prefer deletion of that infernal thing.
5. Rear window spoiler - Your car, your choice
6. Duck Tail spoiler - Your car, your choice
7. Mazda RX-7 JP USA Vizage Body Kit - 7PC or just do a R1 front lip - my preference is the R1 lip or 99 lip
8. Gauges(Boost, Temp, Oil Pressure, Fuel Pressure, AFR(last gauge since I am not modified) - Only the boost gauge, the others are unecessary for this level of mods
9. Wheels - A must!
10. Y Pipe - waste of money
11. Modify Stock Airbox - Good mod
12. Boost Controller - To control boost given that you will have exhaust mods
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported wastegate
14. Upgrade SMIC - the stock unit really sucks
I would like to get these but I do not think it is needed if all I am doing is mainly exhaust
2. Turbo Timer(Is this even needed if not modified heavily?) - RICER MOD *always* no matter the level of mods
Last edited by Montego; 09-29-17 at 02:53 PM.
#37
It's finally reliable
iTrader: (18)
If you are a new FD owner you will be curious and eventually get tunnel vision wanting more mods and more power. For some of us who have been in the rotary game for a while have learned (sometimes the hard way) that simple is always better. a guy with a mostly stock rx7 gets to drive and enjoy the car a whole lot more that those of who chase horse power numbers.
#39
Rotary Motoring
iTrader: (9)
Montego
1. Down Pipe - Yep I used the Rx-7 store brand and it served me well
2. Cat-Back - My preference is racing beat. Love the sound and how low key it is
3. Mid-Pipe - RESONATED is a must
4. AST Tank - I prefer deletion of that infernal thing.
5. Rear window spoiler - Your car, your choice
6. Duck Tail spoiler - Your car, your choice
7. Mazda RX-7 JP USA Vizage Body Kit - 7PC or just do a R1 front lip - my preference is the R1 lip or 99 lip
8. Gauges(Boost, Temp, Oil Pressure, Fuel Pressure, AFR(last gauge since I am not modified) - Only the boost gauge, the others are unecessary for this level of mods
9. Wheels - A must!
10. Y Pipe - waste of money
11. Modify Stock Airbox - Good mod
12. Boost Controller - To control boost given that you will have exhaust mods
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported wastegate
14. Upgrade SMIC - the stock unit really sucks
1. Apexi Power FC - Unless you are planning to boost past 10 psi otherwise leave well enough alone
2. Turbo Timer(Is this even needed if not modified heavily?) - RICER MOD *always* no matter the level of mods
1. Down Pipe - Yep I used the Rx-7 store brand and it served me well
2. Cat-Back - My preference is racing beat. Love the sound and how low key it is
3. Mid-Pipe - RESONATED is a must
4. AST Tank - I prefer deletion of that infernal thing.
5. Rear window spoiler - Your car, your choice
6. Duck Tail spoiler - Your car, your choice
7. Mazda RX-7 JP USA Vizage Body Kit - 7PC or just do a R1 front lip - my preference is the R1 lip or 99 lip
8. Gauges(Boost, Temp, Oil Pressure, Fuel Pressure, AFR(last gauge since I am not modified) - Only the boost gauge, the others are unecessary for this level of mods
9. Wheels - A must!
10. Y Pipe - waste of money
11. Modify Stock Airbox - Good mod
12. Boost Controller - To control boost given that you will have exhaust mods
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported wastegate
14. Upgrade SMIC - the stock unit really sucks
Quote:I would like to get these but I do not think it is needed if all I am doing is mainly exhaust
1. Apexi Power FC - Unless you are planning to boost past 10 psi otherwise leave well enough alone
2. Turbo Timer(Is this even needed if not modified heavily?) - RICER MOD *always* no matter the level of mods
__________________
This list is possible DANGER ZONE if you have any other cat back besides the restrictive Racing Beat catback. It will likely run very lean AFRs in the high RPMs on the stock ECU.
I did just maintenance items, new Denso fuel pump, downpipe, high flow catted muffled midpipe, catback, Y-pipe, smallest SR motorsports stock mount IC and MBCs to keep boost at 10psi and it was running high 12s to low 13s AFRs on the stock ECU in the high load high RPM areas.
My stock AFRs were in the high 9s and low 10s AFR at high load high RPM by the way. That is what Mazda considered safe.
My previous mod list which was same as the above but with stock main cat was what I considered safe enough on high load high RPM AFRs (ran high 11s low 12s).
My safe list on stock ECU would be-
1. Down Pipe - Yep, removes common point of failure
2. Cat-Back - Yes, its fun.
3. Mid-Pipe - NO. Stock cat assembly only on stock ECU!
4. AST Tank - Yep, removes common point of failure
5. Rear window spoiler - Your car, your choice <-- agree.
6. Duck Tail spoiler - Your car, your choice <-- agree.
7. Mazda RX-7 JP USA Vizage Body Kit - 7PC or just do a R1 front lip - Drive it stock a while and see if the gorgeous stock lines don't grow on you. Especially with some wheel fitment.
8. Gauges(Boost, Temp, Oil Pressure, Fuel Pressure, AFR(last gauge since I am not modified) - Only the boost gauge, the others are unecessary for this level of mod <-- agree.
9. Wheels - A must! <-- agree, even if I hate the wheels you choose.
10. Y Pipe - waste of money <-- I like the metal Y pipe. Eliminates a point of failure, looks and flows better than the plastic piece. No downside besides the reasonable cost.
11. Modify Stock Airbox - Good mod <-- agree. Do not do any aftermarket intakes on stock ECU, they will cause lean AFRs in high load high RPM.
12. Boost Controller - To control boost given that you will have exhaust mods <-- agree. I like Hallman MBCs on prespool and wastegate for perfect smooth 2ndary transition.
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported wastegate <-- agree. If the turbo are off, port the wastegate.
14. Upgrade SMIC - the stock unit really sucks <-- agree.
Quote:I would like to get these but I do not think it is needed if all I am doing is mainly exhaust
1. Apexi Power FC - <-- Opens up aftermarket parts options, but also eliminates all stock ECU factory safety net of knock control, overboost fuel cut, etc. Once you do this have a spare engine or finances for one ready.
Last edited by BLUE TII; 10-03-17 at 12:05 PM.
#40
Urban Combat Vet
iTrader: (16)
....
10. Y Pipe - waste of money <-- I like the metal Y pipe. Eliminates a point of failure, looks and flows better than the plastic piece. No downside besides the reasonable cost.
11. Modify Stock Airbox - Good mod <-- agree. Do not do any aftermarket intakes on stock ECU, they will cause lean AFRs in high load high RPM.
12. Boost Controller - To control boost given that you will have exhaust mods <-- agree. I like Hallman MBCs on prespool and wastegate for perfect smooth 2ndary transition.
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported.
10. Y Pipe - waste of money <-- I like the metal Y pipe. Eliminates a point of failure, looks and flows better than the plastic piece. No downside besides the reasonable cost.
11. Modify Stock Airbox - Good mod <-- agree. Do not do any aftermarket intakes on stock ECU, they will cause lean AFRs in high load high RPM.
12. Boost Controller - To control boost given that you will have exhaust mods <-- agree. I like Hallman MBCs on prespool and wastegate for perfect smooth 2ndary transition.
13. Ported Wastegate - If go the full exhaust route, you will very likely require a ported.
Also, just for clarification, wouldn’t the BC be needed to avoid spike when the INTAKE is opened up? AFAIK it doesn’t do anything for creep from EXAUST mods.
#41
Rotary Motoring
iTrader: (9)
Also, just for clarification, wouldn’t the BC be needed to avoid spike when the INTAKE is opened up? AFAIK it doesn’t do anything for creep from EXAUST mods.
It just cycles the solenoids at the rate that was required for a good boost pattern with all the 100% stock restrictive intake, exhaust, IC, etc.
Stock FD boost "control" is just ******* crazy town!
I raced in stock class one year and just the allowed drop in K&N and straight-pipe cat-back was enough to send the stock boost "control" into hysterics and have boost spikes, terrible 2ndary transition and boost cut on the 2ndary turbo in any gear above 2nd because of the stock ECU "10psi" boost limit.
From an earlier owner's Mazda service records of my FD all the way back from 1997 when the straight-pipe cat-back (Looong time auto-x car) was added I saw he was in the dealer several times for these exact issues which they were unable to fix and correctly contributed to the non-stock cat-back.
#42
Full Member
Thread Starter
I ordered an Efini Y-Pipe but was on back order. So they cancelled it out and since my car is running much better I think I could hold off on it for a while or not get it at all. I also ordered a R1 front lip yesterday, the factory one on mine is cracked so decided to just upgrade that. Probably going to pass on the body kit just because I really at this point do not want to mess with it. I picked up a unused rear window spoiler for cheep and it looks horrible(kills the lines of the car), it was not the one I wanted but for the price I said what the heck. So no more window spoiler for me . I did see a ducktail in person at the car show on another RX7 and it looked good. Will probably still get that down the road.
So all I have left to do is get a RB cat back, install the gauges and tint my windows and I will be happy. At some point probably upgrade the intercooler to a stock mount if I come across a good deal and upgrade the radiator if I come across a good deal. With all the feedback I got at the car show keeping it mostly stock like I wanted will be a better eye catcher. One guy was even amazed that it did not have tint and had the factory exhaust. This is a fun car to drive in its stock form!! Took it up to 100 with a buddy and I was only in 4th gear around 5.5k, he was like dang you still have 3 grand left and another gear!!!!!
So all I have left to do is get a RB cat back, install the gauges and tint my windows and I will be happy. At some point probably upgrade the intercooler to a stock mount if I come across a good deal and upgrade the radiator if I come across a good deal. With all the feedback I got at the car show keeping it mostly stock like I wanted will be a better eye catcher. One guy was even amazed that it did not have tint and had the factory exhaust. This is a fun car to drive in its stock form!! Took it up to 100 with a buddy and I was only in 4th gear around 5.5k, he was like dang you still have 3 grand left and another gear!!!!!
#43
Don't worry be happy...
iTrader: (1)
I did just maintenance items, new Denso fuel pump, downpipe, high flow catted muffled midpipe, catback, Y-pipe, smallest SR motorsports stock mount IC and MBCs to keep boost at 10psi and it was running high 12s to low 13s AFRs on the stock ECU in the high load high RPM areas.
My stock AFRs were in the high 9s and low 10s AFR at high load high RPM by the way. That is what Mazda considered safe.
My previous mod list which was same as the above but with stock main cat was what I considered safe enough on high load high RPM AFRs (ran high 11s low 12s).
My stock AFRs were in the high 9s and low 10s AFR at high load high RPM by the way. That is what Mazda considered safe.
My previous mod list which was same as the above but with stock main cat was what I considered safe enough on high load high RPM AFRs (ran high 11s low 12s).
3. Mid-Pipe - NO. Stock cat assembly only on stock ECU!
It is not that I don't like it, I mean it looks great polished but it doesn't do much as far as reliability. It's not like our stock Y pipes are known to pop off. Nevermind, that the next component down the line (IC) is joined by a coupler
Also, just for clarification, wouldn’t the BC be needed to avoid spike when the INTAKE is opened up? AFAIK it doesn’t do anything for creep from EXAUST mods.
#44
rotorhead
iTrader: (3)
Let me warn you. Any part of the interior you remove is highly likely to break. If you pull the door panels to install tint, they will never go back on like they were from the factory. They will never be right again, and you can't get new ones. They might rattle more, or some plastic will crack, or any number of things. If you pull something off, have a replacement part handy, or be ready with the hot glue gun. All the plastic clips are at risk for breaking for example.
Gauges are overrated on a mostly stock car. If you need to diagnose a boost problem you can temporarily install a boost gauge, without drilling holes into panels. Once you go down the road of a new ECU or messing with the stock boost control system you will have to constantly monitor it. Boost changes with the weather etc. Stock boost control system is the most reliable as long as you stay close to stock level of exhaust restriction. Of course it's going to run poorly if you open the exhaust up on stock ECU. That's typical for any boosted car with an open exhaust and stock tune.
The stock coolant temperature gauge is fine. It tells you when you are too cold and it tells you when you are too hot. There are millions and millions and millions of cars on the road with the non-linear stock gauge. If your cooling system is maintained and you'll be fine. If you are racing that's a different situation.
Gauges are overrated on a mostly stock car. If you need to diagnose a boost problem you can temporarily install a boost gauge, without drilling holes into panels. Once you go down the road of a new ECU or messing with the stock boost control system you will have to constantly monitor it. Boost changes with the weather etc. Stock boost control system is the most reliable as long as you stay close to stock level of exhaust restriction. Of course it's going to run poorly if you open the exhaust up on stock ECU. That's typical for any boosted car with an open exhaust and stock tune.
The stock coolant temperature gauge is fine. It tells you when you are too cold and it tells you when you are too hot. There are millions and millions and millions of cars on the road with the non-linear stock gauge. If your cooling system is maintained and you'll be fine. If you are racing that's a different situation.
#45
Rotary Motoring
iTrader: (9)
Considering boost is controlled properly at a solid 10 lbs: Please elaborate how a midpipe affects AFR's.
Anything you do to de-restrict the intake or exhaust affects the engine Volumetric Efficiency even when held at the exact same boost pressure. More air in, more fuel needed.
This is the weak point when modifying a vehicle like the FD RX-7 that uses Manifold Absolute Pressure as the load input to the ECU and the ECU just looks up fuel and ignition tables for its stock engine Volumetric Efficiency to suite the boost pressure reported by the MAP sensor.
The Racing Beat cat back is a very effective restriction that limits the engine VE, so with your set-up you did not run lean on the high end RPMs.
I did not have a Racing Beat cat-back, but instead a 3.5" cat-back therefore I had to use the stock cat as the very effective restriction to limit the engine VE.
#46
Senior Member
Wait wait wait--are you telling me there's no knock control or fuel cut on the Power FC? I didn't realize that. I was hoping to install one someday on my car even with it being mostly stock, just so I could smooth out the boost spike and other fine tuning.
#47
The overboost protection however is about 0.3 bar above your set boost level. So, if you set the PFC for 10 PSI boost but you spike then the fuel cut from the PFC will kick in around 14.5 PSI. So, you better have enough fuel in the car at the sensitive points of the map (transition area on the twins and upper end of the RPM range) for 14.5 PSI in case you spike that bad before the PFC fuel cut kicks in. Usually you never spike quite that much but I made sure my map is nice and rich for most of it in all honesty just in case. I don't care if I might lose 5-10 hp.
#48
Don't worry be happy...
iTrader: (1)
Anything you do to de-restrict the intake or exhaust affects the engine Volumetric Efficiency even when held at the exact same boost pressure. More air in, more fuel needed.
This is the weak point when modifying a vehicle like the FD RX-7 that uses Manifold Absolute Pressure as the load input to the ECU and the ECU just looks up fuel and ignition tables for its stock engine Volumetric Efficiency to suite the boost pressure reported by the MAP sensor.
The Racing Beat cat back is a very effective restriction that limits the engine VE, so with your set-up you did not run lean on the high end RPMs.
I did not have a Racing Beat cat-back, but instead a 3.5" cat-back therefore I had to use the stock cat as the very effective restriction to limit the engine VE.
This is the weak point when modifying a vehicle like the FD RX-7 that uses Manifold Absolute Pressure as the load input to the ECU and the ECU just looks up fuel and ignition tables for its stock engine Volumetric Efficiency to suite the boost pressure reported by the MAP sensor.
The Racing Beat cat back is a very effective restriction that limits the engine VE, so with your set-up you did not run lean on the high end RPMs.
I did not have a Racing Beat cat-back, but instead a 3.5" cat-back therefore I had to use the stock cat as the very effective restriction to limit the engine VE.
Last edited by Montego; 10-03-17 at 05:23 PM.
#49
rotorhead
iTrader: (3)
Reduced backpressure can reduce the residual gas content that dilutes the intake charge air. It's easier to evacuate the combustion chamber during the exhaust stroke.
So with less inert exhaust gas carried into the intake stroke, there is more room for combustible fresh air. Combustible fresh air requires more fuel mass in order to maintain the appropriate air fuel ratio.
So with less inert exhaust gas carried into the intake stroke, there is more room for combustible fresh air. Combustible fresh air requires more fuel mass in order to maintain the appropriate air fuel ratio.
